Nex 886738 User manual

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11
ASSEMBLY INSTRUCTIONS.
IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple
step by step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction
area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
Helpline
If you have any problems with this
product or require any replacement
fittings please contact Customer
Services Tel: [phone]
Regrettably self assembly items cannot be returned once assembly is part or fully
completed unless the item is found to be faulty. Should you need to return the
unassembled product, please repack in the original packaging.
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Always use a non-silicone based furniture polish. Silicone in furniture polishes can break
down the lacquer finish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
Avoid keeping furniturein direct sunlight or closeto any heat sources as this can cause
cracking,
discolouration or warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
All assembly fixings should always be tightened properly and periodically check all fixings and
tighten if necessary.
• The finish will mellow and change colour over time.
CARE INSTRUCTIONS
PRODUCT INFORMATION
Tools Needed
Made in Poland.
GLASS INFORMATION
This item contains glass. Please handle with extreme care.
Batch No: MM-42 , Date of Manufacture: May 2013
This unit contains safety film backed mirrored glass door panels of a nominal thickness of 3 mm
which are not required to be classified to BS 6206.
If a glass component is chipped or broken replace with glass of the type described on this label.
Consult the manufacturer, retailer or agent with regard to obtaining a manufacturing specification
and shape for replacement glass quoting the model number, and batch number or date of
manufacture.
1
886738 STANTON DARK TALL SHELF

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11

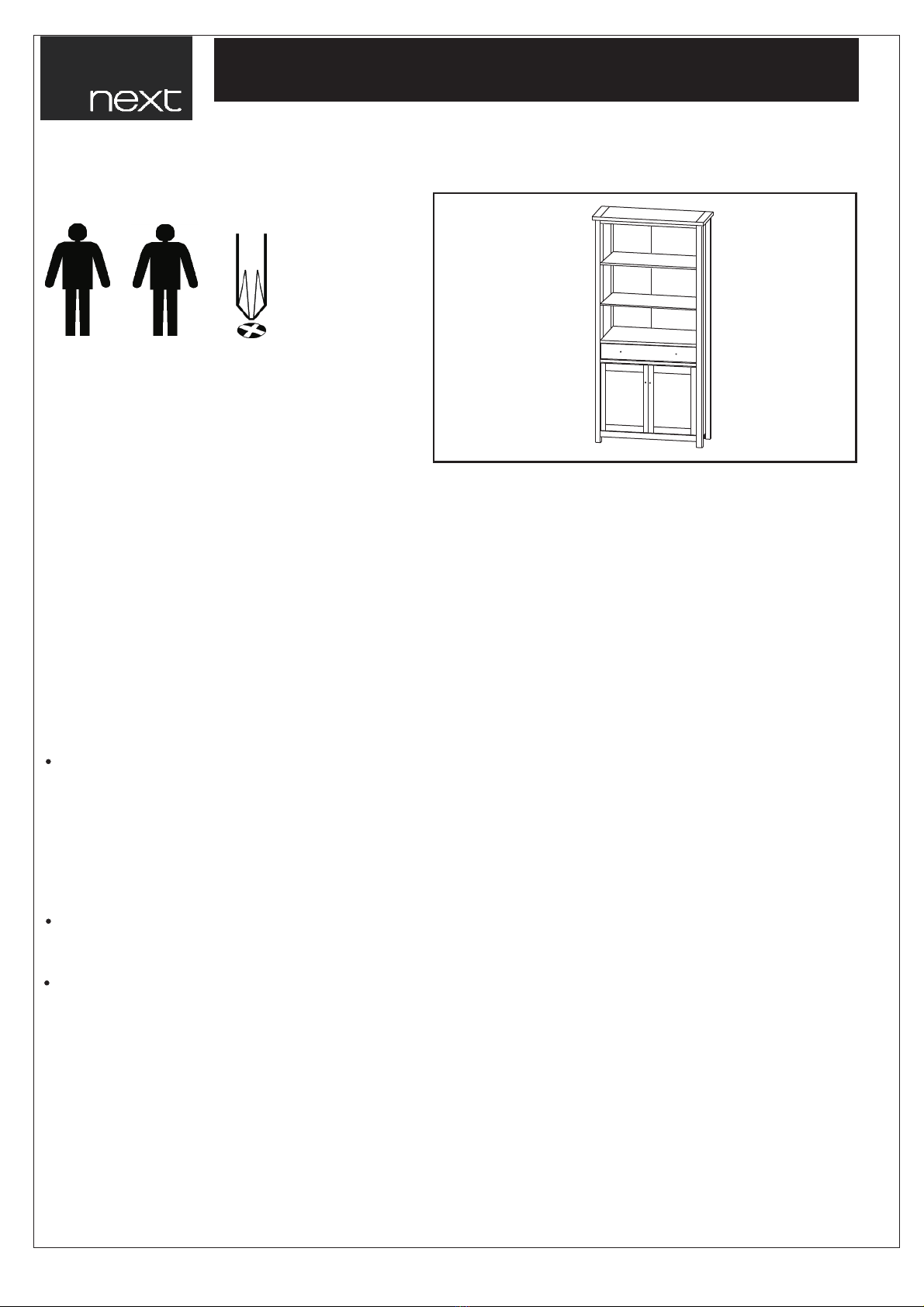

2 PERSON ASSEMBLY
ASSEMBLED DIMENSIONS
APPROXIMATE ASSEMBLY TIME
REQUIRED ASSEMBLY TOOLS
REQUIRED ASSEMBLY SPACE
FLOOR AREA
2.5 M x 2,0 M
1.5 hrs
2
840mm
1844 mm
350 mm

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11
3
1
23
4
5
6
7
89
10
11
13
13
13
16
14
15
17
12

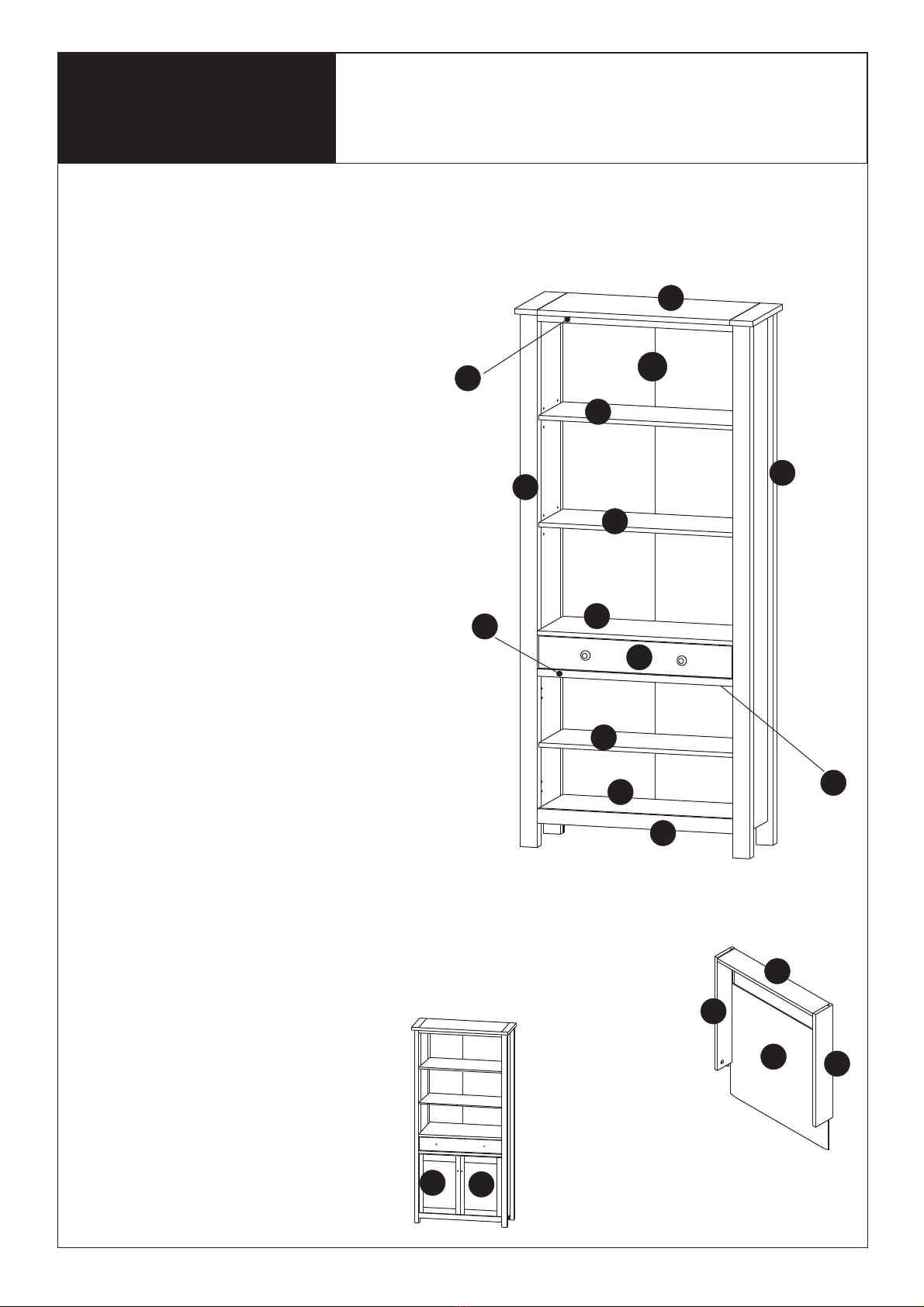

PARTS LIST
NO PART LIST QTY
.
(1) TOP PANEL
(2) BOTTOM PANEL
(3) CONSTRUCTOR RAM
(4) STRIP FRONT - BOTTOM
(5) STRIP FRONT
(6) STRIP FRONT - TOP
(7) HORIZONTAL DIVIDER
(8) DOOR - L
(9) DOOR - R
(10) SIDE - R
(11) SIDE - L
(12) DRAWER FRONT
(13) SHELF
(14) DRAWER SIDE - L
(15) DRAWER SIDE - R
(16) DRAWER BACK
(17) DRAWER BOTTOM
(18) BACK PANEL
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
18

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11 4

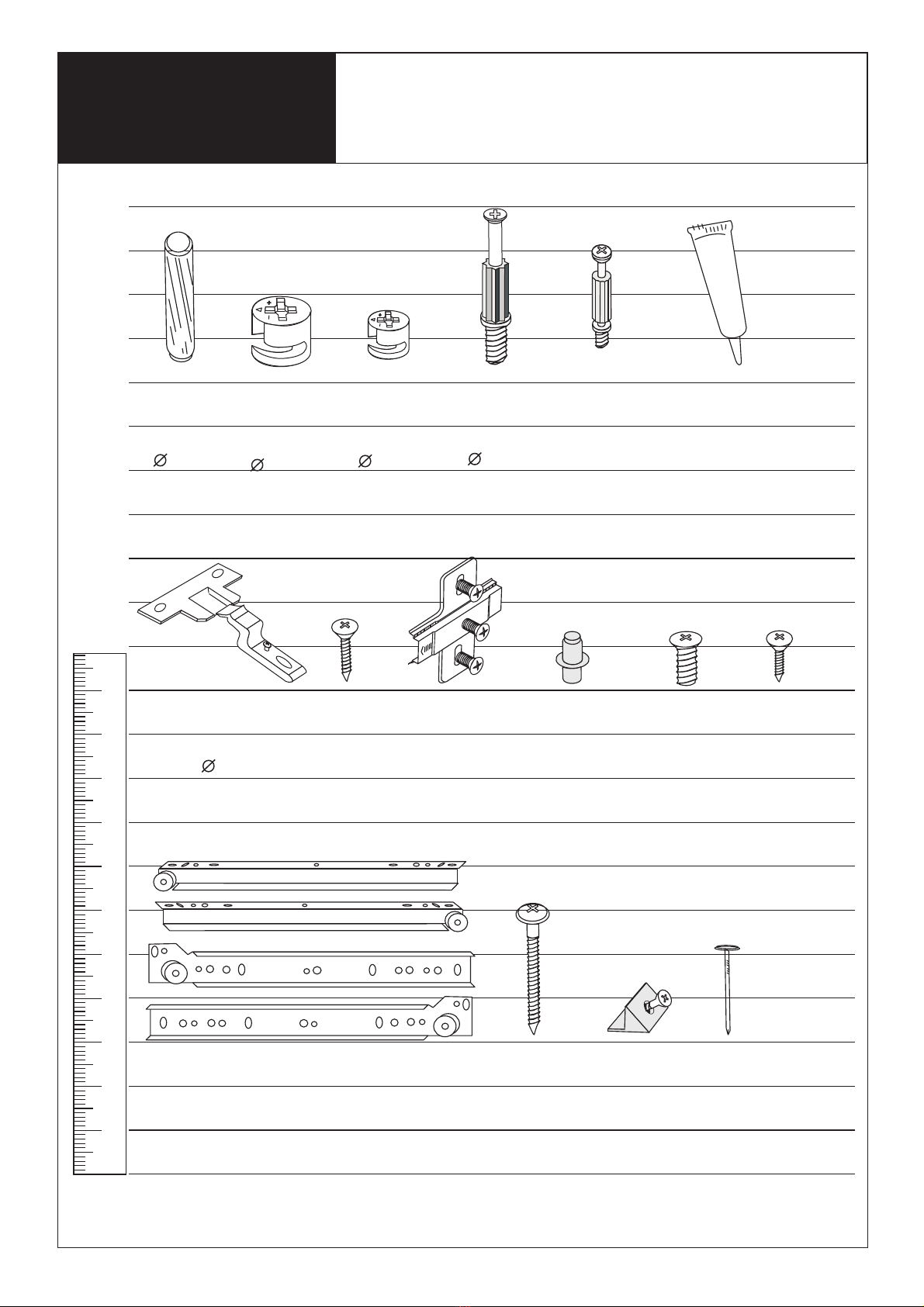

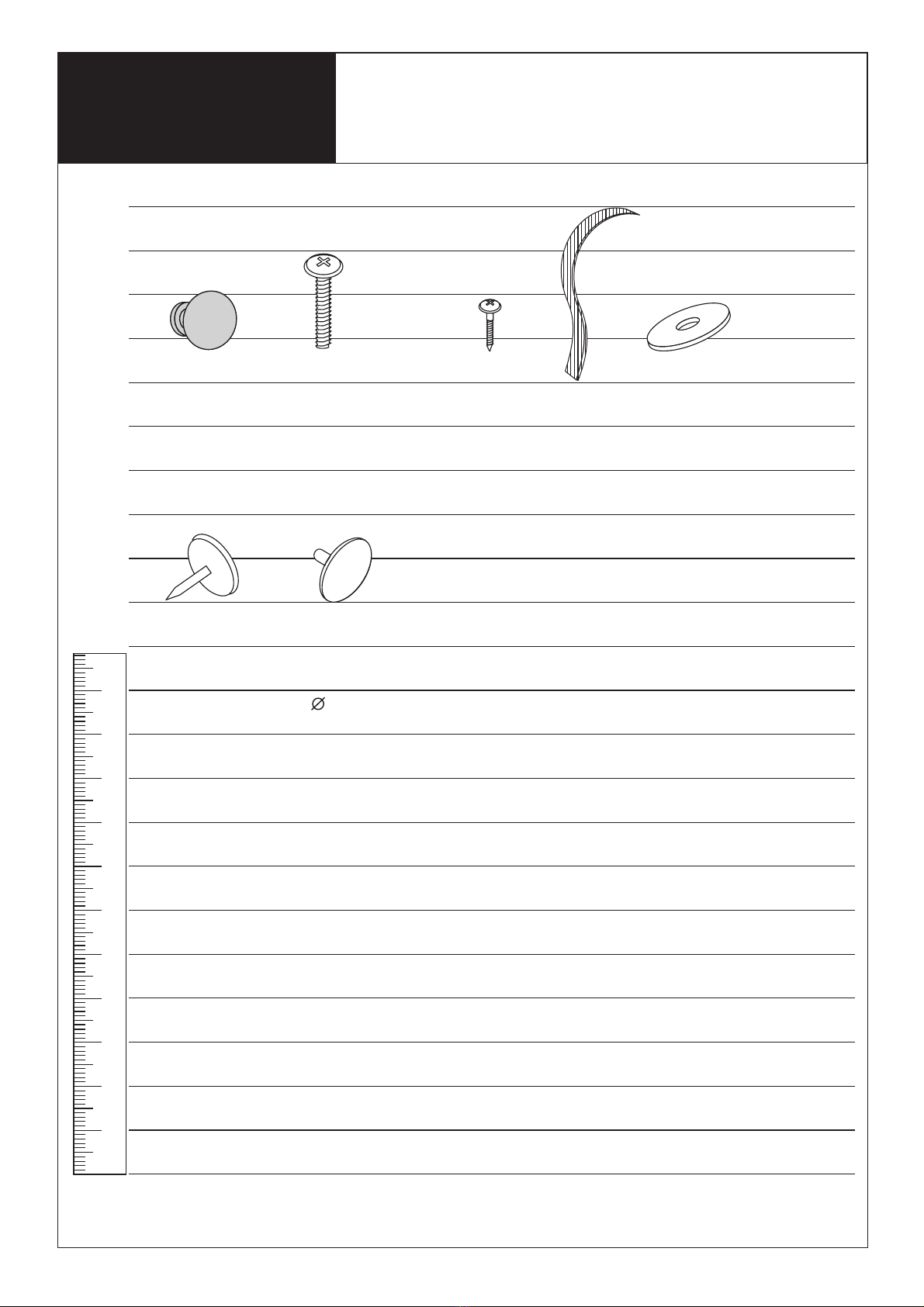

HARDWARE LIST DO NOT MIX CONTENT OF HARDWARE BOXES
10 20 30 40 50 60 70 80 90 100 mm
A
X21
8x28
DOWEL
BAG 1
BAG 6
B
X20
15x12
CAM LOCK
+
BAG 1
+
B1
X2
12x10
CAM LOCK
BAG 6
5x39
CAM BOLT
X20
C
BAG 1
5x32mm
CAM BOLT
X2
C1
BAG 6
1:2
X1
BAG 1
GLUE
D
X4
1:2
E
26
HINGE
BAG 4
X8
E1
SCREW
4x13
BAG 4
1:2
F
X4
HINGE PLATE
BAG 4
G
X12
SHELF
SUPPORT
BAG 1
H
L-270mm
BAG 3
1x Left /1x Right
ROLLER RUNNER
H1
BAG 3
6x8mm
SCREW
X4
H2
BAG 3
X4
3,5x13mm
SCREW
X2
I
BAG 6
4x30mm
SCREW
X16
J
BAG 1
PLASTIC
SUPPORT
K
BAG 1
X12

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11
HARDWARE LIST DO NOT MIX CONTENT OF HARDWARE BOXES
10 20 30 40 50 60 70 80 90 100 mm
HANDLE
L
X4
L1
X4
wpm4x25
SCREW
BAG 2 BAG 2
x1
M
SCREW
3,5x13
BAG 5
Strap
L-250x20
x1
N
BAG 5
Washer
x2
O
BAG 5
f18
P
x4
NYLON FEET
BAG 1 BAG 1
R
15mm
CAM COVER
x4
5

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11

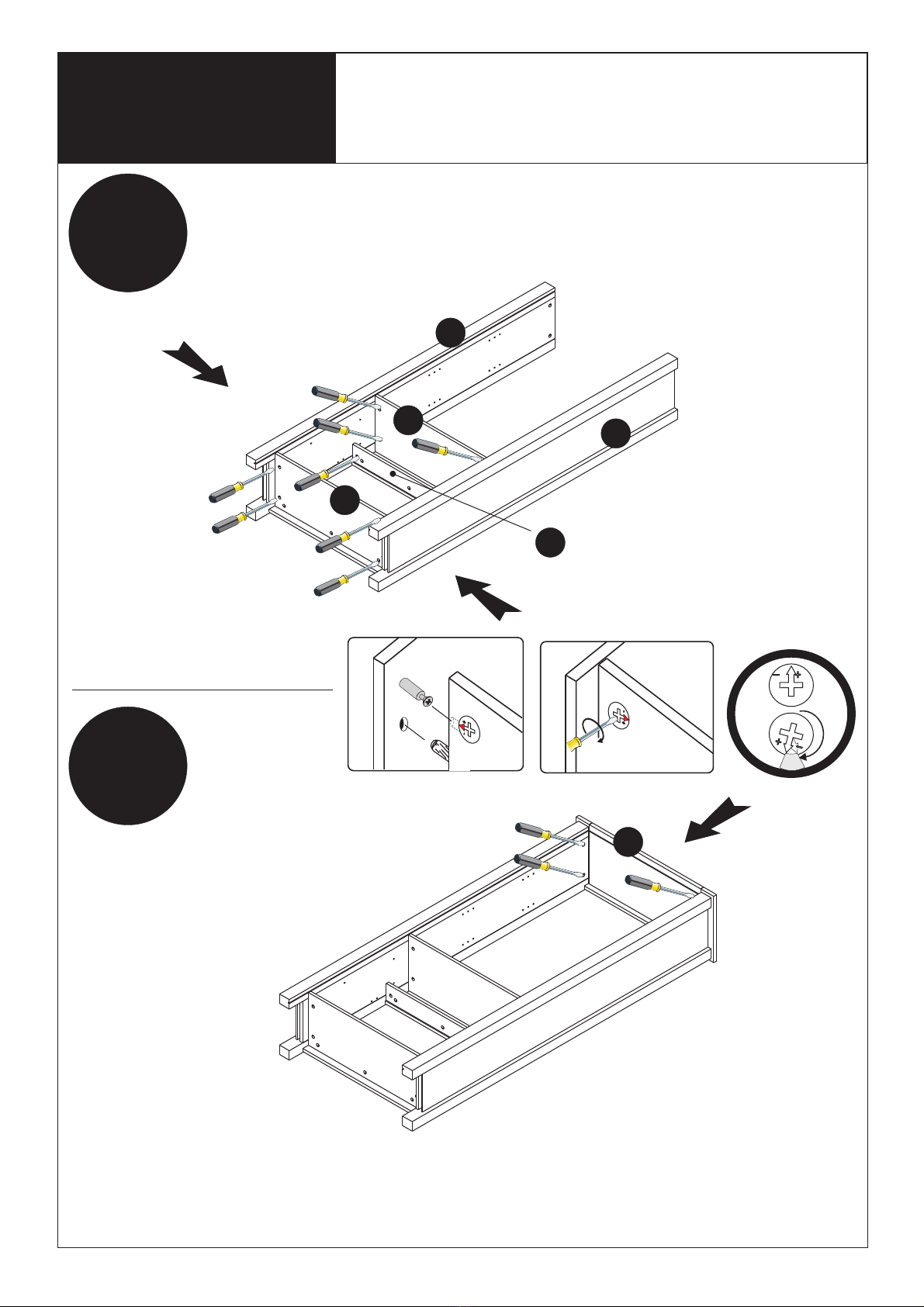

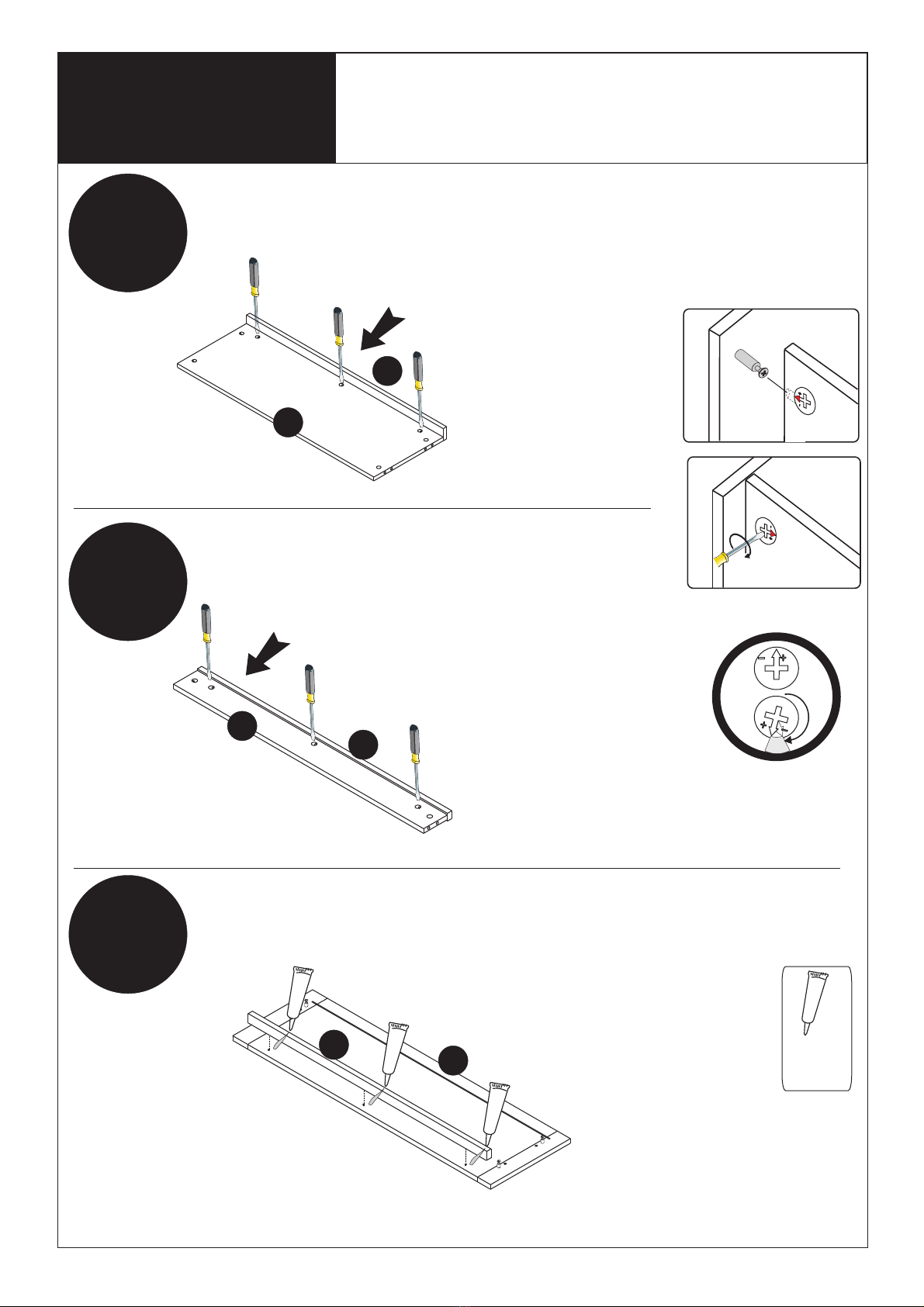

SCREW IN CAM SCREWS
ONLY D O W N TO F I R S T R I N G.
FLUSH
WITH
PANEL
1
PRESS PANELS TOGETHER ALIGNING
DOWEL WITH H O L E S , C A M S C R E W S W I T H L O C K S .
3
TO SECURE PA N E L S ,
TURN CAM LOCKS 1/2 TURN CLOCKWISE.
4
CAM SH OW N IN
LO CK ED P OS IT IO N.
+
+
PRESS IN CAM LOCKS. A R R O W O N C A M
LOCK MUST FA C E H O L E I N PA N E L EDGE.
DO N OT IN SE R T DO WEL S
IN C AM SC RE W / L OC K HOL ES .
2
+
+
6

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11
a)
B
A
b)
A
c)
C
C
Instructions for hinge adjustment
a) Side adjustment:
b) Depth adjustment:
c) Height adjustment:
Loosen fixing screw "A", adjust gap with screw "B" and retighten
screw "A".
Loosen fixing scerw "A", push hinge arm forwards or backwards,
Loosen screw "C", adjust height, retighten screw "C".
retighten screw "A", fix screw "B" with a 1/4-turn in clock-wise
direction.
7

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11
ASSEMBLY INSTRUCTION FOR DRAWER SLIDE A&B
SPECIAL TIPS FOR DRAWER SLIDE A
SPECIAL TIPS FOR DRAWER SLIDE B
FRONT
FRONT
FRONT
FRONT
THIRD HOLE
LAST THIRD HOLE
BACK
BACK
BACK
BACK
270mm
6x8mm
3,5x13mm
3,5x13mm
6x8mm
8

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11 9
1
C
X4
+
B
X7
A
X4
+
+
+
+
+
2
1
2
3
4
56
C
X6
+
B
X5
A
X5
D
X1
A
A
B
B
C
C
C
C
C
C
C
C
B
B
B
A
A
A
D
D
D
+
CO R RE C T
+
IN C OR R EC T
Cam p os t -
fix ed u nti l the
bas e of t he
sha ft i s ti ght
and f lu sh
wit h th e
boa rd s urf ace
A
A

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11
8
10
3
E
X4
E1
X8
+
+
+
CORRECT
+
IN C ORR ECT
+
B
X4
A
X4
4
7
89
A
A
B
B
E1
E

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11
5
6
7
2
4
35
1
6
D
X1
D
D
D
+
+
1/2 T URN
CLO CKW ISE .
+
+
11

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11
C
X10
+
B
X4
A
X4
G
X12
F
X4
H
X1L x1R
H1
X4
+
+
+
+
front
front
front
front
8
10
11
P
X4
F
F
G
G
G
G
A
A
B
B
B
B
C
C
C
C
H1
H1
H1 H1
H
H
P
P
+
CORR E CT
+
INCO R RECT
Ca m pos t -
fi xed u nti l the
ba se of t he
sh aft is t igh t
an d flu sh
wi th th e
bo ard s urf ace
12

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11
+
+
+
+
1/2 TURN
CLOCKWISE.
C1
X2 B1 X2 I X2
+
H
X1L/ x1R H2 X4
12
3
6
9
0,5h
9
A
X4
o
90
J
X4
16
16
14
14
15
15
17
12
12
A
A
A
A
C1
C1
B1
B1
I
I
I
H
H
H2
J
13

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11
10
11
11
10
7
3
2
1
+
+
1/2 T URN
CLO CKW ISE .
+
+
14

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11
o
90
90°
Ba c k pan el ke eps
un i t sq u are .
Tac k bac k p an e l
fo r c or n ers f irs t
an d w or k y our
wa y a rou nd.
L
L1
12
13 13
13
13
12
K
X12
J
X12
L1
X2
L
X2
K
KJ
18
15

Assembly
Instruction
886738 STANTON DARK TALL SHELF
DESCRIPTION:
of 16 P9--SD 11

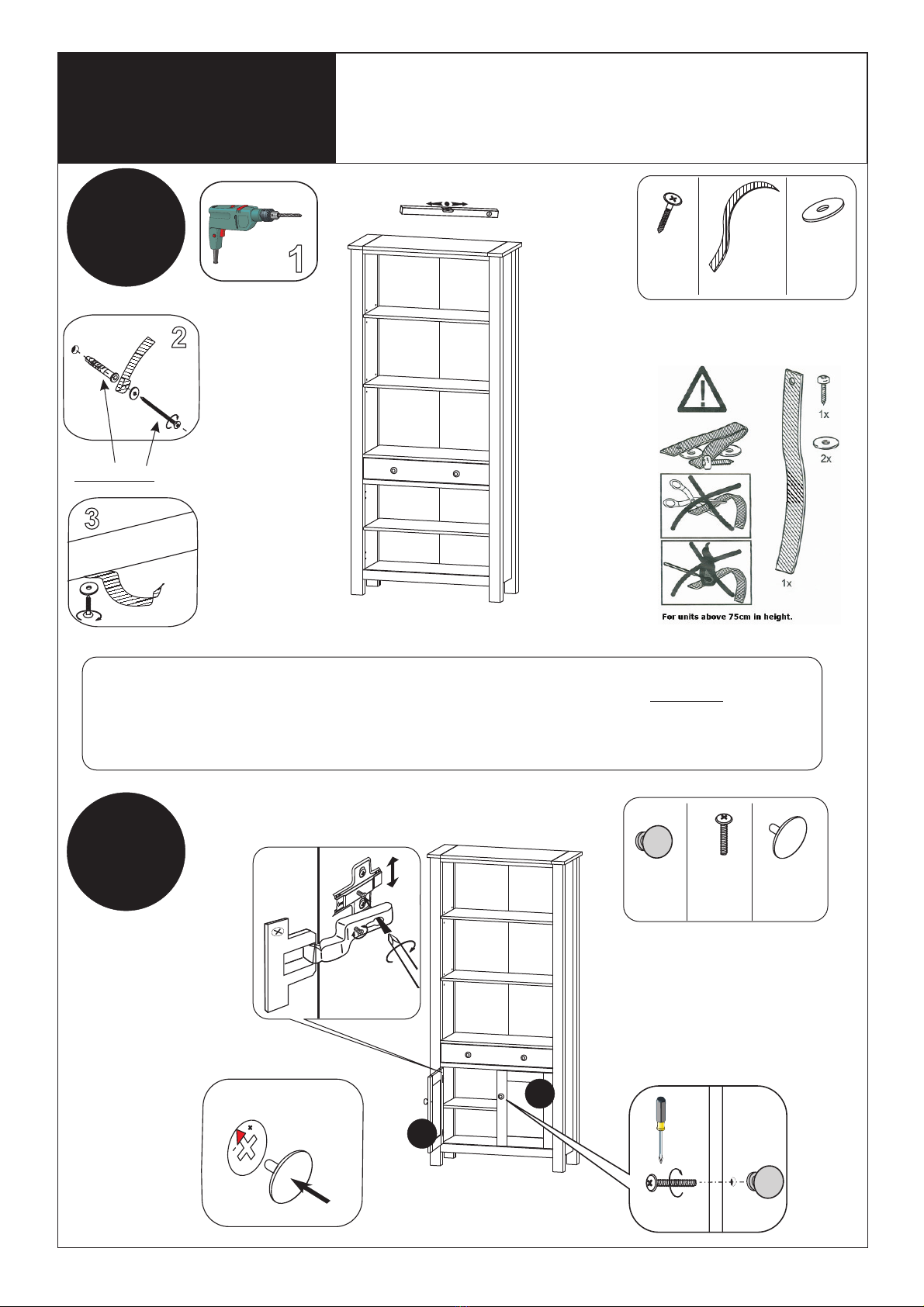

Wall fixings are not supplied with this product as different wall materials require different
types of fixing devices( such as Rawl plugs used on brick work).You fixing
devices suitable for the type of wall you intend to mount this product to.
Please ensure that the head of any screw used has a diameter greater than the diameter
of the mounting hole on the product and that the fixing is safe and secure before use.
must use
*
8f
1
NOT SUPPLIED *
2
3
14
O
x2
N
x1
M
x1
L
L1
8
9
L1
X2
L
X2 R X4
+
15
M
N
N
O
O
R
NEXT Retail Ltd, Desford Road, Enderby Leicester, LE19 4AT 16
