Nexans iGigaSwitch 542S SFP-2VI Manual

-1 -
Industrial Ethernet
iGigaSwitch 542S SFP-2VI
Description and Operating Instructions KD859E03
Fig. 1: iGigaSwitch 542S SFP-2VI PRO3 – front view (without SFP modules)
Order names
iGigaSwitch 542S SFP-2VI PRO3 5-Port switch with 4(3) TP- and
1(2) Small Form-factor Pluggable (SFP) Ports
iOption PoE Typ af 4-15 B Option “Power over Ethernet” (PSE)

Nexans Advanced Networking Solutions iGigaSwitch 542S SFP-2VI
-2 -
Features
iGigaSwitch 542S SFP-2VI PRO3
x5-Port switch with 4(3) TP- and 1(2) (SFP) Ports
(SFP = Small Form-factor Pluggable)
x2x 100/1000 Mbps SFP module slots
(Gigabit/Fast Ethernet – Vario Ports)
x4x 10/100/1000 Mbps Twisted Pair Gigabit Port – use alternate to SFP Port 1*
with
iOption PoE Typ af 4-15 B
oExternal powering of attached devices via the TP data line (endpoint insertion mode A – data pairs 1-2, 3-6)
on TP ports 1…4
oAccording to IEEE802.3af
oElectrical isolation of the supply voltages from the system
oResistive Power Discovery method
oPower consumption of a connected device max. 12.95 W
General
o5-Port switch for connecting devices or users with LAN interface
o1000 Mbps Gigabit Ethernet according to IEEE802.3z/-ab
o10/100 Mbps Ethernet/Fast Ethernet according to IEEE802.3u
o10BASE-T -> 100BASE-TX – for migrating networks from 10 Mbps to 100 Mbps
o100BASE-TX -> 1000BASE-T – for migrating networks from 100 Mbps to 1000 Mbps
oProtocol-transparent transmission
oStore and forward switch, self-learning
oTemperature range: -25°C to +70°C
o2 alarm contacts
o1 function contact
oDIP-switch configuration
oHardware Reset
Management
oUpdate-ready management system for customized configuration
oSupports Web/Telnet/SNMP/V.24 (RS232) user interfaces
oComprehensive security management, including different authentications (RADIUS, IEEE802.1x etc.)
oSeveral power inputs S1/S2, PoE (PD) + PSE monitoring and signalling traps for service
oConfigurable function contact
oAutomatic and manual setting of the transmission mode on all ports
oComprehensive setup and monitoring features for Power over Ethernet PoE (PSE)
oAutomatic back pressure flow control can be set in half-duplex (HDX) mode
oFlow control according to IEEE 802.3x can be set in full-duplex (FDX) mode
oSFP DMI readout and analysis with diagnostic monitoring interface (DMI) to SFF8472 etc.
oSFP DMI state readout, monitoring and signalling traps for service

Nexans Advanced Networking Solutions iGigaSwitch 542S SFP-2VI
oEnhanced management features such as DHCP, VLAN, port prioritisation, IEEE802.1p, IPv4, IPv6, IEEE802.1Q
Tagging, QoS, etc.
oSeveral different alarm and signalling traps for service and security support
oUp to 8 different categorisable trap and/or syslog destinations
oV.24 (RS232) setup and configuration interface
oMemory card (MMC) for storing configuration files etc.
oSET pushbutton for selecting different boot sequences
oBootP protocol
Mechanical design
oCompact design
oRobust aluminium housing
oFanless system
oDIN-rail mounting
Indicators
Easy-to-read LED combinations for displaying the operating status:
oS1, S2 power supply
oPSE state for Power over Ethernet supply
oM1, M2 alarm
oRun – switch is ready to operate
oLink – status: Link and Receive data indication per port
oSpeed - Speed indicator TP-Ports: 10/100/1000 Mbps
Twisted Pair interfaces
oElectrical interfaces according to
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
oMDI/MDI-X auto-crossover and auto-polarity
o10/100/1000 Mbps Ethernet / Fast Ethernet / Gigabit Ethernet Twisted Pair port – up to 100 m
oAutonegotiation / 10/100/1000 Mbps Ethernet / Fast Ethernet / full-duplex or half-duplex
oShielded RJ45 sockets
SFP* Slot Interfaces
oSFP-I plug-in slot for on-site accommodation with fiber-optic (GI, SM) or Twisted Pair plug-in modules – also in
mixed configurations. The state of module is only readable with SFP module incl. DMI** interface
oaccording
IEEE802.3z 1000BASE-LX / 1000BASE-SX
IEEE802.3u 100BASE-LX / 100BASE-SX
IEEE802.3ab 1000BASE-T (Twisted pair)
Power supply
oInput voltage nominal 24 VDC / 48 VDC (S1/S2)***
oRedundant power supply
-3 -

Nexans Advanced Networking Solutions iGigaSwitch 542S SFP-2VI
oWide Range Power Supply 21…57 VDC
oElectrical isolation of the supply voltages from the system
oProtection against polarity reversal and transients
oNo load sharing of S1/S2
oLow current consumption
oVoltage indicators for all supply voltages
oS1, S2 – 4-pin terminal block, screw-on type
Power over Ethernet PSE 4-15 B (Option)
oAccording to IEEE802.3af
oElectrical isolation of the supply voltages from the system
oResistive Power Discovery method
oPoE PSE Power Source Equipment (PSE)
oExternal powering of attached devices via the TP data line (endpoint insertion mode A – data pairs 1-2, 3-6) on TP
ports 1…4
oSupply system power max. 15.4 W/port depending on parameters of externally connected 48 V power supply
(S1/2)
oPower consumption of a connected device max. 12.95 W
oInput voltage range 46...48...57 VDC
oPolarity reversal protection
oPSE indicator
Range of accessories
oSet of terminal blocks for iSystems - (included in scope of delivery)
oRJ45 dust-protection caps (10 pieces) - (included in scope of delivery)
oDIN-rail Mounting Clip, stainless steel - (included in scope of delivery)
oMounting rail for iSystems - (for wall mounting)
Management Options
oV.24 configuration cable
oMMC memory card for iSystem
oNexConV3 – software tool for easy start-up – setting of IP addresses, unit status
oNexManV3 – software tool with database for centralized network service – configuration, update and monitoring of
your network configuration
* SFP Interface - Small Form-factor Pluggable – (1G/100M Fiber-optic or 1G Twisted Pair)
** DMI - Diagnostic Monitoring Interface
*** S1..S2 refer to the different supply voltage inputs and indicators
-4 -

Nexans Advanced Networking Solutions iGigaSwitch 542S SFP-2VI

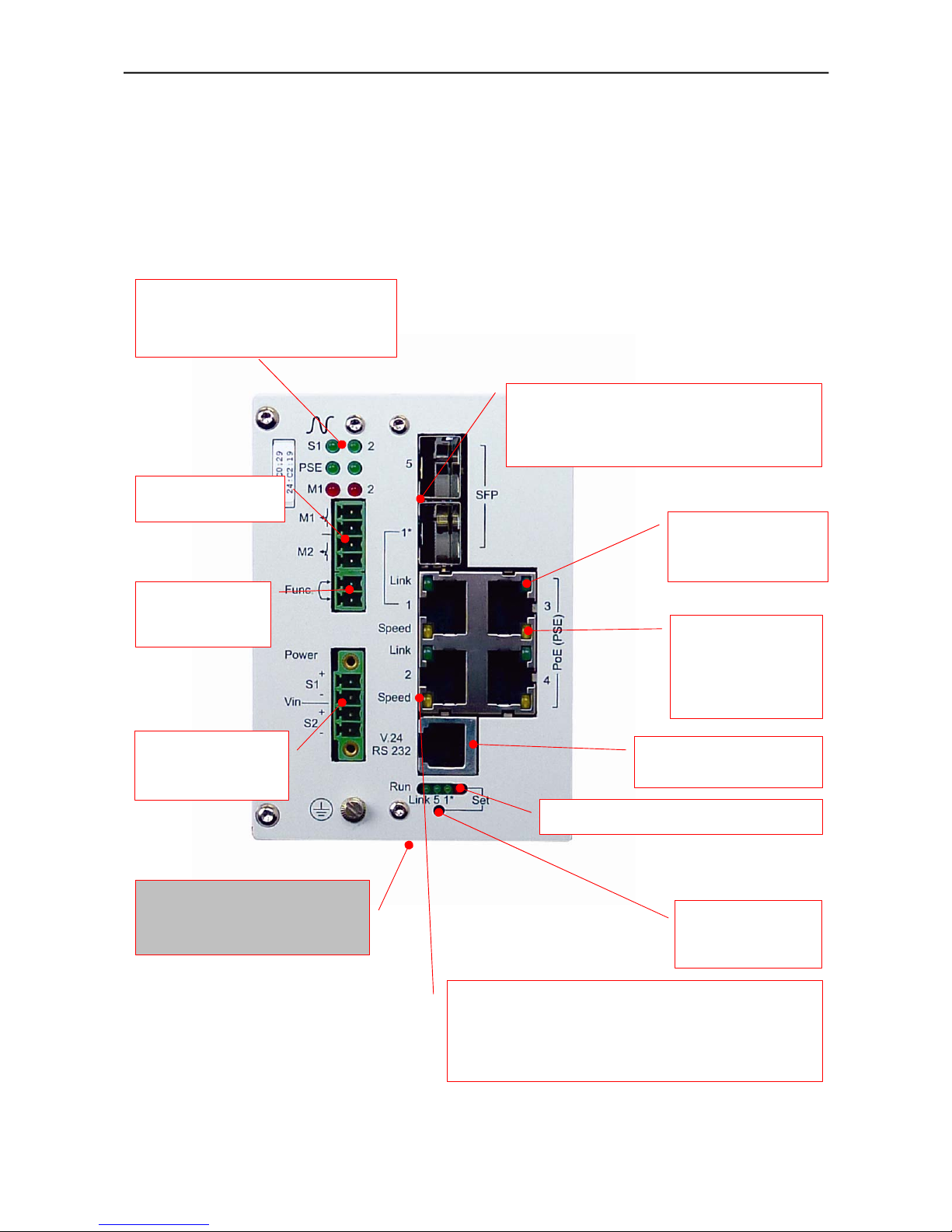

Overview iGigaSwitch 5xxS ..
(Example: iGigaSwitch 542S SFP-2VI PRO3)
Power supply status
S1, 2 = 24/48 VDC version
PSE = PoE (PSE)
- 4 users can be su
pp
lied with
p
owe
r
2x SFP-I Slots
Small Form-factor Pluggable
1x 100/1000 Mbps (Vario Slot, Port 5)
1x 100/1000 Mbps (Vario/Combo Slot, Port 1*)
Alarm contacts
M1/M2
TP indicator: green
Link and Data
indicator
„Func.“ –
configurable
function contact TP indicator: yellow
programmable
function LED
Default = Speed
(see Management)
V.24/RS232 interface
Configuration interface
Function and status indicators (switch)
Management
Configuration
settings (booting)
4x User ports RJ45
10/100/1000 Mbps – Port 1-4
(if Vario Slot Port 1* is not equipped with SFP !)
4x Power over Ethernet (PSE), Mode A
Port 1-4 – for power supply of a maximum of 4 users
2x 24/48 VDC
connection
S1 / S2 (redundant)
Rear panel:
Rail mounting
10-pin configuration switch (DIL)
-5 -

Nexans Advanced Networking Solutions iGigaSwitch 542S SFP-2VI
Technical Data
iGigaSwitch 542S SFP-2VI
Parameter Unit min. typical max.
Power Supply (S1,S2)
Input voltage VDC 21 24 57
Input current consumption (24 V) A 0,44
Power consumption (24 V) W 5,8 8 9,2
Interface connector 24 V power supply
(front panel)
S1, S2 4-pin terminal block, screw-on type
iGigaSwitch 542S SFP-2VI
with iOption PoE Typ af 4-15 B
Parameter Unit min. typical max.
Power supply (S1,S2)
Input voltage S1/S2 for PoE (PSE) VDC 46 48 57
Input voltage S1/S2 without PoE (PSE) VDC 21 48 57
Input current consumption (48 V),
system + PoE powered devices
A 0,17 1,3 1,56
2,13 (100 ms)
Input power, total W 7,56 59,4 72
Interface connector 24 V power supply
(front panel)
S1, S2 4-pin terminal block, screw-on type
„Power over Ethernet“ per Port
Output power, per port
Power level output at PSE*
Power level at powered device (PD)
W
W 0,44
15,4
12,95
Output current, per port A 0,35 0,5 (100 ms)
TP1 ... 4
Interface connector PoE(PSE)*
* PSE power source equipment
Pin assignment of RJ45 socket on port 1...4 MDI(X)
Mode A
Pins 1-2 negative / pins 3-6 positive
(center tapping)
-6 -

Nexans Advanced Networking Solutions iGigaSwitch 542S SFP-2VI
iGigaSwitch 542S SFP-2VI
Parameter Unit min. typical max.
General and mechanical specifications
Model Aluminium case for 35 mm DIN-rail mounting in
accordance with EN 60715 (EN 50022)
Option: wall-mounting
Application area Industry, stationary usage
complete, closed, weather-protected mounting
Dimensions (Housing) Width (mm) 75
Height (mm) 105
Depth (mm) 106
Housing design Anodised / varnished aluminium edgewise case
IP degree of protection IP 30
EN 60529
°C Operation -25 to +70Ambient temperature
°C Storage -40 to +85
Relative humidity % up to 95 (non-condensing)
Cooling
Distance recommended for the entire
operating temperature range
Convection, no fan
mounting distance:
10 mm (left/right)
25 mm (above/below)
Weight g 670
Switch – functional parameters
Switching method Store and forward, , self-learning
Data throughput per port (1000 Mbps) Packets/sec. 1488000
Packet buffer Mbyte 1
MAC address table, entries Number 8 k
Aging timer Seconds 300
Packet length
(Jumbo Frames)
byte 64 1518 10240
IEEE802.1Q VLAN IDs Number 4096
Flow control in HDX mode Back pressure through 96 bit JAM
Flow control in FDX mode Flow control in accordance with IEEE 802.3x
Alarm contacts
Alarm contacts (M1, M2) Number 2 (Alarm contact = open)
Alarm contact load capacity per contact VDC
ADC
30
1
Alarm contact – interface connector M1/M2 4-pin terminal block
Function contact Func. 2-pin terminal block
(An opened/closed function contact will activate the
-7 -

Nexans Advanced Networking Solutions iGigaSwitch 542S SFP-2VI
iGigaSwitch 542S SFP-2VI
Unit
Parameter min. typical max.
operation sequence as configured in the management!)
Set – Mode
Set button (front panel) ->
Number 4
1. Reset
2. „fix IP“ address
3. „Factory default“
4. „fix IP“ address + „Factory default“
V.24 (RS232) pining:
Pin:
1
2
3
4
5
6
Pin:
1
2
3
4
5
6
Description
RTS (DI)
n.c.
TxD
GND
RxD
CTS (DO)
DCD
DTR
DSR
RI
Pin (9pol. D-Sub female)
7
n.c.
3
5
2
8
1-
4- jumper
6 -
9 n.c.
LAN Interface SFP and TP
‚Uplink’-Interface - SFP
SFP - Small Form Factor Pluggable Interface
Input/output signals (100/1000 Mbps)
Comment: If Port 1* is equipped with SFP,
TP-port 1 cannot be used!
Standard FO-SFPs according to
IEEE802.3z 1000BASE-X
IEEE802.3u 100BASE-X
as a function of the optional SFP module
TP-SFPs according to
IEEE802.3z 1000BASE-X
SFP-slots Number 2
Combinations-Port SFP 1* – TP Port 1
Diagnostic Interface (DMI) Number 2
Transmission Mode - Speed
SFP-Fiber Optic
SFP-Twisted Pair
Mbps
Mbps
100/1000
1000
Electrical interfaces (10/100/1000 Mbps)
Terminal ports 1..4
Input/output signals Standard In accordance with
IEEE802.3 10BASE-T, full-, half-duplex and/or
IEEE802.3u 100BASE-TX, full-, half-duplex
IEEE802.3ab 1000BASE-T
Interface connector port 1...4 RJ-45, shielded
IEEE802.3ab 1000BASE-T
-8 -

Nexans Advanced Networking Solutions iGigaSwitch 542S SFP-2VI
iGigaSwitch 542S SFP-2VI
Unit
Parameter min. typical max.
RJ45 - MDI-X pin assignment
MDI/MDI-X auto-crossover feature allows
RD and TD to be reversed. With the auto-
polarity function + / - can also be reversed.
MDI(X)
1 BI_DA+
2 BI_DA -
3 BI_DB +
4 BI_DC +
5 BI_DC -
6 BI_DB -
7 BI_DD +
8 BI_DD –
IEEE802.3 10BASE-T, full-, half-duplex and/or
IEEE802.3u 100BASE-TX, full-, half-duplex
RJ45 - MDI-X pin assignment
MDI/MDI-X auto-crossover feature allows
RD and TD to be reversed. With the auto-
polarity function + / - can also be reversed.
1 RD+
2 RD-
3 TD+
6 TD-
Note:
The above pin assignment applies when connecting
terminal equipment via 1:1 patch cords.
Nominal impedance
: 100
Line length, max. m 100
Protective circuits Port 1..4 protection from transients, (common mode, diff.
interference)
Standards and certification
Electrical safety Requirements
IT
Standard
EN 60950
Operation/Storage
temperature
Requirements
EN 61131-2
Standard
EN 60068-2-1
EN 60068-2-2
EN 60068-2-14
Emission Requirements
EN 61000-6-4
Standard
EN 55022 class A
Immunity Requirements
EN 61131-2
Standard
EN 61000-4-2, 6 kV / 8 kV
EN 61000-4-6
Other CE
Note:
Please note that ventilation slits must not be covered after mounting.
Please ensure that the ambient temperature does not exceed the indicated range. Please ensure sufficient ventilation in
the data cabinet or at the site of installation.
Subject to modifications (06/2009)
-9 -

Nexans Advanced Networking Solutions iGigaSwitch 542S SFP-2VI
-10 -
Nexans network solutions are used throughout the world and have proved their reliability in
many different ways. Our references include leading companies in the world, universities,
industrial properties, hospitals, authorities and banks. A LAN System which can grow with the
needs of its users has to be designed right from the very start with such a level of flexibility to
ensure that support is provided in particularly with frequent moves, adds and changes.
With more than 20 years experience in the development
and production of optical solutions, the systems from
Nexans provide the reliability and the security you expect
from your network.
Nexans Deutschland GmbH • Advanced Networking Solutions
Bonnenbroicher Str. 2-14 • 41238 Moenchengladbach • Germany
Tel [phone] • Fax [phone]
E-Mail: [email protected] • www.nexans.de/ans
