Xada XA2200 User manual

xada.tech
XA2200
QUICK START GUIDE
FCC ID:2AUII-XA2200
IC: 25460-XA2200
1

Rev.
Issue Date
Revisions
Effect Page
Revised By
00
2019/10/30
I
nitial Issue
All
Tomasz
01
2020/02/14
A
dd Step 9
–
for CAP setting
and modified the description
“country” code setting.
Page.7
Stanly Cheng
2

Device Setup
Step 1 - Connecting the Router
Connect to the power source (use only the included power adapter) and con-
nect a LAN cable though the right connector directly to your computer, then
go to the http://192.168.100.1 page.
Step 2- Login
Locate the label on the bottom of your Xada device, type the KEY to log in to
the product management interface.
3

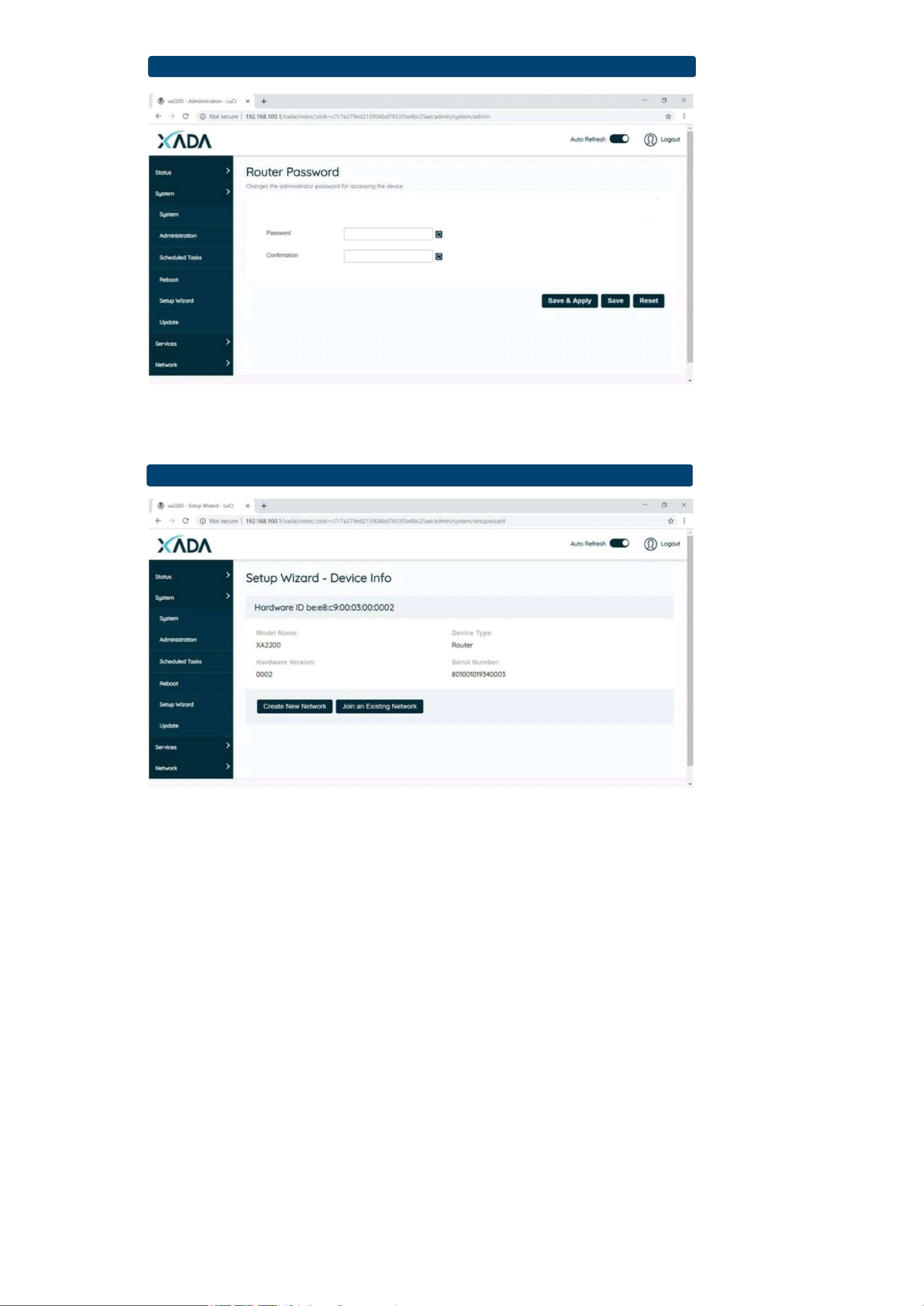

Step 3- Password Configuration
For future network management enter your secure password on every
Xada unit.
Step 4 – Enter Setup Wizard
For your first Xada unit, select Create New Network, and go to Step 5.
For additional Xada unit(s) select Join an Existing Network and skip to Step 6.
4

Step 5 – Create New Network (FOR YOUR FIRST XADA UNIT)
Type your desired wireless network name (SSID) and password.
P.S.: We will show the country “United States of America” or “Canada”
as factory default setting when the product ship to the country
accordingly.
Step 6 – Join an Existing Network (FOR ADDITIONAL XADA UNIT)
For additional Xada unit(s) please enter the identical network and pass-
word as your first Xada unit.
5

Step 7 – Network Connection Guide (FOR YOUR FIRST XADA UNIT)
Yours main Xada unit must connnect the left connector to your internet
gateway, and the right connect to our corporate LAN network.
Step 8–Network Connection Guid (FOR ADDITIONAL XADA UNIT)
(FO
R
ADD
ITIO
Your additional Xada units - please connect your corporate LAN network cable
either to the left or to the right connector. Your additional units may also oper-
ate as wireless network expanders.
6

Step 9 –for CAP setting .
Step 1:
Select “Setup Wizard”
Setup 2:
Click “Create New Network”.
Step 3:
⚫ Host Name:
The name of your device showing on Mesh Topology.
⚫ Set Up Wi-Fi Network:
Assign the name (SSID) to your Wi-Fi interface.
Assign the password to your Wi-Fi interface.
⚫ Set Up Your Operation Mode
Select “Mesh Network”
Set the Device IP Address for your DHCP server.
⚫ Click “Next” Button.
7

Product Overview
Front view: Top view:
1 2 3 4 5
No. Description No. Description
1 Power Input connector 4 Reset button
2 LAN RJ45 connector 5 LED Light indicator
3 LAN RJ45 connector
8

Regulatory Statements
FCC Radio Frequency Interference Warnings & Instructions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
No Unauthorized Modifications: Do not make any changes or modifications to this product without the prior express
written approval of Xada Technologies Ltd. Any changes or modifications made without express written approval
could void the user’s authority to operate this product.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
· Contact [email protected]ech or an experienced radio/TV technician for help.
FCC Guidelines for Human Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.
FCC Information for User
This device does not contain any user serviceable components and is to be used with approved antennas only. Any
product changes or modifica- tions will invalidate all applicable regulatory certifications and approvals.
This device and its antenna(s) must not be co- located or operated in conjunction with any other antenna or transmitter.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
For product available in the USA market, only channel 1~ 11 can be operated. Selection of other channels is not possible.
This device is designed for Indoor Usage only.
Industry Canada
"This Class B digital apparatus complies with Canadian ICES -003” / “Cet appareil numérique de la classe B est conforme
à la norme NMB- 003 du Canada"
“This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference and (2) this device must accept any interference, including
interference that may cause undesired operation of the device” / “ Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouil- lage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement”
Industry Canada Radiation Exposure Statement
IMPORTANT NOTE: “This equipment complies with IC radiation exposure limits”/ “Cet équipement est conforme aux
limites d’exposition aux rayonnements IC établies”
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and ( 2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
The radio transmitter has been approved by Industry Canada to operate only with the antenna(s) supplied. Use of
any other antenna(s) is strictly prohibited for use with this product.
L'émetteur radio a été approuve par Industrie Canada pour fonctionner uniquement avec l'antenne(s) fournie.
L'utilisation de toute autre anten- ne(s) est strictement interdit d'utiliser ce produit.
9

This device is designed for Indoor Usage only.
Cet appareil est conçu pour une utilisation en intérieur uniquement.
(i) the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems; (For devices installed in vehicles point i. is not required.)
(ii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350
MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;
(iii) for devices with detachable antenna(s) , the maximum antenna gain permitted for devices in the band 5725-5850
MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point- to-point and non-point-
to- point operation as appropriate; and
(iv) where applicable, antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to remain compliant
with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 shall be clearly indicated.
Users should also be advised that high- power radars are allocated as primary users ( i.e. priority users) of the bands
5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
(i) l'appareil pour fonctionner dans la bande 5150-5250 MHz est réservé à une utilisation en intérieur afin de réduire
les risques d'interférences nuisibles à la co-canal systèmes mobiles par satellite;
(ii) pour les appareils avec antenne (s) détachable, le gain d'antenne maximal autorisé pour les appareils dans les
bandes 5250-5350 MHz et 5470-5725 MHz doit être telle que l'équipement satisfait encore la pire limite;
(iii) pour les appareils avec antenne (s) détachable, le gain d'antenne maximal autorisé pour les appareils dans la
bande 5725-5850 MHz doit être telle que l'équipement satisfait encore la pire limites spécifiées pour le point-à- point
et non point-à-point, le cas échéant; opération et
(iv) l'angle d'inclinaison du pire (s) nécessaire pour rester conforme à la pire exigence de masque d'élévation
énoncées dans la section 6.2.2 (3) doit être clairement indiqué.
Devraient également être informés les utilisateurs que les radars à haute puissance sont désignés comme utilisateurs
principaux (c.-à-utilisateurs prioritaires) des bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient
provoquer des interférences et / ou endommager les appareils LE-LAN.
mobile device
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
appareil mobile
Cet équipement est conforme aux limites d'exposition au rayonnement ISED établies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre
corps.
All Rights Reserved. No part of this document may be photocopied, reproduced, stored in a retrieval system, or
transmitted, in any form or by any means whether, electronic, mechanical, or otherwise without the prior written
permission of Xada Technologies Ltd.
No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent
permitted by law no liability (including liability to any person by reason of negligence) will be accepted by Xada
Technologies Ltd., its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or
inaccuracies in this document.
Xada Technologies Ltd. reserves the right to change details in this publication
without notice. Please download the most updated version at:
https: //xada.tech/
10

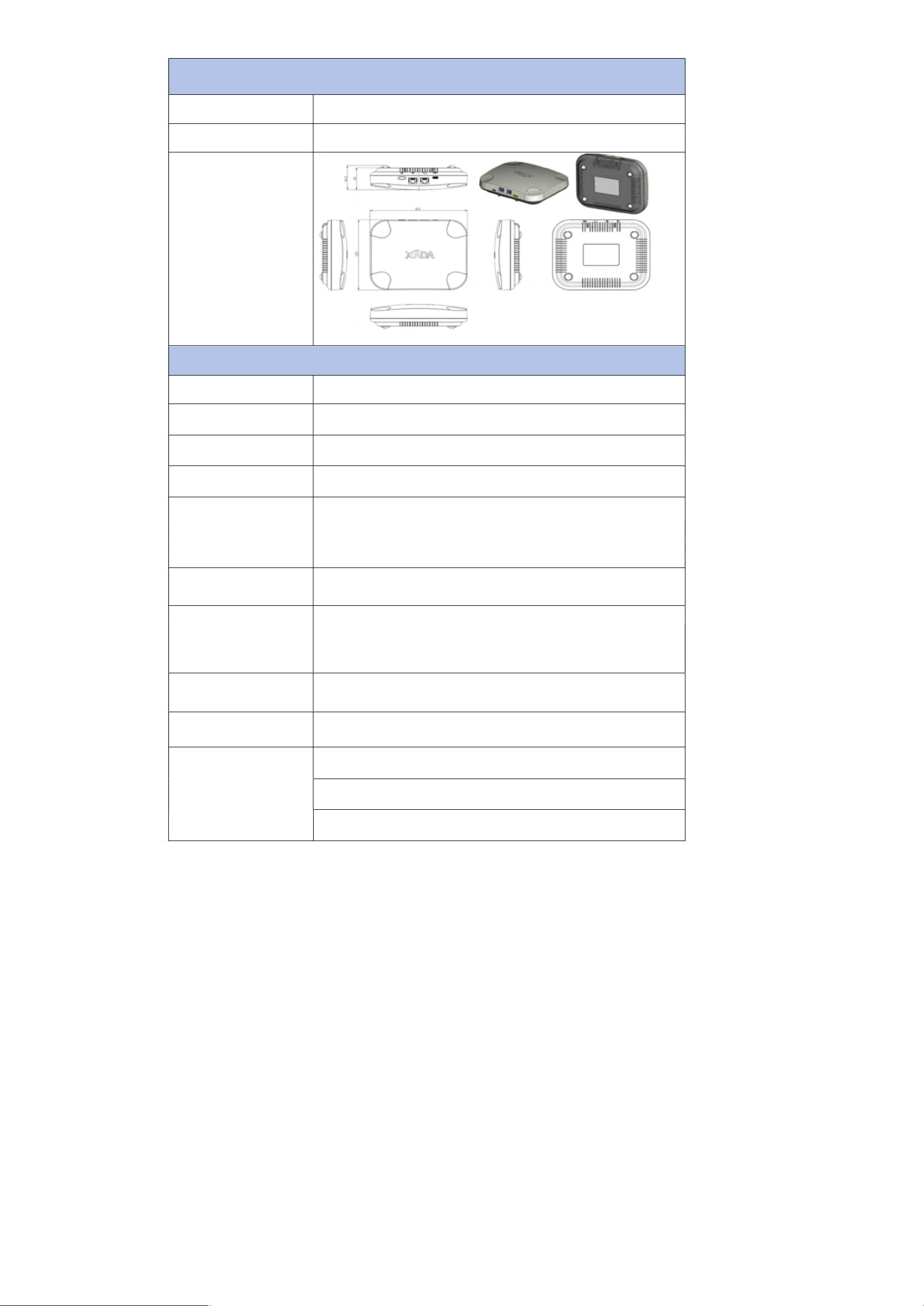

Mechanical Specifications
Dimension (L)135mm x (W)165mm x (H)46.5mm
Color White
ID drawing
Wireless AP System Specifications
PCBA Form Factor Wireless AP Main Board 100mm x 125mm x 1.6mm
Chipset Main board: Qualcomm IPQ4019 +QCA8072
Wi-Fi Standard IEEE802.11a/b/g/n/ac
Wi-Fi Bands 2.4GHz, 5 GHz
Wi-Fi Features
MU-MIMO
Qualcomm IoT Connectivity
TxBF
Wi
-
Fi SON
MIMO Configuration 2T x 2R
Storage
1x NoR Flash (16MB default)
1xNAND Flash(128MB)
1xeMMC(16GB)
DRAM ⚫

1x DDR3L (512MB)
Antenna ⚫2.4GHz x2, 5GHz x4 (Additional 2 antennas are optional) 
External I/O
Reset Button x1
RJ45 x2 (LAN, WAN)
USB Type-C x1
11

RBG LED x3 (Wi-Fi, States, WAN)
Internal I/O ⚫m-PCIe x1 (PCIe, USB2.0) + Nano SIM 
⚫
UART0 Debug console

Power input Input supply for host I/O: Type-
C 9V
⎓3A
Environment Support
Operating Temperature
0~50
℃
Storage Temperature
0~50
℃
Humidity 10%~90%
Mini-PCIe Module
Module Wi-Fi Module
Chipset Qualcomm QCA9888
Interface Mini-PCIe (Full Size)
Support Band 5GHz x2 high band
Accessories
AC / DC adapter
1. AC/DC adapter x1
⚫
Input Voltage: 100~240V (AC plug changeable
，
include US
、
EU
、

UK
、
China sku).
⚫
Total Output Power: Over 27 W.

⚫
Output Voltage: 5V / 9V

⚫
Type C connector comply with PD definition.

2. USB type C to C cable 1.5m
3. RJ45 cable
12

xada.tech
© 2019 Xada Technologies Ltd.
1F., No. 2, Ln. 150, Sec. 5, Xinyi Rd.,
Xiny District, 110 Taipei City, Taiwan
Phone: + 886-2-23451878
Web: https://xada.tech/
