INTRODUCTION
1NEXT Audiocom | MX Series
GENERAL DESCRIPTION
Thank you for purchasing a NEXT Audiocom MX350
multi-zone amplier. This user manual will provide you with
useful and important information about your equipment.
Please devote some time reading it and keep it at hand for
future reference.
ATTENTION! Because of the continuous evolution of
techniques and standards, NEXT Audiocom reserves the right
to change the specications of its products without warning.
For the most updated version of this manual and general
information about this and other products, please visit our
website www.nextaudiocom.com.
UNPACKING
NEXT Audiocom’s products are built under strict quality
guidelines and supervision, according to the highest
standards. When unpacking your product, carefully examine
it for any signs of possible transit damage and inform your
dealer immediately if any such damage has occurred. It is
suggested that you retain the original packaging so that the
product can be repacked in the future when necessary. Please
note that NEXT Audiocom and its authorized distributors
cannot accept any responsibility for damage to any returned
product using non-approved packaging.
PACKAGING CONTENTS:
• NEXT Audiocom MX350
• Remote Control
• IEC Power Cable
• FM Antenna Cable
• RCA Cable
• User Manual
FEATURES
• Integrated platform comprised of an amplier, a 6 zones
controller, an MP3 player from USB pen or SD card, FM tuner
and bluetooth
• Infrared remote control
• LED Screen to display volume, MP3, FM tuner and bluetooth
information
• 4 microphone inputs and 3 auxiliar inputs
• 1 signal output
• 4Ω-16Ω rated output impedance for the low impedance
output
• 100V Line Output
• Priority microphone input and Chime function with ducking
control
• Bass and Treble control
• LED meter for output level visualization
• DC voltage, overload, and Short circuit protections
SAFETY FIRST
Please take some time to review the following statements
concerning safe use of your NEXT Audiocom MX350.
• Read these instructions
• Keep these instructions
• Heed all warnings
• Follow all instructions
• Before installing, observe the applicable safety regulations
for your country
• Never install close to ignition or heat sources such as
radiators, ovens or any other apparatus that produce heat.
• Do not use or install the equipment near water or exposed to
rain
• If the equipment is not functioning properly or has been
damaged in any way, switch it o immediately
• Do not open or try to service the equipment. It may only be
repaired by authorized, qualied personnel
• Clean the equipment using only a clean dry cloth
WARNINGS
CAUTION:
Never remove the cover, because otherwise there may be a
risk of electric shock. There are no user serviceable parts
inside. Have repairs carried out only by qualied service
personnel.
The lightning ash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sucient magnitude to
constitute a risk of electrical shock.
The exclamation mark within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance instructions.

MX350 FRONT PANEL
1. Power Switch
Switches the MX350 On or O
2. LED Power Indicator
Lights red when the MX350 is turned On
3. Bass Adjustment Knob
Increase or decrease the system’s bass response
4. Treble Adjustment Knob
Increase or decrease the system’s treble response
5. Auxiliary Inputs Volume Knobs
Increase or decrease the auxiliary inputs’ volume
6. Microphone 1 and 2 Volume Knobs
Increase or decrease the microphone inputs’ volume
7. Microphone 1 Input
This microphone channel is the one to be used for
announcements and other communications that require
priority
8. Zone Volume Adjustment Knobs
Increase or decrease each zone volume individually
9. Zone Level LED Indicators
Indicates the presence of audio in each zone
10. Chime Button
Press to play a chime tone
11. MP3 SD Card Slot
Insert a SD card to play MP3 audio content
12. Mode Button
Press to switch between MP3 player, FM Tuner, Auxiliary
wired connections and Bluetooth mode
13. Next/Forward Button
MP3/Bluetooth: Press to play next song. Long-press to
increase general input volume
FM Tuner: Press to switch to the next memorized station.
Long-press to increase the tuner general input volume
14. Previous/Backwards Button
MP3/Bluetooth: Press to play previous song. Long-press
to decrease general input volume
FM Tuner: Press to switch to the previous memorized
station. Long-press to decrease the tuner general input
volume
15. Play/Pause Button
MP3/Bluetooth: Press this button to play or pause the
currently selected song
FM Tuner: Automatically search and memorize all
available radio stations
GETTING STARTED
2
NEXT Audiocom | MX Series
16. USB Port (MP3 Only)
Port for connecting a USB data device
17. LED Display
18. LED Level Meter
Oers a visual display of the amplier’s volume level
MX350 REAR PANEL
1. Ducking Control Potenciometer
Denes the level dierence between common and
priority signals
2. Microphone 2 Input
3. Auxiliar Inputs RCA Connectors
4. Line Output RCA Connectors
Signal output for external audio device
5. Speaker Zones Output
Connect only 100V speakers
6. AC Voltage Input IEC connector
7. AC Main Fuse
F4A - 250V
8. Low Impedance Speaker Output
To connect speakers ranging from 4Ω-16Ω
9. Chime Volume Potenciometer
Increases or decreases the chime function level
10. FM Radio Antenna Connector
Connect a suitable 75Ω antenna (Supplied)
11. Microphone 4 Input
TRS connetor
12. Microphone 3 Input
TRS connetor
13. Microphone 4 Volume Potenciometer
Increases or decreases the microphone 4 level
14. Microphone 3 Volume Potenciometer
Increases or decreases the microphone 3 level
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
+10-10+10-10
USB
SD CARD
VOLUME +
-
0dB
-24 -18 -12 -6
MULTIMEDIAPLAYER
ZONE LEVELS
00 5
0 10
LEVEL
5
0 10
LEVEL
5
0 10
LEVEL
5
0 10
LEVEL
5
0 10
LEVEL
1
4
2
OFF
5
3
1
4
2
OFF
5
3
1
4
2
OFF
5
3
1
4
2
OFF
5
3
1
4
2
OFF
5
3
1
4
2
OFF
5
3
BASS TREBLE AUX 2
AUX 3 AUX 1 MIC 1MIC 2
CHIME
MIC1 IN
MODE
TUNER
USB
SD
CARD
ZONE 1 ZONE 2 ZONE 3
ZONE 4 ZONE 5 ZONE 6
Mixer Amplier
OUTPUT
LEVEL
ON
PRIORITY
Nur Sicherung 250V
UseOnly With A 250V Fuse
EmployerUnlquement Avec
Fusible De 250V
1
2
3
4
5
6
7
8
9
10
11
12
13
14

GETTING STARTED
3NEXT Audiocom | MX Series

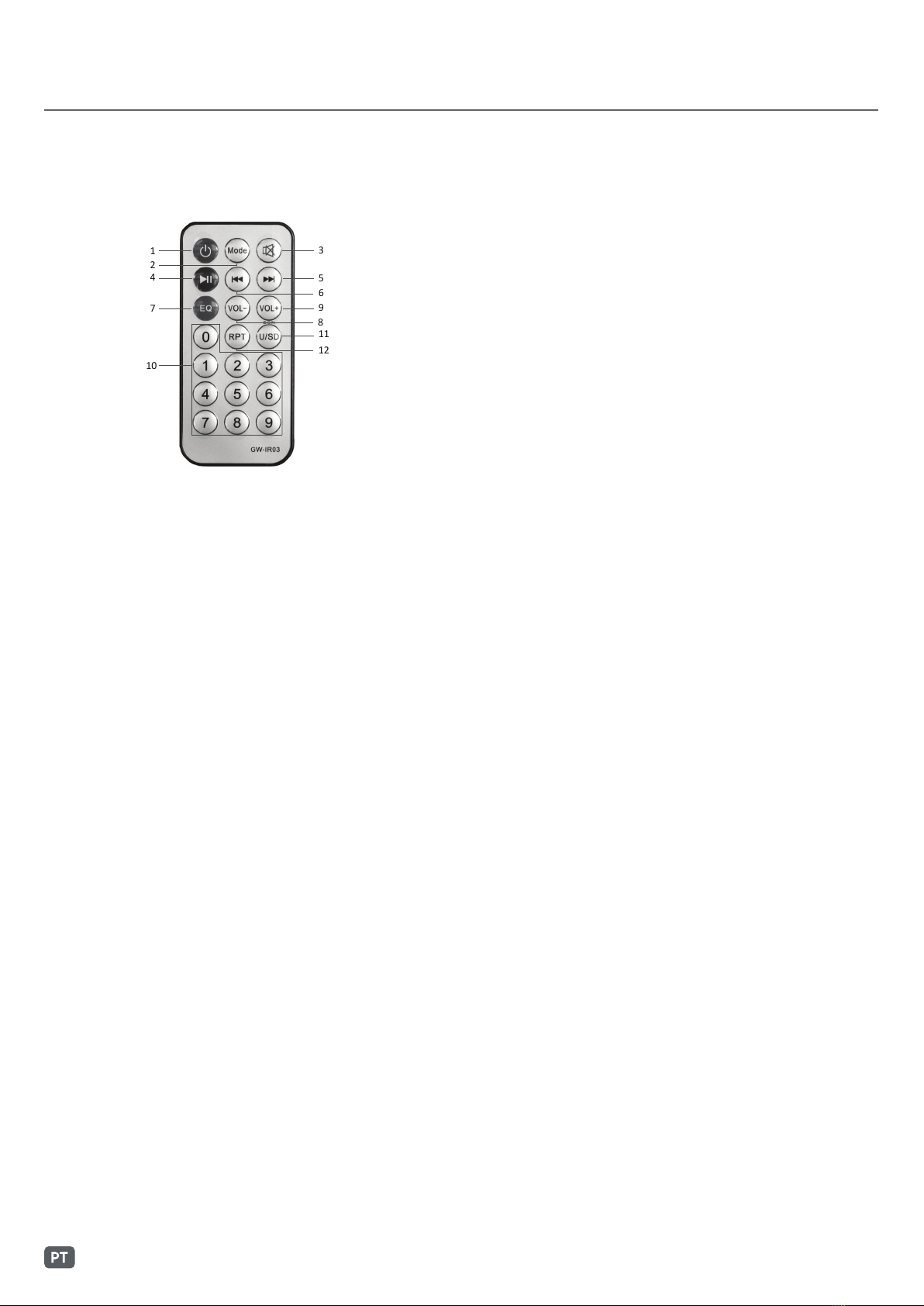

REMOTE CONTROL
1. On/O
Switches the MX350 On or O
2. Mode
Switch between MP3, AUX, FM Tuner and Bluetooth
functions
3. Mute
MP3/FM Tuner mute button. Press once to mute, press
again to unmute
4. Play/Pause
MP3/Bluetooth: Press once to play. When playing press
once to pause, press again to continue playing
FM Tuner: Press to cycle through the memorized radio
station channels in order
5. Forward
MP3/Bluetooth:
Select or jump to the next song
FM Tuner: Select the next saved radio station channel
6. Backwards
MP3/Bluetooth:
Select or jump to the previous song
FM Tuner: Select the previous saved radio station channel
7. EQ
MP3: Select between Classic, Jazz, Rock, Bass enhanced,
and Pop predened equalizer setups
FM Tuner: Call a memorized radio station using the
channel number
8. Volume Down
Decrease overall volume
9. Volume Up
Increase overall volume
10. Numerical Keypad
11. U/SD
MP3: Cycle between USB, SD, or both
FM Tuner: Automatic scanning
12. Repeat
Only works in MP3 mode, press to cycle between
repeating only the current song and repeating all songs
(playlist style)
OPERATING INSTRUCTIONS
FM TUNER - To enable the FM Tuner press the “Mode” button
either on the front panel (page 2 button 12) or on the remote
control (page 3 button 2) until “RAD” appears on the display.
Do not forget to connect the antenna cable for the tuner to
work properly.
Automatic Scanning - Press the Play/Pause Button on the
front panel (page 2 button 15) or the U/SD button on the
remote control to execute an automatic sweep and save the
radio frequencies where a station is present. The MX350 will
assign an ID number to each station which also corresponds
to the memory number. With this process completed, the
MX350 will go back to memory 1.
Browse Stations - Using the front panel buttons
Press once the forward button on the front panel (page 2
button 13) to listen to the radio station memorized on the
next memory position or press once the backwards button
(page 2 button 14) to listen to the one stored at the previous
memory position. Long pressing any of these buttons will
either increase or decrease the sound volume. There is no way
to fast-browse the radio channel memories using the front
panel of the MX350.
Browse Stations - Using the remote control
Press the play/pause button (page 3 button 4) to listen to the
radio station memorized on the next memory position or
press the EQ button to listen to the radio station memorized
on the previous memory position. You can also directly select
a specic channel using the numerical keypad. Just type the
ID number of the memory you want to listen to.
Manual Tuning and Fine Tuning - On the remote control only,
it is possible to manually tune or ne-tune. Pressing the
forward button (page 3 button 5) will increase the tuning
frequency and pressing the backwards button (page 3 button
6) will decrease the tuning frequency.
MP3 PLAYER - The MP3 player is automatically enabled as
soon as you insert a USB stick or SD card. Whatever is playing
is interrupted and the program on the data device will be
reproduced. If the USB Stick or the SD card are already
inserted, press the mode button (page 2 button 12; page 3
button 2) until the display shows USB or SD.
Reproduction - Any present MP3 tracks are played
automatically as soon as a data device is inserted. The MP3
les may be either in the root of the device or in folders. Other
le types will be ignored if they exist. Press play/pause button
on the front panel (page 2 button 15) or the remote control
(page 3 button 4) to interrupt the reproduction and press
again to resume. Press forward button to play next song and
the backwards button to play the previous song. You can also
directly input the number correspondent to the track you
1
2
4
7
8
10
3
5
6
9
11
12

want to listen. Just type the track ID number.
Sorting MP3 tracks - You may want to play your tracks in a
specic order. Change the name of the tracks inserting the
number correspondent to the order you wish followed by a
dot. Ex.: 1.track_x.mp3, 2.track_y.mp3, etc.
Repeat - The repeat function can be activated only on the
remote control. Press the repeat button (page 3 button 12)
once to repeat the current song. Press again to repeat all
songs like a playlist.
U/SD function button - On the remote control, press the U/SD
button to cycle between the USB device and the SD card
device, but also allows playing the tracks in both devices as if
they were one.
Pairing Bluetooth Device - Press the “Mode” button either on
the front panel (page 2 button 12) until “bt” appears ashing
on the display. On yor mobile device search for “NEXT MX350”
and type “2020” as password. The “bt” stops ashing.
PRIORITY ANNOUNCEMENTS
The MX350 supports a ducking function where, when a
priority signal is present, the volume of the regular signals is
reduced to improve the message intelligibility. The Mic 1
input and the Chime function are considered as priority
signals. When you press the Chime button or talk to Mic 1, the
other signals are reduced in level. The level values are dened
individually. Both the Chime volume potentiometer and the
Ducking potentiometer are located at the rear panel (page 2).

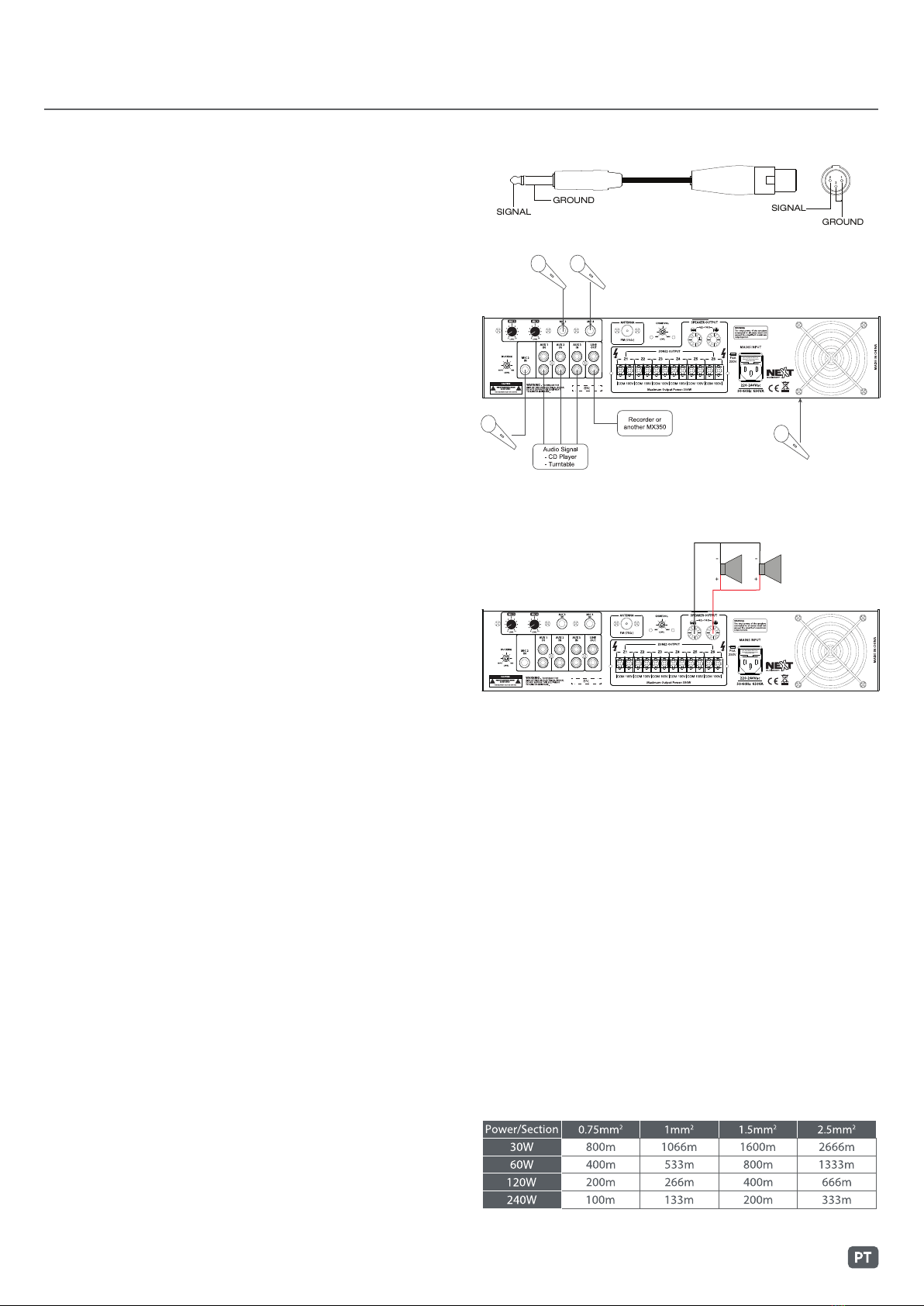

CONNECTIONS
INPUT CONNECTIONS
In the MX350, the Auxiliary mode disables the Tuner/MP3
module and enables working only with cable connected
equipment such as CD Players, Tuners, Turntables or others.
Press the MODE button (page 2 button 12; page 3 button 2)
until the display shows “AUX”. There are 3 auxiliary RCA
inputs, and 4 microphone jack inputs (not balanced). A signal
output is also available as RCA outputs where a recording
device or an external amplier can be connected.
HANDS-ON
4
NEXT Audiocom | MX Series
LOW IMPEDANCE OUTPUT
To use the MX350 as a regular mono low impedance amplier
connect the speakers to the binding posts as shown above. Be
careful not to switch polarities between speakers to minimize
comb ltering and bass cancellation eects due to “out of
phase” speakers. The minimum impedance allowed by the
amplier is 4Ω (two seakers of 8Ω connected in parallel).
100V LINE ZONE OUTPUT
The MX350 allows for the conguration of up to 6 different
zones. These are all 100V outputs for distributed lines. These
require the use of speakers designed specically for this kind
of output. These speakers will have a transformer as the input,
normally with more than one power tap. The 100V distributed
line is the best method when you need to deploy many
speakers over a wide area. The higher voltage allows for a
lower current at the same power rating, which in turn allows
the use of longer and thinner cables with little loss.
On the table below you can nd the maximum distance a
cable can deliver the amplier full power.
1
2
3
GROUND
SIGNAL
SIGNAL
GROUND
Nur Sicherung 250V
UseOnly With A 250V Fuse
EmployerUnlquement Avec
Fusible De 250V
MIC3 MIC4
MIC1 w/ PRIORITY
MIC2
To MIC1 Input
on Front Panel
Nur Sicherung 250V
UseOnly With A 250V Fuse
EmployerUnlquement Avec
Fusible De 250V
+
-
+
-

SERVICE
5NEXT Audiocom | MX Series
The high impedance also allows the use of more speakers as
long as the total sum of the power ratings congured in those
speakers is not higher than the power rating of the amplier.
For the MX350 this means that the sum of the power ratings
of all the speakers connected in all 6 zones cannot be higher
than 350W. For a safe use we recommend it to be 10 to 20%
lower to allow for a little headroom to handle peaks from the
music program. Using more than this will likely damage the
amplier or at the minimum cause unpleasant distorted
sound that given enough time will damage the speakers
instead through excessive heat on the speaker’s coil.
WARNING!
Though the MX350 allows it, never have a low impedance
speaker working at the same time as the Zone distributed
lines for a long period of time.
WARNING!
RISK OF ELECTRIC SHOCK – Never try to connect or disconnect
the 100V distributed lines with the amplier powered on.
Always disconnect the MX350 from the mains before
attempting any changes to the wiring or connections.
WARRANTY POLICY
NEXT Audiocom products are warranted, by NEXT Audiocom,
against manufacturing defects in materials or craftsmanship
over a period of 2 years counting from the date of original
purchase for nal costumer. The original receipt of purchase is
mandatory for warranty validation purposes, and the product
must have been bought from a NEXT Audiocom authorized
dealer.
The warranty can be transferred to a subsequent owner
during the warranty period, however, this cannot extend the
warranty period beyond the original warranty period of two
years from the original date of purchase stated on the NEXT
Audiocom’s invoice. During the warranty period NEXT
Audiocom will, at its own discretion, either repair or replace a
product which prove to be defective provided that the
product is returned in its original packaging, shipping
prepaid, to an authorized NEXT Audiocom service agent or
distributor.
NEXT Audiocom cannot be held responsible for defects
caused by unauthorized modications, improper use,
negligence, exposure to inclement weather conditions, act of
God or accident, or any use of this product that is not in
accordance with the instructions provided by this manual
and/or NEXT Audiocom. NEXT Audiocom is not liable for
consequential damages. This warranty is exclusive, and no
other warranty is expressed or implied.
This warranty does not aect your statutory rights.
CORRECT DISPOSAL
When the MX350 is to be denitively discarded, take the
product to a local recycling plant for a disposal which is not
harmful to the environment. This equipment should not be
treated as general household waste.
Devices marked with this symbol must not be disposed of as
household waste. For more information, please contact your
retailer or local authorities.
TECHNICAL SPECIFICATIONS
Product Type: Multi-zone Mixer Amplier
Frequency Response (-6dB): 80Hz - 16kHz
Amplifier Power: 350W
Speaker Output: 70V, 100V, 4Ω-16Ω
Output 100V Zones: 6 Zones
THD+N: <1%
SNR: MIC: >71dB | LINE : >85dB
Input Sensitivity: MIC: 3mV (±0.5mV) | LINE : 300mV(±50mV)
Audio Signal Input: 3 x RCA (Stereo), 4 x MIC (TRS), USB, SD
Card, FM Radio, Bluetooth
Audio Signal Output: 1 x RCA (Stereo)
Protections: DC Voltage, Overload, Short-Circuit
Power Supply: 220V-240V/50Hz-60Hz
Cabinet Material: Aluminum/Iron
Dimensions (WxHxD): 483 x 88 x 338mm (19 x 3.5 x 13.3”)
Net Weight: 16kg (35.27lb)
Shipping Weight: 17kg (37.48lb)
Nur Sicherung 250V
UseOnly With A 250V Fuse
EmployerUnlquement Avec
Fusible De 250V
+
+
+
-
-
-
+
+
+
-
-
-
+
+
+
-
-
-
+
+
+
-
-
-
+
+
+
-
-
-
+
+
+
-
-
-
P1=3W
P2=1.5W
Pn
Z1
PZ1=P1+P2+Pn
PTotal=PZ1+PZ2+PZ3+PZ4+PZ5+PZ6
PTotal<350W

DESCRIÇÃO GERAL
Obrigado por ter adquirido um amplicador NEXT Audiocom
MX350, amplicador multi-zonas. Este manual do utilizador
irá fornecer-lhe informações úteis e importantes sobre o seu
equipamento. Por favor, dedique algum tempo a lê-lo e
mantenha-o à mão para referência futura.
ATENÇÃO! Devido à evolução contínua de técnicas e
padrões, a NEXT Audiocom reserva-se o direito de alterar as
especicações dos seus produtos sem aviso prévio. Para obter
a versão mais atualizada deste manual e informações gerais
sobre este e outros produtos, visite o nosso website
www.nextaudiocom.com.
DESEMBALANDO
Os produtos da NEXT Audiocom são construídos sob
rigorosas diretrizes de qualidade e supervisão, de acordo com
os mais elevados padrões. Ao desembalar o MX350 verique
se existem danos em qualquer um dos componentes. Se
forem encontrados quaisquer danos contacte imediatamente
o seu revendedor/fornecedor para pedir instruções sobre
como devolver o produto de forma correta. Sugerimos que
conserve a embalagem original para que o produto possa ser
embalado no futuro, quando e se necessário. Por favor, note
que a NEXT Audiocom e os seus distribuidores autorizados
não podem assumir qualquer responsabilidade por danos a
qualquer produto devolvido utilizando embalagens não
aprovadas.
CONTEÚDOS DA EMBALAGEM:
• NEXT Audiocom MX350
• Controlo Remoto
• Cabo de Alimentação IEC
• Antena FM
• Cabo RCA
• Manual do Utilizador
FUNCIONALIDADES
• Plataforma integrada composta por amplicador,
controlador de 6 zonas, leitor de MP3 de “Pen Drive” USB ou
cartão SD, sintonizador FM e Bluetooth
• Controlo remoto
• Visor em LED para visualizar informações de volume, MP3,
sintonizador FM e Bluetooth
• 4 entradas de microfone e 3 entradas auxiliares
• 1 saída de sinal
• Impedância de saída de 4Ω a 16Ω para a saída de baixa
impedância
• Saída de potência para linha de 100V
• Entrada de microfone com prioridade e função de tom de
aviso (Chime) com controlo de atenuação
• Controlo de graves e agudos
• Medição em LED para visualização do nível de saída
• Proteção contra corrente contínua, sobrecarga e contra
curto-circuito
SEGURANÇA EM PRIMEIRO LUGAR
Por favor, dedique algum tempo para ler as seguintes
declarações sobre a utilização segura do seu NEXT Audiocom
MX350.
• Leia estas instruções
• Guarde estas instruções
• Preste atenção a todos os avisos
• Siga todas as instruções
• Utilize o equipamento apenas para o m a que se destina,
conforme instruído neste manual
• Ao instalar respeite as normas de segurança aplicáveis para o
seu país
• Verique sempre se o equipamento está instalado de forma
segura
• Nunca instale perto de fontes de ignição ou de calor, tais
como radiadores, fornos ou qualquer outro aparelho que
produza calor
• Não use o equipamento perto de água ou exposto à chuva.
• Desligue o equipamento se não funcionar corretamente ou
se tiver sido danicado
• Não abra ou tente reparar o equipamento. Só pode ser
reparado por pessoal devidamente qualicado e autorizado
• Limpe o equipamento apenas com um pano limpo e seco
AVISOS
CUIDADO:
Nunca remova a tampa, caso contrário, pode haver risco de
choque elétrico. Não existem peças reparáveis no interior. As
reparações devem ser realizadas apenas por pessoal de
serviço qualicado.
O símbolo de relâmpago com ponta de seta dentro de um
triângulo equilátero tem como objetivo alertar o utilizador
sobre a presença de "tensão perigosa" não isolada dentro do
invólucro do produto, que pode ser de magnitude suciente
para constituir um risco de choque elétrico.
O ponto de exclamação dentro de um triângulo equilátero
tem o objetivo de alertar o usuário sobre a presença de
instruções importantes de operação e manutenção.
INTRODUÇÃO
6
NEXT Audiocom | MX Series

PRIMEIROS PASSOS
7NEXT Audiocom | MX Series
PAINEL FRONTAL MX350
1. Interruptor de alimentação
Liga e desliga o MX350
2. Indicador LED de Estado do Amplificador
Acende em vermelho quando o MX350 está ligado
3. Botão de ajuste de graves
Aumenta ou diminui a resposta de graves do sistema
4. Botão de ajuste de agudos
Aumenta ou diminui a resposta de agudos do sistema
5. Botões de volume das entradas auxiliares
Aumenta ou diminui o volume das entradas auxiliares
6. Controlo de volume dos Microfones 1 e 2
Aumenta ou diminui o volume das entradas de
microfone 1 e 2
7. Entrada do Microfone 1
Este canal de microfone é o que deve ser usado para
anúncios e outras comunicações que requerem prioridade
8. Botões de ajuste de volume de zonas
Aumenta ou diminui o volume de cada zona
individualmente
9. Indicadores LED de nível de zona
Indicam a presença de áudio em cada zona
10. Botão de tom de aviso (Chime)
Pressione para emitir um tom de aviso
11. Ranhura de cartão SD MP3
Insira um cartão SD com cheiros MP3 para reproduzir
12. Botão de Funções
Prima para alternar entre as funções de leitor MP3,
sintonizador FM, Bluetooth ou modo de entradas auxiliares
13. Botão de Avançar
MP3/Bluetooth: Pressione para reproduzir a música
seguinte. Pressione continuamente para aumentar o volume
de entrada geral
Sintonizador FM: Prima para mudar para a próxima
estação memorizada. Pressione continuamente para
aumentar o volume de entrada geral do sintonizador
14. Botão de Retroceder
MP3/Bluetooth: Pressione para reproduzir a música
anterior. Pressione continuamente para diminuir o volume de
entrada geral
Sintonizador FM:Prima este botão para mudar para a
estação de rádio memorizada anterior. Pressione
continuamente para diminuir o volume de entrada geral do
sintonizador
15. Botão de reprodução/pausa
MP3: Prima este botão para reproduzir ou fazer uma
pausa na música selecionada
Sintonizador FM:Pesquise e memorize automaticamente
todas as estações de rádio disponíveis
16. Porta USB (apenas MP3)
Porta para ligar um dispositivo de dados USB
17. Visor LED
18. VU LED medidor de nível
Oferece uma visualização do nível de volume do
amplicador
PAINEL TRASEIRO MX350
1. Botão de controlo de Atenuação “Ducking”
Controla a atenuação dos sinais comuns em prol dos
sinais prioritários
2. Entrada do microfone 2
3. Conectores RCA de entrada auxiliar
4. Conectores RCA de saída auxiliar
Permite ligar o MX350 a um equipamento externo
5. Saídas das zonas
Ligue apenas colunas de linha de 100V
6. Conector IEC de alimentação
7. Fusível
F4A - 250V
8. Saída de baixa impedância
Para ligar colunas com impedância entre 4Ω e 16Ω
9. Controlo do volume do tom de aviso (Chime)
Aumenta ou diminui o volume do tom de aviso (Chime)
10. Conector da antena de rádio
Ligue uma antena adequada de 75Ω. (Fornecida)
11. Entrada para o Microfone 4
Conector TRS
12. Entrada para o Microfone 3
Conector TRS
13. Controlo de volume do Microfone 4
Aumenta ou diminui o volume do microfone 4
14. Controlo de volume do Microfone 3
Aumenta ou diminui o volume do microfone 3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
+10-10+10-10
USB
SD CARD
VOLUME +
-
0dB
-24 -18 -12 -6
MULTIMEDIAPLAYER
ZONE LEVELS
00 5
0 10
LEVEL
5
0 10
LEVEL
5
0 10
LEVEL
5
0 10
LEVEL
5
0 10
LEVEL
1
4
2
OFF
5
3
1
4
2
OFF
5
3
1
4
2
OFF
5
3
1
4
2
OFF
5
3
1
4
2
OFF
5
3
1
4
2
OFF
5
3
BASS TREBLE AUX 2
AUX 3 AUX 1 MIC 1MIC 2
CHIME
MIC1 IN
MODE
TUNER
USB
SD
CARD
ZONE 1 ZONE 2 ZONE 3
ZONE 4 ZONE 5 ZONE 6
Mixer Amplier
OUTPUT
LEVEL
ON
PRIORITY
Nur Sicherung 250V
UseOnly With A 250V Fuse
EmployerUnlquement Avec
Fusible De 250V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
