11NWireless USBAdapter UserGuide
-- 1 --

11NWireless USBAdapter UserGuide
Copyright Statement
Nexxt Solutions is a registered trademark. All the
products and product names mentioned herein are the
trademarks or registered trademarks of their
respective holders. Copyright of the whole product as
integration, including its accessories and software,
belongs to Nexxt Solutions Co., Ltd. Without the
permission of Nexxt Solutions Co., Ltd, any individual
or party is not allowed to copy, plagiarize, imitate or
translate it into other languages.
All the photos and product specifications mentioned in
this guide are for references only. As the upgrade of
software and hardware, there will be changes. And if
there are changes, Nexxt Solutions is not responsible
for informing in advance. If you want to know more
about our product information, please visit our website
at www. nexxtsolutions.com.
-- 1 --

11NWireless USBAdapter UserGuide
Table of Content
Chapter 1 Introduction·························································3
1.1 Product Features······················································4
1.2 Product Deployment ···············································5
1.3 Indicator Description ··············································6
1.4 Package Contents····················································6
Chapter 2 Installation Guide···············································7
Chapter 3 Client Utility Interface ···································· 13
3.1 Station Mode··························································· 14
3.1.1 Station Mode Topology ································ 14
3.1.2 Status································································ 14
3.1.3 Site Survey······················································ 15
3.1.4 Profile Management······································ 17
3.1.5 Statistics··························································· 19
3.1.6 WPS Settings ·················································· 19
3.2 AP Mode···································································· 21
3.2.1 AP Mode Topology ········································· 21
3.2.2 Basic Settings················································· 22
3.2.3 Security Settings ··········································· 23
3.2.4 Access Control················································ 24
3.2.5 About································································· 26
Appendix One: Acronyms and Terms····························· 27
Appendix Two: Product Specification····························· 30
Appendix Three: How to connect with PSP™·············· 31
-- 2 --

11NWireless USBAdapter UserGuide
Chapter 1 Introduction
LYNX 150 utilizes the latest wireless networking
technology, IEEE802.11n (Draft 2.0), and can be
greatly compatible backwards with 802.11b/g
standards, which multiples wireless transmission
range and reduces “dead spots” in the wireless
coverage area.
Soft AP supported by LYNX 150 can help you establish
wireless LAN networks fast. Besides, WPS (Wi-Fi
Protected Setup) encryption methods to avoid you
memorizing long passwords. Moreover, complete WMM
support makes your voice and video smoother.
Supports PSP™, NDS™and WII™connection with
Xlink Kai to enjoy on-line gaming.
All in all, LYNX 150 is a cost-effective Wireless-N
USB Adapter with high-performance and further
wireless coverage.
-3-

11NWireless USBAdapter UserGuide
1.1 Product Features
•Complies with IEEE 802.11n (Draft 2.0), IEEE
802.11g and IEEE 802.11b standards
•Requires USB2.0 port
•Provides 150Mbps receiving rate and 150Mbps
sending rate
•Supports 20MHz/40MHz frequency width
•Auto-detects and changes the network
transmission rate
•Provides two work modes: Infrastructure and
Ad-Hoc
•Supports Soft AP to establish your wireless
LAN networks
•Supports PSP™, WII™and NDS™connecting
with Internet and Xlink Kai to enjoy on-line
gaming
•Supports 64/128-bit WEP, WPA, WPA2
encryption methods and 802.1x security
authentication standard
•Supports WPS (Wi-Fi Protected Setup)
encryption method to avoid you memorizing
-4-

11NWireless USBAdapter UserGuide
long passwords.
•Supports WMM to make your voice and video
smoother.
•Easy-to-install, plug and play
1.2 Product Deployment
LYNX 150 Wireless USB Adapter offers fast,
reliable and cost- effective solution for
wireless access. Deployment as follows;
•For staff who requires higher mobility in the
office, or who requires to have access to
traditional wired or wireless network in any
place of the company;
•Enterprise or individual who requires often
changes in the layout of network cables;
•Companies or places which are not suitable for
LAN cable laying out because of budget or
objective of the building, including places of
-5-

11NWireless USBAdapter UserGuide
great interests, rented places or places for
short-term usage;
•Companies or individuals who avoid using
expensive cables, renting cables or paying
rights for access.
1.3 Indicator Description
In the front panel of LYNX 150, there is a LED
indicator blinking when data communication is going
on.
1.4 Package Contents
Unpack the packets, and please find the following
items:
¾One LYNX 150 11N Wireless USB Adapter
¾One CD-ROM
-6-

11NWireless USBAdapter UserGuide
Chapter 2 Installation Guide
This chapter is to assist you to use the included
CD-ROM which includes the Setup Wizard and the
Client Utility Interface.
The following steps on Setup Wizard are taken from
Windows XP as an example.
1. Please insert the Wireless USB Adapter into any
USB port of your computer.
2. When “Found New Hardware” system dialogue
appears, select “Cancel” to use the included Setup
Wizard for fast installation; of course, you can also
select “Next” to install manually.
-7-

11NWireless USBAdapter UserGuide
3. Insert the included CD-ROM into the CD-ROM
drive of your computer, and the Welcome screen
will appear. (If it does not appear, double click the
“Setup.exe” icon.)
-8-

11NWireless USBAdapter UserGuide

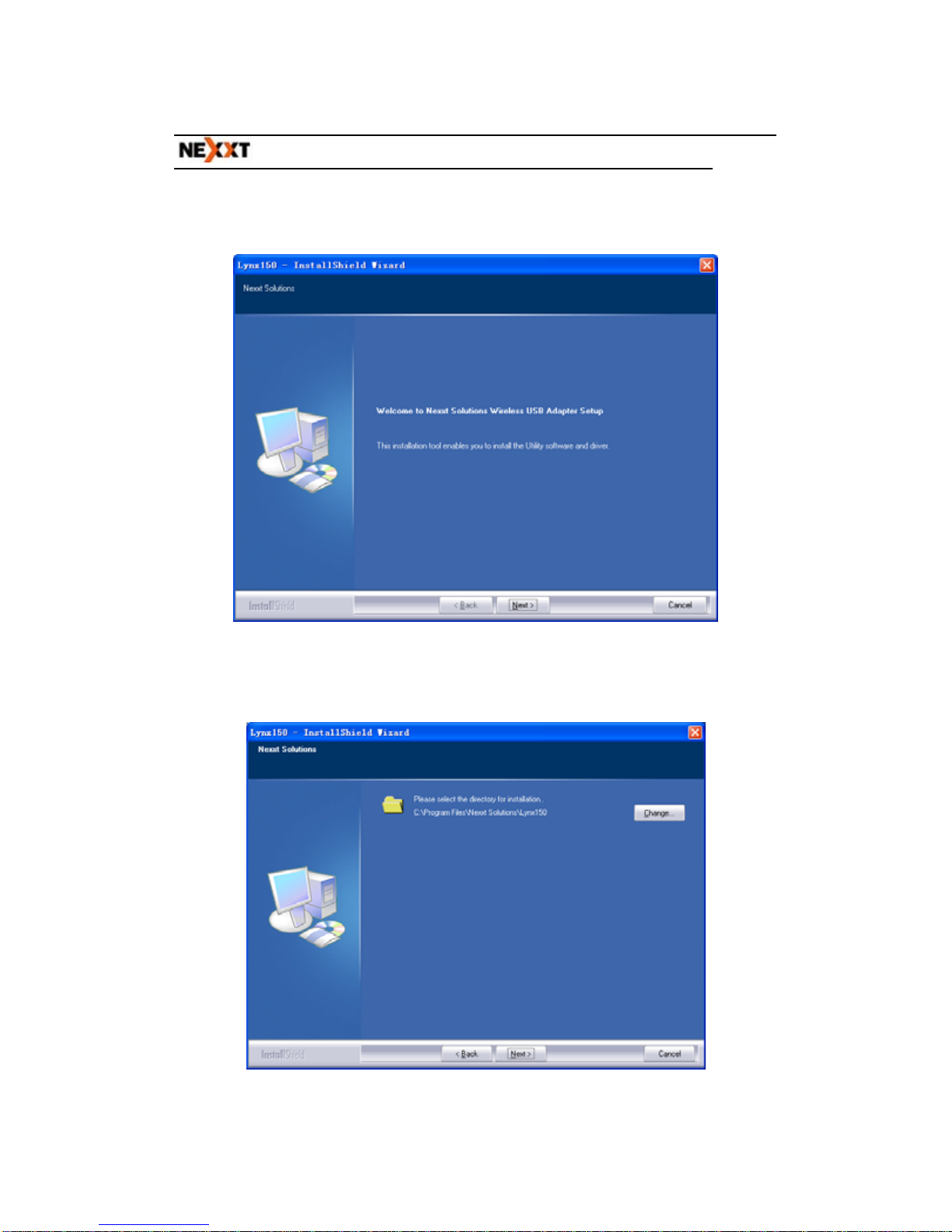

4. Click “Start”.
5. Click “Next” to start installing.
-9-

11NWireless USBAdapter UserGuide

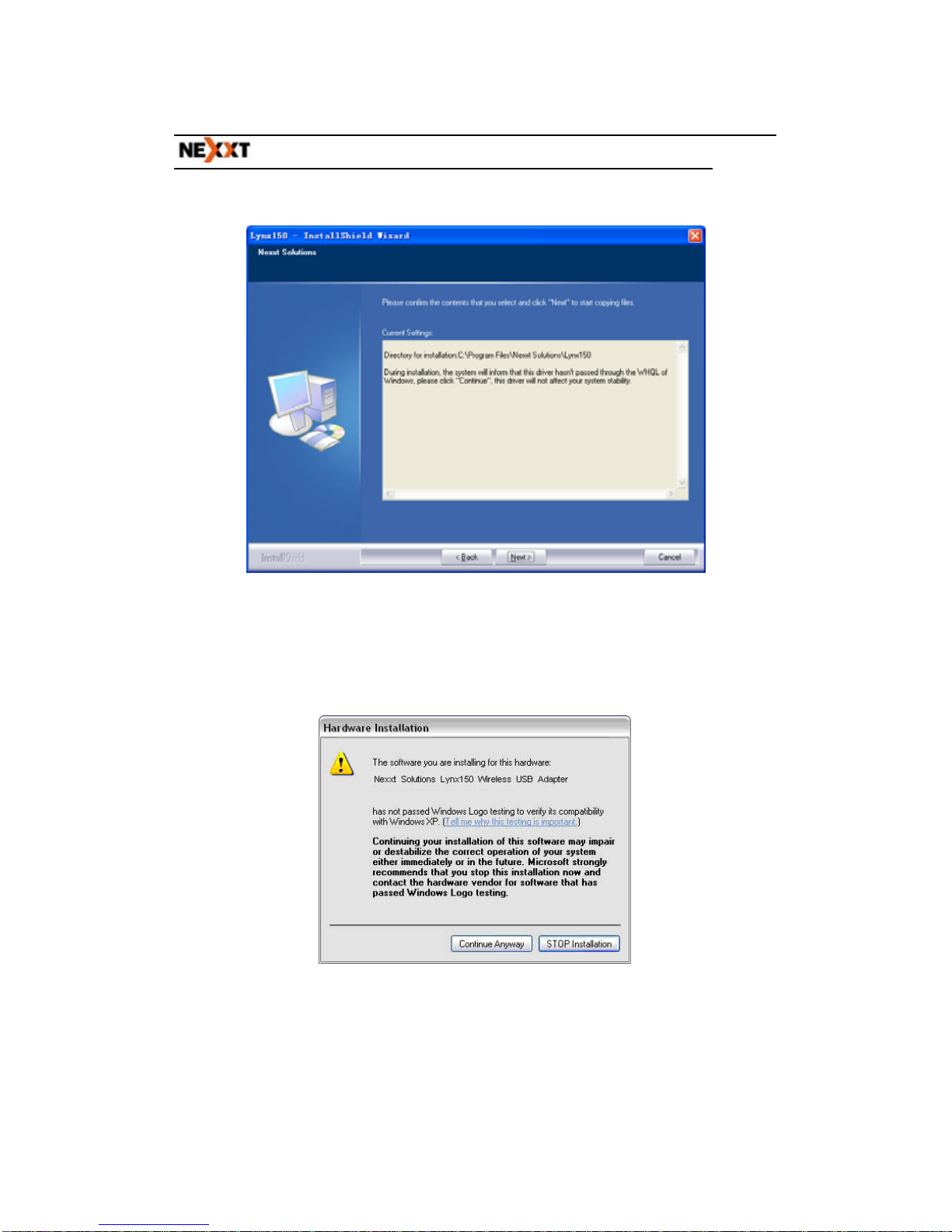

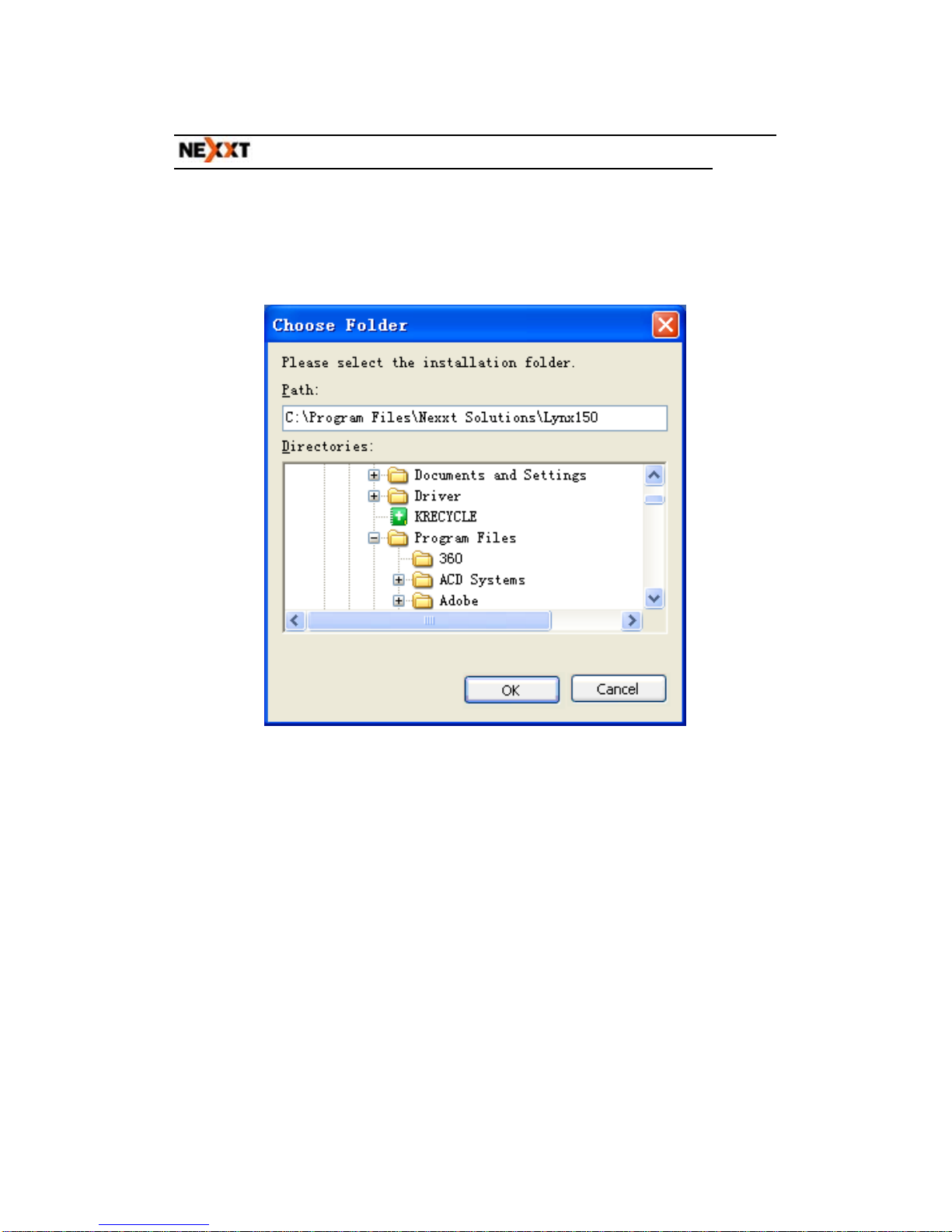

6. Click “Change…” to select the directory path, or
click “Next”.
7. Select “OK” and “Next” in the following window.
-10-

11NWireless USBAdapter UserGuide
8. During the installation, the following dialogue may
appear. Click the “Continue Anyway” to continue.
There is no security threat to your computer.
9. Click “Finish” to complete the installation.
-11-

11NWireless USBAdapter UserGuide
-12-

11NWireless USBAdapter UserGuide
Chapter 3 Client Utility Interface
This software is for the LYNX 150 Wireless USB
Adapter management. If it does not appear, select
“Start”—“All Programs” —“Nexxt
Solutions”—“ LYNX 150”, or click the shortcut on
your PC’s desktop.
Note:
In Windows XP, you can select the included
LYNX 150 Client Utility Interface or the
Windows XP internal wireless application to
configure the device.
There are two client utility applications in LYNX
150: Station mode and AP mode.
Note:
In this utility interface, Station Mode (Client Mode)
is the default access way.
-13-

11NWireless USBAdapter UserGuide
3.1 Station Mode
3.1.1 Station Mode Topology
In this mode, LYNX 150 serves as a client to receive
the wireless signals to access the Internet.
3.1.2 Status
In the Network Status window, it displays something
on wireless adapter and wireless network status,
including SSID, Authentication type, Encryption Type,
IP address, subnet mask and gateway and so on.
-14-

11NWireless USBAdapter UserGuide

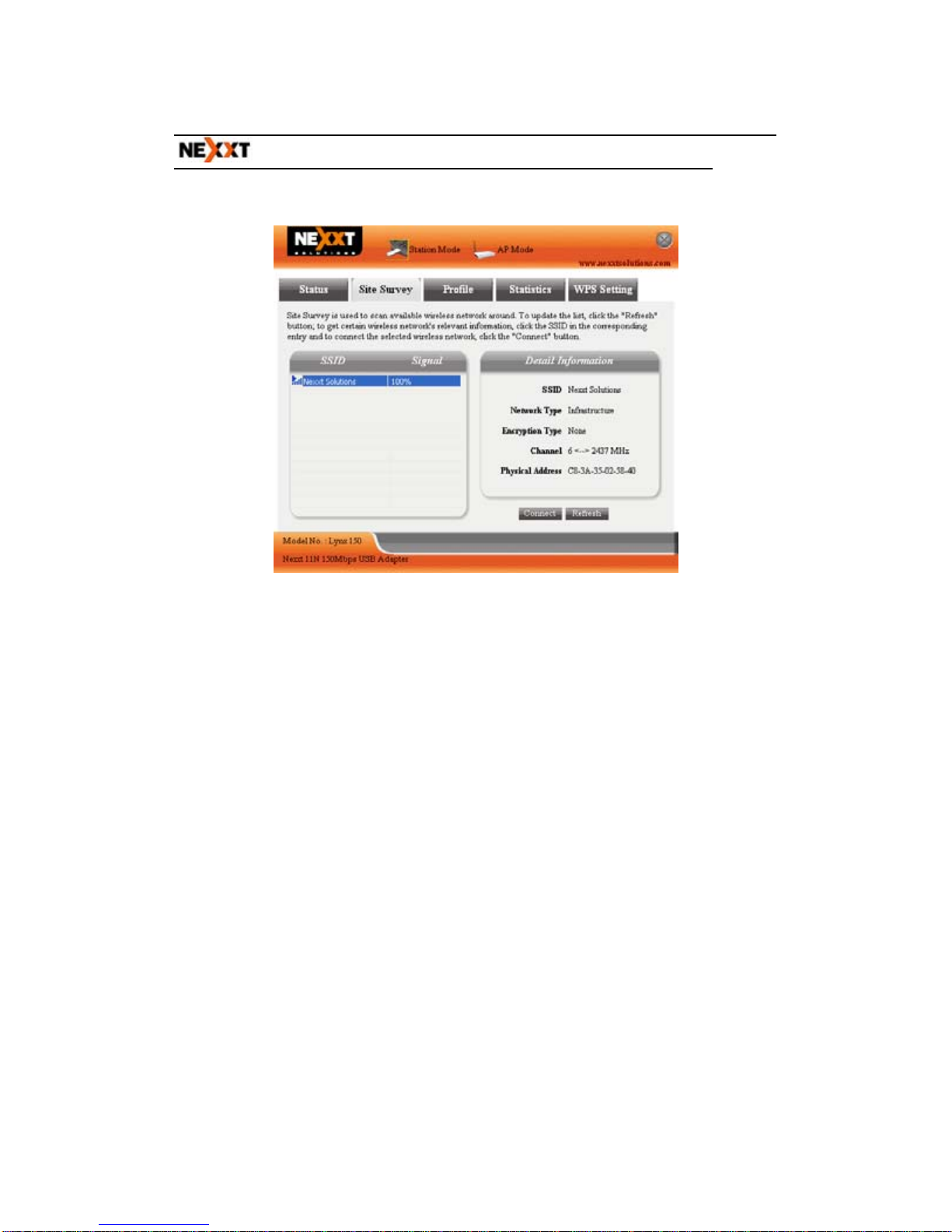

3.1.3 Site Survey
The Site Survey is used to scan the available wireless
network around, showing the wireless network’s signal
strength and other information which provides basis
for you to access which wireless network.
-15-

11NWireless USBAdapter UserGuide
Connect: select one entry in the wireless network
list and click the button to connect the device with
the selected network.
Refresh: rescan the wireless network around.
-16-

11NWireless USBAdapter UserGuide

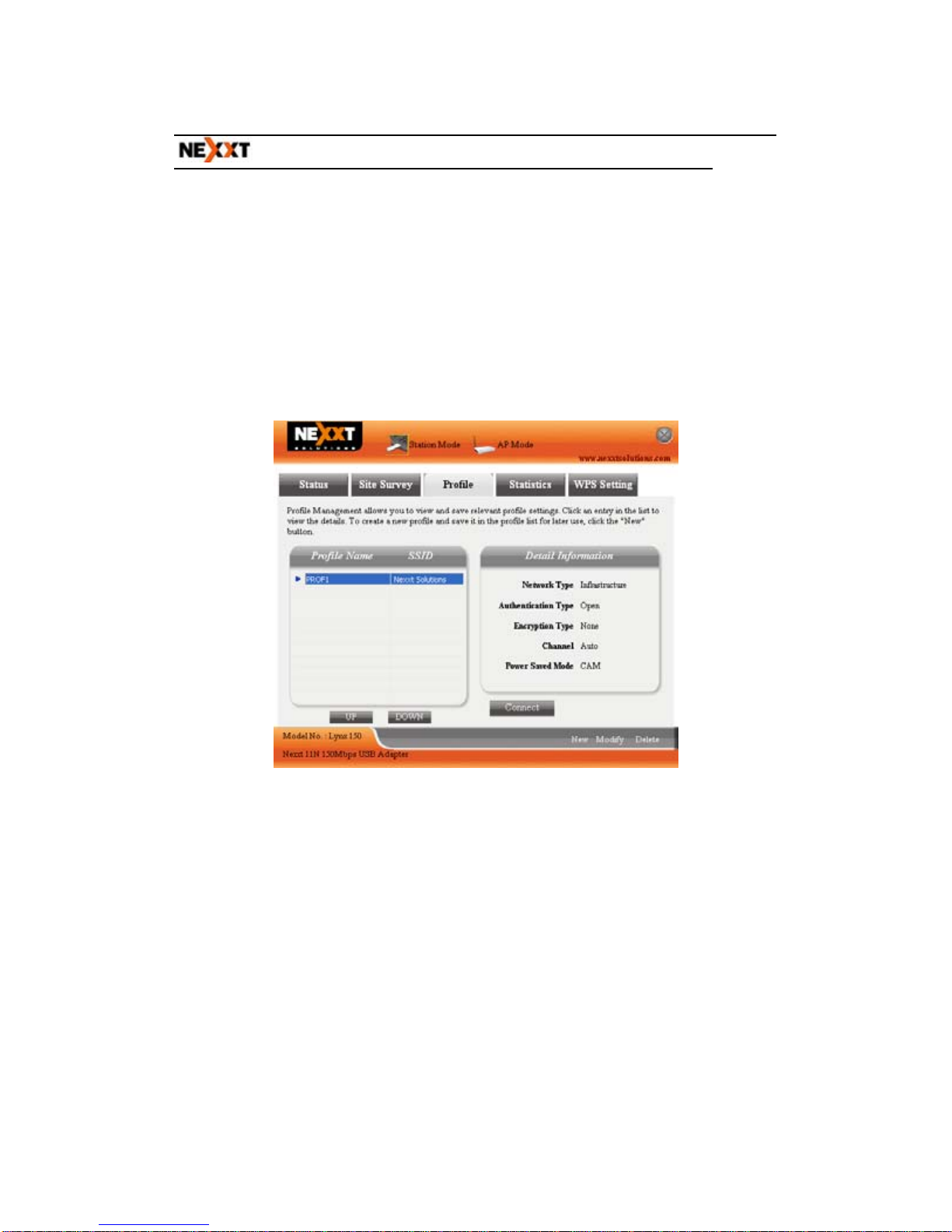

3.1.4 Profile Management
This window saves the general wireless parameters for
different profiles, which are used to connect fast to the
wireless network you need.
UP/DOWN: To change the profile’s sequence in
the list.
Connect: To activate one profile.
New: To create a new profile and configure the
site status and security setting.
Modify: To modify one existing profile.
Delete: To delete one existing profile.
-17-

11NWireless USBAdapter UserGuide
(Site Status)
(Security Setting)
-18-

11NWireless USBAdapter UserGuide
3.1.5 Statistics
Statistics is used to summarize Rx and Tx data packets,
including the success and error packet amount.
Clear: click this button to renew the statistics.
3.1.6 WPS Settings
WPS setting is enabled only on WPS-compliant
devices.
-19-
