Night Optics D-212 User manual

Dual-Tube Night Vision Binocular/Goggle
D-212 / D-2MV
User’s guide
Night Optics USA, Inc.
NIGHT OPTICS USA, INC.
15182 Triton Lane Suite 101 Tel: [phone]
Huntington Beach, CA 92649 Fax:[phone]
USA www.nightoptics.com
Dual-Tube Night Vision Binocular/Goggle
D-212 / D-2MV
User’s guide
Night Optics USA, Inc.
NIGHT OPTICS USA, INC.
15182 Triton LaneSuite 101 Tel: [phone]
Huntington Beach, CA 92649 Fax:[phone]
USA www.nightoptics.com

2
!WARNING!
Do not operate this device until you
are familiar with the contents of
this manual. Keep this manual in a
safe place for future reference.
This Night Vision Device should
only be used during night or low
light conditions. It contains a light-
sensitive image intensier tube
that can be damaged if exposed to
excessive light. To prolong tube life
and avoid damage, do not turn the
unit on in daylight without the pro-
tective cover.
This Night Vision Device is
equipped with a built-in IR illumina-
tor that can be seen by other Night
Vision Devices when it is turned on.
Use this feature with caution.
This device will not show the dif-
ference between colored lights. It
produces only a green viewing im-
age. When color differentiation is
needed, verication with unaided
eyes is recommended.
All Image Intensied Devices re-
quire some light to operate such
as moonlight or ambient starlight.
Night vision devices will not pen-
etrate smoke, fog, rain, or heavy
snowfall. Cloud cover and tree
shadows will reduce the effective-
ness of this device.
Do not operate this Night Vision
Device in a potentially explosive
environment near gasoline fumes
or other volatile materials. This is a
high voltage electrical device.
Do not disassemble, puncture, re-
charge, or expose the battery to
re or high temperature. Doing so
may result in an explosion and re-
sulting chemical burns. When the
device is not in operation for a pro-
longed period, remove the battery
from the device and keep it sepa-
rately in a cool and dry place.
15
ACCEPTANCE CERTIFICATE
Night Vision Goggle/Binocular D-212 conforms
to manufacturer’s specications.
Serial # ___________________
Date of Sale ___________________
Signature: ___________________
2
!WARNING!
Do not operate this device until you
are familiar with the contents of
this manual. Keep this manual in a
safe place for future reference.
This Night Vision Device should
only be used during night or low
light conditions. It contains a light-
sensitive image intensier tube
that can be damaged if exposed to
excessive light. To prolong tube life
and avoid damage, do not turn the
unit on in daylight without the pro-
tective cover.
This Night Vision Device is
equipped with a built-in IR illumina-
tor that can be seen by other Night
Vision Devices when it is turned on.
Use this feature with caution.
This device will not show the dif-
ference between colored lights. It
produces only a green viewing im-
age. When color differentiation is
needed, verication with unaided
eyes is recommended.
All Image Intensied Devices re-
quire some light to operate such
as moonlight or ambient starlight.
Night vision devices will not pen-
etrate smoke, fog, rain, or heavy
snowfall. Cloud cover and tree
shadows will reduce the effective-
ness of this device.
Do not operate this Night Vision
Device in a potentially explosive
environment near gasoline fumes
or other volatile materials. This is a
high voltage electrical device.
Do not disassemble, puncture, re-
charge, or expose the battery to
re or high temperature. Doing so
may result in an explosion and re-
sulting chemical burns. When the
device is not in operation for a pro-
longed period, remove the battery
from the device and keep it sepa-
rately in a cool and dry place.
15
ACCEPTANCE CERTIFICATE
Night Vision Goggle/Binocular D-212 conforms
to manufacturer’s specications.
Serial # ___________________
Date of Sale ___________________
Signature: ___________________

14
LIMITATIONS OF LIABILITY
Night Optics USA, Inc. will not be liable for
any claims, actions, suits, proceedings, costs,
expenses, damages or liabilities arising out of
the use of this product. Operation and use of
this product are the sole responsibility of the
Customer. Night Optics USA, Inc.’s sole re-
sponsibility is limited to providing the products
and service outlined herein in accordance with
the terms and conditions of this Agreement.
The provision of products sold and services
performed by Night Optics USA, Inc. to the
Customer shall not be interpreted, construed, or
regarded, either expressly or implied, as being
for the benet or creating any obligation toward
any third party of legal entity outside Night
Optics USA, Inc. and Customer; Night Optics
USA, Inc.’s obligations under this Agreement
extend solely to the Customer. Night Optics
USA, Inc.’s liability hereunder for damages,
regardless of the form or action, shall not
exceed the fees or other charges paid to
Night Optics USA, Inc. by the Customer or
the Customer’s dealer. Night Optics USA,
Inc. shall not, in any event, be liable for spe-
cial, indirect, incidental, or consequential
damages, including, but not limited to, lost
income, lost revenue, or lost prot, whether
such damages were foreseeable or not at the
time of purchase, and whether or not such
damages arise out of breach of warranty, a
breach of agreement, negligence, strict li-
ability, or any other theory of liability.
3
TABLE OF CONTENTS
Technical Specications .............4
General View (D-2MV) . . . . . . . . . . . . . . 4
Description. . . . . . . . . . . . . . . . . . . . . . . . 5
Operation.........................6
Night Vision
Characteristics ....................9
Maintenance ......................11
Troubleshooting....................12
Warranty .........................13
Limitations of Liability ...............14
Acceptance Certicate. . . . . . . . . . . . . . . 15
Night Optics USA, Inc................16
14
LIMITATIONS OF LIABILITY
Night Optics USA, Inc. will not be liable for
any claims, actions, suits, proceedings, costs,
expenses, damages or liabilities arising out of
the use of this product. Operation and use of
this product are the sole responsibility of the
Customer. Night Optics USA, Inc.’s sole re-
sponsibility is limited to providing the products
and service outlined herein in accordance with
the terms and conditions of this Agreement.
The provision of products sold and services
performed by Night Optics USA, Inc. to the
Customer shall not be interpreted, construed, or
regarded, either expressly or implied, as being
for the benet or creating any obligation toward
any third party of legal entity outside Night
Optics USA, Inc. and Customer; Night Optics
USA, Inc.’s obligations under this Agreement
extend solely to the Customer. Night Optics
USA, Inc.’s liability hereunder for damages,
regardless of the form or action, shall not
exceed the fees or other charges paid to
Night Optics USA, Inc. by the Customer or
the Customer’s dealer. Night Optics USA,
Inc. shall not, in any event, be liable for spe-
cial, indirect, incidental, or consequential
damages, including, but not limited to, lost
income, lost revenue, or lost prot, whether
such damages were foreseeable or not at the
time of purchase, and whether or not such
damages arise out of breach of warranty, a
breach of agreement, negligence, strict li-
ability, or any other theory of liability.
3
TABLE OF CONTENTS
Technical Specications .............4
General View (D-2MV) . . . . . . . . . . . . . . 4
Description. . . . . . . . . . . . . . . . . . . . . . . . 5
Operation.........................6
Night Vision
Characteristics ....................9
Maintenance ......................11
Troubleshooting....................12
Warranty .........................13
Limitations of Liability ...............14
Acceptance Certicate. . . . . . . . . . . . . . . 15
Night Optics USA, Inc................16

4
TECHNICAL SPECIFICATIONS
D-2MV Goggle D-212
Binocular
Image Intensier Generation 1+
Resolution (Center) 40 lp/mm
Magnication 1x (3.6x optional) 3.6x (1x optional)
Lens System 26mm f1.2 80mm f1.6
FOV
@1000 yards
@1000 meters
40˚
2184 ft
728m
15˚
790 ft
263 m
Range of Focus 10” / 25 cm to innity
Detection Range 410’ / 125m 500’ / 152m
Recognition Range 328’ / 100m 410’ / 125m
Diopter Adjustment +4 to -4
Weather Resistant Yes
Camera/Camcorder
Adaptable
No
IR Illuminator Yes (Focusable)
Battery Type/Life CR123 (x1) /40 hours
Dimensions 4.9” x 4.4” x 2.3”
124mm x 112mm
x 58mm
7.2” x 4.7” x 2.3”
183mm x 119mm
x 58mm
Weight 17oz / 482gr 32oz / 907gr
Operating Temperature -4° F to 113° F / -20°C to +45°C
Warranty 1 year

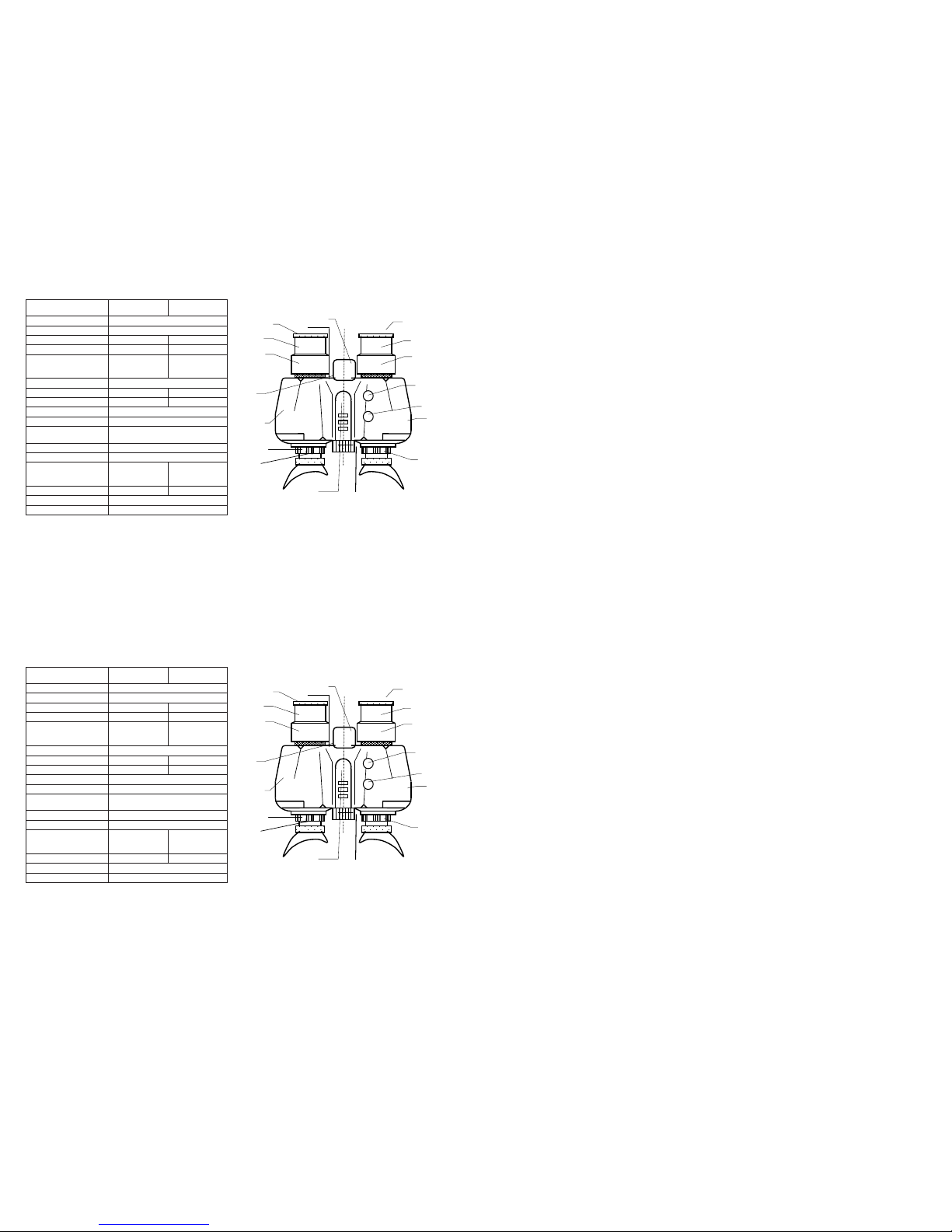

GENERAL VIEW (D-2MV)
12
1
3
23
1
5
5
1
0
10
4
4
7
9
8
6
7
11
13
1. Body
2. Eyepiece
3. Diopter Adj.
4. Front Lens
5. Focusing Ring
6. IR Illuminator
7. ON/OFF Switch
8. Decorative Cover
9. Battery Compartment
10. Lens Cover
11. IR Illuminator ON/OFF
Switch
12. Bright Light Exposure
Sensor
13. 2-Color LED
GREEN: Binocular
Power “ON”
RED: IR “ON” 13
WARRANTY
The D-212 is covered by a limited 1 year war-
ranty from time of sale. The warranty is valid
only for the original purchaser.
The manufacturer warrants its products to be
free from defects in material and workman-
ship during the warranty period. If the product
proves to be defective during this period, the
manufacturer will repair the original product or
replace it with a like product at the sole discre-
tion of the manufacturer.
This limited warranty does not cover:
1. Any product on which the serial number has been
defaced, modied, or removed.
2. Any product that has experienced deterioration or
a malfunction from: accidents, misuse, neglect, re,
water, lighting or other acts of nature, unauthorized
product modication or failure to follow instructions
supplied with the product, repair or attempted repair
by anyone not authorized to do so, use of supplies
or parts not meeting manufacturer’s specications,
normal wear and tear, and/or extreme wear and
tear caused by battleeld conditions or other ex-
treme environments.
Customer is hereby notied that
operation of this device during day-
light hours or under excessive light
conditions may permanently dam-
age internal components and said
damage will not be covered under
this warranty.
No other warranties, expressed or implied, are
valid without an agreement in writing provided
by the manufacturer.
All shipping involved in warranty work/replace-
ment is the sole responsibility of the purchaser.
4
TECHNICAL SPECIFICATIONS
D-2MV Goggle D-212
Binocular
Image Intensier Generation 1+
Resolution (Center) 40 lp/mm
Magnication 1x (3.6x optional) 3.6x (1x optional)
Lens System 26mm f1.2 80mm f1.6
FOV
@1000 yards
@1000 meters
40˚
2184 ft
728m
15˚
790 ft
263 m
Range of Focus 10” / 25 cm to innity
Detection Range 410’ / 125m 500’ / 152m
Recognition Range 328’ / 100m 410’ / 125m
Diopter Adjustment +4 to -4
Weather Resistant Yes
Camera/Camcorder
Adaptable
No
IR Illuminator Yes (Focusable)
Battery Type/Life CR123 (x1) /40 hours
Dimensions 4.9” x 4.4” x 2.3”
124mm x 112mm
x 58mm
7.2” x 4.7” x 2.3”
183mm x 119mm
x 58mm
Weight 17oz / 482gr 32oz / 907gr
Operating Temperature -4° F to 113° F / -20°C to +45°C
Warranty 1 year
GENERAL VIEW (D-2MV)
12
1
3
23
1
5
5
1
0
10
4
4
7
9
8
6
7
11
13
1. Body
2. Eyepiece
3. Diopter Adj.
4. Front Lens
5. Focusing Ring
6. IR Illuminator
7. ON/OFF Switch
8. Decorative Cover
9. Battery Compartment
10. Lens Cover
11. IR Illuminator ON/OFF
Switch
12. Bright Light Exposure
Sensor
13. 2-Color LED
GREEN: Binocular
Power “ON”
RED: IR “ON” 13
WARRANTY
The D-212 is covered by a limited 1 year war-
ranty from time of sale. The warranty is valid
only for the original purchaser.
The manufacturer warrants its products to be
free from defects in material and workman-
ship during the warranty period. If the product
proves to be defective during this period, the
manufacturer will repair the original product or
replace it with a like product at the sole discre-
tion of the manufacturer.
This limited warranty does not cover:
1. Any product on which the serial number has been
defaced, modied, or removed.
2. Any product that has experienced deterioration or
a malfunction from: accidents, misuse, neglect, re,
water, lighting or other acts of nature, unauthorized
product modication or failure to follow instructions
supplied with the product, repair or attempted repair
by anyone not authorized to do so, use of supplies
or parts not meeting manufacturer’s specications,
normal wear and tear, and/or extreme wear and
tear caused by battleeld conditions or other ex-
treme environments.
Customer is hereby notied that
operation of this device during day-
light hours or under excessive light
conditions may permanently dam-
age internal components and said
damage will not be covered under
this warranty.
No other warranties, expressed or implied, are
valid without an agreement in writing provided
by the manufacturer.
All shipping involved in warranty work/replace-
ment is the sole responsibility of the purchaser.

12
TROUBLESHOOTING
Symptom Probable Cause Corrective Action
No visible Image a. Objective lens cap not been removed.
b. Battery cover is loose.
c. Incorrect battery polarity
d. Weak battery
a. Remove cap
b. Tighten cover
c. Re-insert battery
d. Replace battery
Image ickers, ashes, or
clicking is heard
a. Normal for new battery to cause this for
rst ve minutes.
a. If condition continues contact manufacturer for service
instructions
Dark spots on screen a. Cosmetic blemishes. Normal for this
technology.
a. Acceptable as long as it does not interfere with operation
of the device
Image not clear a. Focus is not adjusted.
b. Too close to object
a. Adjust focus
b. Increase viewing distance.
Fixed pattern noise.
(honeycomb)
a. Cosmetic blemishes caused by too
mach illumination.
a. Acceptable as long as target resolution can be resolved.
Pattern of dark thin lines
(chicken wire)
a. Normal under worst conditions. These
lines will form hexagonal or square wave-
shaved lines.
a. Acceptable as long as it does not interfere with operation
of the device
Image dimmer than
usual.
a. Weak batteries
b. Low natural illumination level.
a. Replace the batteries.
b. Turn on IR illuminator.
5
DESCRIPTION
D-212 is the only Generation 1+ enhanced
binocular equipped with a built-in photocell that
guards the unit against bright light exposure.
This light-weight unit offers true-stereo depth
perception and features a built-in focusable IR.
The unique, wide exit pupil design eliminates
the need for interpupillary adjustment. The
optional 1x lens kit converts the D-212 into the
D-2MV Goggle for hands-free us or mounting on
a ip-up Headgear.
12
TROUBLESHOOTING
Symptom Probable Cause Corrective Action
No visible Image a. Objective lens cap not been removed.
b. Battery cover is loose.
c. Incorrect battery polarity
d. Weak battery
a. Remove cap
b. Tighten cover
c. Re-insert battery
d. Replace battery
Image ickers, ashes, or
clicking is heard
a. Normal for new battery to cause this for
rst ve minutes.
a. If condition continues contact manufacturer for service
instructions
Dark spots on screen a. Cosmetic blemishes. Normal for this
technology.
a. Acceptable as long as it does not interfere with operation
of the device
Image not clear a. Focus is not adjusted.
b. Too close to object
a. Adjust focus
b. Increase viewing distance.
Fixed pattern noise.
(honeycomb)
a. Cosmetic blemishes caused by too
mach illumination.
a. Acceptable as long as target resolution can be resolved.
Pattern of dark thin lines
(chicken wire)
a. Normal under worst conditions. These
lines will form hexagonal or square wave-
shaved lines.
a. Acceptable as long as it does not interfere with operation
of the device
Image dimmer than
usual.
a. Weak batteries
b. Low natural illumination level.
a. Replace the batteries.
b. Turn on IR illuminator.
5
DESCRIPTION
D-212 is the only Generation 1+ enhanced
binocular equipped with a built-in photocell that
guards the unit against bright light exposure.
This light-weight unit offers true-stereo depth
perception and features a built-in focusable IR.
The unique, wide exit pupil design eliminates
the need for interpupillary adjustment. The
optional 1x lens kit converts the D-212 into the
D-2MV Goggle for hands-free us or mounting on
a ip-up Headgear.
