Ningbo FG-S1200 User manual

DRYWALL SANDER
FG-S1200
INSTRUCTION MANUAL

1
Contents
1. Warning & Statements。。。。。。。。。。。。。。。。。。。。。。。。。。。。。
1-4
2. Voltage。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。
4
3. Device Application。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。
4
4. Technical Specifications。。。。。。。。。。。。。。。。。。。。。。。。。。。。。
4
5. Structure Overview。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。
6-7
6. Installation & Sandpaper Replacement。。。。。。。。。。。。。。。
7-9
7. Installation & viscid disc Replacement。。。。。。。。。。。。。。。
9-10
8. Connection Set for Dust Outlet。。。。。。。。。。。。。。。。。。。。
10-13
9. Switch& Speed Governor operation。。。。。。。。。。。。。。。
13-14

2
10. Application Diagram。。。。。。。。。。。。。。。。。。。。。。。。。。。
14-16
11. Cleaning。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。
16
12. Replacement of carbon brush。。。。。。。。。。。。。。。。。。。。
16-17
1．Warning & Statements
Note：In order to reduce the hazards of fire, electrical shock
and injury, etc, the statements listed below shall be taken into
consideration upon application of electric tools.
1．Understand your electric tool fully by going through the user
manual carefully together with identifying the application,
limitation and potential risk accordingly.
2．Adopt protective appliances and act by conforming to the
due order strictly.
3．Remove all the regulatory instruments, and form the habit to
check about that prior to application of electric tools.
4．Keep the operational site clean. Accidents are most likely to
occur in case that the electric tools are used in a messy and
dirty place, or on the workbench.
5．Any operation in unsafe conditions is strictly prohibited. Do

3
not use the electric tools in places exposed to damp/moisture,
or leave them outside in rainy days. Make sure to keep the
operational site bright enough.
6．Keep the children away from the devices. Certain distance
shall be guaranteed as for the children in search of on-site
operational experience.
7．Actions shall be taken to avoid the workshop accessible by
children without permission, such as locking the door,
cutting off the power supply or taking away the launch key.
8．Do not use the devices at will. To ensure the overall quality
of work piece and maintain security anyway, please use the
devices within the design capacity.
9．Use the devices correctly, and do not operate them in
overloading or abnormal status.
10．Ensure appropriate clothing. Do not wear loosen clothes,
gloves, tie, knot, etc. which may result in hazards of being
entangled by running devices. Prefer shoes with skid proof to
avoid slipping, and cut the hair to the proper length.
11．Remember to wear protective spectacles. Abundant dust may
come out in the buffing process, thus it’s necessary to wear
dust mask. Glasses in daily use incorporate lens with impact
resistance only, which could by no means meet the safety
requirements.
12．Do not place your hands over the twisting disk. Meanwhile,
stand still during the operations.
13．Prior to adopting the device, check if the disk suffers from
defects as rupture and the sandpaper is well-composed.
14．Ensure tight connections at the disk and other joints.
15．When using the device, remember to hold the handle firmly.

4
Single-hand operations and any intentions to touch the disk
are strictly prohibited.
16．Before switching on, the disk shall be away from any contact
of other objects.
17．Prior to application, the device shall be powered and
switched on to make the disk twist at full speed. Avoid waver
arising from installation error and misplaced disk. In case of
any malfunction, cut off the power supply and cease the
operations at hand immediately.
18．Treat the device maintenance cautiously. Keep the grinder
sharp and safe at any time. In addition, follow the
instructions to lubricate the device and replace appropriate
accessories.
19．The power supply must be cut off during maintenance, such
as the replacement of accessories, sandpaper, etc.
20．Avoid direct connection to power supply. Before power on,
check if the switch for the device is off in advance.
21．Use the accessories according to the instructions. Read
through the user manual in details, and select right
accessories accordingly, otherwise, it may result in
unexpected injuries.
22．Check if the components or devices are damaged at any time.
In case of any failure or abrasion, replace the device at once.
Otherwise, it may affect working efficiency or even result in
accidents.
23．Keep an eye on the device to cancel it. Make sure to switch
off, and wait until the device finally ceases.
24．As for adoption of the device, only apply specified parts for
replacement.

5
25．In case of maintenance or replacement, adopt specified
spare parts only.
2．Voltage
Before connecting electric tool to the socket, make sure that
the supply voltage be in accordance with rated voltage. If the
former is greater than latter and the device is powered on by
mistake, it may result in damage of devices and injuries of people.
As for indefinite supply voltage of socket, never try to plug for
use. Besides, the damage of devices may also occur if the supply
voltage falls below rated voltage.
3. Device Application
As one of our products, the device belongs to the hand-held
electric tools.
The device mainly caters for lime surface, including the
interior wall, ceiling, exterior wall, corridor, etc. Remove the
painting lime mud from the wall, and make the surface even or
smooth. It may promote the wall grinding efficiency and quality
by workers.
With various conditions taken into consideration in the
design, the device may run at high or low speed to optimize the
grinding efficiency and realize user-friendly and compact design.

6
4. Technical Specifications
Model FG-S1200
Rated Voltage 230/110（V）
Frequency 50/60（Hz）
Rated Power 1200
（W）
No-load Speed 1500-3300(R/min)
Sandpaper Dimensions Ф225
（mm）
Safety Standard II /
Net/Gross Weight 2.7/4.1（kg）
Machine size 300*258*258
（mm）
Packing Dimensions 27.5*27.5*28（cm/pc）
5．Structure Overview (See following pictures)

7
sandpaper plastic disc component brush
Standard Accessories
Sandpaper: 6 pc Allen Wrench: 1 pc
Carbon Brush: 2 pc Telescopic Dust hose: 2 m/1 pc
Dust bag:1pc
Handle
Speed control
Switch
Dust Outlet

8

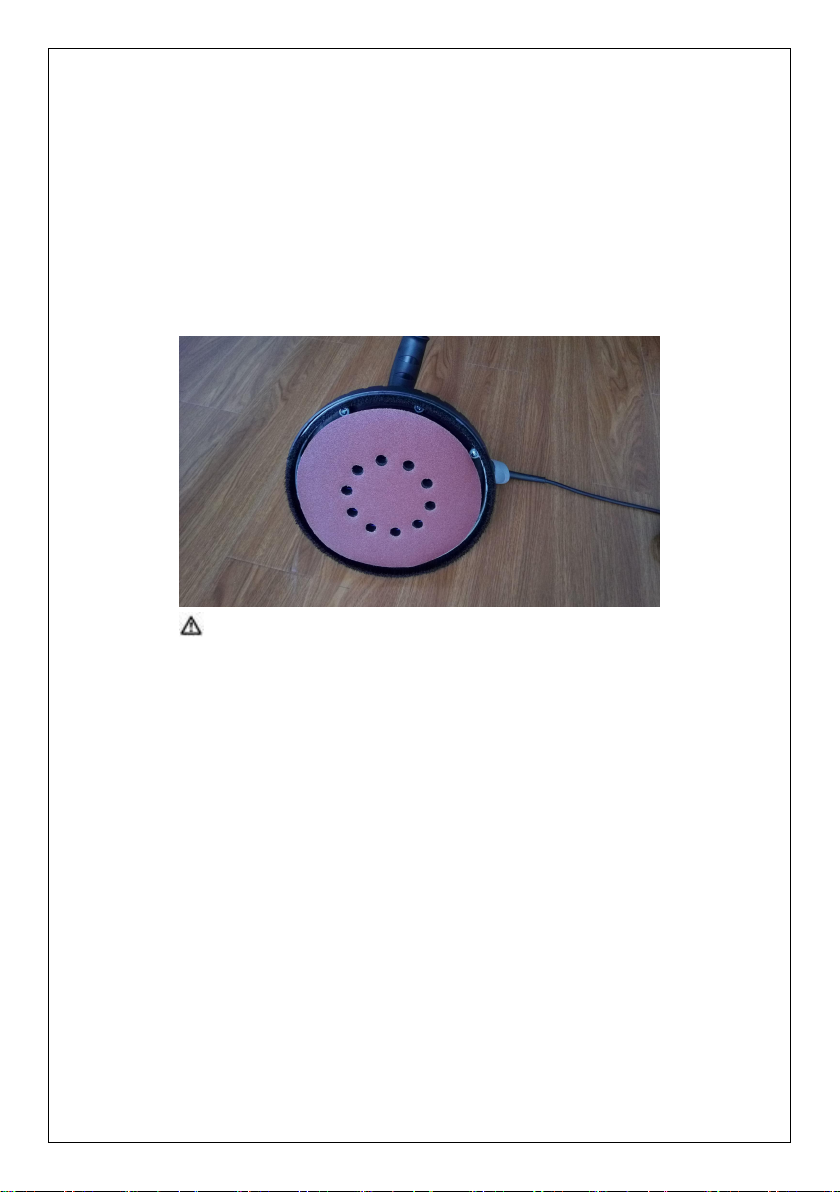

6. Installation & Sandpaper Replacement (See following
picture )
Note: Prior to installation or removing the sandpaper, make
sure to not only switch off the device, but also cut off the power
supply.
——Installation Guide
To ensure the replacement procedures, place the device on
the smooth ground prior to installation. Take the sandpaper from
the toolbox, and then fix it onto the disk (see Fig .2). The back of
the sandpaper (Item 1) will automatically glue with the
disk/adhesive disk (Item 2), making both connection and
conduction available.
In order to promote the grinding efficiency, it is necessary to
change the sandpaper after the device has been operational for a
certain period. Firstly, switch off the device and disconnect the

9
socket. Then, remove the previous sandpaper entirely from the
disk, so as to lay new sandpaper neatly as well as facilitate future
replacement. At last, fix new sandpaper in position.
——Sandpaper Overview
Grinding towards the target wall and object is possible with
abrasive grains and sandpaper twisting upon operations. The
sandpaper is classified into various categories according to its
dimensions. It is recommended to select the sandpaper in
accordance with actual size of the disk. The more abrasive grains
included on the sandpaper, the better flatness and parallelism can
be achieved via grinding, while the grinding efficiency will fall
accordingly and vice versa. Therefore, the sandpaper (Ф225mm)
is recommended upon actual needs.
:
Warning ：Prior to the sandpaper replacement or
installation, do read safety precautions and installation guide
carefully.
7．Installation & viscid disc Replacement (See following
picture)
If the viscid disc is damaged in the work, a new viscid disc can be
purchased from our company for replacement.
——Installation Guide

10
Remove the sandpaper, put the Allen wrench into the hexagon
hole in the center of the viscid disc and then rotate clockwise to
take off the damaged viscid disc. Install the new viscid disc (see
the picture).

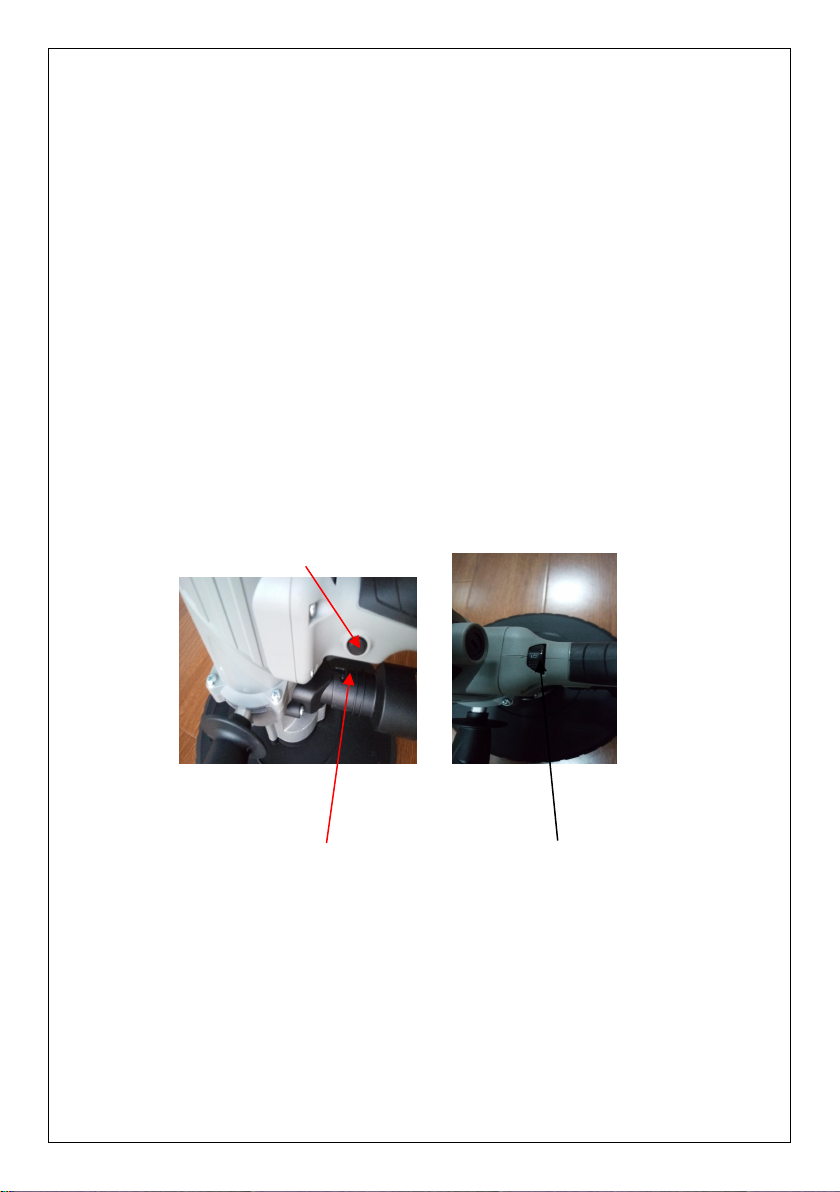

8．Connection Set for Dust Outlet (See following pictures)
Dust outlet Lock button
Viscid disc

11
ab
picture-1

12
b a
picture-2
As its name implies, it is used for connecting the device to
Dust Outlet (accessory). The dust will come out from the wall
upon operating the grinder. The device is connected to Dust
Collector at back via Connection Set for Dust Outlet, making it
possible for the operator to reduce the amount of dust.
——Installation Guide&Dismantling Process (picture 1&2)
Insert the dust hose into the dust outlet ,rotate the hose to the
right to lock the component B into component A.
Rotate the lock to the left and pull out the dust hose to
dismantling
Dust outlet Lock button
C d

13
picture-3
C d
picture-4
——Installation Guide&Dismantling Process (picture 3&4)
Figure（picture 1 & 2）。
9.Switch& Speed Governor Operation(See following picture )
The switch of this machine has self-lock button.As shown in
following picture, press the main switch button to power on.After
pressing main switch button then press the self-lock button the

14
switch button will be locked no need press the button all the
time.Press the main switch button (no need press self-lock button)
to power off.
The Speed Governor, as shown in the following picture, may be
used to regulate the speed, so as to facilitate the operations of
workers and improve work quality simultaneously.
Intense current will be generated when motor start it will
cause great damage to the machine and has potential safety
problem.So this machine use soft start design, even pace start, to
reduce the damage to the motor and enhance the safety.
Self-lock button
Main switch Speed control
10．Application Diagram
This machine has self-suction function no need connect wit
vacuum cleaner when sanding.It could be easily and convenienty
to adjusted by rotating the gas vent on the plastic disc.First buckle
the belt on the dust bag, then tie zip up it.(see following picture)

15

16
As shown on the picture the operator can sanding the different
position of the wall.
11．Cleaning
Regular cleaning shall be conducted after grinding.
●Cleaning the devices frequently may help to extend operating
life and reduce repair rate. It is recommended to clean the
connection sets and components of electric motor without
application of water.
●Timely cleaning is recommended after the application of the
devices.
●Clean the devices with a hairbrush and a piece of dry cloth, or
simply blow it with high pressure gas.
12．Replacement of carbon brush(see following picture)
ry.When the original carbon brush is worn the machine has a set
spare carbon brush for replacement.
Guide for the replacement of carbon brush ：
Using the "a" word screwdriver anti clockwise direction of the
brush holder cover is screwed out, remove carbon brush, will
spare the brush into the brush holder, tighten the brush holder
cover to ensure brush on the brush frame move freely,
Noted:The Carbon Brush must be from the original facto

17
Brush holder cover Carbon Brush Brush holder

Manufacturer：NINGBO FEIGE TOOLS;TLD.
Add：No.78 Central Shipoqiao Road,Yuyao Ningbo City,
Zhejiang Province, China
