Ningbo Vsett eagle User manual

NINGBO VSETT INTELLIGENT TECHNOLOGY CO., LTD

USER MANUAL

PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE RIDING

STRONG TORQUE

OFF - ROAD

TFT DISPLAY

HYDRAULIC BRAKE

CONTENT

Safety Checklist

Safety Precautions

SAFETY

1-2

Bike Specifcation

Bike Assembly Guide

Assembly Instructions

Battery

LCD Display Settings

Walk Mode and Pedal-Assist

Set Interface

Riding Modes

Riding Limitations

Parking & Transport

Carrying Loads & Cargo

Safety and Care Instructions

USING AND CARE YOUR E-BIKE

4-7

8-12

Battery Maintenance

Chain Maintenance

Front Fork Maintenance

Brake Maintenance

MAINTENANCE

LIMITED WARRANTY

ERROR CODES

INCLUDED IN THE BOX

23-25

Brakes

Wheels and Tires

Chain

Cranks and Pedals

Derailleurs

Motor Drive

Safety Check

• Check that chain is oiled, clean and runs smoothly.

• Use extra care in wet or dusty conditions.

• Securely tighten pedals to cranks.

• Ensure cranks are securely tightened and are not bent.

• Check that derailleur(s) are adjusted and functioning properly.

• Ensure shift and brake levers are attached to handlebar securely.

• Check all brake and shift cables for proper lubrication.

• Ensure hub motor is spinning smoothly and motor bearings are in good working order.

• Check that all power cables running to hub motor are secured and undamaged.

• Make sure hub motor axle bolts are secured and all torque arms and torque washers are in place.

Basic Steps

• Test front and rear brakes for proper function.

• Ensure brake pads are not overworn and are correctly positioned in relation to rims.

• Make sure brake control cables are lubricated, correctly adjusted and display no obvious wear.

• Check that brake control levers are lubricated and tightly secured to handlebars.

• Inflate tires to within recommended limits displayed on sidewalls.

• Check for bulges or signs of excessive wear.

• Clean tires to ensure tread is exposed.

• Ensure rims run true and have no obvious wobbles or kinks.

• Check that all wheel spokes are tight and not broken.

• Check the wheel balance in Pedal Only Mode. If you notice the riding is imbalanced or the rotation of the front wheel makes noise,

it means the bolts were not completely tightened or not aligned horizontally.

SAFETY CHECKLIST

Battery and charger

• Ensure battery is charged before use.

• Check for any visible damage to battery pack.

• Lock battery securely to frame.

• Keep the battery away from children and pets.

• Keep the battery & charger away from water and open fire.

• Do not drop or subject the battery & charger to any big shocks.

• Charge the battery only with the charger that was supplied with the e-bike, or the spare / replacement charger supplied by an

official dealer.

• Do not use the battery & charger for other purposes.

• Never connect the battery's terminals with each other.

• Do not cover the battery & charger or place objects on top of it during charging.

• Do not leave the battery & charger unattended while charging.

• Disconnect the charger and the battery immediately if you notice a strange smell or smoke.

• In the unlikely case that the battery is on fire: NEVER try to put the fire out with water. Cover the fire with large amounts of sand,

and call emergency services immediately.

NOTICE: When the battery has reached the end of the service life, it should be treated as hazardous waste material. It should not be disposed of in regular household

trash. Ask your dealer for advice on proper disposal of the battery.

BEFORE RIDING

All users must read and understand this manual before ﬁrst use. Additional manuals for components used on your bicycle may be provided and should also be read

before use.

Ensure you understand all instructions and safety notes/warnings.

Ensure the bike ﬁts you properly before ﬁrst use. Check local rules and regulations before riding.

It is your responsibility to familiarize yourself with the laws and requirements of operation of this product in the area(s) where you ride.

Always wear an approved bicycle helmet whenever using this product and ensure that all helmet manufacturer instructions are us ed for fit and care of your helmet.

Failure to wear a helmet when riding may result in serious injury or death.

Acceleration can be unexpectedly strong in pedal assist mode (Pedal Assist level 1-5), as when you pedal the motor assist will suddenly engage. Therefore, please

pay careful attention when riding. We suggest you use Pedal Only Mode (Pedal Assist level 0) when you need to ride at a slow speed to cross roads, at intersections,

or when pedestrian trafﬁc is present, in order to avoid accidents caused by sudden acceleration.

Make sure you securely close the quick-release lever of the front wheel, checking the wheel balance in Pedal Only Mode. If you notice the riding feels imbalanced, or

the rotation of the front wheel makes noise, it likely means the bolts were not completely tightened or didn’t align horizontally in the center.

Off-road riding requires close attention and speciﬁc skills, and presents variable conditions and hazards which accompany the conditions.

Wear appropriate safety gear and do not ride alone in remote areas.

WHILE RIDING

SAFETY PRECAUTIONS

The following safety notes provide additional information on the safe operation of your VSETT EAGLE and should be closely reviewed. Improper operation, or failure to confirm

correct installation, compatibility, and maintenance of any component or accessory may result in serious injury or death.

BIKE SPECIFICATION

ADJUSTABLE PNEUMATIC SHOCK

LED LIGHTS

S-RIDE 7-SPEED SHIFT SYSTEM

HIGHLIGHT BRAKE LIGHT

LIQUID SHOCK ABSORBER

180MM DISC BRAKE

HYDRAULIC BRAKE

750W MOTOR (TOP SPEED 4KM/H)

48V 22A CONTROLLER

48V 20AH BATTERY (80KM RANGE)

KENAD 20×40 INFLATABLE TIRE

HYDRAULIC BRAKE

SHOCK ABSORBER

ADJUSTABLE KNOB

GEAR SHIFT BUTTON +

THROTTLE

ON/OFF

GEAR SHIFT BUTTON -

SHIFT LEVER

VSETT-Eagle E Bike

Samsung 21700 (5000mah)

Rear Wheel 48V 750W Brushless Motors

960Wh

48V 20Ah

48V 22A

41.6KG (including the battery weight)

11HR+ (USE a standard 2A Charger)

40 KM/H

About 80KM

150KG

1840mm×710mm×1080mm (length×width×height)

12V 10W high power LED front lamp, 6V high brightness LED brake tail lamp

Pneumatic front fork with locking and multi-shift adjustment function

Model

Battery

Motor

Total Discharge

Specification

Controller

Weight

Charging

Speed

Max Range

Max loading

Open Size

Light

Front Fork

Suspension

Chain

Transmission

Free Wheel

Drive mode

Spoke

Crank

Brake

Tyre

Material

Function

Adjustable oil suspension

(spring 800 Pounds、Compression damping 90N、Minimum recovery damping 150N Maximum recovery damping 5300N)

KMC Chain

S-Ride 7-speed shift system

S-Ride 14-28T

Boost mode, throttle mode

12G

155mm aluminum alloy forging

Both oil pressure disc brake / Front and rear brakes automatically power off function

Brake Disc 180MM

20*4.0 inch Pneumatic tire / Recommended tire pressure: 30-35psi

Frame: 6082-T6 special high strength aluminum alloy for aviation forging

7-speed transmission, with magnetic suction storage box, wireless charging in the storage box,

pneumatic front fork band locking multi-shift adjustment, shock absorption handle,

headlight illumination angle adjustable

BIKE ASSEMBLY GUIDE

ASSEMBLY INSTRUCTIONS

• Preparation Checklist

1. Loosen four screws of T Bar Block cover

and remove the T Bar Block cover.

Front TireBicycle Frame Pedals

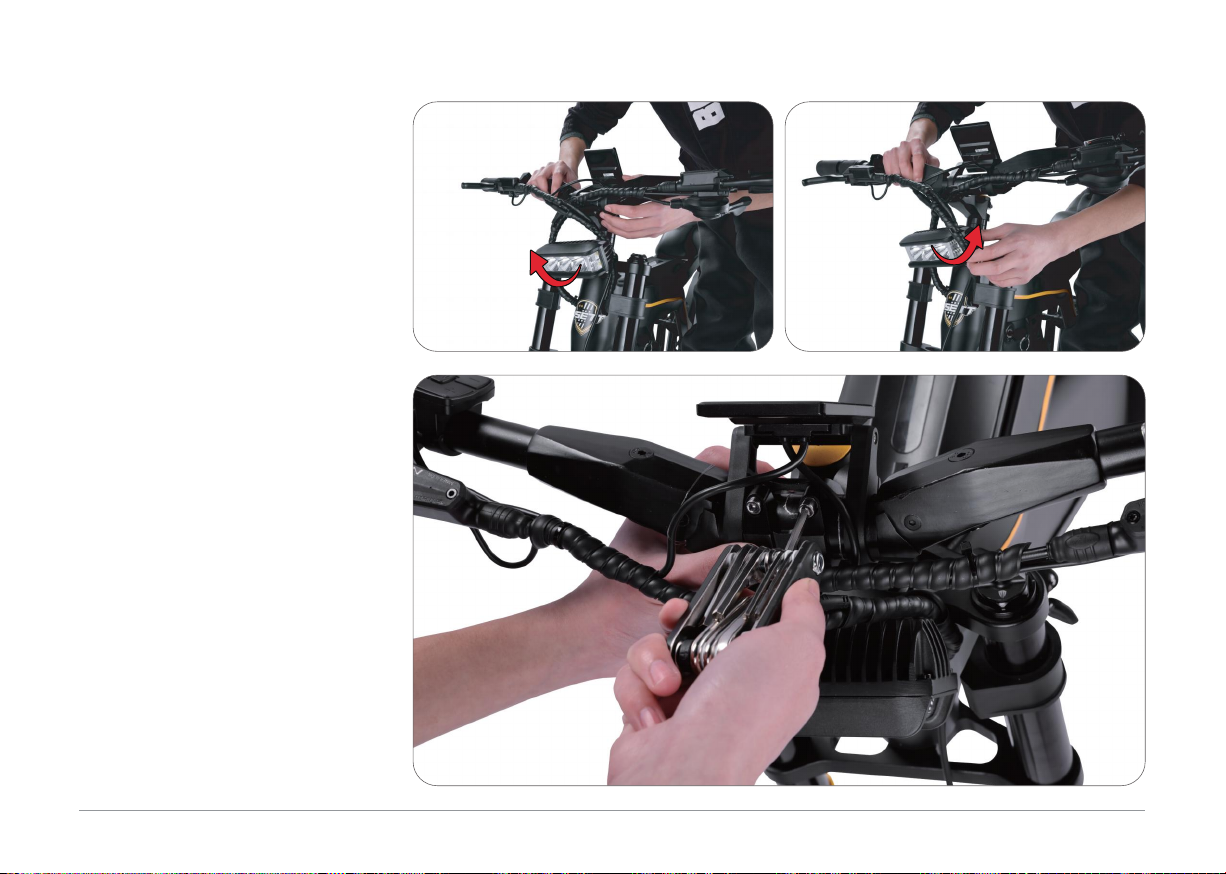

2. Put the T Bar on the Main Tube, put the

harness on both sides of the headlight.

3. Install the T Bar upright cover back on

the Main Tube (do not screw it completely).

6. Ride on the bicycle and adjust the T Bar to

the proper position, then tighten the screw.

7. Remove the front axle.

8.Put the front wheel into the gear of the front fork,

and the brake disc is on the left side.

9. Pay attention to align the brake disc with the caliper.

Disc brakes align with

calipers, both located on the

left side of the bike.

11.Pedals Installation (15mm Wrench)

Make sure your pedals are installed on the

correct side, as installing on the wrong side

will damage the threads. Indicators for the

right pedal (R) and the left pedal (L) can be

found in a place: the bottom of the pedal

threads.

Before you install the pedals, apply a small

amount of waterproof grease onto the spindle.

Start threading the pedal on by hand to ensure

the pedal is going in perfectly straight, rotating

in the direction of the pointer shown on the

crank. If it is not spinning smoothly, make

doubly sure that you have each pedal on the

correct side. After initial hand-tightening, finish

tightening the pedals with a standard 15mm

wrench.

10. Insert the front wheel shaft back into the front

fork hole after the front wheel is placed in the

correct position.

NOTICE: When inserting the front

axle, press and hold the nut on the left to

prevent it from being push out, and then use

tools to tighten the front axle shaft.

L/R

BATTERY

◆Battery Remove

Put your phone on a circular suction cup and charge.

◆Mobile Wireless Charging Function

Step 1, insert the key and unlock the battery.

Step 2, turn the knob and pull the top of the battery sideways.

Step 3, lift it up to remove the battery from the bike.

LCD DISPLAY SETTINGS

Press the menu

WATT ODO

    

 



   

   

        

AVG SPEED MAX SPEED

  

   

           

  

MAX SPEED

AVG SPEED

OUTPUT POWER

RANGE ODO

    

 

   

        

TRIP TIME TRIP DIST



   

           

LIGHTING INDICATOR

SPEED

SINGLE MILEAGE

VOLTAGE

TIME

BATTERY LEVEL

MOTOR POWER

TOTAL MILEAGE

TOTAL RIDING TIME

LONG PRESS "+" TO TURN ON/OFF

WALK MODE

PEDAL-ASSIST

Your bike in the pedal assist mode, you can adjust the setting according to your preference.

VSETT EAGLE has five pedal assist settings - ranging from 1 to 5.

NOTICE: 0 means no power, neither the auxiliary pedal nor the accelerator has power.

Press and hold "-" for 2 seconds, the bicycle will provide a certain

amount of assistance when pushing.

NOTICE: The special design of long press to start is to brake in

time in uncontrollable situations to ensure your safety

RANGE ODO

    

 

   

        

TRIP TIME TRIP DIST



   

           

SET INTERFACE

1-5 levels of brightness can be selected.

◆Press and hold the “M” within 10 seconds after booting to enter the user setting interface.

Set Startup Password

(If you need to turn off the password, change

ON to OFF, press Exit and long press the menu to save the changed settings).

Speed unit MPH or KM/H.

Optional automatic shutdown time.

RIDING MODES

◆Throttle-only

◆Pedal-assist

See pictures and words on page 16.

The throttle mode is similar to how a motorcycle or scooter operates, alleviating the need to pedal or providing an additional boost simply by twisting the throttle.

VSETT EAGLE can reach speeds of up to 25 miles per hour with throttle mode, which not only allows you to travel faster, but also reassures riders with extra power whenever

needed, depending on traffic conditions and rider energy levels. If you are an adventurer who chases after speed and distance without compromising comfort or safety, the

throttle-assisted VSETT EAGLE would be your perfect companion.

◆Pedal-only

In this mode, the VSETT EAGLE will perform like a normal bike, as you’ll be riding without any assistance from the motor. This mode is especially useful if you run out of

battery, or are looking for more intensive resistance training.

We suggest that you select a lower assistance level when you first ride your VSETT EAGLE. After becoming more comfortable with the riding characteristics of our e-bike,

and more familiar with the varying range requirements of your most common destinations and commuting routes, you can then make any needed adjustments to pedal assist

settings, as well as throttle use frequency, riding position, etc.

RIDING LIMITATIONS

• Do not attempt to ride up hills steeper than 15% grade.

• Use the pedals to assist the motor when climbing hills and accelerating from a stop.

• Avoid sudden starts and stops.

• Generally accelerate at a moderate pace, rather than aggressively.

Follow these basic parking, storage, and transport tips to ensure your bike is well cared for, both on and off the road:

• When walking with the bike, turn off the power to avoid accidental acceleration.

• Though our bikes are water resistant (IPX4 Water Resistance), please do not park your bike outdoors in cold or inclement weather for extended periods.

• When parking, switch the power and any lights off to conserve battery, remove the key from the bike, and ensure the battery is secured and locked to the frame.
