Ningbo VSETT8 User manual

NINGBO VSETT INTELLIGENT TECHNOLOGY CO., LTD
USER MANUAL
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE RIDING
DUAL MOTOR
OFF - ROAD
TEMPERATURE CONTROL
HYDRAULIC BRAKE
NFC
Sport DDM

GENERAL INFORMATION
VSETT RANGE-CONTROL LAYOUT,FUNCTIONS AND SPECIFICATIONS
INTELLIGENT TEMPERATURE CONTROL MANAGEMENT SYSTEM
VSETT DISPLAY OPERATION AND PROGRAMMING
FOLDING HANDLE BARS
SUSPENSION ADJUSTMENT
BATTERY AND CHARGING
PRE RIDE CHECKS
WARNING
LIMITED WARRANTY
ERROR CODES
INCLUDED IN THE BOX
AFTER-SALES SERVICE
1
2~13
14~15
16~25
26~27
28
29~30
31
32
33~34
35~36
37
38~39
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · ·· · · · · · · · · · · · · · · · · · ·· · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
CONTENT

IMPORTANT INFORMATION
WARNING!
WHY IS IT NECESSARY TO READ THIS MANUAL BEFORE OPERATING?
This manual was written to help you undertsand the proper use and maintenance of the VSETT line of Electric Scooter.
It is important to understand the functions and features of the new VSETT before operating it as it will allow you to enjoy the most of it from the
first and every ride.
It is also important for you to note that the first trial of the VSETT should be in a remote area where obstacle are minimal to none.
The VSETT unit will require some adjustments and break-in period for all moving parts to adjust themselves into the correct position.
BEFORE RIDING: Please ensure that the folding mechanism is firmly locked in place and that the safety lock is engaged.
The product and its brand VSETT is not liable for any accidental damages related to the usage of this product.
The responsibility for VSETT maintenance is yours! Proper and frequent maintenance will reduce risks of injuries.
- ALWAYS WEAR A HELMET WHEN RIDING
- ALWAYS FOLLOW LOCAL LAWS AND REGULATIONS
- NEVER RIDE SCOOTER IN POOR VISIBILITY
- DO NOT DO STUNTS, WHEELIES or JUMPS IF YOU DO NOT HAVE THE PROPER SAFETY GEARS.
DISCLAIMER & WARNING
READ THIS MANUAL BEFORE USING
1Warning & General

BATTERY 48V 15.6AH
48V 19.2AH LG
48V 21.0AH LG
ADJUSTABLE FRONT AND REAR SUSPENSION
ELECTRONIC BRAKING + DRUM BRAKES
MAX RANGE
80KM ECO /100KM ECO / 110KM ECO
48V 23AH
CONTROLLER
38-42KMH
MAX SPEED
MOTOR REAR 600W
CLIMBING ABILITY: 25 DEG
REAR WHEEL: SOLID 8*2 INCH
REAR DRUM BRAKES
TURN SIGNAL+BRAKE LIGHT
NFC KEY LOCK
2
FRONT WHEEL:
PNEUMATIC TYRE 8.5*3 INCH
VSETT8
TURN SIGNAL SWITCH
FOLDABLE
HANDLE BAR
FOLDING UNIT
LED LIGHTS
TELESCOPING BAR

3TECHNICAL FEATURES VSETT 8
Model
Battery
Tire
Brakes
Max Range
Top Speed (Limited to)
Weight
Suspension
Lights
Controller
Motor Power
Max Load
VSETT 8
48V 15.6AH / 48V 19.2AH / 48V 21.0AH
Front:8.5*3 inch pneumatic tire, Rear:8*2 inch solid tire
Front and rear drum brakes+Electric brake
80km/100km/110km
38-42KM/H
21KG
Front and rear adjustable shock absorption
Front spotlight + Rear brake light + Front and rear turn signal
48V 23A
48V 600W
120kg
Maximum load and speed may vary depending on the rider's weight, riding style and terrain.
VSETT8

BATTERY 48V 16.0AH LG
ELECTRONIC BRAKING + DRUM BRAKES + (FRONT+REAR)
MAX RANGE
DUAL MOTORS: 50KM
SINGLE MOTOR: 90KM
TELESCOPING BAR
48V 23AH X 2
CONTROLLER
40-45KM/H
MAX SPEED
MOTOR 600W
CLIMBING ABILITY: 25 DEG
REAR WHEEL: SOLID 8*2 INCH
REAR DRUM BRAKES
NFC KEY LOCK
MOTOR 48V 600W
FRONT WHEEL: SOLID 8*2 INCH
4
VSETT8+
TURN SIGNAL SWITCH
FOLDABLE
HANDLE BAR
FOLDING UNIT
LED LIGHTS
DDM SWITCH
TURN SIGNAL+BRAKE LIGHT
SPRING SUSPENSION

Model
Battery
Tire
Brakes
Max Range
Top Speed (Limited to)
Weight
Suspension
Lights
Controller
Motor Power
Max Load
VSETT 8+
48V 16.0AH
8 *2 Inch solid tire
Front and rear drum brakes+Electric Brake
Dual drive: 50KM / Single drive: 90KM
40-45KM/H
25KG
Front and rear adjustable shock absorption
Front spotlight + Rear brake light and turn signal
48V 23A X 2
48V 600W X 2
120KG
Maximum load and speed may vary depending on the rider's weight, riding style and terrain.
5TECHNICAL FEATURES VSETT 8+
VSETT8+

6
BATTERY
52V 13.0AH / 52V 16.0AH / 52V 17.5AH
MAX RANGE
55KM ECO / 70KM ECO / 80KM ECO
ADJUSTABLE
SPRING SUSPENSION
FRONT DISC BRAKE
LED HEAD LIGHT
ELECTRONIC BRAKE +
MECH DISC BRAKE SYSTEM
FRONT/REAR ADJUSTABLE
SPRING SHOCKS
REAR DISC BRAKE
8.5*3 IN
SUSPENSION
650W MOTOR
TURN SIGNAL, BRAKE LIGHT
CLIMBING
ABILITY 25 DEG
NFC KEY LOCK
ELECTRONIC HORN
TURN SIGNAL SWITCH
MECHANICAL BRAKE LEVERS
FOLDABLE HANDLE BAR
INCH PNEUMATIC TIRE
INCH PNEUMATIC TIRE
8.5 x 3 IN
52V 23A
CONTROLLER
ELECTRONIC
BRAKE
40-45km/h
MAX SPEED
FOLDING UNIT
VSETT9
THE HOOK:
FIX HOOK AND
PREVENT SLIDING

Model
Battery
Tire
Brakes
Max Range
Top Speed (Limited to)
Weight
Suspension
Lights
Controller
Motor Power
Max Load
VSETT 9
52V 13AH/52V 16AH/52V 17.5AH
8.5*3 Inch pneumatic tire
Front and rear disc brakes + Electric Brake
55km/70km/80km
40-45KM/H
23KG
Front and rear adjustable shock absorption
Front spotlight+Rear brake light+Front and rear turn signal
52V 23A
52V 650W
120KG
Maximum load and speed may vary depending on the rider's weight, riding style and terrain.
7TECHNICAL FEATURES VSETT 9
VSETT9

BATTERY
48V 15.6AH / 48V 19.2AH / 48V 21AH
650W X 2MOTOR POWER
MAXIMUM RARGE:
SINGLE MOTOR 70KM/90KM/100KM
DUAL MOTOR 40KM/50KM/55KM
ADJUSTABLE
SPRING SUSPENSION
FRONT DISC BRAKE
650W FRONT MOTOR
LED HEAD LIGHT
FRONT/REAR ADJUSTABLE
SPRING SHOCKS
REAR DISC BRAKE
8.5 x 3 IN
SUSPENSION
650W REAR MOTOR
TURN SIGNAL,BRAKE LIGHT
CLIMBING
ABILITY 25 DEG
NFC KEY LOCK
DDM SWITCH
ERGONOMIC FOLDABLE HANDLEBAR
ELECTRONIC HORN
MECHANICAL BRAKE LEVERS
TURN SIGNAL SWITCH
INCH PNEUMATIC TIRE
INCH PNEUMATIC TIRE
8.5 X 3 IN
48V 23A X 2
CONTROLLER
48V 23A X 2
CONTROLLER
ELECTRONIC BRAKE +
MECH DISC BRAKE SYSTEM
48-53KM
MAX SPEED
RUGGED FOLDING
LEVER
8
VSETT9+
THE HOOK:
FIX HOOK AND PREVENT SLIDING

Model
Battery
Tire
Brakes
Max Range
Top Speed (Limited to)
Weight
Suspension
Lights
Controller
Motor Power
Max Load
VSETT 9+
48V 15.6AH / 48V 19.2AH / 48V 21.0AH
8.5*3 Inch pneumatic tire
Front and rear disc brakes + Electric Brake
70KM/90KM/100KM(singledrive)40KM/50KM/55KM(dualdrive)
48-53KM/H
25KG
Front and rear adjustable shock absorption
Front spotlight + Rear brake light+Front and rear turn signal
48V 23A X 2
48V 650W X 2
120KG
Maximum load and speed may vary depending on the rider's weight, riding style and terrain.
9TECHNICAL FEATURES VSETT 9+
VSETT9+

10 VSETT Product Feature
60V, (30A-35A)*2
CONTROLLER
60V, (30A-35A)*2
CONTROLLER
FOLD THE HANDLE
ELECTRONIC BRAKE +
HYDRAULIC BRAKE SYSTEM
80KM/H（SPORT）
MAX SPEED
RUGGED FOLDING
LEVER
FRONT: SPRING SUSPENSION
REAR: HYDRAULIC SUSPENSION
PNEUMATIC TYRE 10*3INCH
SUSPENSION
1400W REAR MOTOR
HYDRAULIC DISC
BRAKES
ELECTRIC BRAKE
HYDRAULIC FRONT DISC BRAKE
FRONT WHEEL: PNEUMATIC TYRE 10*3INCH
1400W FRONT MOTOR
ADJUSTABLE SPRING SUSPENSION
ULTRA BRIGHT LED HEADLIGHT
BATTERY
60V 20.8AH/ 60V 25.6AH / 60V 28AH
1400W X 2
MOTOR POWER
TURBO BOOST
HYDRAULIC BRAKE LEVERS
NFC KEY LOCK
ERGONOMIC FOLDABLE HANDLEBAR
ELECTRONIC HORN
TURN SIGNAL SWITCH
MAXIMUM RANGE
DRIVE 130KM/160KM/185KM
DUAL DRIVE 65KM/80KM/90KM
10
VSETT10+
DDM SWITCH
TURN SIGNAL, BRAKE LIGHT

Model
Battery
Tire
Brakes
Max Range
Top Speed (Limited to)
Weight
Suspension
Lights
Controller
Motor Power
Max Load
VSETT 10+
60V 20.8AH / 60V 25.6AH / 60V 28.0AH
10*3 inch pneumatic tire
Front and rear hydraulic brakes + electric brake
36KG
Front spring suspension+Rear hydraulic suspension
Front spotlight + Rear brake light + Front and rear turn signal + LED light
60V (30-35A )*2
60V 1400W X 2
130KG
Maximum load and speed may vary depending on the rider's weight, riding style and terrain.
Single motor 130KM/160KM/185KM
Dual motors 65KM/80KM/90KM
Dual Mode: 65-70KM/H Sport Mode:75-80KM/H
11TECHNICAL FEATURES VSETT 10+
VSETT10+

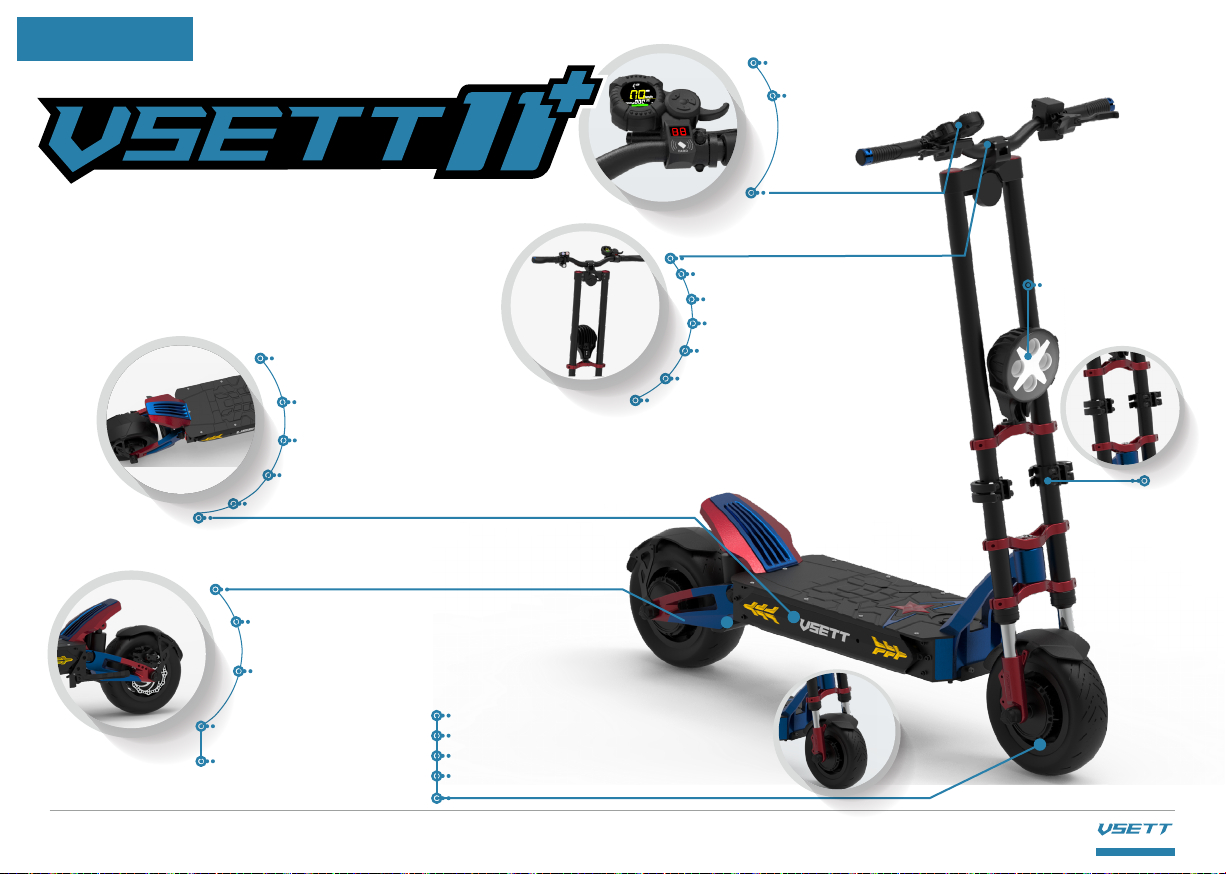

FRONT: HYDRAULIC SHOCK ABSORPTION
REAR: HYDRAULIC DOUBLE SHOCK ABSORPTION
PNEUMATIC TYRE 11*4INCH
SUSPENSION
1500W REAR MOTOR
HYDRAULIC DISC
BRAKES
HYDRAULIC DISC BRAKE
FRONT WHEEL: PNEUMATIC TYRE 11*4INCH
1500W FRONT MOTOR
HYDRAULIC SUSPENSION
BATTERY
TURN SIGNAL
60V 31.2A/60V 42A(LG)
1500W X 2
MOTOR POWER
SINGLE DRIVE 160KM/220KM
DUAL DRIVE 80KM/110KM
MAX RANGE
TURBO BOOST
HYDRAULIC BRAKE LEVERS
TURN SIGNAL SWITCH
NFC KEY LOCK
SINGLE AND DOUBLE DRIVE SWITCH
ELECTRONIC HORN
60 V (40-45A) *2
CONTROLLER
ELECTRONIC BRAKE +
HYDRAULIC BRAKE SYSTEM
85KM/H(SPORT)
MAX SPEED
12
LED HEADLIGHT
VSETT11+
FOLDING SWITCH

Model
Battery
Tire
Brakes
Max Range(Single Motor)
Max Range(Dual Motors)
Max Speed
Weight
Suspension
Lights
Motor Power
Controller
Max Load
VSETT 11+ MODEL
60V 31.2AH/60V 42AH
11*4 Inch
Electric Brake+Automatic power off function+Front and rear
160KM/220KM
80KM/110KM
Dual Mode: 70-75KM/H Sport Mode:80-85KM/H
58KG
Front -Rear Hydraulic Suspensions / Patented Hydraulic suspension
LED lights + Double LED headlights and taillights + Brake lights + Turn signal
60V 1500W* 2 BRUSHLESS MOTORS
60V (40-45A)*2
150KG
13TECHNICAL FEATURES VSETT 11
VSETT11+
hydraulic brakes
Maximum load and speed may vary depending on the rider's weight, riding style and terrain.

INTELLIGENT TEMPERATURE CONTROL MANAGEMENT SYSTEM
30S 2~3min
Limited protection measures
Intelligent overheat protection
The motor controller/s fitted to your VSETT electric
scooter feature overload protection. Should the controller
temperature exceed the safety threshold, the management
system will enter a 30s protection cycle. Should you
experience a loss of power due to overload,please stop
riding and allow the controller time to cool.
Should you resume riding and a second overload event is
triggered,the management system will enter a longer
protection cycle. You will be unable to operate the scooter
for between 2-3 min. The system will reset once the controller
temperature drops down to normal levels
14 Intelligent temperature control management system
Intelligent temperature control management system

VSETT series electric scooter intelligent temperature control system
（A 75KG load was tested according to the summer climate in Ningbo, China）
Erial number Model First protection
temperature First protection time Limit protection temperature
（According to the local
topography±5℃）
（According to local
climatic conditions±5s）
（According to the local
topography±5℃）
Limit protection
duration
（According to local
climatic conditions±5s）
1
2
3
4
5
6
VSETT8
VSETT8+
VSETT9
VSETT9+
VSETT10+
VSETT11+
85℃
85℃
80℃
80℃
70℃
100℃
30s
30s
30s
30s
30s
30s
90℃
90℃
90℃
90℃
75℃
105℃
2-3m
2-3m
2-3m
2-3m
2-3m
2-3m
15Intelligent temperature control management system
Intelligent temperature control management system

Basic operation:
Token IR Reader
Current voltage value
Throttle
Mode / Enter
+ Button
- Button
Speed Level
Speed (KM/H)
Battery Indicator
NFC card area
16 Vsett display operation and porgramming
Vsett display operation and porgramming
1、Function
1. Displayed content
Speedometer / Odometer / Trip meter / Battery level / Cruise-control active light / Gear ondocator / Fault warning light
2. All content on display(power on within 1 second)

17Vsett display operation and porgramming
3.1 Speed display area
Unit：MPH, KM/H
The speed signal is taken from the Hall signal inside the motor.Sent to controller by controller(Time of single Hall period,unit:1MS).The display
calculate the true speed based on wheel diameter and signal data calculate the true speed(The motor Holzer also needs to set the number of magnetic
steel)
3.2 Vehicle power gear adjustment，0-3 digital display;
3.3 vehicle status display area
Zero start and non-zero start prompt
Constant speed cruise hint;
The headlight turns on the prompt;
Communication fault prompt;
Vsett display operation and porgramming

18 Vsett display operation and porgramming
P01：Backlight brightness:The 1 level is the darkest，Level 3 brightest；Default: 3
P02：Mileage: unit,0：KM；1：MILE；Default: KM
P03: Voltage level: 24V，36V，48V，52V，60V, Default:52V
P04: Dormancy time:0 means no dormancy;Other numbers are dormant time.The range is 1-60 minute.Default:5
P05: Reserve
P06: Wheel diameter: The unit is inch. The accuracy is 0.1; Default:10.0
P07: Speed measuring magnetic steel number.The range is 0-255. Default:28
P08: Rate-limiting: The range is 0-100km/h.Default: 100
P09: Zero start、no zero start setting；0 means zero start.1means no Zero start.Default: 0
P10:Reserve
P11: EABS switch choose.The range is 1-5.0 means closing.1 means weakest.2 means strongest.
P12: Soft and hard start strength.The range is 1-5. The softest is 1.The hardest is5.Default: 3
P13: Reserve
P14: Reserve
P15: Controller under-voltage
P16: ODO Zero setting: keep pressing + for 5 seconds,ODO will zero clearing.
P17: When it shows 0,it can not use cruise.When it shows 1,it can use cruise.Default:0
P18: Bind and unbind NFC CARDS.Long press "+" to build the binding, long press "-" to build the unbinding
P19: Reserve
P20: Communication protocol is defaults 4.It can not change.
Vsett display operation and porgramming
To accsee this menu,long-press and .Use button to scroll through P-codes, and to change parameterd
Display P-Codes(programming codes)
