Before Reading the Manual
Before Reading Manual
Please read this manual carefully Before using this product
General safety guidelines and restrictions
I
Even if the it is within the warranty period,you maybe liable for any
accident caused by any of the following causes.
1.Be careful of water!
This product and components are not waterproof. Don’t let the water get into
the product and components.
*Never use it, if the road is wet due to the rain, snow, hailstone.
*If you wash or spread water to electric devices, it can result in malfunction or
fire.
2.Beware of folding and spinning parts!
If parts of the body, as a finger or hair, get caught in the spinning or folding
parts of the product, this may lead to severe injuries. Please be careful.
3.No acrobatics
Stunts and jumps such as jumping and dropping are prohibited as they can
cause a great impact on the product and can cause of malfunction and
accidents.
4.No companion boarding
This product is intended for one adult only, so children,infants, or two people
are prohibited from boarding.
5.Don’t tune by yourself
Do not open or tune the electric parts (battery, controller or motor system).
6. No companion boarding
Unlicensed, driving after drinking, loading cargo on the scooter is prohibited.
(More than bike or bicycle license is required) Please comply with the Road
Traffic.Act and related laws and regulations according to the place of use.
7. Beginners and seniors are encouraged to use at low speed
Beginners who are not accustomed to use the product, seniors and others
should avoid high speed mode driving and recommend low speed driving.
In addition, please use after practice how to ride safely in a wide place.
8.Do not sudden brake with front brake
If there is a risk of overturning, sudden deceleration should be done safely.
Do not apply any unusual behaviors or artificial forces, such as stopping with
your feet.
Low speed/mode/use/proposal
NO emergency braking
01 02
8
9

9.Do not drive on steep slopes
Acceptable gradeability is different for each product. Excessive hill roads
exceeding the specification may cause damage to the product (parts) due
to temperature cut, overcurrent, or low voltage cut, which may cause the
product to malfunction.
10. Safety warning when lifting the product
Please always lift the product with at least one other person.
When lifting the product, please be careful not to damage your back or
knees.
11. Safety warning when lifting the product
For the safety of passengers, be sure to wear a full face helmet and the other
protective gear (for knees, elbows, hands, upper body) and do not wear
shoes such as slippers or high heels that can interfere with driving.
Precaution before driving
2
Night driving should be avoided at all times. Always wear helmets and other body guards
and drive safely.
Select the mode that suits you and drive. In order to cope with sudden situations, be
prepared to slow down by holding the brake at all times.
When turning left / right, slow down to avoid the danger of overturning or slipping, then
slowly turn safely.
To go backwards safely, get off the product only after coming to a complete stop.
It is prohibited to use in any places that are slippery, crowded, have a steep slope, or are
uneven.
When crossing a pedestrian crossing, get off from the product for pedestrian safety.
Do not drive in a way that threatens any other means of transport, such as animals,
pedestrians, bicycles, motorcycles, cars, etc.turn safely.
When passing speed bumps and road obstacles,be
sure to slow down.be sure to slow down.
2
3
4
1
6
7
8
5
When decelerating or braking, do not stop with your
foot, but by using the brake appropriately.
Be careful as there is a risk of burns due to heat from
the motor and brake (especially disk rotor)after
driving.
It is prohibited to drive by holding the handle with
one hand; please use both hands at all times.
Do not ride or drive when the kick stand is down.
10
11
12
9

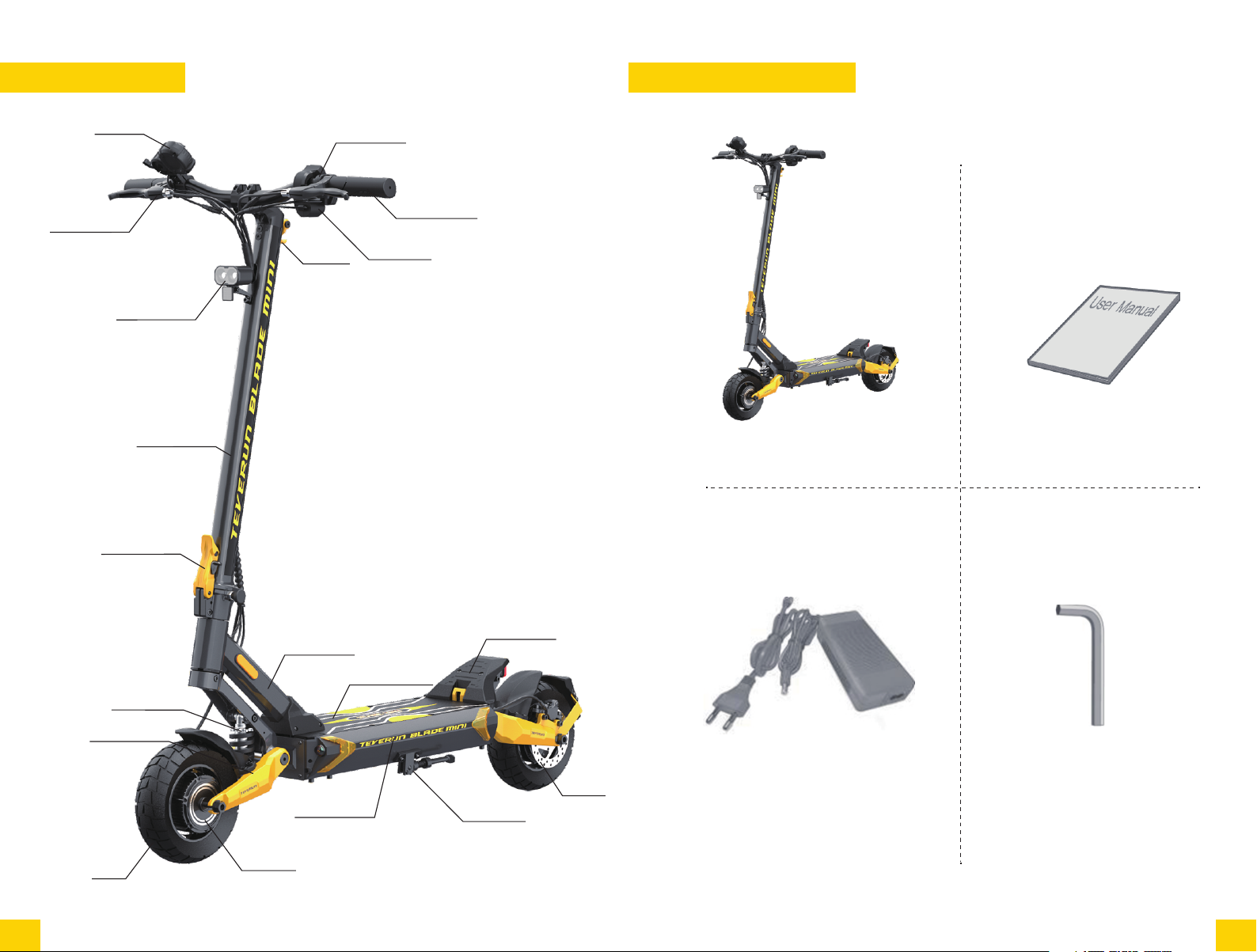

Product structure
Scooter size
Handle bar
600mm
1235mm
03 04

Motor
Led side light Kick stand
Brake
Neck parts
PVC footgrip
Hook
Tire
From arm
Suspension
Front light
Lock handle
Main post
Display
Brake level
Muti switch
Handle grip
Key box
Name of Parts What’s in the Box:
Scooter Manual
Charger Tool
Foot rest
05 06

How to use products
Lock the handle bar
07 08
How to fold
Pull the lock pin Pull out the folding level
Done

9(Fixed) 48V-48
(Fixed)
15(Fixed) 0(Fixed) Speed unit
0(km/h),1(mp/h)
Start method
0(Acceleration start),
1(Kick start)
Cruise mode
0(OFF),
1(ON)
Slow start
0(Off:Power start)
~5(Slow start)
Max output
5~100%
(User adjust)
Battery save
1(MAX SAVE)
2(MID SAVE)
3(NO SAVE)
Electronic
0(Off)
~5(Powerful)
Auto off
5~30 minutes
ABS setting
brake power LCD brightness
0(Back light off)
~5(Brightest)
control time setting 0(OFF),
1(ON)
4) Features of cruise mode (automatic driving)
The cruise control function allows you to maintain the driving speed automatically.
Take advantage of cruise features to reduce fatigue when traveling long distances and to
increase mileage of driving due to constant speed driving.
The start of the cruise function
Select the Cruise function section of the dashboard under 'Settings'
and maintain the throttle to the same Acceleration for 7 seconds the
cruise function will start.
End of cruise function
When you hold and release the brake while cruise mode is in effect, the cruise mode is
automatically released.
Precautionswhenusing the cruise function
1. In case of cruise function, please ride in a position where brake can
be used immediately so that cruise function is canceled and braking is possible in
preparation for safety situation while driving.
2. It is permanently dual drive mode and can be released via throttle and brakes.
* It is not recommended that cruise function is disabled via the throttle.
5) Setting of Electronic brake Displayed when the brake
lever is operated
Electronic brake off Moderate intensity Maximum intensity
09 10
How to use the instrument panel
Speed
Speed unit
Battery balance
Driving time
Mode button
Accelerator
index finger
throttle
Power button
Speed step
1) Speed step setting Can adjust with button.
While the instrument panel is on, press to set the speed step.
The setting is completed when the selected speed step value is selected.
* Blinks 3 times per 10 seconds when the remaining battery power is 10%.
It blinks continuously when the remaining battery power is 10%.
2) Functions and settings for each main screen
mode can adjust with button.
MODE
PRIP
ODO
CHA
VOA
TIME Drive time
Setting mode
Discription
Current mileage
(Press and hold mode button to reset to “0”)
Accumulated mileage
Not in use
Current voltage
3) Instrument panel detailed function
Setting value
You can change the setting mode by turning on the power of
the dashboard and pressing for 2~3 seconds.
In the setting mode, press once to change the internal
setting value
* If you change default setting value P0(13), P1(72), 3 P2(15),
P3(0) the exact information is not displayed.

How to use the charger correctly
11 12
How to use the instrument panel
Precautions when using electronic brake after a full battery charge
The electronic brakes do not operate when the battery is fully charged, so be sure to check
and operate this device.
When the battery is used a little, the electronic brake will operate normally.
6) ABS function setting guide
All electric scooters are subject to sudden braking, causing the wheels to stop spinning (Tire
Lock).As a result, the slip of tire can cause the driver to fall down, which can cause accidents.
This productis equipped with ABS brake function to reduce the tire lock, enabling more secure
braking.
Set the ABS function part Pd of the dashboard to 1.
Set the ABS function part Pd of the dashboard to 0.
※ If Pd - ABS function 1 (ON), PA - electronic
brake function will operate maximum,when
the ABS function is disabled, the previously
set electronic brake actuation value is
applied.
※ ABS brake is an abbreviation of Anti-Lock Brake System. It uses the principle that maximum
static friction force is larger than kinetic friction, so that braking distance (distance from
breaking to stopping)is shorter than the normal brake. It has the advantage that the vehicle
does not slip well when wheel is rotating. And it is a brake assist system that can stop more
safely without tire lock and slip.
Electric scooter Anti-Lock Brake System Patent pending : 10-2018-0045825
Precautions when using the ABS function
ABS has the advantage of being able to stop at the shortest braking distance that can be
obtained from the tires and road conditions.
However, due to the principle of repeatedly holding and releasing the brake several times in
a second, a lot of vibration occurs in the motor and the body.
Repetitive vibration caused by this may cause frequent loosening of the motor, rim, fixing
part, and body fixing bolt.
7) Self-diagnosis through dashboard
12345
6
7
8 9
Fault type Diagnosis Solution
System error
Motor error
Accelerator error
Controller error
None
If the error information
appears, immediately stop
using the product and take
the scooter to the service
center before use.
Excessive use can result in
damage to the product and
safety accidents.

Safety guidelines before driving
1) Required checking before use
Operate the accelerator throttle lever about 2 ~ 3 times to check
whether it returns to the home position.
Be careful that excessive throttle leaning and manipulation of the
throttle can cause malfunction due to internal parts damage.
Check for free gap in the handlebars before using.
The brake braking force is sufficient to check the operating condition.
If the braking force is significantly lowered, use it immediately after inspection and action.
Check that the brake pad is not worn, that the cable is not loose, that the cable is not
damaged, and that there is no leakage in the case of hydraulic brakes
If there is an unusual feeling or noise during operation, check for
breakage, wear, and deformation of the inner wire of the brake cable.
Check that the bolts and nuts of the brake fixing parts are not loose and
that the disc is not deformed or damaged.
Check the front and rear tires for wear and punctures and check the value
marked on the surface of the tire.
When the air pressure is shortened, the possibility of puncture increases,
so check always.
It is necessary to judge the replacement time by observing the
appearance of the tire such as tire damage, uneven wear.
Make sure that the bolts and nuts of all parts of the product are tight and
safe from loosening. Check the fastening condition and clearance of the
folding and fixing parts of the handle (folding knob, swing arm, etc. folding
related parts, suspension arm bolt, swing arm bolt).
If you encounter any of the following situations while driving,
stop driving immediately and contact your nearest branch or service center for proper
measures.
If you provide pictures and videos to get an accurate diagnosis, professional counseling
is available.
13 14
Safety precautions for Lithium battery

Replace parts that may be damaged by the external driving environment, such as
deformation of parts or tiny cracks due to pressure.
1
If the product is exposed to strong sunlight for a long time,discoloration may occur.
2
Incase of jumps, slight impacts such as turning, collision,etc.,when driving frequently or
for a long time in a poor road condition or driving for thousands of kilometers or more,
fatigue breakdown phenomena may happen so please check the parts replacement
schedule for each product and replace accordingly for safety.
3
Fatigue breakdown and maintenance parts
may differ from the example conditions
depending on the driving environment and
the operating conditions. Also check parts
other than the replacement cycle
(maintenance parts) at all times to check
for any signs of abnormality.
4
Parts Replacement Schedule
Blade mini
Parts name
Handle bar
Steering tube
Battery
Replacement cycle/km
2 Years/20,000
3 Years/20,000
2 Years/20,000
Other chassis If the exterior is
damaged or deformed
15 16
Check and Maintenance
Electric products can be damaged by various factors.
The life span of each part varies depending on driving habits and driving
environment.
Parts that exceed the service life may cause accidents.Let's manage
various parts and prevent safety accidents in advance.
The components and suspension parts of the swing arm, tires, wheels,
bearings,discs,brakepads,cables and folding parts, various brackets and
other consumable parts require periodic inspection and must always be
checked.

MEMO
17 18
Important check list
※ Metal vibration may occur due to motor vibration and the vibration of
the brake disc and pad during the load section that accelerates during
driving. (About 15 ~ 30Km, different for each product)
This is a phenomenon in which all rotations (fans,automobiles, ships, etc.)
are vibrating at a specific rotational frequency (rpm) rather than the
product.However, if the continuous noise or metal noise is large, there is a
possibility that the disk will become bent and deformed.
※Please note that after running, there is a risk of burns due to the heat on
the motor and brake (especially disk rotor) side.
※ Be careful that the bolts of the motor, rim, and motor shaft may
become loosened due to the ABS function.
※For inspection and repair, remove the side cover, attach the power
switch, and attach it with the product's standard bolt. When tightening,
carefully remove the cover of the wiring.
Bolts other than the rule bolts (long bolts) can cause serious damage to
the battery casing (battery cells), which can cause fire or safety accidents.
※ Folding parts and joints where movement occurs due to product
characteristics can naturally damage the surface or paint surface during
use, especially when operating in incorrect operation and form.
※ Folding parts and joints where movement occurs due to product
characteristics can naturally damage the surface or paint surface during
use, especially when operating in incorrect operation and form.
※ When inspecting the product, keep two wheels away from the ground
and work on a safe workstation
