Ningbo KPT-G1340P22 User manual

Checkedby
Customer:
Applied To :
Product Name : Piezo Transducer
ModelName : KPT-G1340P22
Drawing No. : KP3.840.202.10R
Compliance with ROHS( 品符合ROHS指令)
SPECIFICATION
SignatureofKEPO
Approved by
SignatureofApproval
Date
Issuedby
宁波凯普电子有限公司
Ningbo Kepo Electronics Co.,Ltd.
受控

Drawing No.
Revision No.
Page
CONTENTS
ModelNo. :
Ningbo Kepo Electronics Co.,Ltd.
1.Scope
范围
2.General
概要
3.MaximumRating
额定极限条件
4.ElectricalCharacteristics
电性能
5.MeasuringMethod
测试方法
6.PhysicalCharacteristics
机械性能
7.EnvironmentalCharacteristics
环境性能
8.Dimensions
尺寸
9.PackagingStandard
包装标准
10.Cautions
警告
11.CautionsforUse
注意事项
12.Revision
履历表
2/11
1.0
KP3.840.202.10R
SpecificationforTransducer
KPT-G1340P22

Ningbo Kepo Electronics Co.,Ltd.
2.1Out-Diameter: 12.7mm
外径： 12.7mm
2.2Height : 6.0mm
高度： 6.0mm
2.3Weight : 1gr.
重量： 1克
2.4CaseMaterial/Color: PC/Black
壳体材质/颜色: PC/黑
2.概要 General
This productspecification is applied tothe piezoelectric sounderin alarm
systems.Pleasecontact uswhen using this product foranyotherapplicationsthan
described inthe above.
规格书适用于压电式蜂鸣器，通常它用在系统中做报警或提示的蜂鸣器用，如果将该
品用于其它领域，请与我们取得联系。
1.范围 Scope
ModelNo. :
Page
Revision No.
Drawing No.
3/11
SpecificationforTransducer
KP3.840.202.10R
1.0
KPT-G1340P22
3.额定极限条件 MaximumRating
储存温度范围
Storage TemperatureRange
工作温度范围
Operating Temperature Range
额定电压
RateVoltage
3.3
3.2
3.1
项目Item 规格Specification
-30 ～+100℃
-20 ～+80℃
30Vp-pSquareWave

Ningbo Kepo Electronics Co.,Ltd.
ModelNo. :
Page
Revision No.
Drawing No.
4/11
SpecificationforTransducer
KP3.840.202.10R
1.0
KPT-G1340P22
S.G. : DF1010 振荡器或等同品
S.G. : DF1010 Oscillaterorequivalent
MIC: ND10 普通声级计或等同品
MIC: ND10 Sound Meterorequivalent
Part shall be measured underacondition (Temperature :+5 to +35 ℃,Humidity:45 to
85%R.H.)unless the standardcondition (Temperature :+25 ±3℃,Humidity:60±10
%R.H.)is regulated measure.
温度+25±3℃，湿度60±10%R.H.标准测试状态,在没有疑问的场合,可以在温度+5～+35
℃,湿度45～85%R.H.的范围内测试.
压电声响器
piezoelectric sounder

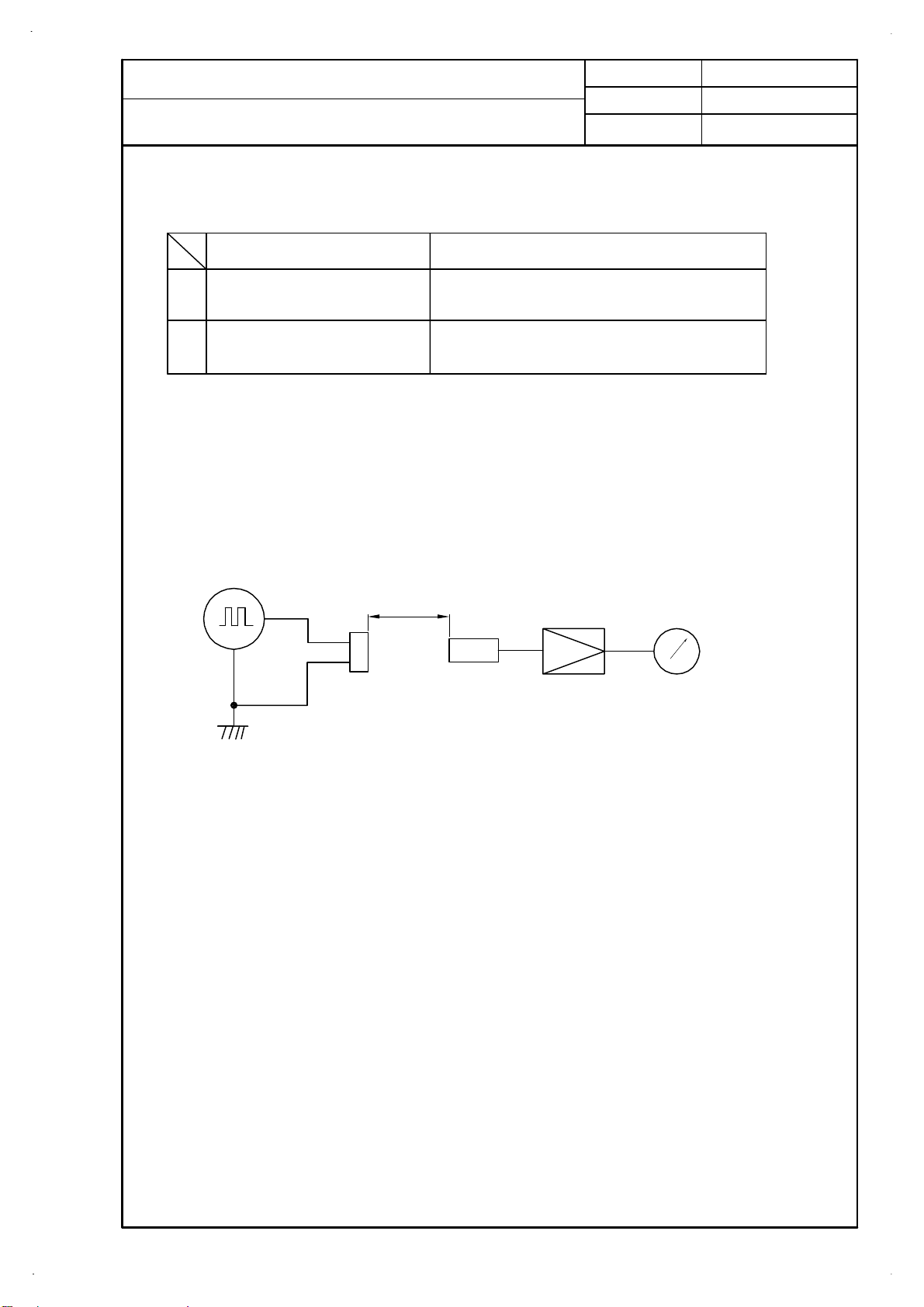

5.1声压测试线路 S.P.L. Measuring Circuit
5.2测试环境 Measuring Condition
5.测试方法 MeasuringMethod
测试条件参见下项
Refertonext itemformeasuring method.
输入信号:3Vp-p,4.0KHz,方波
Input Signal:3Vp-p,4.0KHZ,SquareWave
Amp.
Mic.
4.电性能 ElectricalCharacteristics
声压
Sound PressureLevel
4.2
4.1
项目Item 规格Specification
电容量(at 100Hz)
Capacitanceat 100Hz
70dBat 3Vp-p/4.0KHz/10cm
9000pF±30%
10cm

Ningbo Kepo Electronics Co.,Ltd.
ModelNo. :
Page
Revision No.
Drawing No.
5/11
SpecificationforTransducer
KP3.840.202.10R
1.0
KPT-G1340P22
The force10 secondsof 9.8Nis applied to
eachterminalinaxialdirection.
分别在每个插针的轴向施加 9.8牛顿的静荷
重10秒.
先将声响器的插针浸入松香液 5秒钟,然后
浸入+260±5℃熔融的锡槽中3±0.5秒.
Lead terminals areimmersed inrosin for5
secondsand then immersed insolderbath
of +260±5℃for3±0.5seconds.
Lead terminal areimmersed up to1.5mm from
sounder'sbody insolder bathof +300±5℃for 3±0.5
seconds or±260±5℃for10±1seconds,and then
sounder shall be measured afterbeing placed innatural
condition for4hours.
将声响器的插针插入(插至距声响器壳体
1.5mm处为止)+300±5℃的焊锡槽3±0.5秒
或+260±5℃的焊锡槽10±1秒,然后在常温中
放置4小时后,测试声响器.
Terminal
StrengthPulling
插针强度
6.5
Solderability
可焊性
6.4
Soldering Heat
Resistance
耐焊接性
6.3
Novisible
damage and
cutting off
插针没有断开和
可见的损伤
90%min. lead
terminals shallbe
wet withsolder.
(Except the edge
of terminal)
插针表面90%以
上焊锡润湿.(插
针的段面除外)
峰值加速度490m/s2
, 半正弦波,XYZ三个
方向各3次冲击实验后,测试声响器.
Soundershallbemeasuredafterbeingapplied
shock(490m/s2 )foreachthreemutually
perpendiculardirectionstoeachof 3timesbyhalf
sine wave.
Sounder shall be measuredafter being applied
vibration of amplitude of 1.5mmwith10 to55Hzband of
vibration frequency toeach of 3perpendicular directions
for 2hours.
振动频率 10～55 Hz,1.5mm 全振幅,XYZ
三个方向各2小时试验后,测试声响器.
实验条件
Test Condition
6.机械性能 PhysicalCharacteristics
6.2
6.1
耐振动性
Vibration
Resistant
实验项目
Item
耐冲击性
Shock
实验后规格
Specification
符合表1的要求
The measured
value shall meet
Table1.

Ningbo Kepo Electronics Co.,Ltd.
ModelNo. :
Page
Revision No.
Drawing No.
6/11
SpecificationforTransducer
KP3.840.202.10R
1.0
KPT-G1340P22
表1Table 1
7.环境性能 EnvironmentalCharacteristics
放置于温度+100℃的烘箱内96小时，然后
取出，在常温下放置4小时后，测试声响器。
Afterbeingplaced in achamberwith+100 ±2℃for96
hoursandthenbeingplacedinnaturalcondition for4
hours,soundershallbemeasured.
Afterbeing placed inachamberwith -40 ±
2℃for96 hoursand then being placed in
naturalcondition for4hours, soundershall
be measured.
放置于温度-40±2℃的制冷箱内96小时，然
后取出，在常温下放置 4小时后，测试声响器。
放置于90%～95%R.H.,温度+40±2℃的
环境试验箱内96小时，然后取出，在常温下
放置4小时后，测试声响器。
After being placed inachamber at -40±2℃for30
minutes, sounder shall be placed at room
temperature(+20℃).After 15 minutes at this
temperature,sounder shall be placed inachamber at
+100±2℃. After 30 minutes at thistemperature,
sounder shall be returned toroomtemperature(+20℃)
for 15 minutes.
After 5above cycles, sounder shall be measured
after being placed innatural condition for 4hours.
先放置于温度-40±2℃的制冷箱内30分钟，然后放置
于室温(+20℃)15分钟后, 放置于+100±2℃的烘箱内30
分钟，再放置于室温(+20℃)15分钟.
经过以上循环5次,在常温下放置 4小时后，测试声响器
。
声压级
SoundPressureLevel
项目
Item
Temperature
Cycle
温度循环
7.4
高温放置
7.1
耐湿性
Humidity
7.3
低温放置
DryHeatTest
(Storage)
ColdTest
(Storage)
7.2
实验项目
Item
试验后变化量
Specificationaftertest
初始值±10dB
Initial Value±10dB
实验后规格
Specification
符合表1的要求
The measured
value shall meet
Table1.
实验条件
Test Condition
Afterbeing placed inachamberwith 90 to
95%R.H. at +40±2℃for96 hoursand then
being placed innaturalcondition for4 hours,
soundershall be measured.

Ningbo Kepo Electronics Co.,Ltd.
8. Dimensions
UNIT: mm
Tolerance: ±0.5
FIRSTANGLEPROJECTION
ModelNo. :
Page
Revision No.
Drawing No.
7/11
SpecificationforTransducer
KP3.840.202.10R
KPT-G1340P22 1.0

Ningbo Kepo Electronics Co.,Ltd.
ModelNo. :
Page
Revision No.
Drawing No.
8/11
SpecificationforTransducer
KP3.840.202.10R
KPT-G1340P22 1.0
Dimension
26.0max.

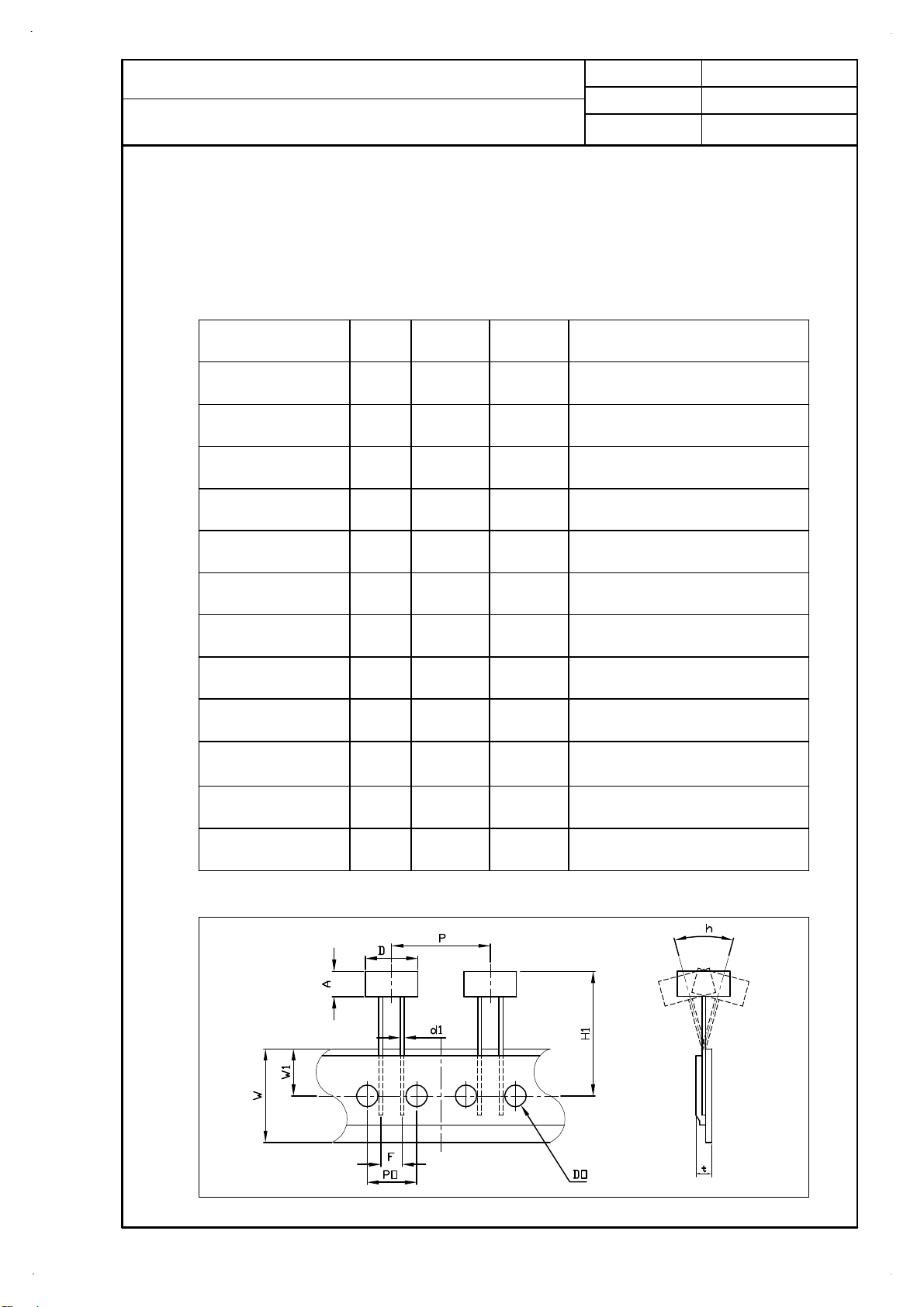

9.包装标准 Packaging Standard
品的外包装是纸箱,它应该清楚的标明型号,数量,出厂检验批号.
在运输及储存的过程中,品必须不会受到机械损伤.
Eachminimumpackage unit of productsshall be inacarton boxand itshall be clearly
marked withPart Number, quantityand outgoing inspection number.
Thereshall be no mechanicaldamage on productsduring transportation and/orin storage.
纸带宽
Orientation Distance
PaperTape Width
UpperLimit Place
孔直径
定位间距
纸带厚度
HoleDiameter
品上限位置
DO
H1
W1
W
4.0
18.0
9.0
Product Diameter
Product Distance
PaperTapeHoleDistance
插针直径
偏移量
品间距
纸带孔间距
插针间距
PinDiameter
Excursion
PinDistance
Name
名称
品直径
品高度
Product Height
PO
h
F
P
d1
12.7
5.0
0
0.6
25.4
Symbol
A
D
代号
12.7
6.0
尺寸
±0.5
±0.5
±0.2
±0.5
±0.5
±0.5
±1.0
±0.2
±0.5
±0.2
公差
Tolerance 参考
preference
Paper Tape Thickness 0.6t
单位：mm(参考值)
Picture 1
±0.2
△

Ningbo Kepo Electronics Co.,Ltd.
ModelNo. :
Page
Revision No.
Drawing No.
9/11
SpecificationforTransducer
KP3.840.202.10R
KPT-G1340P22 1.0
Q'TY : 500 PCS
SIZE :330x55x230mm
Picture35000PCS
Picture 2
Q'TY:5000PCS(10 Box)
SIZE:470X340X265mm
Picture45000PCS
EligibilityCertificate
CompanyName：NingBoKEPOElectronicsco.,LTD
P/N：QTY：
Production Date：Inspector：
Shipment Date：
Lot Number：
ROHS Compliance
Lable
Picture1500PCS Picture2500PCS

Ningbo Kepo Electronics Co.,Ltd.
ModelNo. :
Page
Revision No.
Drawing No.
10/11
SpecificationforTransducer
KP3.840.202.10R
KPT-G1340P22 1.0
Incaseof using solderiron forsoldering, the top of soldering iron's
temperatureshouldbe kept less than +350 ℃.Moreoverthe soldering timeshould be
alsokept within3seconds.
在使用烙铁的情况下,应注意烙铁头的温度应该保持在+350℃以下,并且焊接时间
控制在3秒内.
Washing of the component is not acceptable. Becauseit is not sealded.
11.4该声响器不适合洗涤,因为它不密封.
Pleasepayattention nevertobe applied DC voltage topiezo sounder.
11.3请注意永远不要给压电声响器施加直流电压 .
Pleasepayattention toprotect operating circuit fromsurge voltage provided by
something of forcesuchasfailing ,shock and temperature changing.
11.2请注意保护工作电路不会因失误 ,跌和温度变化而生浪涌电压 .
The component maybe damaged if mechanicalstress overthis specification is
applied.
11.1如果 品所承受的机械应力超过规定的值,元件可能破坏.
Pleasecontact usbeforeusing ourproductsforthe undermentioned applications
requiring especially high reliabilityinordertoprevent defectswhich might directly cause
damage tootherparty'slife, bodyorproperty(listed below).
⑴Aircraft equipment 飞行设备
⑵Aerospaceequipment 航天设备
⑶Undersea equipment 潜水设备
⑷Medicalequipment 医疗设备
⑸Transportation equipment (automobiles,trains,ships) 交通设施
⑹Traffic signalequipment 交通信号设备
⑺Disasterprevention/crimeprevention equipment 防灾害/防犯罪设备
⑻Data-processing equipment 数据处理设备
⑼Applicationsof similarcomplexityorreliabilityrequirementscomparable to the
applicationslisted inthe above 以及与上述相类似或可靠性要求更高的设备
如果 品使用于下列高可靠性的装置时,请与我们取得联系,以免对人的生命,财和身
体造成损害.
11.注意事项 CautionsforUse
11.5
10.警告 Cautions

Ningbo Kepo Electronics Co.,Ltd.
12. Revision
SpecificationforTransducer
ModelNo. :
Page
Revision No.
Drawing No.
11/11
Rev.
No. DATE PAGE DESCRIPTION SIGN
KP3.840.202.10R
1.0
KPT-G1340P22
/primary 1.0 2006.09.27
