NITO N1e User manual

NITO ELECTRIC
KICK SCOOTER
N1e- USER MANUAL

WELCOME
TO THE
ELECTRIC ERA
We believe in urban mobility.
It means transportation that’s efficient, eco-friendly and fun.
Your new N1eelectric kick scooter will make your life easier.
The comfortable and fast ride will help you tackle your day with
ease. It has zero emissions and folding storage, which makes
N1ethe intelligent way to move around your city.
THANKS FOR CHOOSING NITO

EN
The aim of this manual is to allow you to fully appreciate
the qualities of your N1eelectric kick scooter.
Contained here are information, warnings and advice
on how to use and maintain the vehicle correctly for
maximum safety.
It is essential to read this manual completely before
attempting to ride the vehicle for the first time.
WELCOME
TO THE
ELECTRIC ERA
MANUAL PURPOSE
3
N1e- USER MANUAL

EN
INDEX
GENERAL GUIDELINES ......................................................................................................7
PRODUCT AND PARTS ........................................................................................................8
ASSEMBLY INSTRUCTIONS ..............................................................................................10
FOLDING YOUR N1e..............................................................................................................12
USE OF THE BATTERY .........................................................................................................13
HOW TO CHARGE N1e.........................................................................................................14
WARNING ...................................................................................................................................15
USING YOUR N1e....................................................................................................................16
MULTIFUNCTION DISPLAY ..............................................................................................17
SAFETY INSTRUCTIONS ....................................................................................................24
WARNING AND CAUTIONS ...............................................................................................27
SPECIFICATIONS ....................................................................................................................28
5
N1e- USER MANUAL

EN
GENERAL GUIDELINES
z Read these instructions carefully before starting to use your electric
kick scooter N1e.
z This instruction manual must be conserved safely and consulted
during the whole lifetime of the product.
z The use and circulation of the electric scooter are subject to the
rules of the Highway Code and road safety in force in the country in
which it is used.
z The electric kick scooter is not suitable for use by persons with
reduced physical, sensory or mental capabilities.
z In case of doubts or questions, please contact your local reseller
or the after-sales NITO on the phone number [phone] or
sending an email to [e-mail].
Failing to observe these instructions, wholly or in part, could result in
serious damage to persons, the vehicle or the environment. Under certain
circumstances, it could render the guarantee void.
The manufacturer reserves the right to make changes to the vehicle and to
this manual for the purpose of improvement without prior warning.
7
N1e- USER MANUAL

PRODUCT AND PARTS
1Display
2Throttle
3Right direction indicator
4Rear brake lever
5Front brake lever
6Left direction indicator
7Direction indicator switch
8Horn
9Start and stop button
and light switch
10 Handlebar height
adjustment/closure
11 Front led light
12 Front mudguard
13 Front wheel
14 Front disc brake
15 Folding hinge
16 Wooden board
17 Identification label CE
18 Charging port
19 Rear mudguard
20 License plate
21 Rear led light
22 Brushless motor wheel
23 Rear disk brake
24 Stand
25 Reflectors
26 Power button
27 Battery
8
NITO ELECTRIC KICK SCOOTER

EN
1
2
3
4
5
6
10
12
15
16
17
18
19
20
21
22
23
24
25
27
26
13
14
11
7
9
8
9
N1e- USER MANUAL

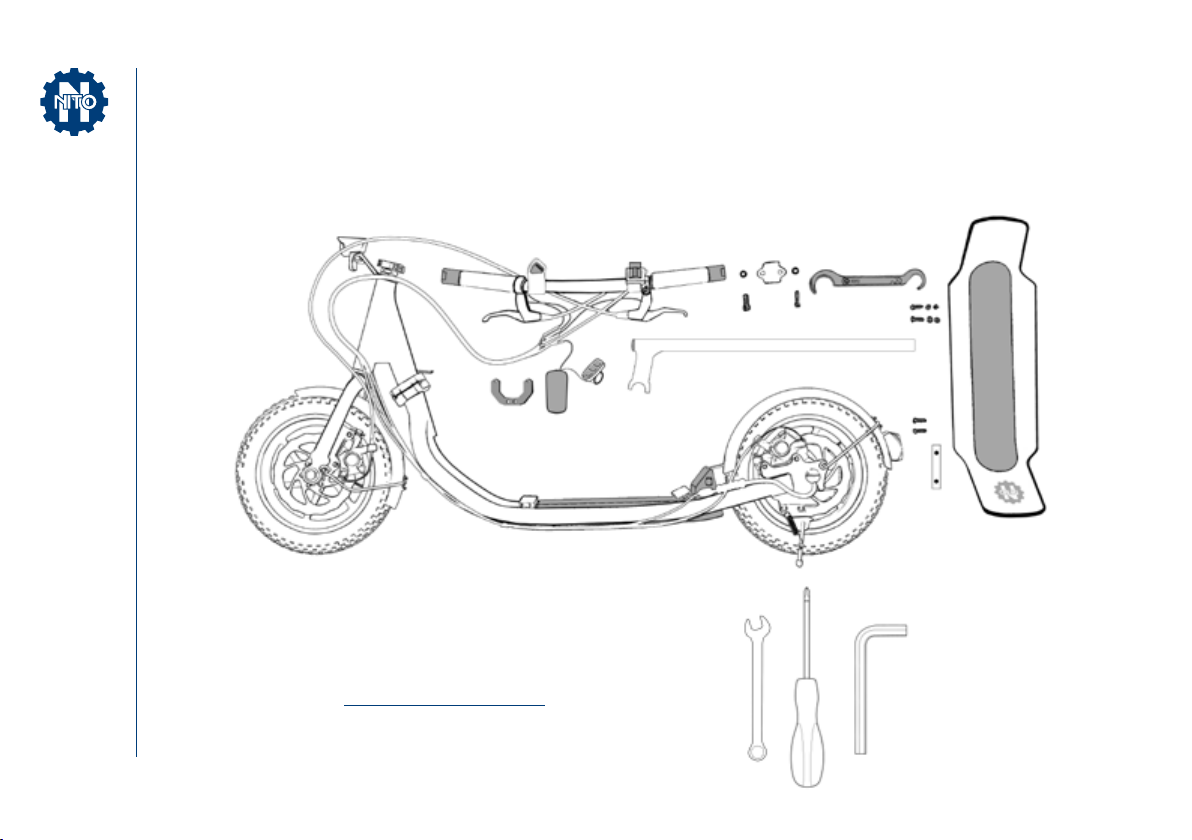

Assemble the scooter by following the instructions on the
next page. The following tools are required for assembly
and are not included in the package:
cross screwdriver, 8mm wrench and 5 mm allen key
ASSEMBLY INSTRUCTIONS
10
NITO ELECTRIC KICK SCOOTER

EN

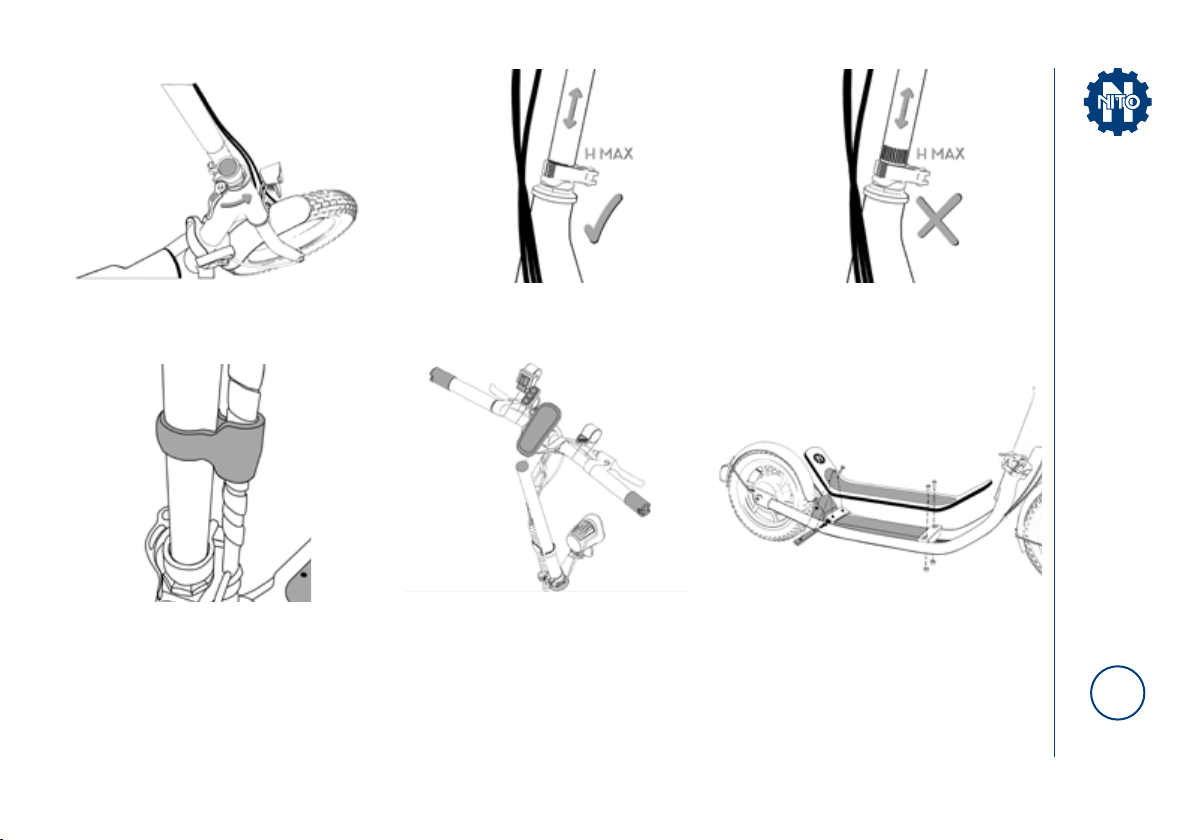

Insert the bottom of the steering column into
the frame. Tighten the quick release to secure
the steering column.
Use the supplied screws to attach the display
and button panel to the handlebar. The
diagram above shows where to place each item.
Fix the special cable collector to the steering
column as in the image.
Attach the wooden board to the frame.
Place the metal bracket provided under the
elevated part of the frame, and attach it with
2 screws (provided). Attach the front of the
wooden board with 2 screws and secure with
a washer and bolt (provided). Use the diagram
above for reference.
Adjust the handlebars up to the mark
that indicates the maximum height.
Do not exceed the maximum height mark.
Recommended tire pressure for an adult rider is 2.8 bar/40 psi.
If the rider weighs less than 40 kg reduce the tire pressure to 2.2 bar/32 psi 11
N1e- USER MANUAL

Loosen the folding hinge on the frame. This can be done by
lifting the lever on the hinge until the pin no longer holds
the hinge in place.
Slowly rotate the handlebar to the right and fold the
handlebar of the scooter towards the frame on the ground.
Lock the handlebar and frame with the hook provided.
FOLDING YOUR N1e
12
NITO ELECTRIC KICK SCOOTER

EN
USE OF THE BATTERY
The N1escooter is equipped with a lithium-ion battery with a range of 20-25 km, which
allows approximately 1000 charging cycles.
Several factors may influence the battery's autonomy:
z use on suburban or urban roads where continuous handling of the accelerator is
necessary
z use of the scooter outside normal conditions of use
z use on steeply sloping roads and on particularly uneven surfaces
z prolonged temperature changes
BATTERY MANAGEMENT WHEN FIRST USING THE SCOOTER
With a new battery, at least 3 to 4 full charge/discharge cycles should be performed.
This allows optimal performance and guarantees the stated charge cycles.
13
N1e- USER MANUAL

The battery is charged using the specific battery charger provided, which has a charging status
indicator and is designed to be plugged into a 230 V CA power outlet.
Connect the battery charger provided to the charging port (right side, near the rear wheel).
Red LED lit up indicates charging in progress, and green LED indicates 100% completed charging.
When charging is completed, it is recommended to disconnect the charger. In case it remains
connected, the battery charger may reactivate to maintain the charge level at 100%.
HOW TO CHARGE THE N1e
14
NITO ELECTRIC KICK SCOOTER

EN
CAUTION: storing the battery at temperatures above 40 °C or below 0 °C for
prolonged periods may greatly reduce its expected service life.
Battery information
In view of the significant influence of outdoor temperature on proper battery
operation, its use at temperatures below -5 °C and above 45 °C is strongly
discouraged, with optimal scooter operation in the range of +5 °C to +40 °C.
WARNING
All charging operations must necessarily take place by first connecting the charging
socket to the inlet of the scooter and then to the power socket.
Do not attempt to charge your kick scooter if it, the charger or the power outlet is wet.
As with any electronic device, use a surge protector when charging. This will protect
your scooter from damage due to power surges and voltage spikes.
Only use the charger provided to charge your scooter. Do not use chargers from any
other scooter or kind of device.
15
N1e- USER MANUAL

1To turn on/off the scooter, first press
the power button on the battery.
2Then, hold the power button on the handlebar
(to turn on/off the display).
3Press and hold the" ” button for 3 seconds
to turn the scooter lights on/off.
4Press and hold the " " button for
4 seconds to limit the speed to 6 km/h.
USING YOUR N1e
ON/OFF BUTTON
ON/OFF LIGHTS BUTTON
LIMIT SPEED
1
2
4
3
16
NITO ELECTRIC KICK SCOOTER

EN
DISPLAY USER MANUAL
4 10
5 11
6 12
7 13
8 14
9 15
1
2
3
17
N1e- USER MANUAL

1UP button
9
MiL Distance (standard)
2POWER button DST Trip distance
3DOWN button ODO Total distance
4Battery charge indicator VOL Battery voltage
5
TM Single trip time 10 Headlight and tail light
TTM Total trip time 11 Brake display
6
KM/H Riding speed (standard)
12
CRUISE Cruise control display
MPH Riding speed (imperial) PAS PAS starting display
MXS MAX speed THROTTLE Turned on throttle
AVS Average speed 13 4 mph speed limiter
7ASSIST Power Assist Level
14
MOTO °F °C Motor temperature
8
CADENCE display (only for bikes) MOTOR W Motor power
KM Distance (metric) 15 °F °C Environment temperature
18
NITO ELECTRIC KICK SCOOTER

EN
2. Display
Hold button to turn on the device and view display 1.
2.2 Change assist gear (ASSIST)
Press or button to change gear (gears 1-5 available). Gear 1 is the
minimum power, and gear 5 is the maximum power. Upon startup, the gear
will automatically restore to the gear it was in upon shutdown.
Gear 0 means the motor is not in use.
2.1 Turn on headlight and tail light
Hold button for 3 seconds to turn the headlight and tail light on/off.
1. Turning scooter on/off
Hold button to turn the scooter power on/off. The power will automatically turn off if the
motor is not in use for 5 minutes.
Operation
19
N1e- USER MANUAL

2.4 Cruise control (CRUISE)
Hold button to start cruise control. Cruise control can be used
for any speed higher than 7 km/h.
Use the brake or hold any button to end cruise control.
2.5 Throttle display (THROTTLE)
When the throttle is being used, THROTTLE will be displayed.
2.6 Power-assist startup (PAS)
When power-assist is in use, PAS will be displayed.
2.3 Speed limiter 6 km/h
Hold button for 4 seconds and will begin flashing.
This means the scooter will be limited to a maximum speed of 6 km/h.
Hold button for 4 seconds again to turn off the speed limiter
function.
20
