Pride Mobility Legend User manual

Unit 106
Heyford Park Camp Road
Upper Heyford, Oxfordshire OX25 5HA
Owner’s Manual
The Ultimate In Style & Performance
®
www.pridemobility.com
ATTENTION:
Read everything
in this manual
before operating
your Legend

2Legend
SAFETY GUIDELINES
Please read and follow all instructions in this owners manual before attempting to operate your Scooter
for the first time. If there is anything in this manual you do not understand, or if you require additional
assistance for set-up, contact your authorised Pride provider.
Using your Pride product safely depends upon your diligence in following the warnings, cautions, and
instructions in this owners manual. Using your Pride product safely also depends upon your own good
udgement and/or common sense, as well as that of your provider, caregiver, and/or healthcare profes-
sional. Pride is not responsible for in uries and/or damage resulting from any persons failure to follow
the warnings, cautions, and instructions in this owners manual. Pride is not responsible for in uries and/
or damage resulting from any persons failure to exercise good udgement and/or common sense.
The symbols below are used throughout this owners manual to identify warnings and cautions. It is very
important for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal injury.
CAU ION! Failure to heed the cautions in this owners manual may result in damage to your
Scooter.
Copyright © 2002
Pride Mobility Products, Ltd.
INFMANU1501/REV D/OCTOBER 2002

3Legend
CONTENTS
I. INTROD CTION......................................................................................................................... 4
II. SAFETY ......................................................................................................................................... 6
III. SPECIFICATIONS .....................................................................................................................
IV. DESCRIPTION .......................................................................................................................... 11
V. BATTERIES AND CHARGING ........................................................................................... 17
VI. OPERATION .............................................................................................................................. 21
VII. COMFORT ADJ STMENTS................................................................................................ 23
VIII. ASSEMBLY AND DISASSEMBLY .................................................................................... 26
IX. TRO BLESHOOTING ............................................................................................................ 2
X. CARE AND MAINTENANCE ................................................................................................ 31
XI. WARRANTY ............................................................................................................................... 33

4Legend
I. INTRODUCTION
Welcome to Pride Mobility Products, Ltd. (Pride). Congratulations on the purchase of your new Pride Scooter.
Your Scooter design combines the most advanced state-of-the-art components with modern, attractive styling.
We are certain that the design features and trouble-free operation will add convenience to your daily living and
ensure complete satisfaction.
At Pride, your safety is important to us. Please read and follow all the instructions in this manual before
attempting to operate your Scooter for the first time. These instructions were produced for your benefit. Your
understanding of these instructions is essential for the safe operation of your new Pride Scooter.
Pride is not liable for damage to property or personal injury arising out of the unsafe use of a Pride Scooter. Pride
is also not liable for any property damage or personal injury arising out of the failure of any person and or/user to
following the instructions and recommendations set forth in this manual or any other instructions or recommenda-
tions contained in other Scooter related literature issued by Pride or contained on the Pride Scooter itself.
This owners manual is compiled from the latest specifications and product information available at the time of
publication. We reserve the right to make changes as they become necessary. Any changes to our products may
cause slight variations between the illustrations and explanations in this manual and the product you have purchased.
If you experience any problems with your Scooter that you are unable to solve, or if you do not feel capable of safely
following any of the instructions and/or recommendations contained in this manual, please contact your authorised
Pride provider for assistance.
Once you understand how to operate and take care of your Scooter, we are certain that it will give you years of trouble-
free service and enjoyment.
Information Exchange
We want to hear your questions, comments, and suggestions regarding this manual. We would also like to hear about the
safety and reliability of your new Pride Scooter and the service you received from your authorised Pride provider.
Please notify us of any change of address so we can keep you apprised of important information regarding safety, new
products, and new options that can increase your ability to use and enjoy your Pride Scooter. Please feel free to write us
at the address below:
Pride Mobility Products, Ltd.
Unit 106
Heyford Park Camp Road
Upper Heyford, Oxfordshire, OX25 5HA

5Legend
I. INTRODUCTION
My Authorised Pride Provider Is:
Name:_______________________________________________________________________________
Address:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Quick Reference Information:
Legend Model:__________________________________________________________________________
Serial Number:__________________________________________________________________________
Purchase Date:________________________________________________________________________
NOTE: If you ever lose or misplace your warranty card or owners manual,write to us and we will be glad
to send you a new one immediately.

6Legend
II. SAFETY
You must read this entire manual and understand all of the safety precautions before attempting to operate your
new Scooter for the first time.
SAFETY PRECA TIONS
nDo not operate your Scooter in icy or slippery conditions or on salted surfaces (i.e., walks or roads). Such use
may result in an accident, personal injury, or adversely affect the performance and/or safety of your Scooter.
nDo not operate or store your Scooter where it may be exposed to inclement weather conditions such as rain,
snow, mist and below-freezing temperatures (such as storage on an outside car/van lift). Attempting to operate
the Scooter in such conditions can damage the electronics and potentially result in loss of control.
nDo not operate your Scooter where you cannot safely and legally walk. Use extreme caution when driving on
busy streets, in parking lots, or in shopping malls. Always assume that you cannot be seen by motor vehicle
drivers.
nLock your seat into place and remove the key from the key switch before you get on or off of your Scooter.
nLock the seat into position before you operate your Scooter.
nDo not operate your Scooter with the seat in the reclined position (if so equipped).
nMake certain that the tyres are properly inflated to (30 psi).
nDo not operate your Scooter while you are under the influence of alcohol. Operating powered vehicles while
you are under the influence of alcohol impairs your ability to operate the Scooter in a safe manner and may
violate certain laws.
nDo not operate your Scooter without first consulting your physician regarding any concerns you have about
physical limitations that could prevent you from safely operating your Scooter.
nDo not operate your Scooter if you are taking medication which may impair your ability to operate the Scooter
in a safe manner.
nDo not drive your Scooter across the side of a hill or diagonally up or down a hill; do not stop, if possible, while
driving up or down an incline.
nKeep both hands on the tiller and your feet on the floorboard at all times while operating your Scooter. This
driving position gives you the most control over your vehicle.
nProceed with extreme caution when driving near raised surfaces or unprotected ledges or drop-offs (kerbs,
porches, stairs, etc.).
nDrive slowly through turns.
nDo not use your Scooter as a seat in a moving vehicle. Your Scooter is not designed for such use and cannot
protect you in the event of an automobile accident or an abrupt stop.
nAlways protect batteries from freezing temperatures and never charge a frozen battery. This damages the
battery and may cause personal injury. Attempting to charge a battery in freezing conditions does not prevent
a battery from freezing.
nBattery posts, terminals and related accessories contain lead and lead compounds. Wash hands after handling.
CAU ION! Secure the batteries before loading your Scooter into another vehicle for transport.
CAU ION! Disconnect the batteries if you are not going to operate your Scooter for more than 48
hours.
WARNING! Do not expose the electronics to any type of moisture at any time (rain, snow, mist or
wash). Such exposure can damage the electronics. Never attempt to ride a Scooter that has been
exposed to moisture until it has dried thoroughly.

7Legend
68 kg
11 stone 90-113 kg
14-18 stone 136 kg
21 stone 68 kg
11 stone 90 kg 14 stone 113 kg 18 stone 136 kg 21 stone
8.7%
10.5%
12.3% 8.7%
10.5%
12.3%14.1%
II. SAFETY
As you begin to use your Scooter during daily activities, you will encounter situations that may require some
practice. Simply take your time as you operate your Scooter and you will soon be in full and confident control as
you maneuver through doorways, on and off of elevators, up and down ramps, and over moderate terrain.
DOORS
nDetermine if the door opens toward or away from you.
nUse your hand to turn the knob or push the handle or push-bar.
nDrive your Scooter slowly forward to push the door open, or drive your Scooter slowly backwards to pull the
door open.
ELEVATORS
Modern elevators have a door-edge safety mechanism that when pushed, reopens the elevator door(s).
nIf you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or
allow the rubber door edge to contact the Scooter to reopen the door.
nUse care that pocketbooks, packages, or Scooter accessories do not become caught in the elevator doors.
RAMPS AND OTHER INCLINES
More and more buildings have ramps with specified degrees of inclination, designed for easy and safe Scooter
access. Some ramps may have turning switchbacks that require you to have good cornering skills on your Scooter.
nTake wide swings with your Scooters front wheel(s) around any tight corners. If you do that, the rear wheels
will follow a wide arc and will not cut the corner short, bump into, or get hung up on any railing corners.
nWhen driving down a ramp, keep your Scooters speed adjustment dial. See IV. Description. Set to the
tortoise (slowest speed setting) to ensure a safely controlled descent.
nAvoid sudden stops and starts.
Other inclines may be natural or, if man-made, not designed specifically for Scooters. Figures 1 and 2 illustrate
your Scooters stability and its ability to climb grades under various weight loads and under controlled testing
conditions.

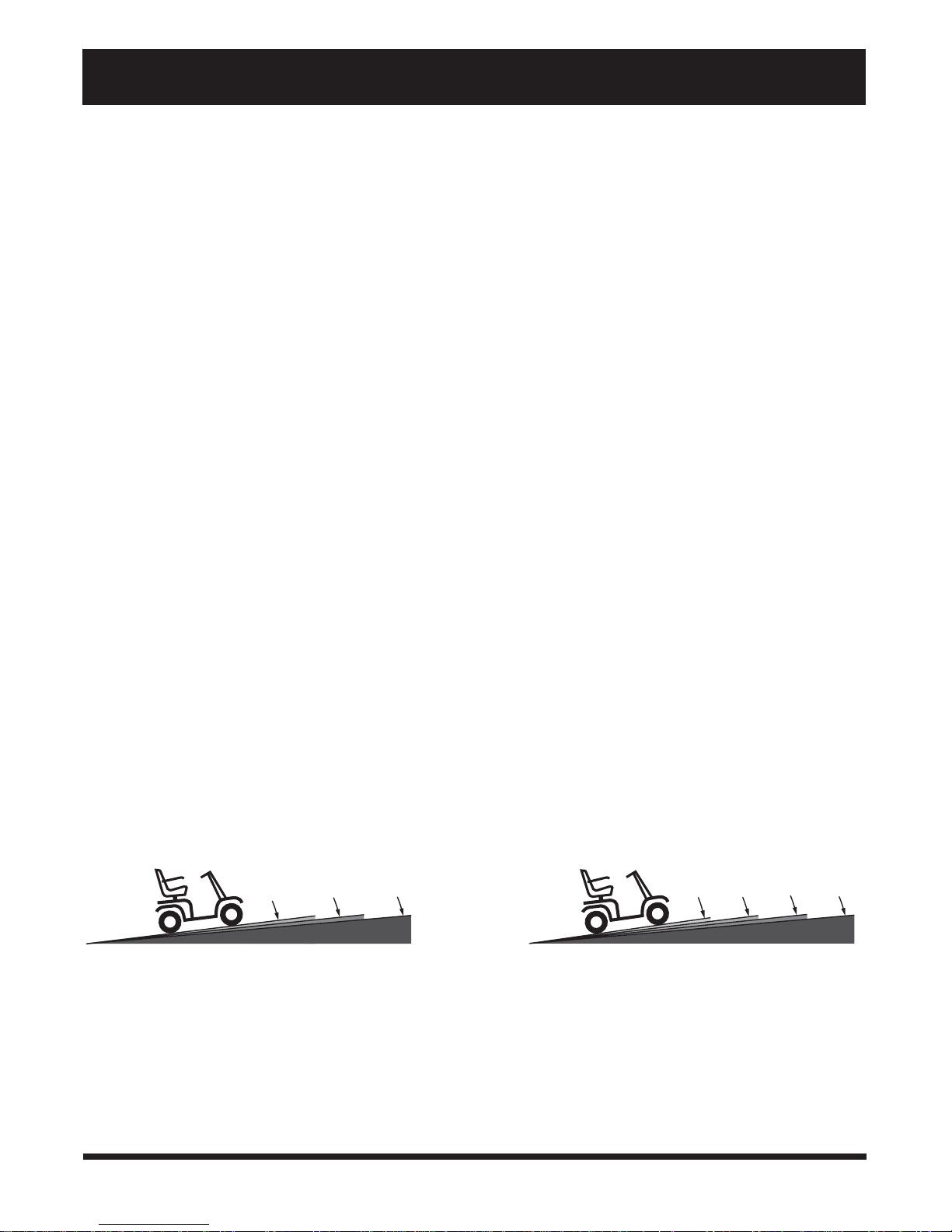

FIGURE 2. MAXIMUM RECOMMENDED INCLINE
ANGLE 4-WHEEL
FIGURE 1. MAXIMUM RECOMMENDED INCLINE
ANGLE 3-WHEEL

8Legend
Controlled incline testing was conducted with the Scooters seat in the highest position, adjusted backward on the
seat base to the farthest rearward position. These tests show that your Scooters ability to travel up inclines is
affected by your weight, your Scooters speed, your angle of approach to the incline, and your Scooter setup.
When you approach an incline, it is best to lean forward. See figures 3 and 4. This shifts the center of gravity of
you and your Scooter toward the front of the Scooter for improved stability.
II. SAFETY
WARNING! Do not exceed the incline guidelines or any other specifications presented in
this manual.
DRIVING S RFACES
Your Scooter was designed to provide optimum stability under normal driving conditions  dry, level surfaces
composed of concrete or asphalt. However, Pride recognizes that there will be times when you will operate your
Scooter on surfaces other than concrete or asphalt. For this reason, we also designed your Scooter to perform
admirably on packed soil, grass, and gravel.
nUse your Scooter safely on lawns and in park areas.
nAvoid tall grass that can become tangled in the running gear.
nPacked soil, gravel, driveways, or roads will not present a problem for your Scooter.
nAvoid loosely packed gravel and sand.
nIf you feel unsure about a driving surface, avoid that surface.
FIGURE 4. INCREASED STABILITY DRIVING POSITION
FIGURE 3. NORMAL DRIVING POSITION

Legend
III. SPECIFICATIONS
FIGURE 5. LEGEND SPECIFICATIONS
61 cm
114 cm104 cm
46 cm
41 cm
61 - 71 cm
123 cm
128 cm
4Wheel Turning Radius
4Wheel Length
3Wheel Length
3Wheel Turning Radius
8 cm
90˚,100˚
102˚,105˚
3 cm
47 cm
Adjustable
20-31cm
99 -109 cm
42 - 52 cm

10 Legend
Length: 3-wheel: 123 cm; or 4-wheel: 128 cm
Width: 61 cm
Tyres: Type: Pneumatic
Front: 7.5 cm 25 cm; Rear: 10 cm 25 cm
Weight Capacity: 136 kg ma imum
Battery Type (not included): Two 12-volt, 32 AH, U-1 type, sealed lead-acid (SLA); or
two 12-volt, 40 AH, U-1 type, SLA
Horsepower: 1.2 hp (peak)
Charger: Onboard 3-amp charger
Speed (Max): Variable up to 8.4 km/hr (60% reverse)
Maximum Grade: Please refer to figures 1 and 2
ange: 12-volt 32 AH batteries: 32 - 40 km;
or 12-volt 40 AH batteries: 40 - 48 km
Turning adius: 3-wheel: 104 cm; or 4-wheel: 114 cm
Body Colour: Candy Apple Red
Seating: Style: Contour medium back with sliders
Dimensions: 47 cm width (usable) 47 cm height (usable)
41 cm depth
Seat Cover Material: Gray vinyl with coloured piping
Armrests: Black
User adjustable seat height from ground: 52 cm to 62 cm
User adjustable seat height from Scooter deck: 42 cm to 52 cm
Included Features: Dynamic front and rear suspension; non-marring bumpers; full directional light
package; adjustable seat height and positioning; height adjustable armrests;
sliding seat; energy saving auto shutoff feature
Brakes: Dynamic regenerative braking and electromechanical disc park brake
ear Wheel Drive: Sealed transa le, 24 VDC motor
Wheels: Aluminum alloy wheels in Black
Tiller Type: Infinitely adjustable
Freewheel Mechanism: Manual freewheel release lever located on upper-right rear portion of rear shroud
Legend Weight: Total weight with batteries: 12-volt 32 AH: 3-wheel: 48 kg; 4-wheel: 51 kg ; or 12-volt
40 AH: 3-wheel: 94 kg; 4-wheel: 102 kg
Component Breakdown:
Front Section: 3-wheel: 65 kg; 4 wheel: 73 kg
Rear Section (w/out batteries, shroud, or tray): 3-and-4 wheel: 18 kg
Rear Plastic Shroud: 2 kg
Seat: 17 kg
Batteries: 12-volt 32 AH: 11 kg each; or 12-volt 40 AH: 15 kg each
Tray: 2 kg
Basket: 1 kg
Front-to-rear Lockup: Lock pin and lever system
Ground Clearance: 8 cm
Optional Accessories: Cane/crutch holder, cup holder, front basket, front bumper, headlight, o ygen
holder, power seat assembly, rear basket, rear bumper, rearview mirror, safety flag,
taillight, walker holder, seatbelt
III. SPECIFICATIONS
Specifications

11Legend
CONTROL CONSOLE MOD LE
The control console module located on the front section houses all nthe controls you need to operate your Scooter.
See figure 7.
WARNING! Do not expose the control console module to moisture. In the event it does become
exposed to moisture, do not attempt to operate your Scooter until it has dried thoroughly.
IV. DESCRIPTION
Your Scooter is a motorized electric vehicle designed to enhance your personal mobility. It is an indoor/outdoor
Scooter that was designed to travel primarily on smooth surfaces such as pavement, roads, parking lots, floors, and
driveways. For easy transportation or storage, you can disassemble your Scooter into seven components. See
figure 6.

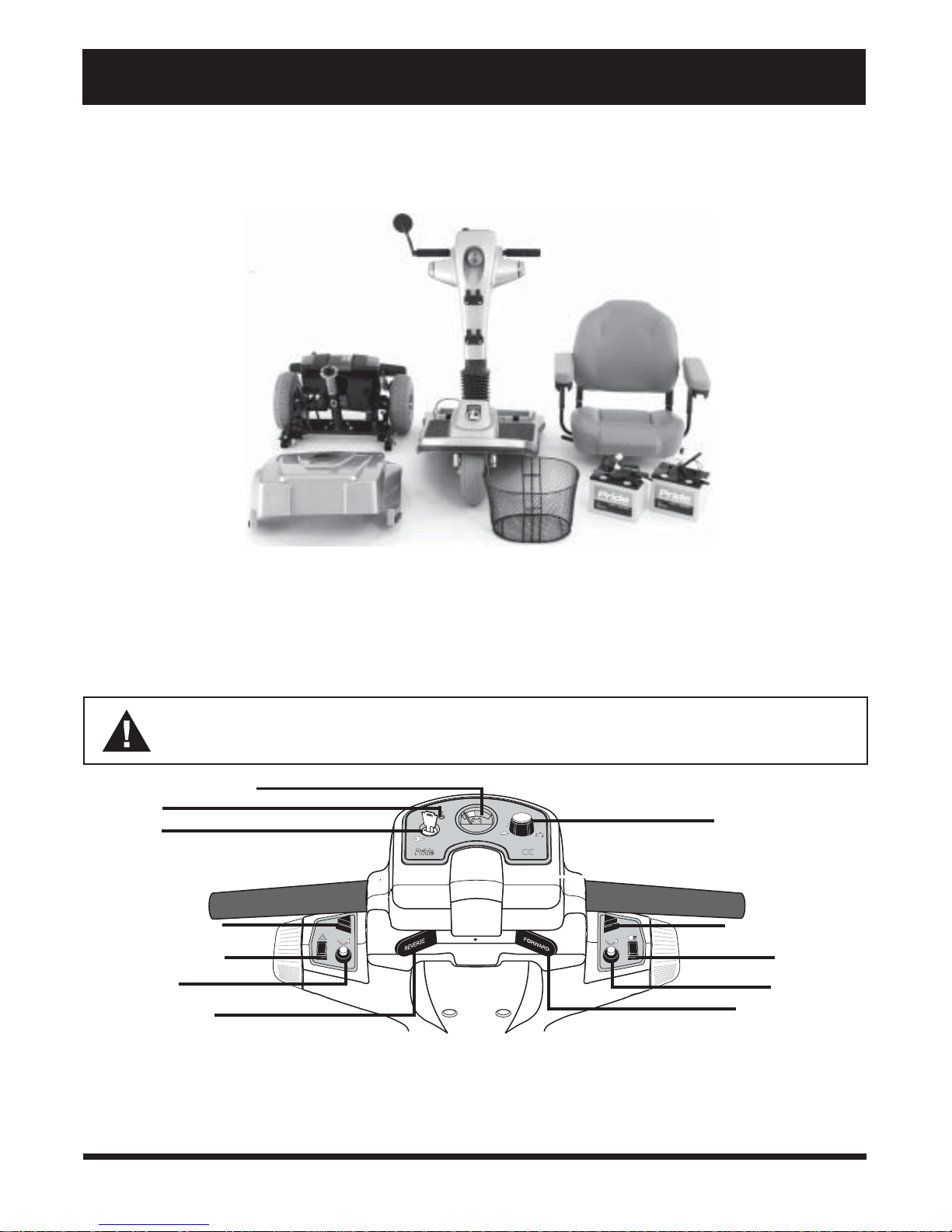

FIGURE 7. CONTROL CONSOLE MODULE
BATTERY CONDITION METER
SPEED ADJUSTMENT DIAL
KEY SWITCH
STATUS LED
LIGHT SWITCH
RIGHT TURN INDICATOR
BUTTON
THROTTLE CONTROL
LEVER (FORWARD)
HAZARD LIGHT SWITCH
HORN BUTTON
LEFT TURN INDICATOR
BUTTON
THROTTLE CONTROL
LEVER (REVERSE)
HORN BUTTON
FIGURE . LEGEND COMPONENTS
BATTERIES
REAR SECTION
FRONT SECTION
SEAT
REAR SHROUD
FRONT BASKET

12 Legend
IV. DESCRIPTION
Speed Adjustment Dial
This dial allows you to preselect and limit your Scooters top speed.
nSet the speed between the slowest (image of the tortoise) and the fastest (image of the hare) speed settings.
Left and Right Turn Indicator Buttons
These buttons enable you to turn on the left and right turn indicator lights.
nPush the appropriate turn indicator button once to illuminate the signal light before turning your Scooter.
Your Scooters turn indicators are timed to shut off automatically.
Light Switch
This switch enables you to control your Scooters headlight and running (rear red) lights.
nPress this switch once to turn on the lights.
nPress it again to turn off the lights.
Horn Buttons
These buttons activate the warning horn.
nEnsure that the key is fully inserted and turned clockwise; then push either horn button to sound the horn.
Reverse and Forward Throttle Control Levers
These levers allow you to control the forward and the reverse speed up to the maximum speed you preset on the
speed adjustment dial. For instructions on how to operate your Scooters throttle control levers, see VI. Opera-
tion.
Hazard Light Switch
This switch enables you to control your Scooters amber hazard lights (4-way flashers).
nToggle this switch to turn the hazard lights on and off.
Key Switch
This switch enables you to power up and power down your Scooter.
nFully insert the key into the key switch and turn the key clockwise to power up your Scooter.
nTurn the key counterclockwise and pull the key out to power down your Scooter.
WARNING! If the key is removed from the key switch while your Scooter is in motion, the elec-
tronic brakes will engage and your Scooter will come to an abrupt stop.
Status LED
The Status LED alerts you to electrical problems that may occur with the Legend. The LED remains constantly lit while
your Scooter is on. If the Legend develops an electrical problem, the status LED will flash a code. See IX. Troubleshoot-
ing for flash codes.
Battery Condition Meter
When your Scooters key is fully inserted and turned clockwise to power up your Scooter, this meter indicates
approximate battery voltage strength. For further information on battery charging, see V. Batteries and Charg-
ing.

13Legend
REAR SECTION
The rear section contains the electronics module, bulbs and fuses for the rear lights, fuses for the front console and
battery charger, the main circuit breaker (and reset button), the manual freewheel lever, the charger power cord
receptacle, the motor transaxle assembly, and the ammeter. See figure 8. The onboard battery charger and the
batteries are also contained in the rear of your Scooter, but are not visible in figure 8. The anti-tip wheels are at the
rearmost part of your Scooter.
IV. DESCRIPTION
Bulbs
These 24V 5W bulbs are located beneath the rear shroud, directly under the running light and turn indicator/
hazard light covers. They provide illumination for your running lights, turn indicators, and hazard lights. For infor-
mation on replacing these bulbs, see X. Care and Maintenance.
Fuses
The fuses protect your Scooters lighting and charging systems from receiving too much electrical current. The
fuses used in the Scooter are the same fuses that are used in automobiles. For information on replacing the fuses,
see X. Care and Maintenance.
nYou need one 3-amp fuse for each of the 4 rear lights and one 3-amp fuse for the control console module.
nYou need one 5-amp fuse for the battery charger.
WARNING! he replacement fuses must match the rating of the original fuses exactly. If you
install a fuse with an incorrect rating, you may damage the electrical system and create a potential
fire risk.
FIGURE 8. REAR SECTION (LIGHT COVERS REMOVED)
CHARGER
POWER
CORD
RECEPTACLE
MAIN CIRCUIT BREAKER
(RESET BUTTON)
MOTOR/TRANSAXLE
ASSEMBLY
ANTI-TIP WHEELS
REAR STORAGE
COMPARTMENT
MANUAL
FREEWHEEL
LEVER
AMMETER
2 V 5W BULBS
3V REAR LIGHT FUSES
3-AMP CONTROL
CONSOLE MODULE FUSE
AND 5-AMP BATTERY
CHARGER FUSE ANTI-TIP WHEELS
ELECTRONICS
MODULE

14 Legend
Main Circuit Breaker
When the voltage in your Scooters batteries becomes low or your Scooter is heavily strained because of exces-
sive loads, the main circuit breaker may trip to protect your Scooters motor and electronics from damage. When
your Scooters main circuit breaker trips, the reset button pops out and your Scooter shuts down. If this occurs,
perform the following steps.
1. Allow a minute or so for your Scooters electronics to rest.
2. Push in the reset button to reset the circuit breaker.
Rear Storage Compartment
This compartment is for storing the charger power cord.
Manual Freewheel Lever
Whenever you want to push your Scooter for short distances, you can put it in manual freewheel mode.
WARNING! It is important to remember that when your Scooter is in manual freewheel mode, the
braking system is disengaged. Even though the motor is disengaged from the drive system when
your Scooter is put in manual freewheel mode, the motor can still run if the throttle lever is pushed.
Follow these safety rules when using the manual freewheel mode:
nDo not disengage the drive motors when your Scooter is on an incline; the Scooter could roll
down on its own and cause injury.
nBefore placing your Scooter into or taking it out of manual freewheel mode, ensure the key is
removed from the key switch.
nNever sit on your Scooter when it is in manual freewheel mode.
nWhen you have finished pushing your Scooter, always return it to the drive mode to lock the
brakes.
nThe manual freewheel lever is located on the end of the motor/transaxle assembly at the right rear of the
Scooter. See figure 8.
nPull up on the manual freewheel lever to disable the drive system and the brake system; you will then be
able to push your Scooter.
nPush down on the manual freewheel lever to reengage the drive and brake systems, and take your Scooter
out of manual freewheel mode.
Charger Power Cord Receptacle
This receptacle enables you to plug the charger power cord into the Scooter. For further details on using the
charger power cord, refer to V. Batteries and Charging.
Motor/Transaxle Assembly
The motor/transaxle assembly is an electromechanical unit that converts electricity from the batteries into con-
trolled mechanical energy that drives the Scooters wheels.
Ammeter
When the battery charger is plugged into a wall outlet, the ammeter indicates the charging status of your Scooters
batteries.
nWhen your Scooters batteries are fully charged, the amperage reading is at or near zero (0) amps.
IV. DESCRIPTION

15Legend
Anti-tip Wheels
The anti-tip wheels are an integral and important safety feature on your Scooter which prevent it from tipping
backward on an incline. They are located at the rearmost part of your Scooter.
WARNING! Do not remove your Scooters anti-tip wheels or modify your Scooter in any way that is
not authorised by Pride. Serious injury and/or damage to your Scooter may result.
Onboard Battery Charger (not shown)
The onboard battery charger converts household current (AC) to direct current (DC) and charges your Scooters
batteries. See V. Batteries and Charging for instructions on using the onboard battery charger.
Electronics Module
The electronics module receives electrical signals from the console controls and sends power to the motor, the
brakes, and the lighting system.
CAU ION! Do not expose the electronics module to moisture. If it does become exposed to mois-
ture, do not attempt to operate your Scooter until it has dried thoroughly.
Batteries
The batteries store electrical energy that powers your Scooter. For directions on charging your batteries, see V.
Batteries and Charging.
IV. DESCRIPTION

16 Legend
OPTIONAL ACCESSORIES
For information concerning the optional accessories in figure , contact your authorised Pride provider.
 WALKER HOLDER
SINGLE CANE/CRUTCH HOLDER
 FOREARM CRUTCH HOLDER
 DOUBLE CANE/CRUTCH HOLDER  OXYGEN TANK HOLDER
 REAR BASKET
 CUP HOLDER  SAFETY FLAG
IV. DESCRIPTION
FIGURE 9. OPTIONAL ACCESSORIES

17Legend
V. BATTERIES AND CHARGING
Your Scooter requires two long-lasting, 12V deep-cycle batteries that are sealed and maintenance free.
nCharge your Scooters batteries with the supplied onboard 3-amp battery charger prior to using it for the
first time.
nKeep your batteries fully charged to keep your Scooter running smoothly.
NOTE: Use only t e onboard battery c arger supplied wit your Scooter.
READING YO R BATTERY VOTAGE
The battery condition LED on the control console assembly indicates the approximate strength of your batteries
using a color code. See figure 10. Green indicates fully charged batteries, yellow a draining charge, and red
indicates that an immediate recharge is necessary. To check the charge, you must first unplug the charger power
cord and power up your Scooter.
You can also check the charge using the ammeter located on the electronics module. The charger power cord
must be plugged into a standard wall outlet in order to obtain a reading. When the amperage reading is at or near
zero amps, charging is complete. See figure 11.

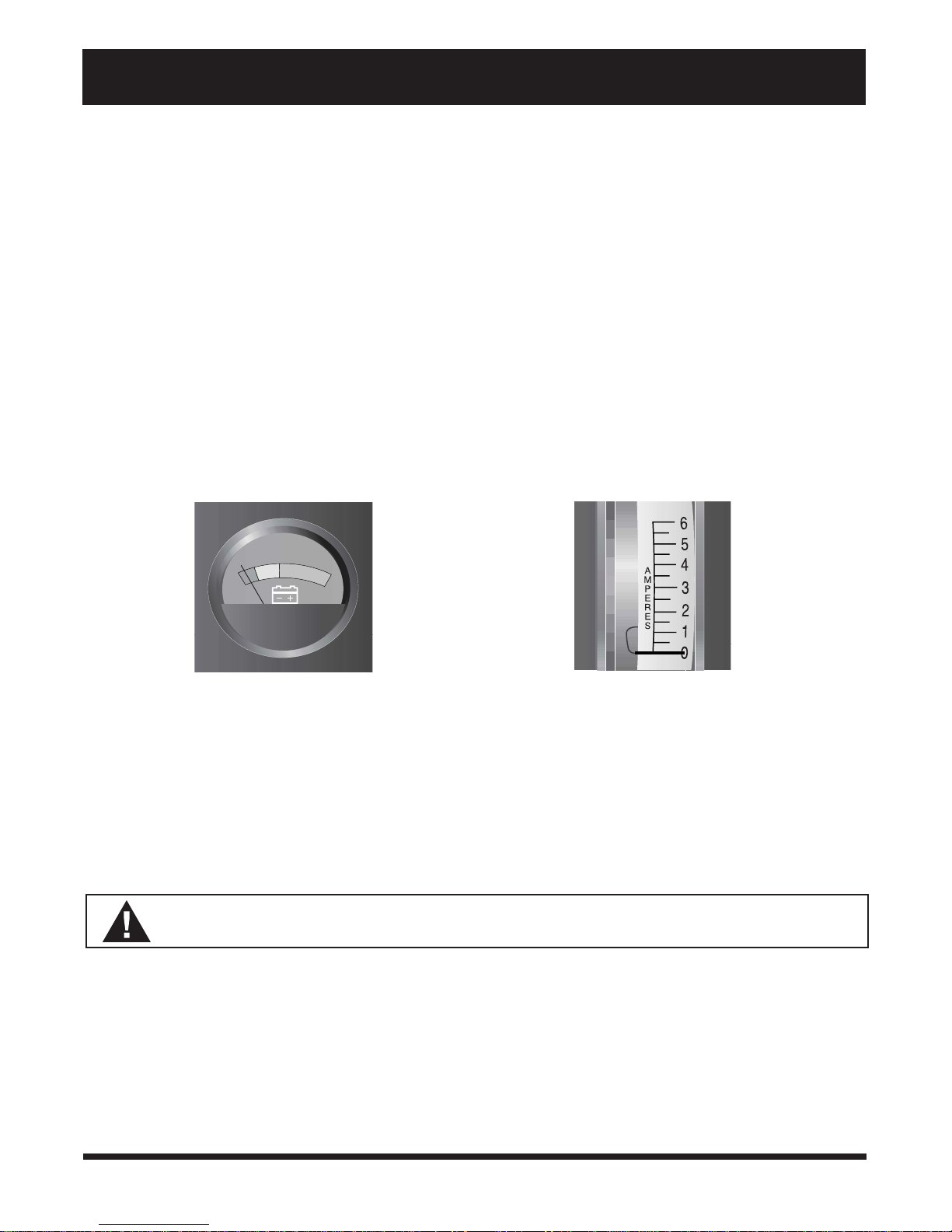

FIGURE 11. AMMETER
CHARGING YO R BATTERIES
Follow these steps to safely charge your batteries.
1. Position your Scooter close to a standard wall outlet.
2. Remove the key from the key switch.
3. Ensure the manual freewheel lever is in the drive (down) position.
4. Plug the charger power cord into the charger power cord receptacle at the rear of your Scooter.
5. Extend the charger power cord and plug it into the wall outlet. We recommend charging your Scooters
batteries for 8 to 14 hours.
NOTE: T ere is a c arger in ibit function on your Scooter. T e Scooter will not run and t e battery
condition meter will not operate w ile t e batteries are c arging.
6. Periodically check the battery charge using the ammeter or the battery condition meter. (Remember that you
must insert the key in the key switch to check the charge on the battery condition meter.)
7. When the batteries are fully charged, unplug the charger power cord from the wall outlet and then from the
charger power cord receptacle at the rear of your Scooter.
8. Place the charger power cord in the rear storage compartment for safekeeping.
FIGURE 10. BATTERY CONDITION METER
WARNING! Never use an extension lead to plug in your battery charger. Plug the charger directly
into a properly wired standard wall outlet.

18 Legend
FREQ ENTLY ASKED Q ESTIONS (FAQS)
How does the charger work?
When your Scooters battery voltage is low the charger works harder sending more electrical current to the
batteries to bring up their charge. As battery voltage approaches full charge, the charger sends less electrical
current to the batteries. When the batteries are fully charged, the current sent from the charger is at nearly zero
amperage. Therefore, when the charger is plugged in, it maintains the charge on your Scooters batteries but does
not overcharge them. We do not recommend that you charge your Scooters batteries for more than 24 consecu-
tive hours.
What if the Scooters batteries wont charge?
There are a few checks you can perform if your batteries wont charge.
nEnsure that the battery cables are connected properly.
nEnsure that both ends of the charger power cord are inserted fully.
nEnsure that the 5-amp charger fuse has not blown. See figure 12.
V. BATTERIES AND CHARGING
Can I use a different charger?
For the safest, most efficient, and balanced charging of your Scooters batteries, you should simultaneously charge
both batteries using only the supplied onboard battery charger.
How often must I charge the batteries?
Two major factors must be considered when deciding how often to charge your Scooters batteries: All day
Scooter use on a daily basis and infrequent Scooter use.
With these considerations in mind, you can determine just how often and for how long you should charge your
Scooters batteries. We designed the onboard charger so that it does not overcharge your Scooters batteries.
However, you may encounter some problems if you do not charge your batteries often enough and if you do not
charge them on a regular basis. Following the five guidelines below will provide safe and reliable battery operation
and charging.
nIf you use your Scooter daily, charge its batteries as soon as you finish using it for the day. Your Scooter will
be ready each morning to give you a full day of service. We recommend you charge your Scooters batter-
ies for 8 to 14 hours after daily use.
nIf you use your Scooter once a week or less, charge its batteries at least once a week for 12 to 14 hours at
a time.
nKeep your Scooters batteries fully charged.
nAvoid deeply discharging your Scooters batteries.
nDo not charge your Scooters batteries for more than 24 consecutive hours.
WORKING FUSE BLOWN FUSE
FIGURE 12. FUSE CONDITIONS

1Legend
How can I get maximum range or distance per charge?
Rarely will you have ideal driving conditions  smooth, flat, hard driving surfaces with no wind or curves. You will
often face hills, sidewalk cracks, uneven and loosely packed surfaces, curves, and wind. All of these driving
conditions affect the distance or running time per battery charge. The following are a few suggestions for obtaining
the maximum range per battery charge.
nAlways fully charge your Scooters batteries prior to your daily use.
nMaintain 30 psi (pounds per square inch) in all of your Scooters tyres.
nPlan your route ahead to avoid as many hills, cracked, broken, or soft surfaces as possible.
nLimit your baggage weight to essential items.
nTry to maintain an even speed while your Scooter is in motion.
nAvoid stop-and-go driving.
What type and size battery should I use?
We recommend deep-cycle batteries that are sealed and maintenance free. Both sealed lead-acid (SLA) and gel
cell are deep-cycle batteries that are similar in performance. Do not use wet-cell batteries, which have removable
caps.
NOTE: Do not remove t e caps from sealed batteries. Water cannot be added to sealed batteries. Cap
removal voids t e battery warranty and may cause damage to t e batteries and to your Scooter.
se these specifications to reorder deep-cycle batteries.
Type: Deep-cycle (SLA or gell cell)
Size: U-1 (32 amp hours (AH) only)
Voltage: 12V each
Amperage: 32 AH or 40 AH
To change a battery in your Scooter:
1. Remove the seat and the rear shroud. See VIII. Disassembly and Assembly.
2. Disconnect the battery tie-down strap.
3. Disconnect the battery cables from the electronics module.
4. Disconnect the battery cables from the battery terminals.
5. Remove the old battery.
6. Place a new battery in the battery well.
7. Connect the red battery cable to the positive (+) battery terminal.
8. Connect the black battery cable to the negative (-) battery terminal.
. Reconnect the battery cables to the electronics module.
10. Fasten the battery tie-down strap.
11. Refit the rear shroud and the seat.
WARNING! Battery posts, terminals and related accessories contain lead and lead compounds.
Wash hands after handling.
V. BATTERIES AND CHARGING

20 Legend
V. BATTERIES AND CHARGING
Why do my new batteries seem weak?
Deep-cycle batteries employ a different chemical technology than that used in car batteries, nickel-cadmium bat-
teries (nicads), or in other common battery types. Deep-cycle batteries are specifically designed to provide power,
drain down their charge, and then accept a relatively quick recharge.
We work closely with our battery manufacturer to provide batteries that best suit your Scooters specific electrical
demands. Fresh batteries arrive daily at the manufacturer and are shipped fully charged to our providers. During
shipping, the batteries may encounter temperature extremes that can influence their initial performance. Heat dimin-
ishes battery charge. Cold slows the available power and extends the time needed to recharge the battery.
It may take a few days for the temperature of your Scooters batteries to stabilize and adjust to their new room or
ambient temperature. More importantly, it takes a few charging cycles (a partial drain followed by a full recharge)
to establish the critical chemical balance that is essential to a deep-cycle batterys peak performance and long life.
Please follow these steps to properly break-in your Scooters new batteries for maximum effi-
ciency and service life.
1. Fully recharge any new battery prior to initial use. This initial charging cycle brings the battery up to about 88%
of peak performance level.
2. Operate your new Scooter in familiar and safe areas. Drive slowly at first, and do not travel too far from your
home or familiar surroundings until you have grown accustomed to your Scooters controls and have properly
broken-in the batteries.
3. Fully recharge the batteries. This recharge should bring the batteries up to about 0% of their peak perfor-
mance level.
4. Operate your Scooter again.
5. Fully recharge the batteries again.
6. After four or five charging cycles, the batteries are able to receive a charge up to 100% of their peak perfor-
mance level and are able to last for an extended period of time.
How can I ensure maximum battery life?
Fully charged deep-cycle batteries provide reliable performance and extended battery service life. Keep your
Scooters batteries fully charged whenever possible. Batteries that are deeply discharged, infrequently charged, or
stored without a full charge may be permanently damaged and cause unreliable performance and limited service
life.
How should I store my Scooter and its batteries?
If you plan on not using your Scooter for an extended period of time, it is best to:
nFully charge its batteries prior to storage.
nDisconnect the battery harnesses from the electronics module.
nStore your Scooter in a warm, dry environment.
nAvoid storing your Scooter where it will be exposed to temperature extremes.
WARNING! If your Scooters batteries do become frozen, do not attempt to charge them.
Cold or frozen batteries should be allowed to warm up for several days prior to recharging.
