Nivetec Signet 2760 DryLoc User manual

Signet 2760 DryLoc®pH/ORP Preamplifier
The Signet 2760 pH/ORP Preamplifiers with DryLoc®connectors are part of
Signet's growing line of sensors for industrial fluid measurement and control.
There are two styles of preamplifiers, and each is available with NPT or ISO
threads at the cable outlet. They all connect to four different families of pH and
ORP electrodes to supply an amplified mV (analog) signal to Signet instruments.
*3-2760.090*
3-2760.090 Rev. 9 01/18
Description
Table of Contents
• English
• Deutsch
• Français
• Español
Product Manual
Warranty Statement.............................................................................. 2
Product Registration ............................................................................. 2
Safety Information................................................................................. 2
Chemical Compatibility ......................................................................... 2
Specifications........................................................................................ 2
Dimensions........................................................................................... 3
In-Line Assembly and Installation ...................................................... 3-4
Wet-Tap Assembly and Installation....................................................... 4
Submersible Sensor assembly and Installation.................................... 5
Wiring to Signet Instruments................................................................. 6
Wiring from DryLoc Preamplifier to Others Equipment......................... 7
Ordering Information............................................................................. 8

2Signet 2760 DryLoc pH/ORP Preamplifier
1. Depressurize and vent system prior to installation or removal.
2. Confirm chemical compatibility before use.
3. Do not exceed maximum temperature/pressure specifications.
4. Wear safety goggles or faceshield during installation/service.
5. Do not alter product construction.
6. When using chemicals or solvents care should be taken and
appropriate eye, face, hand, body, and/or respiratory protection
should be used.
WARNING
The retaining nuts of certain pH and ORP sensors and
preamplifiers are not designed for prolonged contact
with aggressive substances. Strong acids, caustic
substances and solvents or their vapor may lead to failure of
the retaining nut, ejection of the sensor and loss of the process
fluid with possibly serious consequences, such as damage to
equipment and serious personal injury. Retaining nuts that may
have been in contact with such substances, e.g. due to leakage
or spilling, must be replaced.
Caution / Warning / Danger
Indicates a potential hazard. Failure to follow all warnings
may lead to equipment damage, injury, or death
Electrostatic Discharge (ESD) / Electrocution Danger
Alerts user to risk of potential damage to product by ESD,
and/or risk of potential of injury or death via electrocution.
Personal Protective Equipment (PPE)
Always utilize the most appropriate PPE during
installation and service of Signet products.
Pressurized System Warning
Sensor may be under pressure, take caution to vent
system prior to installation or removal. Failure to do so
may result in equipment damage and/or serious injury.
Hand Tighten Only
Overtightening may permanently damage product threads
and lead to failure of the retaining nut.
Do Not Use Tools
Use of tool(s) may damage product beyond repair and
potentially void product warranty.
Refer to your local Georg Fischer Sales office for the most
current warranty statement.
All warranty and non-warranty repairs being returned must
include a fully completed Service Form and goods must be
returned to your local GF Sales office or distributor.
Product returned without a Service Form may not be
warranty replaced or repaired.
Signet products with limited shelf-life (e.g. pH, ORP, chlorine
electrodes, calibration solutions; e.g. pH buffers, turbidity
standards or other solutions) are warranted out of box but not
warranted against any damage, due to process or application
failures (e.g. high temperature,
chemical poisoning, dry-out) or
mishandling (e.g. broken glass,
damaged membrane, freezing
and/or extreme temperatures).
Thank you for purchasing the Signet line of Georg Fischer
measurement products.
If you would like to register your product(s), you can now
register online in one of the following ways:
• Visit our website www.gfsignet.com.
Under Service and Support click on
Product Registration Form
• If this is a pdf manual (digital copy), click here
Chemical CompatibilityWarranty Information
Product Registration
Safety Information
General
Compatible Electrodes
Signet DryLoc Electrodes..... 2724-2726, 2756-WTP- 2757-WTP,
2764-2767, 2774-2777
Compatible Instruments
Preamplifier models to
Signet 5700, 8750............. 2760-1, -2, -11, -21
Response Time (includes response time of electrodes):
pH ..................................... < 6 sec. for 95% of change
ORP .................................. application dependent
Temperature, τ.................. 20 sec.
Electrical (2760-1, -2,-11, -21 Preamplifiers)
Maximum Offset ................... ± 7 mV
Input Impedance, Z............... > 1011 Ω
Supply Voltage (V+ to V–) .... 6 to 12 VDC
Current consumption ............ < 1 mA
Environmental
Enclosure Rating .................. 2760-1, -2, NEMA 6P/IP68
2760-11, -21, NEMA 4
with electrode and watertight
conduit and/or extension pipe
connected
Materials
Submersible versions........ CPVC (Gray)
In-Line versions................. PBT (Yellow)
Cable .................................... 4.6 m (15 ft) 6-conductor
w/shield, 22 AWG
Maximum cable: ................... 122 m (400 ft)
Shipping Weight: .................. 0.64 kg (1.41 lb)
Operating Temperature......... 0 °C to 85 °C (32 °F to 185 °F)
Storage Temperature............ –20 °C to 85 °C (–4 °F to 185 °F)
Relative Humidity.................. 0 to 95%, non-condensing
(without electrode connected)
Standards and Approvals
Manufactured under ISO 9001 and ISO 14001
China RoHS (Go to www.gfsignet.com for details)
Specifications

3
Signet 2760 DryLoc pH/ORP Preamplifier
31.75 mm
(1.25 in.)
89.4 mm
(3.52 in.)
70.1 mm
(2.76 in.)
56.6 mm
(2.23 in.)
3-2760-11 Preamplifier, In-line, NPT
3-2760-21 Preamplifier, In-line, ISO
3-2760-1 Preamplifier, Sub, NPT
3-2760-2 Preamplifier, Sub, ISO
35.0 mm
(1.38 in.)
61.0 mm
(2.40 in.)
101 mm
(4.0 in.)
Dimensions

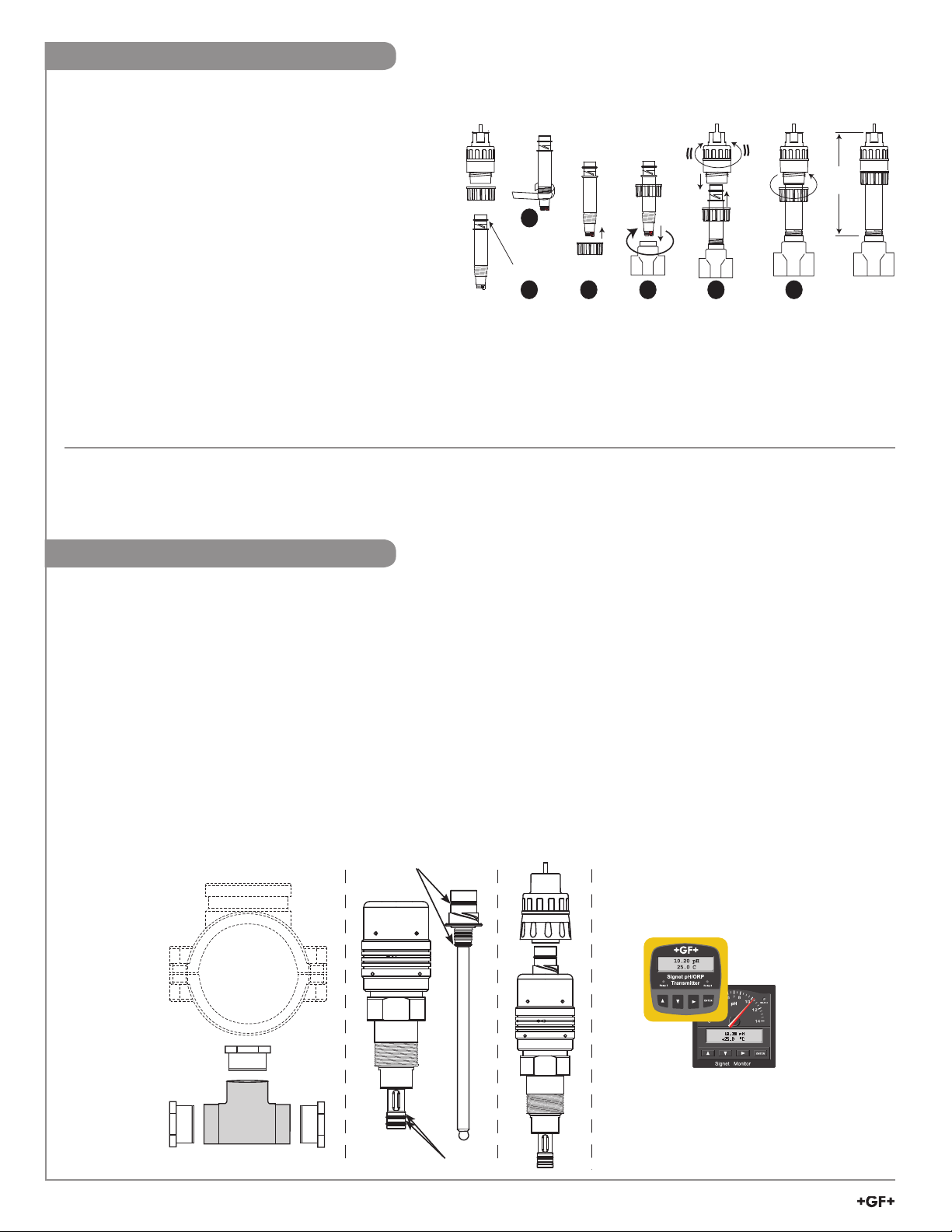

2760 In-Line models used with 2724-2726 series electrodes:
1. The 2724-2726 can use a Signet installation fitting. Electrodes are sealed by the O-ring when it is installed into a Signet
installation fitting.
2. The lower threaded nut is required to attach the electrode to the
installation fitting when using a Signet fitting.
HAND-TIGHTEN THE THREADED NUT ONTO THE
INSTALLATION FITTING. DO NOT USE TOOLS!
DO NOT USE THREAD SEALANT OR LUBRICANTS
ON THE FITTING THREADS OR THE SENSOR CAP.
3. Lubricate O-rings with a non-petroleum based, viscous lubricant
(grease) compatible with the system.
4. Seat the 2760 DryLoc connector onto the top of the electrode.
Open the DryLoc connector by turning the upper locking ring ¼-turn clockwise.
5. Turn the locking ring ¼-turn counter-clockwise to lock the preamplifier in place. The mechanism will “click” when it is locked.
When fully assembled the 2760 will stand about 100 mm (4 in.) above the installation fitting.
Lock
Unlock 100 mm
(4 in.)
Lubricate O-rings
12
3
4 5
2760 In-Line models used with 2764-2767 or 2774-2777 series electrodes:
BEFORE YOU START:
2764-2767: Install a 1 in. NPT pipe tee into the process line.
2774-2777: Install a ¾-in. reducing tee into the process line.
1. Wrap the process threads on the electrode with an
appropriate sealant (example: PTFE tape ) to create a
water-tight connection. HAND-TIGHTEN the electrode into
the installation fitting. DO NOT USE TOOLS!
NOTE: The lower threaded nut may be dropped onto the top
of the electrode or it may be discarded. It is not used with
these electrodes.
2. Lubricate O-rings with a non-petroleum based, viscous
lubricant (grease) compatible with the system.
3. Seat the 2760 DryLoc connector onto the top of the
electrode.
Open the DryLoc connector by turning the upper locking ring ¼-turn clockwise.
4. Turn the locking ring ¼-turn counter-clockwise to lock the preamplifier in place. The mechanism will “click” when it is locked.
When the 2760 Preamplifier is fully assembled with one of the threaded electrodes (276X and 277X models) it will stand
approximately 178mm (7 in.) from the process threads to the top of the preamplifier.
Unlock
Lubricate O-rings 2
14 3
Lock
178 mm
(7 in.)
In-line Assembly and Installation

4Signet 2760 DryLoc pH/ORP Preamplifier
The 2760 DryLoc Preamplifier can be used to connect Signet 275X Wet-Tap electrodes to a pH or ORP instrument.
1. Select the process fitting.
• Select a low profile installation saddle (customer-supplied) with a 1½ in. or 2 in. outlet (depending on 3719 model ordered).
• The 3719 is available with NPT or ISO thread options.
• The 3719 can also be adapted to fit into tee fittings. Refer to the 3719 pH Wet-Tap instructions for detailed information.
2. Install the Wet-Tap and the electrode.
• Install the 3719 into the fitting, then insert the electrode into the assembly.
3. Attach the preamplifier to the electrode.
• Attach the 3-2760-11 or -21 Preamplifier to the DryLoc fitting at the top of the electrode.
4. Connect the 2760 Preamplifier to the instrument.
• The 2760 Preamplifier signal can be routed to any 5700 or 8750 pH/ORP instrument (see Pg. 5).
2760 Submersible models used as in-line system:
The Submersible 2760 design can also be used in-line when
using the 2724-2764, 2764-2767 series or the 2774-2777
series electrodes.
BEFORE YOU START:
2764-2767: Install a 1 in. NPT pipe tee in the process line.
2774-2777 and 2724-2726: Install a ¾-in. reducing tee in
the process line. DO NOT install in a ¾-inch tee or probe
will be damaged.
1. Wrap the process threads on the electrode with an
appropriate sealant (example: PTFE tape) to create a
water-tight connection.
2. Lubricate O-rings with a non-petroleum based, viscous lubricant (grease) compatible with the system.
3. Remove the threaded nut from the preamplifier and place it around the electrode from the bottom as illustrated.
4. HAND-TIGHTEN the electrode into the installation fitting. DO NOT USE TOOLS!
5. Seat the 2760 DryLoc connector onto the top of the electrode.
6. Lift the threaded nut up and thread it hand-tight onto the preamplifier.
When the 2760 Preamplifier is fully assembled with one of the threaded electrodes (276X and 277X models) it will stand
approximately 178 mm (7 in.) from the process threads to the top of the preamplifier.
178 mm
(7 in.)
2760 Preamplifier
Electrode
Threaded nut
Lubricate O-ring
2
1
345 6
• The 2760 Preamplifier signal can be routed to a Signet 5700 ProPoint pH Monitor, or to any model of the 3-8750 pH Transmitter.
• If the preamplifier cable must be extended beyond the standard 4.6m (15 ft) that is supplied with the 2760, use a junction box to
terminate the wires.
Note: Do not extend the 2760 cable more than 120 m (400 ft).
In-line Assembly and Installation
Wet-Tap Assembly and Installation
RELA1
2
4
Lubricate O-rings
Lubricate O-rings
1. 2. 3. 4.

5
Signet 2760 DryLoc pH/ORP Preamplifier
Use standard installation hardware to
connect the submersible 2760 directly
to external equipment.
½ in. NPT threads
The 8052-1 NPT Mount Junction
box connects to 3/4in. pipe or
conduit and provides convenient
wiring termination.
The 8050-1 Universal Mount
junction box mounts flat onto a
wall or can be strapped to a post
or pipe.
1. Insert any DryLoc electrode into base of the 2760. Lubricate O-rings with a non-petroleum based, viscous lubricant (grease)
compatible with the system.
2. Thread retaining cap over electrode and hand-tighten onto 2760.
• Keep the DryLoc electrical interconnection between electrode and preamplifier dry and clean at all times.
3. Attach
3/4in. watertight pipe to the top of the 2760. Secure the threaded connection to prevent any leakage.
• Fill the lower 75-100 mm (3 to 4 in.) of conduit or extension pipe with a flexible sealant such as silicone to prevent liquid
accumulation on the back seal of the 2760.
OROR
The submersible 2760 can be installed in a tank or vessel if conditions are within pressure and temperature specifications.
The 2760 is able to withstand fluid temperatures up to 85 °C (185° F), but the electrode tolerances vary. Check the specifications of
each component before installation.
Fill with
75-100 mm
(3 to 4 in.)
of sealant
Fill with
75-100 mm
(3 to 4 in.)
of sealant
Fill with
75-100 mm
(3 to 4 in.)
of sealant
Lubricate O-ring
1
2
55 mm
(2.16 in.)
55 mm
(2.16 in.)
Fill with
75-100 mm
(3 to 4 in.)
of sealant
3
Submersible Sensor Assembly and Installation

6Signet 2760 DryLoc pH/ORP Preamplifier
Standard output,
¾ in. process connector.
3-2774
3-2775
3-2776
3-2777
Differential output,
1 in. process connector.
3-2764-1
3-2765-1
3-2766-1
3-2767-1
Standard output,
Signet installation fittings
3-2724-10, -11
3-2725-60, -61
3-2726-10, -11
3-2726-HF-10, -11
3-2726-LC-10, -11
3-2756-WTP-1
3-2757-WTP
3-2760-1
3-2760-2
3-2760-1
3-2760-2
3-2760-11
3-2760-21
3-5700 pH/ORP Monitor
V +
Red Wire
V -
Black wire
-
+
T -
White wire
T +
Green wire
Iso. Gnd
Blue wire
Blue Iso. Gnd
mV Input
Brown wire
Brown mV
4-20
mA
Red V+
Black V-
White T-
Green T+
Connect this terminal to Earth GND to reduce electrical interference.
White (Temp)
Green (Temp)
Blue (Iso. Gnd)
Brown (mV input)
Shield
Black (V-)
Red (V+)
12
11
10
9
8
7
6
5
18
17
16
15
14
13
12
11
16
15
14
13
12
11
10
9
3-8750-13-8750-23-8750-3
ProcessPro pH/ORP Transmitter
3-2760-11
3-2760-21
Any of these electrodes can be connected to the Signet ProPoint and ProcessPro pH instruments using the 3-2760-1(X) or -2(X)
Preamplifiers.
Wiring diagrams illustrate the actual terminals on these products for convenience.
RLA 1
2

Signet 8750-X
ProcessPro pH/ORP Transmitter
Signet 5700
ProPoint pH/ORP Monitor

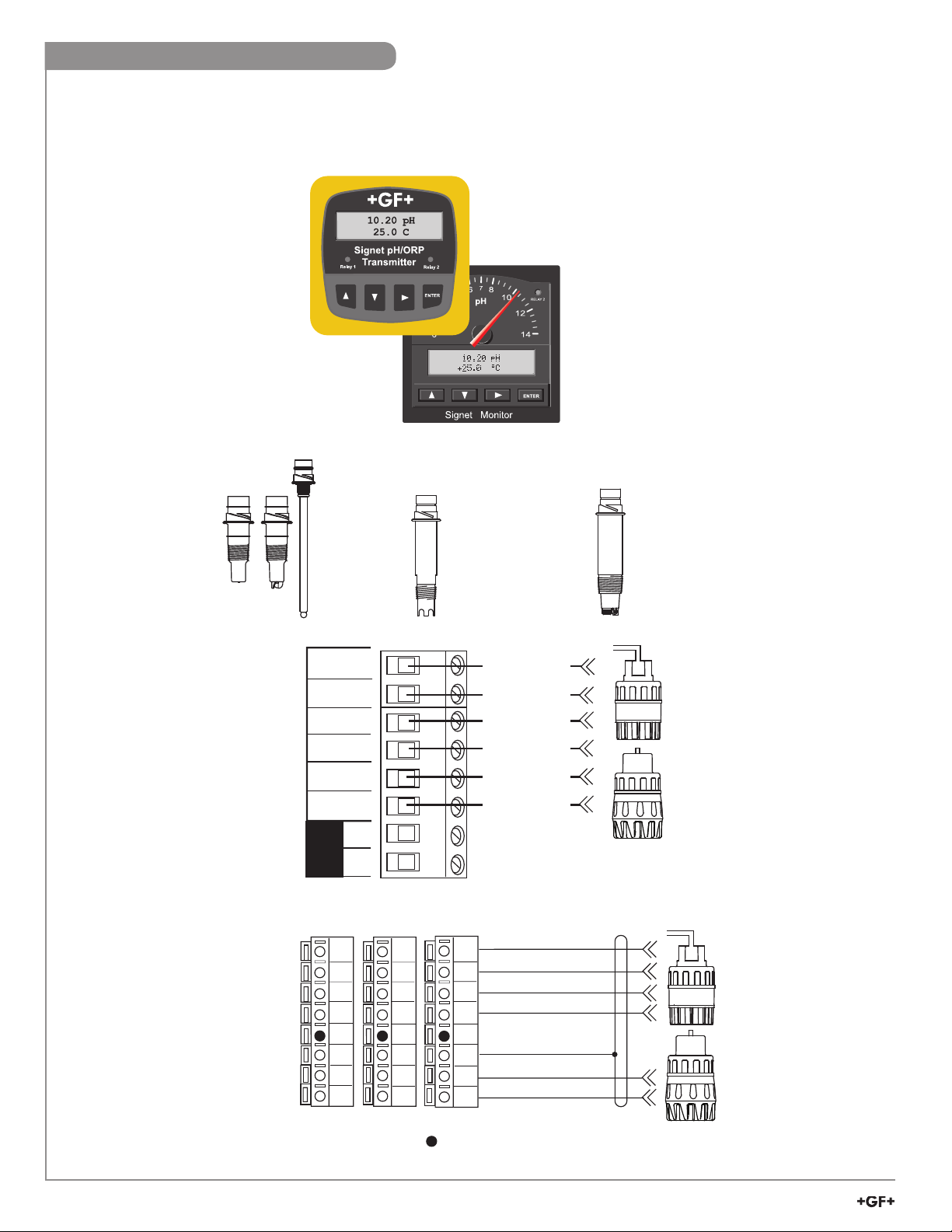

Wiring to Signet Instruments

7
Signet 2760 DryLoc pH/ORP Preamplifier
The 2760-1/-2 Preamplifier and electrode options may be used with third party equipment if the equipment can process the AMPLIFIED mV
signal for pH and is compatible with one of the temperature compensation options. (3 KΩor PT1000).
Refer to the manufacturer's manual for wiring details. Other products may use different terms to identify the function of each conductor.
Wiring from 2760 DryLoc Preamplifier to Other Manufacturer's Equipment
DryLoc Preamplifier, Submersible
3-2760-1
3-2760-2
DryLoc Preamplifier, In-Line
3-2760-11
3-2760-21
White (Temperature)
Green (Temperature)
Blue (mV Reference)
Shield (Earth Ground)
Black (V-)
Red (V+)
Brown (Active mV, pH/ORP)
Signet Combination pH Electrodes
3-2724-10 (3 KΩ, NPT)
3-2724-11 (3 KΩ, ISO)
3-2726-10 (3 KΩ, NPT)
3-2726-11 (3 KΩ, ISO)
3-2726-HF-10 (HF Resist, 3 KΩ, NPT)
3-2726-HF-11 (HF Resist, 3 KΩ, ISO)
3-2726-LC-10 (Low Cond, 3 KΩ, NPT)
3-2726-LC-11 (Low Cond, 3 KΩ, ISO)
3-2774 (3 KΩTC)
3-2776 (3 KΩTC)
Combination ORP (Redox) Electrodes
3-2725-60 (10 KΩID, NPT)
3-2725-61 (10 KΩID, ISO)
3-2757-WTP (10 KΩID)
3-2775 (10 KΩID)
3-2777 (10 KΩID)
Differential pH Electrodes
3-2764-1 (3 KΩRTD)
3-2766-1 (3 KΩRTD)
Differential ORP (Redox)
Electrodes
3-2765-1 (10 KΩID)
3-2767-1 (10 KΩID)

Mfr. Part No. Code Description
3-2760-1 159 000 939 Submersible Preamplifier with ¾ in. NPT threads and 4.6 m (15 ft) cable
3-2760-2 159 000 940 Submersible Preamplifier with ¾ in. ISO 7/1R threads and 4.6 m (15 ft) cable
3-2760-11 159 001 367 In-line Preamplifier with ¾ in. NPT threads and 4.6 m (15 ft) cable
3-2760-21 159 001 368 In-line Preamplifier with ¾ in. ISO 7/1R threads and 4.6 m (15 ft) cable
Accessories and Replacement Parts
Calibration Tools
3-2759 159 000 762 pH/ORP System Tester (adapter cable sold separately)
3-2759.391 159 000 764 2759 Adapter Cable for use w/2760 DryLoc Preamplifier
3-0700.390 198 864 403 pH Buffer Kit (1 each 4, 7, 10 pH buffer in powder form, makes 50 mL)
5523-0624 159 000 636 Cable, 6 conductor, 24 AWG shielded
3822-7004 159 001 581 pH 4.01 buffer solution, 1 pint (473 ml) bottle
3822-7007 159 001 582 pH 7.00 buffer solution, 1 pint (473 ml) bottle
3822-7010 159 001 583 pH 10.00 buffer solution, 1 pint (473 ml) bottle
3822-7115 159 001 606 20 gram bottle Quinhydrone for ORP calibration
3-2700.395 159 001 605 Calibration kit: included 3 Polypropylene cups, box as cup stand, 1 pint pH 4.01, 1 pint pH 7.00
Special Request NIST Traceable Certificate
Electrodes
DryLoc pH Electrodes
3-2724-10 159 001 547 Flat glass pH Electrode, 3 KΩRTD, ¾ in. NPT or Signet fittings
3-2724-11 159 001 548 Flat glass pH Electrode, 3 KΩRTD, ISO 7/1 R¾ or Signet fittings
3-2726-10 159 001 555 Bulb glass pH Electrode, 3 KΩRTD, ¾ in. NPT or Signet fittings
3-2726-11 159 001 556 Bulb glass pH Electrode, 3 KΩRTD, ISO 7/1 R¾ or Signet fittings
3-2726-HF-10 159 001 551 Bulb glass pH Electrode, 3 KΩRTD, HF resistant, ¾ in. NPT or Signet fittings
3-2726-HF-11 159 001 552 Bulb glass pH Electrode, 3 KΩRTD, HF resistant, ISO 7/1 R¾ or Signet fittings
3-2726-LC-10 159 001 559 Bulb glass pH Electrode, 3 KΩRTD, Low conductivity, ¾ in. NPT or Signet fittings
3-2726-LC-11 159 001 560 Bulb glass pH Electrode, 3 KΩRTD, Low conduct., ISO 7/1 R¾ or Signet fittings
3-2764-1 159 000 943 Differential pH Electrode, 3 KΩRTD, 1 in. NPT process connection
3-2766-1 159 000 949 Differential pH Electrode, 3 KΩRTD, 1 in. NPT process connection
3-2774 159 000 955 Flat glass pH Electrode, 3 KΩRTD, ¾ in. NPT process connection
3-2776 159 000 959 Flat glass pH Electrode, 3 KΩRTD, ¾ in. NPT process connection
DryLoc ORP (Redox) Electrodes
3-2725-60 159 001 561 Flat ORP Electrode, 10KΩID, ¾ in. NPT or Signet installation fittings
3-2725-61 159 001 562 Flat ORP Electrode, 10KΩID, ¾ in. ISO 7/1 R¾ or Signet installation fittings
3-2765-1 159 000 946 Differential ORP (Redox) Electrode, 10 KΩID, 1 in. NPT process connection
3-2767-1 159 000 952 Differential ORP (Redox) Electrode, 10 KΩID, 1 in. NPT process connection
3-2775 159 000 957 Flat ORP (Redox) Electrode, 10 KΩID, ¾ in. NPT process connection
3-2777 159 000 961 Bulb ORP (Redox) Electrode, 10 KΩID, ¾ in. NPT process connection
3-2757-WTP 159 001 391 Flat, Wet-Tap ORP electrode, 10 KΩID
Ordering Information
3-2760.090 Rev. 9 01/18 English
