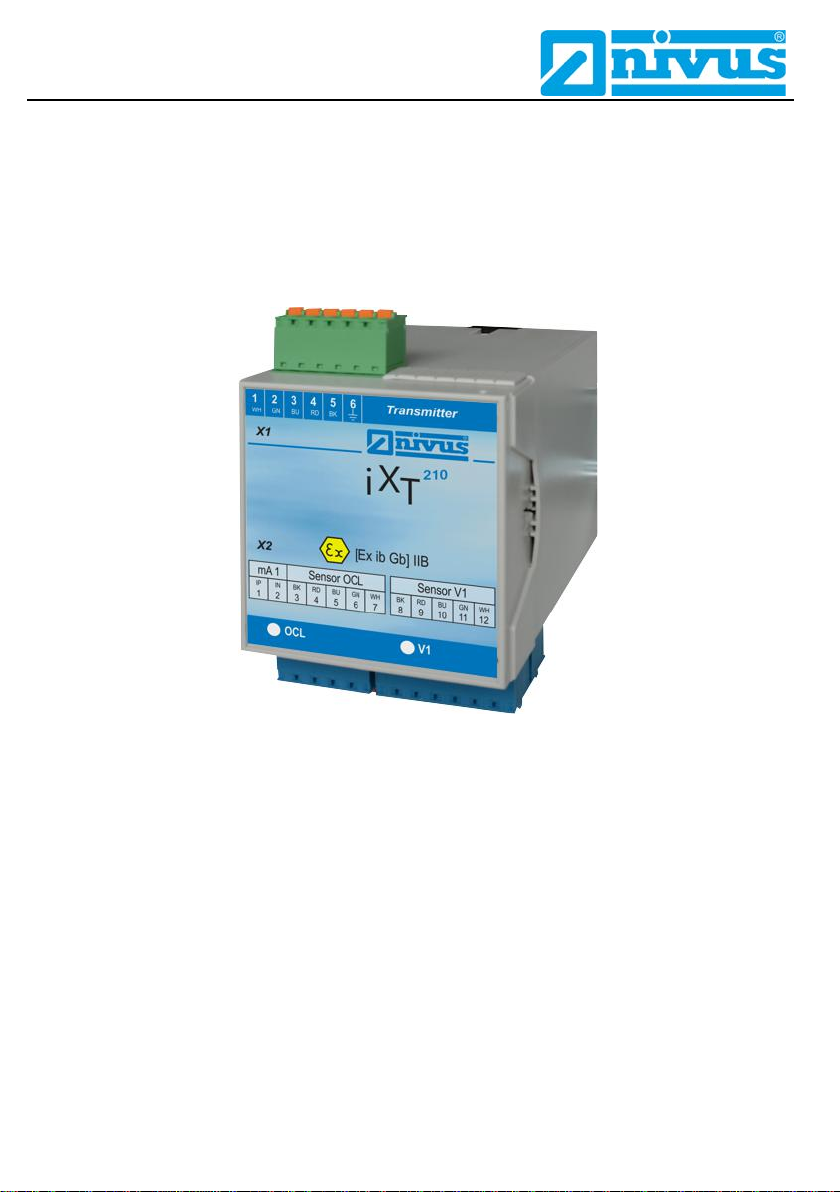

Technical Description for
Ex-Separator Module iXT0
2nd Version
Rev. 02 / 28.08.2017
Original manual: German, rev. 02 as of 22.08.2017
as of Firmware Version: 1.10
NIVUS GmbH
Im Taele 2
75031 Eppingen, Germany
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]
Internet: www.nivus.com

Technical Instruction
Ex-Separator Module iXT0
Branch offices
page 2 Ex-Separator Module iXT0 - rev. 02 / 28.08.2017
NIVUS AG
Burgstrasse 28
8750 Glarus, Switzerland
Phone: [phone]
Fax: [phone]
[e-mail]
www.nivus.de
NIVUS Austria
Mühlbergstraße 33B
3382 Loosdorf, Austria
Phone: [phone]
Fax: [phone]
[e-mail]
www.nivus.de
NIVUS Sp. z o.o.
ul. Hutnicza 3 / B-18
81-212 Gdynia, Poland
Phone: [phone]
Fax: [phone]
[email protected]om
www.nivus.pl
NIVUS France
14, rue de la Paix
67770 Sessenheim, France
Phone: [phone]
Fax: [phone]
[e-mail]
www.nivus.fr
NIVUS Ltd., United Kingdom
Wedgewood Rugby Road
Weston under Wetherley
Royal Leamington Spa
CV33 9BW, Warwickshire
Phone: [phone]
[e-mail]
www.nivus.com
NIVUS Middle East (FZE)
Building Q 1-1 ap. 055
P.O. Box: 9217
Sharjah Airport International
Free Zone
Phone: [phone]
Fax: [phone]
[e-mail]
www.nivus.com
NIVUS Korea Co. Ltd.
#2502 M Dong,
Technopark IT Center,
32 Song-do-gwa-hak-ro,
Yeon-su-gu,
INCHEON, Korea 21984
Phone: [phone]
Fax: [phone]
[email protected]om
www.nivus.com
NIVUS Vietnam
21 Pho Duc Chinh, Ba Dinh
Hanoi, Vietnam
Phone: [phone]
[e-mail]
www.nivus.com
NIVUS Chile
Viña Cordillera Oriente 4565
Puente Alto, Santiago
Phone: [phone]
[e-mail]
www.nivus.com

Copyrights and property rights
Ex-Separator Module iXT0 - rev. 02 / 28.08.2017 page 3
Copyrights and property rights
This document and its contents are proprietary to NIVUS GmbH and are not to be
reproduced or copied without the express written permission of NIVUS GmbH.
Violations oblige to compensation.
Important Note
This manual may exclusively - even in parts - be copied or trans-
lated in any other way with the express written consent of NIVUS
GmbH.
Translation
If the device is sold to a country in the European Economic Area (EEA) this manu-
al must be translated into the language of the country in which the device is to be
used.
Should the translated text be unclear, the original manual (German) must be con-
sulted or the manufacturer contacted for clarification.
Copyright
No part of this publication may be reproduced, transmitted, sold or disclosed with-
out prior permission. Damages will be claimed for violations.
All rights reserved.
Names
The use of general descriptive names, trade names, trademarks and the like in
this manual does not entitle the reader to assume they may be used freely by eve-
ryone. They are often protected registered trademarks even if not marked as such.

Technical Instruction
Ex-Separator Module iXT0
Table of contents
page 4 Ex-Separator Module iXT0 - rev. 02 / 28.08.2017
Table of contents
Copyrights and property rights 3
Table of contents 4
General 6
1Applicable documentation..................................................................7
2Signs and definitions used.................................................................7
3Colour code for wires and single conductors .....................................7
Safety instructions 8
4Used signs and definitions.................................................................8
4.1 Safeguards and precautions..............................................................9
4.2 Personnel requirements...................................................................10
5Intended use....................................................................................11
5.1 User’s responsibilities ......................................................................13
5.1.1 Keep the manual..............................................................................13
5.1.2 Provide the manual..........................................................................13
6Liability disclaimer............................................................................14
Product description 15
7Overview and intended use..............................................................15
7.1 Overview..........................................................................................15
7.2 Device identification.........................................................................16
7.3 Device versions................................................................................17
8Specifications...................................................................................17
9Equipment........................................................................................19
9.1 Delivery............................................................................................19
9.2 Receipt.............................................................................................19
9.3 Transport..........................................................................................19
9.4 Return..............................................................................................19
9.5 Installation of spare parts and parts subject to wear and tear..........19
Construction and functions 20
10 Enclosure dimensions......................................................................20
11 Functional descriptions ....................................................................21
Installation and connection 22
12 Installation instructions.....................................................................22

Table of contents
Ex-Separator Module iXT0 - rev. 02 / 28.08.2017 page 5
12.1 Hints to avoid electrostatic discharge (ESD)....................................22
12.2 Installation place ..............................................................................22
12.3 Installation guidelines.......................................................................23
12.4 Fastening the iXT0...........................................................................23
13 Electrical installation.........................................................................23
13.1 Connection cable .............................................................................24
13.2 Wiring diagram.................................................................................28
13.3 Sensor connection to Ex-Separator Module iXT0 ............................29
13.4 Connection of iXT0 to NivuFlow transmitters...................................32
14 Overvoltage protection.....................................................................34
Maintenance and cleaning 37
15 Maintenance, material wear and cleaning........................................37
16 Dismantling/disposal........................................................................37
17 Emergency.......................................................................................37
Certificates and approvals 38

Technical Instruction
Ex-Separator Module iXT0
General
page 6 Ex-Separator Module iXT0 - rev. 02 / 28.08.2017
General
Important note
READ CAREFULLY BEFORE USE.
KEEP IN A SAFE PLACE FOR LATER REFERENCE.
This manual is an original instruction for Ex-Separator Module iXT0 and is for the
intended use (see chapter “5 Intended use”) of the device. This manual is oriented
exclusively to qualified expert personnel.
Read this instruction manual carefully and completely prior to installation and con-
nection since it contains relevant information on this product. Observe the notes
and particularly follow the warning notes and safety instructions.
Keep this manual in a safe place and make sure it is available for the users of this
product at any time.
If you should have problems to understand information contained within this man-
ual either contact the manufacturer or one of the distributors for further support.
The manufacturer cannot be held responsible for damage to persons or material
due to incorrectly understood information in this instruction.
Detailed information on how to operate the complete system can be found in the
accompanying instruction manuals of the concerning NIVUS Transmitters, Sen-
sors etc.
Name/Term
The Ex-Separator Module iXT0 in this technical instruction
is hereinafter called iXT0.

General
Ex-Separator Module iXT0 - rev. 02 / 28.08.2017 page 7
1 Applicable documentation
For the installation and operation of the complete system extra instruction manuals
or technical descriptions may be required apart from this manual.
−Instruction manual for the flow measurement units NivuFlow 550/750/7550
−Technical Instructions for correlation sensors and Electronic box
−Installation Instruction for correlation and Doppler sensors
−Technical and Installation Instruction for Radar sensors OFR
These manuals are provided with the auxiliary units or sensors and/or are availa-
ble as download on the NIVUS homepage.
2 Signs and definitions used
Meaning
Remark

(Action) Step
Action to be performed by you.
Note the numbering of action steps.
Observe the order of the working steps!

Cross-reference
Reference to further or detailed infor-
mation.
>Text<
Parameter or Menu
Indicates a parameter or a menu that is
selected or described.
Reference to
document
Refers to an accompanying documenta-
tion.
Table 1 Documentation structure
3 Colour code for wires and single conductors
The abbreviations of colours, wire and components follow the international colour
code according to IEC 757.
BK black RD red TR transparent
BU blue WH white GNYE green/yellow
GN green YE yellow BN brown
GY grey PK pink

Technical Instruction
Ex-Separator Module iXT0
Safety instructions
page 8 Ex-Separator Module iXT0 - rev. 02 / 28.08.2017
Safety instructions
4 Used signs and definitions
The general warning symbol indicates the risk of personal inju-
ries or death. In the text section the general warning symbol is
used in conjunction with the signal words described below.
DANGER
Hazard warnings
Indicates an immediate high risk which may result in death or
severe personal injury if not avoided.
WARNING
Warning of danger to persons
Indicates a possible danger with moderate risk which may result
in death or (severe) personal injury if not avoided.
CAUTION
Warning of personal injuries or material damage
Indicates a possible danger with moderate risk which may result
in minor or moderate personal injury or material damage if not
avoided.
DANGER
Danger of electrical shock
Indicates a possible danger by electrical power with high risk
which may result in death or severe personal injury if not avoid-
ed.

Safety instructions
Ex-Separator Module iXT0 - rev. 02 / 28.08.2017 page 9
Important Note
Indicates situations that may result in damage to property and/or
loss of data, if not avoided.
Contains information that needs to be highlighted.
Note
Indicates situations that do not result in personal injury.
4.1 Safeguards and precautions
WARNING
Germ contamination
Please note that due to the operation in the waste water field the
measurement system and cables may be loaded with dangerous
disease germs. Respective precautionary measures must be
taken to avoid damage to one’s health.
Wear protective clothing.
WARNING
Observe regulations for health and safety at work
Before starting installation work, observing the work safety regu-
lations need to be checked.
Failure to do so may cause personal injury.
WARNING
Do not disable safety devices!
It is strictly prohibited to disable the safety devices or to change
the way they work.
Failure to observe may cause personal injury as well as to sys-
tem damage.

Technical Instruction
Ex-Separator Module iXT0
Safety instructions
page 10 Ex-Separator Module iXT0 - rev. 02 / 28.08.2017
WARNING
Check hazards due to explosive gases
Prior to beginning mounting works observe to follow any regula-
tions on safety at work and check possible risks due to explosive
atmospheres.
While working in channel systems observe to avoid electrostatic
charge:
−Avoid unnecessary movement to reduce the risk of building
up electrostatic charge.
−Discharge possible electrostatic charge from your body be-
fore you begin to install the sensor.
Disregarding may lead to personal injury or damage your facili-
ties.
4.2 Personnel requirements
Installation, commissioning and maintenance shall be executed only by personnel
meeting the demands as follows:
−Expert personnel with relevant training an appropriate qualification
−Personnel authorised by the plant operator
Qualified personnel
within the context of this documentation or the safety notes on
the product itself are persons who are sufficiently familiar with
installation, mounting, starting up and operation of the product
and who have the relevant qualifications for their work; for exam-
ple:
I. Training, instruction or authorisation to activate/deacti-
vate, isolate, ground and mark electric circuits and de-
vices/systems according to the safety engineering
standards.
II. Education and instruction according to the standards of
safety engineering regarding the maintenance and use
of adequate safety equipment.
III. First aid training

Safety instructions
Ex-Separator Module iXT0 - rev. 02 / 28.08.2017 page 11
5 Intended use
Important Note
The Ex-Separator Module iXT0 is exclusively intended to be
used for purposes as described below.
Modifying or using the devices for other purposes without the
written consent of the manufacturer will not be considered as use
in accordance with the requirements.
Damages resulting from this are left at user’s risk.
The iXT0 is for the connection of NIVUS sensors (specified in chapter “11 Func-
tional descriptions”) for use in Ex zone 1.
The iXT0 is engineered and manufactured according to the current state of the art
as well as to recognised safety regulations. Danger to persons or material, how-
ever, cannot be completely ruled out.
Strictly observe the maximum permissible limit values of the iXT0 as specified in
chapter “8 Specifications”. Any applications deviating from the aforementioned lim-
it values without the written authorisation by NIVUS GmbH are left at user’s risk.
Ex-Identification
- ATEX: II (2) G [Ex ib Gb] II B
- IECEx: [Ex ib Gb] II B
CAUTION
Damages invalidate the Ex protection
Damage might invalidate the Ex protection.
The iXT0 then is not allowed to be used any longer.
Protect the iXT0 from shocks, drops or other damage.
Important Note
Install the iXT0 outside of the Ex zone!

Technical Instruction
Ex-Separator Module iXT0
Safety instructions
page 12 Ex-Separator Module iXT0 - rev. 02 / 28.08.2017
Important Note
The Ex approval is only valid in connection with the respective
indication on the device nameplate.
The Ex-version of Separator Module iXT0 is matched to the
NIVUS sensors regarding the assessment of intrinsically safe
electrical systems according to EN 60079-25.
The required specifications for Ex-version sensors can be taken
from the EC-type examination certificate TÜV 03 ATEX 2262 or
TÜV 12 ATEX 087812.
Note
For installation and commissioning observe the following points:
−EU Declaration of Conformity
−Test certificates of the respective authorities
−Applicable local regulations

Safety instructions
Ex-Separator Module iXT0 - rev. 02 / 28.08.2017 page 13
5.1 User’s responsibilities
Important Note
In the EEA (European Economic Area) national implementation
of the framework directive 89/391/EEC and corresponding indi-
vidual directives, in particular the directive 2009/104/EEC con-
cerning the minimum safety and health requirements for the use
of work equipment by workers at work, as amended, are to be
observed and adhered to.
The customer must (where necessary) obtain any local operating permits re-
quired and observe the provisions contained therein.
In addition to this, he must observe local laws and regulations on
−personnel safety (accident prevention regulations)
−safety of work materials and tools (safety equipment and maintenance)
−disposal of products (laws on wastes)
−disposal of materials (laws on wastes)
−cleaning (cleansing agents and disposal)
−environmental protection
Connections
As an operator make sure prior to activating the iXT0 that during installation and
initial start-up, if executed by the operator himself, the local regulations (such as
regulations for electrical connection) are observed.
5.1.1 Keep the manual
Keep this manual in a safe place and make sure it is available for the users of this
product at any time.
5.1.2 Provide the manual
In case of selling the instrument this manual shall be provided to the purchaser
since it is a part of the standard delivery.

Technical Instruction
Ex-Separator Module iXT0
Safety instructions
page 14 Ex-Separator Module iXT0 - rev. 02 / 28.08.2017
6 Liability disclaimer
The manufacturer reserves the right to change the contents of this document in-
cluding this liability disclaimer without prior notice and cannot be held responsible
in any way for possible consequences resulting from such changes.
For connection, initial start-up and operation as well as maintenance of the unit the
following information and higher legal regulations of the respective country (in
Germany e. g. VDE regulations) such as applicable Ex regulations as well as safe-
ty requirements and regulations in order to avoid accidents shall be observed.
The safety-related values of the connected iXT0 shall comply with the technical
specifications or the specifications contained in the according EC type examina-
tion certificate.
Interconnecting several active devices within an intrinsically safe circuit may result
in different safe maximum values. In such cases the intrinsic safety may be im-
paired!
All operations on the device which go beyond installation or connection measures
in principle shall be carried out by NIVUS staff or personnel authorised by NIVUS
due to reasons of safety and guarantee.
Operate the iXT0 only in technically perfect working order.
Improper Use
Not being operated in accordance with the requirements may impair the safety.
The manufacturer is not responsible for failures resulting from improper use.

Product description
Ex-Separator Module iXT0 - rev. 02 / 28.08.2017 page 15
Product description
7 Overview and intended use
7.1 Overview

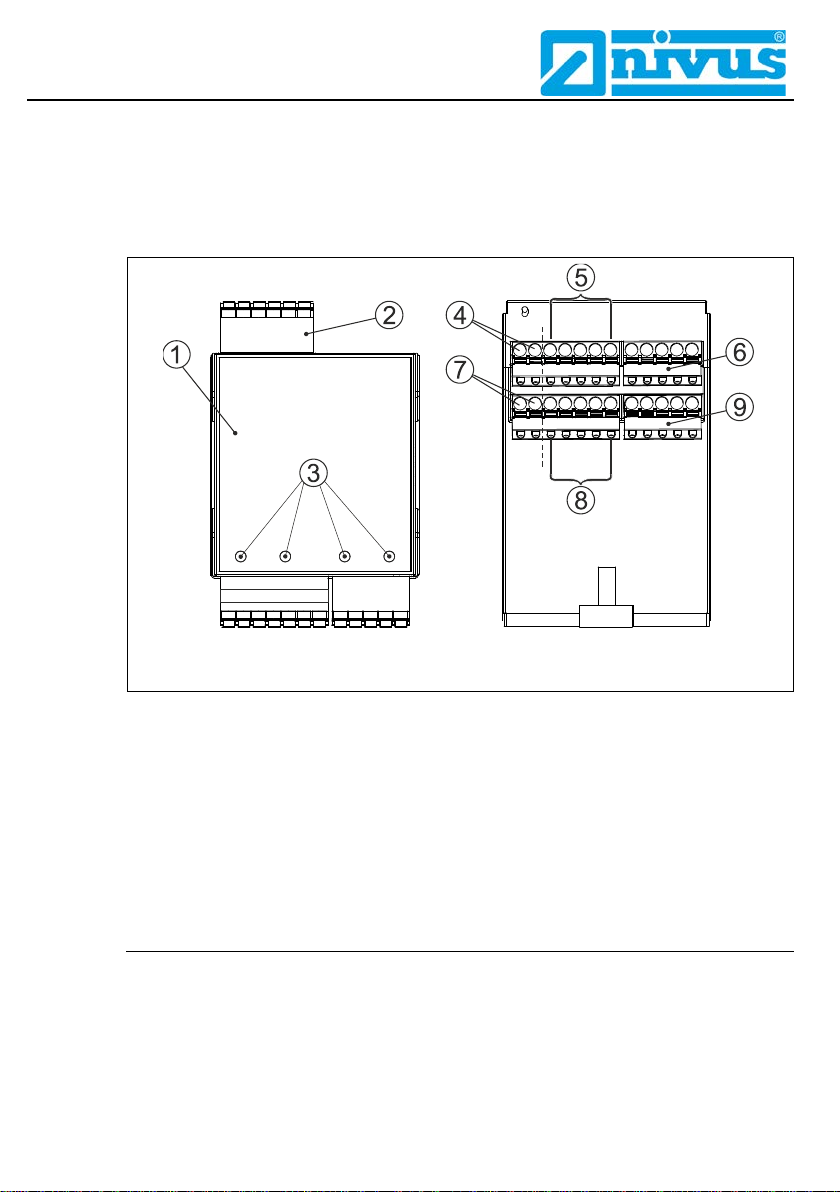

1 Device enclosure
2 Connection to the transmitter NivuFlow
3 LEDs Sensors (optical voltage signal)
4 Connection 2-wire-sensor 1 (for type 211/421: HART)
5 Connection air ultrasonic sensor type OCL
6 Connection v-sensor 1 (water – cross correlation or surface radar OFR)
7 Connection 2-wire sensor 2 (valid only for iXT04xx)
8 Connection v-sensor 2 (valid only for iXT04xx)
9 Connection v-sensor 3 (valid only for iXT04xx)
Fig. 7-1 Overview of Ex-Separator Module iXT0

Technical Instruction
Ex-Separator Module iXT0
Product description
page 16 Ex-Separator Module iXT0 - rev. 02 / 28.08.2017
7.2 Device identification
All information in this technical instruction is valid only for the type of unit indicated
on the title page.
A type label is indicated on the housing and contains the following:
−Name and address of manufacturer
−CE label
−Type labelling and series identification (serial number)
−Year of manufacture
−Ex label (on Ex-version only) as mentioned in chapter “5 Intended use”
It is important for queries and replacement part orders to specify type, year of
manufacture and serial number (article no. if necessary). This ensures correct and
quick processing.
Note
Check the device nameplate to ensure that the device is deliv-
ered according to your order.
Check if the correct supply voltage is printed on the nameplate.
Fig. 7-2 Nameplate of Ex-Separator Module iXT0

Product description
Ex-Separator Module iXT0 - rev. 02 / 28.08.2017 page 17
7.3 Device versions
The iXT0 is manufactured in different versions which mainly differ by the number
of connectable sensors.
The article number can be found on the nameplate which is indicated on the hous-
ing.
Type
Description
iXT0210 2x RS485-Sensors +
1x 2-wire sensor
iXT0211 2x RS485-Sensors +
1x 2-wire sensor with HART
iXT0420 4x RS485-Sensors +
2x 2-wire sensors
iXT0421 4x RS485-Sensors +
1x 2-wire sensor with HART +
1x 2-wire sensor
Table 2 Type key of Ex-Separator Module iXT0
8 Specifications
Power supply
12 V DC (from transmitter NivuFlow xxx);
For use in connection with equipment in networks up
to overvoltage category II or with SELV
Ex-technical: Um= 253 V AC
Power consumption (total)
max. 9 W
Power consumption
max. 1.5 W (typical 1.2 W)
Protection degree
IP20, for installation in areas up to maximum
pollution degree 2
Ex-Approval /
other approvals ATEX: TÜV14ATEX142076 IECEx: TUN14.0014
Operating temperature
-20…+40 °C
Storage temperature
-20...+85 °C
Max. humididy
95 %, non-condensing
Inputs (incl. options)
2x analog 4-20 mA loop-powered sensor connection
Ex ib Gb IIB, 1 of them HART-compatible
Max. values per circuit:

Technical Instruction
Ex-Separator Module iXT0
Product description
page 18 Ex-Separator Module iXT0 - rev. 02 / 28.08.2017
U
o
= 25.4 V / I
o
= 89.2 mA / P
o
= 566.5 mW
4x sensor connection Ex ib Gb IIB with RS485
interface
Max. values per circuit:
Supply: Uo= 10.5 V / Io= 640 mA / Po= 6.72 W
RS485:
Uo= 4.1 V / Io= 105 mA / Po= 108 mW
Ui= 11 V / Ii= 176 mA / Pi= 482 mW
Isolation voltage Um= 253 V AC
Outputs
1x transmitter connection RS485 interface
Table 3 Specifications
Storing
When storing, protect the iXT0 from corrosive or organic solvent vapours, radioac-
tive radiation and strong electromagnetic radiation.

Product description
Ex-Separator Module iXT0 - rev. 02 / 28.08.2017 page 19
9 Equipment
9.1 Delivery
The standard delivery of the iXT0 contains:
−One Ex-Separator Module iXT0 - according to delivery note
−Technical Instruction with the EC Declaration of Conformity and approvals -
where all necessary steps to correctly install and to operate the iXT0 are
listed
Check additional accessories depending on your order and by using the delivery
note.
9.2 Receipt
Check the delivery according to the delivery note for completeness and intactness
immediately after receipt. Report any damage in transit to the carrier instantly.
Send an immediate, written report to NIVUS GmbH in Eppingen as well.
Incomplete delivery shall be directly reported to the headquarters in Eppingen or
your local distributor in written form within two weeks.
Note
Mistakes cannot be rectified later.
9.3 Transport
Protect the iXT0 from shock and impact loads and vibrations. The transportation
must be carried out in the original packaging.
9.4 Return
The units must be returned at customer cost to NIVUS Eppingen in the original
packaging free of charge.
Returns with insufficient postage will not be accepted.
9.5 Installation of spare parts and parts subject to wear and
tear
We herewith particularly emphasize that replacement parts or accessories, which
are not supplied by us, are not certified by us, too. Hence, the installation and/or
the use of such products may possibly be detrimental to the device’s ability to
work.
Damages caused by using non-original parts and non-original accessories are left
at user’s risk.

Technical Instruction
Ex-Separator Module iXT0
Construction and functions
page 20 Ex-Separator Module iXT0 - rev. 02 / 28.08.2017
Construction and functions
10 Enclosure dimensions
Fig. 10-1 Dimensions DIN rail enclosure
109,5
70
75
110
