NN STINGER CS150 User manual

! PLEASE READ!
This manual contains important information about product safety.
www.stingerworld.com
• Operation • Maintenance • Safety • Warranty
CS150 CAP STAPLER
OWNER’S MANUAL
Revised 6/2013

www.stingerworld.com
Congratulations on purchasing the STINGER CS150 Cap Stapler. You have selected a brand and
a tool that you can count on to deliver best practice installation, and perform job after job.
Please take the time to read and understand the information contained in this Owner’s Manual
before operating or maintaining the STINGER CS150 Cap Stapler.
The CS150 is intended for securing housewrap, foamboard and roofing felt only.
Improper use of the CS150 could result in serious injury or even death. Most accidents occur
because of the failure to observe basic safety rules and precautions, which are outlined in the
“Important Information” section of this manual.
This Owner’s Manual should be available to anyone who plans to operate the CS150.
1
WELCOME TO STINGER

www.stingerworld.com
TABLE OF CONTENTS
• Welcome 1
• Important Information 2
• Tool Specifications 5
• Loading the Tool 6
• Operating the Tool 7
• STINGER CS150 Schematic 9
• STINGER CS150 Parts List 10
• Maintenance and Storage 13
• Warranty 14
• Troubleshooting 15

www.stingerworld.com
IMPORTANT INFORMATION !
2
PERSONAL SAFETY ITEMS
• Do not use tool prior to reading the Owner’s Manual.
• Always wear eye protection that conforms to ANSI requirements (Z87.1) and
provides protection against flying particles both from the front and side. Eye
protection should be worn by the operator and by others in the work area. Eye
protection is required to protect against flying fasteners and debris that could
possibly cause severe eye injury.
• The employer is responsible to enforce the use of eye protection equipment by the tool
operator and all other personnel in the work area.
• To prevent accidental injuries:
– Handle the tool with care
– Always assume that the tool contains fasteners
– Always disconnect the air hose from the STINGER CS150 when:
• loading staples and/or caps
• performing inspection, maintenance or repair
• clearing a staple or collated cap jam
• the tool is not in use
• leaving the work area
• moving the STINGER CS150 to another work location
• handing the STINGER CS150 to another person
• storing the tool
– Never point the tool toward yourself or anyone else
– Never engage in horseplay
– Never hold or carry the tool with a finger on the trigger
– Never place a hand or any other part of the body in the fastener discharge area of
the tool while the air supply is connected

www.stingerworld.com
IMPORTANT INFORMATION
AIR SUPPLY AND CONNECTIONS
• Use only clean, regulated compressed air as a power source for this tool. Do not use bottle
gases, combustible gases or oxygen as a power source for the tool as the tool may explode.
• Do not use air supply pressures that exceed 105 PSI. Exceeding the recommended maximum
operating air pressure will greatly increase tool wear.
• The air supply must be capable of maintaining the operating air pressure of the tool. Pressure
drops in the air supply can reduce the tool’s driving power.
• Use a pressure regulator and gauge to allow visual inspection of the air pressure being
delivered to the tool.
• Use air hoses that have rated pressures of up to 150% of the maximum pressure that can be
generated by the power source. The supply hose should contain fittings that will provide quick
disconnecting from the male plug on the tool.
• Use quick connect fittings that allow the tool to be unhooked from the air supply quickly and
easily.
• Do not use fittings that will not allow the tool to exhaust when the air supply is disconnected.
3

www.stingerworld.com
IMPORTANT INFORMATION
4
OPERATION OF THE TOOL
• Never inspect, maintain, repair, adjust, clear a jam or store the tool with the air connected.
• Never use the tool in proximity of flammable gases or liquids, as some tools will create sparks
that can be an ignition source for a fire or explosion.
• Always inspect the safety device for damage and proper operation prior to operation.
• Never assume the tool is empty of fasteners.
• Never point the tool toward yourself or any other persons.
• Never cycle the tool unless it is in contact with the work-piece.
• Never use the tool as a hammer or wedging device or drop to the floor from any height.
• Always remove your finger from the trigger when pausing from cycling.
• Never tamper with the safety device or use the tool if the safety device is not functioning
properly.
• Use only 7/8”, 1 ¼” or 1 ½”STINGER StaplePac®cap fasteners with the STINGER CS150
Cap Stapler. Never use any fasteners that are not specified for use in this tool. The CS150
holds 1 coil of plastic caps (200 caps) and 2 strips of staples (100 staples each).

www.stingerworld.com
TOOL SPECIFICATIONS
Operating pressure 95-105 psi
Weight 4.2lbs
Staple capacity 200 staples (2-100 count strips)
Cap capacity 200 plastic collated caps (1 reel)
Air inlet 3/8 NPT
Fasteners STINGER StaplePac®only. Each 2000 count StaplePac consists of
20 strips of 7/8”, 1-1/4” and 1-1/2” 18 gauge staples (100 staples per
strip) and 10 reels of 1” diameter plastic collated caps (200 caps per
reel).
5
1. Magazine
2. Magazine Cover
3. Cover Release Tab
4. Cap Feeder
5. Staple Track
6. Staple Follower
7. Catch Button
8. Latch
9. End Cap
10. Exhaust
11. Safety
12. Trigger
13. Nose
14. Quick Clear™ Lever
15. Feed Chute
7.
13. 5.
8.
9.
12.
6.
1. / 2.
14.
3. 4.
10.
11.
15.

www.stingerworld.com

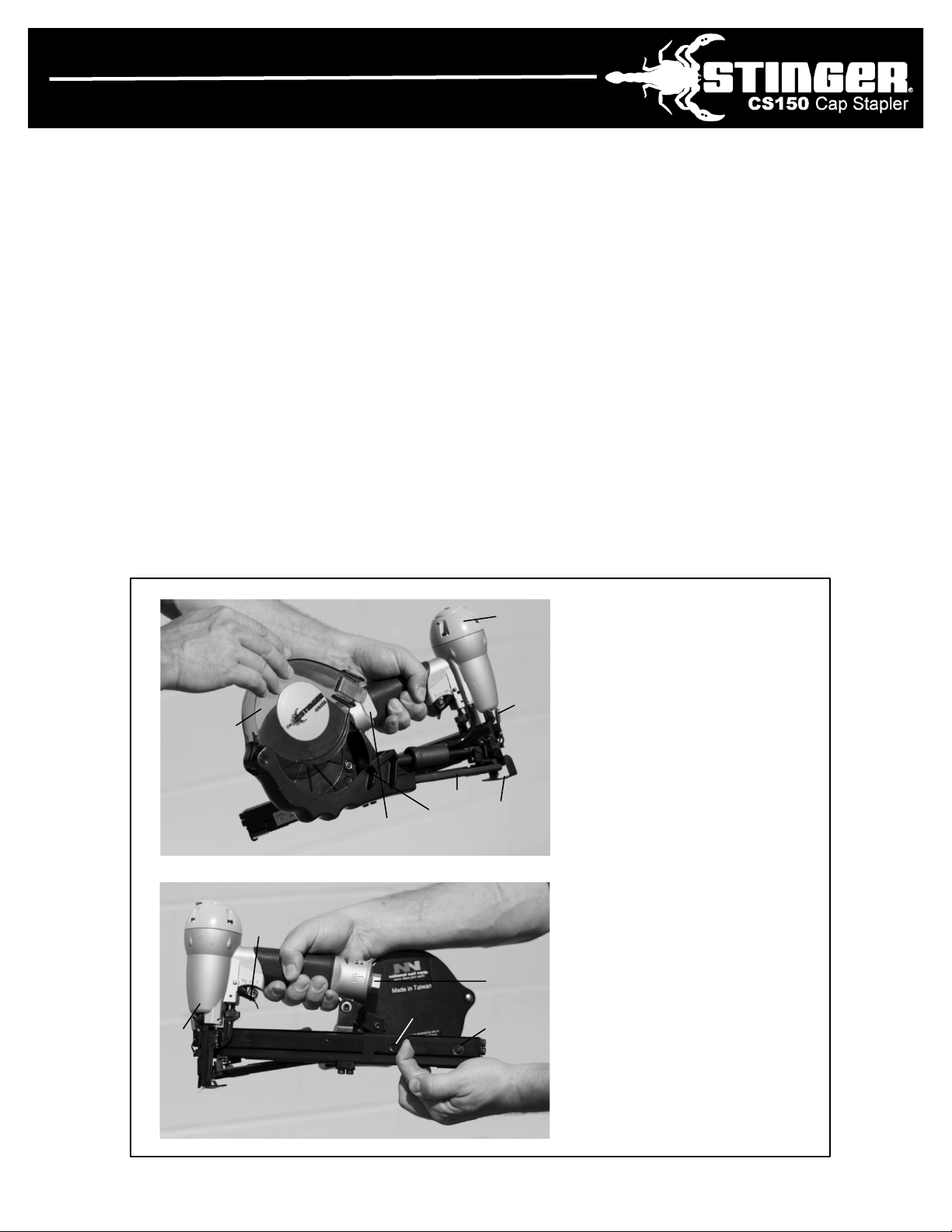

LOADING THE TOOL
FOR USE WITH 7/8”, 1-1/4”, or 1-1/2” STINGER STAPLEPAC®CAP STAPLES ONLY
6
• Disconnect air. Open the Magazine Cover by pushing the
green Cover Release Tab and lifting.
• Place cap reel in Magazine. Make sure the front end of the cap
coil is placed over the cap guide area of the Magazine. Insert
lead cap into the Feed Chute.
• Slide caps along the Feed Chute with fingers until they engage
the Cap Feeder. Pull the Cap Feeder back and release to
advance caps until the first cap is under the Nose of the tool.
• Close the Magazine Cover.
• Pull back the Staple Follower until the Latch catches.
• Place staples in Staple Track.
• Release the Catch Button. Plug into air source. Tool is ready
to use.

www.stingerworld.com
OPERATING THE TOOL
7
1. Do not use tool prior to reading the STINGER CS150 Owner’s Manual.
2. Read warning label(s) on the tool.
3. Visually inspect the tool for worn or damaged parts.
4. Wear appropriate eye and ear protection.
5. Install a male pneumatic fitting into the End Cap of the tool, ensuring that the fitting allows the
tool to exhaust any air in the tool when the air hose is disconnected.
6. Add 2 drops of non-detergent, 20-weight oil into the male fitting daily.
7. Connect the air hose to the tool using a quick connect fitting, and check the air pressure
reading on the regulator to ensure it does not exceed 105 PSI. Check the tool for any air
leaks.
8. Place the tool, empty of fasteners, in operating position on a scrap work piece. Fully depress
the Safety and pull the Trigger to verify that the tool cycles.
9. Disconnect the air hose from the tool when:
• Loading staples and/or caps
• Performing inspection, maintenance or repair
• Clearing a staple or collated cap jam
• The tool is not in use
• Leaving the work area
• Moving the tool to another work location
• Handing the STINGER CS150 to another person
• Storing the tool
10. Following recommended loading instructions, load the fasteners approved for use in the tool.
See Page 6.

www.stingerworld.com
OPERATING THE TOOL
8
11. Cycle the tool on a scrap work piece to evaluate the depth of penetration by the fastener into
the work piece.
12. To adjust the depth of penetration, regulate the air pressure at the regulator and/or
disconnect the air hose, adjust the depth control screw, connect the air hose, and cycle the
tool on a scrap work piece to evaluate the adjustment.
13. Repeat Step 12 as needed to set the correct depth, using the minimum amount of air
pressure to drive the fastener.

www.stingerworld.com
9
STINGER CS150 SCHEMATIC

www.stingerworld.com
STINGER CS150 PARTS LIST
10
Ref.
Number
NNC Part
Number
Description
Parts Kit
Ref.
Number
NNC Part
Number
Description
Parts Kit
01 0136665 Screw 47 0135912 Feed Piston
02 0135851 Washer 48 0135913 O-Ring *
03 0136635 Exhaust Deflector 49 0135914 Spring
04 0137973 O-Ring * 50 0135915 Piston Stop *
05 0135854 Washer 51 0135916 Feed Piston Cover
06 0137953 Cap Screw(4) 52 0135917 Retaining Ring
07 0135856 Flat Washer(4) 53 0137986 O-Ring *
08 0137899 Cap 54 0135918 Hold Down Spring
09 0136627 Exhaust Seal * 55 0135925 Feed Chute
10 0136628 O-Ring * 56 0137957 Lock Nut
11 0136630 Poppet Spring 57 0135926 Screw(2)
12 0136643 Poppet O-Ring * 58 0136608 Screw(5)
13 0136642 Poppet 59 0135919 Magazine Right
14 0137976 Piston Stop O-Ring * 60 0135921 Magazine Cover
15 0137979 Cylinder Seal O-Ring * 61 0135922 Magazine Left
16 0553031 Guide Spacer 62 0135923 Screw(2)
17 0136675 Cylinder 63 0136672 Nut
18 0137969 Cylinder O-Ring * 64 0136631 Spring Clip
19 0553029 Cylinder O-Ring * 65 0136673 Negator Spring
20 0136615 Piston O-Ring * 66 0136648 Negator Spring Drum
21 0137898 Piston & Driver Assembly 67 0135892 Screw(5)
22 0553001 Bumper * 68 0135893 Static Front Plate
23 0136657 Return Seal 69 0136654 O-Ring *
24 0137966 Gasket * 70 0136624 Step Pin
25 0137897 Body 71 0136637 Latch Assembly
26 0136621 O-Ring(2) * 72 0136637 Removable Front Plate
27 0136645 Barb Fitting(2) 73 0136652 Pin
28 0135897 Safety Guide 74 0136656 Wear Plate
29 0136658 Spring 75 0136653 Pin
30 0137896 Safety 76 0137892 Feed Chute Basket
31 0137895 Safety Assembly 77 0136660 Screw
32 0135947 Washer 78 0137891 Magazine Cover
33 0135948 Belt Clip 79 0137890 Cover Rod
34 0136623 Trigger Pin 80 0137889 Magazine
35 0136653 Pin 81 0135885 Spring
36 0135911 O-Ring(2) * 82 0137888 Button
37 0136640 Bleeder Valve 83 0137887 Housing
38 0136676 O-Ring * 84 0136659 Spring
39 0136622 Spring 85 0136651 Fixed Spacer
40 0136620 Plunger 86 0136644 Plug
41 0136650 Trigger Assembly 87 0136639 Spring
42 0137894 Tubing 88 0137886 Pusher
43 0135907 Pin 89 0136649 Spacer
44 0137893 Cap Feeder 90 0137885 Bracket
45 0137911 Spring 91 0136611 Washer
46 0135910 Feed Cylinder 92 0135924 Screw
93 0136667 Return Seal
* Parts included in AS-97384 O-ring and Seal Kit

www.stingerworld.com
MAINTANANCE & STORAGE
13
MAINTENANCE
1. Disconnect the air hose from the tool when performing inspections, maintenance or repairs.
2. Use air line lubricators. If lubricators are not available, or if hose length exceeds 10 feet, add
2 drops of non-detergent 20-weight oil daily into the air inlet of the tool.
3. Whenever repairs or replacement of parts inside the body occur, check the piston “O” ring for
adequate grease lubrication.
4. Never use any parts other than genuine STINGER replacement parts. To order, call
800-746-5659.
5. Periodically clean the Magazine and Nose of the tool with a mild solvent.
STORAGE
1. Disconnect the air hose when storing the tool.
2. Never store the tool in cold weather environments for any duration of time as any frost or ice
formation in the tool will cause tool failures.
3. For prolonged storage, add 2 drops of oil to the air inlet of the tool prior to discontinuing use.
Also clean the exterior of the tool with a mild solvent.

www.stingerworld.com
WARRANTY
WARRANTY ITEMS
1. Warranty for cap assemblies, castings and housing castings is one year.
2. Warranty for bumpers, “O” rings, driver blades and piston rings is not applicable as they are
normal wearing parts whose life is dependent on application.
3. Warranty for all other parts is 90 days.
WARRANTY CONDITIONS
1. The beginning date in which the warranty is in force is the date of purchase.
2. The warranty is not transferable.
3. The warranty is voided by any of the following:
a. Abuse, misuse, or damage to the tool
b. Use of parts other than genuine STINGER parts
c. Use of fasteners not designated for use in the tool
d. Modifications to the tool that alter the original function or intent of use of the tool by
anyone other than National Nail
4. National Nail Corp. retains the right to replace or repair any warranty items it deems
necessary.
14

www.stingerworld.com
TROUBLESHOOTING
PROBLEM:
1. Tool operates, but no fasteners
are driven.
2. Cap leaks air.
3. Fasteners jam in nose of tool.
4. Weak drive.
5. Skipping fasteners.
6. Fasteners will not drive
completely into work piece.
CORRECTION:
• Check Magazine for proper fasteners.
Fasteners should slide freely in and out of
the magazine.
• Tighten cap screws.
• Remove fasteners from Magazine.
• Open Quick-Clear™ Lever (if applicable),
remove jammed fastener and close Latch.
• Load tool.
• Check to make sure there is adequate air
supply.
• Replace Bumper if worn.
• Use only recommended fastener sizes.
• Replace Magazine if worn.
• Check air supply as it may be too low or too
high.
• Adjust the depth of drive.
Please contact Inside Sales for technical support if you have any other problems: 800-746-5659
15
Disconnect the air hose from the tool when performing inspections, maintenance or repairs.

www.stingerworld.com
2964 Clydon SW, Grand Rapids MI 49519, USA
Phone: [phone] Fax: [phone]
Contact Inside Sales at
800-746-5659
to place an order for
replacement parts.
Visit our website at
www.nationalnail.com
to learn more about our products
and services.

! ¡POR FAVOR LEA!
Este manual tiene información importante sobre la seguridad
del producto.
www.stingerworld.com
• Operación • Mantenimiento • Seguridad • Garantia
CS150 CAP STAPLER
MANUAL DEL USUARIO
Revidado 6/2013
®

www.stingerworld.com
Felicitaciones por la compra de la STINGER CS150 Cap Stapler. Ha seleccionado una marca y
una herramienta en la que puede confiar para que le ofrezca la mejor forma de instalación y que
funcione bien trabajo tras trabajo.
Por favor, tómese el tiempo para leer y entender la información contenida en este manual del
propietario antes de operar o mantener la pistola engrapadora STINGER ® CS150 Cap Stapler.
La CS150 está diseñada para sujetar sólo membranas hidrófugas, planchas de espuma y tela
asfáltica.
El uso indebido de la CS150 podría causar lesiones graves o incluso la muerte. La mayoría de los
accidentes se producen debido a la inobservancia de las normas y precauciones básicas de
seguridad, que se exponen en la sección "Información importante" de este manual.
Este manual del propietario debe estar disponible a cualquier persona que planea usar la CS150.
1
BIENVENIDO A STINGER

www.stingerworld.com
ÍNDICE
• Bienvenido 1
• Información Importante 2
• Epecificaciones de la Herramienta 5
• Cómo Cargar la Herramienta 6
• Operación de la Herramienta 7
• Esquema de la STINGER® CS150 9
• Lista de Piezas de la STINGER® CS150 10
• Mantenimiento y Almacenamiento 13
• Garantía 14
• Solución de Problemas 15

www.stingerworld.com
INFORMACIÓN IMPORTANTE !
2
ARTÍCULOS DE SEGURIDAD PERSONAL
• No use la herramienta sin antes haber leído el Manual del Propietario.
• Use siempre protección ocular que cumpla con los requisitos de ANSI (Z87.1) y
que ofrezca protección contra las partículas que vienen desde el frente y los lados.
La protección ocular debe ser usada por el operador y por otras personas en el
área de trabajo. Se requiere la protección ocular para protegerse de los elementos
de fijación y los escombros voladores que podrían causar lesiones graves a los
ojos..
• El empleador es responsable de hacer cumplir con el uso del equipo de protección ocular
por el operador de la herramienta y el resto del personal en el área de trabajo.
• Para evitar lesiones accidentales:
– Maneje con cuidado la herramienta
– Asuma siempre que la herramienta contiene sujetadores
– Desconecte siempre la manguera de aire de la STINGER® CS150 cuando:
• cargue las grapas y/o capuchones
• haga inspección, mantenimiento o reparación
• quite una grapa o un atasco de capuchones intercalados
• la herramienta no esté en uso
• deje el área de trabajo
• transporte la STINGER CS150 a otro sitio de trabajo
• dé la STINGER CS150 a otra persona
• guarde la herramienta
– Nunca apunte la herramienta hacia usted mismo ni hacia ninguna otra persona
– Nunca haga payasadas
– Nunca sostenga ni lleve la herramienta con su dedo en el gatillo
– Nunca ponga la mano nin ninguna otra parte de su cuerpo en el área de descarga
del sujetador de la herramienta mientras la alimentación de aire esté conectada.
