Nobels BASS-PAK User manual

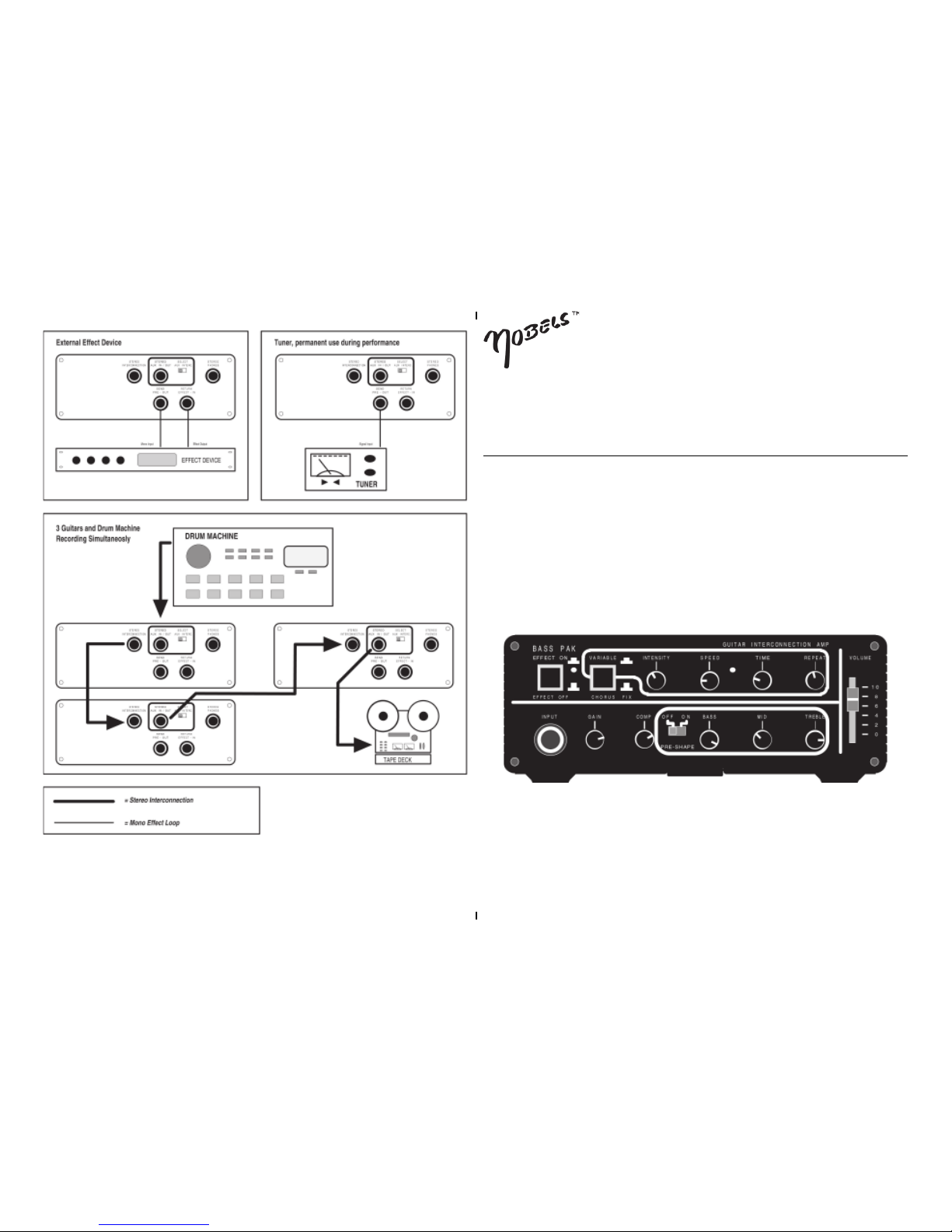

Interconnection Modes
Battery-Operation : possible!
Headphones : included!
The STEREO AMP for practising, stage and home-recording
Designer and worldwide Agent:
MS Music Service GmbH / Hamburg - Germany
Vertrieb für Deutschland:
Pellarin KG - 5000 Köln 40
"practising together + recording in stereo"
- Connect to a Playback or Drummachine - easy
- Connect to a 2. Guitar-Player and his PAK - easy
- Connect to a Bass-Player and his PAK - easy
- Connect to a Keyboard-Player +++ - easy
- Connect to a Tape-Recorder - easy
- Everybody hears everybody in Stereo - super
- Record your hit simultaneously - fantastic
BASS-PAK
Owners Manual
22 23 24
17 20
21
18 19
COMPRESSOR CONTROL
A compressor increases low level signals and decreases
high level signals to reach more constant volume levels.
Use the COMP control (11) to achieve more or less
compression effect.
TONE CONTROL
Turn the BASS control (13) to get more or less bass.
Turn the MID control (14) to get more or less middle.
Turn the TREBLE control (15) to get more or less treble.
The PRE-SHAPE (12) activates the 800 Hz notch filter,
reducing the mid range by 12 dB.
EFFECT SECTION
The EFFECT ON/OFF button (1) switches the effect
section on or off (green LED-indication (2) on).
In CHORUS FIX position - button (3) up - the stereo
chorus preset is active. In VARIABLE position - button
(3) down - it is possible to change the following parameters
of the integrated delay circuit:
INTENSITY (4) - SPEED (5) - TIME (7) - REPEAT (8)
The SPEED control (5) changes the frequency(speed) of
the modulation from slow to fast. The red LED(6) flashes
to indicate the chosen speed.
The intensity of the modulation can be set with the
INTENSITY control (4). The TIME control (7) manages
to change the delay time from 2 to approx. 25ms. The
REPEAT control (8) sets the amount of feedback, i.e. how
often the signal will be repeated.
NOTE: Each control of the EFFECT SECTION is
designed with an extreme range to make best effects
possible. It is not useful to set INTENSITY control and
TIME control to max. position at the same time. High
frequency noise would be heard.
12345678
9 10 11 1312 1514 16
KTA -920302-0145 (C) 1990,1991 NOBELS A Nº1 -OF- HAMBURG CONCEPT
THE BASS PAKis a portable stereo headphone amp
incorporating best possible sounds and effects of use to
every bass player. Two or more players, each equipped
with a BASS PAK or STEREO PAK and a conventional
stereo cable can play together, each hearing his own and
the other players sound simultaneously in full stereo.
Rhythm machine or drum computer can be additionally
added to these two signals and all three can be
simultaneously recorded. Even more players can be
connected to this chain.
SWITCHING ON
To switch the BASS PAK on please install the supplied
9V battery in the battery compartment(21) at the back of
the unit or plug a stabilized 9V DC/200mA power supply
into the DC jack(22). Plugging a guitar cable into the input
jack (9) switches the unit on automatically.
The STEREO PHONESjack for your headphones(20) is
on the back panel of the unit.
Now set the TONE controls (13, 14, 15) to max.position
The EFFECT ON/OFF button (1) switches the effect
section on or off (green LED (2) on). Set it in position
OFF . Set the volume with the VOLUME control (16)
to approx. position 8.
Turn the volume pot of your instrument to max. position.
Now turn the GAIN control (10) until the output of your
instrument and the input sensitivity of the BASS PAK
match: No distortion should be heard, even when the
strings are hit hard.
TIP: The best result is achieved when you can turn
the COMP control (11) to min. or max. position with
almost no change in volume level.
CONNECTIONS
HEADPHONES:
The headset supplied with the BASS PAK has been
specially designed to deliver maximum frequency
response and acoustic compatibility. It is also possible to
use any stereo headset equipped with the compatible input
jack. Connect the headphones to socket STEREO PHONES
(20) on the back panel of the unit.
RECORDING:
The INTERCONNECTION jack (17) must be connected
via stereo cable to the inputs of a tape recorder. The output
gain will not be affected by the VOLUME control (16).
The AUX IN/OUT jack (18) may be additionally used for
recording purposes (switch SELECT (19) to position
AUX). In this mode, the output gain can be adjusted by
use of the VOLUME control (16).
All signals fed into the AUX IN/OUT socket (18)can be
recorded simultaneously with the guitar signal - in stereo!
(for example a drummachine, a playback or another
BASS PAK or STEREO PAK etc...)
AMPLIFIERS:
There are different possibilities to connect your
BASS PAK to amps:
SEND (23): mono output, no effect signal
AUX IN/OUT (18): stereo output with effect signal,
output gain affected by VOLUME
control (16)
INTERCONNECTION (17): stereo output with effect signal,
output gain not affected by VOLUME
control (16)
PHONES (20): stereo output with effect signal,
output volume affected by
VOLUME control (16).
It depends on the components of your equipment to figure
out, which of these connections are the ultimate.
Check it out by yourself!
NOTE: For all stereo-outputs please use shielded stereo
cables with stereo plug only! Other plugs will
INTERCONNECTION MODE
Jam together with other players:
You just have to connect the INTERCONNECTION jacks
(17) or the AUX IN/OUT jacks (18) of two or more BASS
PAKs or STEREO PAKs via simple stereo cables. To
achieve a perfect mix of all devices, adjust the GAIN
control (10).
EXAMPLE: RECORDING with oneBASS PAK plus
one STEREO PAK plus DRUMMACHINE:
Connect the drummachine to the AUX IN/OUT jack(18)
of the BASS PAK. Switch SELECT (19) to position
INTERC.. Connect the BASS PAK to the STEREO
PAK with a stereo cable via the INTERCONNECTION
jacks (17) of each unit. Connect channel 1 + 2(or left and
right) of your tape deck with stereo cable to the AUX IN/
OUT jack (18) of the STEREO PAK. Switch SELECT
(19) of this unit to position INTERC..
Ready - let the tape go!
EXTERNAL EFFECT DEVICES
You want to have stereo effectunits, like digital delays or
reverbs, linked to your BASS PAK ? No problem. Connect
the mono input of your effect device to the SEND jack(23)
of the BASS PAK. Then connect both stereo outputs of your
effect device to the AUX IN/OUT jack (18) - SELECT
switch (19) to position INTERC.. If you use a mono
effect device, its output should be connected to the RE-
TURN jack (24) of the BASS PAK.
IMPORTANT NOTES:
Please use high quality, shielded cables only. Dont take
yourBASSPAK in the shower - in other words: please treat
it carefully, only cleaning it with a dry duster. Use good,
leakproof batteries only. Please realize: battery life is
limited and you are working with a high powered unit.
Disconnecting the INPUT switches the unit off and will
save battery life!
O.K. - now lets go: enjoy yourBASS PAK!
CAUTION: Prolonged listening at high levels may be hazardous
to your hearing!
Required PSU (Power Supply Unit): 9V / DC, 200 mA min.
electronically stabilized
plug: STP-1 (2.1 hole diameter)
