NOESIS Florio F10 Pro User manual
User Manual
EN
DE
FR
IT
ES
P03
P32
P63
P92
P121
3
EN
User Manual
QQuuiicckk SSttaarrtt GGuuiiddee

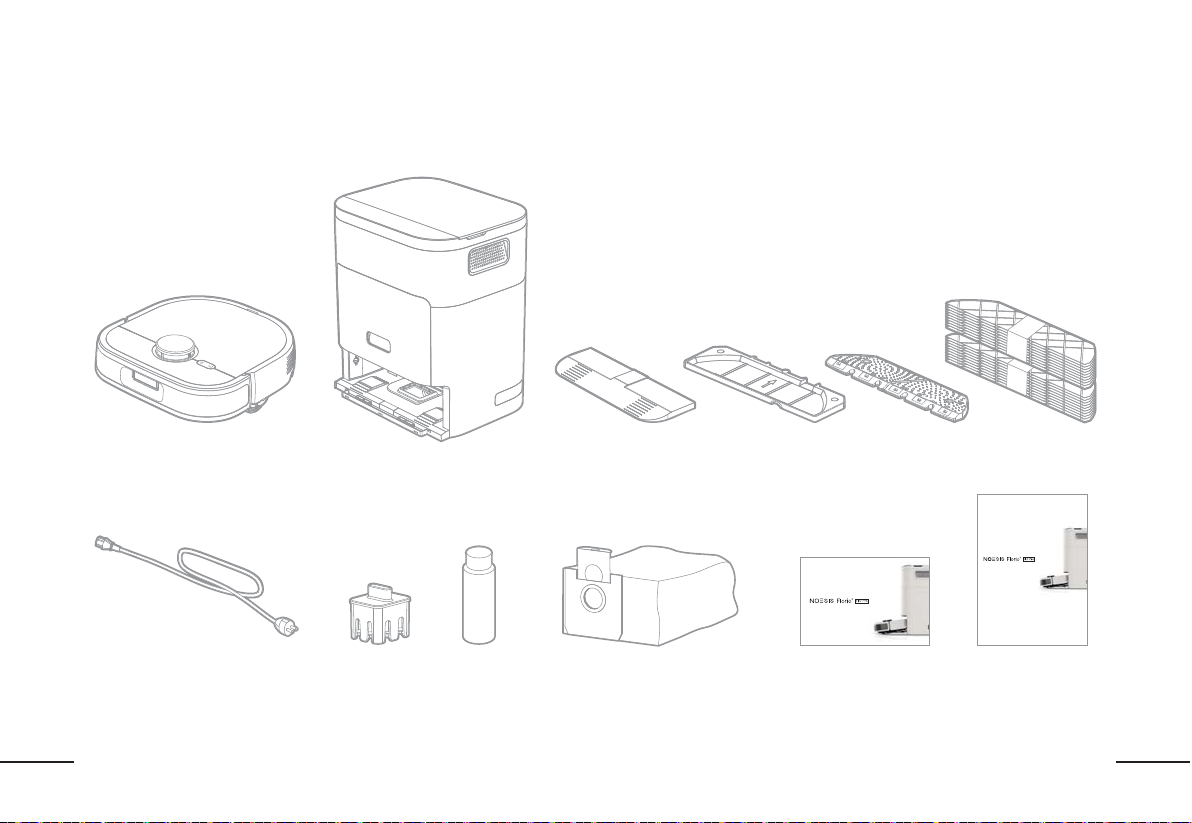

WHAT’S IN THE BOX
*The illustrations in this manual are for reference only. The actual appearance may vary.
Robot Vacuum and Mop*1
(with a Cleaning Tool) 80 PCS Cleaning
Pads
Base Station*1 (with a
Dust Bag) Guide Plate*1
Power Cord*1
Mop Plate*1
Fragrance
Cube*1 75mL Cleaning
Solution*1 User Manual1
Mop Tray*1
Quick Start
Guide1
Dust Bag*1
4EN
SYMBOLS
SYMBOLS
For indoor use only
Read the operator’s manual
Caution
Li-Ion battery This product has been marked with a
symbol relating to ‘separate collection’ for all battery
packs and battery pack. It will then be recycled or
dismantled in order to reduce the impact on the
environment. Battery packs can be hazardous for the
environment and for human health since they contain
hazardous substances.
Do not burn
Batteries may enter water cycle if disposed improperly,
which can be hazardous for ecosystem. Do not dispose
of waste batteries as unsorted municipal waste.
Waste electrical products must not be disposed of with
household waste. Please recycle where facilities exist.
Check with your local authorities or retailer for recycling
advice.
Functional earthing
Direct current
Alternating current
Double insulation
Fuse
T4A
5
EN
CONTENTS
CONTENTS
PRODUCT SAFETY
PRODUCT SAFETY
For Household Use Only
WARNING - Risk of Electric Shock. Dry location
use only.
To Reduce the Risk Of Electric Shock - Do not use
outdoors or on wet surfaces.
CAUTION - To Reduce The Risk Of Injury From
Moving Parts - Unplug Before Servicing.
CAUTION - To Reduce The Risk Of Injury From
Moving Parts. Keep the power off Before
Servicing.
CAUTION - Risk of Injury. Brush May Start
Unexpectedly. Keep the appliance be switched
off Before Cleaning or Servicing.
CAUTION: In order to avoid a hazard due to
inadvertent resetting of the thermal cut-out,
this appliance must not be supplied through an
external switching device, such as a timer, or
connected to a circuit that is regularly switched
on and off by the utility.
GENERAL SAFETY WARNINGS
GENERAL SAFETY WARNINGS
WARNING: Read all safety warnings and all
WARNING: Read all safety warnings and all
instructions
instructions.
Failure to follow the warnings and
instructions may result in electric shock, fire and/
WHAT’S IN THE BOX P03
PRODUCT SAFETY P05
TECHNICAL SPECIFICATIONS P12
DETAILED PRODUCT COMPONENTS P13
GETTING TO KNOW YOUR NR200E P15
TIPS BEFORE CLEANING P16
BASE STATION PREPARATION P17
ROBOT PREPARATION P19
DOWNLOAD THE APP P20
START CLEANING P21
CLEANING MODES P22
MAINTENANCE P23
TROUBLESHOOTING P28
DECLARATION OF CONFORMITY P31
6EN
or serious injury.
Carefully read the instructions for the safe
Carefully read the instructions for the safe
operation of the machine.
operation of the machine.
Save all warnings and instructions for future
Save all warnings and instructions for future
reference.
reference.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
The appliance is only to be used with the power
supply unit provided with the appliance.
WARNING: For the purposes of recharging the
battery, only use the detachable supply unit
provided with this appliance.
CAUTION: This hose contains electrical
connections:
1) do not use to suck up water (for vacuum
cleaners only);
2) do not immerse in water for cleaning;
3) the hose should be checked regularly and
must not be used if damaged.
The plug of base station must be removed from
the socket-outlet before cleaning or maintaining
the appliance.
Additional safety warnings
Additional safety warnings
1. Do not expose the vacuum cleaner to
rain. Water entering the vacuum cleaner
will increase the risk of electric shock or
malfunction.
2. The vacuum cleaner service must be
performed only by qualified repair personnel.
Service or maintenance performed by
unqualified personnel could result in a risk of
injury.
3. Do not allow children to play with the vacuum
cleaner as a toy.
4. Use this battery operated vacuum cleaner
only for its intended use as described in
this manual. Use only the attachments
recommended in this manual.
5. Do not put any objects in ventilation
openings. Do not use with any opening
blocked.
6. Use only manufacturer’s attachments and
7
EN
spare parts.
7. Do not use to pick up hard objects such as
nails, screws, coins, etc. damage or injury
could result.
8. Use only the charger recommended for your
cordless vacuum cleaner. Do not substitute
any other charger. Use of another charger
could cause batteries to explode causing
possible serious injury.
9. To reduce the risk of electric shock, use the
vacuum indoors only.
10. Electric shock could occur if charged
outdoors or on wet surface.
11. The metal hooks on both sides above the rag
box are sharp and danger, do not touch them
to avoid your hands being injured.
12. Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or not
ashes.
13. Do not use without dust bag and/or filters in
place.
14. This appliance contains batteries that are
only replaceable by skilled persons.
15. WARNING: For the purposes of recharging the
battery, only use the detachable supply unit
NA0003 provided with this appliance.
16. Warning: Do not using non-rechargeable
batteries.
17. WARNING- To Reduce the Risk of Fire and
Electric Shock due to internal component
damage, use only NOESIS cleaning fluid
intended for use with the appliance. See the
Cleaning Fluid section of this manual.
SAFETY WARNINGS FOR BATTERY PACK INSIDE
SAFETY WARNINGS FOR BATTERY PACK INSIDE
THE TOOL
THE TOOL
a) Do not dismantle, open or shred battery pack.
a) Do not dismantle, open or shred battery pack.
b) Do not short-circuit a battery pack. Do not
b) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box or
store battery packs haphazardly in a box or
drawer where they may short-circuit each
drawer where they may short-circuit each
other or be short-circuited by conductive
other or be short-circuited by conductive
materials.
materials. When battery pack is not in use,
keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or
other small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
c) Do not expose battery pack to heat or fire.
c) Do not expose battery pack to heat or fire.
Avoid storage in direct sunlight.
Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical
d) Do not subject battery pack to mechanical
shock.
shock.
8EN
e) In the event of battery leaking, do not allow
e) In the event of battery leaking, do not allow
the liquid to come into contact with the skin
the liquid to come into contact with the skin
or eyes. If contact has been made, wash the
or eyes. If contact has been made, wash the
affected area with copious amounts of water
affected area with copious amounts of water
and seek medical advice.
and seek medical advice.
f) Keep battery pack clean and dry.
f) Keep battery pack clean and dry.
g) Battery pack needs to be charged before use.
g) Battery pack needs to be charged before use.
Always refer to this instruction and use the
Always refer to this instruction and use the
correct charging procedure.
correct charging procedure.
h) Do not maintain battery pack on charge
h) Do not maintain battery pack on charge
when not in use.
when not in use.
i) After extended periods of storage, it may
i) After extended periods of storage, it may
be necessary to charge anddischarge
be necessary to charge and discharge
the battery pack several times to obtain
the battery pack several times to obtain
maximum performance.
maximum performance.
j) Recharge only with the charger specified by
j) Recharge only with the charger specified by
NOESIS. Do not use any charger otherthan
NOESIS. Do not use any charger other than
that specifically provided for use with the
that specifically provided for use with the
equipment.
equipment.
k) Do not use any battery pack which is not
k) Do not use any battery pack which is not
designed for use with the equipment.
designed for use with the equipment.
l) Keep battery pack out of the reach of
l) Keep battery pack out of the reach of
children.
children.
m) Retain the original product literature for
m) Retain the original product literature for
future reference.
future reference.
n) Dispose of properly.
n) Dispose of properly.
o) Do not mix cells of different manufacture,
o) Do not mix cells of different manufacture,
capacity, size or type within a device.
capacity, size or type within a device.
p) Keep the battery away from microwaves and
p) Keep the battery away from microwaves and
high pressure.
high pressure.
User manual requirements for wireless product
User manual requirements for wireless product
a) Operation of this device is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
b) Caution: Changes or modifications to this
unit not expressly approved by the party
responsible for compliance could void the
user’s authority to operate the equipment.
c) NOTE: This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can
9
EN
be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/
TV technician for help.
SAFETY PRECAUTIONS WHEN USING THIS PRODUCT
SAFETY PRECAUTIONS WHEN USING THIS PRODUCT
CAUTION: Remain alert and follow the procedure below: Please
CAUTION: Remain alert and follow the procedure below: Please
read this manual carefully before using the product and keep
read this manual carefully before using the product and keep
it properly. The robot is not a toy. Supervise children and pets
it properly. The robot is not a toy. Supervise children and pets
when the robot is cleaning DO NOT place anything on top of the
when the robot is cleaning DO NOT place anything on top of the
unit. Take care when walking in work areas to avoid stepping on
unit. Take care when walking in work areas to avoid stepping on
or tripping over the unit as it moves on its own. DO NOT operate
or tripping over the unit as it moves on its own. DO NOT operate
unit on floors with exposed electrical outlets. DO NOT immerse
unit on floors with exposed electrical outlets. DO NOT immerse
robot in water or other liquids.
robot in water or other liquids.
1. Problems that may arise when the mopping robot sweeps
the floor should be solved as soon as possible. Please
clean up power cords and small objects on the floor so
they will not block the path when mopping. Fold the fringe
underneath the carpet, and keep hanging curtains and
tablecloths away from the floor.
2. In an environment that has stairs or drop-offs, please test
the product first to check if it can detect ledges. Consider
blocking off stairs or edges of drop-offs with a protective
fence to prevent the product from falling. It should be
ensured that the protective device will not cause personal
injury such as by tripping.
3. Please use the product by following the instructions in the
manual. Only use accessories recommended or sold by the
manufacturer.
4. Ensure that the supply voltage matches the voltage rating
shown on the charging stand.
5. If the power cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
6. Please turn off the product before cleaning and maintaining
the product.
7. The plug must be removed from the power socket before
cleaning and maintaining the product.
8. Before discarding the product, please remove it from the
charging stand, turn off the power switch.
9. If the product will not be used for a long time, please
disconnect the product from the power supply.
10. The product must be discarded in accordance with local
laws and regulations.
11. The used battery must be discarded in accordance with
local laws and regulations.
12. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
10 EN
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
13. Use the product only in an indoor home environment. Do
not use the product in outdoor, commercial, or industrial
places.
14. Do not use the product with a damaged power cord or
power socket. Do not continue to use the product when
the product cannot work properly due to falling, damage,
outdoor use or water ingress. The product should be
repaired by the manufacturer or its after-sales service in
order to avoid accidental injury.
15. Please use the product by following the instructions in the
manual. Our company is not responsible for any loss and
damage caused by improper use.
WARNING
WARNING
16. Users shall not replace the battery by themselves. If the
battery is suspected to be damaged, please contact the
manufacturer, authorized dealer or similarly qualified
persons to replace it.
17. The product should not be used in an environment with
open flames or fragile objects.
18. The product should not be used in an overly hot (above
400C) or overly cold (below 00C) environment.
19. Do not allow hair, clothes, fingers, or any other parts of
human body to be close to the opening and operating parts
of the product.
20. The product should not be used on wet or watery ground.
21. The product should not mop any flammable materials such
as gasoline or toner powder for printers and photocopiers.
The product should not be used for cleaning areas with
flammable materials.
22. The product should not vacuum any burning items, such as
cigarettes, matches, ashes and other items that may cause
a fire.
23. Use the power cord carefully to avoid damage. It is
forbidden to use the power cord to drag or lift the product
and its charging stand. It is forbidden to use the power cord
as a handle. It is forbidden to run the power cord through
a door gap. It is forbidden to pull the power cord around a
sharp corner or edge. Do not operate the product over a
power cord. Keep the power cord away from heat sources.
24. It is forbidden to use the damaged charging stand. If the
charging stand is damaged, it must be repaired or replaced
by the manufacturer, authorized dealer or similarly qualified
persons in order to avoid a hazard.
25. It is prohibited to burn the product even if it is severely
damaged. The product battery may cause an explosion.
INSTRUCTIONS FOR DISCARDING BATTERY
INSTRUCTIONS FOR DISCARDING BATTERY
If you want to discard the battery contained in this machine,
please do not discard it along with household garbage. Instead,
hand it over to the nearest used battery recycling station or
after-sales service center for centralized disposal.
The following instructions are not for general users, but are
to be used as the disposal instructions for the final battery
disposer.
The chemical substances contained in the batteries of this
machine will pollute the environment if handled improperly.
Before discarding the robot, please be sure to take out the
battery from the robot body in advance. The battery should be
11
EN
handed over to a special battery collection point for centralized
disposal.
Be careful! Leakage of the battery can cause human injury!
If the battery leaks, do not allow the leakage to come into
contact with eyes or skin. In case of accidental contact,
please thoroughly wash your hands and eyes with clean water
immediately. If you still feel uncomfortable, consult a doctor
immediately.
12 EN
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Robot Vacuum and Mop
Model NR200E
Dimension 332 x 312 x 97mm
Weight 4kg
Battery capacity Li Battery 5200mAh
Rated voltage 14.8V
Frequency bands for WIFI 2400-2483.5 MHz
Maximum Transmitted Power for WIFI 20 dBm
Base Station
Model NA0003
Dimension 332 x 392 x 470mm
Weight 12.5kg (with full water), 10.5kg (with no water)
Adaptor input 220-240V~50-60Hz 0.5A
Rated input 20V
Rated output 20V 2.5A
Rated power 1200W
* Actual product may vary due to the continuous product enhancement. Our company reserves the right to make improvement to the product at any time.
FOR BATTERY TOOLS
FOR BATTERY TOOLS
The ambient temperature range for the use and storage of tool and battery is 0 đ-45 đ.
The recommended ambient temperature range for the charging system during charging is 4 đ-40 đ.
Details regarding safe disposal of used batteries
do not throw batteries away or throw them in the normal trash can. Also do not dispose of the battery with the machine. Remove the used battery from the
machine and dispose of the used battery at the nearest or convenient dedicated recycling point.
ENVIRONMENTAL PROTECTION
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer
for recycling advice.
13
EN
DETAILED PRODUCT COMPONENTS
DETAILED PRODUCT COMPONENTS
TOP VIEW
TOP VIEW
BOTTOM VIEW
BOTTOM VIEW
Laser Distance Sensor (LDS) Start/Pause Button
Home Button Caster Wheel
Drive Wheels
Bumper
Binocular Vision Obstacle
Avoidance Sensor
Brush Roll
Auto Dust Collection Port
Side Brush
Omnidirectional Sensors
AI Camera
Carpet Sensor
Cliff Sensor
Mop Plate
14 EN
DETAILED PRODUCT COMPONENTS
DETAILED PRODUCT COMPONENTS
INSIDE VIEW
INSIDE VIEW
FRONT VIEW
FRONT VIEW
Water Outlet
Fragrance Cube
Cleaning Tool
Front Cover
Dust Bag
Guide Plate
Top Cover
ON/OFF Button
Dust Bin
Water Inlet
Charging Contacts
Reset Button
New Mop Pad Box
Used Mop Pad Box
Water Tank
15
EN
GETTING TO KNOW YOUR NR200E
GETTING TO KNOW YOUR NR200E
START/PAUSE
BUTTON HOME BUTTON START BUTTON HOME BUTTONINDICATOR
OPERATION PANEL FOR ROBOT OPERATION PANEL FOR BASE STATION
RESET BUTTON
Button Operation and function
Short press: Start/pause cleaning
Long press for 2 seconds: Start spot cleaning mode
Short press when robot is cleaning: pause the robot
Short press when robot is paused/in standby: send robot
home to charge
Long press for 2 seconds: replace the mop pad
Short press: Wi-Fi Configuration
Long press for 5 seconds: Restore factory settings
Button / Indicator Operation and function
Short press: Change the cleaning mode
NOTE: You can also change the cleaning mode in the
app
Indicates current status
Short press: Start/pause cleaning
Short press: Robot leaves the base station (if robot is in
the base station)
Robot returns to the base station for recharging (if
robot is not in the base station)
Long press for 3 seconds: Turn on/off the child lock
MODE CHANGE
BUTTON
16 EN
Open doors for an accurate floorplan map
Open doors for an accurate floorplan map
In order to better help the robot explore the entire
space and build a home map, please open the
door of each room before using it for the first
time.
Create Virtual Boundaries
Create Virtual Boundaries
After mapping your floor plan, create virtual
"no-go" areas via the NOESIS app to limit areas/
rooms that you do not want the robot to clean and
ensure that the robot runs smoothly.
TIPS BEFORE CLEANING
TIPS BEFORE CLEANING
Organize the space to be cleaned
Organize the space to be cleaned
Before using the robot, pick up any items or low
objects (like a weight scale) to maximize the
space for cleaning.
Prevent the robot from falling
Prevent the robot from falling
The robot is equipped with cliff sensors to prevent
falling, but for extra security, place a protective
fence or set areas with drop-off’s as a “no-go”
area in the app.
Cover objects with strong reflective surfaces
Cover objects with strong reflective surfaces
Ensure that there is no object with a strong
reflective surface (ex: mirror) within 10cm on the
ground as it will confuse the robot navigation
lasers.
17
EN
BASE STATION PREPARATION
BASE STATION PREPARATION

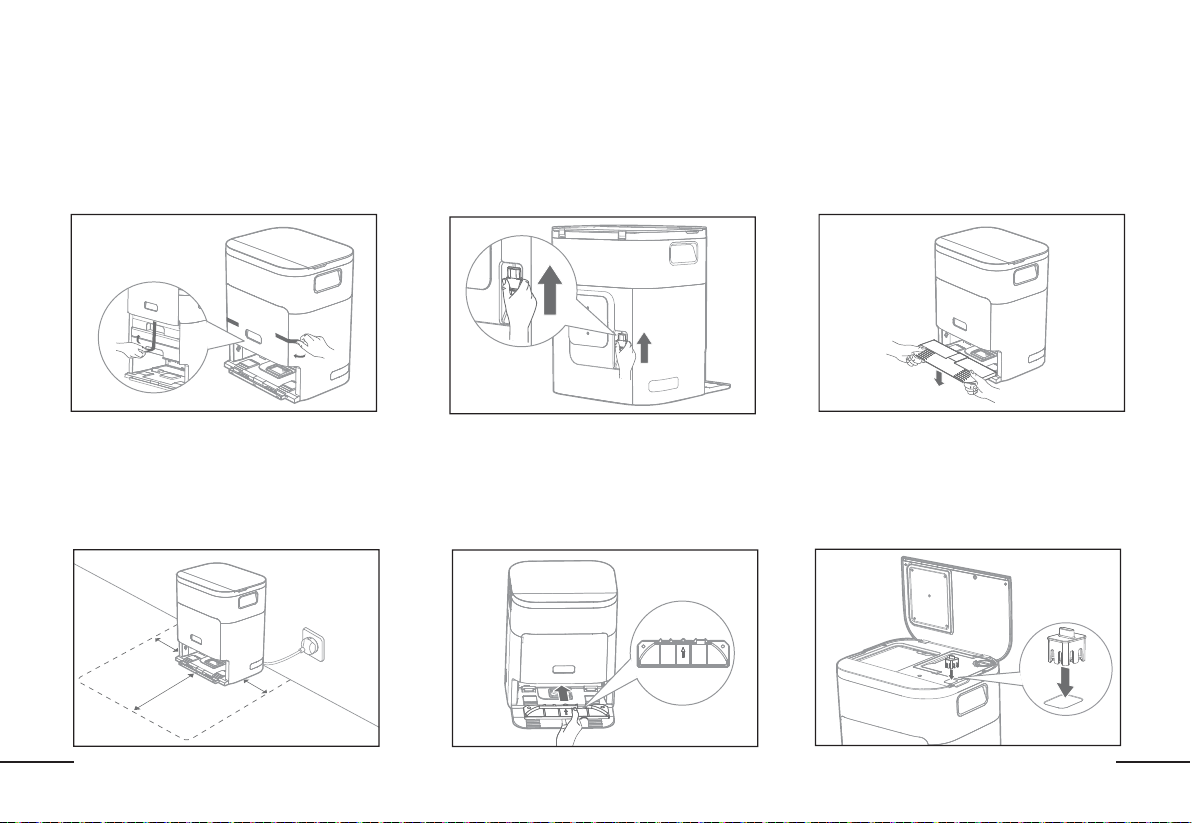

1. Remove the packaging tapes
1. Remove the packaging tapes
Remove all tape from the front cover and mop pad
boxes in the base station.
2. Insert power cord into the base station
2. Insert power cord into the base station
3. Install guide plate
3. Install guide plate
Take out the power cord and then insert it into the
base station (please insert the power cord firmly).
Align the buckles of guide plate with the slots in
front of the base station and snap to install as
shown.
4. Place
4. Place
and power on
and power on
the base station
the base station
Place the base station against the wall and connect
the power.
Please ensure enough space on each side of the
base station as shown below.
1
50cm
70cm
70cm

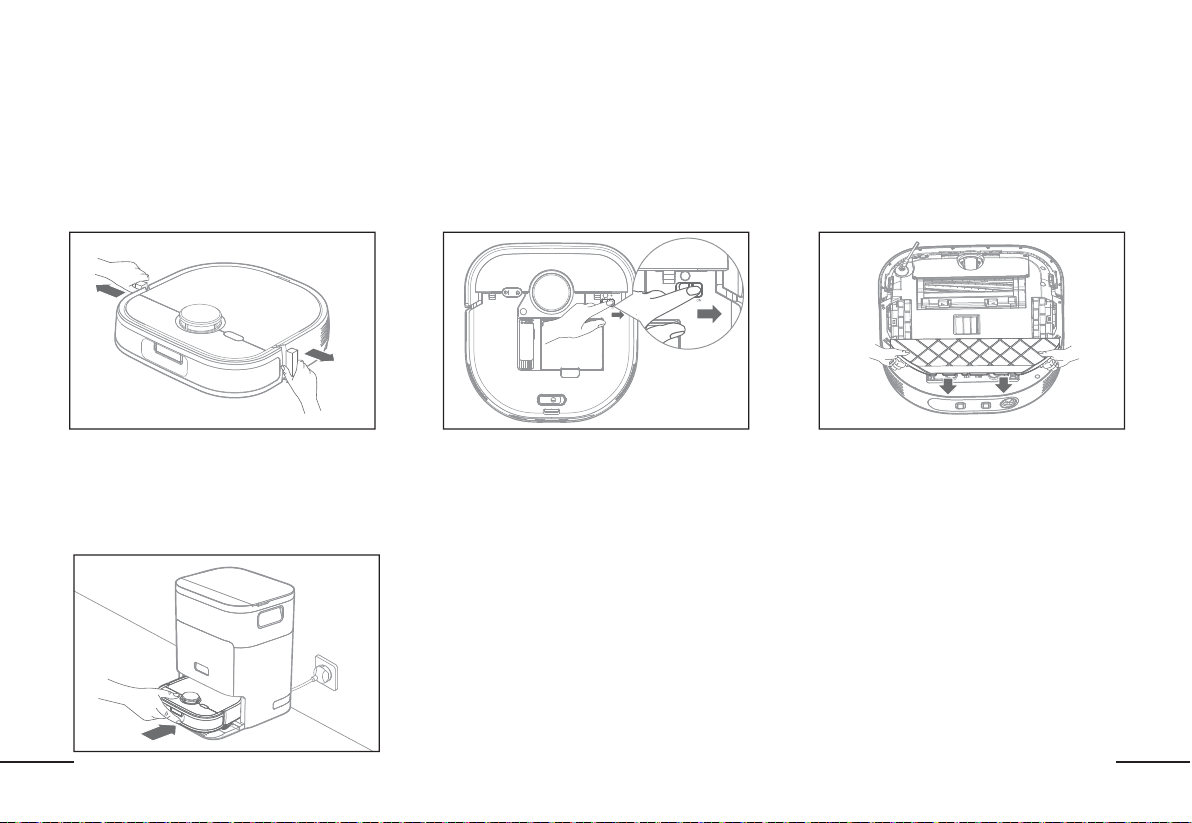

5. Install mop tray
5. Install mop tray
Push the mop tray into the back of the base station.
Follow the directional arrow on the tray.
NOTE: The robot will provide a voice alert letting you
know if installation was successful.
*The base station will be reset when it is powered on. Please do not place the robot in the base station at this time.
6. Install the fragrance cube
6. Install the fragrance cube
Remove the fragrance cube from the packaging
and place it into the base station.
18 EN
3) Remove the new mop pads from their packaging.
4) Turn the mop pads with the granular textured
side down (Please notice the instruction label on
mop pads).
5) Align the mop pad holes with the positioning
posts in the new mop pad box, insert mop pads and
remove the support rods.
7. Insert new mop pads
7. Insert new mop pads
BASE STATION PREPARATION
BASE STATION PREPARATION
6) Place the new mop pad box back into base
station and close the front cover.
1) Slide up the front cover of the base station
2) Pull out the new mop pad box
8. Fill water
8. Fill water
Open the top cover of base station and take out
the water tank.
Unscrew the lid and fill with water.
NOTE: To add cleaning solution, add 75ml of
solution to the clean water tank.
*It is recommended to use only the NOESIS cleaning
solution with the robot.
Screw the lid and put the water tank back into
base station.
1
21
2
2
1
support rod
19
EN
ROBOT PREPARATION
ROBOT PREPARATION
1.
1.
Remove protective packaging from the
Remove protective packaging from the
robot
robot
Remove the protective strips on either side of the
robot.
2.
2.
Turn on the robot
Turn on the robot
Open the cover of the robot. Push the ON/OFF
button to the right to turn on the robot.
3.
3.
Install mop plate
Install mop plate
Install the mop plate onto the robot as shown.
NOTE: The robot will provide a voice alert if the
installation is successful.
4.
4.
Charge the robot
Charge the robot
Gently push the robot into the base station to charge.
NOTE: The robot will provide a voice alert when charging
has started. The side with camera should be facing outside.
20 EN
DOWNLOAD THE APP
DOWNLOAD THE APP
For best experience, download the NOESIS app to
customize your cleaning, set a schedule and access
even more features.
Scan the QR code below or visit your mobile
application store to download the
"NoesisHome" app
Other manuals for Florio F10 Pro
1
Table of contents
Languages:
Other NOESIS Vacuum Cleaner manuals
