3 Port HDR HDMI Audio Extractor
（4K@60Hz/IR/UHD/ ARC/ Audio EDID setting ）
Model No:HDSW0017M1
Enjoy the vivid world!

INTRODUCTION
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
Our series of HDMI Converter, switchers, extenders, matrixes and splitters are designed to
make your A/V device use more convenient, more comfortable, more productive and more
cost-efficient.
The device is one 3Port HDMI Audio Extractor with support of ARC,3D and HDR,
4KX2K,which can switch easily three HD Sources to one HD Display. Also any of the
input sources support the audio extract by the SPDIF and LR audio output channel.
The Switcher supports ARC function that can do TV audio return back to the AV
receiver.
Our devices offer solutions for noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.
FEATURES
Three HDMI input signals switched to a single HDMI sink devices
Any input HD Source can do audio extract by the SPDIF or L/R audio output port.
Support HDR
Support 4K*2K @60Hz resolution
Video Format Support: 4Kx2K/60Hz 8Bit YcbCr4:4:4;
Supports ARC ,TV audio will return and out by the Optical Port;
HDMI to achieve the synchronization of audio signal separation. Support 2.0/ 5.1/ PASS
three kinds of audio mode options
Support SPDIF digital audio format: Dolby digital (AC3), DTS and LPCM2.0
LED indication: when source or sink is working, LED related will go bright.
Led Status Light allows the user to know the working status easily.
No loss of quality
Need DC5V/2A power supply

The accessories with the machines list as picture：
1、Main unit 1pcs
2、5V power adapter 1pcs
3、User manual 1pcs
4、Remote 1pcs
Physical Connection Showing Picture：
Figure 1.0 Front Panel Showing Picture
1-3：HDMI input led status light
ARC : ARC status Indicator Led Light
LED On:ARC turn on, then output TV audio by optical port.
LED off: ARC turn off, then output HDMI audio by optical + L/R Analog audio
SPDIF：SPDIF Port Led Status Light
PASS：Advance Audio Led Status Light
2CH：2CH Audio Led Status Light
5.1CH：5CH Audio Led Status Light
Auto: The Auto Detect Led Light for Input Sources
IR: IR Receiver
Switch: Input Sources Switch Button
ARC: ARC Turn on/off key (TV must support ARC, this button will take effect. If ARC turn on, then output
TV audio by optical port.)

Spdif/ LR：On/Off Button for SPDIF and L/R audio
Audio：Switch button for Audio output mode, it can choose 5.1CH, 2.0CH, PASS three kinds
of audio output mode by circulate switching (When switch to 5.1CH audio mode output, the
Digital audio signal receiving terminal must can support DTS/DOLBY-AC3 decode, or the
output audio signal receiving terminal will have no sound output; If pls switch to 2CH audio
mode. the audio signal receiving terminal can output the audio. When audio output switch to
the PASS mode, the audio output format will be decided by the audio signal receiving
machine audio decode ability. The device will output 7.1 channel audio signal while the
output end connects the AV receiver with HDMI port that support 7.1 channel audio decode.
(The HD Source signal itself is 7.1 channels)
Auto: Auto Detect Button for the Input Signal
U/D: You can press the button at device for three seconds if meet the HDMI 1.3 and
HDMI 1.4 Input source incompliant with the HDMI 2.0 Display.(after you press the
button for three seconds at device, the input 1,2,3 led light at device will flash).
：Standby Led Light
：Power On/Off Button

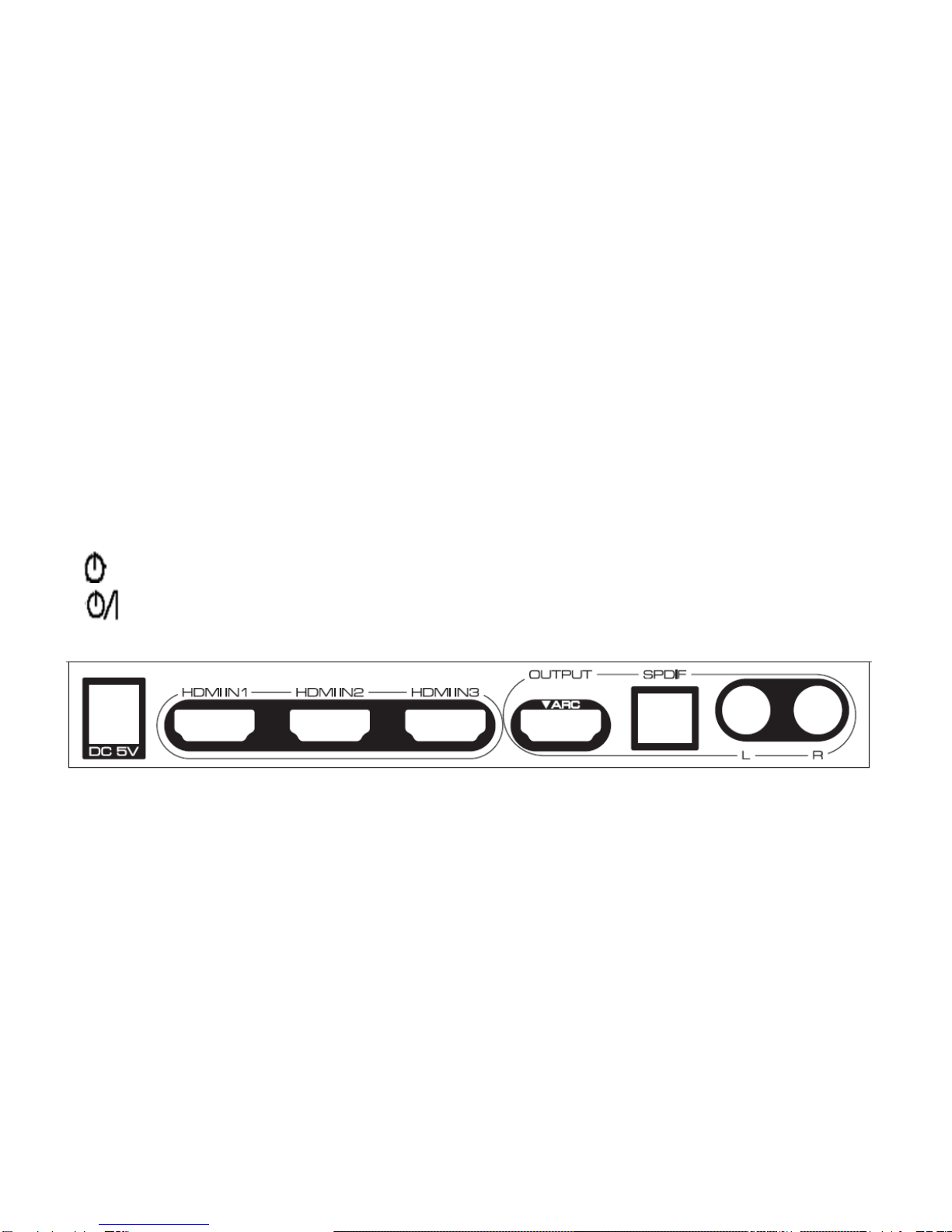

Figure 1.1rear panel showing picture
DC5V: 5V DC-DC Power Interface
HDMI IN1-HDMI IN3：HDMI input interface
OUTPUT: HDMI output interface (supports ARC function）
SPDIF: SPDIF optical output interface
L/R：L/R audio output channel
Operating and Connecting:
1. To use the HDMI cable to connect the input port of 3Port HDMI Audio Extractor
with the HDMI sources
2. To use one HDMI cable to connect the HDMI output port of the Switcher with the HD
Display.

3. To use one optical cable to connect the SPDIF port of the Switcher with the AV
receiver.
4. To use RCA audio cable to connect the LR audio port of Switcher with the Analog
Audio Input port.
5. ，To use the IR remote or the switch button to do control and switch to the Input
sources and the ARC/SPDIF function.
6. To connect the 5V adaptor with the device.
SPECIFICATIONS: HDSW0017M1
HDMI resolution……. 4Kx2K@60Hz /4Kx2K@30Hz/ 1080p/1080i/720p/576p/576i/480p/480i
Support audio format…………………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth………………………………………………………………………………..600MHz
Max baud rate……………….…….………………….……………………………………..18Gbps
Input/Output TMDS signal ………….…………………………..…….....… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………… ..……… 5Volts p-p (TTL)
Input cable distance..…... ……………. ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable
Output cable distance……………………≤10m(1080P)/5M(4K) AWG24 HDMI standard cable
Max working current……………………………………………………………………….....900mA
Power adapter format..Input: ……………...AC (50HZ, 60HZ) :100V-240V; Output: DC5V/2A
Operating Temperature range……..…………….………………………………………-0 to +40℃
Storage Temperature range…………………………………………………………… -15 to +55℃
Operating Humidity range………………………….….……….5 to 85%RH (No Condensation)
Storage Humidity range………………………….….……….…5 to 95%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………160X64.5X22.5(mm
Weight…..………………………………………………………..…….…..……………………252g
IR Remote Operating Instruction
1．Firstly take off the plastic film that inserted in the rear of remote
board
2．You can press the IN1, IN2, IN3 button directly to choose the
input channel that you want. For example, if you want switch the
input two sources to the output; you can press the IN2 button
directly.
3．2CH：2 channel stereo mode.
4．5.1CH：5.1 channel mode.
5．PASS：Advance Audio model
6．SPDIF/ L R：ON/OFF Key for SPDIF and LR audio out
7．ARC：ARC Function On/Off Key
8．Auto: Auto Detect Button for Input Sources.
9．U/D: You can press the button at remote if meet the HDMI 1.3 and HDMI 1.4 Input
source incompliant with the HDMI 2.0 Display.(after you press the button at remote,
the input 1,2,3 led light at device will flash).
10．The plastic film is strongly advised to insert the rear of the remote board when the

remote is not used for long time.
Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty,
Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from the
socket.
5. Pls turn the power off when the machine is not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
Before power on, pls check the connection line carefully. And make sure that all interfaces
are normally connected. The common trouble shooting way shows below:
Serial NO
Trouble
Description
Cause and Ways to deal with
1
Non-Power-
Connected
1、Check if the power adaptor head is truly and
correctly inserted the power socket.
2、Check the power switch if it is in on status.
2
No Picture
1、Pls to make sure that the TV is on and has been
connected with the machine,.
2、To check if the signal source is on and well
connected.
3、Check the system connection quality.
4、Check if the line is all good quality.

5、Check the cable quality..
3
Obscure Picture
1、To try again to connect the cable to be free from the
unsuccessful connection.
2、HDMI Cable Quality
4
No sound
1、Please confirm the setting position of audio mode
switch
5
Remote
1、Pls check if the film that stops the current has been
taken out.
2、To check if the remote battery is working well.
