Nolan NBGPS4C2XXX User manual

Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for
compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation
of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
End users must follow the specific operating instructions for satisfying RF exposure compliance. This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Declaration of Conformity.
We declare that product NBC2XXX conforms to the
R&TTE Directive 1999/5/EC
FCC ID: TNZNSRTA3C2XXX
BLUETOOTH GPS RECEIVER
P/N NBGPS4C2XXX
USER GUIDE

.1 Getting Start
Before the device can be used, a pair procedure has to be carried out by switch on the slide
switch to put the device into pairing mode, and then initialize the pairing procedure on the
device and a host (PDA, Smart phone, NB PC…etc), its password is ‘0000’. After they are
paired, then the device is ready to use for normal operation. When GPS is fixed, it has
latitude, longitude, altitude, speed, course and some satellites information will be sent to
host.
.2 LEDs Function
1. Bluetooth Status LED (Blue)
Flashing - Bluetooth is on and ready to transmit.
2. GPS Status LED (Green)
Flashing-Positionisfixed.
Steady light - Device is on but position is not fixed.
3. Battery Status LED (Red)
Flashing - Power is low and charging immediately is required.
Steady light - Connected to power charger, charging.
Off - Battery is fully charged and has adequate power supply.

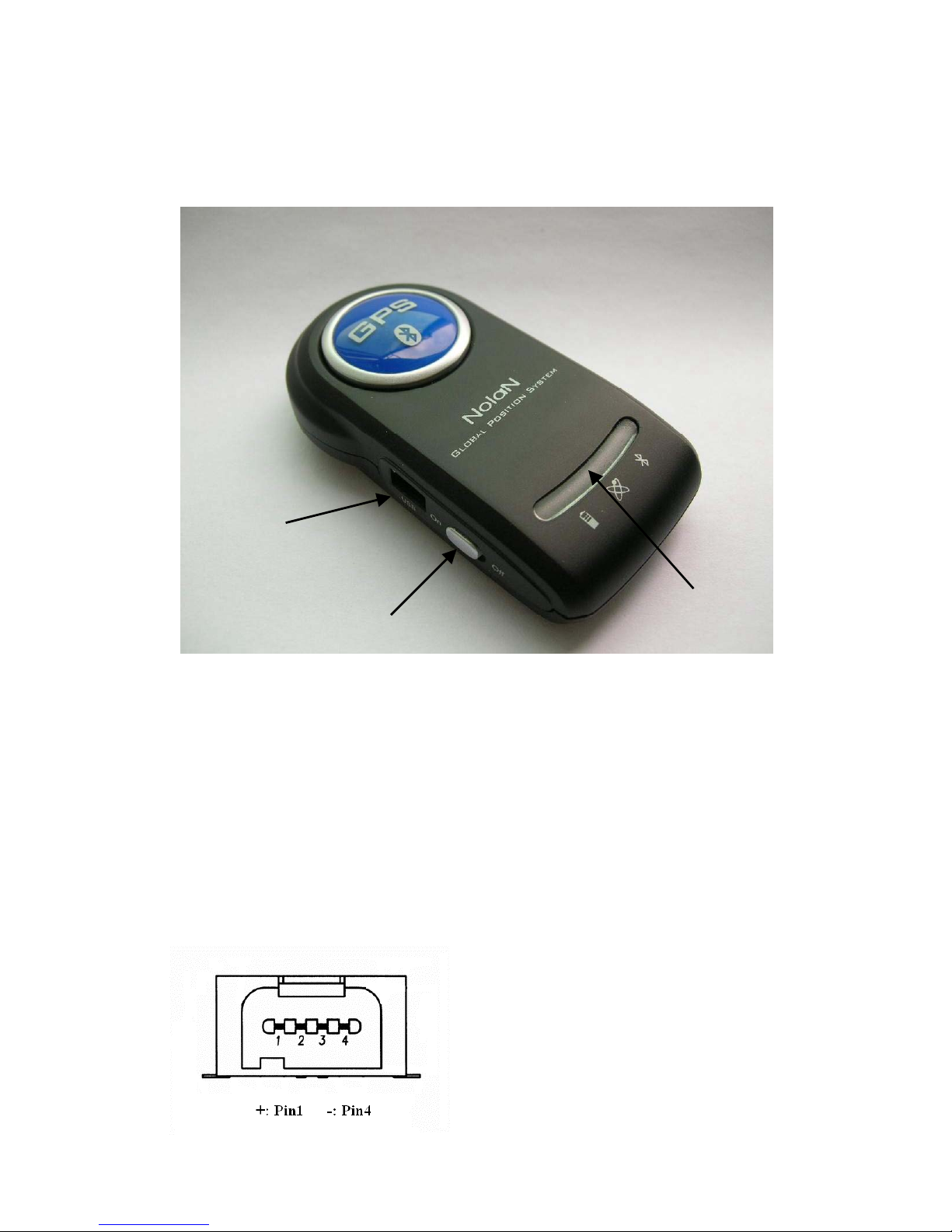

.3 Power Connector
+5V DC power input connector
LEDs
On/Off Slide Switch
Power Connector

.4 General Specification
General
Frequency L1, 1575.42 MHz
C/A code 1.023 MHz chip rate
Channels 20
Accuracy (Open Sky)
Position 10 meters, 2D RMS
7 meters 2D RMS, WAAS corrected
1-5 meters, DGPS corrected
Altitude < ± 35m Vertical in term of 95%
Velocity 0.1 meters/second
Time 1 microsecond synchronized to GPS time
Datum
Default WGS-84
Other Support different datum by request
Acquisition Rate (Open sky, stationary requirements)
Snap start <1 sec., average
Hot start 5 sec., average
Warm start 38 sec., average
Cold start 42 sec., average
Dynamic Conditions
Altitude 18,000 meters (60,000 feet) max
Velocity 515 meters/second (1000 knots) max
Acceleration 5g, max
Jerk 20 meters/second3, max
DC Power
Main power input 5 ± 5% VDC input
Power consumption 350 mW (continuous operation mode)
1.1mW @ shutdown
Sensitivity
Tracking sensitivity -159dBm (15dB-Hz with SiRF GSW3.2 software)
Acquisition sensitivity -142dBm (32dB-Hz with SiRF GSW3.2 software)
Software
Operating firmware GSW3.2
Bluetooth Technical data
Specification Bluetooth V2.0
Supply voltage 2.8~3.3V DC
Frequency range 2.402~2.483 GHz
Receiver sensitivity -82dBm
Bluetooth range 10m Class2
Power consumption 35mA (Typital)
Bluetooth Serial Port
Connection Communicate with Host Platform via Bluetooth (class 2) Serial Port Protocol (SPP)
Protocol message NMEA, Msg.: GSV(5x), RMC(1x), GLL(1x),GGA(1x) and GSA(5x)
Serial port settings Baud rate: up to 115200 bps (default setting is 38400 bps)
Databits: 8
Parity: NO
Stopbit: 1
Flowcontrol: NO
.5 Environment Specification
Operating temperature -10 degrees Celsius to 60 degrees Celsius
Storage temperature -40 degrees Celsius to 85 degrees Celsius
