nord Electro 4 HP User manual

User Manual
Nord Electro 4 HP
Nord Electro 4 SW
OS Version 1.x
Part No. 50385 Copyright Clavia DMI AB
Print Edition 1.1

CAUTION - ATTENTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE SHOCK ELECTRIQUE
NE PAS OUVRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
ATTENTION:POUR EVITER LES RISQUES DE CHOC ELECTRIQUE, NE
PAS ENLEVER LE COUVERCLE.
AUCUN ENTRETIEN DE PIECES INTERIEURES PAR L´USAGER.
CONFIER L´ENTRETIEN AU PERSONNEL QUALIFE.
AVIS: POUR EVITER LES RISQUES D´INCIDENTE OU D´ELECTROCUTION,
N´EXPOSEZ PAS CET ARTICLE A LA PLUIE OU L´HUMIDITET.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does not t
into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specied by the manu-
facturer.
12) Use only with the cart, stand,
tripod, bracket, or table specied by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning
storms or when unused for long periods of time.
14) Refer all servicing to qualied service personnel. Servicing
is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate nor-
mally, or has been dropped.
The lightning ash with the arrowhead symbol within
an equilateral triangle is intended to alert the user to the
presence of uninsulated voltage within the products en-
closure that may be of sufcient magnitude to constitute
a risk of electric shock to persons.
Le symbole éclair avec le point de èche à l´intérieur d´un triangle
équilatéral est utilisé pour alerter l´utilisateur de la presence à
l´intérieur du coffret de ”voltage dangereux” non isolé d´ampleur
sufsante pour constituer un risque d`éléctrocution.
The exclamation mark within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
Le point d´exclamation à l´intérieur d´un triangle équilatéral est
employé pour alerter l´utilisateur de la présence d´instructions
importantes pour le fonctionnement et l´entretien (service) dans le
livret d´instructions accompagnant l´appareil.
Instructions pertaining to a risk of re, electric shock or injury to persons.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Trademarks: The Nord logo is a trademark of Clavia DMI AB. All other trademarks
mentioned in this publication are the properties of their respective holders.
Specications and appearances are subject to change without notice.
Copyright © Clavia DMI AB
No naked ame sources, such as lighted candles, should be placed on
the apparatus;
Do not use the apparatus in tropical climates.
WARNING: To reduce the risk of re or electric shock, do not expose
this apparatus to rain or moisture.
The apparatus shall not be exposed to dripping or splashing and that
no objects lled with liquids, such as vases, shall be placed on the
apparatus.
The maims plug is used as the disconnect device and shall remain
readily operable.
Il convient de ne pas placer sur l´appareil de sources de ammes nues,
telles que des bougies allumées;
L´appareil n’est pas destiné á étre utilisé sous un climat tropical.
L´appareil ne doit pas étre exposé á des égouttements d´eau ou des
éclaboussures et de plus qu´aucun objet rempli de liquide tel que des
vases ne doit étre placé sur l´appareil.
Lorsque la prise du résau d’alimentation est utilisée comme dispositif
de déconnexion, ce dispositif doit demeuré aisément accessible.
Warning - When using electric products, basic precautions should always be followed, including the following:
Additional Safety Information

| 3
1 Introduction
Thank you! .................... 4
About this manual............. 4
Disclaimer ..................... 4
OS and internal memory ...... 4
Factory presets ................ 4
Restoring the factory presets . . . . . . . . 4
OS upgrades .................. 4
2 Overview

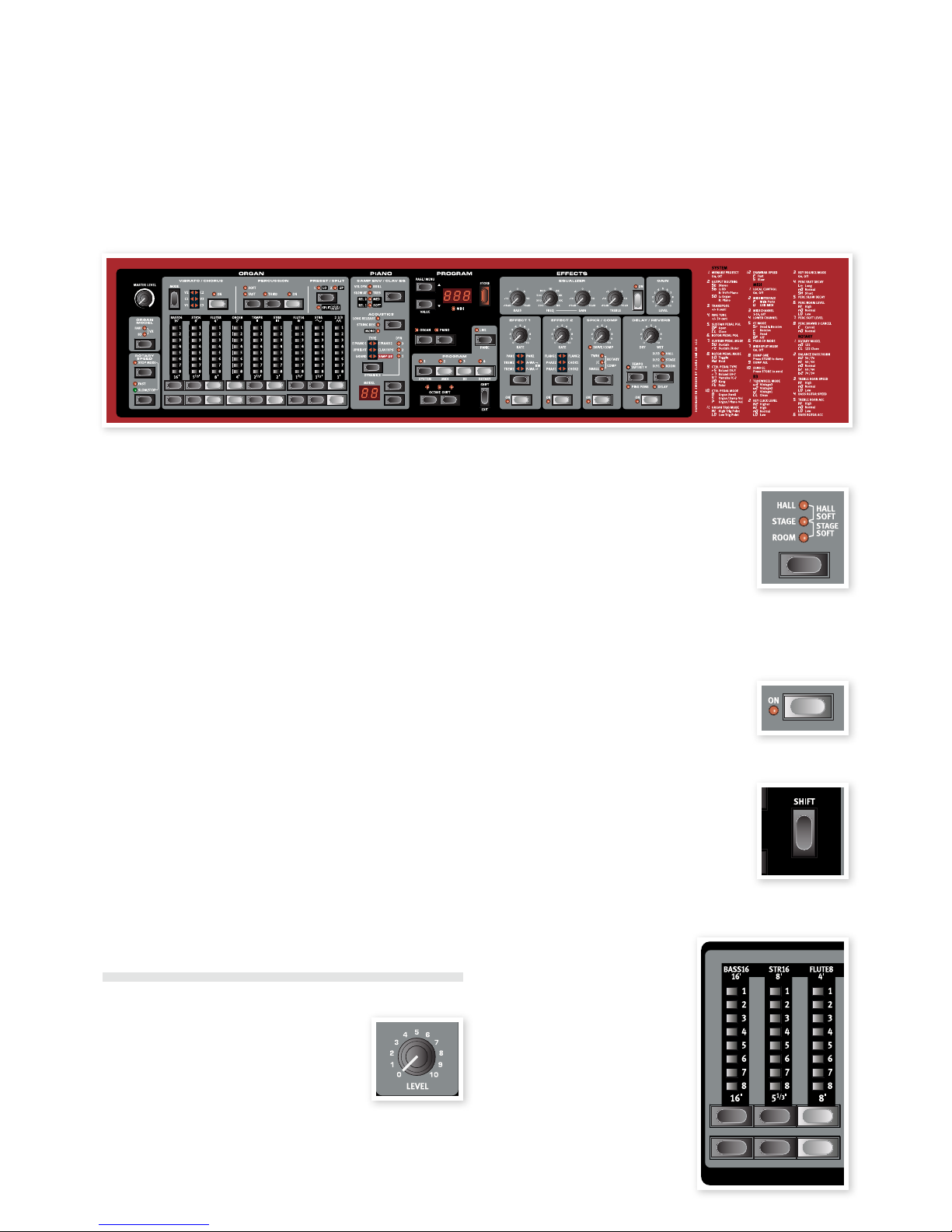

Knobs & buttons .............. 5
Knobs .......................... 5
Selector buttons . . . . . . . . . . . . . . . . . . 5
On/Off buttons ................... 5
Shift button...................... 5
Drawbars ....................... 5
3 Connections
Audio connections ............. 6
Headphones . . . . . . . . . . . . . . . . . . . . . 6
Left Out and Right Out . . . . . . . . . . . . . 6
Monitor In ....................... 6
MIDI Connections.............. 6
MIDI Out ........................ 6
MIDI In.......................... 6
USB Connection ............... 6
Pedal Connections............. 7
Sustain Pedal .................... 7
Rotor Pedal...................... 7
Control Pedal .................... 7
4 Getting Started

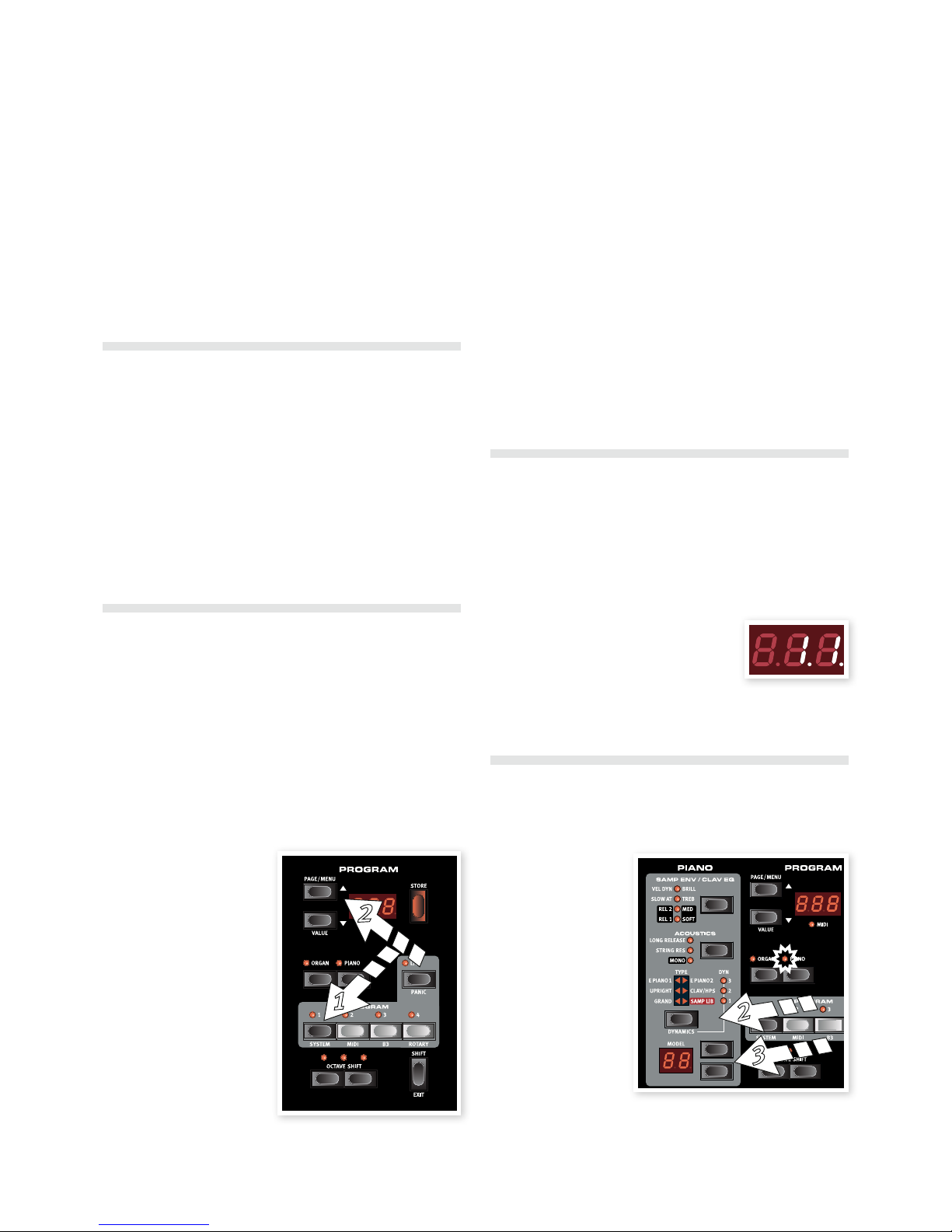

About the programs........... 8
Selecting programs ........... 8
Edit a program ................ 8
Selecting pianos, samples . . . . 8
Using the Organ............... 9
The Rotary effect.............. 9
Memory Protection ............ 9
Storing a program.............10
The Live buffer ................10
Octave Shift ..................10
Adding effects.................10
Activate an amplifier emulation . . . . . . .10
The Delay......................10
5 Nord Electro 4 HP/SW Reference
Master level knob . . . . . . . . . . . . . . . . .11
Organ section .................11
Organ Model button . . . . . . . . . . . . . . .11
The B3 model ....................11
The VX model ....................11
The Farf model . . . . . . . . . . . . . . . . . . .11
Rotary Speed ....................12
Vibrato/Chorus . . . . . . . . . . . . . . . . . . .12
Percussion ......................12
Preset/Split .....................12
Additional MIDI keyboard . . . . . . . . . . .12

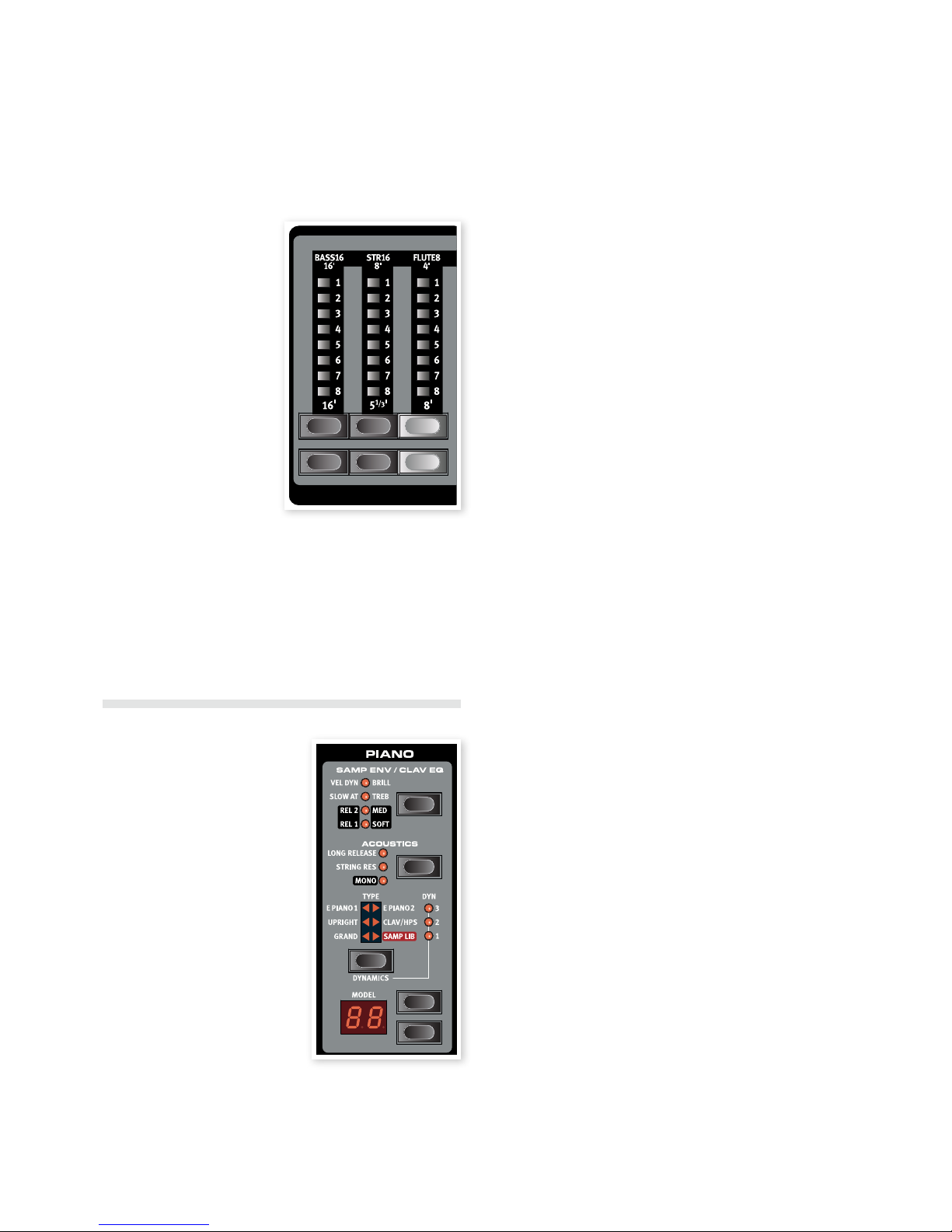

The drawbars ....................13
Piano section .................13
Clavinet sound . . . . . . . . . . . . . . . . . . .13
Pick-up type .....................13
Pick-up Type Description . . . . . . . . . . .13
Clav EQ.........................13
Acoustics .......................13
Mono...........................13
Dynamics .......................13
Samp Env .......................14
Piano Type.......................14
Model ..........................14
Program section ..............14
Up/Down buttons . . . . . . . . . . . . . . . . .14
Display..........................14
Store ...........................14
Live Mode .......................14
Instrument selectors . . . . . . . . . . . . . . .15
Shift............................15
Octave Shift......................15
Effects ........................15
EQ.............................15
Effect 1 .........................15
Effect 2 .........................16
Speaker / Comp . . . . . . . . . . . . . . . . . .16
Delay / Reverb....................16
Feedback .......................16
Ping Pong .......................16
Tempo Tap ......................16
Gain............................16
6 The Menus
System Menu..................17
1 - Memory Protect – On, Off . . . . . . . .17
2 - Output Routing . . . . . . . . . . . . . . . .17
3 - Transpose . . . . . . . . . . . . . . . . . . . .17
4 - Fine Tune.....................17
5 - Sustain Pedal Polarity . . . . . . . . . . .17
6 - Rotor Pedal Polarity . . . . . . . . . . . . .17
7 - Sustain Pedal Mode. . . . . . . . . . . . .17
8 - Rotor Pedal Mode . . . . . . . . . . . . . .17
9 - Ctrl Pedal Type. . . . . . . . . . . . . . . . .17
10 - Ctrl Pedal Mode . . . . . . . . . . . . . . .18
11 - Organ Trig Mode . . . . . . . . . . . . . .18
12 - Drawbar Speed . . . . . . . . . . . . . . .18
MIDI Menu.....................18
1 - Local Control . . . . . . . . . . . . . . . . . .18
2 - MIDI Interface. . . . . . . . . . . . . . . . . .18
3 - MIDI Channel . . . . . . . . . . . . . . . . . .18
4 - Lower Channel. . . . . . . . . . . . . . . . .18
5 - Control Change (CC) Mode . . . . . . .18
6 - Program Change Mode . . . . . . . . . .18
7 - MIDI Split Mode . . . . . . . . . . . . . . . .18
8 - Dump One....................18
9 - Dump All .....................18
10 - Send CC ....................18
B3 Menu ......................19
1 - Tonewheel Mode . . . . . . . . . . . . . . .19
2 - Key Click Level. . . . . . . . . . . . . . . . .19
3 - Key Bounce . . . . . . . . . . . . . . . . . .19
4 - Perc. Fast Decay . . . . . . . . . . . . . . .19
5 - Perc. Slow Decay. . . . . . . . . . . . . . .19
6 - Perc. Norm Level . . . . . . . . . . . . . . .19
7 - Perc. Soft Level . . . . . . . . . . . . . . . .19
8 - Perc Drawbar 9 Cancel . . . . . . . . . .19
Rotary Menu ..................19
1 - Rotary Model . . . . . . . . . . . . . . . . . .19
2 - Balance Bass/Horn . . . . . . . . . . . . .19
3 - Treble Horn Speed. . . . . . . . . . . . . .19
4 - Bass Rotor Speed . . . . . . . . . . . . . .19
5 - Treble Horn Acceleration . . . . . . . . .19
6 - Bass Rotor Acceleration . . . . . . . . .19
7 Nord Sound Manager
System requirements . . . . . . . . . . . . . 20
Installation ................... 20
USB Driver...................... 20
Sound Manager . . . . . . . . . . . . . . . . . 20
Overview ..................... 20
The Toolbar .....................21
The Tabs . . . . . . . . . . . . . . . . . . . . . . . .21
Partition Memory Indicator . . . . . . . . . .21
Right-Clicking ....................21
File Formats......................21
The Quick Tour ............... 22
Transfer pianos to the Electro 4 . . . . . 22
Deleting a piano . . . . . . . . . . . . . . . . . 22
Download a new sound . . . . . . . . . . . 22
Replace........................ 22
Relink ......................... 23
Download Queue . . . . . . . . . . . . . . . . 23
Upload from the Electro 4 HP/SW. . . . 23
Program Bundles . . . . . . . . . . . . . . . . 23
Upload a Program Bundle. . . . . . . . . . .24
Downloading a Bundle . . . . . . . . . . . . .24
Organize the program partition . . . . . . 25
Search Box ..................... 25
Auto Select ..................... 25
Backup ........................ 25
Restore ........................ 25
Sound Manager reference. . . . 26
Toolbar ....................... 26
Menus ........................ 28
File Menu ...................... 28
Edit Menu ...................... 28
View Menu . . . . . . . . . . . . . . . . . . . . . 29
Help........................... 29
Tabs .......................... 29
Piano – Samp Lib - Program. . . . . . . . 29
Search Box ..................... 29
Loc - Location................... 29
Name.......................... 29
Category....................... 29
Size........................... 29
Ver – Version Number . . . . . . . . . . . . . 29
Note........................... 29
Footer Area .................... 30
Partition Memory Indicator . . . . . . . . . 30
Cancel Button................... 30
Progress Bar.................... 30
Message/Text Area. . . . . . . . . . . . . . . 30
Updates and sounds. . . . . . . . . . . . . . 30
Nord Sample Editor........... 30
8 MIDI functions
About the MIDI implementation . . . . . .31
Keyboard velocity . . . . . . . . . . . . . . . . .31
Program change . . . . . . . . . . . . . . . . . .31
MIDI Sysex (System Exclusive) . . . . . . .31
With a sequencer..............31
Connections .....................31
Local On/Off .....................31
MIDI Channel.....................31
Program Change. . . . . . . . . . . . . . . . . .31
Controllers.......................31
About controllers and “chasing” . . . . . .31
Program and CC dumps ...... 32
Sending program dumps . . . . . . . . . . 32
Sending MIDI Controller dumps . . . . . 32
Receive MIDI SysEx dumps . . . . . . . . 32
MIDI Controller list. . . . . . . . . . . . . . . . 32
MIDI Implementation Chart . . . . . . . . . 33
9 Index
Index.......................... 34
Nord Electro 4 HP/SW User Manual

Thank you!
We’d first like to thank you for purchasing the Nord Electro 4 HP/SW.
Our goal when we developed the Nord Electro instruments was to
create the best emulations of traditional electromechanical keyboard
instruments on the market, and to make these instruments compact
and lightweight. With the Electro 4 HP/SW we have taken our commit-
ment a step further, by upgrading the organ, the piano and the effects
sections and also by the ability to use sampled instruments from the
Nord Sample Library in the Nord Electro 4 HP/SW.
This allows us to e.g. include some of the fabulous Mellotron sounds in
the factory sound bank. Each and every piano and sample in the Nord
Electro 4 HP/SW can be replaced by you, using the free Nord Sound
Manager application. New pianos and other sounds are found on the
enclosed Nord DVD and on the www.nordkeyboards.com web site.
A recennt addition to the Electro models is the Electro 4 HP with a
keybed that has a weighted hammer action in a very light-weight pack-
age.
No compromises, just a good selection of outstanding, classic key-
board sounds with true feel, from a natural keyboard response to the
authentic sound quality – that is what we have been pursuing during
the development. To make a great tool you have to put all the focus on
a few things and that is exactly what we tried to achieve. We hope that
you will have as much fun owning and using the instrument, as we had
developing it.
About this manual
You are probably very eager to start using your new instrument, and we
sure don’t want to keep you from having fun. We will try to cover all the
essential aspects on how to use the Electro 4 HP/SW in the very first
few pages of this manual. After that follows the reference section where
all the functions are explained in detail.
Disclaimer
All trademarks and brand names mentioned in this manual are the
property of their respective owner’s and are not affiliated or associated
with Clavia. These trademarks and brand names are only mentioned to
describe the types of sounds reproduced by Nord Electro 4 HP/SW.
OS and internal memory
The operating system, programs and pianos and samples in Nord Elec-
tro 4 HP/SW are stored in a Flash memory. A Flash memory keeps the
data also when the power is turned off. Another big advantage is that
you can replace data in the Flash memory at any time. This means that
you will be able to download OS upgrades, pianos and samples and
programs to your Nord Electro 4 HP/SW from a computer. The Nord
Electro 4 HP/SW features a USB port for quick and easy download of
new piano and/or instrument samples.
Factory presets
The program memory of Nord Electro 4 HP/SW consists of 128
programs. In addition there is the Live buffer memory, which will con-
tinuously store any changes as they are made, and remember these
settings after the power is turned off.
All of the 128 factory Programs of Nord Electro 4 HP/SW can be
replaced. To make sure you don’t accidentally overwrite Programs you
want to keep, it’s a good idea to back up your sounds regularly on a
computer using the Nord Sound Manager application.
Restoring the factory presets
The factory Programs are available as Nord Sound Manager backup
files for download at the Nord web site at www.nordkeyboards.com or
on the included Nord DVD.
OS upgrades
The latest OS version for Nord Electro 4 series is available for download
at the www.nordkeyboards.com website.
1 Introduction
4 | Nord ElEctro 4 HP/SW USEr MaNUal oS v1.x

The front panel of the Nord Electro 4 HP/SW has four main areas,
Organ, Piano, Program and Effects. We’ll familiarize ourselves briefly
with the panel here and describe the functions in detail in the following
chapters.
On the left part of the panel is the Master Level knob, the organ model
selector and the Rotary Speed section. The Master level controls the
entire instruments output level at the two output jacks and the head-
phone output. This control is not programmable, that particular func-
tionality is instead available in the effects section with the Gain control.
The Organ section is lit and active when the Organ selector in the
Program area is activated.
Moving towards the middle of the panel, the Piano section behaves just
as the organ. The controls are lit when the Piano selector is active.
The Program section contain the parameters and functions that are
used to select and store programs, to set the System, MIDI, B3 and
Rotary menu functions and to select the instrument to be used with the
Organ or Piano selectors. We’ll describe the functions in this area in
greater detail in the “Program section” chapter on page 14.
The Effect section contains the functions of the effects. Please look at
the “Effects” chapter on page 15 for more information.
The functions and settings of the System, MIDI, B3 and Rotary menus
are conveniently printed to the right on the panel. The menus are de-
scribed in the Menu chapter that begins on page 17.
Knobs & buttons
Knobs
The knobs control the continuously variable pa-
rameters in the Nord Electro 4 HP/SW.
MA parameter value can be totally different from the knob’s physical
position when you load a Program. As soon as you start turning
the knob, the value will ‘snap’ to the knob’s physical position.
Selector buttons
Selector buttons are used to activate one setting
in an array. Selector buttons have a set of round
or triangular LEDs to indicate the current setting.
Press the button several times to cycle through the
possible options.
Holding Shift and pressing a selector button (with the exception
of the Type button) will cycle through the settings in a counter
clockwise fashion.
On/Off buttons
On/Off buttons are used for activating a parameter
or a group of parameters such as effects.
Shift button
Some buttons have a secondary function, which
will be available if you hold down Shift while
pressing the button. The name of the secondary
function is printed below the button. Shift is also
used together with the Up/Down buttons when
you want to change a setting in the System, MIDI,
B3 or Rotary menus.
Drawbars
The nine drawbars of Nord Electro4
HP/SW are represented by up/down
buttons and LED chain graphs instead
of ordinary mechanical drawbars. This
gives you a big advantage; when you
change presets, the correct drawbar
settings are shown immediately by the
LEDs.
2 Overview
cHaPtEr 2 ovErviEW | 5

Audio connections
Headphones
This is where you connect a ¼" stereo connector from a pair of head-
phones.
Left Out and Right Out
The left and right line level outputs from the Nord Electro 4 HP/SW are
unbalanced. Use ¼" connectors to connect the Nord Electro 4 HP/SW
to an amplifier or recording equipment.
The Nord Electro 4 HP/SW is a stereo instrument, with separate signal
paths for the left and right audio channels. To properly experience the
Electro 4 HP/SW, use both outputs in a stereo operation.
The System functions allow you to separate the pianos/samples and
the organ sounds in the left and right outputs. Read more about this
functionality on page 17.
General guide on audio connections:
• Make all the connections before you turn on the power to your amplifier.
• Turn on the power to your amplifier last.
• Turn off the power to your amplifier first.
EPlaying at a high volume level can result in hearing impairments
such as permanent hearing loss.
Monitor In
Use this to connect and monitor a signal from an mp3 or a CD player at
the Nord Electro 4 HP/SW’s headphone output. This allows you to e.g.
rehearse with the Electro 4 HP/SW to pre-recorded music.
MSignals connected to this input will not be processed with the
Electro 4 HP/SW’s effects or appear at the Electro 4 HP/SW’s left
and right output jacks.
MIDI Connections
MIDI Out
MIDI connection used for sending keyboard and panel generated MIDI
data from the Nord Electro 4 HP/SW to other equipment such as sound
modules or computers.
MIDI In
MIDI connection used to receive MIDI data to the Nord Electro 4 HP/
SW from other equipment such as keyboards or computers.
USB Connection
The USB connection is used for the Nord Electro 4 HP/SW to com-
municate with a personal computer in order to update the OS or to add
or replace any of the piano and/or samples. The computer can run the
Nord Sound Manager application, or be used to transfer the operating
system if the unit needs to be updated.
The Nord Electro 4 HP/SW can also transmit and receive MIDI data via
the USB interface.
MComputers running Microsoft Windows operating systems need
a driver for the USB connection to work. The driver can be found
on the enclosed Nord DVD, or at the www.nordkeyboards.com
website. The driver can also be installed automatically if the com-
puter is connected to the Internet when the Electro 4 HP/SW is
connected to the computer.
You select in the MIDI Menu (see page 18) if the MIDI connectors or
the USB connector should be used for MIDI communication. The
USB connector is the default setting.
3 Connections
PEDAL
CONTROL
PEDAL
ROTOR
PEDAL
MIDI MIDI MONITOR RIGHT LEFT OUT
HEADPHONES
SUSTAIN
ININOUT OUT MONOUSB
6 | Nord ElEctro 4 HP/SW USEr MaNUal oS v1.x

Pedal Connections
The Nord Electro 4 HP/SW has three pedal inputs; one for a sustain
pedal, one for a pedal to control the rotor speed and one for a control
pedal (an expression type pedal), which can be used to control various
parameters.
Sustain Pedal
¼" connector for a switch type pedal. When a connected pedal is
operated, the notes you play will be sustained.
Rotor Pedal
¼" connector for a switch type pedal. When a connected pedal is
operated, the rotary speed will change.
MTwo types of pedal polarities can be used with these inputs; you
select the one that applies to each pedal, in the System menu
which is described on page 17.
It is possible to use only one pedal connected to the sustain pedal
input to control sustain for piano sounds and rotary speed selection
for organ sounds page 17.
Control Pedal
¼" stereo connector for a pedal of the potentiometer type (also known
as expression pedals). A connected pedal can be used as a swell pedal
for the organs, a volume pedal for pianos and samples and also as a
controller for two of the effects: the P-wah and the ring modulator (RM).
When connecting an expression pedal to the Control Pedal input,
please note that the pedal must have a stereo output jack. The resis-
tance range of a control pedal should be 10 or 50 kOhm. To simplify
setup, the most common pedal models (Roland, Yamaha, Korg and
Fatar) are pre-configured in the Nord Electro 4 HP/SW, and you simply
select the type of pedal which you want to use in the System menu.
The System Menu is described on page 17.
cHaPtEr 3 coNNEctioNS | 7

About the programs
Sound and effect settings are stored in the Program memory of the
Nord Electro 4 HP/SW. The Electro 4 HP/SW organizes the memory
in 32 pages with 4 programs in each page, making this a total of 128
programs.
Every program can be changed and replaced as you wish. A complete
set of the factory programs are available on the Nord DVD that accom-
panies the unit and on our website. This allows you to get back to the
factory settings, should you wish to do so, using the Sound Manager.
The chapter about the Nord Sound Manager begins with a separate
tour, on page 20.
Selecting programs
Use the Up/Down buttons to the left of the LED display to select the
page and the program buttons 1 ~ 4 to select the programs within
each page. The page and program number will be displayed in the
LED.
When the Electro 4 HP/SW leaves the factory, the first 16 or so pages
are organized to make it easier for you to quickly check out sounds
from specific instrument groups. The 1st programs in each page are
acoustic pianos, the 2nd programs are electric pianos, the 3rd program
are organs and the 4th programs are sample based instruments.
1 Press the Program 1 button to listen to a piano program, 1.1.
2 Press the Up button to get
to the next piano program,
2.1. Keep pressing the Up
button until you are ready
for the next instrument
group.
3 Press and hold the Down
button to get back to 1.1,
and then the Program
2 button to listen to the
electric piano on the 1.2
location.
4 Press the Up button to get to the next electric piano.
You can of course organize the programs in any order you want. Such
a process can be done quite easily by using the drag and drop features
in the Nord Sound Manager.
Edit a program
Editing a program is just as easy as grabbing a knob and change a set-
ting, or press a button to select a different setting. The knob’s physical
position isn’t always as the stored setting in the program that is active,
but as soon as you start turning a knob, the parameter will snap to the
knob’s position.
When you have edited a program, a dot will appear in the lower right
display corner next to the program number.
This will alert you to the fact that the program
has been edited but not yet saved. If you select
a new program without saving, any edits you
have made will be lost and the program will have its original settings
the next time you select it.
Selecting pianos, samples
1 Select a program where the Piano instrument is active. The LEDs
on the piano section and the Selector LED for the piano will be lit.
2 Press repeatedly
on the Piano Type
selector to cycle
through the types.
3 Press the Model
buttons to select
the various piano
models within the
selected type.
4 Press the Type
selector again until
the Samp Lib is ac-
tivated.
4 Getting Started
Let’s take a few minutes to get familiar with the Electro 4 HP/SW. The user interface is designed to be as intuitive as possible, and to perform as well
as you do in a live situation. We hope that you soon will feel confident in using it, and by following this short chapter, we will go through most of the
functions.
8 | Nord ElEctro 4 HP/SW USEr MaNUal oS v1.x

Use the Model selector buttons to select one of the samples that are
included in the Electro 4 HP/SW from the factory.
5 Press the Samp
Env button
repeatedly.
This will cycle through
the four options for
the sample’s attack
and velocity settings.
6 Press and hold
Shift and the
Samp Env but-
ton.
This allows you to
select one of the four
available release time settings.
MThis button doubles as the Clavinet EQ selector, when the Clavinet
type is active.
Using the Organ
1 Press the Organ instrument selector above the program 1 - 4
buttons.
This activates the Organ section.
2 Press the Organ Model selector
on the left side of the panel, below the master level knob,
repeatedly to cycle through the three organs – the B3, Vox and
Farfisa emulations.
The settings for the three organ instruments
are made using the drawbars. The Farfisa uses
these in a switching mode, with only two set-
tings (on or off) for each.
3 Press the Preset/Split button to light up
the “2/Up” LED and make a setting with
the drawbar buttons.
4 Press the Preset/ Split button to light
up the “1/Lo” LED. This activates the
second preset, which allows you to keep
two different drawbar settings for an organ sound available from
the panel at any time. The settings of both Presets 1 and 2 are
stored in the Electro 4 HP/SW’s program memory.
5 Hold Shift and press the Preset/Split button.
This activates the organ split mode, the Split LED will light up. The
keyboard will be split at C4. C4. The lower half will use the Preset 1/Lo
setting; the upper half will use the Preset 2/Up setting.
6 If you press and hold both the Shift and the Preset/Split buttons
for a couple of seconds, the Split LED will begin to flash and you
can press a key on the keyboard to set a new split point as long
as these buttons are held down. The key you press will be the first
upper manual key.
The Rotary effect
The rotary effect adds some great sonic drama to the organs, but can
of course be used with any other sound as well. The Electro 4 HP/SW
rotary has three available speeds: fast, slow and stop. Stop does not
disengage the effect; it only stops the rotating speakers.
1 Make sure that the Speaker/Comp effect is
activated and select the Rotary by pressing
the effect selector until both the upper
LEDs are lit.
The drive knob now controls the overdrive of the
rotary amplifier.
2 Press the Slow/Stop button in the Rotary
Speed section to the left on the panel, to
cycle between the Fast and Slow speeds
of the rotary.
The rotors will speed up and slow down, pro-
ducing a nice swirly effect without the negative
side effects that for example ingestion of certain
mushrooms might induce.
3 Press the Stop mode button to activate this one-speed mode.
The Stop Mode LED will be lit.
4 Press repeatedly on the Slow/Stop button to cycle between Fast
and Stop.
The rotary will now emulate the functionality of an early, one speed
original rotary speaker that had only the fast and the stopped rotary
speed options.
If you connect a foot switch to the rotor pedal input, you can
control the rotary speed with this pedal.
Memory Protection
When the Nord Electro 4 HP/SW is shipped from factory, the memory
protect is turned on to prevent you (or your cat) from accidentally
overwriting any of the original programs. Before you can store any of
your own programs, this memory protect feature has to be turned off
by toggling a setting located in the System menu.
1 Hold Shift and press the Program 1 button to enter the System
Menu.
2 The very first item in the System Menu is the Memory Protection.
Use the Down button to get to the first item if this isn’t already
active.
3 Hold Shift and press the Down button to switch from the On
setting to the Of setting.
4 Press shift to exit the system menu. The memory protection will
now remain in the Off setting until you change it again.
cHaPtEr 4 GEttiNG StartEd | 9

Storing a program
If you are happy with a change to a program that you have made, you
should probably store the program.
1 Press the Store button.
The program number in the LED starts flashing.
2 Select a new location where you want to store the program.
Use the Up/Down buttons
and the program buttons to
navigate to a new program
location if you do not want to
overwrite the original program.
3 Press the Store button a
second time to confirm
your choice.
The edited program has now
replaced the previous one in
the location you specified.
MTo cancel the procedure,
press the Shift button
before you press Store the second time.
MWith Memory Protect set to Off, a double tap on the Store button
will store a Program in its original location.
The Live buffer
The special Live buffers can be described as a “live program memory”.
If you activate the Live button, all changes to the panel settings you
make will be continuously saved in the active Live program (1-4). If you
switch the power off, or select another program, the settings are still
stored in the Live memory, so when you power up next time (or return
to the Live memory) all settings will be exactly as they were when you
left them.
If the Live memory is selected and you decide you wish to store the
settings permanently as a program you can do so using the stan-
dard methods (see above). You can also store programs into the Live
memory location, in which case the program settings will replace the
current Live memory settings.
Octave Shift
Press either of the Octave Shift but-
tons to shift the pitch up or down in
whole octaves within the instrument’s
note range.
Each instrument has a finite note range, read more about this on page
15. This means that upper keys may become silent if you transpose
upwards.
Adding effects
1 Select the program number 1.1 which
is a Grand Piano with a hint of reverb.
2 Turn on Effect 2 (the On LED should
be lit) and press repeatedly on the
Effect 2 selector.
The effect options are indicated with the
selector LEDs and changes in a cyclical,
clockwise fashion for each time the selec-
tor is pressed.
Some of the effects have three options that
indicate the depth of the effect. Flang1 is
the shallowest version, Flang 2 is a more
pronounced effect and when both the Flang 1 and Flang 2 LEDs are lit,
you have selected the most dramatic flanger effect.
3 Turn the effect rate knob.
This changes the rate of the active effect.
4 Hold Shift and press repeatedly on the effect selector.
This allows you to reverse through the effect selections.
5 Turn off the effect.
If you now continue to press on the effect selector after the effect is
turned off, the effect setting will change even though the effect is not
active.
Activate an amplifier emulation
1 Press the Speaker/Comp button to activate the Amp emulation.
The Speaker/Comp LED will be lit.
2 Press repeatedly on the selector to cycle through the various options.
The knob controls the drive for the three amps and the rotary simulator,
and the amount when the compressor is selected.
The Delay
1 Activate the delay/reverb.
2 Hold Shift and press the reverb selector
button. The Delay LED lights up.
3 Tap the desired tempo on the Tempo Tap
button.
4 You can also set the delay time by hold-
ing the Tempo Tap button and adjust the
tempo with the Up/Down buttons.
5 Adjust the number of repeats (Dly1, Dly2
etc.) by pressing the selector button repeatedly.
This finishes our little tour; we hope that you now have the
initial knowledge on how to operate most of the functions on
the panel. There is another Quick Tour in the Sound Manager
chapter.
