North American 25770 User manual

Description Qty. Part #
(Top Bend, shallow bend)
(Side Bend, sharp bend)
Twist Tight™ Set ( bungee & S hook)
Short Pins w/rings - 1/4” x 21/4”
Long Pins w/rings - 1/4” x 27/8”
DDOO NNOOTT
RREETTUURRNN
PPRROODDUUCCTT TTOO
SSTTOORREE
FFOORR MMIISSSSIINNGG OORR
RREEPPLLAACCEEMMEENNTT
PPAARRTTSS
PPLLEEAASSEE CCOONNTTAACCTT
CCUUSSTTOOMMEERR
SSEERRVVIICCEE::
11..220033..993311..44777777
12 X 26 SUPER WIDE CANOPY #25770
Please read instructions completely before assembly
17 Wood Street
West Haven, CT 06516
1.203.931.4777
PAGE 1 01-25770 1/16/04
10042
10
10
12
2
3
4
6
1
10
10
10
32
4
67” Swedged Rafter Poles
10043
76” Swedged Leg Poles
10054
75.5” Cross Poles - 1-1/2”
10046
3-Way Frame Connectors
10048
4-Way Frame Connectors
10045
3-Way Frame Connectors
10047
4-Way Frame Connectors
10059
All-Weather Cover
10050
Feet Plates
10066
Bungee Cord
10056
10051
10052

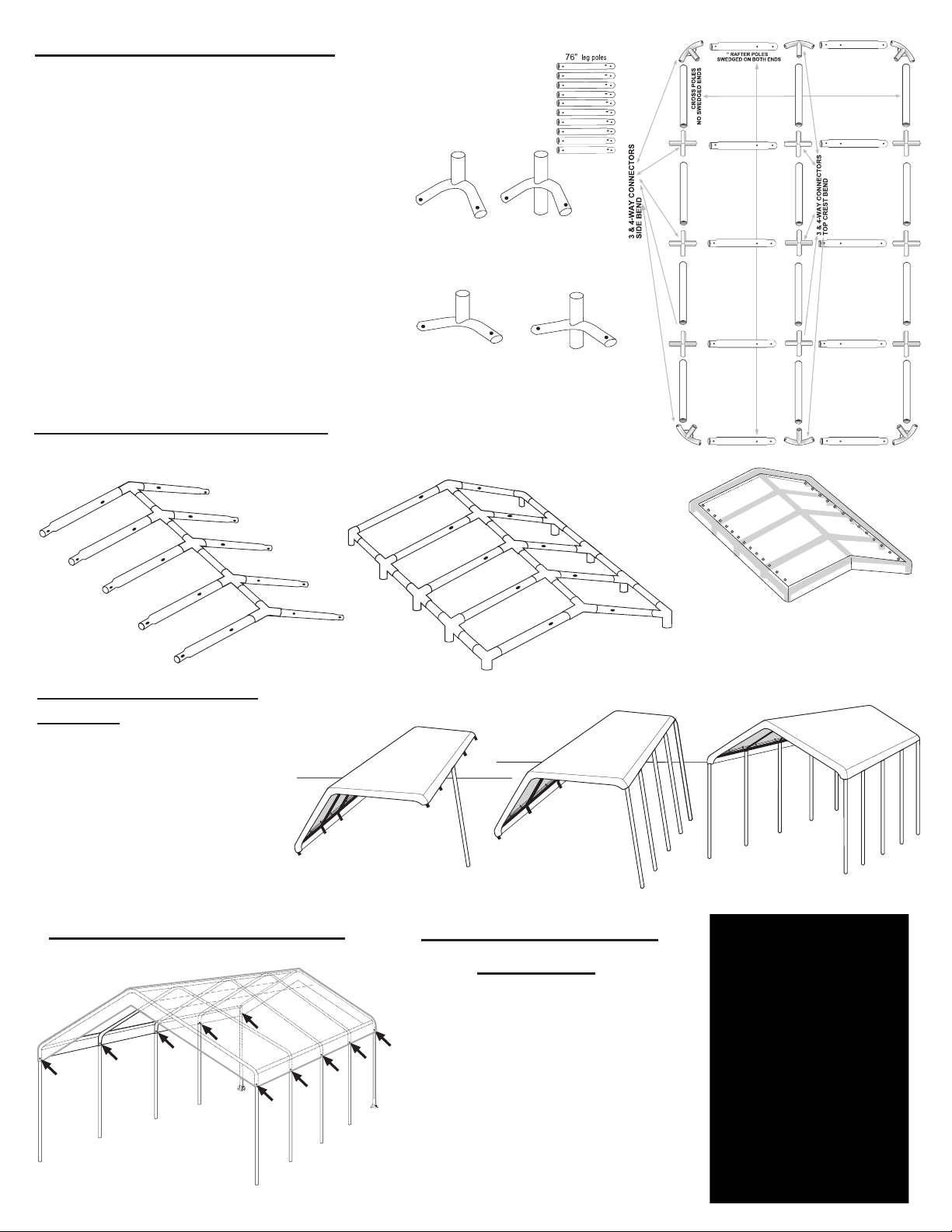

1. FRAME ASSEMBLY
Assembly is easiest if you layout all parts as
shown.There are ten -
Rafter Poles, they
are swedged on both ends, and have 3 pre-
drilled holes. The twelve- 75.5”x 1.5” Cross
Rails do not have swedged ends.
You can set aside the ten- 76” x 2” Leg
Poles
, they are swedged on one end and
have pre-drilled holes at the base & the top.
It is very important that you determine which
of the 3 & 4 way connectors are meant for
the sides and which are for the crest. The
side connectors have a sharper bend, plus
the 3 way side connectors have corner sup-
ports.
2. CONNECT PIPES
Start with the center, then assemble each side.
Place cover over frame so that
the grommetted portion is face
down, this allows the valance to
wrap around and cover the
frame eaves.
3. ATTACHING
LEGS Insert one middle
legs on one side of the
frame,swedged end up, then the
end legs on that same side.
Repeat for the other side. Now
you can secure the legs to the
side bend connectors with pins.
4. SECURING LEGS 5. TIGHTENING
COVER
Cover S-Hooks are designed to hold the front
& back of the cover tightly in place.
1. Hook one onto each of the INSIDE of the
corner legs.
2. Adjust the drawstring evenly on each side
of the canopy by pulling the drawstrings on
each end of the cover at the same time.
3. Secure rope to ”S” Hook.
4. Step 6 will feature our new ”TwistTight”
procedure to fit the cover snugly.
Side Bend Connectors
(sharp bend)
Top Bend Connectors
(Sloping bend)
PAGE 2 01-25770 1/16/04
67
75.5”

B
PAGE 3 01-25770 1/16/04
