Northern Lights Everbright BR31 User manual

BR-31
Owner’s Manual
Parts List
Part no. Description Quantity
1Computer 1PCS
2Screw M5x10L 4PCS

3Front handlebar 1PCS
4End cap 2PCS
5Foam grip 1PCS
6Cover for front handlebar 1PCS
7Allen bolt M7x30mm 1PCS
8Flat washer φ7*φ12*1t 1PCS
9Spring washer φ7*2t 1PCS
12 Handlebar post 1PCS
13 Screw M8x16L 4PCS
14 Semicircle washer 4PCS
15 Cable wire (upper) 1PCS
16 Heart rate cable (upper) 1PCS
17 Main frame 1PCS
18 Cable wire (lower) 1PCS
19 Heart rate cable (lower) 1PCS
20 Nylon screw 2PCS
21 Crank arm (L) 1PCS
22 Crank arm (R) 1PCS
23 C-type ring 1PCS
24 Flat washer 1PCS
25 Wave washer 1PCS
26 Bearing 6203RS 2PCS
29 Pulley 1PCS
30 Axle set 1PCS
31 Hex. screw 3PCS
32 Belt 1PCS
33 Screw 3PCS
34 Flat washer 11 PCS
35 Screw 2PCS
36 Front stabilizer 1SET
37 Nut 2PCS
38 Transportation wheel 2PCS
Parts List
Part no. Description Quantity
39 Bushing 2PCS
40 Hex. nut 2PCS
41 Rear stabilizer 1PCS

42 Adjustable cap 2PCS
43 End cap for stabilizer 4PCS
44 Adjustable cap 4PCS
46 Pedal (R/L) 1SET
52 Seat holder 1PCS
55 Acorn nut 4PCS
57 Screw 4PCS
58 Screw M8x16L 2PCS
59 Flat washer φ8*φ16*2t 6PCS
60 Flat washer 4PCS
61 Hex. screw 4PCS
63 Slider rail 1PCS
64 Heart rate cable 1PCS
65 Lift handle 1PCS
66 Side cover (L) 1PCS
67 Side cover (R) 1PCS
68 Upper cover rear (L) 1PCS
69 Lower cover rear (L) 1PCS
70 Upper cover rear (R) 1PCS
71 Lower cover rear (R) 1PCS
72 Handlebar post cover 1PCS
73 Screw 16 PCS
74 Screw 12 PCS
75 Saddle 1PCS
76 Back rest 1PCS
77 Seat handlebar 1SET
78 Hand pulse wire 1PCS
79 Seat handlebar cover 1PCS
80 Screw 2PCS
81 Foam grip 2PCS
82 End cap 2PCS
Parts List
Part no. Description Quantity
83 Hand pulse 2PCS
84 Screw M8x35L 2PCS
86 Flywheel 1PCS
87 One way bearing set 1PCS

88 Bearing 6003RS 1PCS
89 Axle for flywheel 1PCS
90 Flat washer 1PCS
91 Small pulley 1PCS
92 Bearing 6000RS 1PCS
93 Nut 2PCS
94 Nut 3PCS
95 Bushing 1PCS
96 Bearing 6300RS 1PCS
97 Bearing 6203RS 1PCS
98 Idler 1PCS
99 Spring 1PCS
100 Flat washer 1PCS
101 Nylon nut 2PCS
102 Idler wheel 1PCS
103 Hex. screw 1PCS
104 Bushing 1PCS
105 Wave washer 1PCS
115 Adaptor 1PCS
116 DC wire 1SET
117 Screw 4PCS
118 Stopper 4PCS
119 Cap for wire 1PCS
120 Fixing set for seat slider 1PCS
121 Screw 3PCS
122 Screw 4PCS
123 Cover for handle 1PCS
124 Screw 3PCS
125 Flat washer 9PCS
126 Hex. screw 1PCS
Parts List
Part no. Description Quantity
127 Handle post 1PCS
128 Seat slider handle 1PCS
129 Foam grip of handle 1PCS
130 Back rest post 1PCS
131 Spring 1PCS

132 Nylon nut 9PCS
133 End cap 1PCS
135 Screw 4PCS
136 Nylon nut 2PCS
137 Nut 1PCS
138 Slider holder 1PCS
139 Bushing 1PCS
140 Back rest knob 1PCS
141 Screw M10x36L 2PCS
142 Nylon nut 8PCS
143 Spring washer 8PCS
144 Bushing 8PCS
145 Seat slider wheel 8PCS
146 Hex. screw 8PCS
147 Magnetic set 1SET
148 Gear box 1SET
149 Sensor box 1PCS
150 Sensor holder 1PCS
151 Screw 1PCS

Assembly Stage #1
122 Carriage Bolt
M8*P1.25*55MM (4)
Box Spanner(1)
Screwdr iver (1)
60 Curv ed Washer
8* 19*2t (4)
55 Acorn Nut
for M8 Bolt (4)
1. Put on front stabilizer (36) and rear stabilizer (41) to the mainframe assembly.
Be noted: the front stabilizer has transportation wheel.
2. Use carriage bolt (122), curved washer (60), and acorn nut (55) to fix the stabilizers tightly.
Assembly Stage #2
Screwdriver (1)
1. Fix the right and left pedal (46R/L) tightly to the right/left crank.

Assembly Stage #3
59 Flat Washer
8* 16*2T (6)
61 Allen Bolt
M8xP1.25x16mm (4)
84 Allen bolt
M8*P1.25*35L (2)
58 Allen Bolt
M8xP1.25x12mm (2)
Screwdri ver (1)
Allen Key(1)
1. Assemble the seat slider handle (128) with handle post (127).
2. Assemble the saddle (75) by flat washer (59) and allen bolt (61).
3. Fix the seat handlebar (77) by screw M8x16L (58), flat washer φ8*φ16*2t, and screw
M8x35L (84).
4. Connect the hand pulse wire (78) to heart rate cable (64).
Assembly Stage #4
Allen Key(1)
1. Assemble the back rest by two screw M10x36L (141).
2. Assemble the back rest knob (140) and a bushing (139) into the back rest post.

Assembly Stage #5
Allen Key(1)
1. Remove the handlebar post cover (72) from main frame, and set in handlebar post (12).
2. Connect the heart rate cable upper (16) and lower (19).
3. Connect the cable wire upper (15) and lower (18).
4. Set the handlebar post (12) in main frame, and fix it with screw M8x16L (13) and
semicircle washer (14).
Assembly Stage #6
9 Spring Washer
7*2t *(1)
8 Flat washer
7* 12*1T * (1)
7 Allen B olt M7*
P1.0*30mmL *(1)
Allen Key(1)
1. Set the front handlebar (3) with handlebar post. And fix it with allen bolt M7x30mm (7),
sprubf washer φ7*2t (9), and flat washer φ7*φ12*1T (8).

2. Set the cover for front handlebar (6).
Assembly Stage #7
Screwdriver (1)
1. Connect the heart rate cable upper (16) and the cable wire upper (15) to the back of
computer (1).
2. Fix the computer on handle bar post with four screw M5x10L (2).

Exploded drawing.

INSTRUCTION MANUAL OF
COMPUTER

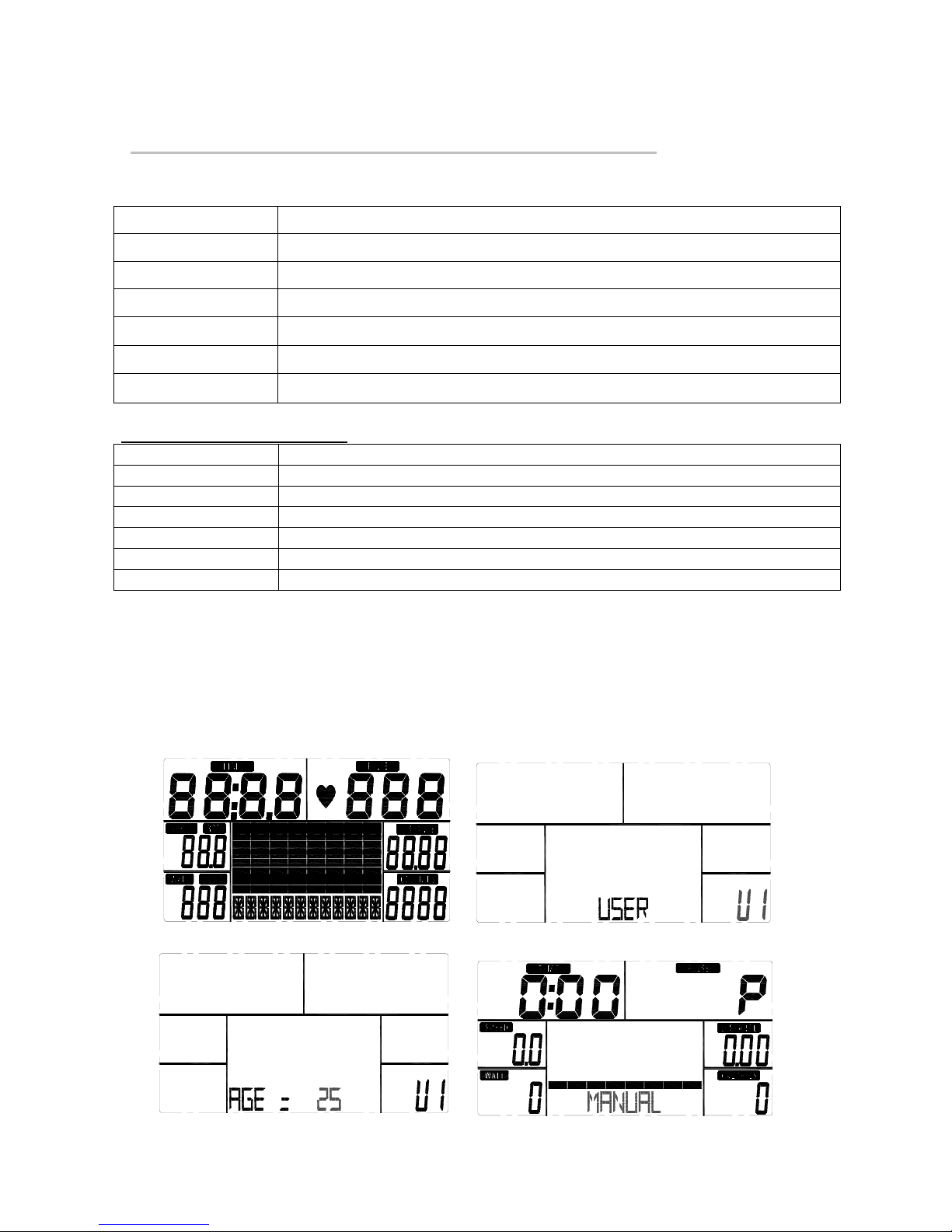

BUTTON FUNCTIONS
MODE/ENTER In stop mode, the mode is to confirm all exercise data setting, and enter into program.
RESET In stop mode, press the button back to main menu.
START/STOP To start or stop exercise.
RECOVERY To test hear rate recovery status.
UP To select training mode and adjust function value up.
DOWN To select training mode and adjust function value down.
TOTAL RESET To power on the computer again.
DISPLAY EXERCISE DATA:
TIME Display range 0:00~99:99 ; Setting range 0:00~99:00
DISTANCE Display range 0.00~99.99 ; Setting range 0.00~99.90km
CALORIES Display range 0~9999 ; Setting range 0~9990
PULSE Display range P-30~230 ; Setting range 0-30~230
WATT Display range 0~999 ; Setting range 10~350
SPEED 0.0~99.9km
RPM 0~999
OPERATING PROCEDURE
1. Connect power supply and computer will power on with a long beep sound, LCD display all
segments (drawing A) for 2 seconds and enter into personal data setting mode (gender, age,
height and weight) for U1~U4. (drawing B~C)
2. After user data set up, computer will display main menu (drawing D).
A B

C D

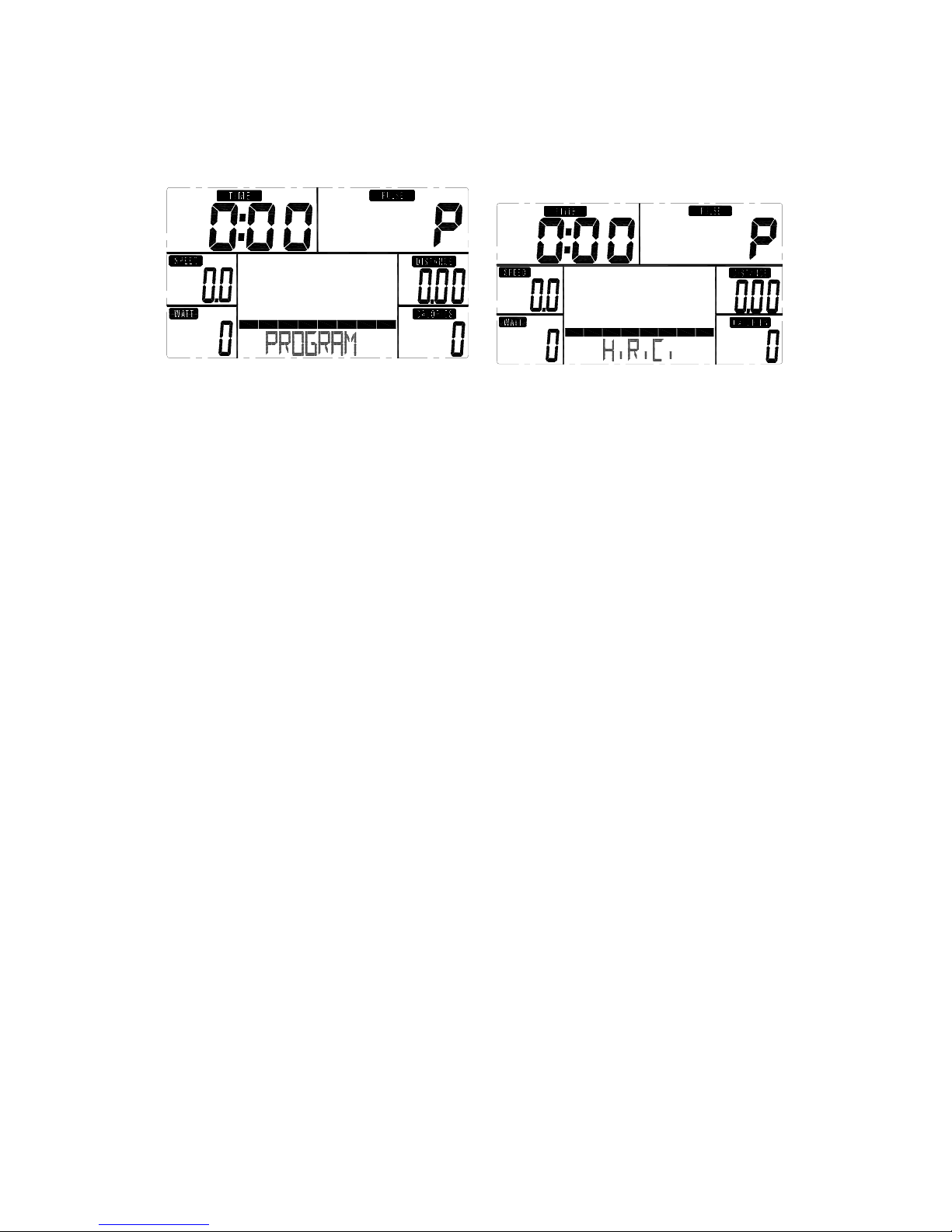

3. In main menu, first exercise program MANUAL will flash, user may press UP and DOWN
button to select MANUAL ÆPROGRAM (12 profiles) (drawing E)ÆPROGRAMÆUSER
PROGRAMÆHRCÆWAT T.
5 6
4. Quick Start and Manual :
Before exercise in Manual mode, user my set up TIME, DISTANCE, CALORIES and PULSE
target.
After power on, user may press START/STOP button to start exercise in MANUAL immediately
without any setting.
Level can be adjusted during exercise by press UP or DOWN.
5. PROGRAM
Before exercise in Program mode, user may set up TIME target.
Press UP and DOWN to select Program with 12 profiles and press ENTER/MODE to confirm.
Level can be adjusted during exercise by press UP or DOWN.
6. H.R.C.
Before exercise, computer will ask for user AGE first to calculate TARGET pulse. User may
still press UP and DOWN to change target pulse from 30 to 230.
7. USER PROGRAM
User may press UP, DOWN and then press MODE to create his own profile. (from column 1 to
column 20) User may hold on pressing MODE button for 2 seconds to quit profile setting.
8. WATT :
The preset watt value 120 is flashing on screen in WATT setting mode. User may use UP,
DOWN button to set target value from 10 to 350. Press MODE button for confirm.
9. RECOVERY :
After exercising for a period of time, keep holding on handgrips and press “RECOVERY”
button. All function display will stop except “TIME” starts counting down from 00:60 to 00:00.
Screen will display your heart rate recovery status with the F1,F2….to F6. F1 is the best,
F6 is the worst. User may keep exercising to improve the heart rate recovery status.
(Press the RECOVERY button again to return the main display.)
NOTE:
1. This computer require 9V, 500mA adaptor.
2. When user stop pedaling for 4 minutes, computer will enter into power save mode, all setting and
exercise data will stored until user start exercise again.
3. When computer act abnormal, please plug out the adaptor and plug in again.
