Northland NO24RAS0 Series Manual

EN Installation, Operation and Maintenance Instructions
FR Instructions d’installation, d’utilisation et d’entretien
ES Instrucciones de instalación, operación y mantenimiento
Refrigerators
Réfrigérateurs
Refrigeradores
NL24BCG0**
NL24RAS0**
NO24RAS0**

2
Important Safety Instructions
Warnings and safety instructions appearing in this
guide are not meant to cover all possible conditions
and situations that may occur. Common sense,
caution, and care must be exercised when install-
ing, maintaining, or operating this appliance.
RECOGNIZE SAFETY SYMBOLS,
WORDS, AND LABELS.
NOTE
!CAUTION
CAUTION- Hazards or unsafe practices which
could result in personal injury or property / product
damage.
NOTE- Important information to help assure a
problem free installation and operation.
Contents:
Safety information ..................................................2
Unpacking your refrigerator ....................................3
Warranty registration ..........................................3
Installing your refrigerator ......................................4
Cabinet clearances ..............................................4
Leveling the appliance .........................................4
Electrical connection ...........................................5
Product Dimensions ...............................................6
Using your Electronic control ................................ 8
Starting your refrigerator .....................................8
Turning your refrigerator "ON" or "OFF" ..............8
Set the temperature .............................................8
Refrigerator operation .........................................8
Alarms.................................................................8
Door ajar ..........................................................8
Temperature sensor fault .................................8
Alarm mute ..........................................................8
Shelving congurations .........................................9
Energy saving tips ................................................10
Care and cleaning ................................................10
Winterization ........................................................11
Stainless steel maintenance ................................12
Obtaining service ..................................................13
Troubleshooting ....................................................14
Warranty................................................................15
CONTENTS
WARNING - You can be killed or seriously
injured if you do not follow these instructions.
!WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals
known to the State of California to cause birth
defects or other reproductive harm.
!WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals
known to the State of California to cause
cancer.
!WARNING

3
NOTE
!CAUTION
Figure 1
Remove Interior Packaging
Your appliance has been packed for shipment with
all parts that could be damaged by movement se-
curely fastened. Remove internal packing materials
and any tape holding internal components in place.
The owners manual is shipped inside the product
in a plastic bag along with the warranty registration
card, and other accessory items.
Important
Keep your carton and packaging until your appli-
ance has been thoroughly inspected and found to
be in good condition. If there is damage, the pack-
aging will be needed as proof of damage in transit.
Afterwards please dispose of all items responsibly.
Note to Customer
This merchandise was carefully packed and
thoroughly inspected before leaving our plant.
Responsibility for its safe delivery was assumed
by the retailer upon acceptance of the shipment.
Claims for loss or damage sustained in transit must
be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO
THE MANUFACTURER - FILE THE CLAIM WITH
THE RETAILER.
If the appliance was shipped, handled, or stored
in other than an upright position for any period of
time, allow the appliance to sit upright for a period
of at least 24 hours before plugging in. This will
assure oil returns to the compressor. Plugging the
appliance in immediately may cause damage to
internal parts.
UNPACKING YOUR REFRIGERATOR
Warranty Registration
It is important you send in your warranty registra-
tion card immediately after taking delivery of your
appliance.
The following information will be required when
registering your appliance.
Service Number
Serial Number
Date of Purchase
Dealer’s name and address
The service number and serial number can be
found on the serial plate which is located inside the
cabinet on the left side near the top. (See gure 1).
WARNING - Help Prevent Tragedies
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators are still dangerous - even if they sit
out for "just a few hours".
If you are getting rid of your old refrigerator,
please follow the instructions below to help
prevent accidents.
Before you throw away your old refrigerator or
freezer:
• Take off the doors or remove the drawers.
• Leave the shelves in place so children
may not easily climb inside.
!WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in personal injury.
!WARNING
WARNING - Dispose of the plastic bags which
can be a suffocation hazard.
!WARNING

4
Select Location
The proper location will ensure peak performance
of your refrigerator. We recommend a location
where the unit will be out of direct sunlight and
away from heat sources. To ensure your product
performs to specications, the recommended
installation location temperature range is from 55 to
100°F (13 to 38°C) for indoor units and 55 to 115°F
(13 to 46°C) for outdoor units.
Cabinet Clearance
Ventilation is required from the bottom front of the
refrigerator. Keep this area open and clear of any
obstructions. Adjacent cabinets and counter top
can be installed around the refrigerator as long as
the front grille remains unobstructed.
INSTALLING YOUR REFRIGERATOR
Front Grille
Do not obstruct the front grille. The openings within
the front grille allow air to ow through the con-
denser heat exchanger. Restrictions to this air ow
will result in increased energy usage and loss of
cooling capacity. For this reason it is important this
area not be obstructed and the grille openings kept
clean. Northland does not recommend the use of
a custom made grille as air ow may be restricted.
(See Figure 2).
!CAUTION
Leveling Legs
Adjustable legs at the front and rear corners of the
refrigerator should be set so the unit is rmly posi-
tioned on the oor and level from side to side and
front to back. The overall height of your Northland
refrigerator may be adjusted between the minimum,
333⁄4" (85.7 cm), by turning the leveling leg in (CW
↷) and the maximum, 343⁄4" (88.3 cm) by turning the
leveling leg out (CCW ↶).
To adjust the leveling legs, place the refrigerator
on a solid surface and protect the oor beneath
the legs to avoid scratching the oor. With the
assistance of another person, lean the refrigerator
back to access the front leveling legs. Raise or
lower the legs to the required dimension by turning
the legs. Repeat this process for the rear by tilting
the refrigerator forward using caution. On a level
surface check the refrigerator for levelness and
adjust accordingly.
The front grille screws may be loosened and the
grille adjusted to the desired height. When adjust-
ment is complete tighten the two front grille screws.
(See Figure 5).
Front Leveling
Legs

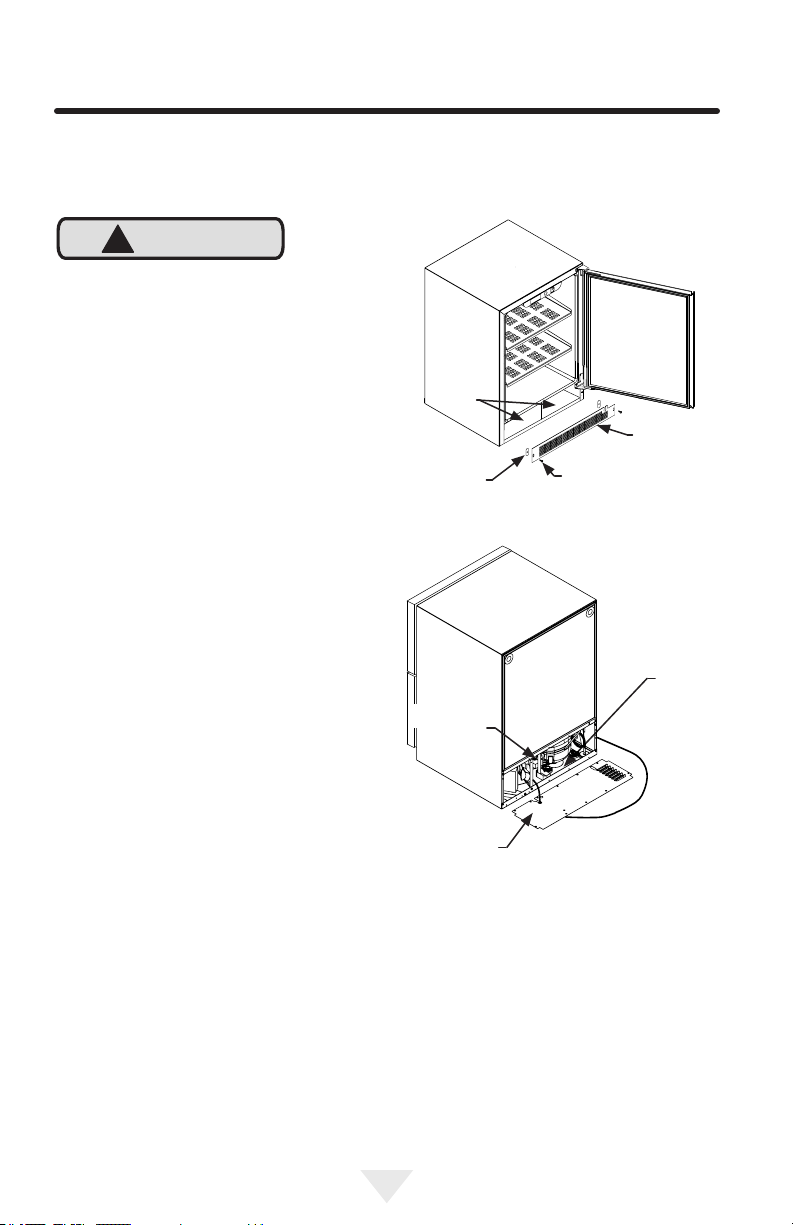

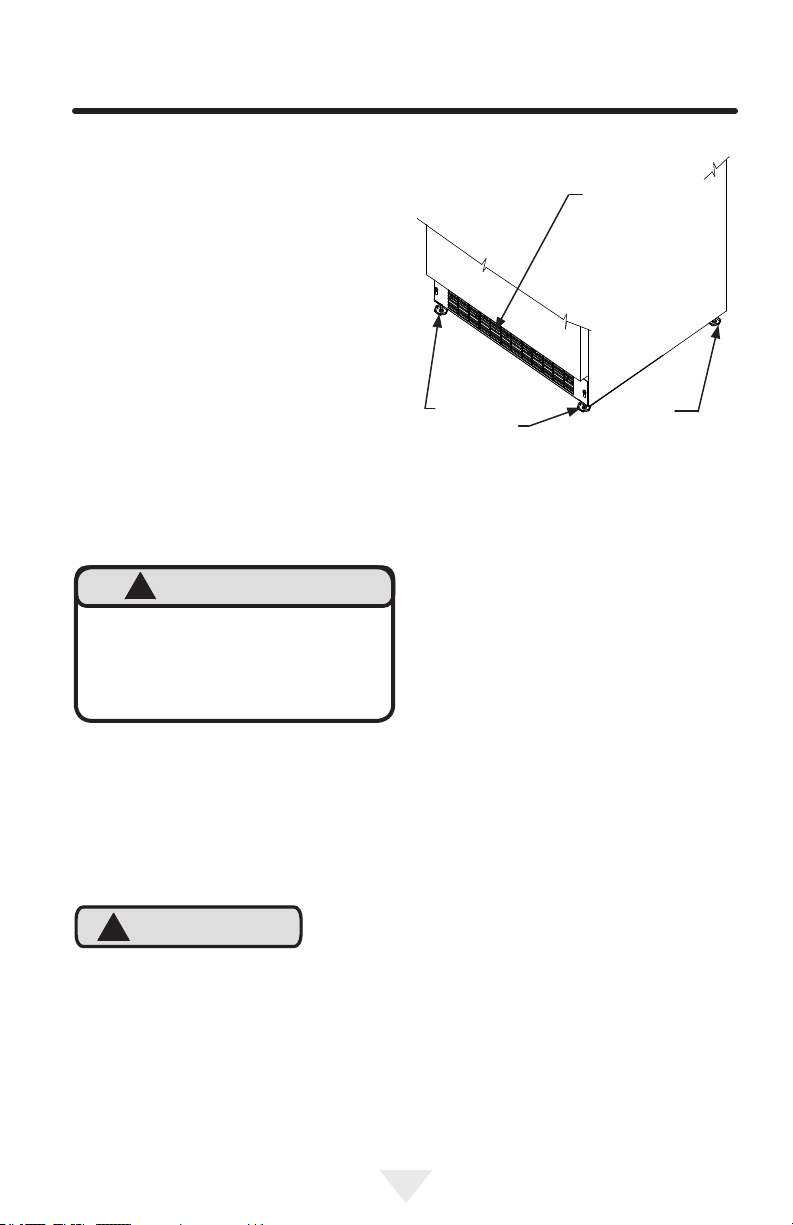

Figure 2
Rear
Leveling
Legs
Front Grille, keep
this area open.
An optional stacking kit, for 24" wide models,
is required to stack products. Failure to use a
stacking kit could result in personal injury. Con-
tact your dealer or Northland customer service
at 800-223-3900 to order.
!WARNING

5
INSTALLING YOUR REFRIGERATOR

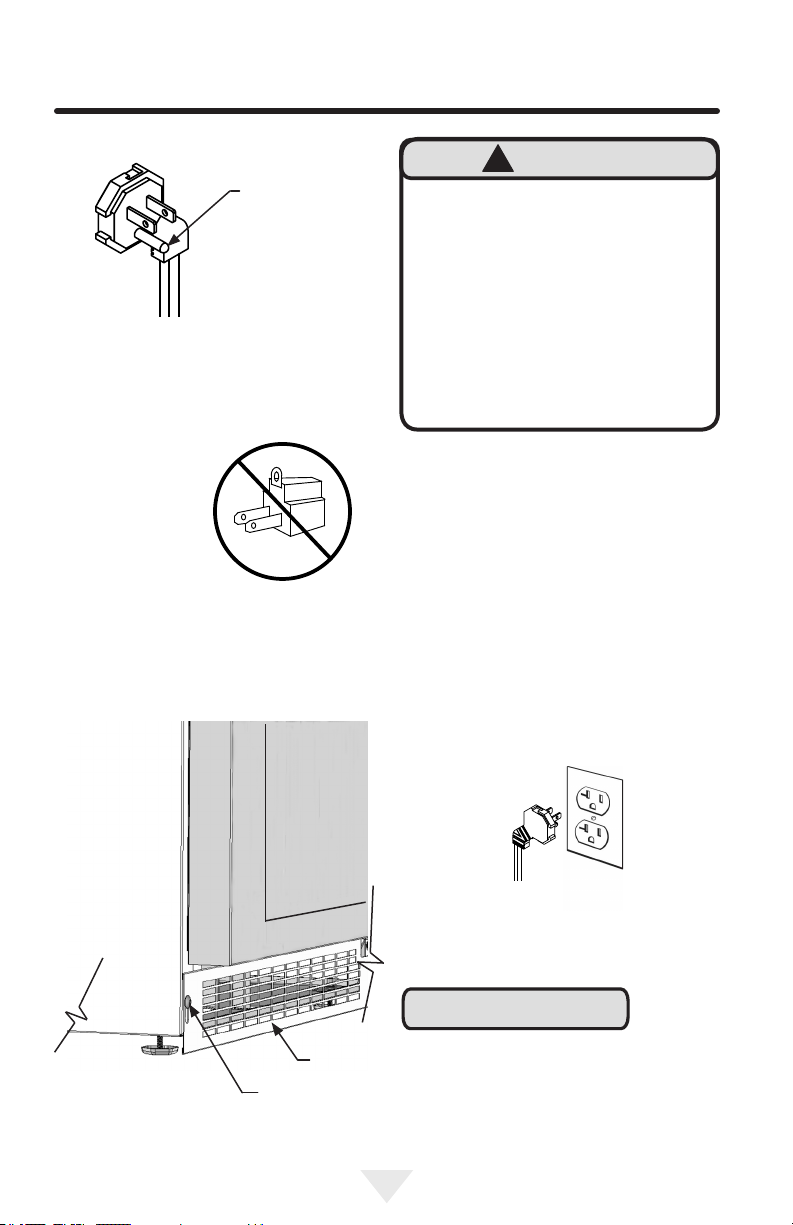

Figure 3
Figure 4
Do not remove
ground prong
Front grille screw
Front grille
Figure 5
Figure 6
Ground Fault Circuit Interrupters (GFCI) are prone
to nuisance tripping which will cause the appliance
to shut down. GFCI’s are generally not used on
circuits with power equipment that must run unat-
tended for long periods of time, unless required to
meet local building codes and ordinances.
NOTE
Electrical Connection
A grounded 115 volt, 15 amp dedicated circuit is
required.
This product is factory equipped with a power
supply cord that has a three-pronged, grounded
plug. It must be plugged into a mating grounding
type receptacle in accordance with the National
Electrical Code and applicable local codes and or-
dinances (see Figure 6). If the circuit does not have
a grounding type receptacle, it is the responsibility
and obligation of the customer to provide the proper
power supply. The third ground prong should not,
under any circumstances, be cut or removed.
Electrical Shock Hazard
• Do not use an extension cord with this ap-
pliance. They can be hazardous and can
degrade product performance.
• This appliance should not, under any cir-
cumstances, be installed to an un-ground-
ed electrical supply.
• Do not remove the grounding prong from
the power cord. (See Figure 3).
• Do not use an adapter. (See Figure 4).
• Do not splash or spray water from a hose
on the appliance. Doing so may cause
an electrical shock, which may result in
severe injury or death.
!WARNING

6
MODEL
ROUGH-IN OPENING
DIMENSIONS
"A" "B" "C"
NL24BCG 24"
(61 cm)
**34" to 35"
(86.4 to 88.9 cm) *
NL24RAS
NO24RAS
24"
(61 cm)
**34" to 35"
(86.4 to 88.9 cm) *
MODEL
CABINET DIMENSIONS
"D" "E" "F" "G" "H" "J"
NL24BCG 237⁄8"
(60.7 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
2323⁄32"
(60.2 cm)
2521⁄32"
(65.2 cm)
4613⁄32"
(117.9 cm)
2511⁄16"
(65.2 cm)
NL24RAS
NO24RAS
237⁄8"
(60.7 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
2323⁄32"
(60.2 cm)
2521⁄32"
(65.2 cm)
4613⁄32"
(117.9 cm)
2511⁄16"
(65.2 cm)
PRODUCT DIMENSIONS
"A"
"B"
"C"
"D"
"E" Figure 7
Figure 8
Figure 7a
If necessary to gain clearance inside the rough-in
opening a hole can be cut through the adjacent cab-
inet and the power cord routed through this hole to a
power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord
plug. Not all recessed outlet boxes will work for this
application as they are too narrow, but a recessed
outlet box equivalent to Arlington #DVFR1W is rec-
ommended for this application, (see Figure 8).

7
MODEL
PRODUCT DATA
ELECTRICAL
REQUIREMENTS #
PRODUCT
WEIGHT
NL24BCG 115V/60Hz/15A 140 lbs
(63.6 kg)
NL24RAS
NO24RAS 115V/60Hz/15A 140 lbs (63.6 kg)
PRODUCT DIMENSIONS
* Depth dimension of rough-in opening may vary
depending on each individual installation. To recess
entire door "F" dimension plus 1" (2.5 cm) for thick-
ness of power cord plug is required.
** Minimum rough-in opening required is to be
larger than the adjusted height of the cabinet.
# A grounded 15 amp dedicated circuit is required.
Follow all local building codes when installing elec-
trical and appliance.
"F"
211⁄2"
(54.6 cm)
"D"
"E"
"H"
"J"
"G"
Figure 9

8
Starting your refrigerator
Plug the refrigerator power cord into a wall outlet.
Your refrigerator will begin cooling after power is
applied.
If your refrigerator does not start, check that the
refrigerator is turned on and the set temperature is
cold enough.
Turning your refrigerator ON or OFF
If the refrigerator is on, the refrigerator temperature
will be shown on the display. To turn the refrigerator
off, press and hold the "ON/OFF" button for three
(3) seconds. "OFF" will appear on the display.
If the refrigerator is not on, "OFF" will be shown on
the display. To turn the refrigerator on, press and
hold the "ON/OFF" button for three (3) seconds.
The refrigerator temperature will be shown on the
display.
Set temperature
To set the refrigerator temperature, press and
hold the "SET" button. When the "SET" button is
pressed, the display will show the set tempera-
ture. While holding the "SET" button, press the
"WARMER" or "COLDER" buttons to adjust set
temperature.
Refrigerator operation
The available temperature range of the refrigerator
is 34° to 42°F (1° to 6° C).
It may take up to 24 hours for your refrigerator to
reach desired temperature. This will depend on
amount of content loaded and number of door
opening and closings.
For best results allow refrigerator to "pull down"
to desired set temperature before loading. Once
contents are loaded, allow at least 48 hours for
temperature to stabilize before making any adjust-
ments to the set temperature.
Alarms
Your control will monitor refrigerator function and
alert you with a series of audible and visual alarms.
•Door Ajar Alarm: If the door has
been left open for over ve (5)
minutes, the alarm will sound in one
(1) second intervals. The display panel will ash
"do" and the Alarm LED located at the top left of the
display below the word "Alarm" will be illuminated.
This will stop as soon as the door is closed.
•Temperature Sensor Fault: If the
controller detects that the tempera-
ture sensor is not properly function-
ing, a temperature sensor alarm will sound in one
(1) second intervals. "E1" will ash on the display
panel and the Alarm LED located at the top left of
the display below the word "Alarm" will be illuminat-
ed. Please call Northland Customer Service or your
dealer if this error code is displayed.
Set Colder Warmer ON/OFF
Press and Hold Press and Hold
Alarm
F
Figure 10
close-up of control
Figure 11
Control
Assembly
Door Switch
Control
Alarm Mute
Press any key to mute the audible portion of an
alarm.
This action will only mute the alarm. If the condition
that caused the alarm continues, the alarm code
will continue to ash and will sound for 20 seconds
every 60 minutes.
NOTE
USING YOUR ELECTRONIC CONTROL

9
Refrigerator:
Loading Tips and Suggestions

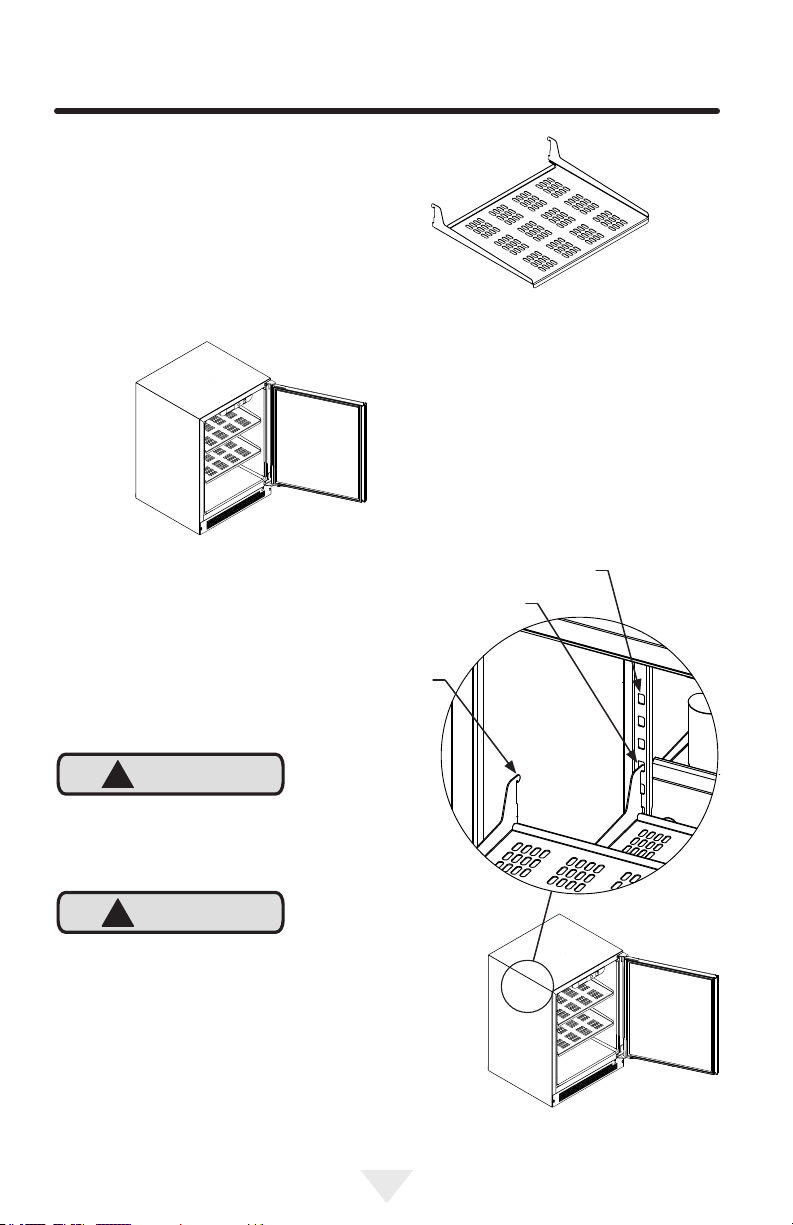

Your refrigerator is equipped with a cantilever shelf
system which provides maximum adjust ability and
customizing of the shelving arrangements listed
below.
24" (61 cm) Wide Models:
Shown with a glass door. Figure 12.
(2) perforated metal
cantilever shelves.
(See Figure 13).
SHELVING CONFIGURATIONS
Figure12
Figure 13
Perforated metal shelf
To Add or Remove a Shelf
Remove stored product from the shelf. Do not try
to remove a loaded shelf from the refrigerator.
Grasp the shelf front with both hands, rotate the
front upward and lift out. (See Figure 14). To install
a shelf insert the shelf in the appliance and insert
the top hooks into the shelf support slots and drop
the shelf down so the hooks drop over the bottom
of the slots.
Make sure your cantilever shelf is secure on the
shelf supports by pressing down on the shelf before
loading.
Never try to move a loaded shelf, remove every-
thing from the shelf before moving. Use both hands
when moving the shelf.
!CAUTION
!CAUTION
Rear tang
(hook) on
shelf
Shelf support slot
Installed shelf tang
Figure 14a
Figure 14

10
Front Grille
Be sure that nothing obstructs the required air ow
openings in front of the cabinet. At least once or
twice a year, brush or vacuum lint and dirt from the
front grille area (see page 4).
SHOCK HAZARD: Disconnect electrical power
from the appliance before cleaning with soap and
water.
Cabinet
The painted cabinet can be washed with either
a mild soap and water and thoroughly rinsed
with clear water. NEVER use abrasive scouring
cleaners.
!CAUTION
ENERGY SAVING TIPS , CARE AND CLEANING
The following suggestions will
minimize the cost of operating your
refrigeration appliance.
1. Do not install your appliance next to a hot
appliance (cooker, dishwasher, etc.), heating
air duct, or other heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front of
appliance beneath door are not obstructed
and kept clean to allow ventilation for the
refrigeration system to expel heat.
4. Plug your appliance into a dedicated power
circuit. (Not shared with other appliances).
5. When initially loading your new product, or
whenever large quantities of warm contents
are placed within refrigerated storage com-
partment, minimize door openings for the next
12 hours to allow contents to pull down to
compartment set temperature.
6. Maintaining a relatively full storage compart-
ment will require less appliance run time than
an empty compartment.
7. Ensure door closing is not obstructed by
contents stored in your appliance.
8. Allow hot items to reach room temperature
before placing in product.
9. Minimize door openings and duration of door
openings.
10. Use the warmest temperature control set
temperature that meets your personal prefer-
ence and provides the proper storage for your
stored contents.
11. When on vacation or away from home for
extended periods, set the appliance to warm-
est acceptable temperature for the stored
contents.
12. Set the control to the "off" position if cleaning
the appliance requires the door to be open for
an extended period of time.
To replace the light bulb, disconnect power to the
unit. Unscrew the old light bulb located behind
the display housing at the top of the unit. Set the
old light bulb aside. Screw the new light bulb into
place. Reconnect power to the unit. Check to see
if the light bulb operates properly to complete the
installation.
The light bulb is not covered by your warranty. A
replacement bulb can be obtained from your dealer
or from Northland.
The refrigerator uses one, 25 watt incandescent
light bulb to illuminate the interior. The light bulb is
a very reliable electrical component, but should it
not function properly, please call the dealer where
you purchased your refrigerator from for a replace-
ment light bulb. Use only an original equipment
light bulb from your dealer or Northland.
Light bulb replacement
Interior
Wash interior compartment with mild soap and
water. Do NOT use an abrasive cleaner, solvent,
polish cleaner or undiluted detergent.
Care of Appliance
1. Avoid leaning on the door, you may bend the
door hinges or tip the appliance.
2. Exercise caution when sweeping, vacuuming
or mopping near the front of the appliance.
Damage to the grille can occur.
3. Periodically clean the interior of the appliance
as needed.
4. Periodically check and/or clean the front grille
as needed.
In the Event of a Power Failure
If a power failure occurs, try to correct it as soon
as possible. Minimize the number of door openings
while the power is off so as not to adversely affect
the appliance's temperature.
DISCONNECT THE POWER CORD BEFORE
ATTEMPTING LIGHT BULB REPLACEMENT.
Failure to do so may result in an electrical
shock that could severely injure you.
Do NOT under any circumstance use a light
bulb that exceeds 25 watts!
!WARNING

11
!CAUTION
Outdoor Product (NO24RAS)
Long-Term Storage / Winterization:
1. Time to Winterize, when the daily low ambient
temperature is at or below 38°F (3.3°C).
2. Turn unit off, (see page 8)
3. Remove all contents.
4. If necessary, move the unit so you can gain
access to the rear of the product.
5. Unplug the unit from the power outlet.
6. It is also recommended that the power to the
outlet be turned-off if the circuit is not required
for other items during the Winter season.
7. When cleaning unit pay particular attention
to any cracks and crevices that may have
accumulated dirt and debris.
8. Remove the front toe-grille, (see Figure 15),
and use a brush and vacuum to clean dirt and
debris from beneath the unit.
9. Thoroughly clean the toe-grille and re-install
on the unit. (See Figure 15).
10. Remove the rear access cover, (see Figure
16), and use a brush and vacuum to clean dirt
and debris from the machine compartment.
11. Thoroughly clean the rear access cover and
re-install on the unit.
12. Wipe down all interior surfaces with anti-bac-
terial cleaner to be followed with clean rinse
water to remove any residual chemicals
which could cause staining. Do not use any
abrasive cleaners or scouring pads.
13. Leave the door open and allow to completely
dry out before closing the door.
14. Thoroughly clean the door gasket with an-
ti-bacterial cleaner to be followed with clean
rinse water to remove any residual chemicals.
15. Thoroughly clean the exterior with a cleaner
approved for stainless steel. Do not use any
abrasive cleaners or scouring pads. See
"Stainless Steel Maintenance" on page 12.
16. Any mounting hardware / fasteners that
are showing signs of corrosion should be
replaced.
17. Once the exterior has been thoroughly
cleaned, you may want to apply a coating of
car wax to help protect against spotting from
moisture, dirt, and debris that may accumu-
late on the surfaces during the Winterization
period.
18. Do not place a cover on the unit, as this can
trap condensation.
After completion of the above, you may choose to
store the unit indoors, although this is not required.
Operation of the unit at ambient temperatures
below the recommended winterization temperature
will void your warranty.
• If the plastic defrost drain pan located
under the compressor contains water,
use a sponge to remove as much water
as possible.
Figure 16
Soak up
water from
plastic
drain pan if
necessary
Clean out
debris
Remove screws around
perimeter of access
cover.
Access cover
CARE AND CLEANING
Start-Up After Long-Term Storage:
1. If stored outside, it is recommended that the
unit again be thoroughly inspected per the
storage instructions above to address any dirt
or debris from the weather and/or animals/
insects.
2. Connect the unit to electrical power.
3. Turn unit on and conrm your desired control
settings.
4. Allow 24-hrs for the unit to stabilize before
loading contents.
Figure 15 Grille
Spacer
Clean out
behind
grille
Remove screw
from each end
of grille

12
Background
Stainless steel does not stain, corrode, or rust as
easily as ordinary steel, but it is not stain or corro-
sion proof. Stainless steels can discolor or corrode
if not maintained properly.
Stainless steels differ from ordinary carbon steels
by the amount of chromium present. It is this
chromium that provides an invisible protective lm
on the surface called chrome-oxide. This protective
chrome-oxide lm on the surface can be damaged
or contaminated, which may result in discoloration,
staining, or corrosion of the base metal.
Care & Cleaning
Routine cleaning of the stainless steel surfaces
will serve to greatly extend the life of your product
by removing contaminants. This is especially
important in coastal areas which can expose the
stainless to severe contaminants such as halide
salts, (sodium chloride).
It is strongly recommended to periodically inspect
and thoroughly clean crevices, weld points, under
gaskets, rivets, bolt heads, and any locations where
small amounts of liquid could collect, become stag-
nant, and concentrate contaminates. Additionally,
any mounting hardware that is showing signs of
corrosion should be replaced.
Frequency of cleaning will depend upon the
installation location, environmental, and usage
conditions.
Choosing a Cleaning Product
The choice of a proper cleaning product is ulti-
mately that of the consumer, and there are many
products from which to choose. Depending upon
the type of cleaning and the degree of contamina-
tion, some products are better than others.
Typically the most effective and efcient means for
routine cleaning of most stainless steel products is
to give the surfaces a brisk rubbing with a soft cloth
soaked in warm water and a gentle detergent, or
mild mixture of ammonia. Rubbing should, to the
extent possible, follow the polish lines of the steel,
and always insure thorough rinsing after cleaning.
Although some products are called "stainless steel
cleaners," some may contain abrasives which could
scratch the surface, (compromising the protective
chrome-oxide lm), and some many contain chlo-
rine bleach which will dull, tarnish or discolor the
surface if not completely removed.
After the stainless surfaces have been thoroughly
cleaned, a good quality car wax may be applied to
help maintain the nish.
Stainless steel products should never be installed,
or stored in close proximity to chlorine chemicals.
Whichever cleaning product you chose, it should be
used in strict accordance with the instructions of the
cleaner manufacturer.
NOTE
STAINLESS STEEL MAINTENANCE

13
If Service is Required:
• If the product is within the rst year warranty
period please contact your dealer or call
Northland Customer Service at 800-223-
3900 for directions on how to obtain warranty
coverage in your area.
• If the product is outside the rst year warranty
period, Northland Customer Service can
provide recommendations of service centers
in your area.
• In all correspondence regarding service, be
sure to give the service number, serial num-
ber, and proof of purchase.
• Try to have information or description of
nature of the problem, how long the appliance
has been running, the room temperature, and
any additional information that may be helpful
in quickly solving the problem.
• Table "A" is provided for recording pertinent
information regarding your product for future
reference.
For Your Records
Date of Purchase
Dealer’s name
Dealer’s Address
Dealer’s City
Dealer’s State
Dealer’s Zip Code
Appliance Serial Number
Appliance Service Number
Date Warranty Card Sent (Must be
within 10 days of purchase).
Table A
OBTAINING SERVICE

14
TROUBLESHOOTING
!CAUTION
Before You Call for Service
If the appliance appears to be malfunctioning, read
through this manual rst. If the problem persists,
check the troubleshooting guide below. Locate the
problem in the guide and refer to the cause and
its remedy before calling for service. The problem
may be something very simple that can be solved
without a service call. However, it may be required
to contact your dealer or a qualied service tech-
nician.
In the unlikely event you lose cooling in your unit,
do not unplug the product from the electric
supply, but do call a qualied service technician
immediately. It is possible that the loss of cooling
capacity is a result of excessive frost build-up on
the evaporator cooling coil. In this case, removing
power to the unit will result in the melting of this
excessive quantity of ice, which could generate
melt water that exceeds the capacity of the defrost
drain system and could result in water damage to
your home. The end-user will be ultimately respon-
sible for any water damage caused by prematurely
turning the unit off without appropriately managing
the excess water run-off.
Problem Possible Cause Remedy
Appliance not cold enough
(See "Set temperature" on
page 8)
• Control set too warm
• Content temperature not
stabilized.
• Excessive usage or pro-
longed door openings.
• Airow to front grille
blocked.
• Door gasket not sealing
properly.
• Adjust temperature colder. Allow
24 hours for temperature to
stabilize.
• Allow temperature to stabilize for
at least 24 hours.
• Airow must not be obstructed
to front grille. See "clearances"
on page 4.
• Replace door gasket.
Appliance too cold
(See "Set temperature" on
page 8)
• Control set too cold
• Door gasket not sealing
properly.
• Adjust temperature warmer.
Allow 24 hours for temperature
to stabilize.
• Replace door gasket.
No interior light. • Light bulb is burned out • Replace light bulb, see page 10.
Light will not go out when
door is closed
• Door not activating light
switch.
• Failed light switch
• Appliance not level, level
appliance, (See page 4, "leveling
legs")
• Contact a qualied service
technician.
Noise or Vibration • Appliance not level
• Fan hitting tube obstruc-
tion.
• Level appliance, see "Leveling
Legs" on page 4.
• Contact a qualied service
technician.
Appliance will not run. • Appliance turned off
• Power cord not plugged in.
• No power at outlet.
• Turn appliance on. See "Starting
your refrigerator" on page 8.
• Plug in power cord.
• Check house circuit.
• Never attempt to repair or perform mainte-
nance on the appliance until the main electrical
power has been disconnected. Turning the
appliance control "OFF" does not remove
electrical power from the unit's wiring.
• Replace all parts and panels before operating.
Electrocution Hazard
!WARNING

15
HOUSEHOLD PRODUCT WARRANTY
Entire Product
Limited One Year Parts and Labor
Warranty
Northland warrants that it will supply all necessary
parts and labor to repair or replace in the end
user’s home or ofce, any component which proves
to be defective in material or workmanship, subject
to the condition and exclusions stated below, for a
period of one year from the date of purchase by the
end user.
Additional Second Through Fifth
Year
Limited Parts Only Warranty
During the four years following expiration of the one
year limited warranty, Northland will supply replace-
ment parts for the hermetically sealed refrigeration
system which consists of the compressor, condens-
er, drier, accumulator, bypass valve, connecting
tubing and the evaporator that are proven to be
defective due to workmanship or materials subject
to the conditions and exclusions below.
The above warranties do not cover:
• Shipping costs of replacement parts or
returned defective parts.
• Customer education or instructions on how to
use the appliance.
• Any content loss due to product failure.
• Removal or installation of product.
Nor do the above warranties cover failure of this
product or its components due to:
• Transportation or subsequent damages.
• Commercial use or use other than normal
household or small ofce.
• Improper installation, misuse, abuse, accident
or alteration, use of wiring not conforming to
electrical codes, low or high voltages, failure
to provide necessary maintenance, or other
unreasonable use.
Parts or Service
Not Supplied or Designated by North-
land
The above warranties also do not apply if:
• The original bill of sale, deliver date, or serial
number cannot be veried.
• Defective parts are not returned for inspection
if so requested by Northland.
• The refrigeration equipment is not in the pos-
session of the original end use purchaser.
The warranties set forth herein are the only warran-
ties extended by Northland. Any implied warranties,
including the implied warranty of merchantability,
are limited to the duration of these express warran-
ties. In no event shall Northland be liable for any
consequential or incidental damages or expenses
resulting from breach of these or any other warran-
ties, whether express or implied.
Some states do not allow the exclusion or limitation
of consequential damages or a limitation on how
long an implied warranty lasts, so the above exclu-
sion or limitation may not apply to you. This warran-
ty gives you specic legal rights and you may have
other rights that may vary from state to state.
No person, rm, or corporation is authorized to
make any other warranty or assume any other obli-
gation for Northland. These warranties apply only to
products used in any of the fty states of the United
States and the District of Columbia.
To obtain performance of this warranty, report any
defects to:
Northland
1260 E. VanDeinse St.
Greenville MI 48838
Phone: [phone]

All specications and product designs subject to
change without notice. Such revisions do not entitle
the buyer to corresponding changes, improve-
ments, additions, replacements or compensation
for previously purchased products.
Northland
1260 E. VanDeinse St.
Greenville MI 48838
800-223-3900
41014720-EN Rev B
4/20/17

EN Installation, Operation and Maintenance Instructions
FR Instructions d’installation, d’utilisation et d’entretien
ES Instrucciones de instalación, operación y mantenimiento
Refrigerators
Réfrigérateurs
Refrigeradores
NL24BCG0**
NL24RAS0**
NO24RAS0**

2
CONTENU
Contenu :
Informations de sécurité.........................................2
Déballage de votre appareil ....................................3
Enregistrement de la garantie .............................3
Installation de votre appareil ....................................4
Dégagements par rapport à l’armoire ...................4
Mise à niveau de l’appareil ...................................4
Raccordement électrique.......................................5
Dimensions du produit............................................6
Utilisation de votre commande électronique ...........8
Congurations de étagères ...................................9
Entretien et nettoyage ..........................................10
Conseils pour l’économie d’énergie .....................12
Obtention de service ............................................13
Dépannage..........................................................14
Garantie...............................................................16
Importantes instructions de sécurité
Les avertissements et les instructions de sécurité
qui apparaissent dans ce guide n’ont pas la préten-
tion de couvrir toutes les conditions et situations
possibles pouvant arriver. Il faut faire preuve de
bon sens, de précautions et de soins, pour installer,
utiliser ou entretenir cet appareil.
Reconnaissance des symboles,
des mots et des étiquettes
concernant la sécurité.
!ATTENTION
REMARQUE
ATTENTION - Risques ou pratiques dangereuses
pouvant entraîner des blessures individuelles, des
dégâts matériels ou des dommages au produit.
REMARQUE - Information importante pour réaliser
une installation et une utilisation sans problèmes.
AVERTISSEMENT - Risque possible de décès
ou de blessure grave si vous ne suivez pas les
instructions.
!AVERTISSEMENT
Avertissements de la proposition 65 de l'État
de Californie : Ce produit contient au moins un
produit chimique connu par l’État de Californie
pour être à l’origine de malformations et autres
déciences de naissance.
!AVERTISSEMENT
Avertissements de la proposition 65 de l'État
de Californie : Ce produit contient au moins un
produit chimique connu par l’État de Californie
pour être à l’origine de cancers.
!AVERTISSEMENT

3
Figure 1
DÉBALLAGE DE VOTRE APPAREIL
!ATTENTION
REMARQUE
Enlèvement de l’emballage intérieur
Votre réfrigérateur a été emballé pour l’expédition
avec toutes les pièces pouvant être endommagées
par le mouvement solidement attachées. Enlevez
les matériaux d’emballage intérieur et toute bande
maintenant des composants intérieurs en place.
Le manuel de l’utilisateur est envoyé à l’intérieur
de l’appareil dans un sac en plastique, accompag-
né de la carte d’enregistrement de la garantie, et
d’autres articles accessoires.
Important
Conservez votre carton d’emballage jusqu'à ce que
votre réfrigérateur ait été complètement inspecté et
trouvé en bon état. S’il présentait des dommages,
cet emballage serait nécessaire comme preuve
qu’ils sont survenus durant le transit. Ensuite
veuillez mettre tous ces matériaux d’emballage au
rebut d’une façon responsable.
Note pour le client
Cette marchandise a été soigneusement et
complètement inspectée avant de quitter notre
usine. La responsabilité pour sa livraison sûre a été
assumée par le revendeur à l’acceptation de cette
expédition. Les réclamations pour perte ou dom-
mages survenus durant le transit sont à adresser
au revendeur.
Si l’appareil a été livré, manipulé ou entreposé
dans une position autre que debout, pendant
une durée quelconque, laissez-le reposer debout
pendant au moins 24 heures avant de la brancher
électriquement. Cela assurera le retour de l’huile
au compresseur. Un branchement immédiat
de l’appareil pourrait endommager des parties
internes.
Enregistrement de la garantie
Il est important que vous postiez votre carte de
garantie immédiatement après avoir pris livraison
de votre réfrigérateur.
Les informations suivantes seront nécessaires au
moment de l’enregistrement de votre appareil :
Numéro de service
Numéro de série
Date d’achat
Nom et adresse du revendeur
Le numéro de service et le numéro de série se
trouvent sur la plaque signalétique qui est située à
l’intérieur de l’armoire, du côté gauche près du haut
(Voyez la Figure 1).
NE RENVOYEZ PAS DE MARCHANDISE EN-
DOMMAGÉE AU FABRICANT – DÉPOSEZ UNE
RÉCLAMATION AUPRÈS DU REVENDEUR.
AVERTISSEMENT - Contribuez à éviter des
tragédies
L’emprisonnement d’enfants et leur asphyxie ne
sont pas des problèmes du passé. Des épaves
de réfrigérateurs abandonnés continuent de
présenter un danger - même en restant dehors
pour «juste quelques heures».
Si vous devez vous débarrasser de votre vieil
appareil de refroidissement, veuillez suivre ces
instructions pour aider à éviter des accidents
possibles.
Avant de jeter votre vieux réfrigérateur ou
congélateur :
• Démontez ses portes ou enlevez ses
tiroirs.
• Laissez les étagères en place de façon à
ce que des enfants ne puissent pas facile-
ment monter dedans.
!AVERTISSEMENT
AVERTISSEMENT - Jetez bien les sacs en plas-
tique qui représentent un risque de suffocation.
!AVERTISSEMENT
AVERTISSEMENT
RISQUE DE POIDS EXCESSIF
Utilisez deux personnes ou plus pour déplacer le
produit. Sinon vous pourriez vous blesser.
!AVERTISSEMENT

4
INSTALLATION DE VOTRE APPAREIL
Figure 2
Pieds de mise à niveau
Des pieds réglables aux angles avant et arrière
de l’armoire doivent être ajustés pour qu’elle soit
fermement positionnée au sol et bien d’aplomb,
d’un côté à l’autre et d’avant en arrière. La hauteur
totale de votre appareil Northland peut être ajustée
entre le minimum 333⁄4po (85,7 cm) (en vissant les
pieds de mise à niveau CW ↷) et le maximum 343⁄4
po (88,3 cm) (en dévissant les pieds de mise à
niveau CCW ↶) des.
Pour régler ces pieds de mise à niveau, placez
l’appareil sur une surface solide, en protégeant le
sol en dessous pour ne pas le rayer. Avec l’aide
d’une autre personne, inclinez vers l’arrière de
l’appareil pour accéder aux pieds de mise à niveau
de l’avant. Levez ou abaissez ces pieds à la hau-
teur requise en les tournant. Répétez la procédure
pour les pieds arrière en inclinant le cave à vin vers
l’avant en faisant attention. Sur une surface plane,
vériez le niveau de l’appareil et ajustez les pieds
en conséquence.
Les vis de la grille frontale peuvent être desserrées
et la grille ajustée à la hauteur voulue. Quand le
réglage est fait resserrez les vis de la grille frontale
(Voyez la Figure 5).
Grille frontale
N’obstruez pas la grille frontale. Les ouvertures au
travers de la grille frontale permettent l’écoulement
de l’air par l’échangeur thermique du condenseur.
Des restrictions de ce ux d’air vont augmenter la
consommation d’énergie et affecter sa capacité de
refroidissement. C’est pourquoi il est important que
cette zone ne soit pas obstruée et soit maintenue
propre. Northland recommande de ne pas utiliser
de grilles personnalisées, car l’écoulement d’air en
serait diminué (Voyez la Figure 2).
!ATTENTION
Choix de l’emplacement
Un bon emplacement assurera une performance
de pointe pour votre appareil. Nous recomman-
dons un endroit où l’appareil ne sera pas exposé
directement au rayonnement solaire et restera
écarté de sources de chauffage. Pour assurer que
les performances de votre produit soient au niveau
de ses spécications, la plage de températures
recommandée au lieu d’installation sera de 55 à
100°F (13 à 38 °C) réfrigérateurs d'intérieur et 55 to
115°F (13 to 46°C) réfrigérateurs d'extérieur.
Dégagements par rapport à l’armoire
Une ventilation est nécessaire depuis la section
frontale du bas de l’armoire. Gardez cette zone
libre et exempte de toutes obstructions. Des
meubles et comptoirs peuvent être installés autour
de l’unité de façon adjacente dans la mesure où sa
grille frontale restera non obstruée.
Pieds de mise à
niveau avant
Pieds de
mise à niveau
arrière
Grille frontale, gardez
cette zone dégagée.
Un kit optionnel d’empilage est nécessaire pour
empiler des produits. Le fait de ne pas utiliser
de kit d’empilage peut entraîner une blessure
corporelle. Contactez votre revendeur ou le
service à la clientèle de Marvel au 800-223-3900
pour le commander.
!AVERTISSEMENT
