NORTHPOINT UB09 User manual

HOW TO CONNECT THE DRAWER FRONT
Keep the bottom distance is 1¼"

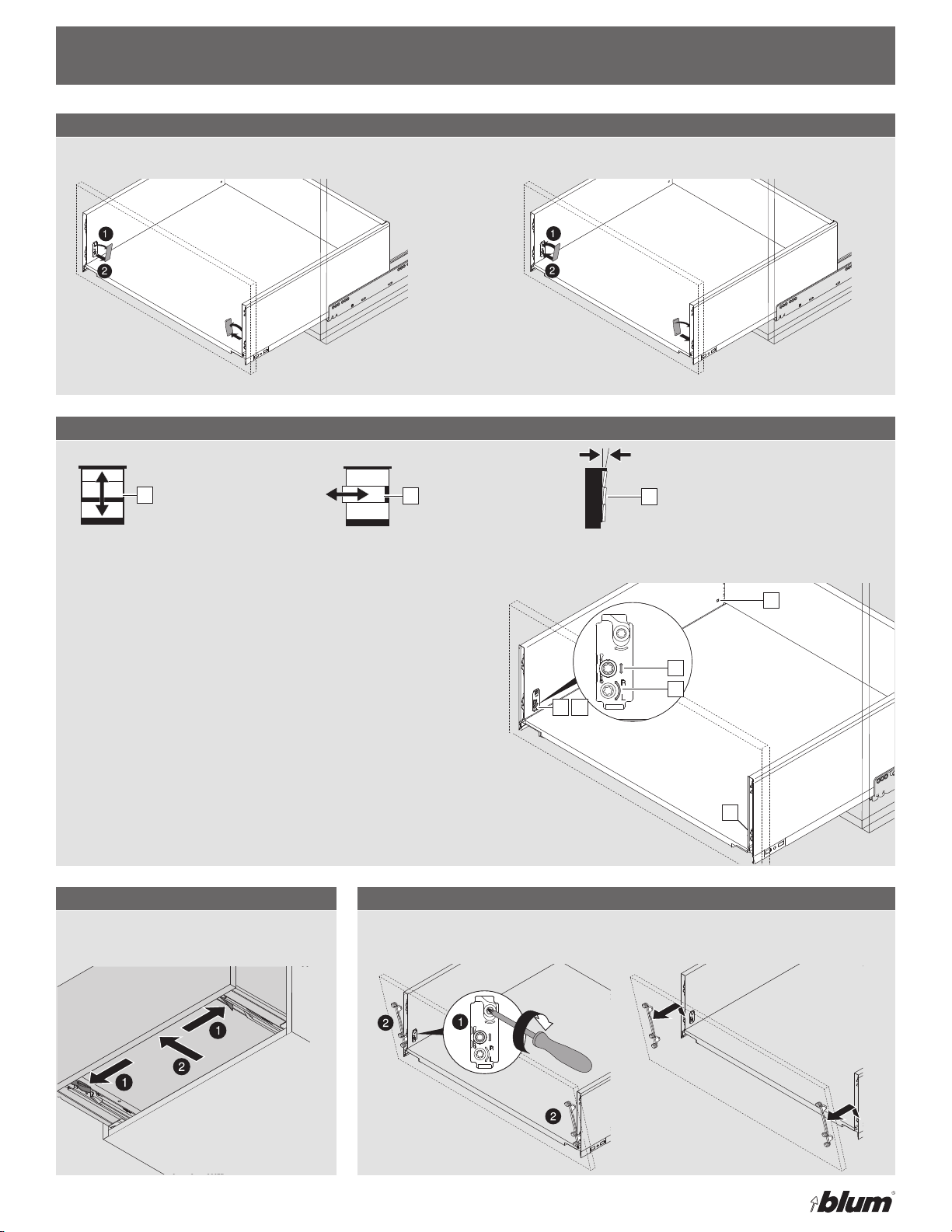

LEGRABOX adjustments
Cover cap removal/installation
Removal
Height adjustment
± 2 (3/32")
Height adjustment ‒ Turn the adjustment screw clockwise
to raise or lower the drawer front.
Side adjustment ‒ Turn adjustment screw towards the L to
Move drawer front left. Turn adjustment screw towards the R
to move drawer front right.
Tilt adjustment ‒ To increase the drawer front gap, turn the
adjustment screw clockwise, to decrease turn adjustment screw
counterclockwise.
NOTE: Height, side and tilt adjustments must be achieved with a T20 Torx screwdriver
Pull drawer forward to reveal locking devices.
Squeeze triggers on locking device and lift
drawer box off of runners.
Turn adjustment screw to release front fixing bracket. Lift drawer front away from
drawer box.
Side adjustment
± 1.5 (1/16")
Tilt adjustment
M height +1.5/-0.5 (1/16"/1/32")
C/F height ±1.5 (1/16")
Installation
Height, side and tilt adjustments
Drawer removal Drawer front removal
T20
1
2
3
1 2
3
1
2
2
T20
1
2
3
1 2
3
1
2
2
T20
1
2
3
1 2
3
1
2
2
T20
1
2
3
1 2
3
1
2
2
T20
1
2
3
1 2
3
1
2
2
T20
1
2
3
1 2
3
1
2
2
T20
1
2
3
1 2
3
1
2
2
T20
1
2
3
1 2
3
1
2
2
Dimensions in millimeters (Inch equivalents as noted)
Subject to technical modifications without notice ©2016 Blum, Inc.
T20 Torx driver bit
