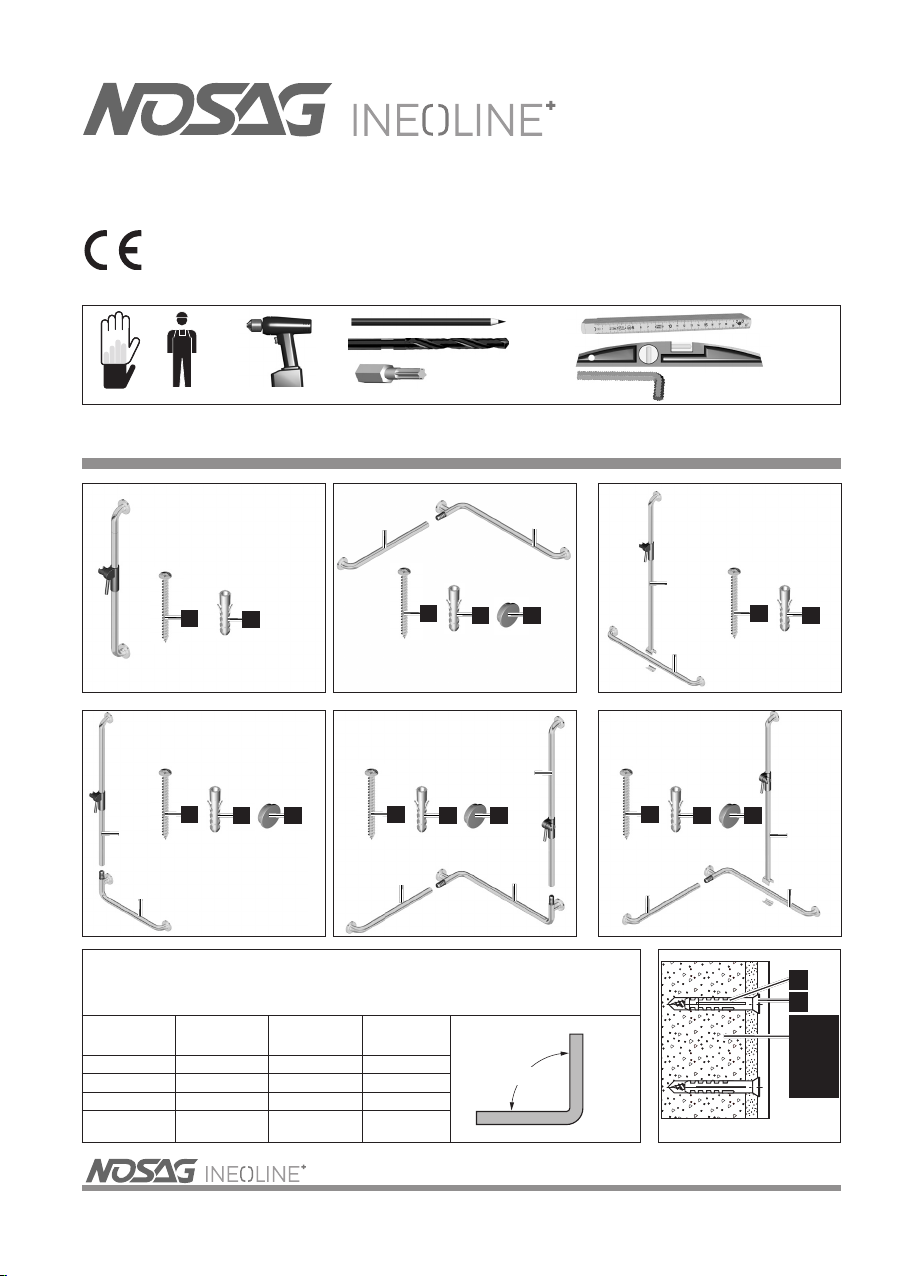

NOSAG INEOLINE PLUS LD0.0008 Product guide

Montage- und Gebrauchsanweisung / Operating and assembly instructions
Instructions de montage / Istruzioni di montaggio e d‘uso
Ineoline Plus Typ: LD0.0008., LD0.0081., LD1.0051, LD1.0061., LD2.0002., LD2.0102., LD2.0202.
1. Stückliste / Parts list / de pièces détachées / Lista pezzi di ricambio
1 x
LD2.0002. LD0.0081.LD0.0008.
LD1.0051, LD1.0061. LD2.0102. LD2.0202.
5 x 60
6 x
1
6 x
S8 x 40
2
1 x
3
5 x 60
8 x
1
8 x
S8 x 40
2
2 x
3
5 x 60
10 x
1
10 x
S8 x 40
2
1 x
3
5 x 60
11 x
1
11 x
S8 x 40
2
1 x
3
5 x 60
8 x
1
8 x
S8 x 40
2
5 x 60
9 x
1
9x
S8 x 40
2
1 x 1 x
1 x
1 x
1 x
1 x
1 x
1 x
1 x 1 x
1 x 1 x
Nosag AG / Siloring 9 / CH-5606 Dintikon / Switzerland / Tel: [phone] / www.nosag.ch
Ø 8
TX25 Bit 3 mm
2
1
C25
Ks12
V4
M20
Toleranz - Länge in mm - Winkel in Grad °
Toléance - langueur en mm - angle en degrés °
Tolleranze - lunghezza in mm - angolo in gradi °
Toleranzklasse über 120
bis 400
über 400 bis
1000
über 1000 bis
2000
XX = ± 0,5°
XX = ± 0,5°
f (fein) ± 0,20 ± 0,30 ± 0,50
m (mittel) ± 0,50 ± 0,80 ± 1,20
g (grob) ± 1,20 ± 2,00 ± 3,00
sg (sehr grob) ± 2,50 ± 4,00 ± 6,00
202004_Ma-Nosag-DHL-Plus.indd 1 07.05.20 14:58

2. Planungshilfe / Planning aids / Aide à la planication / Ausilio per la progettazione
3. Montage / Installation mounting / montage / montaggio3. Montage / Installation mounting / montage / montaggio
4. Montagereihenfolge / Mounting order / suivre les instructions de montage / la sequenza di montaggio
22a
3 4
LD1.0051.
LD1.0061.
5
LD2.0002.
LD1.0051,
LD1.0061.
LD2.0002.
LD2.0102.
LD2.0202.
LD1.0051,
LD1.0061.
LD2.0002.
LD2.0102.
LD2.0202.
LD0.0008.
4
kg
max. 120
ca. 750-850 mm
kg
max. 120
kg
max. 120
kg
max. 120
ca. 750-850 mm
ca. 750-850 mm
min. 100 mm
1
C
B
B
A
AA
202004_Ma-Nosag-DHL-Plus.indd 2 07.05.20 14:58

6
8
7
LD2.0202.
LD2.0102.
LD0.0081.
10
11
12
13
70 mm
min
60mm
min
60mm
14
3
9
1
2
9a
LD0.0081.
LD2.0202.
LD0.0081.
LD2.0202.
B
B
B
A
AA
A
A
A
A
A
A
202004_Ma-Nosag-DHL-Plus.indd 3 07.05.20 14:58

16a
16b
1
180°
2
B
5. Pege und Reinigung / Cleaning and care / Entretien et nettoyage / Cura e pulizia
pH 8-9
pH 8-9
25°
max. 40°
CL
alk.
18a
kg
kg
kg
kg 1
2
30-40°
18b 18c
2
1
kg
kg
kg
kg 1
2
max. 0,75 kg
15 16
17
15a
Click
16c
B
BA A
Rev. 4 / 22.04.2020
Nosag AG / Siloring 9 / CH-5606 Dintikon / Switzerland / Tel: [phone] / www.nosag.ch
