Nouveau Kitchens DW101N User manual

12-Place Setting Dishwasher
Code: 0120503609
DW101NWH
DW101NSS

.1.
Safety Is Very Important
Close-up View (Control Panel)
"Fast" Button
"Eco" Button
"Half Load" Button
Handle For Opening Door
F
G
H
I
A
B
C
D
E
POWER Light
POWER Button
Water heating Indicator Light
Low Rinse Aid Indicator Light

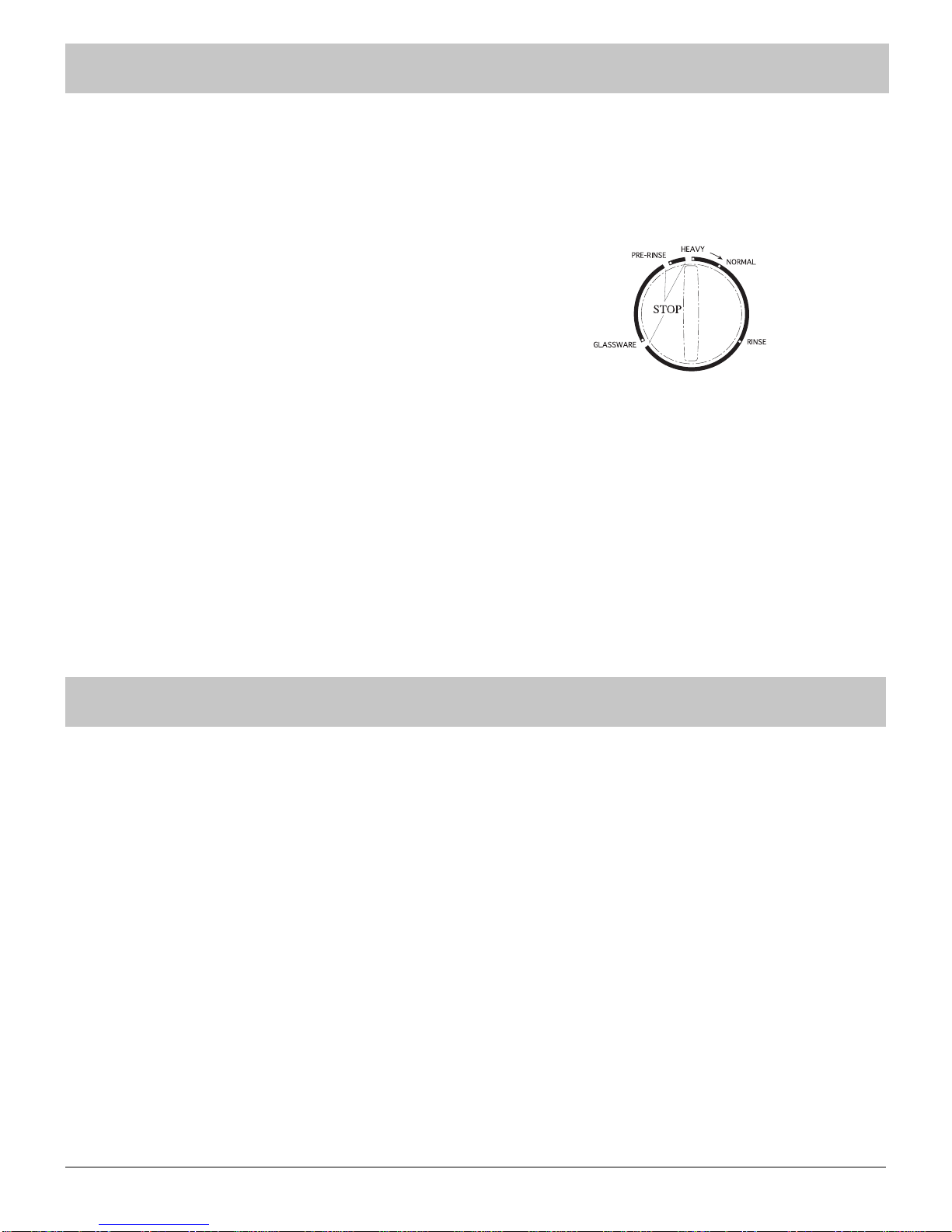

Knob For Selecting Cycle
Carefully read the instructions contained in this manual, as it pro-
vides information that is essential to safe and proper installation,
use and maintenance of this appliance.
This appliance complies with the following EEC
directives:
-73/23/EEC of 19/02/73(Low Voltage)and subsequent
modifications;
- 89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications.
- Carefully remove and dispose of the packing material.
- Check to make sure that the appliance is not damaged. If in
doubt, contact the retailer it was purchased from.
- This dishwasher is designed for washing household dishes and
cooking utensils.
- Do not install this appliance outdoors exposed to the rain and
elements, even if a roof covers the area.
- Do not lean or sit on the door when it is open, as it may overturn
the dishwasher.
- Do not touch the heating element during or after a wash cycle.
- If the appliance malfunctions, turn off water supply to the appliance
and disconnect the plug from the wall socket and refer to the
section entitled, "Troubleshooting". If you cannot solve the problem,
contact an authorised service centre.
- Only selected service centres are authorised to make repairs.
- Any appliances being discarded must be made inoperable by
cutting the power supply cord and removing the door lock.
- If the supply cord is damaged ,it must be replaced by the manu
facture, its service agent of similarly qualified persons in order to
avoid a hazard.
- The appliance is not instruct for use of young children of infirm
persons without supervision. Young children should be super
vised to ensure that they do not play with the appliance.
- Dishwasher detergents are strongly alkaline. They can be
extremely dangerous if swallowed. Avoid contact with the skin
and eyes and keep children away from the dishwasher when the
door is open. Check that the detergent receptacle is empty after
completion of the wash cycle.
- Do not use extension cords or multiple sockets.
- The plug must be accessible after installation.
- During installation the power cord must not be bent or flattened
excessively.
- If the appliance is not operating properly,disconnect the
appliance from the power supply.
Warning: Dishwasher detergents can be extremely danger-
ous if swalloeed.Avoid contact with skin and eyes and keep
children away from the dishwasher when the door is open.
Check that the detergent receptacle is empty after comple-
tion of the wash cycle.
To maintain the EFFICIENCY and SAFETY of this appliance:
- Only call a authorised service centre.
- Always use original Spare Parts.
- Children and infirm must be supervised at all times during use of
the dishwasher by an adult.

.2.

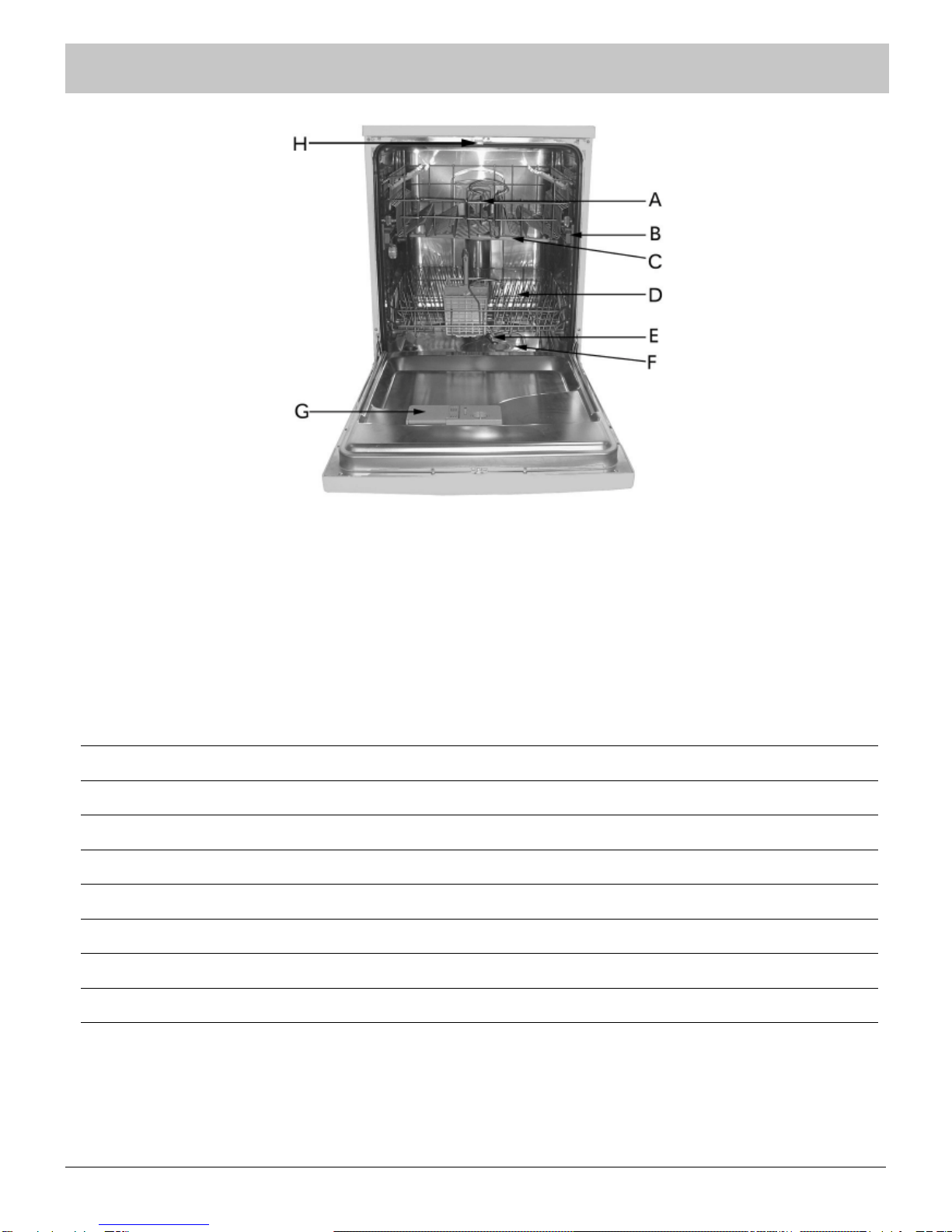

Close-up View (Interior)
A
B
C
D
Upper Rack
Rack Height Adjustor
Top Spray Arm
Lower Rack
E
F
G
H
Washing Filter
Bottom Spray Arm
Detergent and Rinse Aid Dispenser

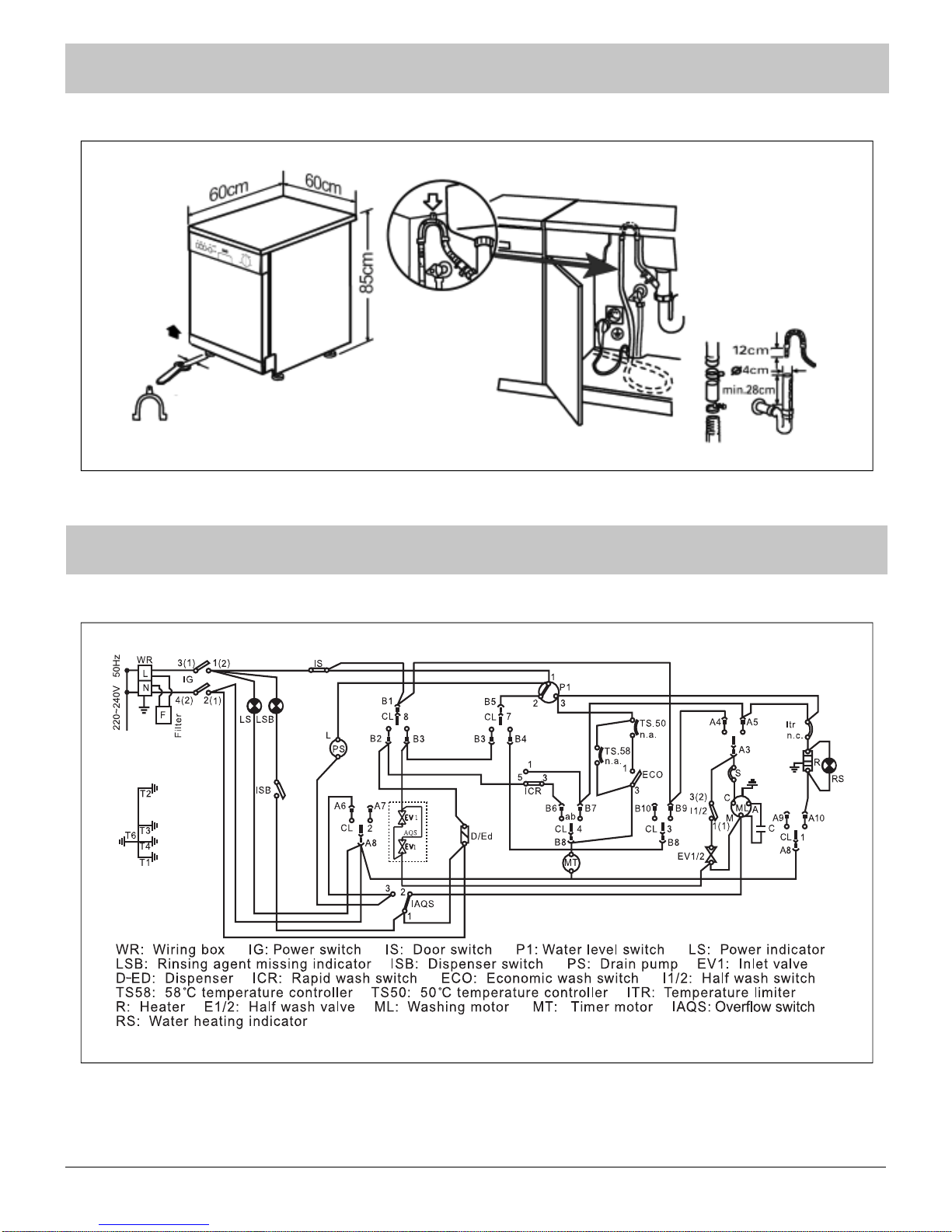

Technical Characteristics
Width 60 cm
Depth 60 cm
Height 85 cm
Capacity 12 standard place settings
Mains water pressure 0.03-0.6MPa
Power voltage 220-240V~ 50Hz
2200W
Total absorber power
Third Sprayer

.3.
Detergent and Rinse Aid


Detergent
Detergent specifically intended for use with dishwashers must
be used. The dispenser must be refilled before the start of each
wash cycle following the instructions provided in the "Wash Cycle
Table". The detergent dispenser is located on the inside panel
the door.
Loading the detergent
To open the "A" cover on the dispenser, press the "B" button.
The detergent for the wash cycle should be poured into the "C"
compartment.
After the detergent has been placed in the dispenser, close the
cover and press down until it clicks in place.
NOTE: To facilitate closing the cover, remove any excess
detergent on the edges of the dispenser.
Rinse Aid
This product makes dishes sparkle and helps them to dry with-
out spotting. The dispenser is located on the inside panel of the
door and should be filled after every 80 wash cycle (or when the
rinse aid indicator light comes on for models with this feature).
Loading the Rinse Aid
To open the dispenser, turn the "C" cap in an anti-clockwise
direction and then pour in the rinse aid, making sure not to overfill.
The amount of rinse aid used for each cycle can be regulated by
turning the "F" dosage adjuster, located beneath the "C" cap,
with a screwdriver. There are 6 different settings; the normal
dosage setting is 1.
Important
Proper dosage of the rinse aid improves drying.
If drops of water remain on the dishes or spotting occurs, the
dosage adjuster should be turned to a higher setting.
If the dishes have white streaks, turn the dosage adjuster to a
lower setting.
F
C
B
C A

.4.
Loading the Dishwasher
Before placing the dishes in the dishwasher, remove any large
food particles to prevent the filter from becoming clogged. A
clogged filter will result in reducing performance.
If the pots and pans have baked-on food that is extremely hard
to remove, we recommend that they be allowed to soak before
they are washed. This will eliminate the need for extra wash
cycles.
Pull out the rack when loading the dishwasher.
How to Use the Lower Rack
We recommend that you place the most difficult to clean items
on the lower rack: pots, lids, serving dishes and bowls, as shown
in the figure to the right.
It is preferable to place serving dishes and lids on the sides of
the racks in order to avoid blocking the rotation of the top spray
arm.
- Pots, serving bowls, etc. must always be placed face down.
- Deep pots should be slanted to allow the water to flow out.
- The silverware basket can be doubled (see fig.A) so that only
one section may be used when the silverware load is light. This
also makes space for additional pots and pans, and it can also
be placed in the upper rack.
- Silverware should be placed in the silverware basket with the
handles at the bottom. If the rack has side baskets, the spoons
should be loaded individually into the appropriate slots. Long uten-
sils should be placed in the horizontal position at the front of the
upper rack.
How to Use the Upper Rack
The upper rack is designed to hold more delicate and lighter
dishware, such as glasses, cups and saucers, as well as plates,
small bowls and shallow pans. It is recommended that dishes
placed in the upper rack are not too dirty .
Position the dishes and cookware so that they do not get moved
by the spray of water.
The upper rack can be adjusted for height by using the knobs
located on the sides of the rack itself (see fig.B).
Lower Rack Upper Rack
Load for 12 Standard Settings
fig.A fig.B
2
1
34
