Introduction
Multimedia Functions
To playback a recorded digital HD file
As this device supports up to 1920 x 1080 progressive scan, you can enjoy playing back
a pre-recorded HDTV program by a digital TV set-top box or person digital video
contents taken by a HD camcorder with fantastic displaying quality.
To support various video formats
This device supports various latest video formats such as a pre-recorded HD file(tp, ts),
WMV9, WMV9 HD, MPEG1/2, MPG, MPEG4(DivX, Xvid), etc.
DVD JUKE BOX Function
As this device supports ISO file and IFO file, you can store DVD titles in it and playback
those files just like DVD Player. You can store various DVD titles into this device and
manage them forever and easily.
Auto Playback, Bookmark and Section Repeat Functions
After one file playback is ended, the next file (different in file name only) is play-backed
automatically. If you mark a specific position of a movie during playback with
“BOOKMARK” button of remote controller, you can start from the marked position again.
The function of ‘Section Repeat’ lets you repeat a specific section. Section Repeat
function is useful for language study or enjoying sports moving pictures.
Music JUKE BOX Function
As this device supports various music files like MP3, Ogg Vorbis, WMA, M3U and PLS,
you can store these files in it and enjoy them with easy. And, in case that you make its
own playlist by using ‘JUKE BOX CREATOR’ function, you can enjoy music files
(playlisted) as background music(BGM function) with easy and convenient.
Digital Photo Album
You can enjoy photo with this device together with your family through big screen of TV
in your living room, as this device has ‘Photo Slide Show’ and ‘BGM(Background Music)’
functions.

- 5 -
Input/Output Functions
Digital Audio Output and 2CH Down Mix
This player can output digital audio signal (high quality audio sound signal like AC3,
DTS) So, you can enjoy high quality sound without any loss of sound. And, as this
device supports 2CH down mix, users who have 2CH speaker only also can enjoy multi
channel audio track..
High Quality HDMI Connector
As this device has HDMI connector which output high quality digital and audio signal,
you can enjoy high quality display and sound without any distortion.
Streaming through Wired/Wireless Network
Without the procedure to copy files from PC to this device through USB cable, you can
stream various media files in your PC to it and playback them back with TV directly
through its Network solution.
Installed Wireless LAN Module and Antenna
As this device has Wired LAN as well as Wireless LAN module which supports turbo
function, WEP security function and high sensitive 5dBi antenna, you can connect this
device easily with any wireless network environment.
HOST USB2.0 lets you connect with various external USB devices
As this device has two (2) USB2.0 HOST, you can attaché various external USB devices
such as external HDD, USB memory, digital camera, etc.
External Mass Storage
As this device works perfectly as an external USB mass-storage for your PC through
high speed USB2.0, you can store huge data in it and manage it with easy.

- 6 -
Kinds of format to be supported
Video MPEG1/2/4, XviD, DivX, WMV9, WMV9HD, H.264, HD File(.tp, .trp, .ts),
.MKV, .WMV, AVI, .ISO, .IFO, .VOB, .MPG, .ASF, .DAT
Subtitle SMI, .SUB, .SRT
Audio MP3, WMV, WMA, Ogg Vorbis, AC3, PCM, DTS
Picture JPEG, BMP, PNG, GIF
Needed minimum transferring rate
Format Wired, Wireless LAN USB2.O(HOST)
MPEG1/2 12Mbps 10Mbps
DivX, Xvid 1.5Mbps 1.5Mbps
WMV9 8Mbps 8Mbps
• Even though a video file format is corresponding to the above table, the video file may
not be played-back properly in case that the resolution and transferring rate of the
video file is over specific value.
• Although a video file format is corresponding to the above table, the video file may not
be played-back properly according to the speed(performance) of external USB devices
or the speed(performance) of the devices to compose a network environment.
• Even though video file format is one of the above classification, the file is not played if
the file is encoded with GMC or QPEL option.
• AVI(Audio Video Interleaved) is a container format. This means that it may contain
many different combinations of codec. So, even if this device supports most of AVI files,
but, there could be AVI files not played back properly by this device
• Subtitle is supported properly in case only that the file name of subtitle is exactly same
as that of the moving picture.
• The audio file encoded with copy protection technology is not played back properly.
• Even if this device can playback 2048 x 1352(JPEG), it may not work properly if the
JPEG size is over 1920 x 1080.

- 7 -
TV OUT set-up and change
TV Standard for each country
Korea, North America Europe and else
NTSC PAL
※TV out mode is originally set as PAL/Composite

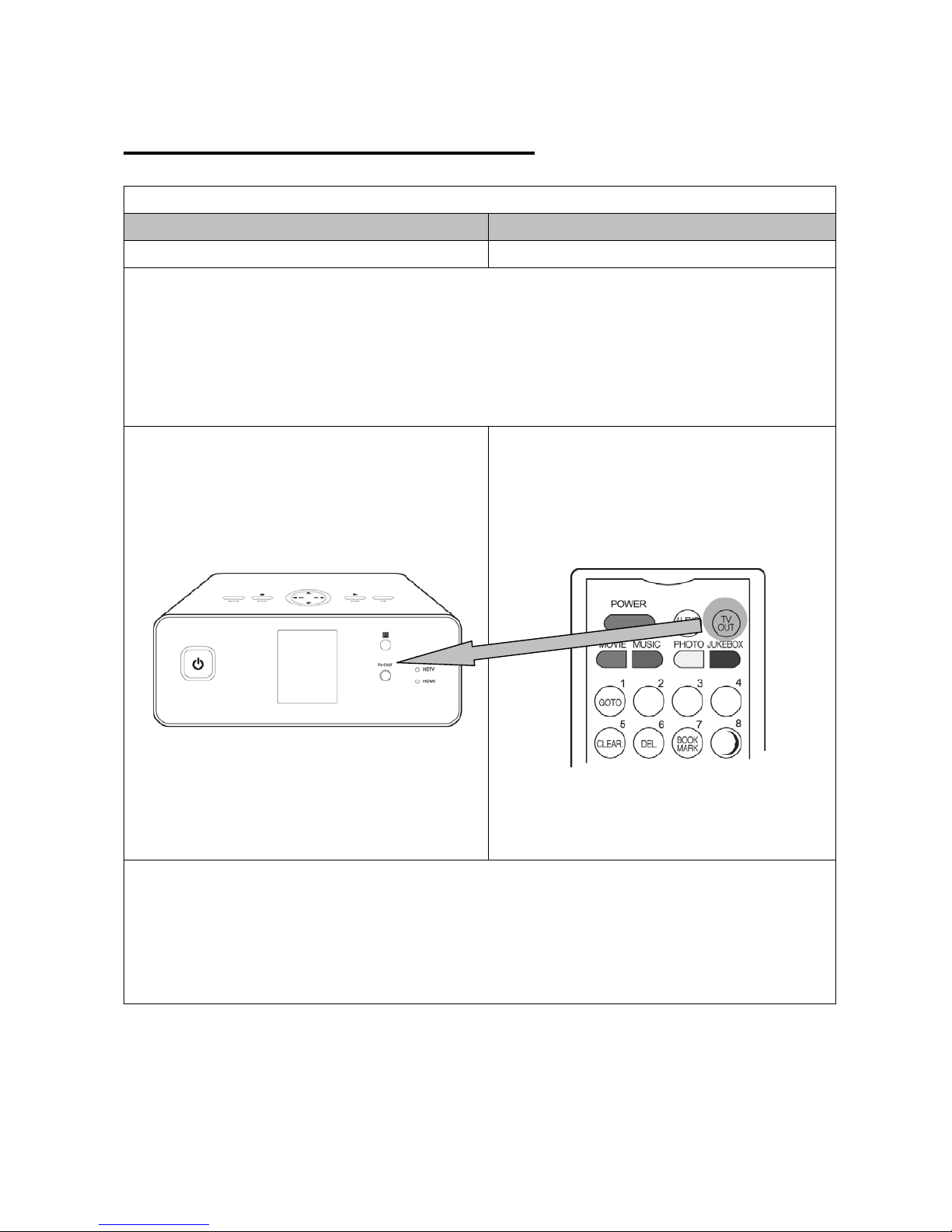

※If you want to change TV out mode, you can use TV OUT button of remote controller or TV OUT button
of the front side of this device
※LED light of the front side of this device moves to corresponding position when you press TV OUT
button with 2~3sec time interval.
Front LED
TV OUT button for changing TV Out mode
Reference
※Each pressing TV OUT button : PAL(Composite)Î480p(Component)Î576p(Component)Î
480p HDMI Î576p HDMI.
You can change and select more subdivided TV out mode in SET UP menu※
In case of no dis※play on TV screen, try pressing TV OUT button several times to fit TV OUT mode

- 8 -
LCD-Display Information
This section allows you to playback the music file without connecting this device to
TV.
Main Menu
All the options of this screen may be chosen by
pressing the function button of remote controller and
please refer to “PART3 – Structure of Remote
Controller” on the usage of remote controller.
This option allows you to see the list of movie or picture
file but playback the selected file.
Sub Menu
Select each icon
Change the mode of music playback
Refresh
Create JUKEBOX
Playback JUKEBOX music subsequently
Stop played JUKEBOX music
Playback previous music from played one
In JUKEBOX
Playback next music from played one in
JUKEBOX
Exit the mode
Edit JUKEBOX
Delete the selected file

- 9 -
Precautions

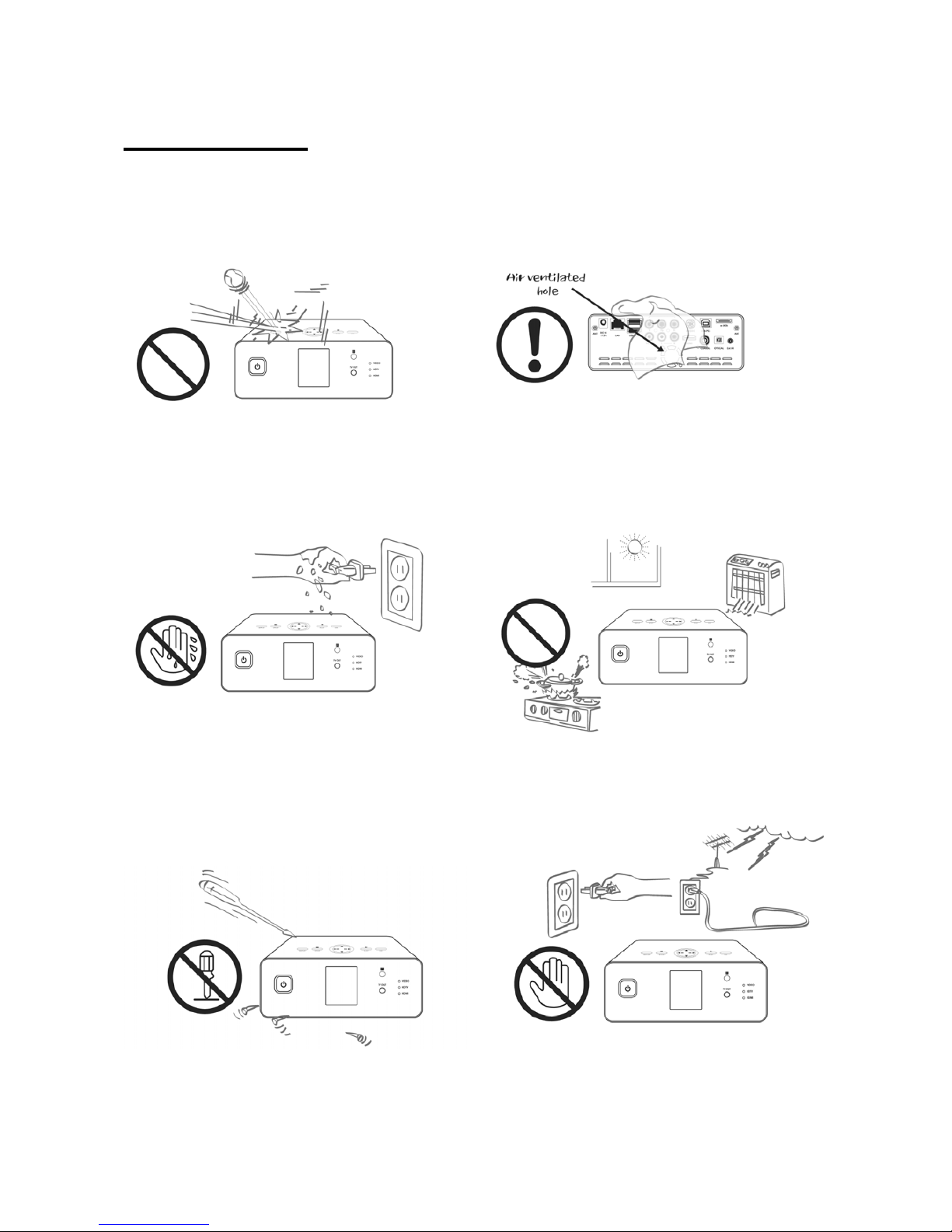

Do not drop or give a shock. It may cause
serious damage to internal Hard Disk Drive.
Keep it away from high temperature, high
humidity, nearby magnetic filed and direct
sunlight.
Do not block a ventilation opening
Keep it unplugged during lightning storms or
when unused for long period time.
Do not try disassembling. It may cause an
electric shock, defect or unexpected problem.
For installing or changing HDD, you may open
the door on bottom side.
Do not touch the plug of the AC power cord
with wet hands

- 10 -
•Make sure that you have to use the AC adapter supplied together with this device. If
not, it may cause unexpected problem like breakdown, fire, etc.
•In case that this device is used or left in a completely covered and high temperature
space(like in a car) for long time, it may cause unexpected problem.
•Do not see the light of OPTICAL connector directly. It may have a bad effect on your
eyes.
•In case of no use for long time, get rid of battery from remote controller.
•To clean the exterior of this device, soak a soft cloth in a mild detergent solution diluted
with water, tightly squeeze the cloth to remove the excess liquid, wipe the affected area
of the exterior, and finish by wiping with a dry cloth.
•Make sure that this device is not powered off suddenly during its working (playing-back,
file transferring, firmware upgrading, etc). In case of sudden power-off during working,
you need to check HDD with Windows utility (Scan Disk) after connecting with your PC
system.

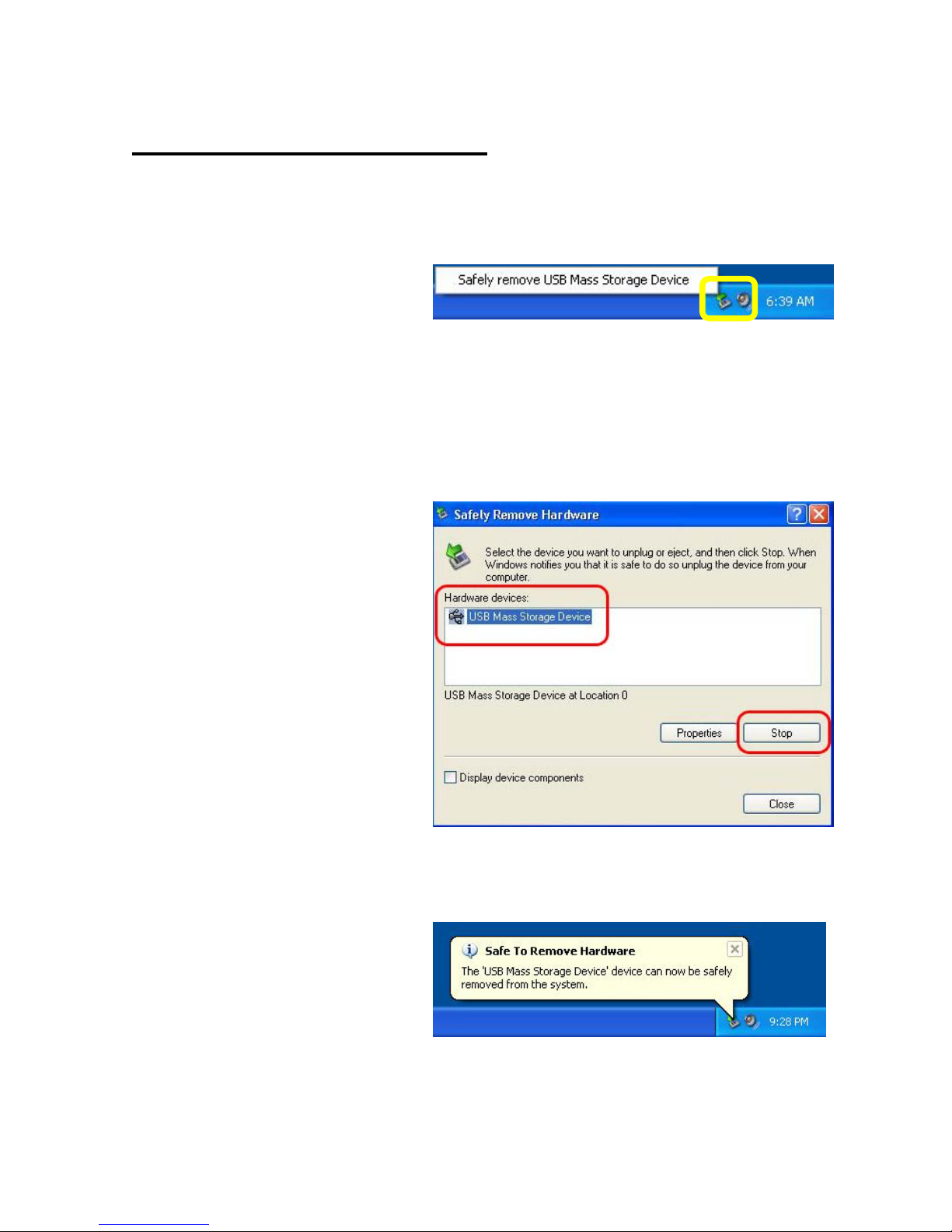

•When you try disconnecting the USB cable between this device and your PC system
after finishing jobs, make sure to follow ‘USB device safety removal’ procedure.
•When try connecting HDD to SATA cable, S-Video cable, HDMI cable, be careful not to
give some damage to pins of each connector.
How to handle and other precautions

11
Name of each point – Top & Front
Button of top side
Button & LED of front side
OK BUTTON
PLAY/PAUSE BUTTON
Direction,
REW/FWD and
+15/-15sec move
Button
(▲, ▼, ◀, ▶)
SETUP Button
STOP Button
IR receiver
Power(On/Off) Button Video
HDTV
HDMI
TV OUT Button
2” TFT-LCD Display

12
Name of each point – Rear Side
Composite Video Connector
Audio Connector
(L / R)
USB Host Port
Power12V DC
Component Video Connector
(Y / Pb / Pr)
e-SATA Interface Port
For Wireless Antenna
USB Connector for PC
S-Video Connector
Wired LAN Port(RJ-45)
HDMI Connector
Digital Sound Coaxial Connector
Digital Sound Optical Connector
External IR Receiver
Connecto
r

13
Contents in package
Below items are in the package of this product
□Remote Controller □AAA size Batteries
□User’s Manual □12V DC Power Adaptor □Poewr Cord
□A to B USB Cable □Composite AV Cable □Component Video
□5dBi Wireless Antenna
(Wireless Model Only)
□Unit

14

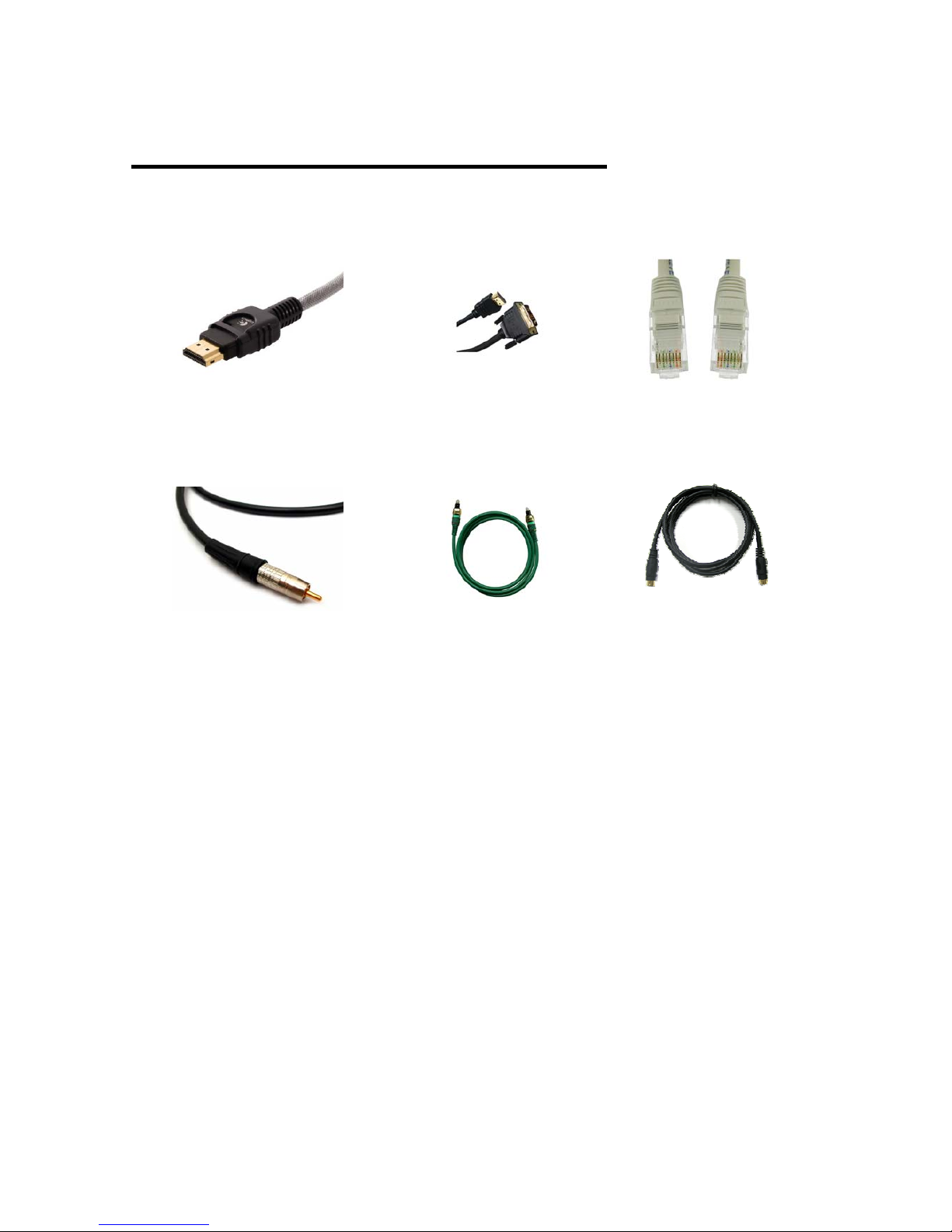

Accessories available at shops
If below accessories is needed, you can buy them at shops by yourself.
□HDMI to DVI Converter
□Coaxial Cable □Optical Cable □S-Video Cable
□HDMI Cable □LAN Cable

15
Preparation for Usage
To introduce preparation before you enjoy this device.
Procedure
1. Check whether all accessories are supplied properly.
2. Install HDD(Hard Disk Drive) into this device according to the procedure of HDD
installation(※note : HDD jumper should be set as Master)
3. Connect AC adapter into this device, and connect it with PC through USB cable
4. Power on this device (with power button of top side, or with power button of remote
controller)
5. In case that the installed HDD is not formatted, please format it first according to
normal HDD format procedure
6. Copy media files in your PC to the HDD of this device.
7. After finishing copying files, disconnect this device from your PC system
8. Connect this device to TV set and(or) to audio system
9. Power on this device and change set-up value in SET-UP menu if needed. It is
recommended that it should be rebooted if you set up Network newly
10. Now, you are ready to enjoy this device freely
HDD Size HDD Type HDD Capacity HDD RPM HDD buffer
Memory
3.5” SATA HDD SATA I or II
Any capacity
available in
market
Over 7200 RPM Over 8M
Kinds of HDD to be installed

- 16 -
HDD Installation
1. Push the locker to the direction(“OPENÎ).
Open up the HDD door slowly.
4. Fix HDD with HDD fixture like below picture.
2. There is HDD fixture inside. Push it
forward(#1) slightly and pull it up(#2).
5. Connect SATA cable and power cable
like picture.
6 Close HDD door and push the locker to the
direction(“ÍCLOSE”).
3. . Insert HDD carefully inside this device
laid down slightly to minimize
impact to HDD.

- 17 -

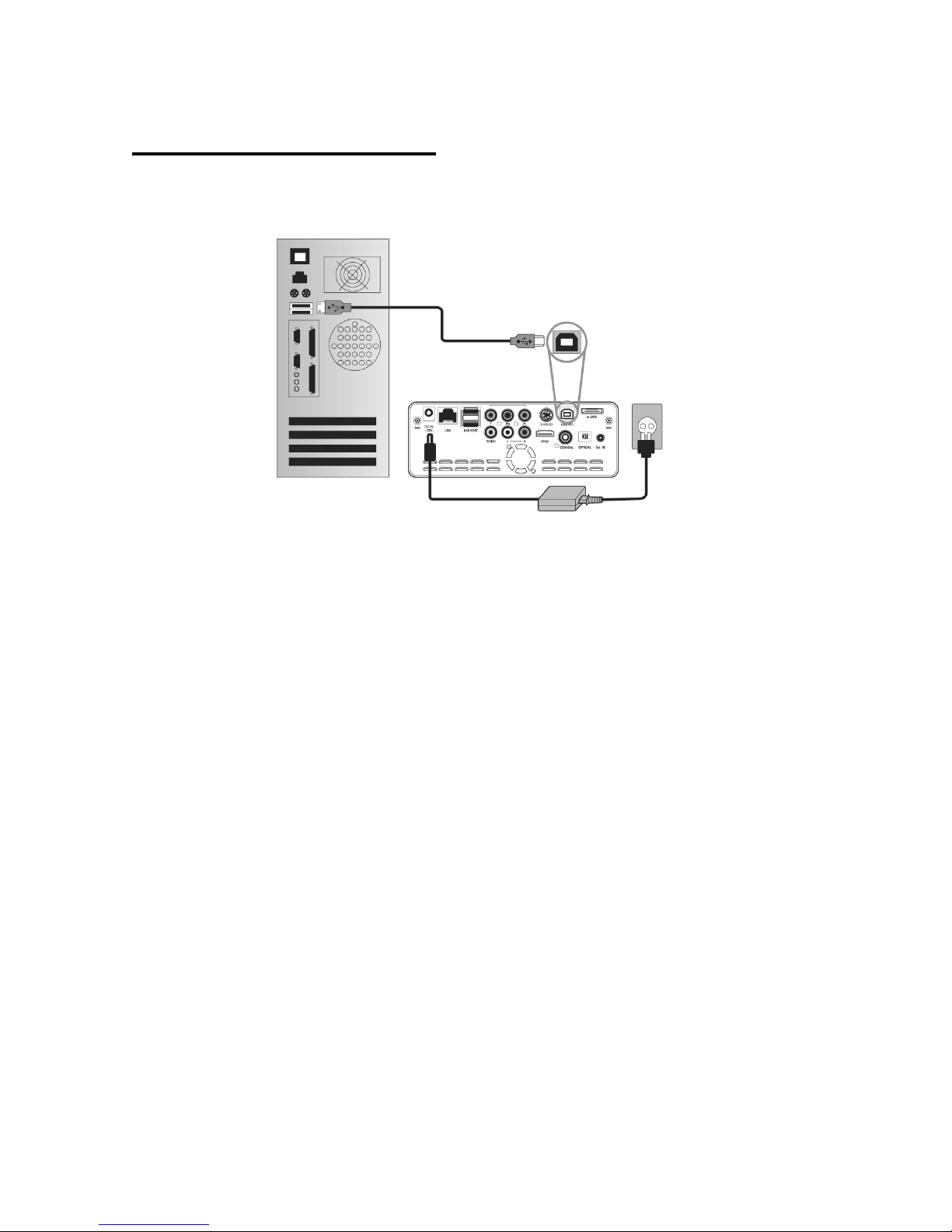

To copy files in your PC to this device, follow below procedure.
For Windows ME/ 2000/XP/Vista Users
1. Power on your PC system.
2. Connect this device to your PC with USB Cable. Connect AC adapter to this device. And power it
on.
3. Wait until your PC recognizes this device as USB mass storage.
4. Check whether this device is properly recognized as USB mass storage by clicking and opening
“My Computer” on Windows.
For Windows 98SE Users
1. Before connecting this device to your PC, you need to install Driver for Windows 98SE to your
PC. You may download the Driver for Windows 98SE from our website
2. After downloading it, unzip it and run the file
3. Connect this device to your PC with USB cable. And connect AC adapter to this device and
power it on. Wait until your PC recognizes this device as USB mass storage.
4. Check whether this device is properly recognized as USB mass storage by clicking and
opening “My Computer” on Windows.
Connecting with PC

- 18 -
Follow below procedure to copy folder and file from PC to this device.
• If the HDD has no partition or the HDD is not formatted, you need to do it first.
-We recommend NTFS instead of FAT32. this device supports multi partitions.
-Note : Primary partition should be over one(1)
※For HDD partition, refer to Chapter 6.
• When you make folder in the HDD of this device, it is recommended that you make
folders like ‘MOVIE’, ‘MUSIC’, ‘PHOTO’. And, you copy files to each folder
corresponding to kind of file.
- ‘MOVIE’ folder responds to ‘MOVIE’ button of remote controller and ‘MOVIE’ icon of main
menu.
- ‘MUSIC’ folder responds to ‘MUSIC’ button of remote controller and ‘MUSIC’ icon of main
menu. And, ‘PHOTO’ folder is also same.
- You may make any name of folders freely.
• Do not store too many files into one folder.
- It is recommended that you make several sub folders and store files divisionally.
- In case that you did HDD partition with FAT32, it is recommended that you do not store
over 3GB files into one folder.
• In case that file name(folder name) is too long or has so many specific characters,
blanks or period marks, the file(folder) may cause some problem.
- In this case, change or reduce file (folder) name.
• Moving picture file and subtitle file should be in same folder.
-Moving picture file and subtitle file should be in same folder. And, both files name should
be same except for ‘extension name’.
Disconnecting this device from PC after
finishing file copy
After finishing file copy, make sure that you need to next page procedure for
disconnecting this device from PC. Otherwise, copied files may have some damage.
To create folder and to copy files

- 19 -
When try disconnecting USB cable between this device and PC, make sure to follow
below procedure.
1. Do double-click the icon of “Safely
remove USB……”.
2. Click “Stop” button after selecting
“USB Mass Storage Device”..
3. When the message like picture is
shown, disconnect USB cable
between this device and PC.
Disconnecting from PC
