NOVOQUAD NC-TT001 User manual

ROBOT VACUUM CLEANER
NC-TT001
Let NOVOQUAD brand robot
vacuum cleaner enter your family
and make your life better.
Please read this manual carefully before using!

CONTENT
1. MAIN SPARE PARTS NAME----------------------1
2. SAFETY NOTICE-------------------------------------1
3. DISASSEMBLY BATTERY--------------------------2
4. RECHARGEABLE BATTERY-----------------------2
5. INSTALLING OPERATION METHOD OF
CLEANING PLATE-----------------------------------3
6. CLEANNESS AND MAINTENANCE--------------4
7. FAULTS AND REPAIRING -------------------------5

MAIN SPARE PARTS NAME
3 2 1 10
12
9 11
13
8 17
5 7
15
6 16
18 19 20 21 22
1,Switch 12,Universal wheel
2,Charge cover 13,Dust absorbed Place
3,Battery cover
15,Right wheel
5,Air outlet 16,Back wheel
6,Baffle-plate 17,Wiping board
7,Red indicator lamp 18,A set of rechargeable battery (inside the battery cover)14.4V 800mAh Ni-Mh
19,A wiping board (at the bottom of the dust catcher)
8,Green indicator lamp 20,A Synopsis
9,Dust box button 21,A Charger
10,Dust box 22,One piece of board wiping cloth
11,Left wheel
SAFETY NOTICE
Please read the operation instructions carefully before using and take it as the reference of the following operation. Using
in accordance with the operation instructions to avoid dangers, such as fire, electric shock and bodily injury. Safety rules
are as follows:
1, Read the operation instructions carefully before using.
2,Do not use it outdoor.
3,Do not use it in humid room like bathroom and laundry. Keep it away from water and other liquids so as to avoid
damage.
4,Put clear up the clothes, newspaper and electric lines that scattered on the floor to avoid the potential danger before
using it . Make sure that it works in flat floor.
5,Do not sit or stand on the dust catcher. Do not use it in front of children or pets. Especially don’t let the children operate
or play with it.

6, 2 seconds after started to work, the dust catcher has the function anti-falling, make sure to keep in mind.
7, Do not use it to absorb cigarette butt which didn’t gone out.
8,Please close the door of the washing room , when the cleaner works in the next room.
9,Don’t block up gas vent so as not to injuring the machine.
10,Stop using it if the dust catcher doesn’t work or is damaged.
11,If you don’t use it for a long period of time, turn off the power and take off the battery.
12,Assure that is turned off if you restore and clear the product.
13,Don’t use it in the place above average or operating dust (such as cement dust and plaster powder, etc),otherwise the den
catcher’s life will be shortened even damage it.
14,Forbid absorbing sharp things.
DISASSEMBLY BATTERY
1,First press the lock of battery cover. 2,Open the battery cover.
Press the
lock
Pull out the
battery cover
3,Carry the battery like the picture shows and
insert the battery plug into the
socket. Put the
battery in the box.
4,Close the battery cover
RECHARGEABLE BATTERY
1, Battery is chargeable. Please make sure the voltage the name plate shows is the same as the voltage you are using It
can only be charged indoor.
2, When charging for the first time, it should be charged for 12 hours. After that it normally charges for 6 hours.
3, Make sure that the dust catcher is powered off before insert the battery.
4, The other end of the plug is inserted into alternating current socket.
5, Use the charger attached.
6, Don’t use it if the connection of the battery is damaged.
2.
Insert the plug
into the socket
Put the battery

7, Don’t touch the charger, plug or electric wire with wet hands.
8, Stop charging and pull out the plug before using the dust catcher.
9, The green light flickering indicates the cleaner works correctly; the red light and green light flickering in turns when the
cleaner is charging, after both lights flickered and disappeared, the battery is full charged and get ready to work. If the green
light flickering until the battery runs out, then the red light and green light will flickered at the same time to remind there is no
battery.
10, Make sure the virtual battery runs out before the first charging.
11, Charging time is 6 hours, then the machine forced to finish charging itself. Working time is about 25-38mins.

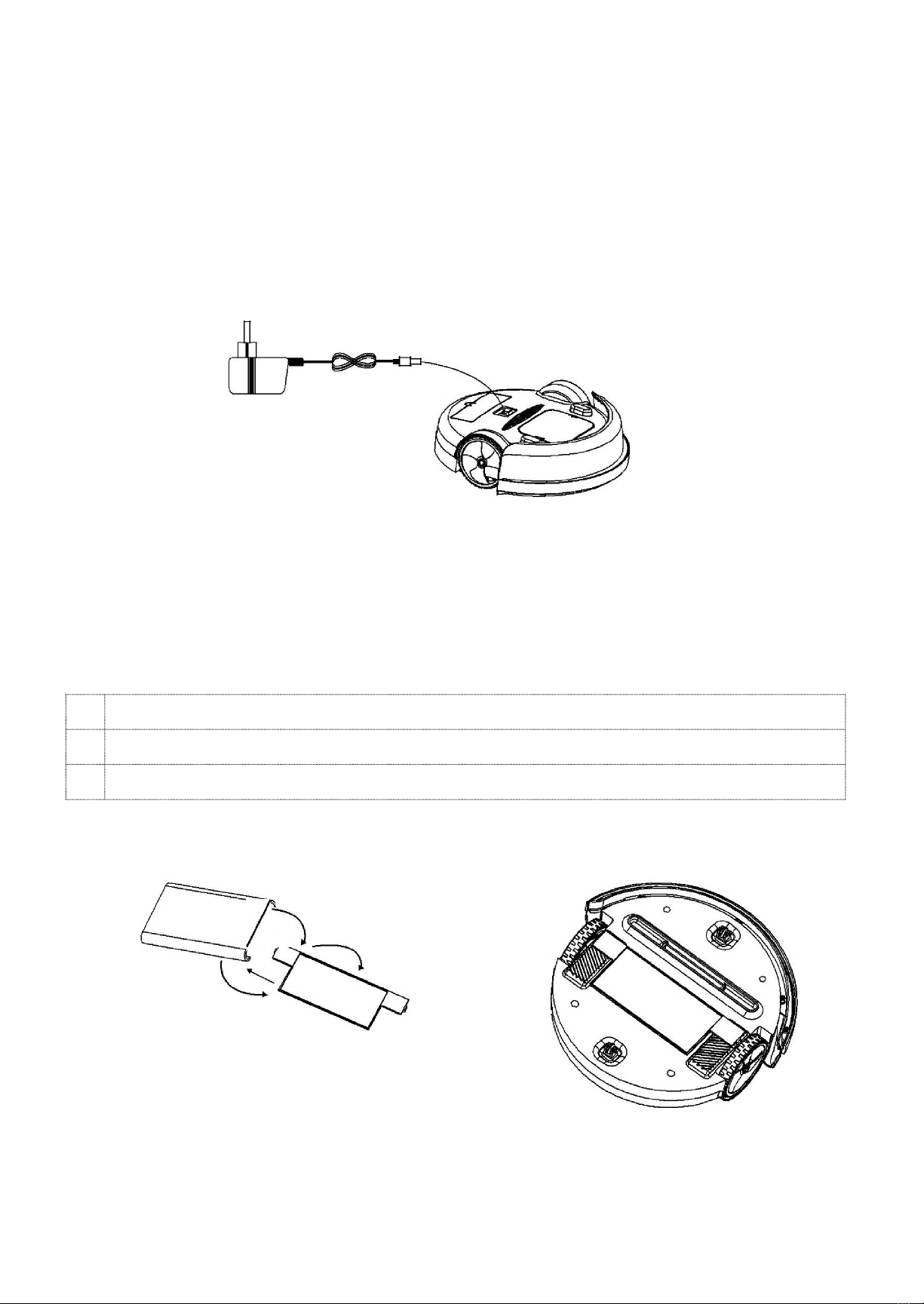

Charger plug(DC18V 200mA)
Charger inserting point
INSTALLING OPERATION METHOD OF
CLEANING PLATE
1 Take out the wiping board and the cloth.
2 Use the screwdriver to insert the four corner of the dust catcher into the fabric clamp as shown in the picture.
3 Install the wiping board to the cleaner.
Bottom surface
Install direction

CLEANNESS AND MAINTENANCE
After the dust catcher cleans the room, please notice to maintain the machine and clear up the rubbish in the dust box．
The concrete operation procedure are as follows:
1,Press left and right buttons, at the same time and the dust box will spring
2,Take out the dust box and put the dust catcher to a safe place .
3,Open the dust box cover.
Draw back a corner gently
5,Pour the rubbish in the dust box into the rubbish can.
4,Take out the filtration net.
6,After pouring the rubbish, you can wash the dust box with Water. Brush the dust on the filtration net with toothbrush. Forbid
installing the filtration net and dust box that is not dry on the dust catcher and use it. Forbid use without filtration net and
dust box.

7,Don’t use the vacuum cleaner when the filter is broken, change a new filter. And the filter should be changed every 6
month in order to dust with high efficiency.
FAULTS AND REPAIRING
Trouble Appearance Possible Reason Mending Method
Electrical Machinery Battery plug loose or non-charged Insert the battery plug tightly
Non-rotating or use after charging
Filtration cloth unblocked or not Clear up the dirt on the filtration
cloth
Suction weaken Whether or not there is too much Change or wash filtration cloth
dust or pour the dust
The pipe is blocked or no. Discharge the blocked things
Machine body is
generating heat Generating a little heat is a normal phenomenon
Important! Be sure to power off before checking it.
If the problems mentioned above still exist, please send it to the appointed service center.
If there is any change about the product forgive us not to issue a separate notice
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance。
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
