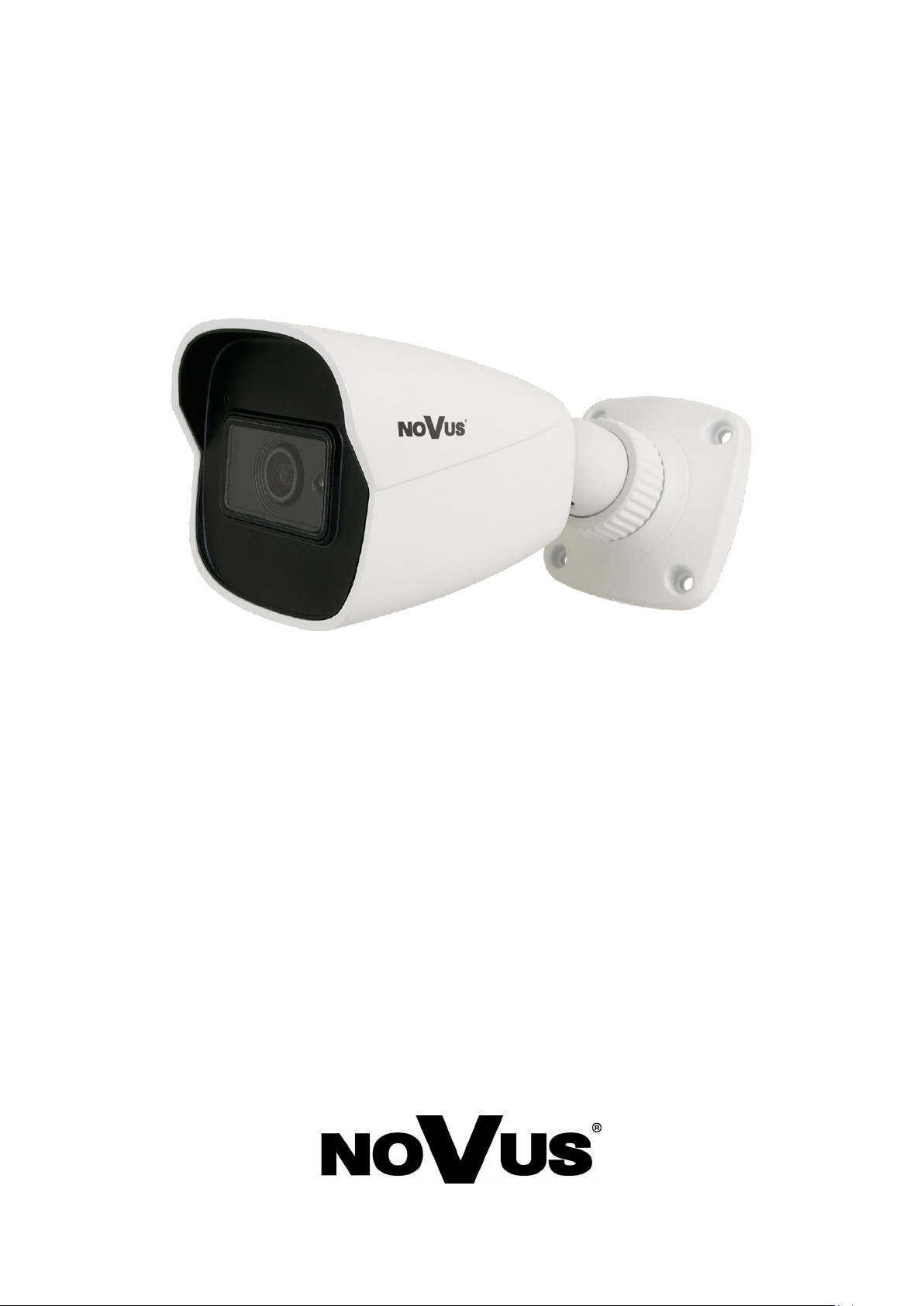

Novus NVIP-2H-6631 User manual

Quick start guide
NVIP-2H-6631

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
2
IMPORTANT SAFEGUARDS AND WARNINGS
THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed
for self installation in households by individuals without technical knowledge.
Excluding of responsibility in case of damaging data on a disk or other devices:
The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other
devices during device operation.
WARNING!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN
PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE
PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE
PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF EXCLUDING
THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN ACTION.
Pictures in this publication showing camera views can be simulations. Actual camera
images may vary depending on the type, model, settings, observation area, or
environmental conditions.
DYREKTYWA PARLAMENTU EUROPEJSKIEGO I RADY 2014/30/UE z dnia 26 lutego
2014 r. w sprawie harmonizacji ustawodawstw państw członkowskich odnoszących się do
kompatybilności elektromagnetycznej (Dz.U. L 096 z 29.3.2014, s. 79-106, z późniejszymi
zmianami) – zwana Dyrektywą EMC.
DYREKTYWA PARLAMENTU EUROPEJSKIEGO I RADY 2012/19/UE z dnia
4 lipca 2012 r. w sprawie zużytego sprzętu elektrycznego i elektronicznego WEEE (Dz.U. L
96 z 29.3.2014, str. 79-106, z późniejszymi zmianami) – zwana Dyrektywą WEEE.
DYREKTYWA PARLAMENTU EUROPEJSKIEGO I RADY 2011/65/UE z dnia
8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych
substancji w sprzęcie elektrycznym i elektronicznym (Dz.U. L 174 z 1.7.2011, str. 88-110,
z późniejszymi zmianami) - zwana Dyrektywą RoHS.
DYREKTYWA DELEGOWANA KOMISJI (UE) 2015/863 z dnia 31 marca 2015 r.
zmieniająca załącznik II do dyrektywy Parlamentu Europejskiego i Rady 011/65/UE w
odniesieniu do wykazu substancji objętych ograniczeniem (Dz. U. z 3 stycznia 2017).
DYREKTYWA PARLAMENTU EUROPEJSKIEGO I RADY (UE) 2017/2102 z dnia
15 listopada 2017 r. zmieniająca dyrektywę 2011/65/UE w sprawie ograniczenia
stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i
elektronicznym (Dz. U. z 10 lipca 2019).

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
3
IMPORTANT SAFEGUARDS AND WARNINGS
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER
DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH
THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER
-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL
MAY OPEN THE UNIT
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
1. Prior to undertaking any action please consult the following manual and read all the safety and operating
instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is
necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct
influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s
manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer is forbidden;
7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,
damp basements);
8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not
recommended since it may lead to heat build-up and damaging the device itself as a consequence;
9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly
mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted
by qualified personnel with proper authorization, in accordance with this user’s manual;
10. Device should be supplied only from a power sources whose parameters are in accordance with those
specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera
from a power sources with unknown parameters, unstable or not meeting producer’s requirements;
Due to the product being constantly enhanced and optimized, certain parameters and functions
described in the manual in question may change without further notice.
We strongly suggest visiting the www.novuscctv.com website in order to access the newest manual.

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
4
TABLE OF CONTENTS
TABLE OF CONTENTS .................................................................................................... 4
1. FOREWORD INFORMATION................................................................................... ..5
1.1. General characteristics ........................................................................................ 5
1.2. Technical specification .................................................................................... ...6
1.3. Camera dimensions .......................................................................................... ...7
1.4. Package contents .............................................................................................. ...7
2. START-UP AND INITIAL IP CAMERA CONFIGURATION ................................. 8
2.1. Description of connectors and control tools........................................................ 8
2.2. Ethernet cable connecting .................................................................................. 9
2.3. Camera mounting .............................................................................................. 10
2.4. Starting the IP camera ....................................................................................... 11
2.5. Initial configuration via the web browser.......................................................... 12
2.6. Security recommendations for network architecture and configuration ......... 13
3. NETWORK CONNECTION USING WEB BROSWER ......................................... 14
3.1. Recommended PC specification for web browser ............................................. 14
3.2. Connection with IP camera via web browser..................................................... 14
4. WWW INTERFACE - WORKING WITH IP CAMERA......................................... 19
4.1. Displaying live video. ........................................................................................ 19
5. ELECTRIC CONNECTORS AND ACCESORIES ................................................. 20
5.1. MicroSD card installation ................................................................................. 20
6. FACTORY SETTINGS RESTORING ...................................................................... 21
6.1. Software factory settings restoring via web browser ......................................... 21
6.2. Software factory settings restoring via NMS IPTool………... ………………..21
6.3. Hardware factory settings restoring ...................... ………………..…………...22

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
5
1. FOREWORD INFORMATION
1.1. General Characteristics
• Sensor resolution: 2.0 megapixels
• Mechanical IR cut filter (IR operation capability)
• Min. Illumination from 0 lx with IR LED on
• Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions
• Digital Noise Reduction (DNR)
• Highlight Compensation (HLC)
• Back Light Compensation (BLC)
• Reduction of image flicker (Antiflicker)
• Lens type: fixed focal, f=2.8mm/F1.6
• Built-in LED illuminator
• Built-in webserver: camera configuration through the website
• Video compression: H.264, H.265, H.264+, H.265+, MJPEG / G711
• Max. video resolution up to 1920 x1080
• Multi streaming: compression, resolution, speed and quality defined individually for each video
stream
• ROI functions
• Motion detection
• Private Zones
• RTSP protocol support for video transmission
• Schedule
• Micro SD card up to 256GB
• Wide range of responses to alarm events: e-mail with attachment, saving file on FTP server,
saving file on SD card,
• Electronic Shutter from 1/2 s to 1/100000 s.
• Supports up to 3 streams
• ONVIF Protocol Support
• Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,
playback and remote IP devices administration
• Video Content Analysis : abandoned object, object disappearance, line cross, scene change, video
blurred, video color cast, intrusion detection
• Power supply: 12 VDC / PoE
FOREWORD INFORMATION

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
6
1.2. Technical specification
FOREWORD INFORMATION
Image Sensor 2 MPX CMOS sensor 1/2.8” OmniVision
Number of Eecve Pixels 1920 (H) x 1080 (V)
Min. Illuminaon 0.005 lx/F1.6 - color mode, 0 lx (IR on) - B/W mode
Electronic Shuer auto: 1/2 s ~ 1/100000 s
Digital Slow Shuer (DSS) up to 1/2 s
Wide Dynamic Range (WDR) yes (double scan sensor), 120dB
Digital Noise Reducon (DNR) yes
Highlight Compensaon (HLC) yes
Back Light Compensaon (BLC) yes
LENS
Lens Type xed focal, f=2.8 mm/F1.6
DAY/NIGHT
Switching Type mechanical IR cut lter
Switching Mode auto, manual, me
Switching Level Adjustment yes
Switching Delay 2 ~ 120 s
Switching Schedule yes
Visible Light Sensor yes
NETWORK
Stream Resoluon 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 480 x 240, 320 x 240
(QVGA)
Frame Rate 30 fps for each resoluon
Mulstreaming Mode 3 streams
Video/Audio Compression H.264, H.264+, H.265, H.265+, MJPEG/G.711
Number of Simultaneous Connecons max. 3
Bandwidth 12 Mb/s in total
Network Protocols Support HTTP, IPv4, IPv4/v6, UDP, HTTPS, FTP, DHCP, DDNS, NTP, RTSP, RTP, UPnP, SNMP,
QoS, IEEE 802.1X, PPPoE, SMTP, RTCP, HTML5, RTMP
ONVIF Protocol Support Prole S/G
Camera Conguraon from Internet Explorer, Firefox, Chrome, Opera, Edge browser
languages: Polish, English, and others
Compable Soware NMS, N Control 6000
Mobile applicaons SuperLive Plus (iPhone, Android)
OTHER FUNCTIONS
Privacy Zones 4 video mask type: single color
Moon Detecon yes
Region of interest (ROI) 8
Video Content Analysis (VCA) abandoned object, object disappearance, line cross, Scene Change, Video Blurred,
Video Color Cast, intrusion detecon
Image Processing 90˚ image rotaon, 180˚ image rotaon, sharpening, mirror eect, corridor mode,
vercal ip, horizontal ip
Prealarm/Postalarm up to 6 s/up to 120 s
System Reacon to Alarm Events e-mail, e-mail with aachment, saving le on FTP server, saving le on SD card
Restoring default sengs via web browser, using reset buon, via NMS IPTool soware

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
7
FOREWORD INFORMATION
75
75
170

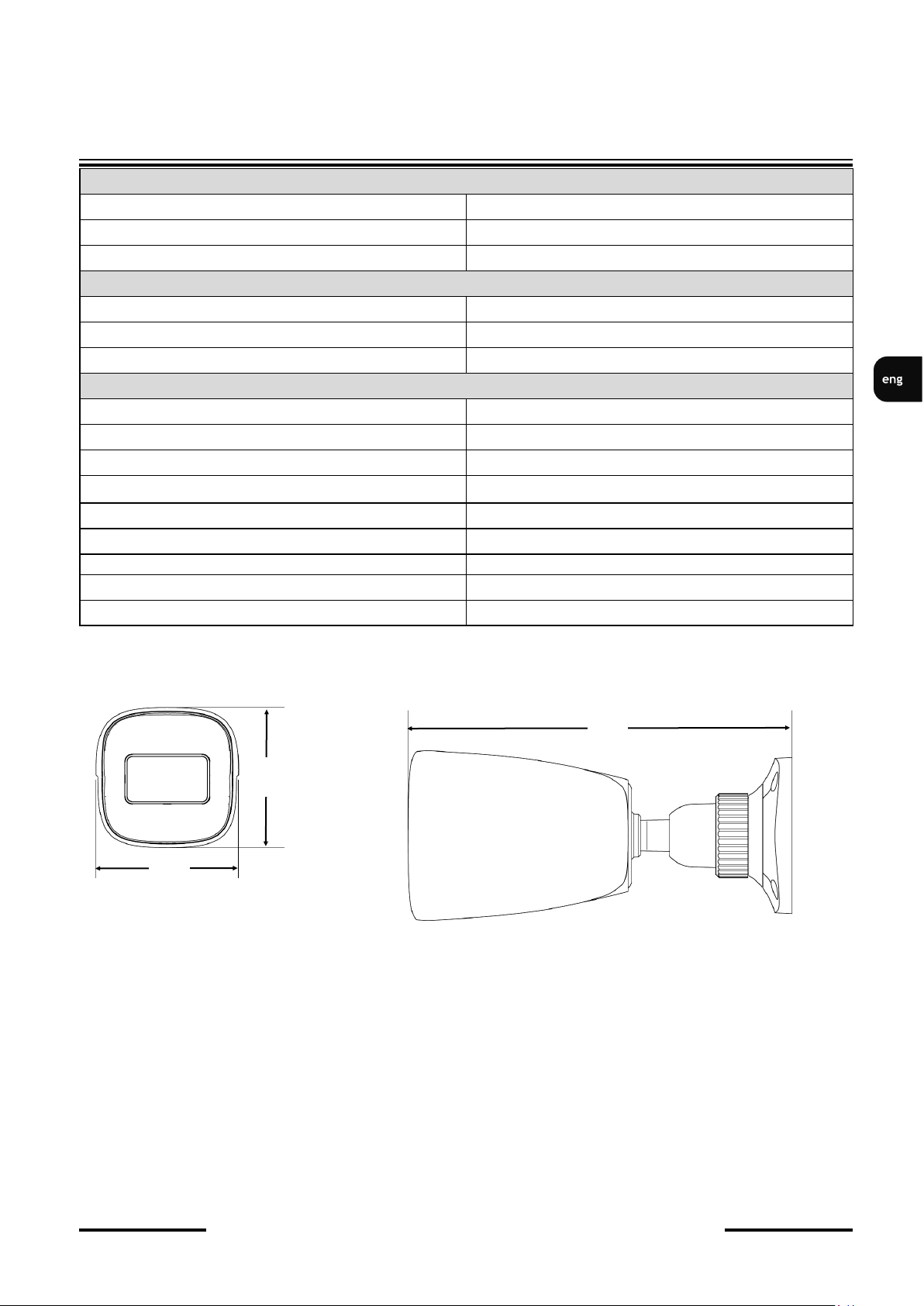

1.3. Camera dimensions (mm)
Camera NVIP-2H-6631
1.4. Package contents
After opening the package make sure that the following elements are inside:
• IP camera
• Accessories bag
• Short version of user’s manual
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
CAUTION!
It is forbidden to use – as the camera power source – PoE equipment (adapters, etc.) not
compatible with IEEE 802.3af standard (items called “passive PoE power supply”). Damages
caused by the usage of improper power supply source are not covered by the warranty.
IR LED
LED Number 1
Range 30 m
Smart IR yes (soware support)
INTERFACES
Audio Input/Output 1 x Jack (3.5 mm)/-
Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Memory Card Slot microSD - capacity up to 256GB
INSTALLATION PARAMETERS
Dimensions (mm) with bracket: 75 (W) x 75 (H) x 170 (L)
Weight 0.45 kg
Degree of Protecon IP 67 (details in the user’s manual)
Enclosure aluminium, white, fully cable managed wall mount bracket
in-set included , IK10 impact rang
Power Supply 12 VDC, PoE (IEEE 802.3af, Class 3)
Surge protecon TVS 4000 V
Power Consumpon 3 W, 6 W (IR illuminator on)
Operang Temperature -30°C ~ 60°C
Humidity max. 95%, relave (non-condensing)

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
8
START-UP AND INITIAL IP CAMERA CONFIGURATION
2. START-UP AND INITIAL IP CAMERA CONFIGURATION
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches
the temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.
2.1 Description of connectors and control tools
1. 100 Mb/s Ethernet port (PoE RJ-45 connector)
2. Audio input (Jack 3.5 mm)
3. Power supply 12VDC
4. Base of camera
5. Counter nut
6. Plastic cover
7. Reset button
8. MicroSD card slot
1
3
678
45
2

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
9
START-UP AND INITIAL IP CAMERA CONFIGURATION
2.2. Ethernet cable connecting
To maintain tightness of ethernet cable connection, please follow instruction below:
1. Unscrew the nut (1) from the connector cover (2).
2. Route the network cable (without the RJ-45 plug) through the components (1) and (2), than crimp the
RJ-45 connector.
3. Plug the RJ-45 connector into the hermetic socket (3), screw the connector cover (2), and than the
nut (1).
CAUTION!
The declared degree of protection of the camera relates to its housing and does not take into
account the possibility of moisture infiltration into the camera by connection cables. Connection
cables protection through i.e. sealing up is the camera installer duty. The manufacturer is not
liable for any camera damages caused as a result of failing in performing that activity by
installer, which also means that camera damaged in that way is not subject to warranty repairs.
CAUTION!
Camera power supply connector is not hermetic. Installer should seal this connector by himself.
Camera can be supplied using external power supply unit corresponding with the camera parameters or
by using RJ45 network socket and PoE (802.3af) power supply unit. If you’re using external power
supply please connect wires according to polarisation shown on picture:
CAUTION!
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors is advised. Any damages resulting from surges are not eligible for service repairs.
12 VDC +
GND
Scheme of 12VDC power supply connector
12
3
1
2

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
10
2.3. Camera mounting

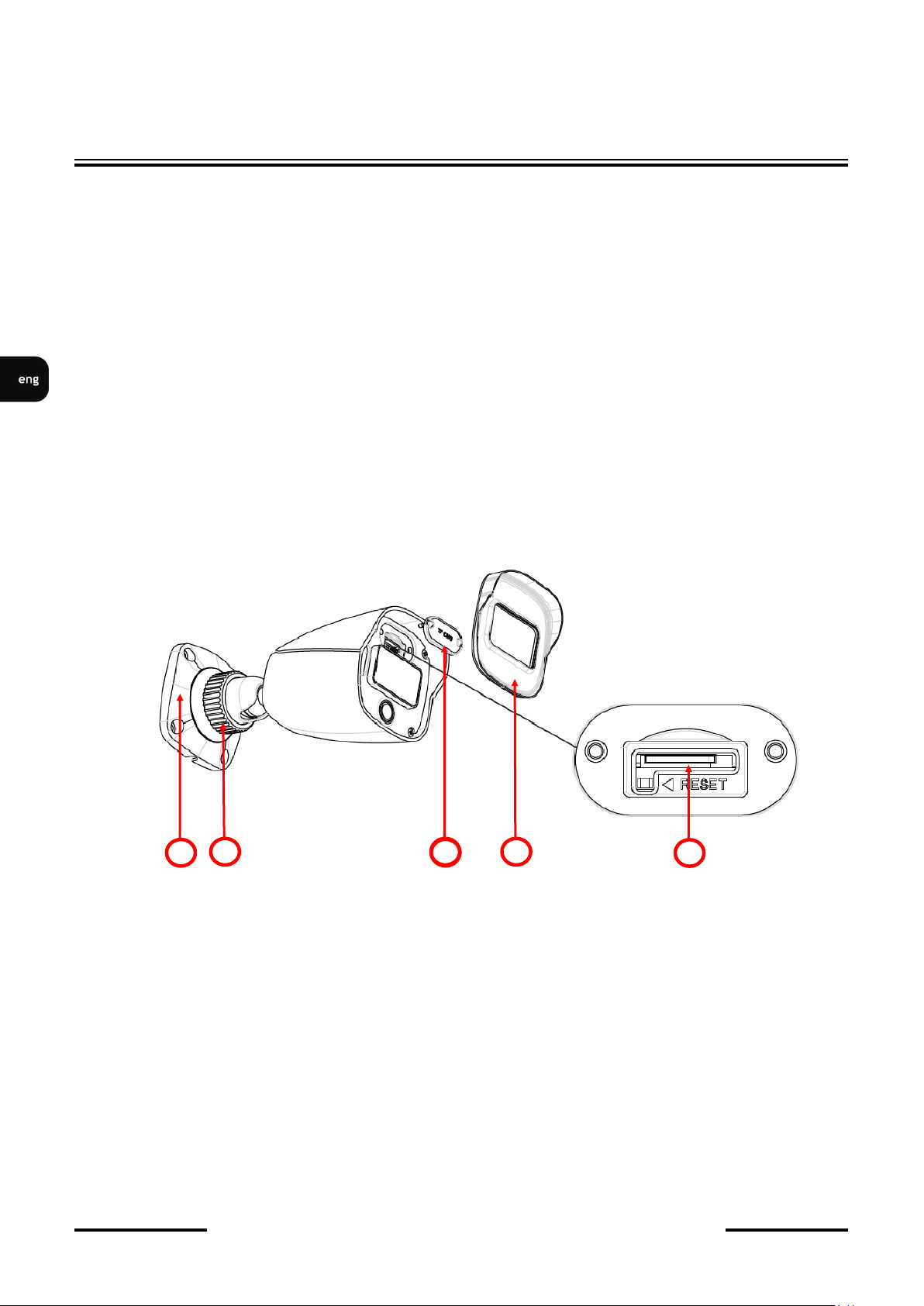

To mount a camera please follow the instructions below:
• Unscrew the counter nut (2).
• Put the bracket to the wall in a desired mounting place (with cable hole). Take the drill pattern
and mark future drilling holes for screws and wires.
• Drill holes for screws, wires and base.
• Mount the camera base (1) using the supplied plugs and screws.
• If necessary, remove the plastic cover (4), unscrew the camera service panel (3), mount
microSD card in the socket (5), screw the camera service panel (3) and put on plastic cover(4).
• Connect the camera wires.
• Adjust camera position.
• Tighten to the stop counter nut (2).
CAUTION!
Please note that the wall or ceiling must have enough strength to carry the IP Camera.
CAUTION!
In order to obtain declared degree of protection please seal the camera bracket to prevent water
getting inside. Furthermore, when installing the bracket on rough/uneven surfaces, please
additionally seal the junction with appropriate sealing mass. Please pay special attention to any
mounting holes and if they are a loop-through ones, seal them too.
START-UP AND INITIAL CAMERA CONFIGURATION
45
123

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
11
2.4. Starting the IP camera
To run NOVUS IP camera you have to connect ethernet cable between camera and network PoE switch
with PoE support (IEEE 802.3af).
You can also power it from 12VDC power supply compatible with camera power supply specification.
The recommended way to start an IP camera and perform its configuration is a direct connection to the
network switch which is not connected to other devices. To obtain further information about network
configuration parameters (IP address, gateway, network mask, etc.) please contact your network
administrator.

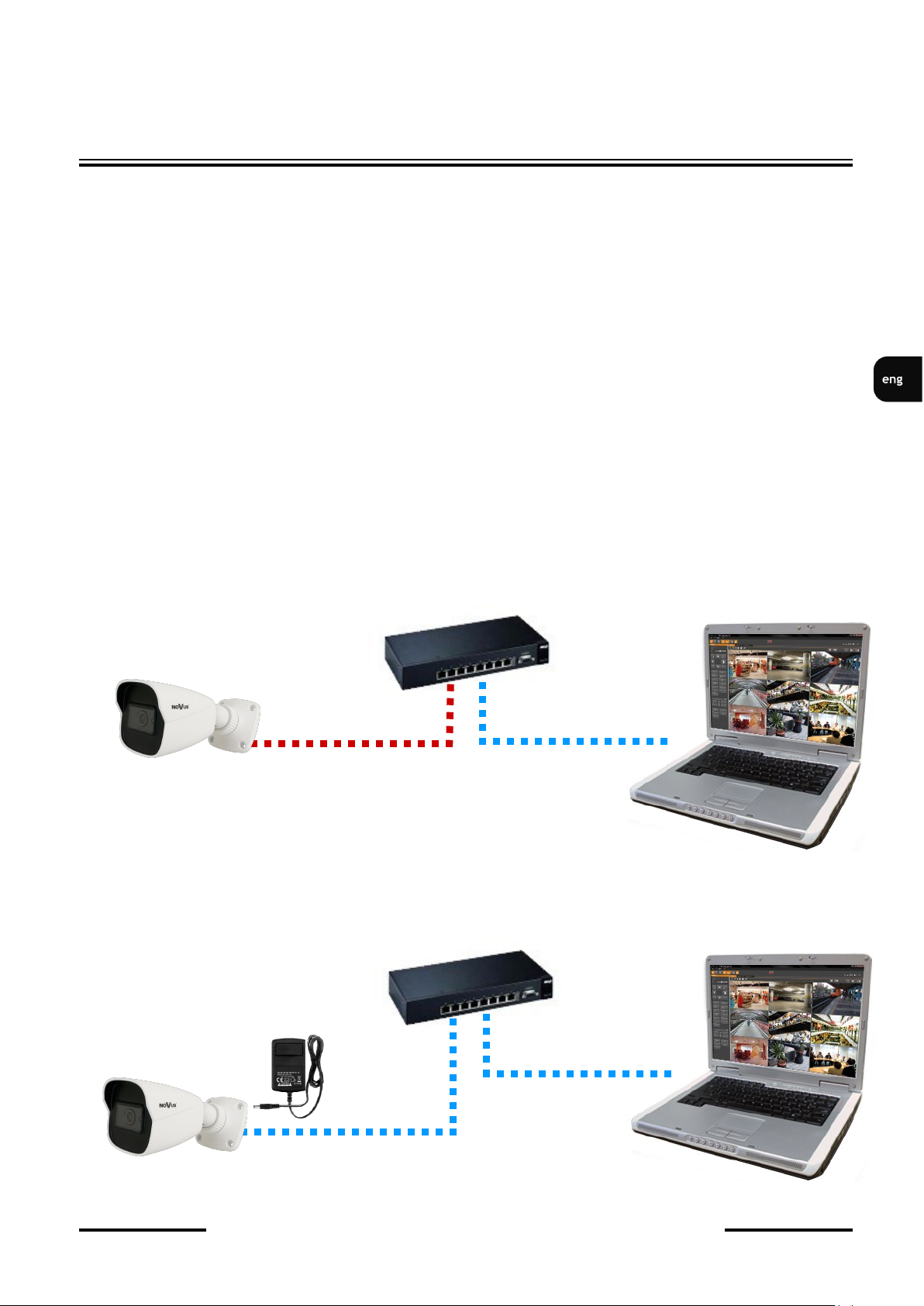

• Connection using network switch with PoE support
• Connection using external power supply and network switch
START-UP AND INITIAL CAMERA CONFIGURATION
IP Camera
Network transmission
Network Switch Computer
Network transmission
Power supply and
network transmission
Computer
IP Camera
Network PoE Switch
Network transmission

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
12
• Connection using external power supply directly to the computer
Information:
Power supply adapter is not included. Please use power adapter with parameters specified in user ‘s
manual.
2.5. Initial configuration via the web browser
The default network settings for NVIP-2H-6631 camera are :
1. IP address - 192.168.1.200
2. Network mask - 255.255.255.0
3. Gateway - 192.168.1.1
4. User name - root
5. Password - pass
Knowing the camera’s IP address you need to appropriately set PC IP address, so the two devices can
operate in one network subnet ( e.g. for IP 192.168.1.1, appropriate address for the camera ranges from
192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for
camera and PC computer.
You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera
yourself or select DHCP mode (DHCP server is required in this method in target network) by using
web browser or by NMS software. When you use DHCP server check IP address lease and its linking
with camera MAC address to avoid changing or losing IP address during device operation or network/
DHCP server breakdown. You have to remember to use a new camera IP address after changing
network parameters.
After network setting configuration has been done, the camera can be connected to a target network.
START-UP AND INITIAL CAMERA CONFIGURATION
IP Camera
Network transmission - cross over
Computer

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
13
2.6. Security recommendations for network architecture and configuration
CAUTION!
Below are shown security recommendations for network architecture and configuration
of CCTV systems that are connected to the Internet to reduce the risk
of unauthorized interference with the system by a third party.
1. Absolutely change the default passwords and user names (if the device gives this possibility) of
all applied network devices (recorders, cameras, routers, network switches, etc.) to the
severely complexity password. Use lowercase and uppercase letters, numbers, and special characters
if there is such possibility.
2. Depending on the available functionality in the order to restrict access to the used network devices at
the administrator account level, it is recommended to configure the users accounts accordingly.
3. Do not use DMZ function (Demilitarized zone) in your router. Using that function you open the
access to recorder system from the Internet on all ports, which gives possibility for an unauthorized
interference with the system.
Instead of DMZ use port forwarding redirect only the ports which are necessary for the performance
of the connection (detailed information about ports of communication in different models of recorders,
cameras, etc. can be found in the operating instructions).
4. Use routers with firewall function and make sure it is enabled and properly configured.
5. It is recommended to change the default network communication port numbers of used devices
if there is such possibility.
6. If used network devices has aUPnP feature and it is not used, turn it off.
7. If used network devices has aP2P feature and it is not used, turn it off.
8. If used network devices support HTTPS protocol for connection, it is recommended to use it.
9. If used network devices support IP filtering for authorized connections function, it is recommended
to use it.
10. If used recorder has two network interfaces it is recommended to use both of them to physically
separate network for cameras and network for Internet connection. The only device in the system,
accessible from Internet will be recorder - there will be no physically access directly to any camera.
START-UP AND INITIAL CAMERA CONFIGURATION

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
14
NETWORK CONNECTION USING WEB BROWSER
3. NETWORK CONNECTION USING WEB BROSWER
3.1. Recommended PC specification for web browser connections
Requirements below apply to connection with an IP camera, assuming smooth image display in
1920 x 1080 resolution and 30 fps speed.
1. CPU Intel i7 3 GHz
2. RAM Memory min. 6 GB
3. VGA card Nvidia GeForce 1GB
4. Operating System Windows 10
5. Network card 100/1000 Mb/s
3.2. Connection with IP camera via web browser
• Connecting to the camera for the first time
Enter the IP address of the camera (default 192.168.1.200) in the address bar of the web browser. If the
address is correct and the target device is currently available, the first connection window will be
displayed. In this window, user should read the privacy statement and after reading it, select the
checkbox next to the Already Read button, and press this button.
The acceptance of the privacy statement cannot be omitted. This window only appears the first time
you log in, but it can be displayed again at any time.
Access to the privacy statement can be found in the menu Config > System > Basic information >
Privacy statement.

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
15
NETWORK CONNECTION USING WEB BROWSER
• Device Activation

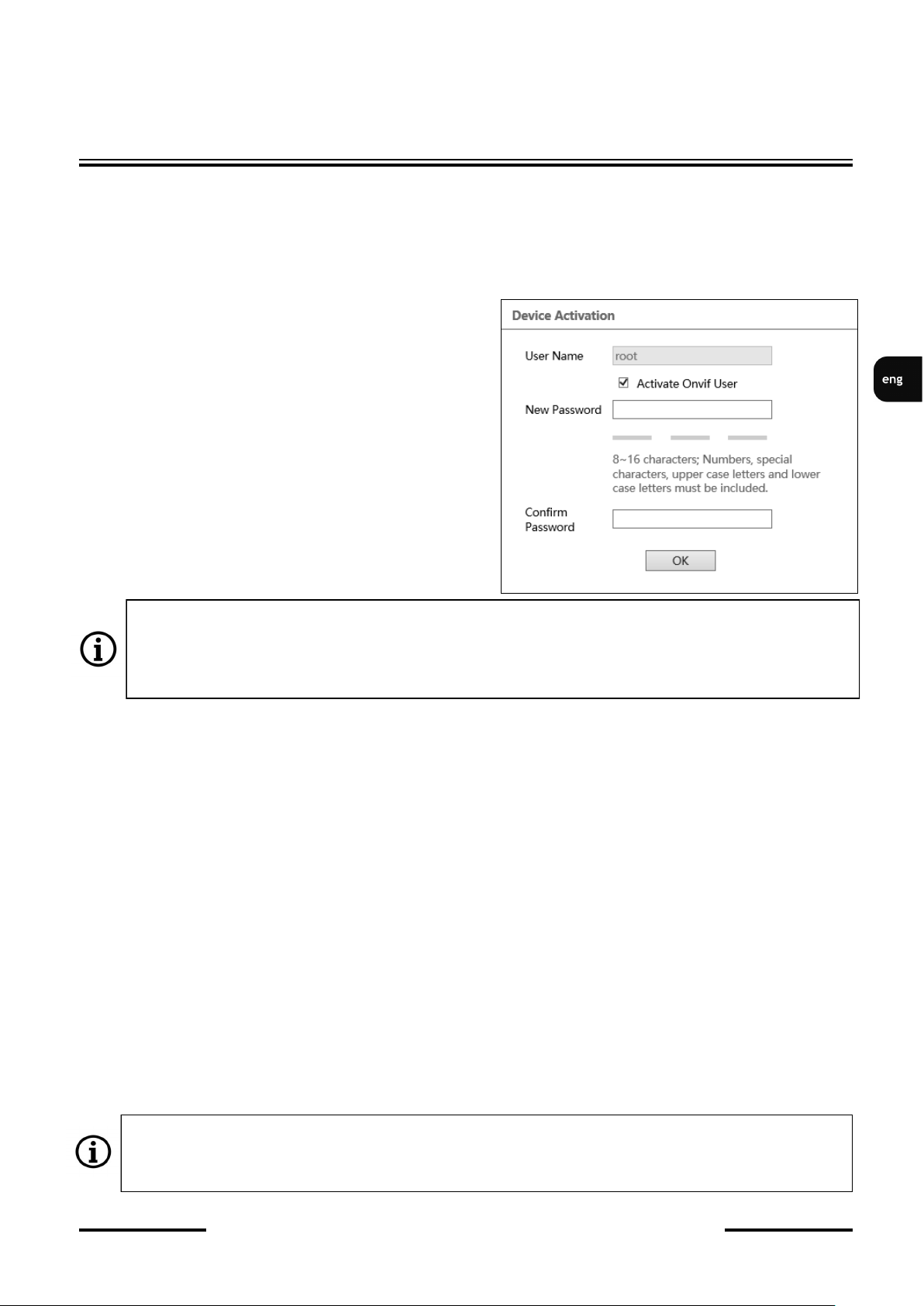

After accept privacy statement, device activate window appears. In this window user has to set a
password for the web account.
Check the "Activate Onvif user" checkbox to change the password for the Onvif account to the same
password as for the web account.
The password can be up to 16 characters long. While password is entered strength of it displaing on
an ongoing basis by the security level indicator. To ensure the good security of the password, use upper
and lower case letters, numbers and special characters. After entering the correct password twice and
confirming it with the OK button, the administrator password will be saved, the window will close and
the login screen will be displayed.
• User accounts
The Web account is the administrator account created during the activation of the device. It means that
the user logging in, by using the root login and a predefined password and have access to the full
functionality and all available settings in the camera. The account is also used to log in to the camera
via the 6000 series network recorders and NMS (Novus Management System) software using the
LongPolling event method.
The Onvif account is an account used to log in to the camera via the NMS software (Novus
Management System) or using the Onvif or the RTSP protocol. This account is created automatically
during activation of the device, and the default login data are login: "root" and password: "pass".
For security reasons, immediately change the default password for the Onvif account after
activating the device. It is recommended to set the same password in both accounts: the Onvif
account and the web account.
If the user assigns a new password during the device activation but does not check the
"Activate Onvif User" checkbox, the Onvif account will remain with the default login data
(login: root and password: pass).

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
16
NETWORK CONNECTION USING WEB BROWSER
• Onvif account edition

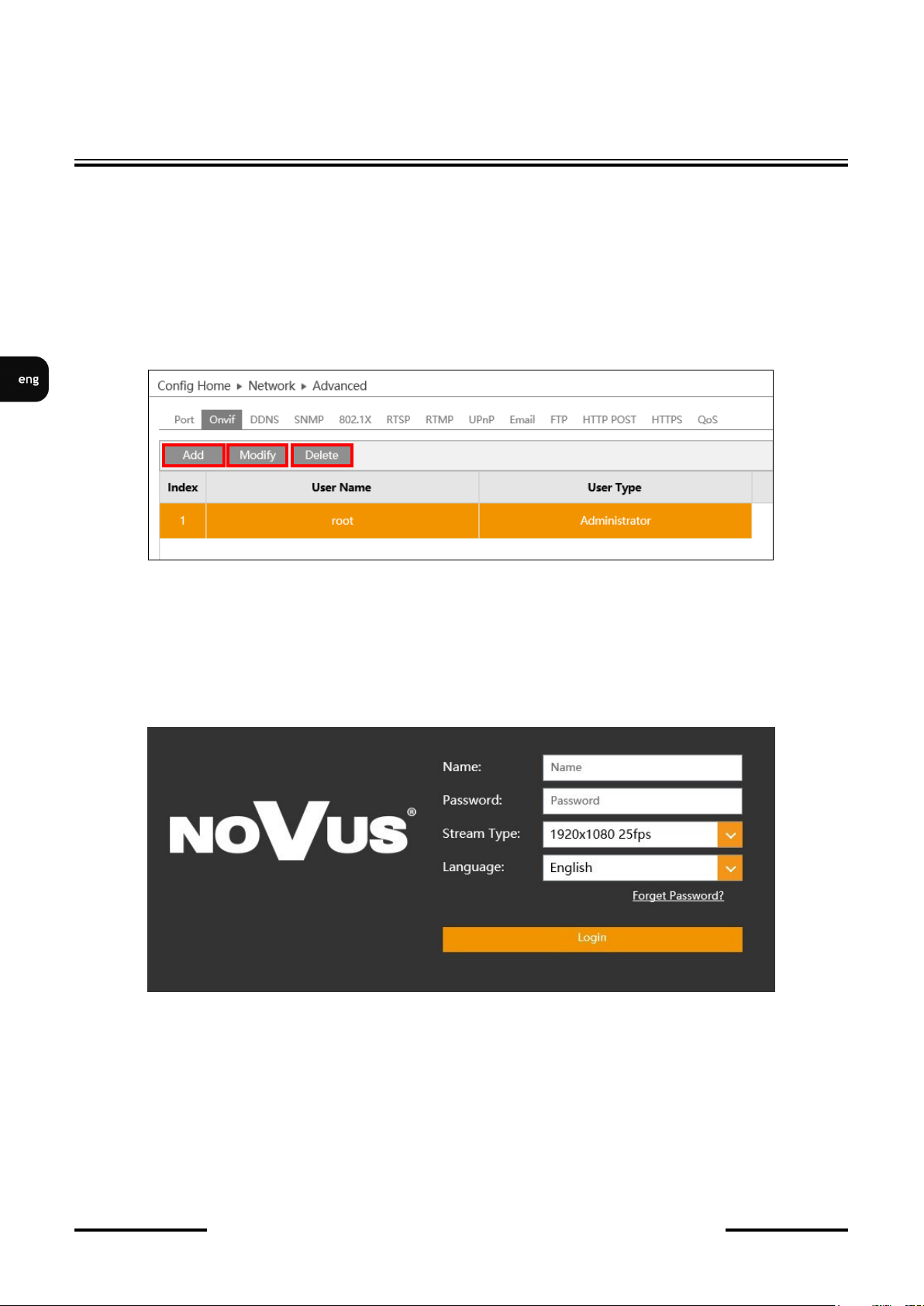

In order to change the Onvif account password, after logging in, go to the Settings tab in the upper
right corner and then Network > Onvif.
In the Onvif tab, click the Modify button, then in the Edit User window, enter the new password and
confirm with OK button. If the connection to the camera via the NMS software is using the
LongPolling event handling method, the same password for the Onvif account as for the Web account
must be set in this step.
In order to delete the Onvif account, select the user by clicking on the appropriate row in the table, then
click Delete button. Please note that deleting Onvif account means that the camera cannot be added to
NMS software. Add button is used to create new Onvif account.
• Logging in to the camera for the first time
In this window, in order to login to camera, enter the user name root and the newly set administrator
password. In the Stream type field user can select the stream that is displayed in the live view window
after login. The Language field allows to change the interface language. The Forget Password option
allows to log in to the camera if you forget the administrator password and for this is required to know
the answers to the security questions (set in the next step).
After entering appropriate data, click the Login button to login to the web panel of the camera.

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
17
NETWORK CONNECTION USING WEB BROWSER
• Safety questions
The next step in logging in for the first time is
entering answers to the security questions.
In the window that appears, select questions
from among those available on the list and enter
your own answers.
Knowing the right answers is essential to
recovering the administrator password.
• Plug-in installation
If the browser has no connected to any of the 6000 series cameras so far, or if an older version of the
plug-in is installed, a message will be displayed in the remote viewing window that the appropriate
plug-in version must be installed.
This step cannot be omitted. The security question window is displayed only during the first
login, and the only possibility to change the given answers is to restore the factory settings and
go through all stages of the first connection with the camera.

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
18
NETWORK CONNECTION USING WEB BROWSER
To start plug-in installation, click Here button. Then the browser displays a window asking how to
proceed with the NetAIIPCamera.exe file. Press the Run button to start the plug-in installer.
In the installer window, select the installation language (English by default) and then click Install
button to install plug-in. After installation click the Finish button to close the installer and refresh the
browser window (you can also close and restart the browser).
If after installation and browser window refresh, the same text appears on the screen, go to the browser
Tools (the gearwheel icon in the top right corner), then click Menage add-ones. In the window that
appears click right mouse button on the NetAIIPCamera Control, then click the Enable option and
refresh the browser window.
After completion all of the above steps, preview of the camera in the live view window should appears.

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
19
WWW INTERFACE - WORKING WITH IP CAMERA
4. WWW INTERFACE - WORKING WITH IP CAMERA
4.1 Displaying live video
1. Camera menu:
• Live - opens the camera live video,
• Config - opens the camera configuration menu,
• Search - opens the camera playback.
(playback available in Internet Explorer)
2. The buttons for changing the displayed stream and fluency:
• Allow to change the displayed stream to Main stream, Sub stream.
• Allow you to choose between Real-time, Balanced and Fluent fluency.
3. Alarm icons - icons showing the current status of some camera alarms.
4. Live video window
5. Image settings buttons - these buttons change the picture display mode in the live video preview
Original size Adapt
Proper size Full screen
6
4
3
1
5
2

NVIP-2H-6631 Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
20
6. Function buttons:
Start/stop live view Enable/disable audio
Snapshot
Zoom In (digital) Zoom out (digital)
Enable/disable graphical representation of image analysis
5. ELECTRIC CONNECTORS AND ACCESORIES
5.1. MicroSD card installation
Camera supports microSD cards up to a maximum size of 256 GB. In order to install the card
properly, please follow the instructions below:
• Turn off the camera power.
• Remove the plastic cover (2), unscrew the camera service panel (1).
• Mount microSD card in the socket (3).
• Screw the camera service panel (1) and put on the plastic cover (2).
• Turn on the camera.
• Check the microSD card by checking its capacity in the “System” -> “SD Card” tab.
WWW INTERFACE - WORKING WITH IP CAMERA
23
1
Start Recording
(available in Internet Explorer)
