Novus NVIP-3DN7030SD/IRH-2P User manual

User’s ma n ua l
(s h o rt )
NVIP-3DN7030SD/IRH-2P

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
2
IMPORTANT SAFEGUARDS AND WARNINGS
EMC (2004/108/EC) and LVD (2006/95/EC ) Directives
CE Marking
Our products are manufactured to comply with requirements of the following directives and national regulations
implementing the directives:
Electromagnetic compatibility EMC 2004/108/EC.
Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical equipment designed
for use with a voltage rating of between 50VAC and 1000VAC as well as 75VDC and 1500VDC.
WEEE Directive 2012/19/EU
Information on Disposal for Users of Waste Electrical and Electronic Equipment
This appliance is marked according to the European 1000VAC Directive on Waste Electrical and
Electronic Equipment (2012/19/EU) and further amendments. By ensuring this product is disposed of
correctly, you will help to prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. It shall be handed over to the applicable collection point for used up electrical and
electronic equipment for recycling purpose. For more information about recycling of this product, please contact
your local authorities, your household waste disposal service or the shop where you purchased the product.
RoHS Directive 2011/65/EU
Out of concern for human health protection and friendly environment, we assure that our products falling under
RoHS Directive regulations, regarding the restriction of the use of hazardous substances in electrical and
electronic equipment, have been designed and manufactured in compliance with the above
mentioned regulations. Simultaneously, we claim that our products have been tested and do not
contain hazardous substances whose exceeding limits could have negative impact on human health
or natural environment
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed for self
installation in households by individuals without technical knowledge.
Excluding of responsibility in case of damaging data on a disk or other devices:
The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices
during device operation.
WARNING!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN
USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT
DOES NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER
MUST BE CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S
RESPONSIBILITY FOR THE RESULTS OF SUCH AN ACTION.

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
3
IMPORTANT SAFEGUARDS AND WARNINGS
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER
DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH
THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER
-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL
MAY OPEN THE UNIT
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
1. Prior to undertaking any action please consult the following manual and read all the safety and operating
instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is
necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct
influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s
manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer is forbidden;
7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,
damp basements);
8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not
recommended since it may lead to heat build-up and damaging the device itself as a consequence;
9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly
mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted
by qualified personnel with proper authorization, in accordance with this user’s manual.
10. Device should be supplied only from a power sources whose parameters are in accordance with those
specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera
from a power sources with unknown parameters, unstable or not meeting producer’s requirements;
Due to the product being constantly enhanced and optimized, certain parameters and functions described in the
manual in question may change without further notice. We strongly suggest visiting the www.novuscctv.com
website in order to access the newest manual
Data included in the following user’s manual is up to date at the time of printing. AAT Holding S.A.. holds
exclusive rights to modify this manual. The producer reserves the rights for device specification modification
and change in the design without prior notice.

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
4
TABLE OF CONTENTS.....................................................................................................4
1. FOREWORD INFORMATION .....................................................................................5
1.1. General Characteristics........................................................................................5
1.2. Technical specification .......................................................................................6
1.3. Camera dimension ..............................................................................................8
1.4. Package contents..................................................................................................9
2. START-UP AND INITIAL IP CAMERA CONFIGURATION ...............................10
2.1. Description of connectors and control tools ......................................................10
2.2 Connecting power supply to the camera …..………….………………………10
2.2. Camera mounting ..............................................................................................11
2.3. Starting the IP camera........................................................................................12
2.4. Initial configuration via the Web browser.........................................................13
3. NETWORK CONNECTION UTILIZING WEB BROSWER ................................14
3.1. Recommended PC specification for web browser .............................................14
3.2. Connection with IP camera via the Internet Explorer ........................................14
3.3. Connection with IP camera via the other browser .............................................16
4. WWW INTERFACE - WORKING WITH IP CAMERA.........................................18
4.1. Displaying live pictures......................................................................................18
4.2. Displaying live pictures - PTZ control. ..............................................................20
5. ELECTRIC CONNECTORS AND ACCESORIES .................................................21
5.1. Connecting audio and inputs/outputs .................................................................21
5.3. SD card installation ...........................................................................................21
5.4 BNC connection ..…………………………………………………………… ...22
6. RESTORING FACTORY DEFAULTS .....................................................................23
6.1. Restoring software factory defaults....................................................................23
6.2. Restoring hardware factory defaults in IP cameras...........................................23
TABLE OF CONTENTS

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
5
1. FOREWORD INFORMATION
1.1. General Characteristics
• Mechanical IR cut filter
• IR operation capability
• Imager resolution: 3 megapixels
• Min. Illumination: from 0.01 lx/F=1.6
• Motor-zoom lens, AI and AF function
• Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions
• Digital Slow Shutter (DSS)
• 8 tours (max. 64 presets each)
• 4 auto-scan functions
• 8 patterns (max. 206 s)
• 256 preset commands
• Privacy zones: 20
• Optical zoom: up to 30x
• 4 alarm inputs & 2 alarm relay outputs (NO/NC)
• “Auto-Flip” function allows the tilt to rotate 180° and reposition itself for continuous viewing of a moving object
directly beneath the dome
• Compression: H.264 or M-JPEG
• Bidirectional audio transmission
• Video processing resolution: up to 2048 x 1536
• RTP/RTSP protocol support for video & audio transmission
• Quadruple stream mode: compression, resolution, speed and quality defined individually for each video stream
• Hardware motion detection
• Network connection control function
• Built-in web server: camera configuration through the website
• Diverse definition of system reactions to alarm events: e-mail with attachment, saving file on FTP server, saving
on NAS server, saving file on SDXC card, alarm output trigger, HTTP notification, PTZ function activation
• PTZ control directly from the website and NMS (NOVUS MANAGEMENT SYSTEM)
• Schedule recording function
• Network protocols support: ONVIF (2.6/Profile S), HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, FTP, DHCP, DDNS,
NTP, RTSP, RTP, UPnP, SNMP, QoS
• Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring, playback and
remote IP devices administration
• IP 66
• Installation:
-wall mount using bracket in-set included,
• Housing, wall mount bracket
• Power supply: 24 VAC/12VDC
FOREWORD INFORMATION

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
6
1.2. Technical specification
FOREWORD INFORMATION
Parameters
Description
NVIP-3DN7030SD/IRH-2P
Image Sensor 3 MPX CMOS sensor 1/2.8” SONY
Number of Effective Pixels 2048 (H) x 1536 (V)
Min. Illumination
0.04 lx/F1.6 - color mode (DSS),
0.01 lx/F1.6 - B/W mode (DSS)
0 lx/F=1.6 –B/W mode (IR ON)
Electronic Shutter auto/manual: 1/1 s ~ 1/10000 s
Digital Slow Shutter (DSS) up to 1 s
Wide Dynamic Range (WDR) yes
Digital Noise Reduction (DNR) 2D,3D
LENS
Optical Zoom 30x
Lens Type motor-zoom varifocal, AI and AF function,
f=4.3 ~ 129 mm/F1.6 ~ F4.7
DAY/NIGHT
Switching Type mechanical IR cut filter
Switching Mode auto, manual, time
Switching Schedule yes
NETWORK
Stream Resolution
2048 x 1536 (QXGA), 1920 x 1080 (Full HD), 1280 x 1024
(SXGA), 1280 x 720 (HD), 1024 x 768 (XGA), 800 x 600 (SVGA),
720 x 576 (D1), 640 x 480 (VGA), 352 x 288 (CIF), 320 x 240
(QVGA)
Frame Rate 60 fps for all resolutions
Video/Audio Compression H.264, MJPEG/G.711, G.726
Number of Simultaneous Con-
nections max. 10
Bandwidth 50 Mb/s in total
Network Protocols Support HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP,
DDNS, NTP, RTSP, RTP, UPnP, SNMP, QoS, PPPoE
ONVIF Protocol Support Profile S (ONVIF 2.6)
Camera Configuration from Internet Explorer browser
languages: Polish, English, Russian, and others
Compatible Software NMS

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
7
FOREWORD INFORMATION
PTZ
Preset Commands 256
Tours 8 (up to 64 presets per tour)
Auto-Scans 4
Patterns 8
Tilt/Pan Range -20° ~ 200°/360° (continuous)
Pan/Tilt Speed up to 90°/s (proportional to zoom)
Preset Speed up to 300°/s
OTHER FUNCTIONS
Privacy Zones 20
Motion Detection yes
Image Processing 90˚ image rotation, 180˚ image rotation, sharpening, mirror effect
Prealarm/Postalarm up to 3 s or 20 frames/up to 9999 s or 20 frames
System Reaction to Alarm
Events
e-mail with attachment, saving file on FTP server, saving file on SD
card, saving file on NAS server, alarm output activation, HTTP no-
tification, PTZ
INTERFACES
Video Output BNC, 1.0 Vp-p, 75 Ohm - maintenance only
Audio Input/Output 1/1
Alarm Input/Output 4 (NO/NC)/2 relay type
Network Interface 1 x Ethernet - RJ-45 interface, 10/100/1000 Mbit/s
Memory Card Slot SD
INSTALLATION PARAMETERS
Dimensions (mm) 207 (W) x 399 (H) x 260 (L) with bracket
Weight 3 kg with bracket: 3.8 kg
Enclosure aluminium/plastic, white, poly-carbonate bubble, in-set included:
outdoor housing (integrated with the camera), wall mount bracket
Power Supply 24 VAC, 12VDC
Power Consumption
14 W,
29 W (IR on.)
41.5 W (Heater and IR on)
Operating Temperature -40°C ~ 50°C
Built-in Heater/Fan yes/yes
Degree of Protection IP 66

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
8
FOREWORD INFORMATION

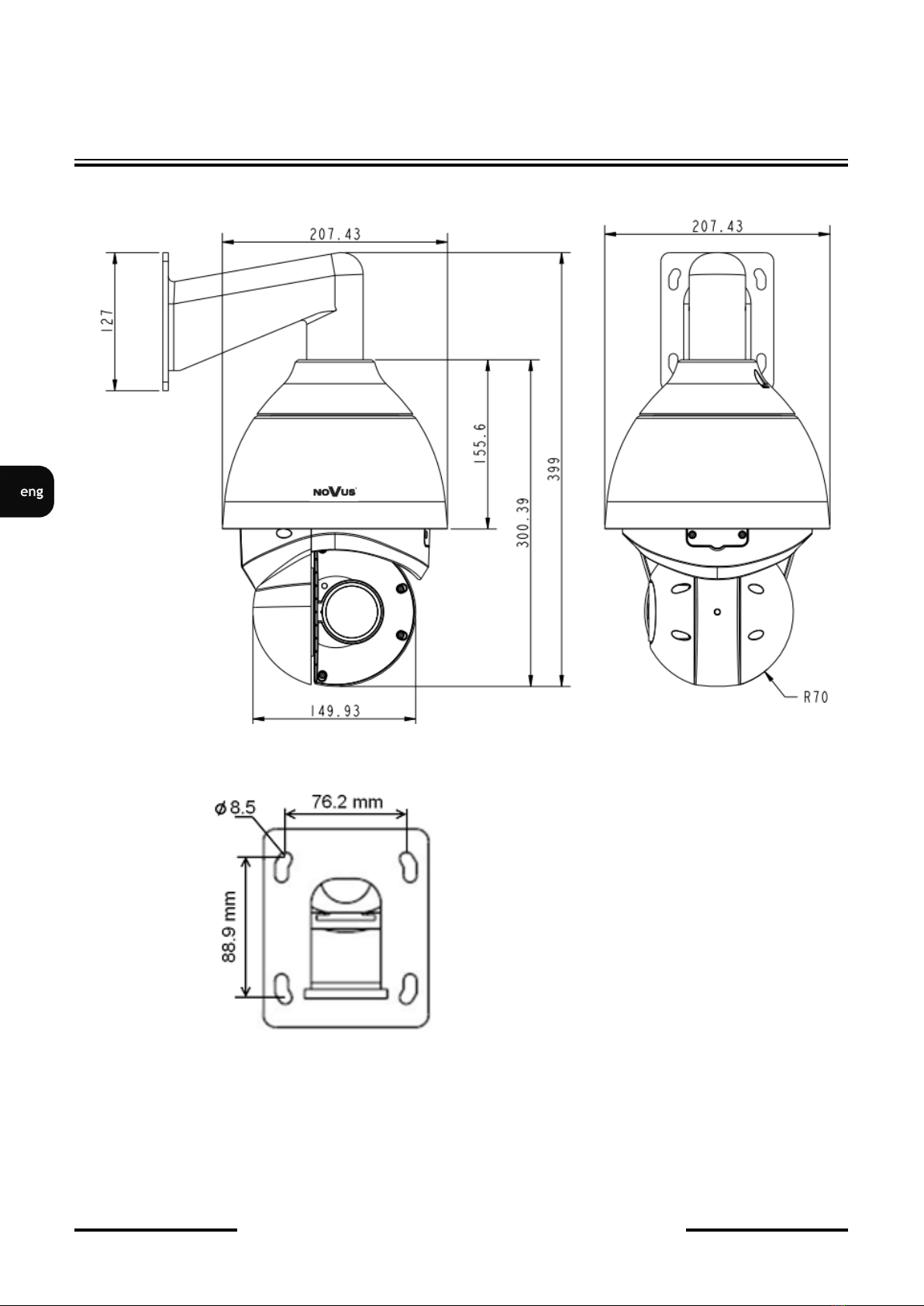

1.3. Camera dimensions

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
9
FOREWORD INFORMATION
1.4. Package contents
After you open the package make sure that the following elements are inside:
1x Wall mount bracket
1x Speed dome camera
1x Securing screw
2x Connectors
1x Manual
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches
the temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular in-
puts, outputs and adjusting elements that the device is equipped with.

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
10
2. START-UP AND INITIAL IP CAMERA CONFIGURATION
2.1. Description of connectors and control tools
1. Audio/Alarm I/O & RS-485 connector
2. Power connector for 12VDC
3. Gigabit Ethernet connector
4. Power connector for 24VAC
5. BNC connector
6. ’Reset’ button for
2.2. Connecting power supply to the camera
The camera can be supplied using an external power supply with parameters compatible with
camera specification .
CAUTION!
Incorrect connection of power supply wires may result in damage that is not covered by
warranty.
The camera is 24 VAC or 12VDC supplied.
Minimal required power output for the power supply unit should be at least: 60W
In order to provide protection against voltage surges/lightning strikes, usage of appropriate
surge protectors is advised. Any damages resulting from surges are not eligible for service
repairs.
Information: Power supply adapter is not included. Please use power adapter with parameters
specified in user’s manual.
START-UP AND INITIAL CAMERA CONFIGURATION
Pin Symbol Power description 24 VAC
1AC1 Power input 24 VAC
2Ground
3AC2 Power input 24 VAC
24VAC
Power
Supply
12VDC
Power
Supply
Pin Power description 12VDC
Inner Pin +12VDC
Outher Pin Ground

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
11
2.3. Mounting the camera
In order to obtain declared degree of protection please seal the mounting place additionally with
appropriate sealing mass, paying special attention to mounting holes.
CAUTION!
Due to safety reasons, maximum load capacity of surface shouldn’t be less than 25kg.
In order to successfully mount a camera, please follow the procedure below:
• Put the bracket to the wall in a desired mounting place (with cable hole). Taking the bracket’s
base screw holes as a pattern, mark future drilling holes for screws using a punch.
• Drill 4 holes in accordance with previously done markings and base
hole placement.
• Remove the plastic cover located at the bottom of the bracket.
• Put required cables through the bracket’s arm (or through the hole located in
the plastic cover).
• Mount the bracket, paying special attention to mounting place and all
mounting holes and additionally sealing them with appropriate sealing mass if
necessary.
• You need to seal the thread connection, connecting camera to wall
mount.
• Attach the camera mounting base to the bracket by turning it to the left and tighten a suitable
screw in set included (see figure on next page).
• Connect required signal and power supply cables.
CAUTION!
Connection the power cable to the camera must be performed after disconnecting the power
source. Power can be on only after the camera is fully mounted and the protective elements of
camera module are dismounted.
• Using safety cable, attach the dome to the bracket.
• Attach the camera to the mounting base by turning it to the right and tighten a suitable screw
in set included.
• Put the excess cable back into the bracket.
• Place where the cables getting out of the bracket must be sealed with a sponge seal in set
included.
• Attach the plastic cover located at the bottom of the bracket.
START-UP AND INITIAL CAMERA CONFIGURATION

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
12
2.4. Starting the IP camera
To run NOVUS IP camera you have to connect 24 VAC or 12 VDC power supply or Ethernet cable
between camera and High PoE network switch with parameters compatible with camera power supply
specification.
Initialization process takes about 30 seconds. You can then proceed to connect to the camera via web
browser.
The recommended way to start an IP camera and perform its configuration is a connection to the PC via
the network switch which is not connected to other devices.
To obtain further information about network configuration parameters (IP address, gateway, network
mask, etc.) please contact your network administrator.
• Connection utilizing external power supply and network switch
• Connection utilising external power supply directly to the computer
Information:
Power supply adapter is not included. Please use power adapter with parameters specified in user ‘s
manual.
CAUTION!
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors is advised. Any damages resulting from surges are not eligible for service repairs.’
START-UP AND INITIAL CAMERA CONFIGURATION
IP Camera
Network transmission
Network
Network Switch Computer
Computer
IP Camera
Network
transmission

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
13
2.5. Initial configuration via the web browser
Network configuration of the camera can be performed utilizing web browser.
The default network settings for NVIP-3DN7030SD/IRH-2P camera are: :
1. IP address= 192.168.1.200
2. Network mask - 255.255.255.0
3. Gateway - 192.168.1.1
4. User name - root
5. Password - pass
Knowing the camera’s IP address you need to appropriately set PC IP address, so the two devices can
operate in one network subnet ( e.g. for IP 192.168.1.1, appropriate address for the camera ranges from
192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for
camera and PC computer
You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera
yourself or select DHCP mode (DHCP server is required in this method in target network) by using
web browser or by NMS software. When you use DHCP server check IP address lease and its linking
with camera MAC address to avoid changing or losing IP address during device operation or network/
DHCP server breakdown. You have to remember to use a new camera IP address after changing
network parameters.
After network setting configuration has been done, the camera can be connected to a target network.
START-UP AND INITIAL CAMERA CONFIGURATION

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
14
3. NETWORK CONNECTION UTILIZING WEB BROSWER
3.1. Recommended PC specification for web browser connections
Requirements below apply to connection with an IP camera, assuming smooth image display
in 1920x1080 resolution and 25 fps speed.
1. CPU Intel Core i3 3 GHz or newer
2. RAM Memory min. 4 GB
3. Graphic card NVIDIA GeForce 512 MB or equivalent
4. OS Windows Windows 7 / 8 / 8.1 / 10
5. Network card 100/1000 Mb/s
3.2. Connection with IP camera via the Internet Explorer
You have to enter camera IP address in the Internet Explorer address bar. If IP address is correct user
login window will be displayed:
Default user is root and default password is pass.
For safety reasons, it is recommended to change default user name and password.
When you log on to the camera, web browser will download the applet for displaying images from the
camera. Depending on the current Internet Explorer security settings it may be necessary to accept
an ActiveX control. To do this, click the right mouse button on the message, select "Install Active X
control" and then click Install. After successfully NVIP Viewer plug in downloading run and install
it on a computer.
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
15
If the installation fails, changing security settings for the IE browser is required. In order to do that,
please choose: Tools > Internet options > Security tab > Custom level and:
• Under Download unsigned ActiveX controls - select either Enable or Prompt
• Under Initialize and script ActiveX controls not marked as safe - select Enable or Prompt
You can also add the camera’s IP address to “trusted zone” and set lowest security level for it.
In addition, when working in Windows Vista/7/8/10 the ActiveX applet may be blocked by Windows
Defender or User account control. In such case you should allow to run this applet, or simply disable
these functions.
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
16
3.3. Connection with IP camera via other browser eg. Chrome, Mozilla Firefox, Safari )
It is also possible to connect to the camera using Mozilla Firefox, but this browser doesn't offer full
functionality of the camera, so the recommended browser is Internet Explorer.
The first run of the IP camera in browser is very similar to the IE version. After you type the correct IP
address you have to write correct username and password. The default user is root and password
is pass.
Next, blank screen is displayed. Then you have to install the missing Quick Time plug-in from site:
http://www.apple.com/quicktime/download/
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
17
After downloading and running it, a window depicting installation of particular components is then
displayed. After proper installation pictures from the camera should become visible
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
18
4. WWW INTERFACE - WORKING WITH IP CAMERA
4.1. Displaying live pictures
1. Main tabs
Home — live view and PTZ control page
System — camera settings ( IP, recording, sending alarm messages, motion detection)
Streaming — streaming settings for audio and video audio
PTZ — picture and PTZ functions settings
Logout
2. Language selection.
3. Live view video format selection.
4. ActiveX settings for live video:
- Display mode in web browser
- Full screen view
- Microphone - enable audio from microphone
- Speaker - enable audio sending to the camera
WWW INTERFACE - WORKING WITH IP CAMERA
1.
2.
3.
6.
4.
7.
5.

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
19
- Snapshot - saves the current frame in JPEG format
- Video Streaming pause/play button
- Web recording to AVI button
- Activates events defined in “System“ -> “Events“ -> “Manual trigger” tab
- Additional PTZ control panel. After selecting the following menu appears:
a - calling Preset in the range of 1 to 10.
b - calling Pattern (cruise) in the range of 1 to 8.
c - calling Tour (sequence) in the range of 1 to 8.
d - Pan/Tilt speed selecting in the range of 1 to 10.
e - Focus Far
f - Focus Near
g - Auto Focus mode enabling
h - Iris Close
i - Iris Open
j - Auto Iris mode enabling
k - Zoom In
l - Zoom Out
m - Pan/Tilt camera control
WWW INTERFACE - WORKING WITH IP CAMERA
m
b
c
d
e
i
g
f
h
kl
j
a

NVIP-3DN7030SD/IRH-2P User’s manual (short form) ver.1.3
All rights reserved © AAT Holding S.A.
20
5. Available resolutions.
6. Zoom control. Slider allows to change zoom in the range from x1 to x30.
7. Focus control.
4.2. Displaying live pictures - PTZ control
Default Pan/Tilt camera control mode is emulated joystick mode. In this mode push and hold left mouse
button on the image in order to control the camera Pan/Tilt. The second Pan/Tilt control mode is set
center mode. In this mode camera sets automatically the center of the image in the place where you
click the left mouse button. Zoom control is performed using mouse wheel.
After click right mouse button on the image the menu including below options occurs:
After click right mouse button on the image the menu including below options will occur:
full screen/normal view - enable/disable full screen mode.
set center mode/set emulated joystick mode - select Pan/Tilt control mode
CONNECTORS AND ACCESORIES
- Zoom Out
- Zoom In
- Auto Focus mode enabling
- Manual Focus mode enabling
- Focus Near
- Focus Far
