Numark NS4 FX User manual

Confidential Numark Service Manual
Numark
NS4 FX
[NKCK]
Service Manual
v1.0
2022-06-01
The information in this document contains privileged and confidential information. It is intended only for the use of
those authorized by Numark. If you are not the authorized, intended recipient, you are hereby notified that any review,
dissemination, distribution or duplication of this document is strictly prohibited. If you are not authorized, please
contact Numark and destroy all copies of this document. You may contact Numark at [e-mail].
© Copyright Numark
ATTENTION!
This document contains sensitive proprietary information.
All recipients must have a current non-disclosure agreement on file
with Numark.
Do not make illegal copies of this document.

Confidential Numark Service Manual
Preface
This document is intended to assist the service technician in the operation, maintenance and repair of the Numark
device. Together with the User Reference Manual, this document provides a complete description of the
functionality and serviceability of the Device. Any comments or suggestions you may have pertaining to the
document are welcome and encouraged.
Read This!
In addition to any purchase price that Numark may charge as consideration for Numark selling or otherwise
transferring this service manual (“Manual”) to you, if you are not a service and repair facility (“Service Center”)
authorized by Numark in writing to be an authorized Service Center, Numark sells or transfers the Manual to you on
the following terms and conditions:
Only Service Centers authorized by Numark in writing are authorized to perform service and repairs covered by an
Numark warranty (if any), and transfer of the Manual to you does not authorize you to be an authorized Service
Center. Therefore, if you perform, or if the Manual is used to perform, any service or repairs on any Numark
product or part thereof, any and all warranties of Numark as to that product and any service contract with
Numark for that product shall be voided and shall no longer apply for such product, even if your services or
repairs were done in accordance with the Manual.
All service or repairs done by you or with reference to the Manual shall be solely your responsibility, and Numark
shall have no liability for any such repairs or service work. All such service or repairs are performed at the sole
risk of the person performing the service or repairs. You agree that all such work will be performed in a
competent, professional and safe manner at all times and to indemnify and fully hold Numark and its successors
and assigns harmless in the event of any failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of resale or other
transfer.
As the owner of the copyright to the Manual, Numark does not give you the right to copy the Manual, and you agree
not to copy the Manual without the written authorization of Numark. Numark has no obligation to provide to you
any correction of, or supplement to, the Manual, or any new or superseding version thereof.
Numark shall have the right to refuse to sell or otherwise transfer repair parts or materials to you in its sole
discretion. You shall not use, sell or otherwise transfer spare or replacement parts supplied by Numark to you (i) to
repair or be used in products manufactured for or by third parties or (ii) to any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of Numark or the use thereof on
behalf of Numark or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you, and no other
terms shall apply unless in a writing signed by an authorized representative of Numark.
All Trademarks are property of their respective companies.

Confidential Numark Service Manual
Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS PRODUCT TO WATER OR
MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the enclosed product which may
be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point inside a triangle is intended to alert the user to the presence of
important operating, maintenance and servicing instructions in the literature which
accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED NUMARK SERVICE CENTER
WILL VOID THE NUMARK WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO COMPETE WITH ANY
NUMARK DISTRIBUTOR OR AUTHORIZED REPAIR SERVICE CENTER IN THE PROVISION OF REPAIR
SERVICES OR TO BE OR MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED NUMARK SERVICE CENTER
SHALL BE SOLELY THE RESPONSIBILITY OF THAT ENTITY, AND NUMARK SHALL HAVE NO LIABILITY
TO THAT ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
Caution: The product under service may employ the use of a replaceable fuse. Danger of
fire or electrocution if fuse is incorrectly replaced. Replace with only the same type or
equivalent type recommended by the equipment manufacturer.
Regarding the Internal Battery
Caution: The product under service may employ the use of a internal battery. Danger of
explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to the
manufacturer’s instruction.

Confidential Numark Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety suggestions before using this
product. Use extra care to follow the warnings written on the product itself and in the operating instructions. Keep
the operating instructions and safety suggestions for reference in the future.
1. Power Source. The product should only be connected to a power supply which is described either in the
operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely to step on the
cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the product’s AC power supply
cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into any openings of the
product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators or other heat
producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate ventilation. Improperly
ventilating the product may cause overheating, which may damage the product.
8. Mounting. The product should only be used with a rack which the manufacturer recommends. The
combination of the product and rack should be moved carefully. Quick movements, excessive force or uneven
surfaces may overturn the combination which may damage the product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in the operating
instructions for the user. For any other service required, the product should be taken to an authorized service
center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain situations including
without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate normally, or
e. The enclosure of the product has been damaged.

SPECIFICATION
FUNCTION
1. UI Browser – A standard detented encoder with push switch is used to navigate through the software. Push encoder to move in the software.
2.LOAD BUTTONS –Push twice to perform instant doubles to the deck in focus. Song will load to the deck(s) currently in focus.
3.Gain – This pot controls the gain for its associated channel on the mixer.
4.Channel Fader – This is the volume controller for the channel.
5.Cue Mix–Selects Master or PFL outputs in the headphones.
6.Cue Gain–adjusts volume of headphone pot.
7.Software FX Wet/Dry – This knob Adjusts the Wet/Dry of all FX.
8.Mic/Aux volume – Controls mic volume.
9.Mic/Aux Tone – Controls the high and low EQ mix for mic
10.Master volume – Controls program signal + Mic mixed with mic going to XLR on rear
11.Booth/Zone Output – Controls program signal+ Mic mixed with mic going to RCA on rear
12.Crossfader Assign – select crossfader left-off-right assign
13.DJ Mic volume – Controls mic volume.
14.DJ Mic Tone – Controls the high and low EQ mix for mic
AUDIO OUTPUT
LINE OUT
OUTPUT LEVEL--------------------MASTER:1.3 ± 0.5V
BOOTH:1.3 ± 0.5V
BALANCED:4V ±0.5V
THD+N%------------------------------LESS THAN 0.5%
S/N--------------------------------------MORE THAN 85 dB
SEPARATION------------------------MORE THAN 70 dB
FERQUENCY RESPONSE---------20~20KHz ± 2 dB
MIC IN
OUTPUT LEVEL--------------------MASTER:185mV ±50mV
BOOTH: 185mV ±50mV
BALANCED:1.1V ±0.5V
THD+N%------------------------------LESS THAN 0.5%
SEPARATION------------------------MORE THAN 60dB
FERQUENCY RESPONSE---------20~20KHz ± 2 dB
HP OUT
OUTPUT LEVEL--------------------BALANCED:7V ±1V
THD+N%------------------------------LESS THAN 0.5%
S/N--------------------------------------MORE THAN 85 dB
SEPARATION------------------------MORE THAN 70 dB
FERQUENCY RESPONSE---------20~20KHz ± 2 dB
SERVICE MANUAL
MODEL: NS4FX

DISASSEMBLY PROCEDURES
1. DISASSEMBLE THE BOTTOM PANEL.
(A) REMOVE 22 PCS SCREW FROM THE BOTTOM PANEL.
(Fig1)

2. DISASSEMBLE THE WHEEL BASE ASS'Y AND KNOB AND VR KNOB.
(A)REMOVE 29 PCS KNOB AND 7 PCS VR KNOB FROM THE TOP PANEL.
(B)REMOVE 2 PC DISPLAY PLATE FROM THE WHEEL PLATE.
(C)REMOVE 12 PCS SCREW FROM THE WHEEL FIXED HOLDER.
(D)REMOVE 4 PCS SCREW AND 2 PCS WASHER FROM THE TOP PANEL.
(E)REMOVE 8 PCS SCREW FROM THE WHEEL BASE ASS'Y.
(Fig2)

3. DISASSEMBLE THE PCB ASS'Y OF THE TOP PANEL.
(A)REMOVE 4 PCS SCREW FROM THE TOGGLE SWITCH PCB ASS’Y.
(B)REMOVE 2 PCS SCREW FROM THE TOP PANEL.
(C)REMOVE 3 PCS SCREW FROM THE LEFT FUNCTION PCB ASS’Y.
(D)REMOVE 3 PCS SCREW FROM THE LEFT SENSOR PCB ASS’Y.
(E)REMOVE 3 PCS SCREW FROM THE RIGHT SENSOR PCB ASS’Y.
(F)REMOVE 2 PCS SCREW FROM THE GROUND PLATE.
(G)REMOVE 18 PCS SCREW FROM THE MAIN PCB ASS’Y.
(H)REMOVE 10 PCS SCREW FROM THE FUNCTION PCB ASS’Y.
(Fig3)

4. DISASSEMBLE THE PCB ASS'Y OF THE BOTTOM PANEL.
(A)REMOVE 4 PCS AND 1 PC HOLDER SCREW AND 1 PC CABLE CLAMP FROM THE BOTTOM PANEL.
(B)REMOVE 3 PCS SCREW FROM THE USB PCB ASS’Y.
(C)REMOVE 2 PCS SCREW FROM THE INPUT PCB ASS’Y.
(D)REMOVE 3 PCS SCREW FROM THE HP PCB ASS’Y.
(E)REMOVE 2 PCS SCREW FROM THE MIC PCB ASS’Y.
(F)REMOVE 2 PCS SCREW FROM THE LEFT ASSIBN PCB.
(G)REMOVE 2 PCS SCREW FROM THE RIGHT ASSIBN PCB.
(Fig3)

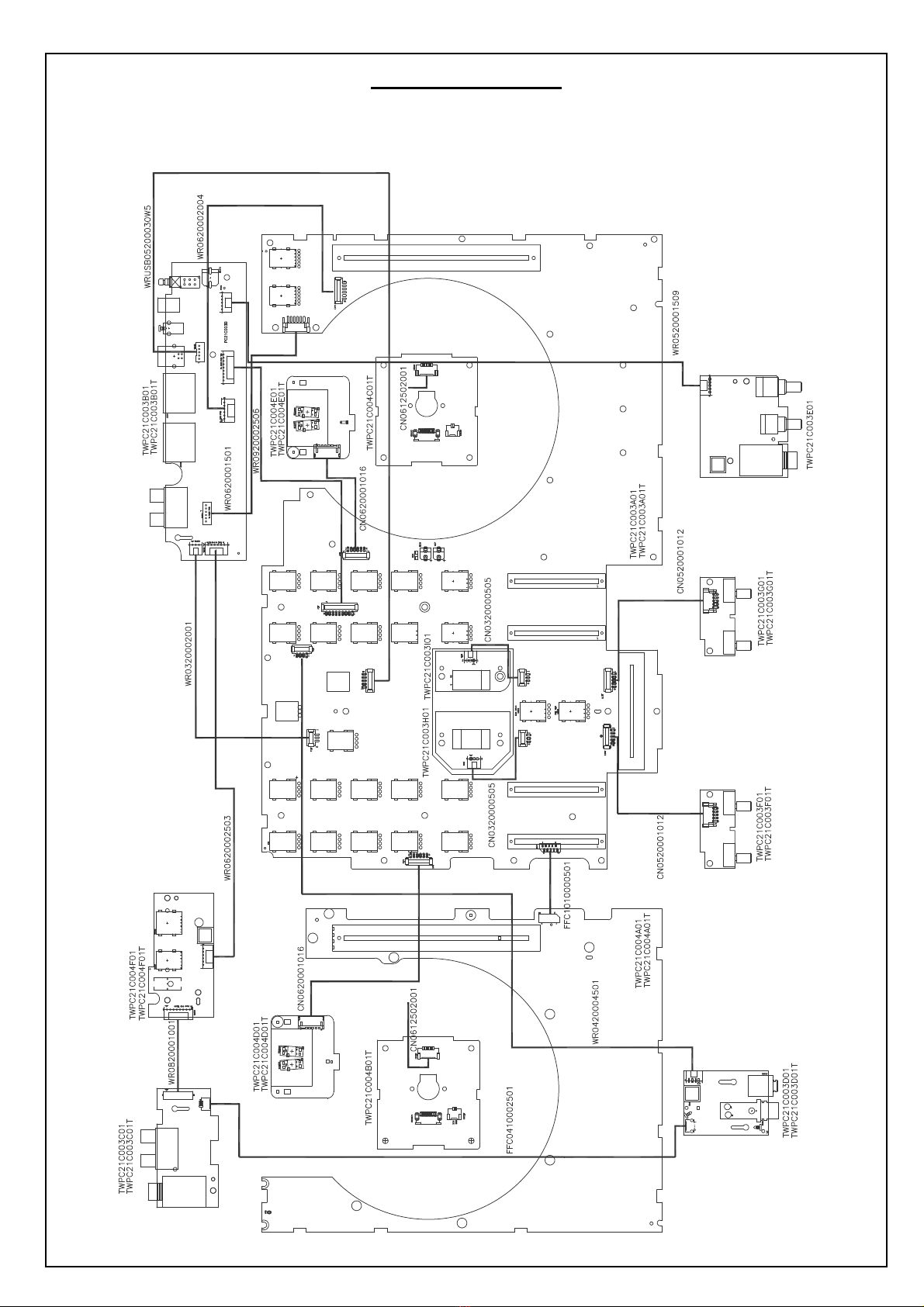

WIRING DIAGRAM
(US.EU.UK.AUS.KR.JP)

PACKING DIAGRAM
(US.EU.UK.AUS.KR.JP)

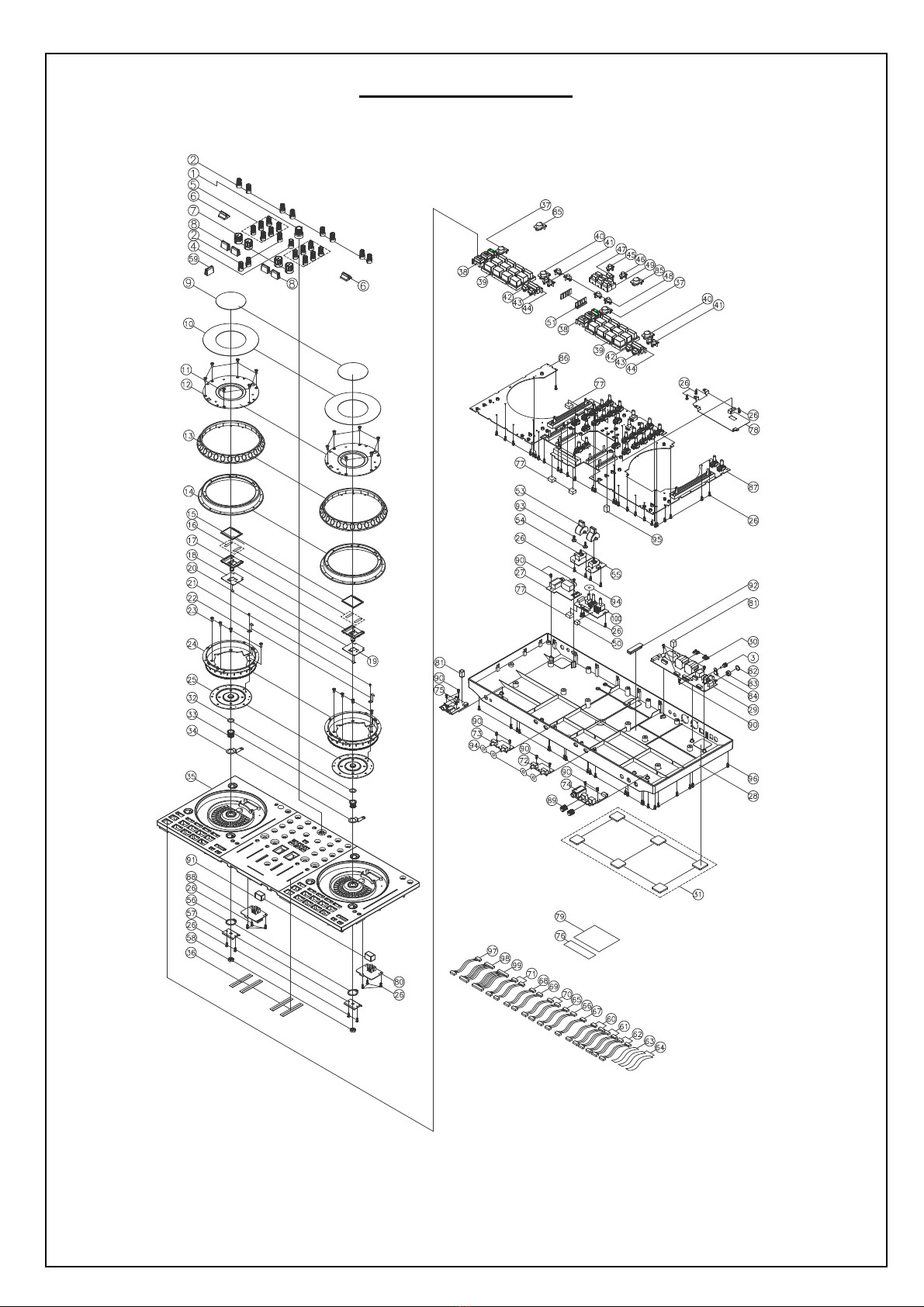

EXPLODE DIAGRAM
(US.EU.UK.AUS.KR.JP)
EQUENCIAL NO EXPLODE DIAGRAM WILL BE MARKED ON REF.COLUMM OF BOM LIST

LEVEL P/N DESCRIPTION QTY REF
0.1 AL9-44-0016 LCD VO6760A-KVW-OW 6O'clock(2 inch) 2 15
0.1 BAFAM-25A FLAT CABLE CLAMP 2 92
0.1 BAGL-40A Clip 1
0.1 BAPC-02HK Cable Clamp 1 84
0.1 BART-K00701 Rotate Knob 2 89
0.1 CA040218002 Usb Cable 1.8M A/B Black 1
0.1 CB310N148 Separating paper board 1
0.1 CN0320000505 Flat Cable 3Pin Pitch 2.0mm Si 2 60
0.1 CN0520001012 Flat Cable 5Pin Pitch 2.0mm Si 2 70
0.1 CN0612502001 Flate Cable 6Pin Pitch 1.25mm 2 61
0.1 CN0620001016 Flat Cable 6Pin Pitch 2.0mm Si 2 62
0.1 EVA1104453 EVA 4 77
0.1 FFC0410002501 FFC 4Pin Pitch:1.0mm Length:25 1 64
0.1 FFC1010000501
FFC 10Pin Pitch
：
1.0mm Length
1 63
0.1 LAC22MAR1134 Serial Number Label 1 76
0.1 LAC53MAR1176 Warning Label 1 79
0.1 LAC62MAR1135 Bar Code Label(CODE 39) 0.5
0.1 LAC62MAR1136 Bar Code Label(GTIN14) 0.5
0.1 LAC62MAR1173 Software Label 1
0.1 LAC67MAR1072 Double Sided Adhesive 4 16
0.1 LAC67MAR681 Label(Circle Limpid) 2
0.1 LAC67YAH261 Label 8mm Green 0.5
0.1 MT11018108 Ground Plate 2 34
0.1 MT11018114 Ground Plate 1 78
0.1 MT1101891 Ground Plate 2 22
0.1 MT11044183 Holder Screw 1 3
0.1 MT11044195 Fixed Plate 2 57
0.1 MT1105552 Copper 2 33
0.1 MT111060301 Power Button Cap(Print) 1 82
..2 MT1110603 Power Button Cap 1
0.1 NM1104450 Velvet Carpet 5 94
0.1 NM1106115 Velvet Carpet 4 36
0.1 NP211MAR259 Display Plate 2 9
0.1 NP311MAR281 Wheel Plate 2 10
0.1 NUT01060IIP Nut 2 58
0.1 PNKCKMAR11 Pack Assembly 1
..2 CGNKCK310MAR01 Gift Box 1
..2 CTNKCK513MAR01 Shipping Carton 0.5
..2 GEMAR123 Download Card 1
..2 LAC67MAR1093 LOGO Label(Numark) 1
..2 OPNK14MAR15 Safety Manual(11/12/13/14/16) 1
..2 OPNKCKMAR03 Instruction Book(11/12/13/14/16) 1
OPNKCKMAR02 Instruction Book(JP)(17) 1
..2 PE230370404B09A Pe Bag 8.8
..2 PLNKCK01 Poly Foam(L) 1
..2 PLNKCK02 Poly Foam(R) 1
..2 SD650490RJP Soft Sheet 1
0.1 PT0710624738 Button(SCRATCH)(Printing) 2 40
..2 PT07106247 Button 2
0.1 PT11044320 Wheel Fixed Holder 2 12
0.1 PT11106163 VR KNOB 1 59
0.1 PT11106166 VR Knob Painting 4 8
0.1 PT1110685205 Button(1/2)(Printing) 2 42
..2 PT11106852 Button 2
0.1 PT1110685206 Button(X2)(Printing) 2 43
..2 PT11106852 Button 2
0.1 PT1110685207 Button (TAP) Printing 1 47
..2 PT11106852 Button 1
0.1 PT1110631650 Button(headphone)(Printing) 4 48
..2 PT11106316 Button 4
NKCKMAR11/12/13/14/16/17 BOM

0.1 PT1110683901 Button(+,-)(Printing) 2 41
..2 PT11106839 Button (two Button) 2
0.1 PT1110649601 KNOB (Painting) 1 1
..2 PT11106496 Knob(LRG) 1
0.1 PT11106555 Light Pipe(5) 2 51
0.1 PT1110657402 Knob Assembly 2 38
0.1 PT1110658504 Button(SHIFT) Printing 2 37
..2 PT11106585 Button 2
0.1 PT1110658505 Button(LAYER) Printing 2 85
..2 PT11106585 Button 2
0.1 PT1110659301 KNOB(Black)(Painting) 1 4
..2 PT11106593 Knob(MED) 1
0.1 PT11106603 Knob 11 2
0.1 PT1110666906 Button(LOOP)(Printing) 2 44
..2 PT11106669 Button 2
0.1 PT1110669502 Wheel Lamp(Painting) 2 14
..2 TWPT11106695 Wheel Lamp Ass'y 2
0.1 PT1110673304 Rotate Button(Painting) 2 53
..2 PT11106733 Rotate Button 2
0.1 PT11106772 Knob (Cool Gray 10C) 12 5
0.1 PT11106773 VR Knob 2 6
0.1 PT1110684001 Button (L) Printing 1 45
..2 PT11106840 Button 1
0.1 PT1110684002 Button (R) Printing 1 46
..2 PT11106840 Button 1
0.1 PT1110710501 Wheel Frame(Painting) 2 13
..2 PT11107105 Wheel Frame 2
0.1 PT1130211203 Bottom Chassis(Paint+Print) 1 35
..2 PT11302112 Bottom Chassis 1
0.1 PT1130313401 Cabinet-Printing(Painting) 1 28
..2 PT11303134 Cabinet-Printing 1
0.1 PT15106107 Power Button 1 83
0.1 PU005005025A Conductive Foam 2 20
0.1 PU008008008 CONDUCTIVE FOAM 1 50
0.1 PU008008012 Canductive foam 1 95
0.1 PU010010016 Condctive Foam 2 81
0.1 RN4100001 CS Ring(10mm) 2 56
0.1 RU1110620303 Rubber Button(FX) 1 49
0.1 RU1110621301 Rubber (PAD)(Printing) 2 39
0.1 RU1530608 Rubber Foot 6 31
0.1 SC0306RBNI Screw M3X6 PRN Tapping 14 90
0.1 SC0308FBBI Screw M3X8 PFB Tapping 12 11
0.1 SC0308FIBI Screw M3X8 PFB 8 23
0.1 SC0308PBBI Screw M3X8 PBB Tapping 4 30
0.1 SC0308PW10BBI SCREW M3*8*10 2 93
0.1 SC0308RBNI Screw M3X8 PRN Tapping 48 26
0.1 SC0310PBBI Screw M3X10 PPB TAPPING 22 96
0.1 SC2604RINI Screw M2.6X4 PPN 2 21
0.1 SPSAW12020001-1 Switch Adaptor 12V/2A LV6 US/JP(11/17) 1
SPSAW12020002-1 Switch Adaptor 12V/2A LV6 EU(12)
SPSAW12020003-1 Switch Adaptor 12V/2A LV6 UK(13)
SPSAW12020004-1 Switch Adaptor 12V/2A LV6 AUS(14)
SPSAW12020006-1 Switch Adaptor 12V/2A LV6 KR(16)
0.1 TP021215G Double Sided Tape 2
0.1 TWMT112025302 Wheel Axis Assembly 2 25
..2 MT1105591 Wheel Axis 2
..2 MT1105593 Copper 2
..2 MT1120253 Metal Plate(Wheel) 2
0.1 TWPT11044322 LCD Fixed Holder Ass'y 2 17
..2 CB515N001 SEPARATE Wall 0.044
..2 CTCKD515YAH01 Carton 0.004
..2 PT11044322 LCD Fixed Holder 2
...3 MT1105583 Fixed Axis 2

0.1 TWPT1110801 Wheel Base Ass'y 2 24
0.1 TWPT1310619801 Knob Assembly 4 7
..2 PT11106499 Decoretive(18.0mm) 4
..2 PT1130030 Knob Plate(18.0MM)(Black) 4
..2 PT13106198 KNOB(PP) 4
0.1 UHKCF-50-B LOOP CORE 2 91
0.1 WR0320002001 Shielding Cable 3Pin Single Ro 1 97
0.1 WR0420004501 Shieding Cable 4 pin Single Ro 1 68
0.1 WR0520001509 Shieding Cable 5pin Single Row 1 69
0.1 WR0620001501 Shielding Cable 6Pin Single Ro 1 98
0.1 WR0620002004 Shieding Cable 6pin Single Row 1 71
0.1 WR0620002503 Shieding Cable 6 pin Single Ro 1 65
0.1 WR0820001001 Shielding Cable 8Pin Single Ro 1 99
0.1 WR0920002506 Shieding Cable 9 pin Single Ro 1 66
0.1 WRUSB05200030W5 Isolation Cable USB2.0 5Pin Si 1 67
0.1 WS116010305O Washer 2 32
0.1 TWPC21C00301 Main PCB Assembly 1 -
..2 TWPC21C00301T Main PCB SMT Integration Assem 1 -
...3 PC21C003 MAIN PCB 1 -
...3 TWPC21C003A01T Main PCB SMT Assembly 1 -
....4 AA822524X IC SN74HC165PW 6 IC12,13,14,15,16,17
....4 AL2-51-4403 TRANSISTOR 2N4403 PNP 1 Q1
....4 AL2-75-4344 IC CS4344-CZZ 24bit 192KHz Ste 2 IC6,7
....4 CS050C5002NPO CCAP SMD 5pF/50V ±0.25pF 0402 6 C24,25,26,27,41,42
....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 5 C104,107,112,115,119
....4 CS103K5003X7R CCAP SMD 0.01uF/50V 10% 0603 X7R 4 C2,15,44,45
....4 CS104K1602X7R CCAP SMD 0.1uF/16V 10% 0402 X7R 7 C3,4,11,12,13,14,18
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 69
C6,7,8,9,21,30,32,33,36,37,40,43,48,49,5
1,52,54,55,56,57,58,59,60,61,63,64,65,66
,67,68,69,70,71,72,74,75,76,77,78,79,80,
81,82,84,85,86,87,88,89,90,91,92,93,94,9
5,96,97,98,99,100,101,102,109,110,117,1
56,159,160,163
....4 CS105K1603X7R CCAP SMD 1uF/16V 10% 0603 X7R 11 C1,5,10,20,23,29,35,38,39,47,50
....4 CS106K1606X5R CCAP SMD 10UF/16V 10% 1206 X5R 8 C53,62,73,83,151,152,153,154
....4 CS300J5002NPO CCAP SMD 30pF/50V 5% 0402 NPO 32
C16,17,121,122,123,124,125,126,127,12
8,129,130,131,132,133,134,135,136,137,
138,139,140,141,142,143,144,145,146,14
7,148,149,150
....4 CS330J5003NPO CCAP SMD 33pF/50V 5% 0603 NPO 1 C34
....4 CS475K1605X5R CCAP SMD 4.7uF/16V 10% 0805 X5R 4 C19,28,46,155
....4 CS561J5003NPO CCAP SMD 560pF/50V 5% 0603 NPO 3 C113,116,120
....4 DICM1213A01SO Diode ESD Protection Arrays 6 D3,4,5,6,7,8
....4 DIEN1N4148WSM HF Diode 1N4148 SOD123 SMD 2 D1,2
....4 DISDBAT54SSM Diode BAT54S 30V 0.2A 2 D9,10
....4 ECS10616B Capacitor Electrolytic 10uF/16V 5 EC9,11,12,13,14
....4 ECS22616B Capacitor Electrolytic 22uF/16V 1 EC3
....4 ECS22716D8LE ECAP LOW ESR 220uF/16V 4 EC5,6,7,8
....4 ECS22725FLE ECAP LOWESR 220/25V 8*10MM SMD 1 EC10
....4 ECS47606B ECAP 47uF/6.3V 4*5.3mm SMD 1 EC4
....4 FCN2T1001001 FCN Dual Touch 180° SMD Pitch 1 FCN1
....4 IC74AHC1G14DBVR IC 74AHC1G14DBVR 1 IC18
....4 IC74HC4051PW IC 74HC4051 SINGLE 8-CHAN MUX 4 IC8,9,10,11
....4 IC74HCT595D IC 74HCT595D 5 IC19,20,21,22,23
....4 ICCS5343 IC CS5343 A/D Converter 1 IC24
....4 ICMP2315 IC MP2315 1 IC1
....4 ICTLV1117LV33 IC TLV1117LV33DCYR 3.3V 1A Reg 1 IC2
....4 ICYH109C02 IC YH109C02(STM32F411RCT6+Program) 1 IC3
.....5 ICSTM32F411RCT6 IC STM32F411RCT6 1 -
....4 LDKPT-1608SURCK Liquid-emitting Diode Red SMD 12 LED4,6,8,10,12,14,16,17,28,30,32,34

....4 LDL-S291SWC-ML5 LED White SMD 0603 120° 30
LED1,2,3,5,7,9,11,13,15,20,21,22,23,24,2
5,26,27,29,31,33,35,36,37,38,39,40,41,42
,43,44
....4 LDLTST-C193TGKT Liquid-emitting Diode Green SMD 2 LED18,19
....4 RS000010J03 RESISTOR 0 5% SMD 0603 6 R38,49,60,62,64,66
....4 RS001K10F03 RESISTOR 1K 1% SMD 0603 3 R52,54,57
....4 RS001M10F03 RESISTOR 1M 1% SMD 0603 4 R61,63,65,67
....4 RS001M16F02 RESISTOR 1M 1% SMD 0402 1 R9
....4 RS002010F03 RESISTOR 20 1% SMD 0603 1 R27
....4 RS003310F03 RESISTOR 33 1% SMD 0603 23
R4,12,13,16,23,24,25,26,129,131,135,13
7,139,141,154,156,160,162,164,166,174,
177,179
....4 RS003316F02 RESISTOR 33 1% SMD 0402 7 R10,15,17,19,20,29,31
....4 RS004716F02 RESISTOR 47 1% SMD 0402 2 R8,11
....4 RS010010F03 RESISTOR 100 1% SMD 0603 7 R18,21,22,33,35,39,41
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 55
R1,2,3,40,43,44,51,68,69,70,71,72,73,74,
75,76,77,78,79,80,81,82,83,86,87,88,89,9
0,91,92,93,94,95,96,97,98,99,100,101,10
4,105,106,107,108,109,110,111,112,113,
114,115,116,117,118,119
....4 RS010K16F02 RESISTOR 10K 1% SMD 0402 3 R6,7,47
....4 RS012010F03 RESISTOR 120 1% SMD 0603 18 R125,127,130,133,136,140,149,151,153,
157,171,172,173,175,176,178,180,181
....4 RS015010F03 RESISTOR 150 1% SMD 0603 4 R55,56,58,59
....4 RS01K210F03 RESISTOR 1.2K 1% SMD 0603 16 R124,126,128,138,142,144,145,146,147,
150,152,155,158,161,165,168
....4 RS020K10F03 RESISTOR 20K 1% SMD 0603 1 R32
....4 RS02K410F03 RESISTOR 2.4K 1% SMD 0603 10 R123,132,134,143,148,159,163,167,169,
170
....4 RS033K10F03 RESISTOR 33K 1% SMD 0603 1 R34
....4 RS04R704F06 RESISTOR 4.7 1% SMD 1206 2 R14,36
....4 RS100K10F03 RESISTOR 100K 1% SMD 0603 5 R28,42,45,48,50
....4 RS40K210F03 RESISTOR 40.2K 1% SMD 0603 1 R30
....4 RS49R910F03 RESISTOR 49.9 1% SMD 0603 7 R84,85,102,103,120,121,122
....4 RS7K1510F03 RESISTOR 7.15K 1% SMD 0603 1 R37
....4 SWEVQ11L05R Switch Tact 5mm 160g Horizonta 18 SW3,5,7,20,21,22,23,24,25,26,27,28,29,3
0,31,36,37,38
....4 SWEVQPLHA15 Switch Tact Stem Height:1.5mm 6 SW9,11,13,15,17,19
....4 TE591271001 Pin Header 180° Pitch:1.27mm 1 (TE1)
....4 TE682000602 Pin Header 90° Pitch:2.0mm 6Pin SMD 1 (TE16)
....4 TE6A2000301 Pin Header 180° Pitch 2.0mm 3PIN SMD 3 (TE7,10,17)
....4 TE6A2000401 Pin Header 180° Pitch 2.0mm 4Pin SMD 1 (TE8)
....4 TE6A2000501 Pin Header 180° Pitch 2.0mm 5Pin SMD 3 (TE2,12,13)
....4 TE6A2000602 Pin Header 180° Pitch 2.0mm 6Pin SMD 3 (TE3,5,11)
....4 TE6A2000901 Pin Header Pitch 2.0mm 6Pin SMD 1 (TE4)
....4 TR2SD2114KSM TRANSISTOR 2SD2114K NPN 1 Q2
....4 UH160808T-600Y BEAD 60 @100MHz 3A ±25% 0603 14 L8,10,11,12,13,14,15,16,17,19,42,43,46,4
7
....4 UH160808T-601Y CAPACITOR 1 L44
....4 UH201209T-102Y BEAD 1000 1000mA 1 L3
....4 UHBLM15BB121SN1 Bead 120 300mA ±25% 0402 6 FB1,2,10,11,12,13
....4 UHBLM18BD121SN1 IND BEAD 120 100MHz 200mA 0.40 3 FB3,8,9
....4 UHBLM18PG121SN1 Bead 120 ±25% 2A 0603 9 FB4,5,6,7,14,15,16,17,18
....4 UHCB1005KF-600T BEAD 60 @100MHz 3000mA ±25% 10 L4,5,6,7,9,23,24,25,26,27
....4 UHCB1005KF-601T BEAD 600 @100MHz 300mA ±25% 1 L45
....4 UHNR5040T4R7N INDUCTOR 4.7uH 3.1A 0.038 OHM 1 L1
....4 XTM14700X8 Crystal 14.7MHz 3.2*2.5*1.0MM 1 XTM1
...3 TWPC21C003B01T USB PCB SMT Assembly 1 -

....4 AL2-51-4403 TRANSISTOR 2N4403 PNP 1 Q207
....4 AL2-54-0138 Mosfet BSS138 N-CH 1 Q208
....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 2 C208,216
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 15 C210,211,212,213,217,218,219,220,224,
225,226,228,230,231,232
....4 CS105K5003X5R CCAP SMD 1uF 10% 50V 0603 X5R 1 C234
....4 CS105K5005X7R CCAP SMD 1uf/50V 10% 0805 X7R 1 C221
....4 CS106K1605X5R CCAP SMD 10uF/16V 10% 0805 X5R 3 C235,242,243
....4 CS106K1606X5R CCAP SMD 10UF/16V 10% 1206 X5R 1 C227
....4 CS121J5003NPO CCAP SMD 120pF/50V 5% 0603 NPO 2 C209,215
....4 CS181J5003NPO CCAP SMD 180PF 50V 5% 0603 NPO 8 C200,201,203,204,205,207,229,233
....4 CS225K1605X7R CCAP SMD 2.2uF/16V 10% 0805 X7R 2 C222,223
....4 DIPESD15VL1BA ESD Protection Diode 6 D200,201,202,203,204,205
....4 DISDB540C-13-F Schottky Barrier Rectifier Dio 1 D206
....4 DITVSNUP2201SM Transient Voltage Suppressol D 1 D207
....4 ECS10725FLE E CAP 100UF/25V 8*10MM SMD LOW 1 EC213
....4 ECS47635DLE ECAP 47UF/35V 6.3X5.7mm SMD 16 EC200,201,202,203,204,205,206,207,208
,209,210,211,214,215,216,217
....4 ECS47725GLE ECAP LOWESR 470UF/25V 10*10MM 1 EC212
....4 ICLTC3261EMSE IC LTC3261EMSE 1 IC204
....4 ICNJM4580M IC NJM4580M 5 IC200,201,202,203,205
....4 OTM21CC222R1H3 NETWORK EMI Suppression Filter 6 FIL200,201,202,203,204,205
....4 RS000004J06 RESISTOR 0 5% SMD 1206 1 R251
....4 RS001M10F03 RESISTOR 1M 1% SMD 0603 1 R260
....4 RS003K08F05 RESISTOR 3K 1% SMD 0805 6 R200,201,203,217,218,220
....4 RS003K10F03 RESISTOR 3K 1% SMD 0603 8 R252,253,254,255,259,261,262,263
....4 RS010010F03 RESISTOR 100 1% SMD 0603 1 R250
....4 RS010K08F05 RESISTOR 10K 1% SMD 0805 1 R216
....4 RS018K08F05 RESISTOR 18K 1% SMD 0805 2 R202,219
....4 RS022K08F05 RESISTOR 22K 1% SMD 0805 2 R234,240
....4 RS02K408F05 RESISTOR 2.4K 1% SMD 0805 4 R233,235,239,242
....4 RS047008F05 RESISTOR 470 1% SMD 0805 6 R204,212,221,229,236,241
....4 RS086610F03 RESISTOR 866 1% SMD 0603 3 R245,246,247
....4 RS100K08F05 RESISTOR 100K 1% SMD 0805 8 R207,209,215,224,226,232,238,244
....4 RS1K8208F05 RESISTOR 1.82K 1% SMD 0805 10 R205,206,208,214,222,223,225,231,237,
243
....4 RS1K8210F03 RESISTOR 1.82K 1% SMD 0603 2 R256,264
....4 RS3K7408F05 RESISTOR 3.74K 1% SMD 0805 2 R213,230
....4 RS47K510F03 RESISTOR 47.5K 1% SMD 0603 2 R248,249
....4 RS7K6808F05 RESISTOR 7.68K 1% SMD 0805 4 R210,211,227,228
....4 TR2SD2114KSM TRANSISTOR 2SD2114K NPN 6 Q200,201,202,203,204,205
....4 TRDMP3099L MOSFET DMP3099L P-CHAN 30V 3.8 1 Q206
....4 UH322522T-100K Choke Coil 10UH 1 L201
....4 UHACM2012900-2P Chock 90 0.4A 2.0X1.2mm 1 L204
....4 UHBLM18PG121SN1 Bead 120 ±25% 2A 0603 2 FB201,202
....4 UHRBBN5045A102M Wire Wound Chip Common Mode Ch 1 L202
...3 TWPC21C003C01T INPUT PCB SMT Assembly 1 -
....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 6 C300,301,302,303,304,305
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 4 C308,309,310,311
....4 CS181J5003NPO CCAP SMD 180PF 50V 5% 0603 NPO 2 C306,307
....4 DIPESD15VL1BA ESD Protection Diode 4 D300,301,302,303
....4 ECS10616B Capacitor Electrolytic 10uF/16V 5 EC301,303,304,305,306
....4 ECS22616B Capacitor Electrolytic 22uF/16V 2 EC300,302
....4 FCN2T1000402 FCN Dual Touch 90° SMD 1 FCN300
....4 ICNJM4580M IC NJM4580M 2 IC300,301
....4 RS010010F03 RESISTOR 100 1% SMD 0603 1 R304
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 2 R308,313
....4 RS020K10F03 RESISTOR 20K 1% SMD 0603 1 R300
....4 RS022K10F03 RESISTOR 22K 1% SMD 0603 2 R301,306
....4 RS056010F03 RESISTOR 560 1% SMD 0603 3 R302,303,305
....4 RS06K210F03 RESISTOR 6.2K 1% SMD 0603 2 R309,314

....4 RS100K10F03 RESISTOR 100K 1% SMD 0603 4 R311,312,315,316
....4 RS1K8210F03 RESISTOR 1.82K 1% SMD 0603 2 R307,310
....4 UHBLM15BB121SN1 Bead 120 300mA ±25% 0402 4 FB300,301,302,303
...3 TWPC21C003D01T HP PCB SMT Assembly 1 -
....4 CS101J5005NPO HF CCAP SMD 100pF/50V 5% 0805 NPO 2 C401,402
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 4 C404,405,406,407
....4 CS220K5005X7R CCAP SMD 22pF/50V 10% 0805 X7R 2 C400,403
....4 DIPESD15VL1BA ESD Protection Diode 2 D400,401
....4 ECS22725FLE ECAP LOWESR 220/25V 8*10MM SMD 2 EC400,402
....4 ECS47635DLE ECAP 47UF/35V 6.3X5.7mm SMD-D 2 EC401,403
....4 FCN2T1000402 FCN Dual Touch 90° SMD 1 FCN400
....4 ICNJM4580M IC NJM4580M 2 IC400,401
....4 OTM21CC222R1H3 NETWORK EMI Suppression Filter 2 FIL400,401
....4 RS001K10F03 RESISTOR 1K 1% SMD 0603 2 R406,407
....4 RS006808F05 RESISTOR 68 1% SMD 0805 4 R402,404,410,412
....4 RS012K08F05 RESISTOR 12K 1% SMD 0805 2 R401,409
....4 RS033K08F05 RESISTOR 33K 1% SMD 0805 2 R400,408
....4 RS1K8208F05 RESISTOR 1.82K 1% SMD 0805 4 R403,405,411,413
....4 TR2SD2114KSM TRANSISTOR 2SD2114K NPN 2 Q400,401
....4 UHBLM18PG121SN1 Bead 120 ±25% 2A 0603 1 FB402
...3 TWPC21C003E01T MIC PCB SMT Assembly 1 -
....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 6 C500,501,502,503,504,506
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 4 C509,510,511,512
....4 CS121J5003NPO CCAP SMD 120pF/50V 5% 0603 NPO 1 C508
....4 CS153K5005X7R CCAP SMD 0.015uF/50V 10% 0805 2 C505,507
....4 DIPESD15VL1BA ESD Protection Diode 2 D500,501
....4 DISDBAT54SSM Diode BAT54S 30V 0.2A 1 D502
....4 ECS10616B Capacitor Electrolytic 10uF/16V 2 EC501,503
....4 ECS22616B Capacitor Electrolytic 22uF/16V 2 EC500,502
....4 ICNJM4580M IC NJM4580M 2 IC500,501
....4 RS010010F03 RESISTOR 100 1% SMD 0603 1 R504
....4 RS020K10F03 RESISTOR 20K 1% SMD 0603 1 R500
....4 RS022K10F03 RESISTOR 22K 1% SMD 0603 2 R501,508
....4 RS056010F03 RESISTOR 560 1% SMD 0603 3 R502,503,506
....4 RS075008F05 RESISTOR 750 1% SMD 0805 1 R509
....4 RS082508F05 RESISTOR 825 1% SMD 0805 1 R507
....4 RS130K08F05 RESISTOR 130K 1% SMD 0805 1 R510
....4 RS3K7408F05 RESISTOR 3.74K 1% SMD 0805 2 R505,512
....4 RS47K508F05 RESISTOR 47.5K 1% SMD 0805 1 R511
....4 UHBLM15BB121SN1 Bead 120 300mA ±25% 0402 2 FB500,501
...3 TWPC21C003F01T Left Assign PCB SMT Assembly 1 -
....4 TE682000501 Pin Header 90° Pitch:2.0mm 1 (TE14)
...3 TWPC21C003G01T Right Assign PCB SMT Assembly 1 -
....4 TE682000501 Pin Header 90° Pitch:2.0mm 1 (TE15)
..2 TWPC21C003A01 Main PCB DIP Assembly 1 87
...3 SWDC11B2020469 Switch Rotational Encode 20Pul 1 ENC2
...3 SWDC11B2021431 Switch Rotational Encode 20Pul 1 ENC1
...3 VRR10301701 VARIABLE 10KB 7 VR1,8,14,15,17,24,30
...3 VRR10301704 Poltertiomaeter Rotary Volume 16 VR2,3,4,5,9,10,11,12,18,19,20,21,25,26,2
7,28
...3 VRR10301720 Potentiometer Rotary Volume 2 VR7,16
...3 VRS10304518 Potentiometer Slide 10K Trav 1 VR31
...3 VRS10304525 Potentiometer Slide 10K2B Trav 4 VR6,13,22,29
...3 VRS10310024 Potentiometer Slide 10K1B 100m 1 VR23
..2 TWPC21C003B01 USB PCB DIP Assembly 1 29
...3 JK0SCU201RFNO USB Connector 1 USB200
...3 JKANC3MAH XLR JACK 3Pin 90° Male 2 JK200,201

...3 JKDJ-0702B-020 DC Base 2.0MM 1 JK203
...3 MT11044128 Fixed Plate 1 MT200
...3 RJ1039-09-0580B RCA Jack(One Output) 1 JK202
...3 SWSPPJ22ME04 Switch Push 2P2T Dual Row Lock 1 SW200
...3 TE10200502 Connector (5P Socket)180° 1 (TE205)
...3 TE10200601 Connector in Header 180° Pitc 1 (TE201)
...3 TE10200602 Pin Header 90° Pitch:2.00mm 2 (TE200,203)
...3 TE622000302 Pin Header 90° Pitch:2.00mm 1 (TE206)
...3 TE622000501 Socket 5P 90° 1 (TE204)
...3 TE622000901 Pin Header 90° Pitch:2.00mm 1 (TE202)
..2 TWPC21C003C01 INPUT PCB DIP Assembly 1 27
...3 JK6631501070 Bahf Base W/NUT 6.3 1 JK300
...3 RJ1039-09-0580B RCA Jack(One Output) 1 JK301
...3 TE612000801 Connector 8P 180° 1 (TE300)
..2 TWPC21C003D01 HP PCB DIP Assembly 1 75
...3 JK-3537 3.5mm Phone Jack 9P 90° DIP F 1 JK400
...3 JY6317-02-030 Earphone base W/NUT 1 JK401
...3 TE622000401 Pin Header 90° Pitch:2.00mm 1 (TE400)
..2 TWPC21C003E01 MIC PCB DIP Assembly 1 74
...3 JK6631501070 Bahf Base W/NUT 6.3 1 JK500
...3 TE622000501 Socket 5P 90° 1 (TE500)
...3 VRR10301567 Potentiometer Rotary 10K15A 15 1 VR501
...3 VRR50201511 Potentiometer Rotary Volume:5K 1 VR500
..2 TWPC21C003F01 Left Assign PCB DIP Assembly 1 73
...3 SWSKV-23D21 SWITCH 2 S1,2
..2 TWPC21C003G01 Right Assign PCB DIP Assembly 1 72
...3 SWSKV-23D21 SWITCH 2 S3,4
..2 TWPC21C003H01 Left Toggle SW PCB DIP Assembl 1 54
...3 SWLBCR23M-095A Switch Toggle dual Row 3Pulse 1 SW1
...3 TE622000302 Pin Header 90° Pitch:2.00mm S 1 (TE6)
..2 TWPC21C003I01 Right Toggle SW PCB DIP Assemb 1 55
...3 SWLBCR23M-095A Switch Toggle dual Row 3Pulse 1 SW2
...3 TE622000302 Pin Header 90° Pitch:2.00mm 1 (TE9)
0.1 TWPC21C00401 Function PCB Assembly 1 86
..2 TWPC21C00401T Function PCB SMT Integration A 1 -
...3 PC21C004 Function PCB 1 -
...3 TWPC21C004A01T Left Function PCB SMT Assembly 1 -
....4 AA822524X IC SN74HC165PW 3 IC2,4,6
....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 3 C4,9,14
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 11 C1,2,6,7,11,12,16,19,21,22,23
....4 CS105K1603X7R CCAP SMD 1uF/16V 10% 0603 X7R 1 C18
....4 CS475K1605X5R CCAP SMD 4.7uF/16V 10% 0805 X5R 1 C17
....4 CS561J5003NPO CCAP SMD 560pF/50V 5% 0603 NPO 3 C5,10,15
....4 DICM1213A01SO Diode ESD Protection Arrays 1 D1
....4 ECS22716D8LE ECAP LOW ESR 220uF/16V 2 EC1,2
....4 FCN2T1001001 FCN Dual Touch 180° SMD Pitch 1 FCN1
....4 IC74AHC1G14DBVR IC 74AHC1G14DBVR 1 IC8
....4 IC74HCT595D IC 74HCT595D 3 IC1,3,5
....4 LDKPT-1608SURCK Liquid-emitting Diode Red SMD 4 LED1,2,3,4
....4 LDL-S291SWC-ML5 LED White SMD 0603 120° 17 LED7,8,9,10,11,12,13,14,15,16,17,18,19,
20,21,22,23
....4 LDLTST-C193TGKT Liquid-emitting Diode Green SMD 2 LED5,6
....4 RS003310F03 RESISTOR 33 1% SMD 0603 9 R16,19,21,26,37,39,46,49,50

....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 23 R1,2,3,4,5,6,7,8,28,29,30,31,32,33,34,35,
51,52,53,54,55,56,57
....4 RS012010F03 RESISTOR 120 1% SMD 0603 12 R17,18,20,22,23,24,25,27,36,38,40,41
....4 RS01K210F03 RESISTOR 1.2K 1% SMD 0603 6 R9,10,11,12,13,15
....4 RS02K410F03 RESISTOR 2.4K 1% SMD 0603 5 R43,44,45,47,48
....4 RS04R704F06 RESISTOR 4.7 1% SMD 1206 1 R59
....4 RS49R910F03 RESISTOR 49.9 1% SMD 0603 4 R14,42,58,60
....4 SWEVQ11L05R Switch Tact 5mm 160g Horizonta 11 SW13,14,15,16,17,18,19,20,21,22,23
....4 UH160808T-600Y BEAD 60 @100MHz 3A ±25% 0603 4 L1,2,3,4
....4 UHBLM18PG121SN1 Bead 120 ±25% 2A 0603 2 L5,6
...3 TWPC21C004B01T Left LCD PCB SMT Assembly 1 18
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 4 C201,203,204,206
....4 CS104K5005X7R CCAP SMD 0.1uF/50V 10% 0805 X7R 1 C208
....4 CS105K5003X5R CCAP SMD 1uF 10% 50V 0603 X5R 2 C200,207
....4 CS106K1605X5R CCAP SMD 10uF/16V 10% 0805 X5R 2 C202,205
....4 FCN1T1001001 FCN Down Touch Pitch 1.0mm 1 FCN200
....4 RS000010J03 RESISTOR 0 5% SMD 0603 1 R207
....4 RS002004F06 RESISTOR 20 1% SMD 1206 1 R200
....4 RS010010F03 RESISTOR 100 1% SMD 0603 1 R206
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 2 R203,204
....4 RS04K710F03 RESISTOR 4.7K 1% SMD 0603 2 R201,202
....4 TE681250201 Box Header 90° 1.25mm Single 1 (TE200)
....4 TE681250601 Box Header 90° 1.25mm Single 1 (TE201)
....4 UH160808T-601Y CAPACITOR 2 L200,201
...3 TWPC21C004C01T Right LCD PCB SMT Assembly 1 19
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 4 C301,303,304,306
....4 CS104K5005X7R CCAP SMD 0.1uF/50V 10% 0805 X7R 1 C308
....4 CS105K5003X5R CCAP SMD 1uF 10% 50V 0603 X5R 2 C300,307
....4 CS106K1605X5R CCAP SMD 10uF/16V 10% 0805 X5R 2 C302,305
....4 FCN1T1001001 FCN Down Touch Pitch 1.0mm 1 FCN300
....4 RS000010J03 RESISTOR 0 5% SMD 0603 2 R307,308
....4 RS002004F06 RESISTOR 20 1% SMD 1206 1 R300
....4 RS010010F03 RESISTOR 100 1% SMD 0603 1 R306
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 1 R303
....4 RS04K710F03 RESISTOR 4.7K 1% SMD 0603 2 R301,302
....4 TE681250201 Box Header 90° 1.25mm Single 1 (TE300)
....4 TE681250601 Box Header 90° 1.25mm Single 1 (TE301)
....4 UH160808T-601Y CAPACITOR 2 L300,301
...3 TWPC21C004D01T Left Sensor PCB SMT Assembly 1 -
....4 AA822748X Diode BAV99 1 D401
....4 AL2-51-4401 TRANSISTOR 2N4401 NPN 2 Q400,401
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 4 C400,402,404,405
....4 DIEN1N4148WSM HF Diode 1N4148 SOD123 SMD 1 D400
....4 DIENMMBD4148SE Diode Single MMBD4148SE 100V 2 1 D402
....4 DITPD1E04U04DPY Transient Voltage Suppressor 1 D403
....4 IC74LVC2G17DBV IC 74LVC2G17DBV 1 IC400
....4 ICLM393DR IC OPA LM393DR 1 IC401
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 5 R401,402,407,409,410
....4 RS033210F03 RESISTOR 332 1% SMD 0603 2 R406,412
....4 RS056010F03 RESISTOR 560 1% SMD 0603 2 R403,408
....4 RS12K110F03 RESISTOR 12K1 1% SMD 0603 1 R400
....4 RS22K110F03 RESISTOR 22.1K 1% SMD 0603 2 R405,411
....4 RS49K910F03 RESISTOR 49.9K 1% SMD 0603 1 R404
....4 TE682000602 Pin Header 90° Pitch:2.0mm 1 (TE400)
....4 TR2SK1828 Mosfet N-CH 20V MAIN 2-Pin 1 Q402
....4 UHBLM18PG121SN1 Bead 120 ±25% 2A 0603 2 L400,401
...3 TWPC21C004E01T Right Sensor PCB SMT Assembly 1 -
....4 AA822748X Diode BAV99 1 D501
....4 AL2-51-4401 TRANSISTOR 2N4401 NPN 2 Q500,501
