NuWave BruHub User manual

Owner’s Manual

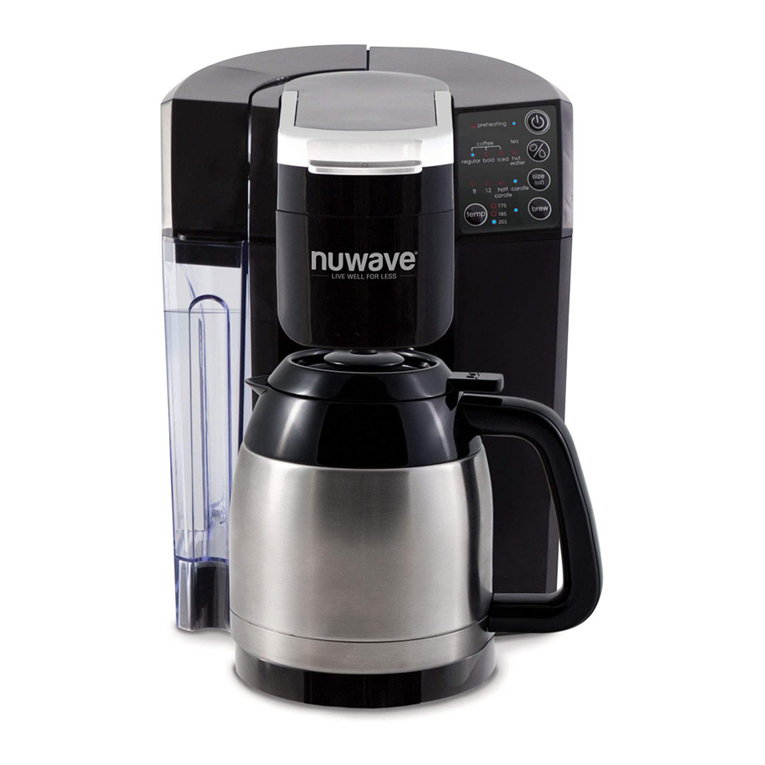

NuWave BruHubTM
3-in-1 Coffee Maker

7
Owner’s Manual
IMPORTANT SAFEGUARDS
11. Do not let cord hang over edge of table or counter or touch hot surfaces,
including stove.
12. Do not place coffee maker on or near a gas or electric burner or in an oven.
13. To disconnect coffee maker, press the power button off and then remove
plug from wall outlet.
14. WARNING! To reduce the risk of re or electric shock, do not remove the
bottom cover.
15. Do not open lid during a brewing cycle.
16. The Single Serve Insert contains sharp pieces! Use caution when
assembling, disassembling, or cleaning parts.
SAVE THESE INSTRUCTIONS
Other Consumer Safety Information
This appliance is intended for household use only.
a) A short power-supply cord (or detachable power-supply cord) is provided to
reduce risks resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and
may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used:
1) The marked electrical rating of the detachable power-supply cord or
extension cord should be at least as great as the electrical rating of the
appliance;
2) If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cored; and
3) The longer cord should be arranged so that it will not drape over the
counter top or table to where it can be pulled on by children or tripped over.

8Owner’s Manual
PARTS FOR YOUR NUWAVE BRUHUBTM
1
2
3
4
67
Tank Lid
Screen
Part #: 45126 Carafe Base
Part #: 45121A
Drip Tray Base
Part #: 451213
Mug Tray
Part #: 451214
Charcoal Filter
Part #: 45116
Water Tank
Part #: 451201
BruHubTM Base
Part #: 45110
Charcoal Filter Holder
Part #: 451205
1
2
3
4
5
6
7
8
11
12
12
Plastic Thermal Carafe
Part #: 45121
SS Thermal Carafe
Part #: 45131 (optional)
11
9
8
2
Insert Chamber 9
5
Carafe Lid
Part #: 45121B
10
10

9
Owner’s Manual
PARTS FOR YOUR NUWAVE BRUHUBTM (Continued)
13
15
19
Hot Water Insert
Part #: 451204
Custom Brew Filter Basket
Custom Brew Insert with Filter Basket
Part #: 451203
Custom Brew Cap
Hot Water Cap
Single Serve Insert
Part #: 451202
Coffee Scooper
Part #: 45129
13
14
14
15 19
18
20
18
16
Custom Brew Insert
20
17
16
17

10 Owner’s Manual
BEFORE FIRST USE
Before rst use or when the appliance has not been used for an extended period
of time, run a cleansing brew at least once with water only:
MAX Fill Line
1. Fill the Water Tank to
the MAX Fill Line.
• Water Tank can be lled
while in the unit or
detached.
2. Insert Hot Water Insert into the
Insert Chamber.
• See Assembly for the
Hot Water Insert on
page 14.
3. Set full-sized Carafe on the Drip Tray Base.
4. Press “Power” to preheat.
5. Select “hot water” for the
coffee selection.
6. Select “carafe” for size
selection.
7. Press “brew”.
• Repeat steps 1-7.

11
Owner’s Manual
CHARCOAL FILTER HOLDER ASSEMBLY
For additional water purication, use the supplied (optional) Charcoal
Filter Holder with Filter. Note: The coffee maker will still operate
without Charcoal Filter Holder installed.
1. Before rst use, apply pressure to release tab to open
Charcoal Filter Holder compartment and
remove Charcoal Filter.
2. Flush Filter by running under cold tap water for 1-3
minutes before initial use. After ushing, allow the
Filter to drain completely.
3. Carefully place Filter back into compartment and
snap to close.
• Flat side (base) of cartridge must face down inside
Filter Holder compartment.
4.Insert the Charcoal Filter Holder into the Water Tank. The Filter Holder’s
base should sit rmly into the channel.

12 Owner’s Manual
WATER COMPARTMENT
Fill water directly in the Water Tank when attached, or remove rst.
To ll directly in the Water Tank:
1. Lift the Water Tank Lid up and pour
in water to appropriate ll line.
2. Close the Water Tank Lid.
• Coffee maker will not operate when tank
is removed or when there is no water.
To ll Water Tank when removed:
1. Lift Water Tank Lid and place to the side.
2. Lift Water Tank up to remove from the side.
3. Fill to appropriate ll line.
4. Slide Water Tank straight down, ensuring the hooks t snug with Water Tank.
5. Place lid back on top of Water Tank.
IMPORTANT: When raising
Mug Tray to a higher level,
insert into holes. Press down
to ensure Mug Tray is secure.
MAX Fill Line
Full Carafe
Half Carafe
12oz Cup
8oz Cup
MAX Fill Line
Full Carafe
Half Carafe
12oz Cup
8oz Cup

13
Owner’s Manual
With your NuWave BruHubTM 3-in-1 Coffee Maker, you can choose from three
different inserts to customize your coffee-drinking experience and preference.
Single Serve Insert
1. Line up dots with each other and
place Single Serve Insert into
the Insert Chamber.
2. Place pod into Single Serve Insert
until connected, indicating needle
has gone through.
3. Close down Single Serve Lid.
• Make sure lid is fully closed.
• Use Mug Tray on Drip Tray Base
and Screen for smaller cups and mugs.
• Use “8” and “12” sizes for Single Serve Insert.
Custom Brew Insert
1. Place Filter Basket inside
Custom Brew Insert.
2. Line up dots with each other and place
Custom Brew Insert directly down
into Insert Chamber.
3. Fill with appropriate amount
of coffee grounds.
4. Close lid.
• Use “8”, “12”, “half carafe” and “carafe”
for Custom Brew option.
• Always use NuWave’s customized carafe
when using the Custom Brew Insert.
ASSEMBLY FOR INSERTS

14 Owner’s Manual
ASSEMBLY FOR INSERTS (CONT.)
CARAFE ASSEMBLY
1. Place Carafe Lid on top of
Carafe Base.
2. Line up dots by turning
clockwise to lock into place.
Hot Water Insert
Line up dots with each other and place
Hot Water Insert directly down
into Insert Chamber. Close lid.
• Use Mug Tray on Tray Base for smaller
cups and mugs.
• Use “8”, “12”, “half carafe”, and “carafe”
for Hot Water Insert.

15
Owner’s Manual
FUNCTIONS FOR THE NUWAVE BRUHUBTM
Power Button:
1. Press “Power” button once to turn the unit on. There will be a blue
light next to “Power” button to indicate it is on.
• When you press the “Power” button, there will be a red light next
to “Preheating”. Once it has preheated, the red light will turn off,
indicating the water is ready to brew. Once it has preheated, press
“Brew”.
• Unit will beep when the brew is complete.
2. Press “Power” again to turn the unit off.
Coffee selection function:
This lets you select your favorite beverage with the push of a button.
1. Default is set for “regular”.
2. Press the “beverage selection” button once and the blue light
next to “bold” will be lit.
3. Press the “beverage selection” button again to change the
selection to “iced”, “hot water”, or back to “regular”.
• When “iced” is selected, half of the amount will be dispersed.
For example, instead of 8oz, 4oz will be brewed, making the
beverage more concentrated.
• Refer to Insert & Beverage Selection Charts for more information.

16 Owner’s Manual
FUNCTIONS FOR THE NUWAVE BRUHUBTM (CONT.)
Size selection function:
This lets you choose your amount of beverage you would like brewed.
1. Default is set for “8”, which is 8 ounces.
2. Press the “size selection” button once and the blue light next to
“12” will be lit.
3. Press the “size selection” button again to change the selection to
“half carafe”, “carafe”, and back to “8”.
• Refer to Insert & Beverage Selection Charts for more information.
Brew function:
Once you have hit “Power” to turn the unit on, have chosen your
selection of beverage, and size, you can now brew.
1. Press the “Brew” button.
• There will be a red light next to “Preheating”. Once unit has
preheated, the red light will turn off, indicating the water is ready
to brew and unit will start brewing.
• Unit will beep when the brew is complete.
• DO NOT lift lid during brewing cycle. You must wait until brew
cycle is nished.
2. To stop the brewing function, press “Brew” button again.
NOTE
• Appliance will not preheat or brew if lid is not fully closed.
size
(oz)
brew

17
Owner’s Manual
INSERT & BEVERAGE SELECTION CHARTS
BEVERAGE SELECTION:
Scooper holds 8 grams of coffee grounds when leveled.
* Adjust strength of coffee by using more or less grounds.
Size Scoops
8oz cup 1 to 2 scoops
12oz cup 2 to 3 scoops
Half Carafe (21oz) 3 to 4 scoops
Full Carafe (42oz) 4 to 5 scoops
INSERT SELECTION:
Inserts 8oz 12oz 1/2 Carafe
21oz
Full Carafe
42oz
Single Serve
Insert x x
*
Custom Brew
Insert x x x x
Hot Water
Insert x x x x
* You must use carafe with this insert.

18 Owner’s Manual
CLEANING AND MAINTENANCE
To clean Hot Water Insert, pull up Hot Water
Cap to separate and clean insides of both parts.
• Hot Water Insert and Hot Water Cap are
dishwasher safe, top rack only.
• Hot Water Cap snaps back on after it’s cleaned.
For Custom Brew Insert, lift up Custom Brew Lid
to clean inside. Remove Custom Brew Insert Cap.
• Press in the tabs to remove Custom Brew
Cap from Custom Brew Lid.
• Custom Brew Cap is dishwasher safe, top rack only.
• Remove Filter Basket to clean individually.
• After cleaning, place inner Custom Brew Cap
back in lid by lining up the red arrows and pushing
down on the lid until you hear a snap.
• Custom Brew Insert is dishwasher safe, top rack only.
Tip: Cleaning Custom Brew Insert after each use
is recommended.
For Single Serve Insert, remove insert and ip the
top of lid to clean inside.
• Single Serve Insert is dishwasher safe, top rack only.
• Insert can be hand-washed with running hot water.
• Sharp needle is located in Single Serve Insert.
Use caution when cleaning.
C
A
U
T
I
O
N
:
S
H
A
R
P
N
E
E
D
L
E
S
,
D
O
N
O
T
P
U
T
F
I
N
G
E
R
S
I
N
T
H
E
C
H
A
M
B
E
R

19
Owner’s Manual
Cleaning needle under Lid:
The needle is located under the Lid.
To clean needle, use a thin piece of metal
or metal wire brush to free the part and
area with any blockage.
The Mug Tray is detachable and can be
removed and cleaned. The two layers can
be separated.
• The Mug Tray is dishwasher safe, top
rack only.
The Drip Tray Base is detachable and can
be removed and cleaned.
• The base is dishwasher safe, top rack only.
*Parts should be cleaned in dishwasher
set to a low-temperature-energy cycle.
Cleaning the Water Tank and Lid:
To clean the Water Tank, hand-wash only.
• Do not put Water Tank in the dishwasher.
To clean the Water Tank Lid, hand-wash or
wipe clean with a damp cloth.
• Lid is dishwasher safe, top rack only.
The Water Tank for the BruHub should be
periodically cleaned.
1. Put 1 tablespoon of white vinegar and
2 cups of water in Water Tank.
2. Choose “12” selection, “hot water” and press “Brew”.
3. Once complete, add fresh water and repeat steps.
4. Hand-wash the Water Tank with a damp, soapy,
soft cloth, and rinse thoroughly.
5. Let the Water Tank air-dry before returning it back to the Base.
CLEANING AND MAINTENANCE (CONT.)

20 Owner’s Manual
CLEANING AND MAINTENANCE (CONT.)
Cleaning Carafe:
To clean the Carafe, use warm soapy water
and rinse thoroughly. Use a soft foam brush
with a long handle to reach the bottom.
• The Carafe Lid is removable and is dishwasher
safe, top rack only.
External Cleaning
To clean the exterior of your coffee maker, wipe with a damp, soapy, soft cloth.
Descaling
Scale is a buildup that can occur over time after many uses of your appliance.
Descaling should be performed every few months to keep your BrewHub
working effectively and efciently. Parts that come into contact with water during
the brewing process can have a calcium buildup. Also, the heating element may
have deposits that need to be removed.
To descale, use the carafe, fresh water, a safe descaling solution, and perform
task near a sink.
1. Turn unit “OFF”.
2. Take out Removable Water Tank from unit and empty.
3. Pour descaling solution into the Removable Water Tank.
4. Pour fresh water into the Water Tank.
5. Place Water Tank back into the appliance.
6. Turn unit “On”.
7. Place carafe on tray.
8. Hit “Brew” and use largest amount of size for the cycle.
9. When nished, pour all liquid contents into sink.
10. Turn unit “Off”.
11. Remove Water Tank and rinse the tank in the sink thoroughly.
12. Remove any excess liquid solution on the Lid above the Water Tank,
detachable Drip Tray Base, and other areas.
13. Place Water Tank back into unit and ll with fresh water near
the Max Fill Line.
14. Run the largest brew size on the unit.
15. Run multiple brew cycles on the unit.
• You may need to ll Water Tank more than once during nal
rinsing process.
16. Turn off appliance and unplug.
17. If there is any descaling solution left over in Water Tank, repeat
steps 11-16.

21
Owner’s Manual
TROUBLESHOOTING
When unit is powered on and no water is in the unit:
• Unit will beep, and within 15 seconds it will shut off.
• If you press “Brew” and there is no water, a continuous beep will sound for up
to 15 seconds until you add water.
• If you do not add water within 15 seconds of the continuous beeping, the
unit will shut off, and beeping will stop.
If unit is in the middle of brewing and there is not enough water:
• A continuous beep will sound for up to 15 seconds until you add more water.
• If you do not add water after 15 seconds of the continuous beeping, the unit
will shut off.
If unit shuts off and you power up the unit again with no water.
• Unit will beep, and within 15 seconds it will shut off.
• If you press “Brew” and there is no water, a continuous beep will sound for up
to 15 seconds until you add water.
• If you do not add water within15 seconds of the continuous beeping, the unit
will shut off, and beeping will stop.
• Press “Brew” after the 15 seconds have passed.
Consistent beeping:
• Need to make sure enough water is in the Water Tank.
• The Water Tank has been removed from coffee maker.
Not brewing right away:
• Appliance needs to preheat.
• Needs appropriate amount of water.
• Unit may have automatically shut off. Simply press “Power” to turn back on.
In use unit not preheating or brewing:
• Check to see if the lid is open. Close the lid. Appliance will not preheat or
brew if lid is not closed.

22 Owner’s Manual
TROUBLESHOOTING (CONT.)
WARNING
Please immediately unplug and contact Customer Service
Department if you experience other problems.
1-877-689-2838 or [e-mail]
Coffee grounds are going into the brewed coffee:
• Do not overll the lter (do not exceed the MAX line in the lter).
• Recommended to use “drip” coffee grounds or “coarse” grounds
when using the Filter Basket.
Coffee maker Filter Basket clogs during brewing process:
• Recommended to use “drip” coffee grounds or “coarse” grounds when
using the Filter Basket.
