nwm MBE001 User manual

wireless on-ear speakers
Online Instruction Manual

Contents
Introduction ................................................................................ 3
Package contents ........................................................................... 3
Part names ..................................................................................... 4
Turning power on/off ....................................................................... 5
Wearing .......................................................................................... 6
Status indicator display .................................................................. 7
How to charge ............................................................................. 9
Charging ......................................................................................... 9
How to connect ......................................................................... 13
Pairing .......................................................................................... 13
Re-pairing ..................................................................................... 15
How to use ................................................................................ 17
Listening to music ........................................................................ 17
Calling .......................................................................................... 19
Using the voice assistant function ................................................ 21
nwm Connect App .................................................................... 23
Operations available with the nwm Connect app .......................... 23
Download the nwm Connect app .................................................. 23
Troubleshooting ....................................................................... 24
Troubleshooting ............................................................................ 24
How to reset ................................................................................. 26
Notifications .............................................................................. 27
Precautions for use ....................................................................... 27
Bluetooth ...................................................................................... 29
Trademarks .................................................................................. 30
Warranty ....................................................................................... 31
Main specifications .................................................................. 32
Main specifications ....................................................................... 32
– 2 –

Introduction
Package contents
(1) Main unit (2) Carrying case
(3) USB cable (USB Type-A - USB Type-C®)
(4) Quick start guide
(5) Safety guide x 2
– 3 –

Part names
(This example uses the right earphone)
1: Speaker
2: Status indicator
3: Microphone
4: Multifunction button
5: Earphone charging connectors
6: Sensor
7: Left/right label
– 4 –

8: Carrying case charging connectors
9: USB charging port (USB Type-C®)
Turning power on/off
Turn the earphones on by removing them from the carrying case, and turn them off by
returning them to the case.
Turning the earphones on and off with the multifunction button is not possible.
On-ear detection sensors
These earphones include on-ear detection sensors.
If you take the earphones off from your ears while listening, the music will automatically
pause. If you put them on again, the music will be resumed.
lIf the earphones are not put on correctly, the on-ear detection sensors may not
function.
lIf the earphone sensors are dirty, the on-ear detection sensors may not function. If
the earphones are dirty, wipe them clean with a soft, dry cloth or similar.
lThe on-ear detection function can also work with the left or right earphone only.
– 5 –

Wearing
These earphones are open-ear type. They are worn such that the speaker fits over the
ear canal.
Before putting them on, check which are the left and right earphones.
Place the earphones over the ear from the front so that the speaker is above the ear
canal.
Excessive force Misaligned wearing Earphones in the wrong
ears
Do not use excessive force when putting on or while using the earphones. Doing so may
damage the earphones.
– 6 –

If the earphones are not put on completely, they may fall off.
Ensure that the earphones are not put on the wrong ears.
Status indicator display
Color and pattern of status indicator Earphone status
Two slow, light blue blinks Not connected to a device.
(Power will automatically turn off af-
ter approximately 5 minutes)
Slow light blue blinking In connection standby status.
(Power will automatically turn off af-
ter approximately 5 minutes)
Blinks red and blue alternatively In pairing mode.
Slow white blinking Connected to a device.
Fast white blinking Receiving a call.
Lit red Microphone muted.
Lit orange Low battery.
Slow green blinking (default setting) Charging.
Lit green (default setting) Charging completed.
The status indicator does not work when the earphones are being worn.
– 7 –

The color of the status indicator during charging can be changed from green using the
dedicated nwm Connect app. For details, see “nwm Connect App.”
nwm Connect App
– 8 –

How to charge
Charging
Before using your earphones for the first time, charge them using the included USB
cable.
1. Remove the earphones from the carrying case, and peel away the protective stickers.
– 9 –

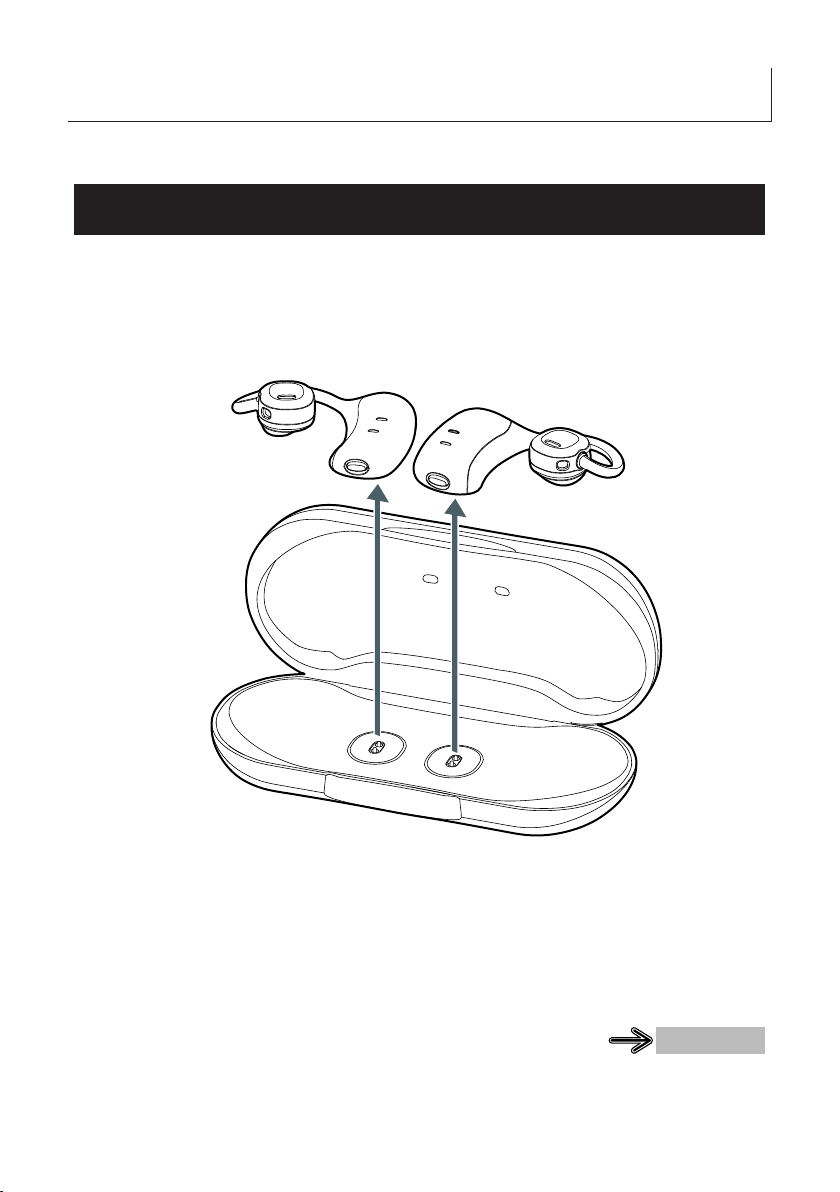

2. Place the earphones in the carrying case.
Place the earphones in the carrying case such that their charging connectors are aligned.
3. Connect the end (USB Type-C: (1)) of the included USB cable to the USB port on the
carrying case.
4. Connect the other end (USB Type-A: (2)*) of the USB cable to the USB port on a PC or
similar.
– 10 –

5. The status indicator on the earphones will slowly blink green. (This can be checked
even when the lid of the carrying case is closed)
When the light remains on, charging is complete.
<Note>
nBefore charging, ensure that you wipe the earphones with a dry cloth or similar prior to
placing them in the carrying case.
nEnsure that you use the included USB cable when charging. Charging may not be possible if
other than the included USB is used.
nWhen inserting a USB cable into a USB port, ensure that it is inserted straight (horizontally),
and all the way in.
Charging takes approximately 2.5 hours.
When charging is complete, remove the USB cable.
When the remaining battery is low, the status indicator will be lit orange, and a notifica-
tion tone will sound.
* The charging time may vary depending on the temperature and usage frequency.
– 11 –

<Note>
nBefore charging, ensure that you wipe the earphones with a dry cloth or similar prior to
placing them in the carrying case.
nCarry out charging of the earphones in a location away from direct sunlight and that is well
ventilated (5°C/41°F to 40°C/104°F).
nIf connected to a PC, charging may not be possible if this enters power saving mode or is
turned off.
nDo not use the USB cable if it is bent or twisted. Doing so may result in fire or electric shock.
nPay attention to the following points when storing for a long period of time. Failure to do so
may result in rapid battery degradation, or reduced available operation time.
–Do not store in locations with high temperatures or humidity (such as within a car or where
subject to direct sunlight).
–Do not store when either fully charged or fully discharged.
– 12 –

How to connect
Pairing
Connecting these earphones to a Bluetooth device first requires that they be paired.
This means that using the same Bluetooth device at a later date will not require pairing
operations again.
To pair with subsequent Bluetooth devices, or to switch between connected devices,
see “Re-pairing.”
Re-pairing
Pairing:
Bluetooth devices require that devices to be connected wirelessly be first registered
with each other. This registration process is called “pairing.”
Before pairing
lAlso read the instruction manual of the Bluetooth device to be connected.
lPerform pairing when the device to pair and the earphones are within 1 m of each
other.
– 13 –

How to pair
1. Remove the earphones from the carrying case.
When using for the first time, the earphones automatically enter pairing mode.
During pairing mode, the status indicator blinks between red and blue alternatively.
If the earphones are left in pairing mode for approximately 5 minutes, the power will automati-
cally be turned off.
2. During pairing mode, put on the earphones.
3. Turn on the power of the Bluetooth device (device to be connected), open its Blue-
tooth settings screen, and search for the earphones.
4. When [nwm MBE001] is displayed on the screen of the device to be connected, select
it.
When a notification tone sounds in the earphones, pairing is complete.
lIf [nwm MBE001] is not displayed on the screen of the device to be connected,
repeat this procedure from step 1.
lIf you are asked to enter a pass key (*) during pairing operations, input “0000”.
* The pass key may also be referred to with terms such as pass code, PIN code,
PIN number, or password.
– 14 –

<Note>
nif you are unable to connect the devices, perform pairing again.
nSome Bluetooth devices may increase their volume when paired with this product. After
pairing is complete, check the volume before use.
nThis product can register its pairing information with up to eight Bluetooth devices. Pairing
with a ninth device will delete previously registered device pairing information. In order to
reconnect a device that has had its pairing information deleted, perform pairing again.
Pairing using the nwm Connect app
Pairing can be performed using the dedicated nwm Connect app. For details, see “nwm
Connect App.”
nwm Connect App
Re-pairing
If connection with a paired Bluetooth device is no longer possible, or to connect to a
second or subsequent device, perform pairing again.
1. Remove the earphones from the carrying case.
– 15 –

2. Press and hold the multifunction button (on either the left or right earphone) for
approximately 5 seconds until a “beep-beep” is heard.
The status indicator blinks between red and blue alternatively, and the earphones enter pairing
mode.
When entering pairing mode, a notification tone sounds.
Next, perform pairing as described in step 2 onward in “How to pair.”
Re-pairing will also be required in the following instances.
lIf the product has been reset
lIf the Bluetooth connection registration information in the paired device has been
deleted
lIf there is a significant distance between this product and the device to be connected
How to pair
Switching between paired devices
1. On the Bluetooth setting screen of the device currently connected to the earphones,
cancel the Bluetooth connection.
When the connection is lost, a notification tone will sound.
2. In the Bluetooth settings screen of the new device to be connected, select [nwm
MBE001].
When the connection is complete, a notification tone will sound.
– 16 –

How to use
Listening to music
Operation will differ depending on the connected device. Also check the instruction
manual for the device to be connected.
1. Remove the earphones from the carrying case.
2. Put the earphones on.
3. Connect the earphones to the device to be connected.
If the device is the paired device, the earphones may automatically connect. If the earphones
do not automatically connect, or if connecting to a device that has not been paired, see “How
to pair.”
How to pair
Depending on the device to be connected, it may be necessary to set the Bluetooth profile to
A2DP (Advanced Audio Distribution Profile).
– 17 –

4. Operate the multifunction button.
Multifunction button operation Details
Single-click Press the button on the right or left
earphone once
Play/Pause
Double-click Press the button on the right or left
earphone twice
Go to the next track or chapter
Triple-click Press the button on the right or left
earphone thrice
Return to the start of the track or
chapter
Double-click and
hold (left)
Press the left button once, then
press it again and hold it for 3 sec-
onds
Reduce volume*1
Double-click and
hold (right)
Press the right button once, then
press it again and hold it for 3 sec-
onds
Increase volume*1
*1 When the maximum or minimum volume is reached, a notification tone will sound.
When only one of the earphones is being worn, the volume cannot be adjusted.
* Even when playing music, the phone function can be used, such as answering calls.
For operations in calls, check “Calling.”
Calling
<Note>
nDepending on the specifications of the connected device, the operations above or operations
on the connected device may not be possible.
nDepending on the specifications of the connected device, configuration of playback settings
may be required. Also see the instruction manual of the device you are using.
nDepending on the specifications of the connected device, the app used for music playback
may start automatically, or play/pause may not be possible. Also see the instruction manual
of the device you are using.
– 18 –

Calling
Operation will differ depending on the connected device. Also check the instruction
manual for the device to be connected.
1. Remove the earphones from the carrying case.
2. Put the earphones on.
3. Connect the earphones to the device to be connected.
If the device is the paired device, the earphones may automatically connect. If the earphones
do not automatically connect, or if connecting to a device that has not been paired, see “How
to pair.”
How to pair
Depending on the connected device, it may be necessary to set the Bluetooth profile to HFP
(Hands-Free Profile).
– 19 –

4. Operate the multifunction button.
Multifunction button operation Details
Single-click Press the button on the right or left
earphone once
Puts the earphones in a call state
when there is an incoming call*1.
Toggles microphone mute*2 on/off
each time it is clicked during a call.
Double-click Press the button on the right or left
earphone twice
Declines the call when there is an
incoming call.
Ends the call during a call.
Double-click and
hold (left)
Press the left button once, then
press it again and hold it for 3 sec-
onds
Reduce volume*3
Double-click and
hold (right)
Press the right button once, then
press it again and hold it for 3 sec-
onds
Increase volume*3
*1 During calls, the status indicator on the earphones will rapidly blink white.
*2 When the microphone is muted, the status indicator on the earphones will be lit red. When muted, a
notification tone will sound about every 30 seconds.
*3 When the maximum or minimum volume is reached, a notification tone will sound.
When only one of the earphones is being worn, the volume cannot be adjusted.
<Note>
nDepending on the specifications of the connected device, the operations above or operations
on the connected device may not be possible.
nDepending on the specifications of the connected device, configuration of call settings may
be required. Also see the instruction manual of the device you are using.
– 20 –
