ZONE VIBE 125
Setup Guide
Guide d'installation

CONTENTS
English . . . . . . . . . . . . . . . . .3
Français . . . . . . . . . . . . . . . 12
Español . . . . . . . . . . . . . . . . 21
Português . . . . . . . . . . . . . . 30

KNOW YOUR PRODUCT
Front view:
Back view:
Microphone boom
Music controlbutton
(play/ pause/
nexttrack)
USB-A receiver
Call button
(answer/end/ reject calls)
Volume up/ down
3English

Bottom view:
3-position switch
(power/Bluetooth®
pairing)
Mute button
USB-C port
LED light
4English

USB-A USB-C
USB-CUSB-A
BOX CONTENT
1. Zone Vibe 125 wireless headphones
2. Charging cable
3. USB-A receiver
4. USB-C adapter
5. Travel bag
6. User documentation
POWER ON/OFF
1. Slide the switch in the arrow’s direction
tothemiddle to power on the headphones.
1
2
2. Once powered on, the LED light will slightly
turnwhite.
3. There will be a voice prompt that tells you
thebattery status.
5English

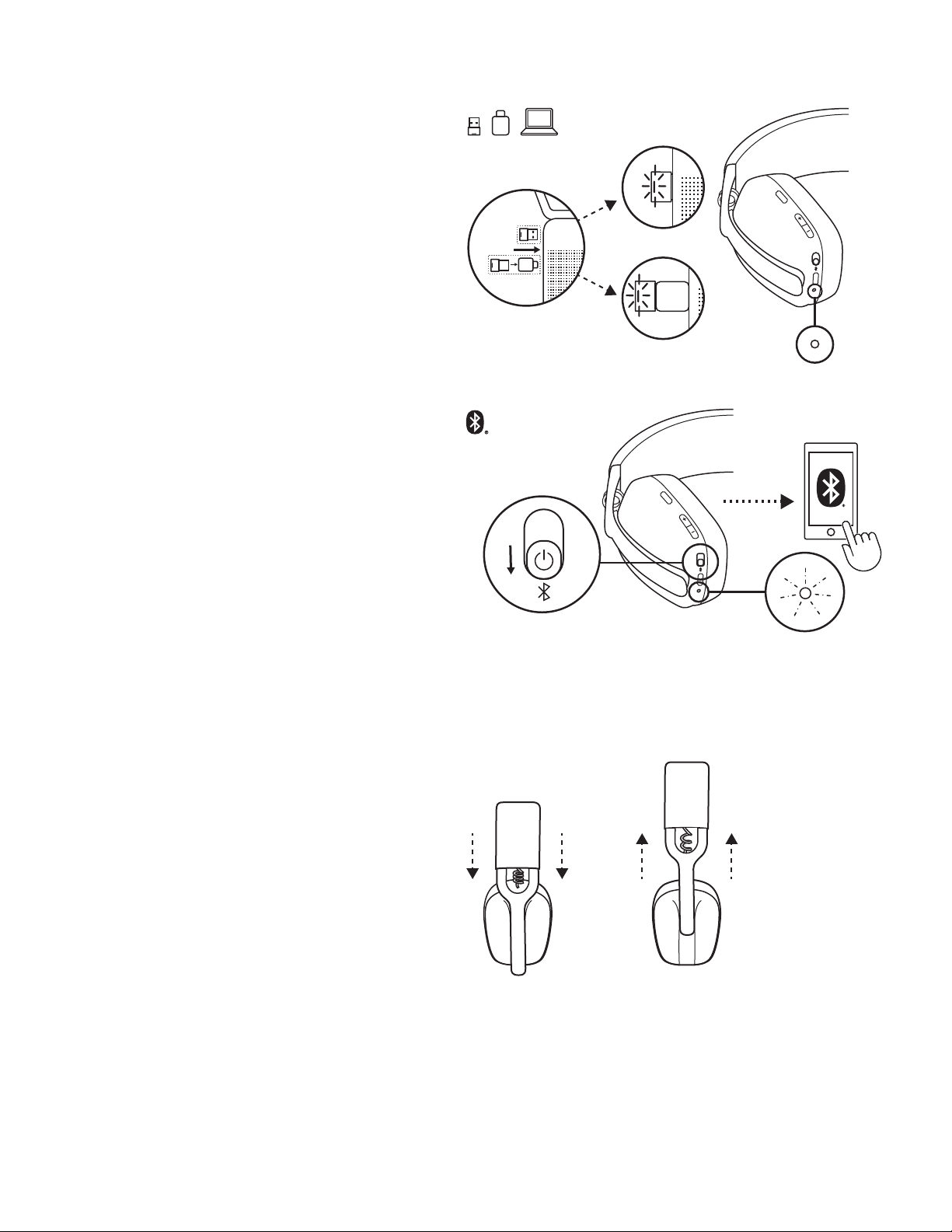

CONNECT YOUR HEADPHONES
a. Connect via USB-A receiver
1. Insert the receiver into the computer USB-A port.
Or insert the USB-A receiver with the USB-C
adapter to the USB-C port.
2. Zone Vibe 125 is already paired to the receiver
itships with.
3. Once successfully paired, the LED light on
thereceiver will turn solid white.
b. Connect via BLUETOOTH®
1. Slide the switch to the bottom in the arrow’s
direction for 2 seconds to initiate pairing.
2. The LED light will ash white rapidly.
3. Open Bluetooth®settings on your device.
4. Select Logi Zone Vibe 125 in discoverable devices.
5. Once successfully paired, the LED light will turn
solid white.
LOGI Zone
Vibe 125
2 sec.
USB-A
USB-C
ADJUSTING HEADPHONES
1. Adjust the headphones by sliding earcups up
anddown the extended part of the headband.
2. It may be easier to adjust the headphones on
your head. Slide the earcups up and down the
headband until they sit comfortably on your ears.
6English

L L L
HEADPHONES CONTROLS
Note:
- Media control functionality depends on the type of application.
- Call activities are always the rst priority. When two devices are connected, the Bluetooth®
connection will be prioritized over the receiver.
Tip: Music EQ controls available on Logi Tune.
UC version:
Usage Button Action
Call controls Answer / End call Call button Short press
Reject call 2 sec. press
Music controls Play / Pause Music control button Short press
Track forward Double press
Volume Volume up "+" Short press
Volume down "-"
Connectivity Bluetooth®pairing Power button 2 sec. press
Voice notications indicate
when the microphone is on/
o mute.
Mute
"Mute on"
"Mute o"
MUTE
There are 2 ways to mute your microphone.
Press the button to mute. Flip up or down the mic
boom to mute or unmute.
7English

HEADPHONES LIGHT INDICATOR
RECEIVER LIGHT INDICATOR
Note:
- User-triggered behaviors, such as Bluetooth®pairing or link lost, will be prioritized then revert back to its previous status
once the behavior is completed.
Category Status Light
White
Power
Power ON Turn solid white and then dim
Battery charging Breathing
Battery fully charged Solid
Connectivity
Bluetooth®pairing Fast blinking
Bluetooth®/ receiver connected Turn solid white and then dim
Link lost Dim white
Calls Active call Solid
Incoming call Slow blinking
Red Calls Mute Solid
Power Low battery (< 10%) Slow blinking
Factory reset Fast blink from red to white for
three times then LED turn o
Category Status Light
White
Connectivity
Pairing Fast blinking
Receiver connecting O
Receiver connected Solid
Receiver disconnected O
Calls
Active call Solid
Incoming call Repeat "fast blinking 3 times then
LED o"
Red Calls Mute Solid
Pairing mode
Paired
Incoming call
Mute on
8English

CHARGING
To conserve battery life, headphones automatically
power o after 30 minutes without usage.
Sleep timer could be adjusted in Logi Tune.

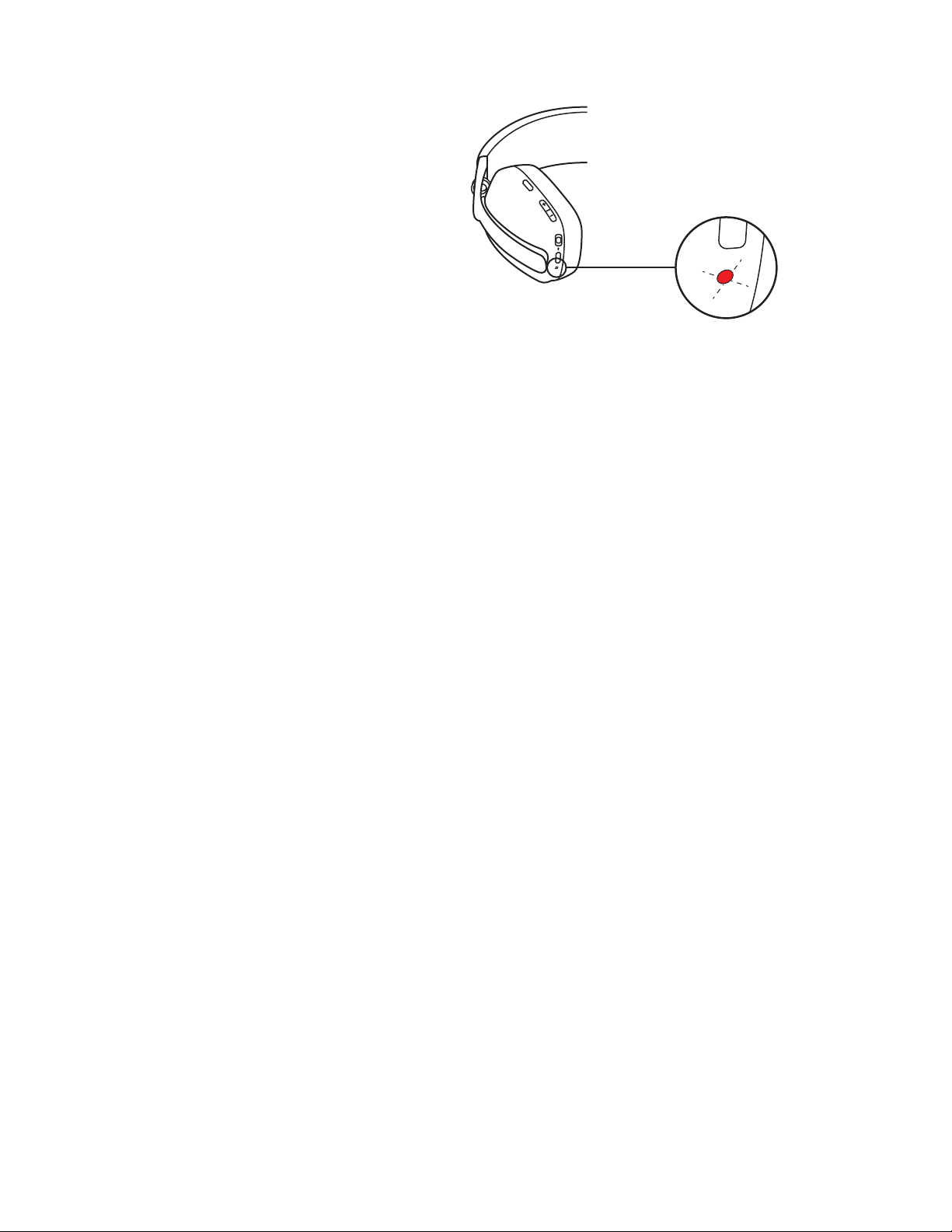

The LED light on the headphones will blink slowly
inRED when the battery is low.
Charging via USB cable
1. Plug the USB-C cable end into the USB-C port on
thebottom of the earcup.
2. Plug the USB-A end into the USB-A charging port on
your computer or AC adapter.
3. The LED light will start breathing white when charging.
4. The LED light will turn solid white when fully charged.
–2 hours will fully charge the battery.
– 5 minutes will give you 1 hour of playback.
Battery life may vary based on user, environment,
andcomputing conditions.
5. The headphones can be used with the receiver
andBluetooth®paired while charging.
LOGI TUNE
Logi Tune helps boost your headphones performance
withperiodic software and rmware updates.
It is recommended to update both your headphones
and receiver. To do so, download Logi Tune from
www.logitech.com/tune
9English

ADJUSTING SIDETONE
Sidetone lets you hear your own voice during conversations
so you are aware of how loud youaretalking. In Logi Tune,
select the sidetone feature, andadjust the dial accordingly.
 A higher number means you hear more external sound.
 A lower number means you hear less external sound.
AUTO SLEEP TIMER
By default, your headphones will automatically power o
when not in use for 30 minutes. Adjust the sleep timer in
Logi Tune. To wake up your headphones, try sliding o/on
the power switch again.
RESET YOUR HEADPHONES
1. Power the headphones on.
2. Press and hold the call button and volume ’–’ button
for5seconds.
3. The LED light will quickly blink from red to white
for3timesand then turns o when your headphones
aresuccessfully reset.
4. The headphones will turn o after reset.
10 English
