NXP Semiconductors TDA9351 SERIES User manual

1
NXP TDA9351/53/61/63 XXX SERIES
S
S
SE
E
ER
R
R
V
V
V
I
I
IC
C
CE
E
EM
M
M
A
A
A
N
N
NU
U
U
A
A
A
L
L
L
COLOUR TELEVISION

.
2
CONTENTS
1. safety precautions ………………………………………………………………………………………3
2. block diagram ……………………………………………………………………………………………4
3．Replacement of memory IC ……………………………………………………………………………6
4．Service adjustment ……………………………………………………………………………………...6
5．ICs functional description ……………………………………………………………………………15

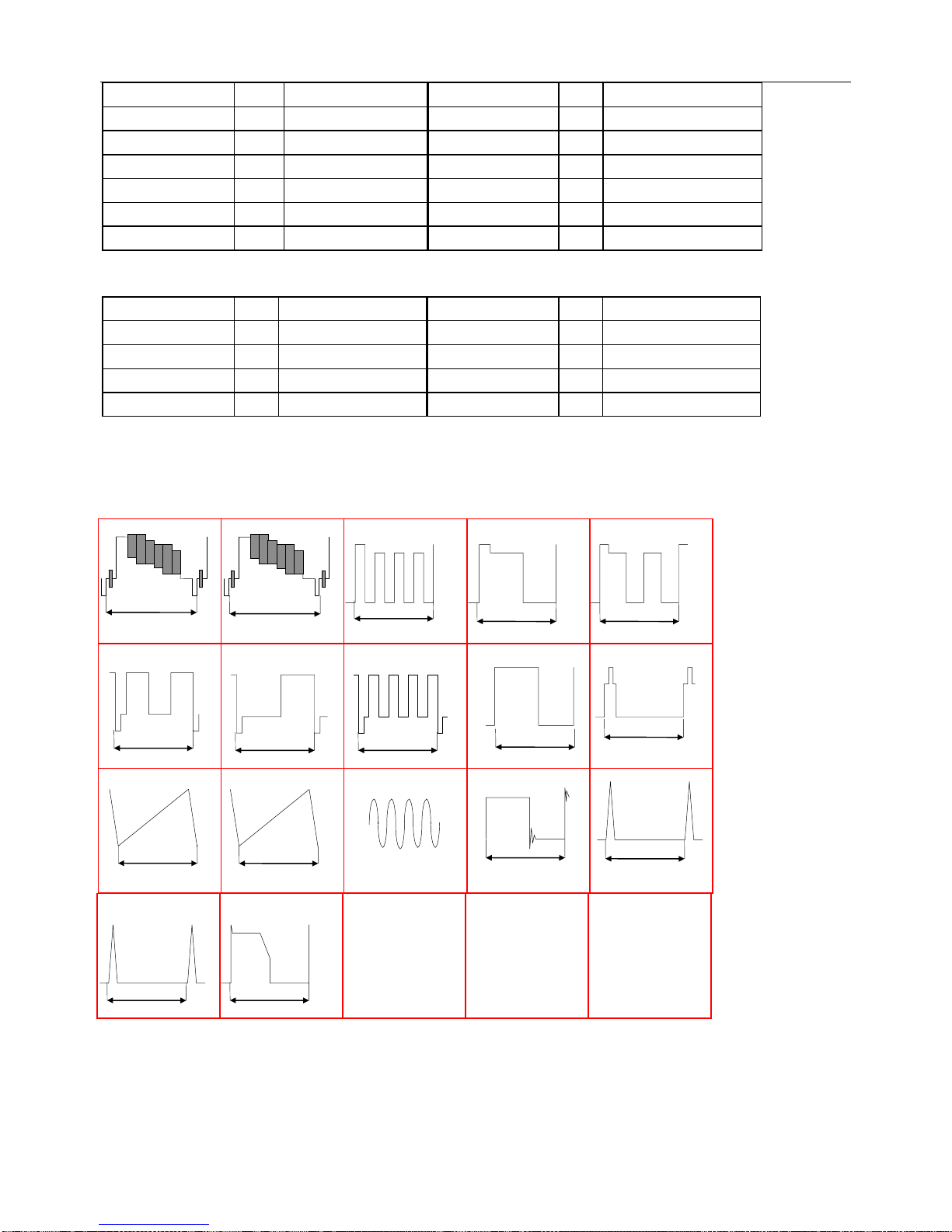

6．Test point waveform………………………………………………………………………………….…18
7．All ICs/transistors voltages…………………………………………………………………………….19

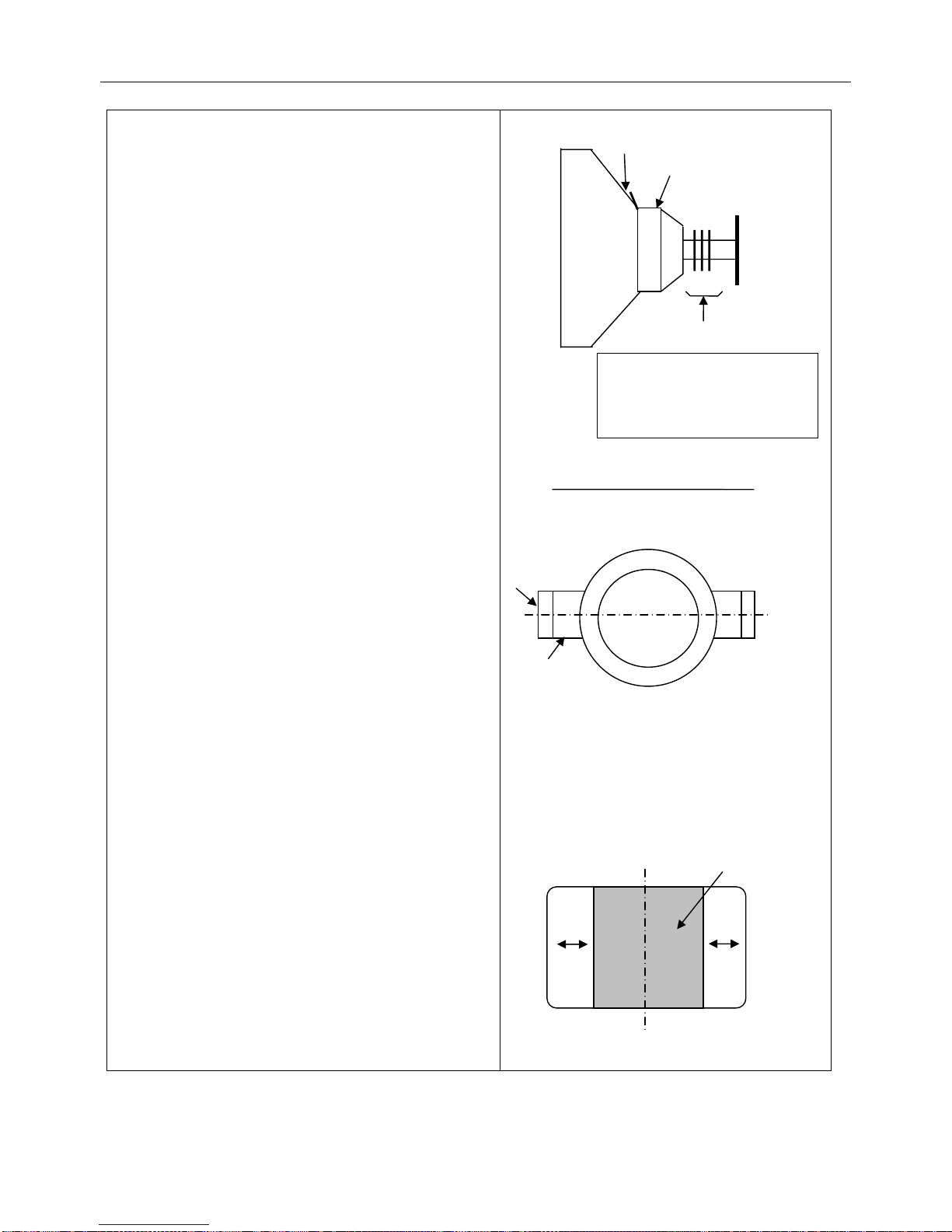

8．Purity / convergence adjustment……………………………………………………………………..20
9．KLX-PH22Z VER3.0 circuit diagram ………………………………………………………………22
10．KLX-PH22Z VER3.0 PCB ………………………………………………………………………….. 23
11．KLX-PH22Z .BOM ………………………………………………………………………………….. 24

.
3
SAFETY PRECAUTIONS
1. The design of this product contains special hardware, many
circuits and components specially for safety purposes. For
continued protection, no changes should be made to the
original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to those
used in the original circuits. Service should be performed by
qualified personnel only.
2. Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void
the manufacturer’s warranty and will further relieve the
manufacturer of responsibility for personal injury or property
damage resulting therefrom.
3. Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics
are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by
using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special
safety characteristics are identified in the parts list of
Service manual. Electrical components having such
features are identified by shading on the schematics
and by ( ！) on the parts list in Service manual. The use
of a substitute replacement which does not have the same
safety characteristics as the recommended replacement
part shown in the parts list of Service manual may cause
shock, fire, or other hazards
4. Don’t short between the LIVE side ground and
ISOLATED (NEUTRAL) side ground or EARTH side
ground when repairing. Some model’s power circuit is
partly different in the GND. The difference of the GND is
shown by the LIVE: ( ) side GND, ISOLATED (NEUTRAL) :
( ) side GND and EARTH : ( ) side GND. Don’t short
between the LIVE side GND and ISOLATED (NEUTRAL)
side GND or EARTH side GND and never measure with a
measuring apparatus (oscilloscope etc.) the LIVE side GND
and ISOLATED (NEUTRAL) side GND or EARTH side GND
at the same time. If above note will not be kept, a fuse or
any parts will be broken.
5. If any repair has been made to the chassis, it is
recommended that the +B setting should be checked or
adjusted (See ADJUSTMENT OF +B POWER SUPPLY).
6. The high voltage applied to the picture tube must conform
with that specified in Service manual. Excessive high
voltage can cause an increase in X-Ray emission, arcing
and possible component damage, therefore operation under
excessive high voltage conditions should be kept to a
minimum, or should be prevented. If severe arcing occurs,
remove the AC power immediately and determine the cause
by visual inspection (incorrect installation, cracked or melted
high voltage harness, poor soldering, etc.). To maintain the
proper minimum level of soft X-Ray emission, components
in the high voltage circuitry including the picture tube must
be the exact replacements or alternatives approved by the
manufacturer of the complete product.
7. Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM.
Discharge the picture tube before attempting meter
connection, by connecting a clip lead to the ground frame
and connecting the other end of the lead through a 10kΩ
2W resitor to the anode button.
8. When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence of
overheating should be replaced. Always use the
9. manufacturer’s replacement components.
10. Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
terminals, video/audio input and output terminals, Control
knobs, metal cabinet, screwheads, earphone jack, control
shafts, etc.) to be sure the product is safe to operate without
danger of electrical shock.
11. The surface of the TV screen is coated with a thin film which
can easily be damaged. Be very careful with it when handle
the TV. Should the TV screen become soiled, wipe it with a
soft dry cloth. Never rub it forcefully. Never use any cleaner
or detergent on it.
(1) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand a
voltage of 3000V AC (r.m.s.) for a period of one second.
(…Withstand a voltage of 1100V AC (r.m.s.) to an appliance
rated up to 120V, and 3000V AC (r.m.s.) to an appliance
rated 200V or more, for a periode of one second.)
This method of test requires a test equipment not generally
found in the service trade.
(2) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
a line isolation transformer during this check.). Using a
“Leakage Current Tester”, measure the leakage current
from each exposed metal part of the cabinet, particularly
any exposed metal part having a return path to the chassis,
to a known good earth ground (water pipe, etc.). Any
leakage current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
●Alternate Check Method
Plug the AC line cord directly into the AC outlet ( do not use
a line isolation transformer during this check.). Use an AC
voltmeter having 1000 ohms per volt or more sensitivity in
the following manner. Connect a 1500 Ω10W resistor
paralleled by a 0.15 μF AC-type capacitor between an
exposed metal part and a known good earth ground (water
pipe, etc.). Measure the AC voltage across the resistor with
the AC voltmeter. Move the resistor connection to each
exposed metal part, particularly any exposed metal part
having a return path to the chassis, and measure the AC
voltage across the resistor. Now, reverse the plug in the AC
outlet and repeat each measurement. Any voltage
measured must not exceed 0.75V AC (r.m.s.). This
corresponds to 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.).
This corresponds to 0.2mA AC (r.m.s.)

.
4
2 TV Block diagram
z
z
TUNER SAW IF IN R/Y IN
RF AGC G/U IN
B/V IN
CVBSINT
CHROMA
IFVO OUT
CVBS/Y IN
SDA
SCL
AUDIO OUT IK
RGB OUT
V OUT H OUT
S
TRAP
V
o
V
2i
V
1i
Y
Cr
Cb
A
Ri2
A
Ri1
A
Lo
A
Ro
S-
V
HS
24C08
POWER
UNIT
110
V
26
V
14
V
-14
V
8
V
3.3
V
CRT PCB
V IN
LA78040/41/
TDA8174A
V OUT
H IN
H OUT
H OUT
D
Y
heatSCREE
N
FOCU
S
TDA
X
XXX
Vi1
OUT1-
OUT1+
Vi2
OUT2-
OUT2+
A
N752
2
CRT
A
Li1
A
Li2
C
Y
405
2
audio
audio
audio
audio
video
video
bus
video
video
video
180
V
405
2

.
5
Block diagram TDA93xx/83xx series with mono intercarrier sound demodulator

6
3.REPLACEMENT OF MEMORY IC
1. MEMORY IC.
This TV uses memory IC. In the memory IC are memorized data for correctly operating the video and
deflection circuits.
When replacing memory IC, be sure to use IC written with the initial value of data.
2. PROCEDURE FOR REPLACING MEMORY IC
(1) Power off
Switch the power off and unplug the power cord from AC outlet.
(2) Replace IC
Be sure to use memory IC written with the initial data values.
(3) Power On
Plug the power cord into the AC outlet and switch the power On.
(4) Check and set system default value:
1) Press “MENU” key followed by digits '6''4''8' and '3'. then Press “TEST” key on the Remote
control unit for factory used.
2) The red “M”or”factory” will be displayed on the screen, repeat this and it will changed as follow:
normal-M(factory)-BUS open-normal..
3) Press digital key, (Mkey) and corresponding on-screen display will be appeared.
4) Check the setting value of the SYSTEM default value of Table below. If the value is different,
select items by [CH+]/[CH-] keys and set value by [VOL+]/[VOL-] keys.
5) Press “STANDBY” key again and return to the normal screen.
4.SERVICE ADJUSTMENT
B1 POWER SUPPLY
1. Receive normal colour bar signal.
2. Connect DC voltmeter to VD524- and isolated ground.
3. Adjust potentiometer in power unit to get the voltage as 110V ±1.0V for 21 inch hereinafter,
FOCUS ADJUSTMENT
1. Receive a crosshatch signal.
2. While watching the screen, adjust the FOCUS VR to make the vertical and horizontal lines as fine and
sharp as possible.
BUS CONTROL ADJUSTMENT
TDA9351/9353:to enter BUS control mode, Press “MENU” key followed by digits '6''4''8' and '3'. then
press digit Press “0” to “9“ key, (Mkey) and corresponding on-screen display will be appeared.
TDA8370:to enter BUS control mode, Press “MENU” key followed by digits '6''4''8' and '3'. then Press
“TEST” key on the Remote control unit twice for factory used(or press digits '6''4''8' and '3' twice.). and then
press digit Press “0” to “9“ key, (Mkey) and corresponding on-screen display will be appeared.
On TV screen “TEST” will be indicated, this means entered bus control mode.
And press following key, each function will be available.

7
Remote Hand Unit keys
[M1] [M2] [M3]
[M4] [M5] [M6]
[M7] [M8] [M9]
[M0]
Geometrical adjustment
MENU8 (9351)/servise 1(8370)
Receive PAL standard Complete pattern signal.
Adjustment steps：
a) Adjust V. SLOPE, to the center horizontal line just appeare from half bottom shadow.
b) Adjust V. SIZE, to get 90% of vertical picture contents would be displayed on CRT.
c) Adjust V. SHIFT, the center horizontal line correspond to CRT vertical center.
d) Adjust H.SHIFT, to get the picture horizontal center correspond to CRT horizontal center.
Receive NTSC signal and repeat above
AGC Adjustment.
MENU7 (9351)/servise 2(8370)
Receive 60dBμ(1mV)VHcolour bar pattern signal，adjust AGC value（voltage from high to low），to noise
reduce gradually and just disappeared point.
CRTcut off and white balance adjustment.
MENU9 (9351)/B W BALANCE(8370)
Receive white signal.
a) CRT cut off adjustment.
1. Select “SC”, then automatically vertical scan will be stopped.
2. Adjust SCREEN control on Flyback transformer to get the darkest single horizontal line (red,
green, or blue, sometimes shows more yellow, more purple or more white).
b) White balance adjustment.
1. Select RD/BD menu.
2. Adjust RD/BD to get colour temperature as x=281, y=311
c) Sub-Brightness adjustment. (Use stair case signal)
1. Select SB menu.
2. Adjust SB to get the darkest step being cutoff.
MENU8
V SLOPE 31
V SHIFT 31
V AMP 31
V SCOR 31
H SHIFT 31
b
cde
ijk
fgh

8
ICs Default Settings
1．TDA9351/9353
MI Items Vari
able
Prese
t
discription
M0 AVL ON/OFF ON Auto volume control select on menu.on:open;off:close.
FSL ON/OFF ON Vertical sync slice level select.off:auto;on: 60% of complex sync
FMWS 0-2 0 FM demodulation band width.0:standard(225khz);1: for over FM
modulation(450KHz);2:for over FM modulation(600KHz)
FFI ON/OFF OFF IF PLL filter.on:short time constant;off:normal
OSO ON/OFF ON Decreasing bright spot when switch off stay at the vertical over scan
period .ON:open;OFF:close.
FCO ON/OFF OFF Forced color system. On:only for single color system(for example
VCR); off:normal
WOOFER ON/OFF OFF Woofer select on menu.on:open;off:close.
DVD DELAY 0-8 2 Delay of turning to TV from DVD
DVD/VCD ON/OFF OFF Display on screen.on:DVD;OFF:VCD.
M1 BAND 0~2 2 Tuner band mode select,see attached table 1
AV OPT ON/OFF OFF AV control logic option,see table 2
AV CFG* 0~8 3 AV input stuts select, see table 2
NTSC MX USA/JAP USA NTSC matrix select(USA or JAPAN)
VIDEO OUT IF/CVBS CVBS AV output mode select:TV /display on screen
PRO 0-3 0 Sharp the boardline
PIN5 NTSC Compatible with other hardware, see table3
PIN7 VOL1 Compatible with other hardware, see table3
PIN8 MUTE Compatible with other hardware, see table3
START TIME 6-15 S 8 Delay time after power on
M2 VISION IF 38/38.9/4
5.75/58.7
5
38.9M IF select
DK ON/OFF OFF Sound system select
BG ON/OFF ON Sound system select
I ON/OFF OFF Sound system select
M ON/OFF OFF Sound system select
SIF PREFER DK/I/BG/
M
BG Sound system priority select when Auto scan
AUTO SOUND ON/OFF ON Sound system auto identify when auo scan
POWER OPT 0-2 2 Switch on mode,0:standby,1:power on;2:remember last time.
TXT DEF 0-3 0 Text language selset
TXT BRI 0-63 63 Text brightness set
SPANISH BIT ON/OFF OFF Spanish text bit
MI
M3 ENGLISH ON/OFF ON Language option
ARABIC ON/OFF OFF Language option

9
PERSIAN ON/OFF OFF Language option
TURKISH ON/OFF OFF Language option
FRANCE ON/OFF OFF Language option
RUSSIA ON/OFF OFF Language option
HUNGARY ON/OFF ON Language option
SPANISH ON/OFF ON Language option
CROATIA ON/OFF ON Language option
GREECE ON/OFF ON Language option
PORTUGUESE ON/OFF ON Language option
BUGIARIA ON/OFF ON Language option
SERBIA ON/OFF ON Language option
ITALY ON/OFF ON Language option
ROMANIAN ON/OFF ON Language option
POLISH ON/OFF ON Language option
Items Variable Preset
M4 SUBCON 0~63 63 Subsidiary contrast setting
SUBCOL 0~63 63 Subsidiary color setting
SUBSHP 0~63 63 Subsidiary sharp setting
SUBTINT 0~15 15 Subsidiary tint setting
YDLY PAL 0~15 12 Y delay time setting of PAL
YDLY NTSC 0~15 12 Y delay time setting of NTSC
YDLY SEC 0~15 12 Y delay time setting of SECAM
YDLY AV 0~15 12 Y delay time setting of AV
UOC VOL SW ON/OFF OFF Audio output mode option.on:output controlled by volume;off:not
controlled.
UOC VOL 0-63 63 Audio output range setting of pin44
TDA9874
GAIN
0-30 5 Output range adjusting of TDA9874
CATHODE 0~15 15 Cathode voltage setting
SC BRI 0~63 32 The single horizontal line brightness setting
TINT RANGE 0-63 31 Tint adjust range setting
M5 OSD VPOS 0~63 53 OSD position setting of vertical
OSD HPOS 0~59 15 OSD position setting of horizontal
WIDE 0~63 15 Vertical range setting of wide screen mode
ZOOM 0~63 59 Vertical range setting of zoom mode
NENU TITLE 0~6 3 Color setting of menu title
MI HALFTONE 0-2 1 Halftone setting of menu
M6 SHIPMODE Ship mode setting option

10
SEARCH
SPEED
0-3 1 Search speed setting.o:slow;3:fast
PWL 0-15 15 White peak limit
OSD
CONTRAST
0-3 0 OSD contrast setting.0:bitght;3:dark
BLUE STR. ON/OFF ON Blue level stretch option
BSD ON/OFF ON Black level stretch range.ON:30 IRE;OFF:20IRE.
AAS ON/OFF ON Black level actived area.ON:no more than 10%of black
background;OFF:no more than 20% of black background.
CORING 0-3 0 Coring and decrease nosie.0:off.
M7 AGC-TOP 0-63 24 RF AGC adjusting
AGC-SPEED 0-3 1 AGC delay time adjusting
LOGO OPT ON/OFF OFF LOGO option
VOL6 0-63 17 Volume setting of 10%
VOL16 0-63 32 Volume setting of 25%
VOL32 0-63 48 Volume setting of 50%
VOL63 0-63 63 Volume setting of 100%
7KEYS ON/OFF OFF “POWER”key option of key board
X RAY ON/OFF OFF X RAY protect function option
OSVE ON/OFF OFF AKB detect line hide option(supported by TDA9353/63)
HCO ON/OFF OFF Auto horizenal range revise option(supported by TDA9353/63)
M8 FREQUENCY 50HZ 60HZ Display vertical frequency automaticly
VSLOPE 0~63 31 31 Vertical slope adjusting
VSHIFT 0~63 31 31 Vertical shift adjusting
VAMP 0~63 31 31 Vertical size adjusting
VSCOR 0~63 31 31 Vertical correct adjusting
HSHIFT 0~63 31 31 Horizontal shift adjusting
RGBHS 0~63 31 Vertical shift adjusting of RBG/YUV
RGB HPOS 0~63 31 OSD horizontal shift adjusting of RBG/YUV
EW WIDTH 0~63 31 Horizontal range adjusting
EW PARA 0~63 31 East-west curve adjusting
UP CORNER 0~63 31 Up conner adjusting
LO CORNER 0~63 31 Low conner adjusting
H-PARA 0~63 31 Paralleloqram adjusting
H-BOW 0~63 31 Bow adjusting
EW-TRAPE 0~63 31 Trapezoid adjusting
M9 BT 0~63 48 Brightness adjusting of white balance
CT 0~63 48 Contrast adjusting of white balance
SC OFF Single horizontal line.open by “V+”;closed by “V-”
RB 0~63 32 Red cut adjusting
GB 0~63 32 Green cut adjusting

11
RD 0~63 32 Red drive adjusting
GD 0~63 32 Green drive adjusting
BD 0~63 32 Blue drive adjusting
SB 0~63 40 Sub-brightness adjusting
ATTACHED TABLE1
BAND=0 BAND=1 BAND=2
PIN10(B2) PIN11(B1) PIN10(B2) PIN11(B1) PIN10(B2) PIN11(B1)
VL 0 0 0 1 1 0
VH 1 0 1 0 0 1
U 0 1 1 1 1 1
TABLE2
AV OPTION:MENU1→AV CFG;
O=TV→AV;1=TV→AV1→AV2;2=TV→AV1→AV2→S-VIDEO;3=TV→AV1→AV2→S-VIDEO→YUV;
5= TV→AV→S-VIDEO;6= TV→AV→S-VIDEO→YUV;7= TV→AV→YUV;8=TV→EURO;
9=TV→AV→EURO
When“AV OPT”is setting “OFF”,the logic table of AV control
MODE TV AV2 AV/AV1/YUV/EURO(RGB) SVHS
Pin62 L L H H
Pin63 L H L H
When“AV OPT”is setting “ON”,the logic table of AV control
MODE TV AV2 AV/AV1/YUV/EURO(RGB) SVHS
Pin62 H L L L
Pin63 H H L L
TABLE3
Pin5,pin7,pin8 is variable for compating with other hardware
NTSC Control SAW filter ,switch between M
and N
VOL2 PWM control output for left AMP.
DVD Output for DVD&TV cabine control VOL1 PWM control output for right AMP.
SCART Scart detect level input WOOFER For woofer controlling
MUTE For audio mute mode MUTE2 For mute mode 2
LED For LED controlling SV-DT S-VIDEO detect level input
BAND3 For band3 controlling 5060 Output for 50/60Hz alternate

12
2．OM8370
B/W BALANCE
MI Items Vari
able
Prese
t
discription
DRI R 0~63 32 RED DRIVE
DRI G 0~63 32 GREEN DRIVE
DRI B 0~63 32 BLUE DRIVE
CUT R 0~63 32 RED CUT
CUT G 0~63 32 GREEN CUT
BT 0~63 32 Brightness adjust of white balance
CT 0~63 32 contrast adjust of white balance
Note: press "MUTE" To enter the single horizontal line mode,and press again exit.
S0 POW 0-2 1 Switch on mode,0:standby,1:power on;2:remember last time.
LOGO ON/OFF OFF LOGO option
DRCS LOAD ON/OFF OFF Speicel letter load for logo(supportted by 24C16,set OFF normally)
SAVER ON/OFF OFF Option of screen saver
MENU BG 0~2 2 Background of menu(0:no;1:blue;2:half tone)
AV control logic level optionON
TV AV1 AV2 SVHS OTHER
PIN62 0 1 0 1 1OFF
PIN63 0 0 1 1 0
PIN62 1 0 0 0 0
AV OPT ON/OFF
ON
PIN63 1 0 1 0 0
AV2 ON/OFF ON Option of AV2
SVHS ON/OFF OFF Option of SVHS
YUV ON/OFF OFF Option of YUV
SCART ON/OFF OFF Option of SCART
DVD ON/OFF OFF Option of DVD
DVD SRC V/S/YUV V Select of DVD input mode
DVD LOGIC 0-3 3 DVD logic output level select(pin62 63)
S1 FREQUENCY 50HZ Display vertical frequency automaticly
H PH 0~63 31 Horizontal shift adjusting
V SL 0~63 24 Vertical slope adjusting
V SH 0~63 21 Vertical shift adjusting
V SI 0~63 33 Vertical size adjusting
V SC 0~63 27 Vertical correct adjusting
H PH YUV 0~63 31 Horizontal shift adjusting of YUV/RGB
S2 AGC 0~63 24 Adjusting of RF AGC
COOL R 0~63 30 Cool color temperature adjusting of red
COOL G 0~63 32 Cool color temperature adjusting of green
COOL B 0~63 42 Cool color temperature adjusting of blue
WARM R 0~63 42 Warm color temperature adjusting of red
WARM G 0~63 32 Warm color temperature adjusting of green

13
WARM B 0~63 30 Warm color temperature adjusting of blue
BR-YUV 0~63 32 Bias voltage of red for YUV
BG-YUV 0~63 32 Bias voltage of green for YUV
WIDE 0~63 17 Vertical size adjusting of wide mode
ZOOM 0~63 50 Vertical size adjusting of zoom mode
S3 VP 7~63 38 Vertical shift of OSD
HP 0~63 30 Horizonol shift of OSD
HP-YUV 0~30 30 Horizonol shift of YUV
OSD BRI 0~3 0 Brightness of OSD
S4 AGC-SPEED 0-3 1 AGC delay time adjusting
POW ON TIM 6-15 8 Powe on delay on time setting
VIDEO OUT IF/CVBS CVBS AV out mode option(IF:TV;CVBS:screen)
PIN5 NTSC Compatible with other hardware, see table*
PIN7 VOL1 Compatible with other hardware, see table*
PIN8 MUTE Compatible with other hardware, see table*
AKB ON/OFF ON Auto black level adjusting
NBL ON/OFF OFF Auto detect of black current
RC FORMAT NEC/RC5 NEC Code select of Renote Control
Note:wrong select may cause useless of RC
KEYBOARD SANYO/
PHILIPH
S
SANY
O
Keyboard select
MONO
* For compatible of other hardware, there are different functions of pin 5,7,8.
woofer For woofer control
Vol2 Volume PWM control of right AMP.
Vol1 Volume PWM control of left AMP.
Band3 For band control for the third pin of tuner
NTSC For SAW filter control
SCART Detect signal input of SCART
DVD Output control level for DVD
MUTE Control signal for MUTE
5060 Control signal for 50/60 switch
MUTE2 Control signal for MUTE2
SV-DT Detect signal For S-Video
S5 ENGLISH ON/OFF ON Language option
FRENCE ON/OFF ON Language option
RUSSIAN ON/OFF ON Language option
TURKISH ON/OFF ON Language option
FARSI ON/OFF ON Language option
ARABIC ON/OFF ON Language option
BULGARIAN ON/OFF ON Language option
RUMANNIAM ON/OFF ON Language option
SPANISH ON/OFF ON Language option

14
PORTUGUESE ON/OFF ON Language option
ITALIAN ON/OFF ON Language option
GERMAN ON/OFF ON Language option
DUTCH ON/OFF ON Language option
SWEDISH ON/OFF ON Language option
NORWEGIAN ON/OFF ON Language option
HUNGARIAN ON/OFF ON Language option
POLISH ON/OFF ON Language option
CZECH ON/OFF ON Language option
SLOVENE ON/OFF ON Language option
CROATIAN ON/OFF ON Language option
MACEDONIAN ON/OFF ON Language option
SERBIAN ON/OFF ON Language option
GREEK ON/OFF ON Language option
Items Variable Preset
S6 UOC VOL SW 0~63 63 Subsidiary contrast setting
UOC/PWM
VOL
0~63 63 Subsidiary color setting
VOL10 0~100 25 Volmule of diagram 25%
VOL25 0~100 50 Volmule of diagram 50%
VOL50 0~100 75 Volmule of diagram 75%
VOL100 0~100 100 Volmule of diagram 100%
WOOFER ON/OFF OFF Woofer option on menu
TDA9860
WOOF
ON/OFF OFF Woofer output mode select (from TDA9860 or PWM)
OFF:PWM;on:TDA9860.
TDA9874
GAIN
ON/OFF OFF Gain of TDA9874 output
AGN ON/OFF OFF Gain of FM output .OFF:normal;no:+6dB
S7 IF 38/38.9/
45.75/
58.75
38.9M IF setting
FMWS 0~2 0 Band width of FM demodulation.0:standard(225kHz) ;1:for FM
over modulation (450kHz);2:over modulation (600kHz)
VST 0~2 0 VST band control option
BAND3
VHFL 0 0
VHFH 1 0
Band
opt=0
UHF 0 1
VHFL 0 1
VHFH 1 0
Band
opt=1
UHF 1 1

15
VHFL 1 0 0
VHFH 0 1 0
Band
opt=2/
band
3 UHF 1 1 1
FST BAND ON/OFF OFF OFF:TABLE1;ON:TABLE2. NOTE*
FST LH Frequency of H band setting*
FST HU Frequency of U band setting*
SECAM ON/OFF ON SECAM system option
DK ON/OFF ON Sound system option
I ON/OFF ON Sound system option
M ON/OFF OFF Sound system option
BG ON/OFF ON Sound system option
AUTO
SOUND
ON/OFF ON Sound system auto indefine for auto search
SIFPREFER DK/I/BG/
M
BG Perfer sound system for auto search
S8 SUB CON 0~63 32 Subsidiary contrast setting
SUB BRI 0~63 32 Subsidiary brightness setting
SUB COL 0~63 32 Subsidiary color setting
SUB SHA 0~63 32 Subsidiary sharp setting
SUB TINT 0~31 16 Subsidiary tint setting
YDLY PAL 0~15 2 Y delay time setting of PAL
YDLY NTSC 0~15 2 Y delay time setting of NTSC
YDLY AV 0~15 2 Y delay time setting of AV
CATHE 0~15 8 Cathode drive level of CRT
SC.BRI 0~63 8 Brightness of the single horizontal line mode
PWL 0~15 15 Limit of peak of white level
5. ICs functional description
UOC TDA93XX/83XX
SYMBOL PIN DESCRIPTION
STAND BY output. 1 In STAND BY mode, high level (Power OFF).
For Power ON this pin will be reduced to low.
SCL 2 I2C-bus clock line
SDA 3 I2C-bus data line
TUNING 4 tuning Voltage (Vt) PWM output
P3.0/NTSC SW 5 Port 3.0 or NTSC output/SCART SW input, Forced NTSC selection,
Low-level output, otherwise High output.
KEY 6 Control keys input *3
VOL 7 Sound Volume control PWM output
MUTE 8 Sound mute output
VSSC/P 9 Digit ground for μ-controller core and periphery
BAND1 10 Tuner Band selection output
BAND2 11 Tuner Band selection output
VSSA 12 Analog ground of teletext decoder and digital ground of TV-processor

16
SECPLL 13 SECAM PLL decoupling
VP2 14 2nd supply voltage TV-processor(+8V)
DECDIG 15 decoupling digital supply of TV-processor
PH2LF 16 Phase-2 filter
PH1LF 17 Phase-1 filter
GND3 18 Ground 3 for TV-processor
DECBG 19 Band gap decoupling
AVL/EWD 20 Automatic volume leveling /EAST-WEST drive output
VDRB 21 Vertical drive B output
VDRA 22 Vertical drive A output
IFIN1 23 IF input 1
IFIN2 24 IF input 2
IREF 25 Reference current input
VSC 26 Vertical sawtooth capacitor
TUNER AGC 27 Tuner AGC output
AUDEEM/SIFIN1 *1 28 Audio deemphasis or SIF input
DECSDEM/SIFIN2 29 decoupling sound demodulator or SIF input 2
GND2 30
ground 2 for TV processor
SNDPLL/SIFAGC *1 31 narrow band PLL filter or AGC sound IF
AVL/SNDIF/REF0/
AMOUT *1
32 Automatic Volume Levelling / sound IF input / subcarrier reference output / audio
deemphasis
HOUT 33
horizontal output
FBISO 34
flyback input/sandcastle output
AUDEXT/QSSO/
AMOUT *1
35 external audio output / QSS intercarrier out
EHTO 36
EHT/overvoltage protection input
PLL IF 37 IF-PLL loop filter
IFVO/SVO 38
IF video output / selected CVBS output
VP1 39
supply voltage TV processor
CVBS INT 40 internal CVBS input
GND1 41
ground for TV processor
CVBS/Y 42
CVBS/Y input
CHROMA 43
C input
AUDOUT/AMOUT *1 44 audio output /AM audio output (volume controlled)
INSSW2 45
2nd RGB / YUV insertion input
R2/VIN 46
2nd R input / V (R-Y) input / PR input
G2/YIN 47
2nd G input / Y input
B2/UIN 48
2nd B input / U (B-Y) input / PB input
BCLIN 49
beam current limiter input
BLKIN 50
black current input / V-guard input
RO 51
Red output
GO 52
Green output
BO 53
Blue output
VDDA 54
analog supply of Closed Caption decoder and digital supply of TV-processor (3.3

17
V)
VPE 55
OTP Programming Voltage
VDDC 56
digital supply to core (3.3 V)
OSCGND 57
oscillator ground supply
XTALIN 58
crystal oscillator input
XTALOUT 59
crystal oscillator output
RESET 60
reset
VDDP 61
digital supply to periphery (+3.3 V)
P1.0/INT1 62
TV/AV (AV1) / AV2 /S-VHS mode Output.
P1.1/T0 63
TV/AV (AV1) / AV2 /S-VHS mode Output.
P1.2/INT0 64
Remote control signal input.
Note
1. The function of pin 20, 28, 29, 31, 32, 35 and 44 is dependent on the IC version (mono intercarrier FM demodulator
/QSS IF amplifier and East-West output or not) and on some software control bits. The valid combinations are given in
table 1.
2. the vertical guard function can be controlled via pin 49 or pin 50. the selection is made by means of the
IVG bit in subaddress 2BH.
TABLE 1
IC version FM-PLL version QSS version
East-West
Y/N NYNY
CMB1/CMB0
bits 00 01/10/11 00 01/10/11 00 01/10/11 00 01/10/11
AM bits - - - - - 0 1 - 0 1
Pin 20 AVL EWD AVL EWD
Pin 28 AUDEEM SIFIN1
Pin 29 DECSDEM SIFIN2
Pin 31 SNDPLL SIFAGC
Pin 32 SNDIF(1) REFO(2) AVL/SNDIF(1) REFO(2) AMOUT REFO(2) AMOUT REFO(2)
Pin 35 AUDEXT AUDEXT QSSO AMOUT AUDEXT QSSO AMOUT
Pin 44 AUDOUT Controlled AM or audio out
Note
1. When additional (external) selectivity is required for FM-PLL system pin 32 can be used as sound IF input.
This function is selected by means of SIF bit in subaddress 28H.
2. the reference output signal is only available for the CMB1/CMB0 setting of 0/1. for the other settings this pin is
a switch output(see also 5 table 67).
Pin No. 6: Control keys input voltage
AN17821A/17823A Function : audio output
Function POWER MENU TV/AV V- V+ P- P+
Voltage 11/16-
13/16VDD 9/16- 11/16VDD 7/16- 9/16VDD 5/16- 7/16VDD 3/16- 5/16VDD 1/16- 3/16VDD 0- 1/16VDD

18
Symbol PIN Function Symbol PIN Function
Vcc 1 Power supply GND 7 ground
Out 1 (+) 2 Ch 1 output (+) In 2 8 Ch 2 input
GND(out 1) 3 Ch 1Ground VOL 9 Volume Control
Out 1 (-) 4 Ch 1 output (-) Out 2 (-) 10 Ch 2 output (-)
Standby 5 Mute input GND(out 2) 11 Ch 2 Ground
In 1 6 Ch 1 input Out 2 (+) 12 Ch 2 output (+)
Note: AN17823A is pin 1 to 9, AN17821A is pin 1 to 12.
LA78040/78041/TDA8172A Function : vertical output
Symbol PIN Function Symbol PIN Function
INV IN 1 Input V OUT 5 Vertical output
VCC1 2 Power VCC2 6 Output power supply
PUMP UP 3 Pump up power NON INV IN 7 Negative feedback
GND 4 Ground
6. Test point Waveforms
V451 C
5Vpp
0.9Vpp
1000Vpp
1.3Vpp
H
H
1Vpp
V
H
H
CRT KB
CRT KGCRT KR
95Vpp
95Vpp
95Vpp
H
H
H
T511 PIN7HEATER
300Vpp22Vpp
H
H
V451 B
2.7Vpp
TDA93XX PIN53
2.5Vpp
2.5Vpp
3.8Vpp
H
H
H
TDA93XX PIN52 TDA93XX PIN51
TDA93XX PIN33 TDA93XX PIN34
0.8Vpp
V
TDA93XX PIN21 TDA93XX PIN22 TDA93XX PIN59
1.2Vpp
2.6Vpp
H
H
TDA93XX PIN40
TDA93XX PIN38

19
7. IC voltages
TDA93XX
PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
V 2.8 3.8 3.6 3.3 3.5 3.5 0.1 0.1 0 5.4 0.1 0 2.3 8 5 3
PIN 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
V 4 0 4 0.9 0.7 0.8 1.9 1.9 3.9 3.8 1.6 3.2 3.4 0 2.4 0.1
PIN 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
V 0.6 0.5 3.7 1.7 2.4 3.1 8 3.8 0 3.4 1.5 3.6 2.3 2.6 2.6 2.6
PIN 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
V 2.3 7.2 2.7 2.7 2.7 3.5 0 3.5 0.1 1.7 1.8 0 3.5 0.1 0.1 5
LA76040
PIN 1 2 3 4 5 6 7
V 0.7 15 -12 -15 0.3 15.9 -0.07
AN 17821A
PIN 1 2 3 4 5 6 7 8 9 10 11 12
V 12 7 0 7 3.3 1.4 0 1.4 0 7 0 7
TDA9859
PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14
V 4.0 0 4.0 8.0 4.0 8.0 4.0 0 4.0 4.0 4.0 4.0 4.0 4.0
PIN 15 16 17 18 19 20 21 22 23 24 25 26 27 28
V 4.0 4.5 4.6 4.0 4.0 4.0 4.0 4.0 4.0 4.0 0 4.0 4.0 4.0
PIN 29 30 31 32
V 4.0 4.0 0 4.0

20
8. PURITY / CONVERGENCE ADJUSTMENT
PURITY ADJUSTMENT
1. Demagnetize CRT with the demagnetizer.
2. Loosen the retainer screw of the deflection yoke.
3. Remove the wedges.
4. Input a green raster signal from the signal generator,
and turn the screen to green raster.
5. Move the deflection yoke backward.
6. Bring the long lug of the purity magnets on the short
lug and position them horizontally. (Fig2)
7. Adjust the gap between two lugs so that the GREEN
RASTER will come into the center of the screen. (Fig.
3)
8. Move the deflection yoke forward, and fix the position
of the deflection yoke so that the whole screen will
become green.
9. Insert the wedge to the top side of the deflection yoke
so that it will not move.
10. Imput a crosshatch signal.
11. Verify that the screen is horizontal.
12. Input red and blue raster signals, and make sure that
purity is properly adjusted.
CRT
WEDGE
DEFLECTION YOKE
P
4 6
P: PURITY MAGNET
4: 4-POLES (convergence magnets)
6: 6-POLES (convergence magnets)
P/C MAGNETS
Fig. 1
PURITY MAGNETS
Long lug
Short lug
Bring the long lug over the short lug
and position them horizontally.
Fig. 2
(FRONT VIEW)
GREEN RASTER
CENTER
Fig. 3
