O.K.I. usa IR7-TIR Quick start guide

IR7-TIR_rev032420081
IR7-TIR
Operational Manual
7 Super Power IR LED Illuminator
* UL certification only refers to the power converter and the power module.
* Please use an independent power supply for the IR LED Illuminator.
z7 Super Power IR LED, 4pc x 25o/ 3pc x 45o
zIR Distance up to 150~200ft / 45~70m c
zIP66 Rating
zUser Adjustable IR LED Intensity (VR), Factory Default 80% ¡
zUses professional rust-proof stainless steel screws
zIncludes 1 side and 1 underneath mounting plate
z24V AC, 40VA
FEATURES
Please read the Operational Manual
before attempting to use this product.
c¡Please see page 6

IR7-TIR_rev032420082

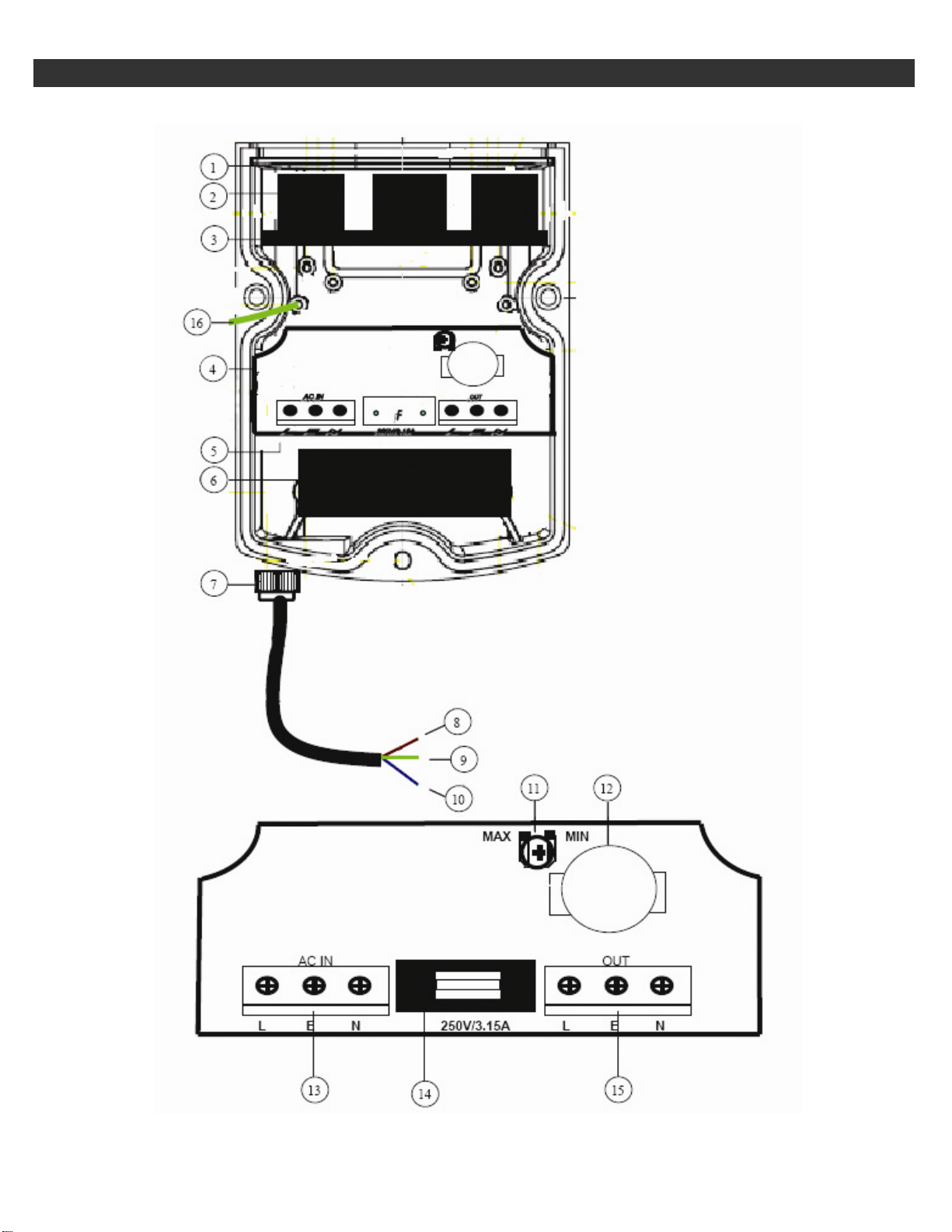

PART DESCRIPTION

IR7-TIR_rev032420083
1. Temper Glass
2. IR LED: 7pcs Super Power IR LED with refractor
3. IR Board and IR Board Bracket
4. IR Control Board
5. Power Supply Unit: 24V AC, 40VA
6. Blower and Blower Bracket
7. Cable Conduit
8. Live (L): Brown wire
9. Earth (E): Yellow/Green wire
10. Neutral (N): Blue wire
11. VR: Adjust VR to set infrared LED activation level
Factory default 80% -- If there is not enough IR light, adjust the level to maximum 100% ¡
12. Thermostat Switch: Turns on at 35oC / 95oF and turns off at 25oC / 77oF for blower
13. Terminal Block: 24V AC external power input
14. Fuse Holder: With 250V / 3.15A fuse
15. Terminal Block: To power supply unit
16. Ground wire: To top cover

IR7-TIR_rev032420084
1. Underneath Mounting Plate (Included)
2. One-Side Mounting Plate (Only 1 Included)

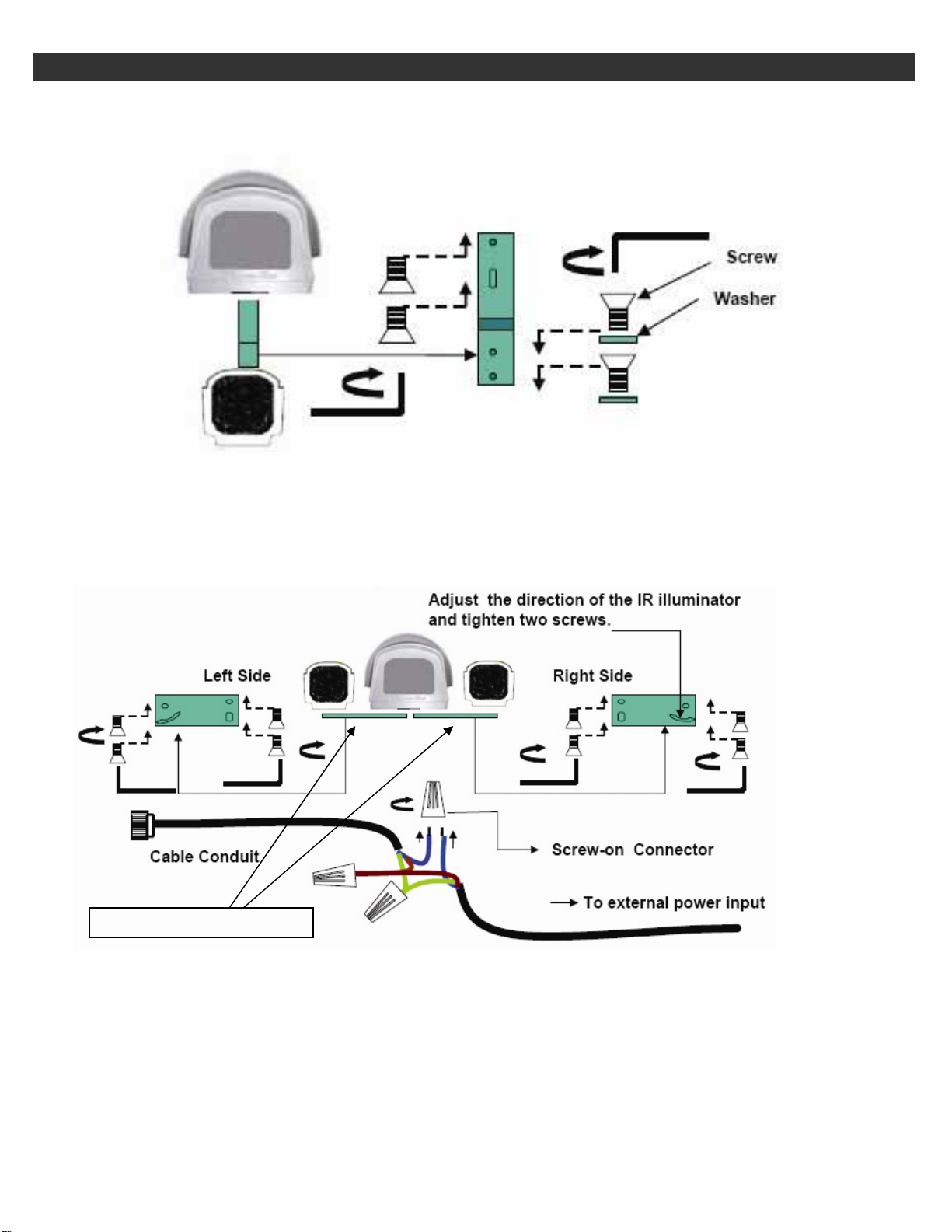

WIRING INST
R
UCTION
One-Side Mounting Plate

IR7-TIR_rev032420085
A.
B.
C.
IR7-TIR:
Optional IRB-TBT Semi-Cable Managed Bracket (Not Included):
zMax Load: 3500g
zMaterial: Die-cast aluminum alloy with light ivory powder coated and stove finish
zScan Angle: 200°
zTitle Angle: 180°
zNet Weight: 700g
zFixing: 3 Screws with bushings

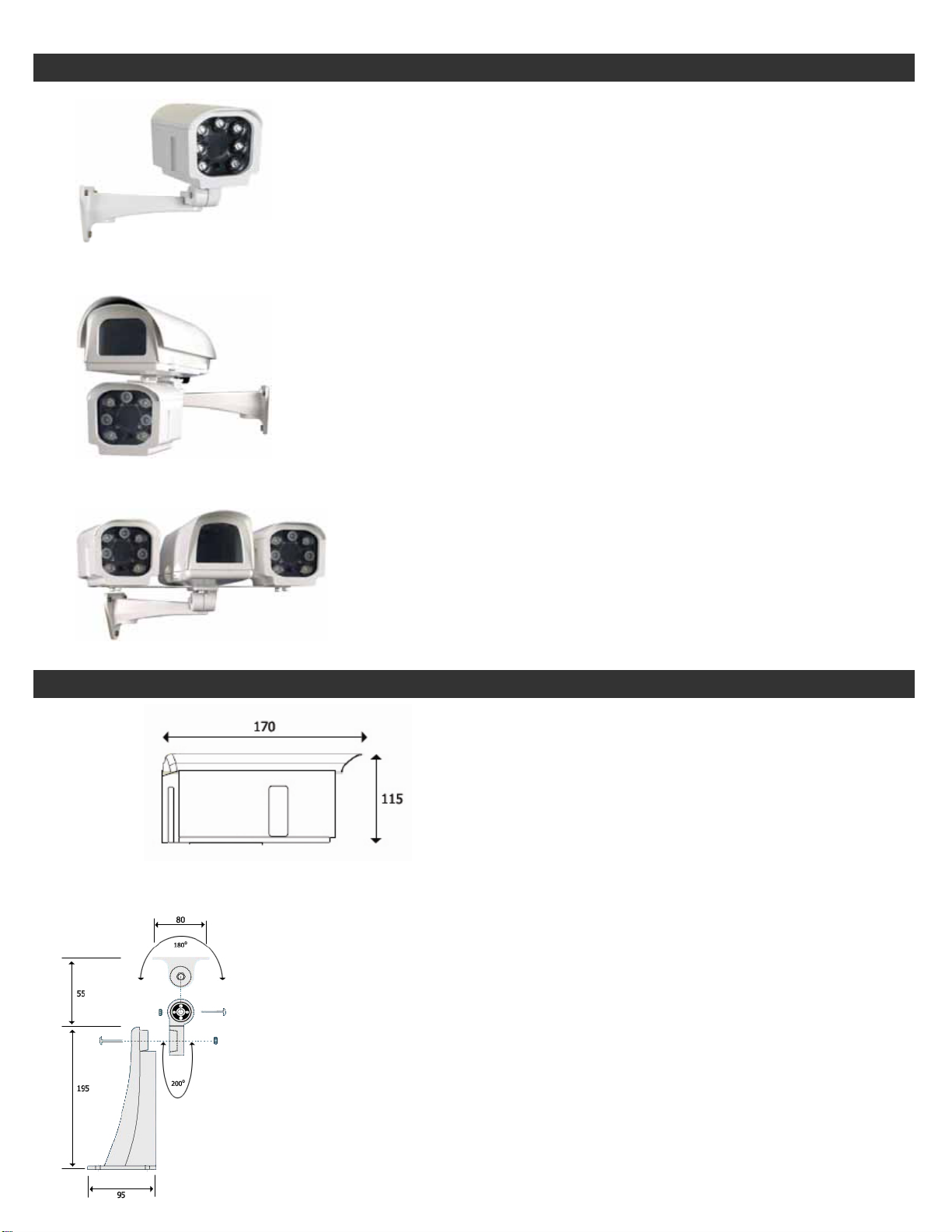

POSSIBLE APPLICATIONS
zOptional Semi-Managed Bracket IRB-TBT
zUse with any O.K.I.USA PRO Series housing
zUnderneath Mounting Plate included
zUse with any O.K.I.USA PRO Series housing and
Double Side Mounting Plate IRM-TDP
DIMENSIONS
(
mm
)

IR7-TIR_rev032420086
Model IR7-TIR
LED Quantity 7 Super Power IR LED
IR LED Beam Angle 4pc x 25o/ 3pc x 45o
IR Wave Length 850nm
IR Distance Up to 150~200ft / 45~70m c
IR Light On/Off Auto Light Sensor Control
Blower Control 35oC / 95oF (on); 25oC / 77oF (off)
Environmental Operating
Temp. -20oC ~ +45oC / -4oF ~ 113oF
IP Rating IP66
Temper Glass Thickness 4mm
Mounting Method Side or Underneath
Construction Die-Cast Aluminum Alloy
Coating Ivory Powder Stove
Required Power
Supply / Transformer * 24V AC (+/-10%), 40VA
Power Consumption 7.2 Watts
Dimension 6.69”(L) x 4.72”(W) x 4.53”(H) / 170mm(L) x 120mm(W) x 115mm(H)
Weight 3.31 lbs / 1500g (w/out bracket)
5.42 lbs / 2460g (with bracket)
* Power supply / transformer not included
cNOTE 1: IR light distances are entirely dependant upon environmental site conditions and the location at which the unit is situated. The type
of camera being used is also very important.
¡NOTE 2: Factory default for the IR LED activation level is 80%. If there is not enough IR light, adjust the VR level to maximum 100%. Please
see #17 in the Part Description section on page 1.
zOne (1) IR7-TIR IR Illuminator with power cable
zOne (1) Underneath Mounting Plate
zOne (1) One-Side Mounting Plate
zOne (1) Operational Manual
zOne (1) Main Accessories Pack
Four (4) Rust-proof Stainless Steel Screws
Six (6) Plastic Washers
One (1) Allen Wrench
Three (3) Screw-on Connectors
* For any returns, please include all components listed above with original packaging in Resalable Condition. Absolutely No
Returns will be accepted if any component is missing/damaged or if any cable is cut or tampered with.
GENERAL SPECIFICATIONS
LIST OF COMPONENTS

IR7-TIR_rev032420087
O.K.I.USA Products are covered under warranty for one year from the date of purchase. The warranty will automatically
be voided if any of the following occurs:
1. Product sticker is removed
If the product sticker is removed, we will not be able to confirm any information regarding when and where the
product was purchased. We have no other way to verify the purchase record without the serial number on the
product sticker; therefore, it should not be removed.
2.
Product is modified in any way
If the product is scratched, damaged, or modified in a manner not described in this manual, the warranty will be
voided immediately. It is the customer’s responsibility to keep the product in good condition.
3. Power cable is cut
The power cable and any other cable should not be tampered with. Cutting or modifying of the cables will result in
termination of the warranty.
1. Read and follow instructions
All operating and user instructions should be read and followed before the unit is to be operated.
2. Secure all screws
Please make sure all rust-proof stainless steel screws are installed securely to ensure a waterproof seal.
3. Electrical connections
Only a qualified electrician should be allowed to make electrical connections.
4. Do not disassemble the product
Do not disassemble the product as it is dangerous and may cause damage to the product. Refer all servicing to
qualified service personnel.
5. Handle the product with care
Be careful when handling the product. Do not drop it or subject it to strong shock or vibrations in order to prevent
any damage to the product. Do not handle the product in a wet environment or when your hands are wet.
6. Reducing risk
To reduce risk of fire or electric shock, do not remove cover. Do not open product in wet weather. No user serviceable
parts inside. Refer servicing to qualified service personnel.
7. Unpacking
Unpack carefully. Electronic components can be damaged if improperly handled or dropped. If an item appears to
have been damaged during shipment, please place it properly in its carton and notify the shipper.
8. Installation notice
Tropical, coastal salt water environment:
If you plan to install this product into a tropical, sea, coastal salt water or corrosive industrial water/mist environment,
please seal each stainless screw and fitting with a silicon grease compound. This will help prevent electrolysis
corrosion occurring and extend the lifespan of the product and housing and prevent premature deterioration.
WARRANTY
IMPORTANT NOTE

IR7-TIR_rev032420088
