1 Warnings & Safety Information
1. High tension spring loaded device. Always hold device
away from the face and eyes. Never load or activate
pointing towards your body or near other persons.
Always hold your hands firmly over each end of the
eSPEAR when activating out of the water to absorb
tension and to avoid damaging your device.
2. It is recommended that gloves are used when activating
and deactivating the Ocean Guardian eSPEAR.
3. Keep away from children, this device is not a toy.
4. Carefully read instructions before use.
5. Sharks can be dangerous and often unpredictable
creatures and we encourage people to use an Ocean
Guardian when working in, or enjoying the sea, to
minimize the risk of an unwanted shark encounter. While
extensive testing has been performed, and great care
taken to develop and manufacture the Ocean Guardian
range of products, it is impossible to guarantee that all
sharks will be deterred under all circumstances. Water
based activities in the presence of sharks is inherently
dangerous; therefore, we recommend that if a shark is
sighted, the user gets to safety rather than continue with
their water activity.
6. A large pulsing current is emitted from the Ocean
Guardian antenna to produce the protective electric field.
Anyone with any electronic medical device (EMD) such as
a pacemaker, who is pregnant, or has a health condition
which could be affected by the electric field, SHOULD
NOT USE THE DEVICE. Some examples of health
conditions include heart disease, a history of heart
problems, peripheral vascular decease, stroke, a history
of fainting or epilepsy, or lung disease. Users
unintentionally being in close proximity, or in contact with
the antenna, may possibly suffer muscle spasms in
varying degrees; we recommend that users may need to
make adjustments to limit contact in these situations.

DRAFT
© Ocean Guardian 2019
4eSPEAR User Manual v1.1
7. Positioning of the Ocean Guardian is critical to the device's
performance. Do not attempt to use the device in any way
other than what is described in this user manual.
8. When diving and free-diving with the eSPEAR and
accessories such as the eSPEAR Holster and Carabiner,
use extreme caution to ensure these accessories and the
eSPEAR are worn close to the body and will not lead to a
diver getting hung-up or caught on anything. Any item that
is loose or dangling from a diver can easily become
caught on a reef, cave, boat, part of a wreck, or other
object, which could cause drowning.
9. Ocean Guardian is designed for sea water use only.
10. Ocean Guardian has been designed and tested as a
personal device. Do not attempt to join multiple Ocean
Guardians together or wear multiple devices.
11. Some bottom-dwelling and non-predatory sharks such as
the Wobbygong, Carpet and Port Jackson sharks have
limited active Ampullae of Lorenzini. Therefore, the Ocean
Guardian may have limited or no effect on these sharks.
12. eSPEAR Battery Warnings:
·Do not use any charger other than that specifically
provided for use with the eSPEAR.
·The eSPEAR contains Li-ion batteries. Ensure it is not
stored in high temperatures.
·Do not expose batteries to heat or fire. Avoid storage
in direct sunlight.
·Do not short-circuit the eSPEAR.
·Avoid subjecting the eSPEAR to mechanical shock.
·Do not store the device longer than 1 month in a
discharged state.
·Do not store the device longer than 1 year without
recharge.
·The batteries in the eSPEAR must be recycled or
disposed of properly.
·When transporting the eSPEAR check the latest
regulations in relation to air, sea and road transport of
devices containing lithium-ion batteries, to ensure you
comply with all regulations.

DRAFT
© Ocean Guardian 2019
5
eSPEAR User Manual v1.1
·If lithium-ion batteries are packed with, or contained in
equipment, then it is the responsibility of the shipper to
ensure that the consignment is packed in compliance
with the latest edition of the IATA Dangerous Goods
Regulations section II of either Packing Instruction 966
or 967 in order for that consignment to be declared as
NOT RESTRICTED (non-hazardous/non-Dangerous). If
lithium-ion batteries are packed with or contained in
equipment, UN No. is UN3481.
·For worldwide sea transportation see the IMO-IMDG
code and special provision 188.
·For European road transportation see ADR special
provision 188.
Disclaimer
Whilst every effort has been made to ensure the accuracy of this
manual we are not responsible for any errors or omissions within it.
The product specifications and descriptions within this manual will
be subject to improvements and modifications over time without
notice, as changes to software and hardware are implemented.
For the most up-to-date version of this user manual please visit our
website.

DRAFT
© Ocean Guardian 2019
6eSPEAR User Manual v1.1
2 How to Use the Documentation
Overview of this User Manual
Use this manual to learn how to:
·Charge the Ocean Guardian eSPEAR.
·Turn the Ocean Guardian eSPEAR on and monitor
operational status.
Manual Conventions
Warnings: Instructions that, if ignored, could result in death
or serious personal injury caused by dangerous voltages or
incorrect operation of the equipment. These must be
observed for safe operation.
Cautions: Instructions warning against potential hazards, or
to detail practices that must be observed for safe operation
and to prevent damage to equipment or personnel.
Important Note: Information important to installation,
attachment or operation of equipment.
Typographic Conventions
·Operation states are in bold, e.g. On/Off
·Hardware elements are in bold capitals, e.g. GREEN LED

DRAFT
© Ocean Guardian 2019
7
eSPEAR User Manual v1.1
3 Introduction
Ocean Guardian is for ocean lovers. It is the world’s only
scientifically proven and independently tested electrical shark
deterrent technology.
Sharks have small short-range electrical receptors in their snouts
used for finding food. Ocean Guardian’s unique three-dimensional
electrical waveform instantly turns sharks away by causing
unbearable spasms in these sensitive receptors.
Trusted by professional adventurers around the world, Ocean
Guardian is a safety device providing peace of mind while
supporting the conservation of sharks. If you’re serious about
adventure, you use Ocean Guardian.
About the eSPEAR
The Ocean Guardian eSPEAR is the world's first hand-held
electrical shark deterrent.
Powered by Shark Shield Technology, the Ocean Guardian
eSPEAR is perfect for diving, snorkelling and spearfishing. Small,
lightweight, easy to carry, and backed by 20 years of research, it
offers powerful and proven shark protection. Simply attach it to
your dive belt, swimsuit or trunks and go!
The eSPEAR features a trigger-activated extendable baton that
creates a powerful electrical field to deter inquisitive sharks or
protect your catch of the day. Once extended the eSPEAR is
automatically ON, with no switches to worry about.
With the eSPEAR everyone can enjoy the beauty of the ocean.
Imagine swimming on a coral reef knowing you have the
protection of proven Shark Shield Technology by your side. One
click and you are good to go.

DRAFT
© Ocean Guardian 2019
8eSPEAR User Manual v1.1
How does it work?
Ocean Guardian devices generate a protective electric field which
is detected by a shark via its short range sensory receptors called
Ampullae of Lorenzini. These Ampullae of Lorenzini are found on
the snouts of predatorial sharks.
Ampullae of Lorenzini on a shark's snout (left)
and under magnification (right)
The electric field causes discomfort to a shark and this increases
the closer it gets to the electric field, until it becomes intolerable.
The electrical field transmitted by Ocean Guardian devices has no
known long term effect on sharks. It also has no effect on other
marine creatures.
IMPORTANT: Ocean Guardian devices do NOT attract sharks.
This is a myth and independent scientific research has shown that
electrical deterrents do not attract sharks. As electrical currents can

DRAFT
© Ocean Guardian 2019
9
eSPEAR User Manual v1.1
only travel very short distances through water, the Ocean Guardian
creates only a very localized electrical field.
Shark electroreceptors can only sense electrical currents at very
short distances, typically less than half a meter. When a shark
approaches an Ocean Guardian, these electroreceptors are over-
sensitized, causing the shark to turn away.

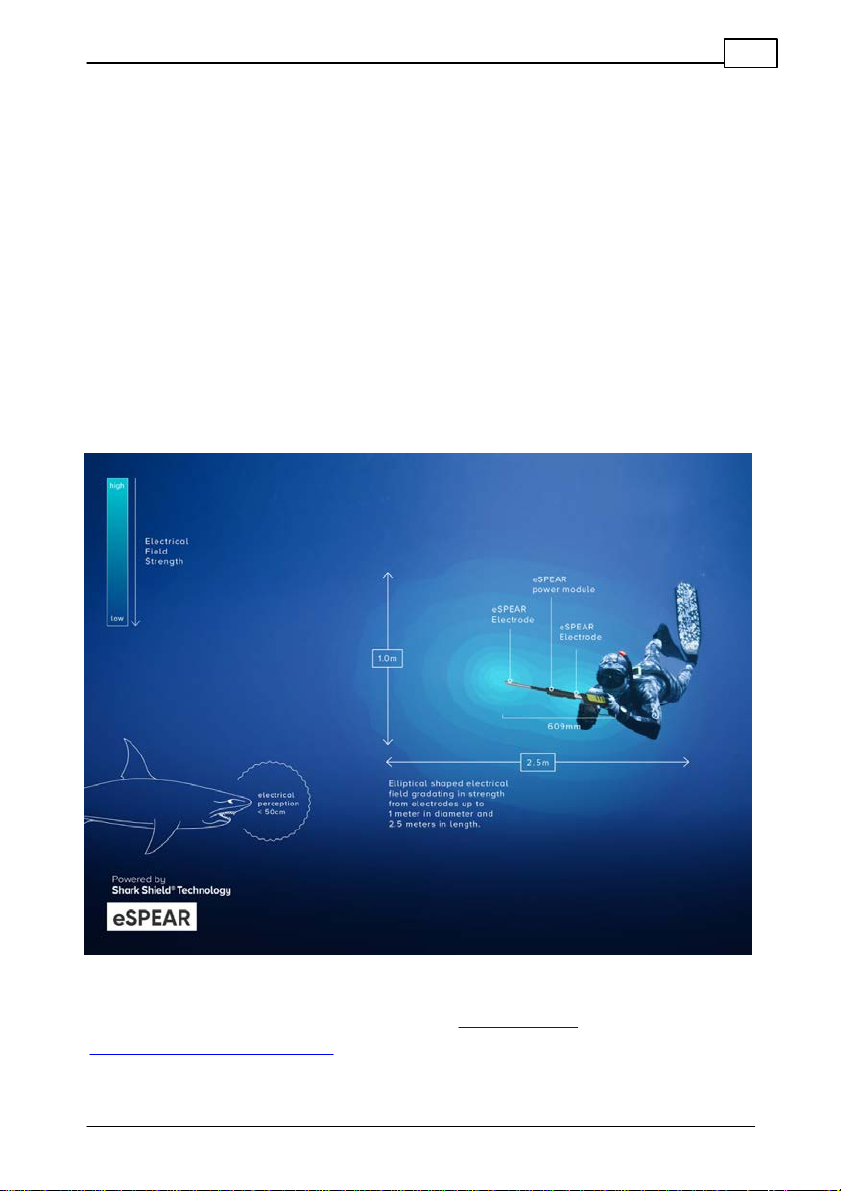

Ocean Guardian eSPEAR Electrical Fields
Ocean Guardian has been scientifically proven and independently
tested to be effective at turning sharks away. The following image
displays the electronic fields surrounding the eSPEAR when active.
For detailed scientific research which validates the Ocean Guardian
capability, please visit our website at www.ocean-
guardian.com/technology, or our Ocean Guardian YouTube
channel.

DRAFT
© Ocean Guardian 2019
10 eSPEAR User Manual v1.1
4 Getting Started and Charging
The Ocean Guardian eSPEAR is shipped with:
·eSPEAR.
·Wireless charging dock.
·International 110/220V AC to DC adapter.
Ocean Guardian eSPEAR Features
Charging the Ocean Guardian eSPEAR
A specially designed 12VDC Wireless Inductive Charging Dock is
used to recharge the eSPEAR in 7 hours. The Charging Dock can
be powered using either:
1. International 110/220V AC to DC adapter, or
2. 12VDC Car Charger.
To charge the eSPEAR it is necessary to activate the device.

DRAFT
© Ocean Guardian 2019
11
eSPEAR User Manual v1.1
WARNINGS:
·The eSPEAR is a high tension spring loaded device.
Always hold device away from the face and eyes. Never
load or activate while pointing towards your body or near
other persons. Always hold your hands firmly over the
eSPEAR end when activating out of the water to absorb
tension and to avoid damaging your device.
·It is recommended that gloves are worn when activating
and deactivating the Ocean Guardian eSPEAR above and
below water to avoid electric 'shocks'.
·Thoroughly dry the eSPEAR before connecting it to the
charger.
·Ensure the eSPEAR is placed on the charger facing the
correct way.
1. Activate the device safely. See Activate and Deactivate the
eSPEAR for details on how to safely activate and deactivate
the device.
2. Hold your hands firmly over each end of the eSPEAR when
releasing the electronics module and electrode while it is out
of the water. This will absorb tension and avoid damaging
the device.

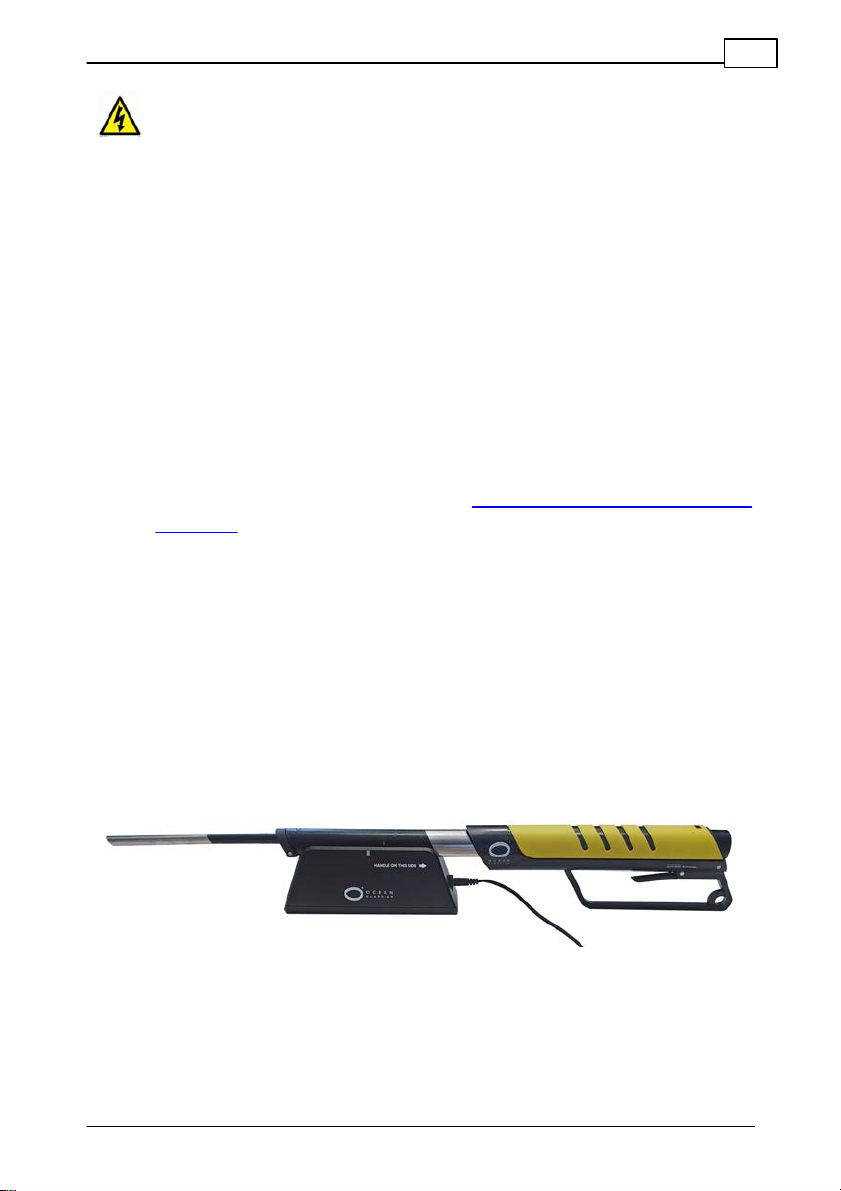

3. Place the eSPEAR into the top of the charger until the
grooves on the device allow it to rest securely in position.
Ensure the eSPEAR is placed on the CHARGER facing the
correct way, as indicated on the CHARGER. Note: The
device is automatically deactivated while charging.

DRAFT
© Ocean Guardian 2019
12 eSPEAR User Manual v1.1
4. A solid GREEN LED illuminates on the eSPEAR while
charging. A GREEN LED also illuminates on the CHARGER.
5. When the eSPEAR is fully charged the GREEN LED is no
longer illuminated.
6. Remove the eSPEAR from the charger and safely deactivate
the device.
Important Notes:
·Do not store the eSPEAR fully charged. We recommend
storing the device with approximately 50% charge
remaining. If the battery is completely discharged after use,
only charge it for approximately half the recommended
charge time, e.g. 3.5 hours. View the section in this manual
titled Operational LED Status Indications for more details
on battery charge status indications.
·It takes 7 hours to fully charge the eSPEAR from complete
battery discharge.
·Operation/discharge time is 80 mins.

DRAFT
© Ocean Guardian 2019
13
eSPEAR User Manual v1.1
5 Activate and Deactivate the eSPEAR
WARNINGS:
·The eSPEAR is a high tension spring loaded device.
Always hold device away from the face and eyes. Never
load or activate while pointing towards your body or near
other persons. Always hold your hands firmly over the
eSPEAR end when activating out of the water to absorb
tension and to avoid damaging your device.
·Keep away from children, this device is not a toy.
·It is recommended that gloves are worn when activating
and deactivating the Ocean Guardian eSPEAR above and
below water to avoid electric 'shocks'.
·Ensure the eSPEAR is fully charged before use.
eSPEAR Activation Out of Water
To activate the eSPEAR when out of water:
1. STAGE 1 - PRE ACTIVATION: Components retracted. Point
the eSPEAR away from your body and other people. Hold
your hand over the eSPEAR end to absorb tension when the
device is triggered.
2. STAGE 2 - TRIGGER ACTIVATED: Position your hand over
the end of the eSPEAR and then press the RELEASE
TRIGGER to deploy the device. B & C components thrust
forward.

DRAFT
© Ocean Guardian 2019
14 eSPEAR User Manual v1.1
3. STAGE 3 - ACTIVATING: Component B stops & C starts to
rotate upwards. With hand on C, gently guide it 180° into the
active position. The device turns ON automatically when
fully deployed.
4. eSPEAR Fully Deployed & ON: B & C in Active Position.
Point the eSPEAR in the direction of inquisitive sharks.

DRAFT
© Ocean Guardian 2019
15
eSPEAR User Manual v1.1
eSPEAR In-Water Activation
When activating the eSPEAR in-water it is not necessary to hold
your hand over the end of the eSPEAR. Point the eSPEAR away
from your body and other people and then press the RELEASE
TRIGGER to deploy the device. Point the eSPEAR in the direction of
inquisitive sharks after deploying the device.
Deactivating the eSPEAR
CAUTION: It is recommended that gloves are worn when
deactivating the Ocean Guardian eSPEAR above and below
water to avoid electric 'shocks'.
To deactivate the Ocean Guardian eSPEAR:
1. Firmly grasp the eSPEAR handle and with your other hand
push the electrode downwards at the pivot point until it is
horizontally adjacent to the electronics module.

DRAFT
© Ocean Guardian 2019
16 eSPEAR User Manual v1.1
2. Slide the electrode and electronics module back into the
body of the eSPEAR until it clicks back into place to
automatically deactivate the eSPEAR.

DRAFT
© Ocean Guardian 2019
17
eSPEAR User Manual v1.1
6 Operational LED Status Indications
The Ocean Guardian eSPEAR has a GREEN LED and RED LED to
indicate operation states and the battery charge level.
eSPEAR LED State
eSPEAR LED Indication
Start-up Self-check
After activation the GREEN LED flashes quickly
4 times, followed by a long pause and then the
RED LED illuminates for 1 second and then
flashes quickly twice. If the unit passes the self-
check the device then displays Battery Status
Condition LED flashes.
Battery Status (after self-
check)
100% Battery: GREEN LED flashes 10 times
90% Battery: GREEN LED flashes 9 times
80% Battery: GREEN LED flashes 8 times
70% Battery: GREEN LED flashes 7 times
60% Battery: GREEN LED flashes 6 times
50% Battery: GREEN LED flashes 5 times
40% Battery: GREEN LED flashes 4 times
30% Battery: RED LED flashes 3 times
20% Battery: RED LED flashes twice
10% Battery: RED LED flashes 10 times
Not Submerged
When not submerged the GREEN LED flashes
quickly 4 times a second
Submerged - normal
operation
GREEN LED is illuminated
Low Battery - 10 mins of
operation remaining
Standard GREEN LED indication is interrupted
every 3 seconds by a RED LED illuminating for
less than 1 second
Fault or Antenna Short
Circuit
GREEN LED and RED LED will flash alternately
eSPEAR LED Charging Indications
eSPEAR LED State
eSPEAR LED Indication
Charging
GREEN LED illuminated
Fully Charged
No LED illuminated

DRAFT
© Ocean Guardian 2019
18 eSPEAR User Manual v1.1
Charger LED Indications
Charger LED State
Charger LED Indication
Charging
GREEN LED illuminated
Fully Charged
No LED illuminated

DRAFT
© Ocean Guardian 2019
19
eSPEAR User Manual v1.1
7 Essential Maintenance and Testing
1. Ocean Guardian devices perform a self-check each time they
are turned on. To confirm the device functions effectively you
can also:
a. Place your hand close to the antenna/electrodes to feel
the electric field pulsing when the device is submerged
under salt water.
b. Purchase an Ocean Guardian Tester Unit to verify
whether the Ocean Guardian is producing an electric
field.
2. Thoroughly rinse the Ocean Guardian eSPEAR in fresh water
after each use.
3. Allow the Ocean Guardian eSPEAR to dry before placing it in
storage. Avoid direct sunlight when drying the unit. Store it in a
cool, dry place away from sunlight, preferably in the case
shipped with the unit.
4. The device should be kept free of dirt and sand at all times.
5. We recommend each Ocean Guardian device is stored with
some charge when stored for long periods of time.
Warnings:
·Thoroughly dry the Ocean Guardian before connecting the
charger. Be especially vigilant when charging the Ocean
Guardian immediately after it has been used in water.
·Under no circumstances should you attempt to repair the
Ocean Guardian as this will void any warranty.

DRAFT
© Ocean Guardian 2019
20 eSPEAR User Manual v1.1
8 Product Specifications
Product Feature
Specification
Maximum Operating Depth
100 meters (328 feet)
Storage Temperature
0°C - 60°C (32°F – 140°F)
Operating Temperature
12°C - 40°C (53.6°F – 104°F) Lower
temperatures will reduce operating time
Battery pack life
Nominal 1000 charges
Operating Time (in water)
Up to 80 minutes of continuous operation
(temperature dependent)
Out of water sensing / detection
Yes
Battery Type
1pcs ICR18650 3200mAh 3.6V battery
Battery Charge Storage Life (off
state)
6 months at 40% battery charge
Induction Battery Charging Dock
Input: 12VDC/1A
Output:4.2V / 400mA
Charge time: Charging Dock &
Car/Boat Charger
7 hours from empty battery to full
Output - During operation
115VDC pulses (3omh load)
Output - Time Between Output
Pulses
0.65 seconds
Output - Short Circuit Protection
Yes
Protective Field Strength
>1v/m peak @ 1m from center of electrodes
Dimensions when retracted
262.7mm L x 36mm W x 86mm H (10.3” x
1.4” x 3.4”)
Dimensions when extended
609.6mm L x 36mm W x 86mm H (24” x
1.4” x 3.4”)
Weight (main unit)
250 grams (8.82 oz)
Charging Dock Compliances
UL (UL60065/File no. E251844);
FCC (Part-15/File no. LCS1502060308E);
CE (EN55013/File no. LCS1502060307E);
RCM (AS/NZS60065/SAA-161746-EA).
Table of contents
Other Ocean Guardian Diving Instrument manuals
