EN - 1 -
Index
BEFORE USING YOUR FRIDGE ............................................................ 2
General warnings ............................................................................................. 2
Old and out-of-order fridges ............................................................................. 4
Safety warnings................................................................................................ 4
Installing and Operating your Fridge ............................................................ 5
Before Using your Fridge ................................................................................. 5
Information on No-Frost Technology ................................................................ 6
USAGE INFORMATION........................................................................... 7
Display control panel ........................................................................................ 7
Fridge partition temperature setting button ............................................................... 7
Alarm light ................................................................................................................. 7
Super Cooling Mode.................................................................................................. 7
Fridge Temperature Settings ..................................................................................... 7
Warnings About Temperature Settings ............................................................. 8
Accessories ...................................................................................................... 9
Chiller shelf................................................................................................................ 9
Natural Ion Tech / Ionisier.......................................................................................... 9
Fresh dial ................................................................................................................. 10
Adjustable Glass Shelf ............................................................................................. 10
Maxi-fresh preserver ................................................................................................ 10
Water dispenser (If available).......................................................................... 11
Mounting of the water tank group............................................................................ 11
ARRANGING FOOD IN THE APPLIANCE ............................................ 13
CLEANING AND MAINTENANCE ......................................................... 14
SHIPMENT AND REPOSITIONING........................................................ 14
Repositioning the door .................................................................................... 15
BEFORE CALLING SERVICE................................................................ 15
Tips for saving energy ..................................................................................... 17
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ........ 18
Parts of the water dispenser............................................................................ 19
(A ) Outside the door (water dispenser’s tank group)............................................... 19
(B) Inside the door (Water dispenser’s tank group).................................................. 19

EN - 2 -
BEFORE USING YOUR FRIDGE
General warnings
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: In order to avoid any hazards resulting from the
instability of the appliance, it must be xed in accordance with
the following instructions:
WARNING: When positioning the appliance, ensure the supply
cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
SYMBOL ISO 7010 W021
Warning: Risk of re / ammable materials
• If your appliance uses R600a as a refrigerant (this information
will be provided on the label of the cooler) you should take care
during transportation and installation to prevent the cooler
elements from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In the event of a
leak due to damage of the cooler elements, move your fridge
away from open ames or heat sources and ventilate the
room where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans with
a ammable propellant in this appliance.

EN - 3 -
• This appliance is intended to be used in household and
domestic applications such as:
- staff kitchen areas in shops, ofces and other working
environments.
- farm houses and by clients in hotels, motels and other
residential type environments.
- bed and breakfast type environments;
- catering and similar non-retail applications.
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, a service agent or similarly
qualied persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with
a specially grounded socket of 16 amperes. If there is no
such socket in your house, please have one installed by an
authorised electrician.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, an authorised service agent or similar qualied
persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding
2000 m.

EN - 4 -

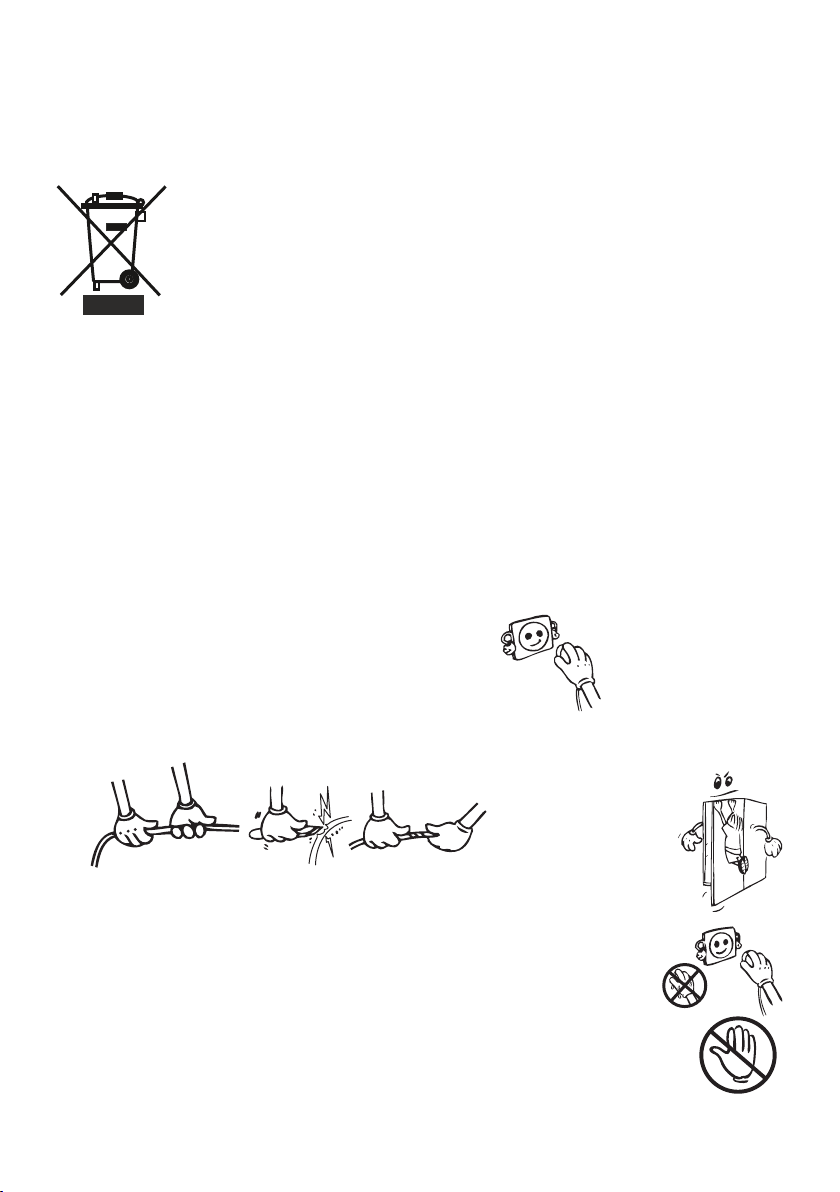

Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,
take care not to harm environment when you are discarding your old fridges.
Please ask your municipal authority about the disposal of the WEEE for
the reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual
in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specied purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the appliance to be cancelled and
our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
foods. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for the losses to be occurred in the
contrary case.
Safety warnings
• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults, do not allow children to
play with the appliance or let them hang off the door.
• Do not plug-in or out the plug from the receptacle with wet hands to
prevent electrocution!
• Do not place explosive or ammable material in your fridge for your
safety. Place drinks with higher alcohol amount vertically and by
closing their necks tightly in the fridge.
• Do not cover the body or top of fridge with lace. This affects the
performance of your fridge.
• Fix the accessories in the fridge during transportation to prevent damage
to accessories.

EN - 5 -

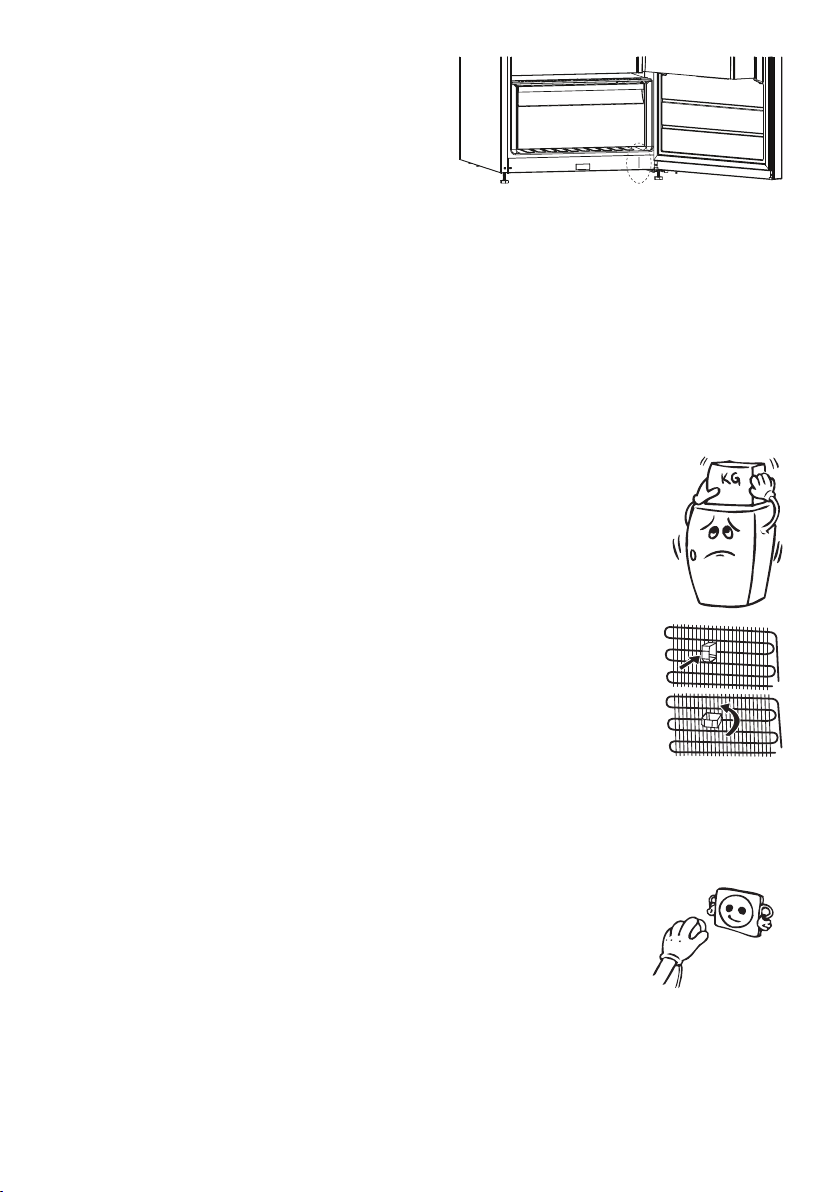

Installing and Operating your Fridge
Before starting to use your fridge, you should pay attention to the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• We do not take the responsibility of the damages that occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, ovens and heater cores, and
should be at least 5 cm away from electrical ovens.
• It should never be used outdoors or left under the rain.
• When your fridge is placed next to a deep freezer, there should be at least 2 cm between
them to prevent humidity on the outer surface.
• Do not place anything on your fridge, and install your fridge in a suitable
place so that at least 15 cm is available on the upper side.
• If you will place your fridge next to your kitchen cabinets, leave a space
of 2 cm between them.
• Fit the plastic wall spacers to the condenser at the back of the refrigerator
in order to prevent leaning to the wall for good performance.
• Install the distance adjustment plastic (the part with black vanes at the
rear) by turning it 90° to prevent the condenser from touching the wall.
• Refrigerator should be placed against a wall with a free distance not
exceeding 75 mm.
• The adjustable front legs should stabilized in an appropriate height to
allow your fridge operate in a stable and proper way. You can adjust the
legs by turning them clockwise (or in the opposite direction). This should be done before
placing food in the fridge.
• Before using your fridge, wipe all parts with warm water added with a tea spoonful
of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after
cleaning.
Before Using your Fridge
• When it is operated for the rst time or after transportation, keep
your fridge in the upright position for 3 hours and plug it on to allow
efcient operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the rst time; the smell will fade
away when your fridge starts to cool.
• When the door of the cooler is closed, a
vacuum seal will form. Wait for about 1 minute
before reopening it.
• This application is optional for easy opening
of the door. With this application, a little
condensation may occur around this area and
you may remove it.

EN - 6 -

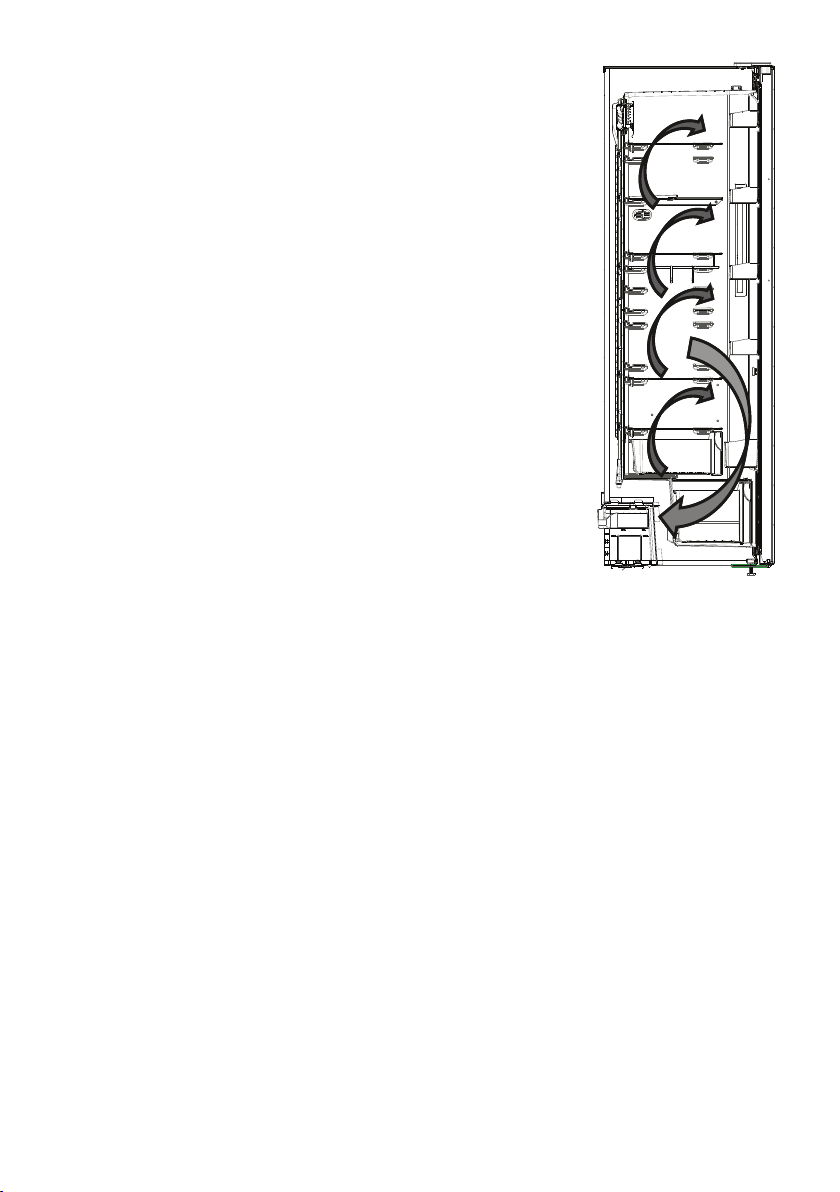

Information on No-Frost Technology
No-frost refrigerators differ from other static refrigerators in their
operating principle.
In normal refrigerators the humidity entering the refrigerators due
to opening the door and the humidity inherent in the food causes
freezing in the backside of air duct. To defrost the frost and ice
in the backside of air duct, you are periodically required to turn
off the refrigerator, place the food that needs to be kept cooled in
a separately cooled. The situation is completely different in no-
frost refrigerators. Dry and cold air is blown into the refrigerator
compartment homogeneously and evenly from several points
via a blower fan. Cold air dispersed homogeneously and evenly
between the shelves cools all of your food equally and uniformly,
thus preventing humidity and freezing. Therefore your no-frost
refrigerators allows you ease of use, in addition to its huge capacity
and stylish appearance.

EN - 7 -
USAGE INFORMATION

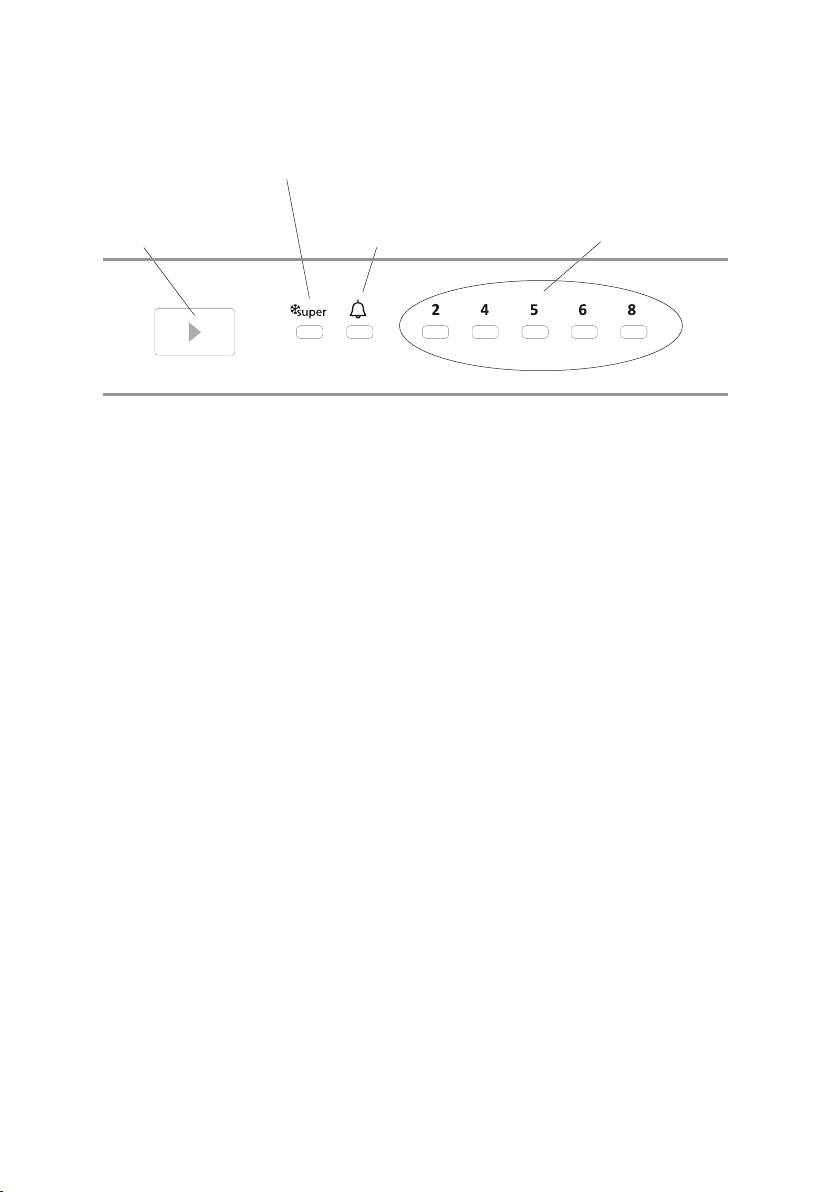

Display control panel
Fridge partition temperature setting button
This button allows setting temperature of the fridge. In order to set values for fridge partition,
press this button. Use this button also to activate Super Cooling mode.
Alarm light
In case of a problem within the fridge, the alarm led will release red light
Super Cooling Mode
When would it be used?
• To cooling huge quantities of food.
• To cooling fast food.
• To cooling food quickly.
• To store seasonal food for a long time.
How to use?
• Press temperature set button until super cooling light comes on.
• Super cooling led will light during this mode.
• For optimal appliance performance in maximum cooling capacity, set the appliance
to active Super Cooling mode 6 hours before you put the fresh food into the fridge.
During this mode:
If you press temperature set button, the mode will be cancelled and the setting will
be restored from 2.
Note: “Super cooling” mode will be automatically cancelled after 6hours or when
cooling sensor temperature drops beneath 2 °C.
Fridge Temperature Settings
• The initial temperature of the Setting Display is 5°C.
• Press fridge setting button once.
• Every time you press the button, the setting temperature will increase. (2°C, 4°C, 5°C,
6°C, 8°C, super cooling)
• If you press fridge setting button until super cooling symbol is displayed on your fridge
Fridge temperature
set button
Symbol of
Super Cooling Mode
alarm
indicator led
Fridge adjusted
temperature indicator

EN - 8 -
Settings Display and you do not press any button within the following 3 seconds,
Super cooling will blink.
• If you keep on pressing, it will restart from last value.
Warnings About Temperature Settings
• Do not switch to another adjustment before completing a setting.
• The temperature setting should be done by taking into consideration how often the fridge
door is opened and closed, how much food is stored in it and the ambient temperature
in which the fridge is located.
• Depending on the ambient temperature, your fridge must operate nonstop up to 24
hours in order to cool down completely after it is plugged in for the rst time. During this
period, do not open the doors of your fridge frequently and do not overll.
• To prevent any damage on the compressor of your fridge when you want to restart
your fridge after unplugging it or after a power failure is restored, there is a function
which makes your fridge operate after a 5-minute delay. Your fridge will start operating
normally after 5 minutes.
• Fridge has been designed to operate in the ambient temperature ranges specied in
the standards according to the class of climate mentioned in the information label. The
operation of the fridge in environments
with temperature values not complying
with the ones specied is not
recommended for cooling efciency.
• Your appliance is designed to operate
at ambient temperatures between
10°C - 43°C.
Climate Class Ambient Temperature (°C)
TBetween 16 and 43 (°C)
ST Between 16 and 38 (°C)
NBetween 16 and 32 (°C)
SN Between 10 and 32 (°C)
T/SN Between 10 and 43 (°C)
If turbo fan is available on your product ;
Do not block air inlet and outlet openings when storing
food, otherwise air circulation that provided by turbo fan
will be impaired.

EN - 9 -
Chiller shelf
Keeping food in the Chiller compartment instead of the freezer
or refrigerator compartment allows food retain freshness and
avour longer, while preserving its fresh appearance. When
chiller tray becomes dirty, remove it and wash it with water.
(Water freezes at 0°C, but foods containing salt or sugar freeze
at temperature lower than that)
Normally people use the chiller compartment for raw sh, lightly
pickled, rice, etc...
!Do not put foods you want to freeze or ice trays in order to make ice.
Removing the Chiller shelf
• Pull the chiller shelf out toward you by sliding on rails.
• Pull the chiller shelf up from rail to remove.
Accessories
(In some models)
Natural Ion Tech / Ionisier
Natural Ion Tech spreads negative ions which
neutralize particles of unpleasant smell and dust in
the air.
By removing these particles from the air in the
refrigerator, Natural Ion Tech improves air quality
and eliminates odours.
• This feature is optional. It may not exist on your product.
• The location of your ioniser device may vary from product to product.
(In some models)

EN - 10 -
Fresh dial
When the humidity controler in the closed position, it
allows fresh fruit and vegetables to be stored longer.
In case of the crisper is totally full, the fresh dial is located
in front of crisper, should be opened. By means of this
the air in the crisper and humidity rate will be controlled
and endurance life will be increased.
If you see any condensation on glass shelf, humidity
control should be taken into the open positions.

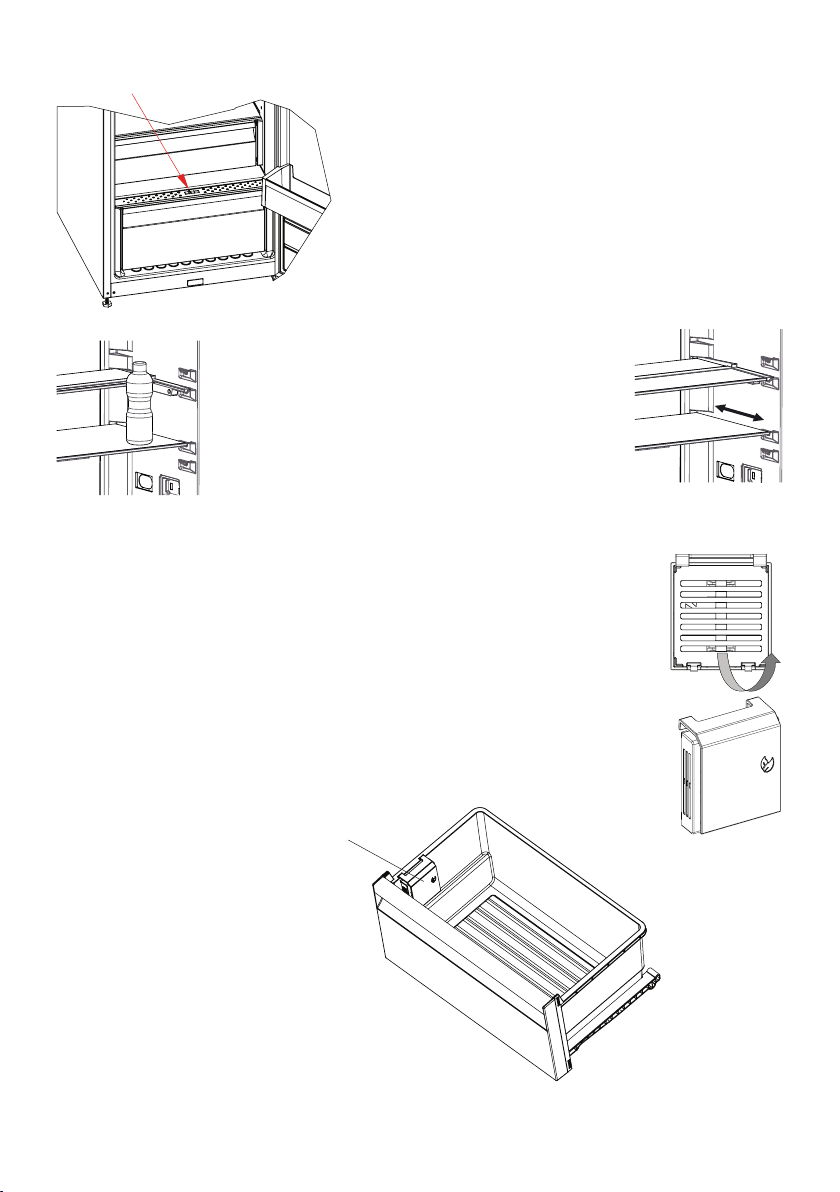

Adjustable Glass Shelf
Adjustable glass shelf mechanism provides higher
storage spaces with a simple movement. To cover the
glass shelf, push it.
You can load your food as you want in the resulting
extra space. To bring the shelf in its original position,
pull it toward you.
Fig. 1 Fig. 2
(In some models)
Maxi Fresh Preserver
(In some models)
Maxi-fresh preserver
Maxi Fresh Preserver technology helps to remove ethylene gas (a bioproduct
released naturally from fresh foods) and unpleasant odors from the crisper. In
this way, food stays fresh for a longer time.
• Maxi Fresh Preserver must be cleaned once in a year. The lter should
be waited for 2 hours at 65°C in a oven.
• To clean the lter, please remove the back cover of the lter box by pulling
it in the direction of the arrow.
• The lter should not be washed with water or any detergent.
(In some models)

EN - 11 -
Water dispenser (If available)
Mounting of the water tank group
Place the water tank in the details of the door plastic pitched in the
direction of the arrow.
After inclined to mount the water tank, push it down to place to the
details of door plastics properly.
Add your drinks with the help of water tank top cover.
Uphold the side locking covers to detach the water tank cover.
To serve your drink press valve lever slightly.

EN - 12 -
Filing the water tank
• Remove the top cover of the water tank.
• Fill up the tank with water.
• Mount back the top cover of the water tank.
Attention
• Do not use the water dispenser anything except water.
• If you leave water in the tank for a long time it could cause odour. In this case clean the
tank and keep using it.
• Clean up the water tank before using it for the rst time.
Cleaning the Water Tank
• Lift the water tank.
• Remove the tank cover with upholding the side locking covers.
• Clean up the tank with warm water and reassemble the pieces you removed.
Stowing the Water Tank
• Install the water tank as shown.
• Be careful about the tap and the hole match each other while installing.
• Water ow can appear unwillingly if the tank have not taken its place properly. Also
check the gaskets are assembled properly.
Drip Tray
• Please pay attention in order not to go down min level on the tank surface. During the
usage of dispenser the water can be splash after min water level.
ATTENTION:
PLEASE HOLD THE GLASS FOR ONE SECOND LONGER AFTER DISTRIBUTION TO
AVOID DRIPS.
Visual and text descriptions on the accessories section may vary
according to the model of your appliance.

EN - 13 -
ARRANGING FOOD IN THE APPLIANCE
• For normal operating conditions, adjusting the temperature value of the cooler partition
of the fridge to 4°C will be enough.
• To reduce humidity and consequent increase of frost never place liquids in unsealed
containers in the refrigerator. Frost tends to concentrate in the coldest parts of the
evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at
room temperature and should be arranged to ensure adequate air circulation in the
refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the packages can stick
on the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned sh(wrapped in packages or sheets of plastic) which you
will use in 1-2 days,in the bottom section of the refrigerator compartment(that is above
the crisper) as this is the coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.
Some recommendations have been specied below for the placement and storage of your
food in the cooling compartment.
Food Maximum Storing time Where to place in the
fridge department
Vegetables and fruits 1 week Vegetable bin
Meat and sh 2 - 3 Days
Wrapped in plastic foil or bags or in
a meat container
(on the glass shelf)
Fresh cheese 3 - 4 Days In special door shelf
Butter and margarine 1 week In special door shelf
Bottled products
milk and yoghurt
Until the expiry date
recommended by the
producer
In special door shelf
Eggs 1 month In the egg shelf
Cooked food All shelves
NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

EN - 14 -
CLEANING AND MAINTENANCE
• Disconnect unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• The refrigerator should be cleaned periodically using a solution of
bicarbonate of soda and lukewarm water
• Clean the accessories separately with soap and
water. Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps. After washing,
rinse with clean water and dry carefully. When the cleaning
operations have been completed reconnect the plug of the unit
with dry hands.
• You should clean the condenser (back of the appliance)
with broom ones a year in order to provide energy saving
and increase the productivity.
THE POWER SUPPLY MUST BE DISCONNECTED.
SHIPMENT AND REPOSITIONING
• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the
instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves, accessories,
vegetable bins etc.) or x them into the fridge
against shocks using bands during re-positioning
and transportation.
!Carry your fridge in the upright position.
Replacing LED Lighting
If your fridge has LED lighting contact the help desk as this should be changed by authorized
personnel only.

EN - 15 -
Repositioning the door
• It is not possible to change the opening direction of your fridge door, if the door handles
on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the
nearest Authorized Service to have the opening direction changed.
BEFORE CALLING SERVICE
Control warnings:
If the temperatures of the fridge are not at the suitable levels or if there is a problem with the
appliance, your fridge will warn you. Warnings are indicated by warning codes on the fridge
compartment indicators on the indicator panel.
Alarm indicator
led is turning on ERROR TYPE WHY WHAT TO DO
"Failure
Warning"
There is/are some
part(s) Out of order
or there is a failure in
cooling process.
The product is plugged
for the rst time or
a long-time power
interruption for 1 hour.
Check the door is open or
not and check if the product
working 1 hour. If the door is
not open and the product had
worked 1 hour, call service
for assistance as soon as
possible.
If your fridge is not working properly, it may be a minor problem, therefore check the following,
before calling an electrician to save time and money.
What to do if your appliance does not operate;
Check that;
• There is no power,
• The general switch in your home is disconnected ,
• The socket is not sufcient. To check this, plug in another appliance that you know which
is working into the same socket.
What to do if your appliance performs poorly;
Check that;
• You have not overloaded the appliance ,
• The fridge temperature set to 2.
• The door is closed perfectly ,
• There is no dust on the condenser ,
• There is enough place at the rear and side walls.
If your fridge is operating too loudly;
Normal Noises
Compressor noise: Normal motor noise. This noise means that the compressor operates
normally Compressor may cause more noise for a short time when it is activated.
Bubbling noise and splash: This noise is caused by the ow of the refrigerant in the tubes

EN - 16 -
of the system.
Water ow noise: Normal ow noise of water owing to the evaporation container during
defrosting. This noise can be heard during defrosting.
Air Blow Noise: Normal fan noise. This noise can be heard in fridges during normal
operation of the system due to the circulation of air.
If the edges of fridge cabinet that the door joint contact are warm;
Especially in summer (hot weather), the surfaces that the joint contact may
get warmer during the operation of the compressor, this is normal.
If humidity builds up inside the fridge;
• Are all food packed properly? Are the containers dried before placing them in the fridge?
• Is the fridge's door opened frequently? Humidity of the room gets in the fridge when the
door is opened. Humidity build up will be faster when you open the door more frequently,
especially if the humidity of the room is high.
If the door is not opened and closed properly;
• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door joints broken or torn?
• Is your fridge on a level surface?
About the water dispenser:
If the water ow is abnormal:
Check that:
• The tank is well installed.
• The tank gaskets are well assembled.
If dripping occurs:
Check that;
• The tap is well assembled.
• The tap gaskets are well assembled.
IMPORTANT NOTES:
• Compressor protection function will be activated after sudden power breakdowns or
after unplugging the appliance, because the gas in the cooling system is not stabilized
yet. Your appliance will start after 5 minutes, there is nothing to worry about.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean
your fridge according to chapter “CLEANING AND MAINTENANCE” and leave the door
open to prevent humidity and smell.
• To stop the appliance completely, unplug from main socket (for cleaning and when the
door is left open)
• If the problem persists after you have followed all the instructions above, please consult
to the nearest Authorized service.
• The lifetime of your appliance stated and declared by the Department of the Industry is
10 years (the period for retaining parts required for the proper functioning of the appli-
ance).

EN - 17 -
Tips for saving energy
1.Install the appliance in a cool, well ventilated room , but not in direct sunlight and not near
heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2.Allow ward food and drinks to cool down outside the appliance.
3.When placing, drinks and slops they must be covered. Otherwise humidity increases at
the appliance. Therefore the working time gets longer. Also covering drinks and slops
helps to save smell and taste.
4.When placing food and drinks, open the appliance door as briey as possible.
5.Keep close the covers of any different temperature compartment in the appliance (crisper,
chiller ...etc ).
6.Door gasket must be clean and pliable. Replace gaskets if worn.

EN - 18 -
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
1) Turbo fan *
2) Wine rack / bottle shelf *
3) Refrigerator shelves
4) Top crisper / Chiller shelves *
5) Bottom crisper cover
6) Bottom crisper
7) Levelling feet
8) Bottle shelf
9) Door shelves
10) Water dispenser
11) Egg holder
* In some models
