Ocean BCB 2731 TNF E A+ User manual

BCB 2731 TNF E A+
Built In Refrigerator
Fridge - Freezer
User manual
Encastrable
Réfrigérateur - Congélateur
Guide d'utilisation
Frigorífico Combi Dos Puertas
Congelador - Frigorífico
Manual de Instrucciones
Μηχανικο Ψyγeıo Cομβι
Οδηγίες Χρήσης
ﺔﺟﻣدﻣ ﺔﺟﻼﺛ
ﺔﺟﻼﺛو رزﯾرﻓ
مدﺧﺗﺳﻣﻟا لﯾﻟد

EN - 1 -
Contents
BEFORE USING THE APPLIANCE .......................................................... 2
General warnings ........................................................................................2
Old and out-of-order fridges ........................................................................4
Safety warnings ...........................................................................................4
Installing and operating your fridge freezer .................................................5
Before Using your fridge freezer..................................................................6
HOW TO OPERATE THE APPLIANCE..................................................... 6
Information about The New Generation Cooling Technology ......................6
Control panel ...............................................................................................7
Warnings for Temperature Settings............................................................................8
Accessories .................................................................................................9
Ice tray .......................................................................................................................9
Bottle holder...............................................................................................................9
Fresh dial ..................................................................................................................9
Adjustable Door Shelf ................................................................................................9
Maxi-fresh preserver ................................................................................................10
FOOD STORAGE IN THE APPLIANCE.................................................. 11
Refrigerator Compartment......................................................................... 11
Freezer Compartment ............................................................................... 11
CLEANING AND MAINTENANCE .......................................................... 14
Defrosting ..................................................................................................15
Replacing LED Lighting............................................................................................15
TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 15
BEFORE CALLING YOUR AFTER SALES SERVICE............................ 16
Tips for saving energy ...............................................................................17
PARTS OF THE APPLIANCE AND THE COMPARTMENTS ................. 18
The operating instructions apply to several models. Differences may therefore occur.

EN - 2 -
PART - 1. BEFORE USING THE APPLIANCE
General warnings
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the
appliance, it must be xed in accordance with the instructions.
WARNING: When positioning the appliance, ensure the supply
cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
Warning; Risk of re / ammable materials
(Symbol ISO 7010 W021)
• If your appliance uses R600a as a refrigerant (this information
will be provided on the label of the cooler) you should
take care during transportation and installation to prevent
the cooler elements from being damaged. R600a is an
environmentally friendly and natural gas, but it is explosive.
In the event of a leak due to damage of the cooler elements,
move your fridge away from open ames or heat sources
and ventilate the room where the appliance is located for a
few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans
with a ammable propellant in this appliance.

EN - 3 -
• This appliance is intended to be used in household and
domestic applications such as:
- staff kitchen areas in shops, ofces and other working
environments.
- farm houses and by clients in hotels, motels and other
residential type environments.
- bed and breakfast type environments;
- catering and similar non-retail applications.
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, a service agent or similarly
qualied persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with
a specially grounded socket of 16 amperes. If there is no
such socket in your house, please have one installed by an
authorised electrician.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
• If the supply cord is damaged, it must be replaced by
the manufacturer, an authorised service agent or similar
qualied persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding
2000 m.

EN - 4 -
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding
it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers may contain isolation material and refrigerant with
CFC or HFC. Therefore, take care not to harm environment when you are
discarding your old fridges.
• Please ask your municipal authority about the disposal of the WEEE
reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in
a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specied purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the appliance to be cancelled and
our company will not be responsible for losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
food. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for losses to be incurred in the contrary
case.
Safety warnings
• Do not connect your fridge freezer to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children to
play with the appliance or let them hang off the door.
• Never touch the power cord/plug with wet hands as this could cause a
short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-making
compartment as they can burst as the contents freeze.
• Do not place explosive or ammable material in your fridge freezer. Place
drinks with high alcohol content vertically in the fridge compartment
and make sure that their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it.
Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and
ice cubes immediately after you have taken them out of the freezer

EN - 5 -
compartment!
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes
immediately after you have taken them out of the ice-making compartment.
• Do not cover the body or top of fridge with lace. This affects the performance
of your fridge freezer.
• Secure any accessories in the fridge freezer during transportation to prevent damage to
the accessories.
• Do not use plug adapter
Installing and operating your fridge freezer
Before starting to use your fridge freezer, you should pay attention to the following points:
• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge may have a smell when it is operated for the rst time. This is normal and the
smell will fade away when your fridge freezer starts to cool.
• Before connecting your fridge freezer, ensure that the information on the data plate
(voltage and connected load) matches that of the mains electricity supply. If in doubt,
consult a qualied electrician.
• Insert the plug into a socket with an efcient ground connection. If the socket has no
ground contact or the plug does not match, we recommend that you consult a qualied
electrician for assistance.
• The appliance must be connected with a properly installed fused socket. Power supply
(AC) and voltage at the operating point must match with the details on the name plate of
the appliance (name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge freezer where it will not be exposed to direct sunlight.
• Your fridge freezer should never be used outdoors or exposed to rain.
• Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores,
and at least 5 cm away from electrical ovens.
• When your fridge freezer is placed next to a deep freezer, there should be at
least 2 cm between them to prevent humidity forming on the outer surface.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly, especially the interior, before use (see
Cleaning and Maintenance).
• The installation procedure into the kitchen unit is given in the installation
manual. This product is intended to be used in proper kitchen units only.
• Before using your fridge freezer, wipe all parts with a solution of warm water
and a teaspoon of sodium bicarbonate, then rinse with clean water and dry.
Place all parts in the fridge freezer after cleaning.

EN - 6 -
Before Using your fridge freezer
• When using your fridge freezer for the rst time, or after transportation,
keep it in an upright position for at least 3 hours before plugging into
the mains. This allows efcient operation and prevents damage to the
compressor.
• Your fridge freezer may have a smell when it is operated for the rst time. This is normal
and the smell will fade away when your fridge freezer starts to cool.
Information about The New Generation Cooling
Technology
The New Generation Cooling Technology refrigerators are
different from the other static refrigerators in terms of their
operational system.
In normal fridge freezers, the humidity entering the fridge freezer
due to opening the door and the humidity inherent in the food
causes freezing in the freezer compartment. To defrost the frost
and ice in the freezer compartment, you are periodically required
to turn off the fridge freezer, place the food that needs to be kept
frozen in a separately cooled container and remove the ice
gathered in the freezer compartment.

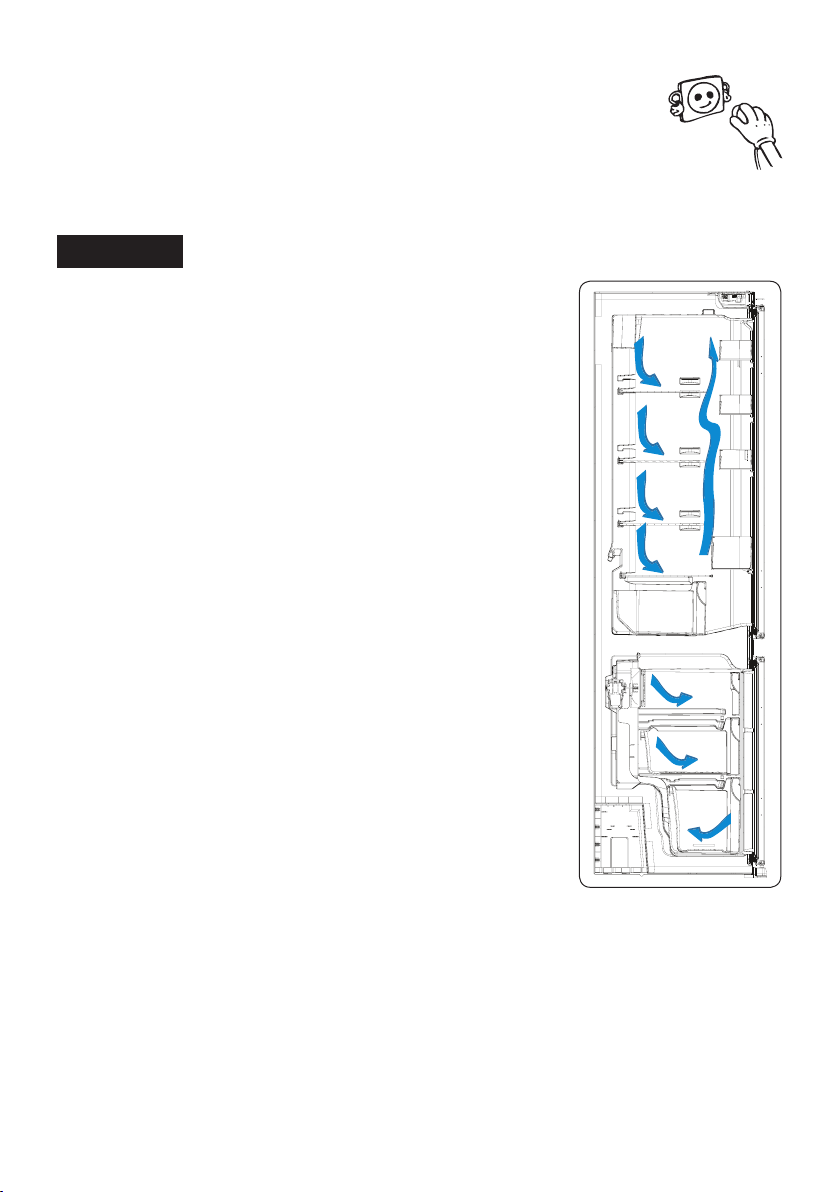

The situation is completely different in no-frost refrigerators. Dry
and cold air is blown into the fridge and freezer compartments
homogeneously and evenly from several points via a blower
fan. Cold air dispersed homogeneously and evenly between
the shelves cools all of your food equally and uniformly, thus
preventing humidity and freezing.
Therefore your New Generation Cooling Technology fridge
freezer allows you ease of use, in addition to its huge capacity
and stylish appearance.
HOW TO OPERATE THE APPLIANCEPART - 2.

EN - 7 -
Control panel
This button allows setting temperature of the fridge. In order to set values for fridge partition,
press this button. Use this button also to activate Super Cooling mode.
1.1.1. Alarm light
In case of a problem within the fridge, the alarm led will release red light
1.1.2. Super Cooling Mode
When would it be used?
• To cooling huge quantities of food.
• To cooling fast food.
• To cooling food quickly.
• To store seasonal food for a long time.
How to use?
• Press temperature set button until super cooling light comes on.
• Super cooling led will light during this mode.
• For optimal appliance performance in maximum cooling capacity, set the appliance
to active Super Cooling mode 5 hours before you put the fresh food into the fridge.
During this mode:
If you press temperature set button, the mode will be cancelled and the setting will
be restored from MAX.
Note: “Super cooling” mode will be automatically cancelled after 5 hours.
1.1.3. Temperature Settings
• The initial temperature of the Setting Display is Middle temperature indicator.
• Press temperature set button once.
• Every time you press the button, the setting temperature will decrease.
• If you press temperature set button until super cooling symbol is displayed on your fridge
settings display and you do not press any button within the following 3 seconds, Super
cooling will blink.
Temperature
set button
Symbol of
Super Cooling Mode
Alarm
indicator led Temperature indicator

EN - 8 -
Warnings for Temperature Settings
• Do not pass to another adjustment before completing an adjustment.
• Temperature adjustments should be made according to the frequency of door openings,
the quantity of food kept inside the fridge and ambient temperature of the place of your
fridge.
• Your fridge should be operated up to 24 hours according to the ambient temperature
without interruption after being plugged in to be completely cooled.
• Do not open doors of your fridge frequently and do not place much food inside it in this
period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your
fridge, when you take the plug off and then plug it on again to operate it or when an
energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the
standards, according to the climate
class stated in the information label.
We do not recommend operating your
fridge out of stated temperatures value
limits in terms of cooling effectiveness.
• This appliance is designed for use at an
ambient temperature within the 16°C -
38°C range.
Climate class Ambient Temperature (oC)
TBetween 16 and 43 oC
ST Between 16 and 38 oC
NBetween 16 and 32 oC
SN Between 10 and 32 oC
• If you keep on pressing, it will restart from last value.
It ensures that the temperature settings in the cooling and freezing compartments of your
refrigerator are performed automatically. It may be set to any value ranging from MIN to
MAX. As you press temperature set button from MIN to MAX, the temperature decreases. To
save energy in winter months, operate your refrigerator in a lower position.

EN - 9 -
Accessories
Ice tray
• Fill the ice tray with water and place in the
freezer compartment.
• After the water has completely turned into
ice, you can twist the tray as shown below
to remove the ice cubes.
Bottle holder
In order to prevent bottles from slipping or falling
over, you can use the bottle holder. This will also
help to prevent the noise made by bottles when
opening or closing the door.
Fresh dial
When the humidity controler in the closed
position, it allows fresh fruit and vegetables to
be stored longer.
In case of the crisper is totally full, the fresh dial
is located in front of crisper, should be opened.
By means of this the air in the crisper and
humidity rate will be controlled and endurance
life will be increased.
If you see any condensation on glass shelf, humidity control should be taken into the open
positions.
(In some models)
(In some models)
(In some models)
Fig. 1
Fig. 2
Adjustable Door Shelf
Six different height adjustments can be made to provide storage
areas that you need by adjustable door shelf.
To change the position of adjustable door shelf ;
Hold the bottom of the shelf and pull the buttons on the side of the
door shelf direction of arrow (Fig.1).
Position door shelf the height you need by moving up and down. After
you get the position that you want the door shelf, release the buttons
on the side of the door shelf (Fig.2) Before releasing the door shelf,
move up down and make sure the door shelf is xed.
Note: Before moving door shelf is loaded, you must hold the shelf
by supporting the bottom. Otherwise, door shelf could fall off the rails
due to the weight. So damage may occur on the door shelf or rails.
(In some models)

EN - 10 -
All written and visual descriptions in the accessories may vary according to the
appliance model.
Maxi-fresh preserver
Maxi Fresh Preserver technology helps to remove ethylene gas (a
bioproduct released naturally from fresh foods) and unpleasant odors
from the crisper. In this way, food stays fresh for a longer time.
• Maxi Fresh Preserver must be cleaned once in a year. The lter
should be waited for 2 hours at 65°C in a oven.
• To clean the lter, please remove the back cover of the lter box by
pulling it in the direction of the arrow.
• The lter should not be washed with water or any detergent.
(In some models)
Maxi Fresh Preserver
(In some models)

EN - 11 -
Refrigerator Compartment
• Always make sure food is wrapped or stored in closed containers.
• Hot food and drinks should be cooled to room temperature before being placed in the
refrigerator.
• Please do not store packaged food and cups against the lamp and cover of the cooling
compartment.
• Store fruit and vegetable items loose in the crisper containers.
Some recommendations have been specied below for the placement and storage of your
food in the cooling compartment.
Freezer Compartment
• Please use the deep freeze compartment of your refrigerator for storing frozen food for
a long time and producing ice.
• Please place the food you would like to freeze initially in the upper basket of the deep
freeze in such a way that it does not exceed the declared freezing capacity of your
refrigerator. Please do not place the food to be frozen near the already frozen food.
You may place your food next to the other frozen food after it has frozen (for at least 24
hours).
FOOD STORAGE IN THE APPLIANCEPART - 3.
Food Maximum Storing time Where to place in the
fridge department
Vegetables and fruits 1 week Vegetable bin
Meat and sh 2 - 3 Days
Wrapped in plastic foil or bags or in
a meat container
(on the glass shelf)
Fresh cheese 3 - 4 Days In special door shelf
Butter and margarine 1 week In special door shelf
Bottled products
milk and yoghurt
Until the expiry date
recommended by the
producer
In special door shelf
Eggs 1 month In the egg shelf
Cooked food All shelves
• You should freeze food (meat, minced meat, sh, etc.) by dividing it into portions in such
a way that they can be consumed in one sitting.
• Please do not refreeze frozen food once it has thawed. It may pose a danger for your
health since it might cause food poisoning.
• Do not place hot meals in the deep freeze before they have cooled. You may cause the
other food frozen food in the deep freeze to become putreed.
• When you buy frozen food, make sure they were frozen under appropriate conditions
and that the package is not torn.
• When storing frozen food, the storage conditions on the package should be observed. If

EN - 12 -
there are no instructions, the food has to be consumed in the shortest possible period
of time.
• Frozen food has to be transported before it perishes and should be placed in the fast
freezing shelf as soon as possible. Please do not use the door shelves for freezing
purposes.
• If a frozen food package has been humidied and has a foul smell, the food might have
previously been stored under suitable conditions and gone rotten. Please do not buy
such food!
• The storage duration of frozen food changes depending on the environmental
temperature, the frequent opening and closing of the doors, thermostat settings, food
type and the length of time that has elapsed from the time the food was bought to the
time it entered the freezer. Always abide by the instructions on the packaging and never
exceed the storage duration.
Some recommendations have been specied below for the placement and storage of your
food in the freezing compartment.
Meat and sh Preparation
Maximum
Storing time
(month)
Steak Wrapping in a foil 6 - 8
Lamb meat Wrapping in a foil 6 - 8
Veal roast Wrapping in a foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packages without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami Should be packaged even if it has
membrane
Chicken and turkey Wrapping in a foil 4 - 6
Goose and Duck Wrapping in a foil 4 - 6
Deer, Rabbit, Wild Boar In 2.5 kg portions and as llets 6 - 8
Fresshwater shes (Salmon,
Carp, Crane, Siluroidea) After cleaning the bowels and
scales of the sh, wash and dry
it; and if necessary, cut off the tail
and head.
2
Lean sh; bass, turbot,
ounder 4
Fatty shes (Tunny, Mackarel,
bluesh, anchovy) 2 - 4
Shellsh Cleaned and in bags 4 - 6
Caviar In its package, aluminium or
plastic container 2 - 3
Snails In salty water, aluminum or plastic
container 3

EN - 13 -
Note: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not
cooked after being thawed, it must not be re-frozen.
Vegetables and Fruits Preparation
Maximum
Storing time
(months)
String beans and beans Wash and cut into small pieces and boil in
water 10 - 13
Beans Hull and wash and boil in water 12
Cabbage Cleaned and boil in water 6 - 8
Carrot Clean and cut to slices and boil in water 12
Pepper Cut the stem, cut into two pieces, remove
the core and boil in water 8 - 10
Spinach Washed and boil in water 6 - 9
Cauliower
Take the leaves apart, cut the heart into
pieces, and leave it in water with a little
lemon juice for a while
10 - 12
Eggplant Cut to pieces of 2cm after washing 10 - 12
Corn Clean and pack with its stem or as sweet
corn 12
Apple and pear Peel and slice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Strawberry and
Blackberry Wash and hull 8 - 12
Cooked fruits Adding 10 % of sugar in the container 12
Plum, cherry, sourberry Wash and hull the stems 8 - 12
Dairy Products Preparation Maximum Storing
time (months) Storing Conditions
Packet
(Homogenize) Milk In its own packet 2 - 3 Pure Milk – In its own packet
Cheese-excluding
white cheese In slices 6 - 8
Original package may
be used for short storing
period. It should be
wrapped in foil for longer
periods.
Butter, margarine In its package 6

EN - 14 -
Maximum Storing
time (months)
Thawing time in
room temperature
(hours)
Thawing time in oven
(minutes)
Bread 4 - 6 2 - 3 4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-10 (200-225 °C)
Pie 1 - 1,5 3 - 4 5-8 (190-200 °C)
Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4 15-20 (200 °C)
PART 4. CLEANING AND MAINTENANCE
• Disconnect the unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• Make sure that no water enters the lamp housing and other electrical
components.
• The refrigerator should be cleaned periodically using a solution of
bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water Do
not clean them in the dishwasher.
• Do not use abrasive products, detergents or soaps. After washing, rinse
with clean water and dry carefully. When you have nished cleaning,
reconnect the plugto the mains supply with dry hands.
• Clean the condenser with a broom at least twice a year. This
will help you to save on energy costs and increase productivity.
THE POWER SUPPLY MUST BE DISCONNECTED.

EN - 15 -
Defrosting
You refrigerator has fully automatic defrosting. The
water formed as a result of defrosting passes through
the water collection spout, ows into the vaporisation
container below the condenser and evaporates there.
Evaporation
container
Replacing LED Lighting
1 or 2 led strips in fridge is used to illumianate your appliance. Please call the service man.
Note: Numbers and location of led strips may be changed according to the model.
!!! Some versions may be without illumination.
Upper side LED strip
(In some models)
Left / Right side LED strip
(In some models)
PART - 5. TRANSPORTATION AND CHANGING OF
INSTALLATION POSITION
Transportation and changing of installation position
• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong
rope. The instructions written on the corrugated box must be followed while transporting.
• Before transporting or changing the
installation position, all the moving objects
(ie,shelves,crisper…) should be taken out
or xed with bands in order to prevent them
from getting damaged.
• Carry your fridge freezer in the upright position.

EN - 16 -
BEFORE CALLING YOUR AFTER SALES SERVICEPART - 6.
If your fridge freezer is not working properly, it may be a minor problem, therefore check the
following, before calling an electrician to save time and money.
What to do if your appliance does not operate;
Check that;
• There is no power,
• The general switch in your home is disconnected ,
• The socket is not sufcient. To check this, plug in another appliance that you know which
is working into the same socket.
What to do if your appliance performs poorly;
Check that;
• You have not overloaded the appliance ,
• The fridge temperature set to MAX.
• The door is closed perfectly ,
• There is no dust on the condenser ,
• There is enough place at the rear and side walls.
If your fridge is operating too loudly;
Normal Noises
Cracking (Ice cracking) Noise:
• During automatic defrosting.
• When the appliance is cooled or warmed (due to expansion of appliance material).
Short cracking: Heard when the thermostat switches the compressor on/off.
Compressor noise: Normal motor noise. This noise means that the compressor
operates normally Compressor may cause more noise for a short time when it is activated.
Bubbling noise and splash: This noise is caused by the ow of the refrigerant in the
tubes of the system.
Water ow noise: Normal ow noise of water owing to the evaporation container during
defrosting. This noise can be heard during defrosting.
Air Blow Noise: Normal fan noise. This noise can be heard in fridges during normal
operation of the system due to the circulation of air.
If the edges of fridge cabinet that the door joint contact are warm;
Especially in summer (hot weather), the surfaces that the joint contact may get warmer
during the operation of the compressor, this is normal.
If humidity builds up inside the fridge freezer;
• Are all food packed properly? Are the containers dried before placing them in the fridge?
Alarm indicator
led is turning on ERROR TYPE WHY WHAT TO DO
"Failure
Warning"
There is/are some
part(s) Out of order
or there is a failure in
cooling process
Check the door is open or not.
If the door is not open, call
service for assistance as soon
as possible.

EN - 17 -
• Are the fridge freezeer's doors opened frequently? Humidity of the room gets in the fridge
when the door is opened. Humidity build up will be faster when you open the door more
frequently, especially if the humidity of the room is high.
If the doors are not opened and closed properly;
• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door joints broken or torn?
• Is your fridge freezer on a level surface?
Recommendations
• To stop the appliance completely, unplug from main socket (for cleaning and when the
door is left open)
Tips for saving energy
1.Install the appliance in a cool, well ventilated room , but not in direct sunlight and not near
a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2.Allow warm food and drinks to cool down outside the appliance.
3.When thawing frozen food, place it in the refrigerator compartment. The low temperature
of the frozen food will help to cool the refrigerator compartment when it is thawing. This
will help to save energy. If the frozen food is put out, it results in a waste of energy.
4.Cover drinks or other liquids when placing them in the appliance Otherwise humidity
increases in the appliance. Therefore, the working time gets longer. Also covering drinks
and other liquids helps to preserve smell and taste.
5.Try to avoid keeping the doors open for long periods or opening the doors too frequently
as warm air will enter the cabinet and cause the compressor to switch on unnecessarily
often.
6.Keep the covers of the different temperature compartments (crisper, chiller ...etc ) closed
7.Door gasket must be clean and pliable. Replace gaskets if worn.

EN - 18 -
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
PART - 7.
A) Refrigerator compartment
B) Freezer compartment
1) Control panel
2) Turbo Fan *
3) Refrigerator shelves
4) Crisper cover
5) Crisper
6) Freezer room cover
7) Freezer comp. drawer
8) Freezer comp. bottom drawer
9) Ice tray
10) Freezer glass shelves *
11) Bottle shelf
12) Adjustable door shelf * / Door shelf
13) Door shelves
14) Egg holder
1
2
3
4
5
6
7
8
9
10
14
12
11
B
A
13
* In some models

FR - 19 -
Les instructions d’utilisation s’appliquent à de nombreux modèles. Toutefois il peut y avoir
des différences.
Sommaire
AVANT D'UTILISER L'APPAREIL........................................................... 20
Avertissements généraux ..........................................................................20
Instructions de sécurité..............................................................................23
Installation et utilisation de votre réfrigérateur...........................................23
Avant d’utiliser votre réfrigérateur..............................................................24
UTILISATION DE L’APPAREIL ............................................................... 25
Informations relatives à la technologie sans givre.....................................25
Bandeau de commande ............................................................................26
Bouton de réglage de température du compartiment réfrigérateur ...........26
Avertissements relatifs aux réglages de la température ..........................................27
Accessoires ...............................................................................................28
Bac à glaçons...........................................................................................................28
Blocage bouteilles....................................................................................................28
Curseur de fraicheur ................................................................................................28
Balconnet réglable .................................................................................................28
Maxi-fresh preserver ................................................................................................29
RANGEMENT DES ALIMENTS............................................................... 30
Compartiment réfrigérateur .......................................................................30
Compartiment congélateur ........................................................................30
NETTOYAGE ET ENTRETIEN................................................................. 35
Dégivrage ..................................................................................................36
Remplacement du voyant à LED ............................................................................36
TRANSPORT ET DEPLACEMENT ......................................................... 37
AVANT D'APPELER LE SERVICE APRES VENTE................................ 37
Mesures d’économie d’énergie..................................................................39
PIÈCES DE VOTRE RÉFRIGÉRATEUR ................................................. 40
INSTALLATION..........................................................................................41
Instructions d'installation et réversibilité de la porte.................................................41
Inversion de la position de la porte............................................................44
