Oceanic Systems 4144 User manual

NMEA2000® INTEGRATED 21.5” DISPLAY COMPUTER
Part Number: 4144
USER MANUAL
Revision 1.00


1 of 13
1 Introduction ........................................................2
1.1 Product features ................................................2
2 Installation ..........................................................3
2.1 Unpacking the box..............................................3
2.2 Mounting the unit ..............................................3
2.3 Connecting The NMEA2000® INTEGRATED 21.5”
DISPLAY COMPUTER ...........................................4
3 User controls........................................................5
3.1 Day/Night Mode description ................................ 5
3.2 To always start the screen in the Day Mode............5
3.3 To always start the screen in the Night Mode.........5
3.4 Alarms control....................................................6
4 Operating NMEA2000® INTEGRATED 21.5” DISPLAY
COMPUTER ...........................................................7
5 Unit dimensions ....................................................8
6 Technical support .................................................9
8 Warranty ............................................................10

INTRODUCTION
1
2 of 13
The NMEA2000® INTEGRATED 21.5” DISPLAY COMPUTER system can control all or any of the
vessel’s systems with graphic mimic displays to indicate the status of all the vessel’s systems.
These can include AC and DC electrical switching, pumps, chillers, air handling units, lighting
and many others.
1.1 PRODUCT FEATURES
The Oceanic Systems NMEA2000® INTEGRATED 21.5” DISPLAY COMPUTER has the following
features:
• Sunlight readable dimmable display using our BlackGlass™ technology
• Optically bonded projected capacitance touch screen for clarity and sensitivity, also
allowsusewithaglovednger
•Displayimagescongurabletomeetboatbuildersowninhousestyle
• Control of any or all vessels systems with full graphic mimics
• Full unlimited Software Licence included
• Uses proven NMEA2000® network interface
• 1000 cd/m2 Daylight readable LCD
•Full HD (1980x1080 pixels)

INSTALLATION
2
3 of 13
2.1 UNPACKING THE BOX
Youwillndthefollowingitemsintheshippingbox:
1 x NMEA2000® INTEGRATED 21.5” DISPLAY COMPUTER
1 x DC power cable
1 x Bag containing 4x M4 x 4.5 threaded studs, 4 thumb nuts
1 x User Manual (this document)
2.2 MOUNTING THE UNIT
1.Theunitshouldbemountedthroughapaneltoaatsurface.
2. It can be mounted 45 degrees either side of vertical.
3. There should be adequate ventilation around the product to prevent heat build up.
4. Remember to allow enough clearance for access to cables and connectors.
5. Using the 4 threaded studs and thumb nuts, to secure
the unit.
6. The unit should be sealed to the mounting surface using silicone sealant. This
silicone sealant will be part of the seal used to provide the IP rating for the product.
Once the cut-out and mounting holes have been created in the substrate, carefully slide the unit
intothecut-out,thenfromtheothersidetthefourthumbnutsandhandtighten.

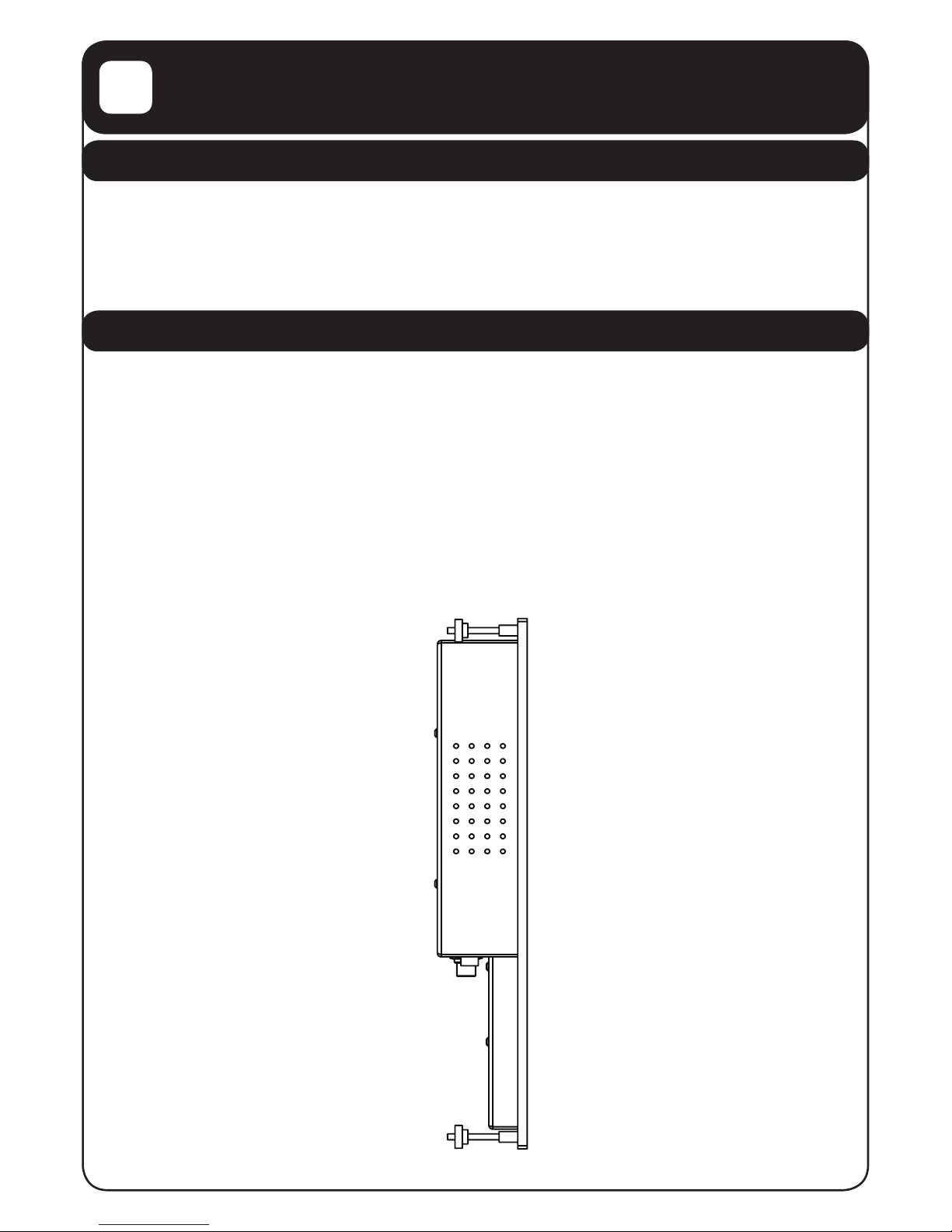

Side view showing outline.

Mounting area
4 of 13
Rear view line drawing showing outline, mounting studs and mounting area. Please see
dimensional drawing in section 6.
2.3 CONNECTING THE NMEA2000® INTEGRATED 21.5” DISPLAY COMPUTER
Before making any connections to the unit, ensure the NMEA2000® bus power and DC supply
are turned off.
Attach the NMEA2000® cable to NMEA2000® connector on the back of the unit, observing
correct orientation to ensure the keyway aligns. The cable can be extended up to 6mtrs and
connect into the adapter on the network backbone. Ensure that the screw ring is securely
tightened so that the connection remains waterproof.
Ethernet connector is for internal Oceanic Systems programming use ONLY
RS232 is for internal Oceanic Systems programming use ONLY
The DC Power cable can be inserted into the marked port ensuring correct orientation, fully
insert and ensure the screw ring is securely tightened.
There are two USB ( )A for program updating. One USB ( ) OTG connector not for
customer use, but intended for future Oceanic Systems usage.
DC Power
connection
NMEA2000®
Volt-free
alarm
contact

3USER CONTROLS
5 of 13
Situated in the bottom right hand corner of the display are capacitive touch buttons, see below:
3.1 DAY/NIGHT MODE DESCRIPTION
The “day/night button” switches between two modes. Each time the button is pressed the
backlight toggles day/night mode. When the device is turned on it will start the backlight in
MODE 1. The brightness of each mode gets saved when the device is turned off.
3.2 TO ALWAYS START THE SCREEN IN DAY MODE
Turn on the unit, adjust the brightness to the bright day setting (MODE 1), now press the “day/
night button”, and adjust brightness to the darker night setting (MODE 2), turn device off.
From now on the screen starts with the bright day setting (MODE 1) and as soon as the “day/
night button” gets pressed switches into the darker night setting (MODE 2).
3.3 TO ALWAYS START THE SCREEN IN THE NIGHT MODE
Turn on the unit, adjust the brightness to the darker night setting (MODE 1), now press the
“day/night button”, adjust brightness to the bright day setting (MODE 2), turn device off.
From now on the screen starts with the darker night setting (MODE 1) and as soon as the “day/
night button” gets pressed switches into the brighter day setting (MODE 2).
Button Function
DIM Each touch will decrement the brightness level, holding the
touch will continue to decrement until the minimum level
is reached.
BRIGHT Each touch will increment the brightness level, holding
the touch will continue to increment until the max level is
reached.
DAY/NIGHT MODE This toggle between Day and Night Mode (please see opera-
tional description below)
ALARM MUTE This will mute all current active alarm conditions
STANDBY A touch of over half a second will turn the unit on, a long
touch of over two seconds will turn the unit off and into
standby.
DIM BRIGHT DAY/NIGHT ALARM MUTE STANDBY

6 of 13
3.4 ALARMS CONTROL
1 Mutes the Buzzer
2. Acknowledges unacknowledged alarms
3. Clears acknowledged inactive alarms.
Text colour in alarm window
Red = Alarm state active but not acknowledged
Yellow = Alarm state still active but acknowledged
Green = Alarm state logged but inactive.

4
7 of 13
OPERATING THE NMEA2000® INTEGRATED 21.5”
DISPLAY COMPUTER
• Touch and hold the standby button for over half a second to power on the unit.
• After approx 1 minute the computer will boot up into the home screen.
• Set your desired DAY & NIGHT backlight brightness as per section 3.
• To operate the unit, touch the screen over a button to select.
• To switch between screens/tabs click the relevant page button.

59.2
2.3
324.6
12.8
223.2
8.8
210.2
8.3
6
0.2
14.5
0.6
516.5
20.3
324,6
12,8
539,6
21,2
555,6
21,9
352,2
13,9
336,2
13,2
8 of 13

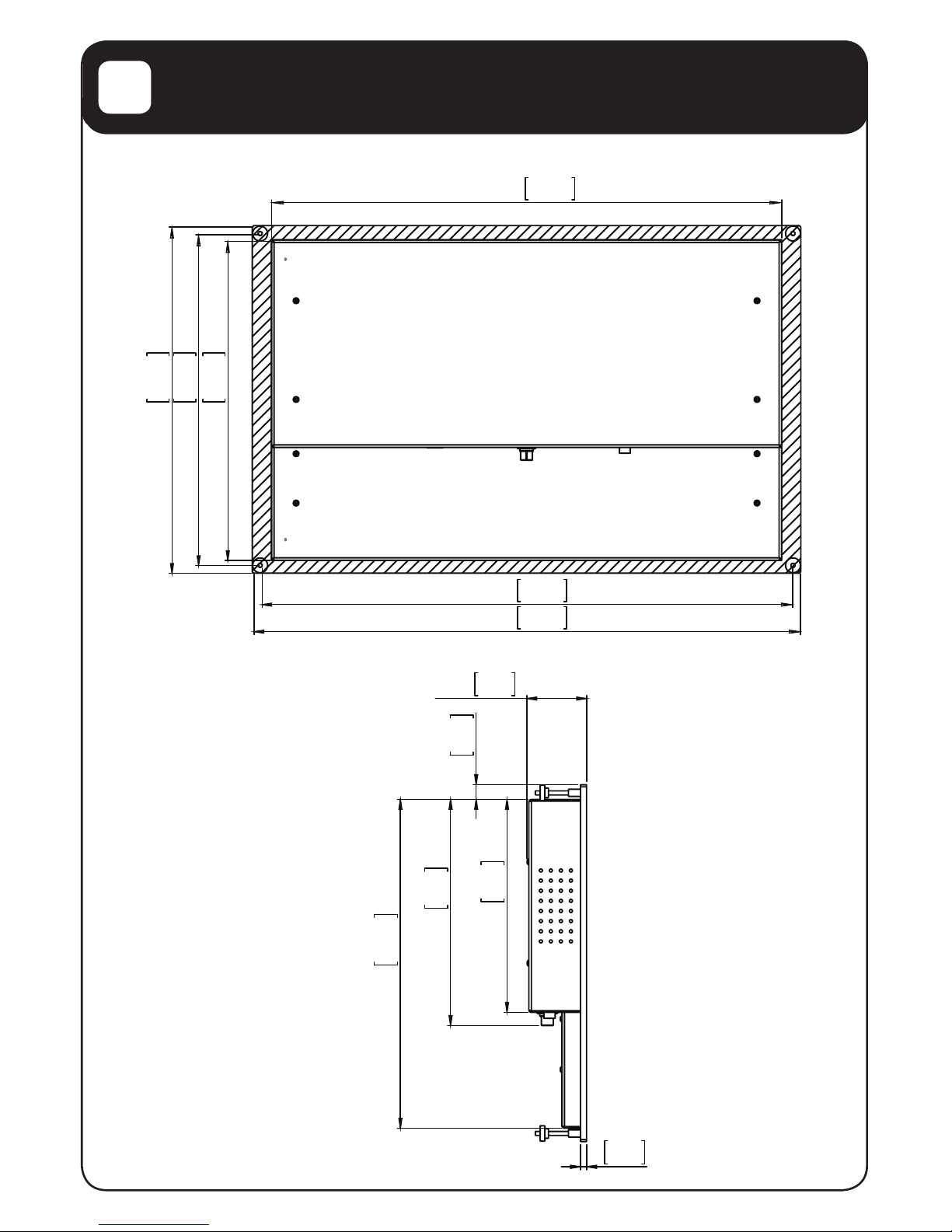

5UNIT DIMENSIONS
NMEA2000® INTEGRATED 21.5” DISPLAY COMPUTER
Side view

9 of 13
6TECHNICAL SUPPORT
If you require technical support for any Oceanic Systems products you can reach us using any of
the following:-
●Tel: +44(0)1425 610022
●Fax: +44(0)1425 614794
●Email: support@osukl.com
●Web: www.osukl.com
●Post: Oceanic Systems Ltd
Unit 10-11 Milton Business Centre
Wick Drive, New Milton, Hampshire BH25 6RH
Oceanic Systems (UK) Ltd
Unit 10-11 Milton Business Centre, Wick Drive,
New Milton, Hampshire, BH25 6RH, United Kingdom
Tel: +44(0)1425 610022 Fax: +44(0)1425 614794
Email: sales@osukl.com Web: www.osukl.com
Copyright © 2016 Oceanic Systems (UK) Ltd. All rights reserved. Our policy is one of continuous product improvement so product
specications are subject to change without notice. Oceanic Systems products are designed to be accurate and reliable.
However, they should be used only as aids to vessel monitoring, and not as a replacement for traditional navigation and vessel
monitoring techniques. NMEA2000® is a registered trademark of the National Marine Electronics Association.

10 of 13
WARRANTY
7
Oceanic Systems warrants this product to be free from defects in materials and workmanship for
one year from the date of original purchase. If within the applicable period any such products shall
be proved to Oceanic Systems satisfaction to fail to meet the above-limited warranty, such products
shall be repaired or replaced at Oceanic Systems option. Purchaser’s exclusive remedy and Oceanic
Systems sole obligation hereunder, provided product is returned pursuant to the return requirements
below, shall be limited to the repair or replacement, at Oceanic Systems option, of any product not
meeting the above limited warranty and which is returned to Oceanic Systems; or if Oceanic Systems
is unable to deliver a replacement that is free from defects in materials or workmanship, Purchaser’s
payment for such product will be refunded. Oceanic Systems assumes no liability whatsoever for
expenses of removing any defective product or part, or for installing the repaired product or part or
a replacement therefore or for any loss or damage to equipment in connection with which Oceanic
Systems products or parts shall be used. The foregoing warranties shall not apply with respect to
products subjected to negligence, misuse, misapplication, accident, damage by circumstances beyond
Oceanic Systems control, to improper installation, operation, maintenance, or storage, or to other
than normal use or service.
THE FOREGOING WARRANTIES ARE EXPRESSLY IN LIEU OF AND EXCLUDES ALL OTHER EXPRESS
OR IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE.
Statements made by any person, including representatives of Oceanic Systems, which are inconsistent
orinconictwiththetermsofthisLimitedWarranty,shallnotbebindinguponOceanicSystems
unlessreducedtowritingandapprovedbyanofcerofOceanicSystems.
IN NO CASE WILL OCEANIC SYSTEMS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES,
DAMAGES FOR LOSS OF USE, LOSS OF ANTICIPATED PROFITS OR SAVINGS, OR ANY OTHER LOSS
INCURRED BECAUSE OF INTERRUPTION OF SERVICE. IN NO EVENT SHALL OCEANIC SYSTEMS
AGGREGATE LIABILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT(S) INVOLVED. OCEANIC
SYSTEMS SHALL NOT BE SUBJECT TO ANY OTHER OBLIGATIONS OR LIABILITIES, WHETHER ARISING
OUT OF BREACH OF CONTRACT OR WARRANTY, TORT (INCLUDING NEGLIGENCE), OR OTHER THEORIES
OF LAW WITH RESPECT TO PRODUCTS SOLD OR SERVICES RENDERED BY OCEANIC SYSTEMS, OR ANY
UNDERTAKINGS, ACTS OR OMISSIONS RELATING THERETO.
Oceanic Systems does not warrant that the functions contained in any software programs or products
will meet purchaser’s requirements or that the operation of the software programs or products will
be uninterrupted or error free. Purchaser assumes responsibility for the selection of the software
programs or products to achieve the intended results, and for the installation, use and results
obtainedfromsaidprogramsorproducts.Nospecications,samples,descriptions,orillustrations
provided by Oceanic Systems to Purchaser, whether directly, in trade literature, brochures or other
documentation shall be construed as warranties of any kind, and any failure to conform to such
specications,samples,descriptions,orillustrationsshallnotconstituteanybreachofOceanic
Systems limited warranty.
WARRANTY RETURN PROCEDURE
To apply for warranty claims, contact Oceanic Systems or one of its dealers to describe the problem
and determine the appropriate course of action. If a return is necessary, place the product in its
original packaging together with proof of purchase and send to an Authorized Oceanic Systems
Service Location. You are responsible for all shipping and insurance charges. Oceanic Systems will
return the replaced or repaired product with all shipping and handling prepaid except for requests
requiring expedited shipping (i.e. overnight shipments). Failure to follow this warranty return
procedure could result in the product’s warranty becoming null and void.
Oceanic Systems reserves the right to modify or replace, at its sole discretion, without prior
notication,thewarrantylistedabove.

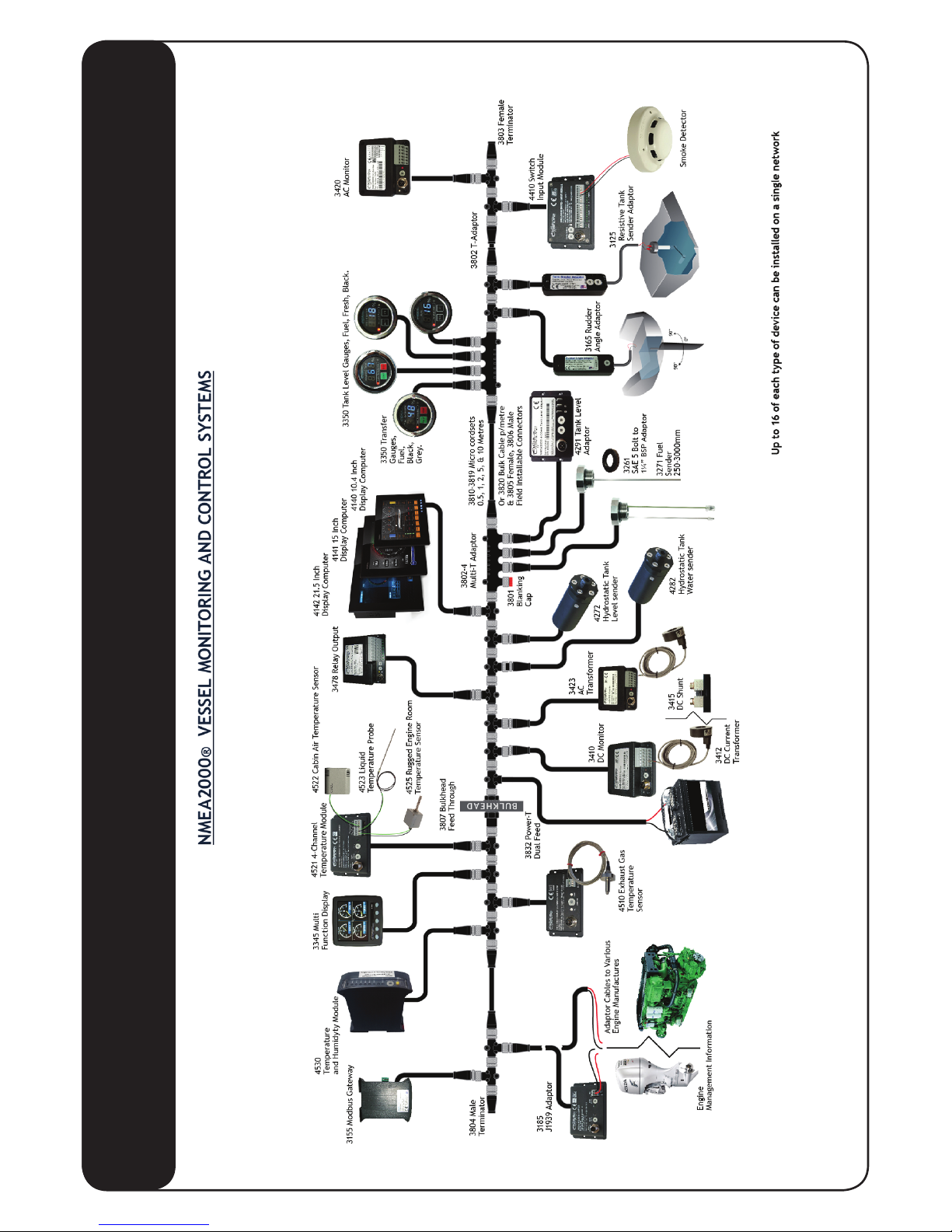

OCEANIC SYSTEMS PRODUCT MAP
