CONGRATULATIONS on your purchase of our Digital
Camcorder. Please read carefully and follow all warnings and
instructions in this User’s Manual and those marked on the
product before first use. Failing to follow these warnings could
result in personal injury or damage to the Digital device. Also,
remember to keep this User’s Manual in a convenient location
for future reference.
Important: Save the original box and all packing material for
future shipping needs.
IMPORTANT PRODUCT SAFETY INSTRUCTIONS

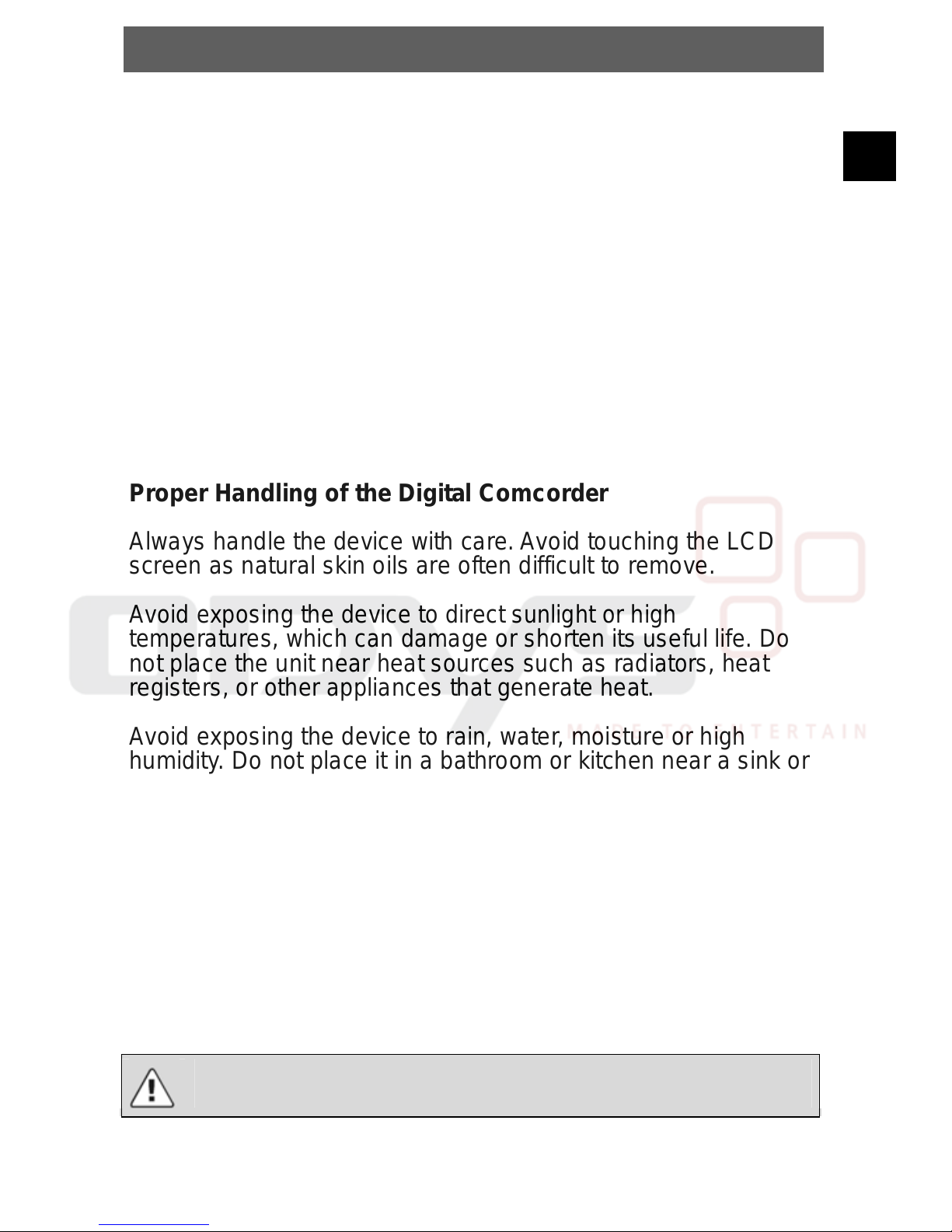

Proper Handling of the Digital Comcorder
Always handle the device with care. Avoid touching the LCD
screen as natural skin oils are often difficult to remove.
Avoid exposing the device to direct sunlight or high
temperatures, which can damage or shorten its useful life. Do
not place the unit near heat sources such as radiators, heat
registers, or other appliances that generate heat.
Avoid exposing the device to rain, water, moisture or high
humidity. Do not place it in a bathroom or kitchen near a sink or
where it may come in contact with water.
Other Notices and Precautions
Caution: Never remove the plastic casing. There are no user
serviceable parts inside.
Do not attempt repairs yourself. The warranty does not cover
repairs or attempted repairs by anyone not authorized by
Authorize Dealer. Refer all servicing and repairs to qualified
service personnel.
If the Device will not be used for an extended period of
time, please remove the batteries.

ODYS - MDV 30
2
EN
Cleaning the device
•MAKE SURE THE DEVICE IS TURNED OFF
•NEVER SPRAY OR POUR LIQUID DIRECTLY ONTO THE
SCREEN OR PLASTIC CASING
To Clean the Screen:
1. Wipe the screen with a clean, soft, lint-free cloth. This
removes dust and other particles.
2. If it still is not clean, apply a small amount of non-
ammonia, non-alcohol based glass cleaner on a clean,
soft, lint-lint-free cloth to clean the screen.
To Clean the Plastic Casing:
1. Use a soft, dry cloth.
2. If it still is not clean, apply a small amount of non-
ammonia, non-alcohol based, and mild non-abrasive
detergent on a clean, soft, lint-free cloth to clean the
surface.

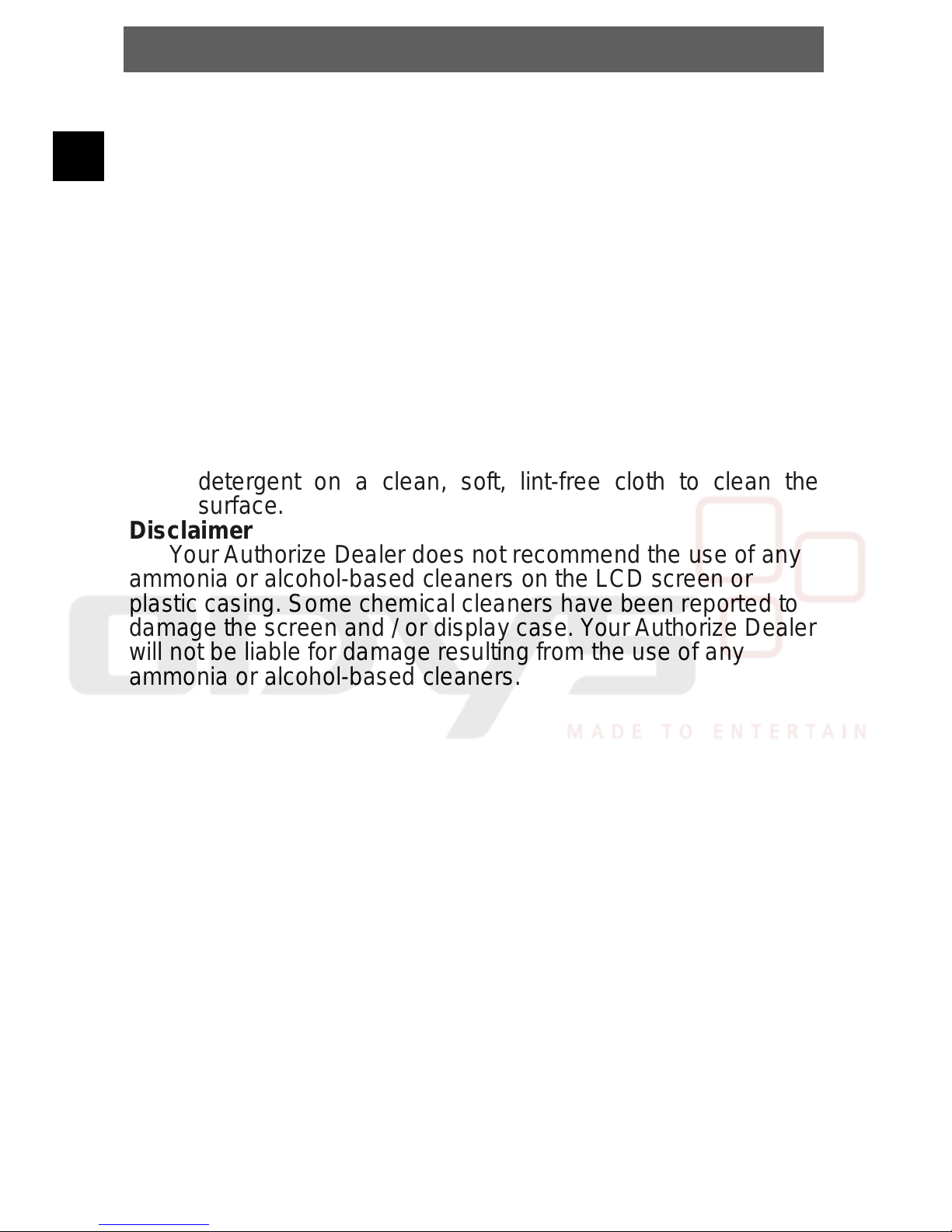

Disclaimer
Your Authorize Dealer does not recommend the use of any
ammonia or alcohol-based cleaners on the LCD screen or
plastic casing. Some chemical cleaners have been reported to
damage the screen and / or display case. Your Authorize Dealer
will not be liable for damage resulting from the use of any
ammonia or alcohol-based cleaners.

ODYS - MDV 30
3
EN
Tips regarding environmental protection
At the end of its operating life, this product may not be
disposed of by way of your normal household waste.
Instead it must be delivered to a collection point for
recycling electrical and electronic equipment. The icon
on the product, in the operating instructions or on the
packaging, indicates this.
The materials used in manufacturing this product are
recyclable, depending on their identifying markings. By
recycling this equipment, by recycling its components, or
through other procedures of re-using outdated
equipment, you are making an important contribution to
protection our environment. Please ask you local
municipal administration for the location of the
corresponding recycling point.
Battery Recycling
In order to ensure the environmently friendly disposal of
batteries, please do NOT dispose of used
batteries through normal household waste. Please take
the batteries to your local retail or community collection
point for recycling.
The following may be an indication of a discharged
battery: The device cannot be switched on. The
device switches off automatically and "Battery Empty" is
shown in the display. The device and or battery do not
function properly.

ODYS - MDV 30
4
EN
TABLE OF CONTENT
1 Camera Functions.............................................5
1.1 Overview ..................................................5
1.2 Getting Started..........................................6
1.2.1 Insert Batteries..................................6
1.2.2 Insert Memory Card ........................6
1.2.3 Turn On / Off....................................6
1.2.4 Language Setting..............................7
1.2.5 Change Camera Mode......................7
1.2.6 Change Display Mode......................7
1.3 Capture Mode...........................................8
1.4 Video Clip Mode ......................................9
1.5 Audio Recording Mode............................9
1.6 Playback Mode.......................................10
1.6.1 Preview Mode.................................10
1.6.2 Video and Sound Playback.............10
1.7 Delete Files.............................................11
2 System Settings ..............................................11
3 Connect to Computer......................................13
3.1 Transfer Files..........................................13
3.2 PC Webcam Operation ...........................13
4 Technical Specifications.................................14
5 Warranty condition.........................................15

ODYS - MDV 30
5
EN
1 Camera Functions
1.1 Overview

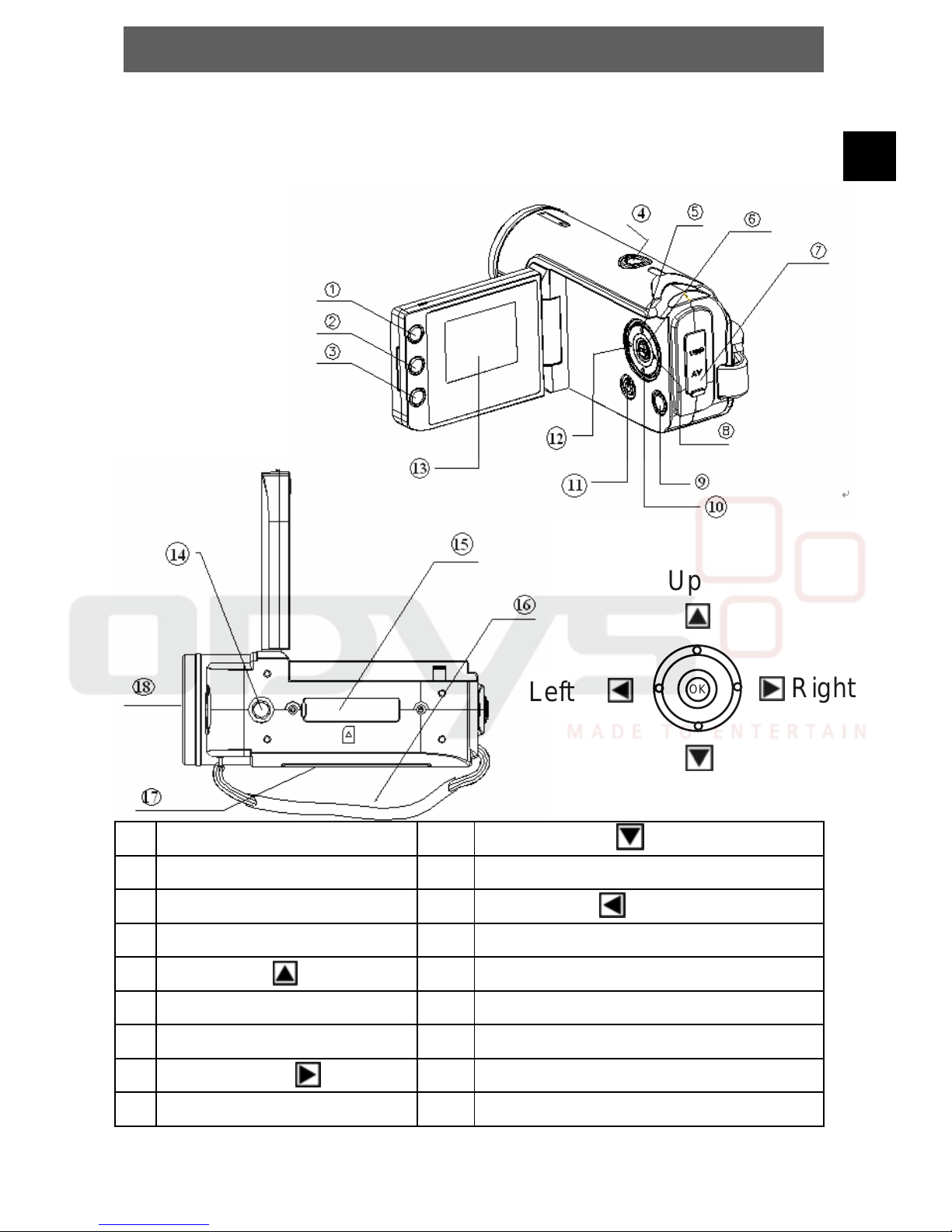

1 Display Button 10 Down button
2 LED On & Off Button 11 On & Off Button
3 Mode Button (DV/ DSC) 12 Left Button
4 Shutter Button 13 LCD Display
5 Up Button 14 Tripod Socket
6 OK Button 15 SD Card Slot
7 AV / USB Jacks 16 Wrist Strap
8 Right Button 17 Battery Cover
9 MENU Button 18 Lens
OK
Up
Down
Left Right

ODYS - MDV 30
6
EN
1.2 Getting Started
1.2.1 Insert Batteries
Open the battery compartment on the right side of the camera
and insert the batteries with the correct polarity; close the
battery compartment again.
Please use three common AAA batteries.

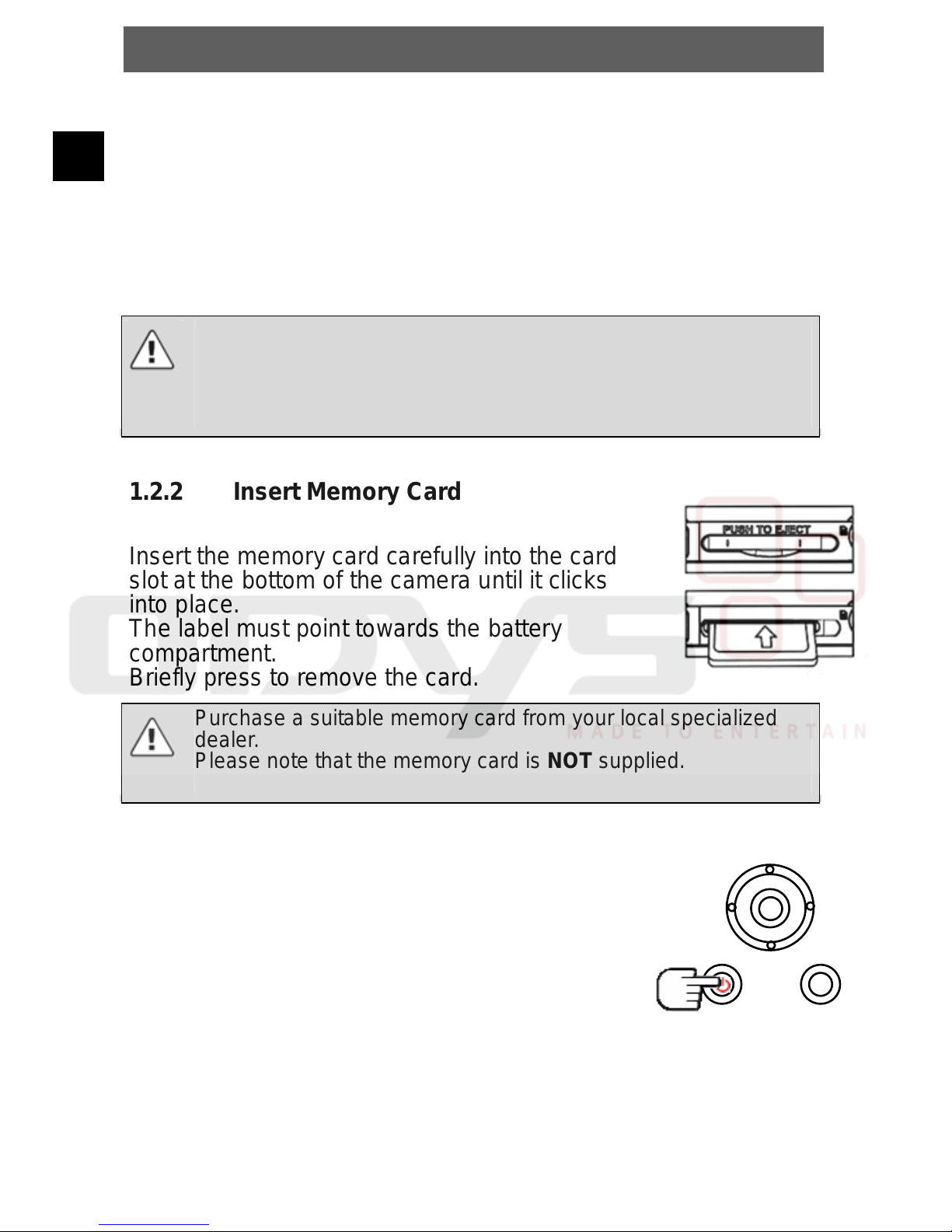

1.2.2 Insert Memory Card
Insert the memory card carefully into the card
slot at the bottom of the camera until it clicks
into place.
The label must point towards the battery
compartment.
Briefly press to remove the card.
1.2.3 Turn On / Off
1. Open the display.
2. Press the On / Off button on the side of the
camera. The ring around the button lights up.
3. Press again to turn the camera off.
Please observe a minimum capacity of 900mAh if using
rechargeable batteries.
Please note that the batteries are NOT to be charged while
inserted in the camera. If the Device will not be used for an
extended period of time, please remove the batteries.
Purchase a suitable memory card from your local specialized
dealer.
Please note that the memory card is NOT supplied.
Only use SD memory cards with a capacity up to 2GB.
OK
MENU

ODYS - MDV 30
7
EN
1.2.4 Language Setting
1. Press MENU and select Setup with the navigation button
right .
2. Press to select the language option (ABC).
3. Press to open the menu item.
4. Change the setting with and .
5. Confirm your setting with the OK button.
6. Press if you select to make no changes and exit the
menu item.
1.2.5 Change Camera Mode
Press the MODE button on the left of
the display to change the mode. The
camera starts up in capture mode.
Repeatedly press to cycle through the
modes:
Photo mode – Playback mode – Video
mode – Audio recording
1.2.6 Change Display Mode
Press the Display button on the left of
the display to change the mode. All
information is displayed by default.
Repeatedly press to cycle through the
modes:
All information – Life image only – Display off
The display automatically turns off to conserve energy after
approx. 20 seconds idling.
Press any button to reactivate.
DISPLAY
LED ON/OFF
MODE
DISPLAY
LED ON/OFF
MODE

ODYS - MDV 30
8
EN
1.3 Capture Mode
1. Turn the camera on, it starts up in capture mode. In other
modes press the MODE button until the icon is displayed
in the top left corner of the screen.
2. Press the shutter button on top of the camera to take a
photo.
Button assignment in Capture Mode:
OK
MENU
Zoom in
Zoom out
Shortcut for self-time
r
T
W
12/1511
EV+ 0.0
White balance indicator
Quality indicator
Auto
Day Light
Tu n g st e n
Fluoresc ent
Cloudy
Sup e r
Fine
Normal
Self-timer indicator
10 Second
20 Second
Battery level indicato
r
Em p ty
Half
Full
Digital zoom bar
Resolution indicator
2592x1944
2048x1536
1600x1200
1280x960
640x480
Memory card inside
Capture mode EV Va lule
Pho to ta ke n
/
photocapacit
y
Datestamp

ODYS - MDV 30
9
EN
OK
MENU
1.4 Video Clip Mode
1. Press the MODE button until the icon is displayed in the
top left corner of the screen.
2. Press the shutter button on top of the camera to start the
video recording.
3. Press again to stop the recording.
Press LED ON/OFF for video lighting in case of insufficient light.
Button assignment in Video Clip Mode:
1.5 Audio Recording Mode
1. Press the MODE button until the icon is displayed in
the center of the display. Underneath the available recording
time is displayed.
2. Press the shutter button on top of the camera to start the
sound recording. The current recording time is displayed.
3. Press again to stop the recording.
Please note that the LED light only supports the light; it is not
sufficient on its own to light the surroundings.
Capture mode Capture time
Resolution
White balance
Sound status
Memory card inside
Cloudy
Day Light
Fluorescent
Tungsten
Auto
Battery level indicato
r
Empty
Half
Full
Digital zoom
Zoom in
Zoom out

ODYS - MDV 30
10
EN
1.6 Playback Mode
1.6.1 Preview Mode
Press the MODE button until one of the following icons is
displayed in the top left corner of the screen:
- The current file is a photo
AVI - The current file is a video
WAV - The current file is a sound recording.
Press or to select the desired image file.
Press to display the thumbnails.
1.6.2 Video and Sound Playback
1. Press the MODE button until one of the following icons is
displayed in the top left corner of the screen:
- The current file is a photo
AVI - The current file is a video
WAV - The current file is a sound recording.
2. Press or to select the desired video or sound file.
3. Press the shutter button to play a video or sound file. Press
again to stop playback.
4. Press the OK button to pause playback. Press again to
resume playback.
This camera has NO built-in speaker! For sound playback
connect via supplied cable to PC; no earphones can be
connected.
Battery level indicator
Empty
Half
Full
6/20
Playback mode
Video file
Audio file
Still image
Protecting indicator
The sequence of the current file/The
number of the recorded files
Playback mode
Sound recording file
Video file
Ima
g
e file
Overwrite protection
Current file / Total recorded files
Battery level indicato
r
Empty
Half
Full

ODYS - MDV 30
11
EN
1.7 Delete Files
During playback mode press MENU and press or to
select “Delete Current” or “Delete All”.
1. Select “Delete Current” to delete the current file. Press to
confirm.
2. A dialog box opens; select Yes and press OK to confirm.
1. Select “Delete All” to delete all files. Press to confirm.
2. A dialog box opens; select Yes and press OK to confirm.
2 System Settings
In any mode press MENU to access the mode and system
settings.
1. Press MENU and select the desired setting with or .
2. Press to open a menu item.
3. Press or to change the setting
4. Press OK to confirm.
5. Press if you select to make no changes and exit the
menu item.
Image Settings
Resolution 2592x1944, 2048x1536, 1600x1200, 1280x960,
640x480
Quality Super, Fine or Normal
White Balance Auto, Day Light, Tungsten, Fluorescent, Cloudy
Color Effect Color, Sepia, Black & White
Exposure -2 to +2
Date Stamp Enable/disable
Selftimer Disable, 10 seconds, 20 seconds
Burst Snapshot Single – Burst (three photos in fast succession)
Video Settings
Resolution 640x480 (VGA), 320x240 (QVGA)
Frame Rate 15fps, 30fps
White Balance Auto, Day Light, Tungsten, Fluorescent, Cloudy
Audio Activate/deactivate audio during recording
Playback Settings
Delete Current Deletes the current file after saftey prompt
Delete All Deletes all files after saftey prompt
Lock Lock/unlock files; locked files cannot be deleted

ODYS - MDV 30
12
EN

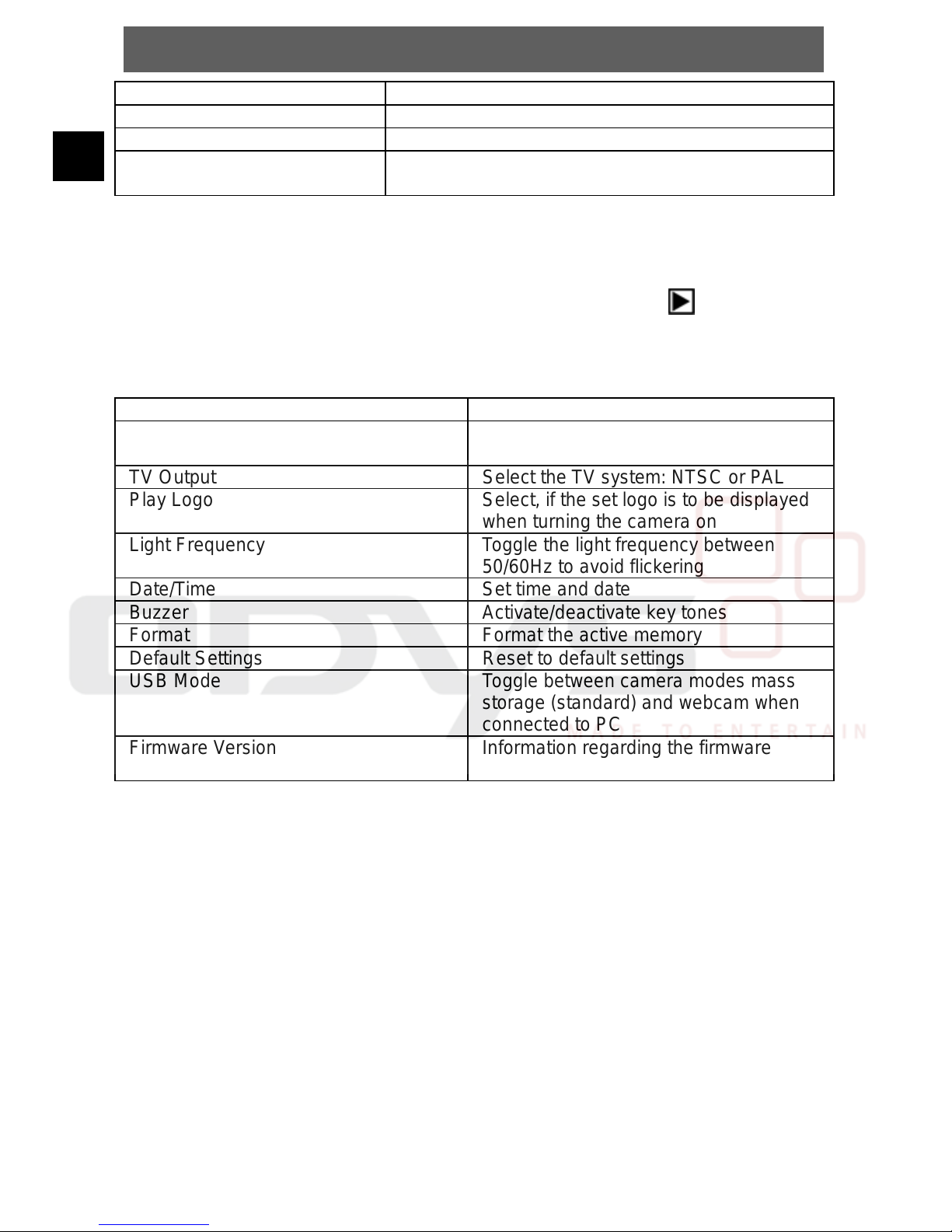

Thumbnail Opens the preview mode
Set Logo Sets the current image as start-up image
Rotate Rotates the image 90°, 180° or 270°
Slideshow Plays all files (photos, videos and sound
recordings) in succession
Setup
1. Press the MENU button and select Setup with .
2. Proceed as described above.
Language Set OSD language
Auto Power Off The camera automatically turns off after
60 or 120 seconds, if idling
TV Output Select the TV system: NTSC or PAL
Play Logo Select, if the set logo is to be displayed
when turning the camera on
Light Frequency Toggle the light frequency between
50/60Hz to avoid flickering
Date/Time Set time and date
Buzzer Activate/deactivate key tones
Format Format the active memory
Default Settings Reset to default settings
USB Mode Toggle between camera modes mass
storage (standard) and webcam when
connected to PC
Firmware Version Information regarding the firmware
version

ODYS - MDV 30
13
EN

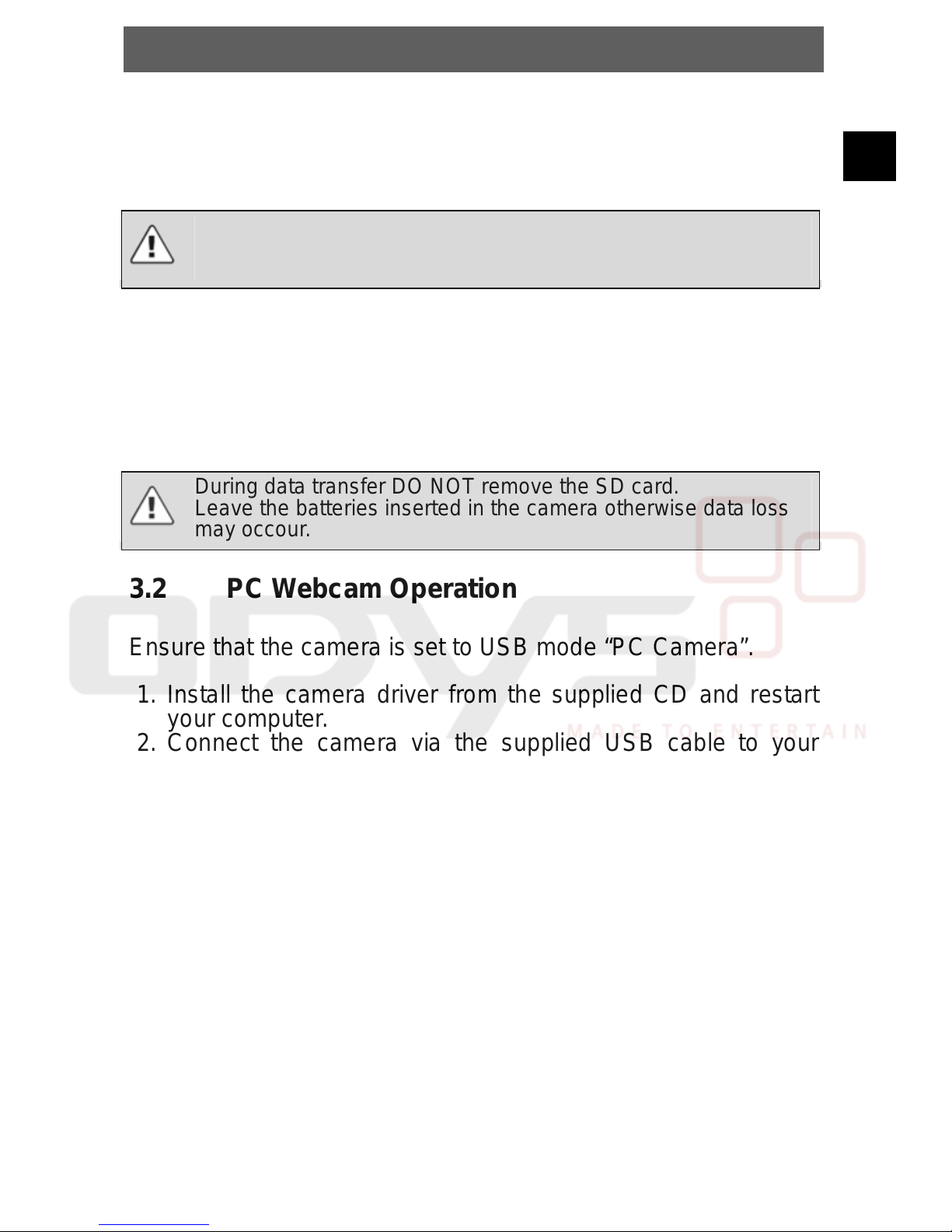

3 Connect to Computer
3.1 Transfer Files
Ensure that the camera is set to USB mode “mass storage”.
1. Connect the camera via the supplied USB cable to your
computer.
2. The computer detects the camera as a mass storage device
and can be accessed via My Computer.
Your recordings are stored in the folder “DCIM“.
3.2 PC Webcam Operation
Ensure that the camera is set to USB mode “PC Camera”.
1. Install the camera driver from the supplied CD and restart
your computer.
2. Connect the camera via the supplied USB cable to your
computer.
3. Open the camera application and configure the camera.
No driver installation is necessary for operating systems
Windows 2000, XP, Vista and later.
Older operating systems are not supported.
During data transfer DO NOT remove the SD card.
Leave the batteries inserted in the camera otherwise data loss
may occour.

ODYS - MDV 30
14
EN
4 Technical Specifications
Sensor 3 megapixel CMOS
Image Resolution 2592 x 1944, 2048 x 1536, 1600 x 1200, 1280
x 960, 640 x 480
Storage Media External SD card (8MB to 2GB)
File format JPEG, WAV, MJPEG (AVI)
Video Quality VGA 640x480 ,QVGA 320X240
Shutter Speed Electronic shutter: 1/2 ~ 1/1024 Sek.
Selftimer 10 sec / 20 sec
Zoom 4 x digital zoom
White Balance Auto / Day Light / Tungsten / Fluorescent /
Cloud
y
Exposure Control -2.0 ~ +2.0
Illumination Auto
PC Camera Mode 640 x 480
USB Port USB1.1
TV Output NTSC / PAL
TFT LCD 1.5” TFT LCD
Power Source 3 AAA alkaline batteries
OSD Language English / French / German / Spanish / Italian /
Portuguese / Dutch
Focal Length f=6.4mm
Aperture F=2.8
S
y
stem Re
q
uirements Windows 2000 / XP / Vista
Weight 0.14 kg (without batteries and SD card)
Dimensions 102 mm x 30 mm x 54 mm
Note: Product design and specifications are subject to change
without prior notice.

ODYS - MDV 30
15
EN
5 Warranty condition
The following conditions comprise the requirements and scope
of our warranty conditions and do not affect our legal and
contractual warranty obligations.
We offer a warranty on our products in accordance
with the following conditions:
1. Odys products are covered by a 24 month warranty. We will
resolve damages or defects on Odys products free of charge
within 12 months of the purchase date under the following
warranty conditions. For any damage or defect determined later
than 12 months after the purchase date, proof of a manufacturing
fault must be submitted for repair under warranty.
The warranty does not cover batteries and other parts, which are
considered consumables, parts that break easily such as glass or
plastic or defects based on normal wear and tear. There is no
warranty obligation in the event of marginal differences compared
to the target appearance and workmanship provided these have
a negligible effect on the product's fitness for use, in the event of
damage caused by chemical or electrochemical effects, by water
or generally from abnormal conditions.
2. The warranty will be performed in such a way that we shall
decide whether to repair the defective parts or to replace them
with working parts free of charge. AXDIA reserves the right to
exchange the product for a replacement product of equal value if
the product that is sent in cannot be repaired within a reasonable
time or at reasonable cost. The product can also be exchanged
for a different model of the same value. Requests cannot be
made for repairs to be carried out on site. Parts that have been
replaced or exchanged become our property.
3. The warranty claim does not apply if repairs or other work is
carried out by unauthorized persons or if our products are
equipped with additional parts or accessories that are not
approved for our products.
4. Warranties that have been activated do not cause the warranty
period to be extended, nor do they trigger a new warranty period.
The warranty period for any replacement parts installed ends with
the warranty period for the entire product.
5. Any other or further claims are excluded, especially those for
replacement due to damage caused outside of the product,
provided there is no obligatory legal liability. We therefore accept
no liability for accidental, indirect or other consequential damage
of any kind, which leads to usage restrictions, data loss, loss of
earnings or interruption to business.

ODYS - MDV 30
16
EN
Asserting a warranty claim
1. To make use of the warranty service, you must contact the
AXDIA Service Center by e-mail, fax or phone (see below for
contact details). You can also use the service form on our
website or on the back of the warranty conditions.
2. AXDIA Service Center will try to diagnose and solve your
problem. If it is determined that a warranty claim exists, you will
be given an RMA number (Return Material Authorization) and
you will be asked to send the product to AXDIA.
IMPORTANT: AXDIA will only accept parcels that have
an RMA number.
Please observe the following when sending the product:
1. Send the product suitably packaged with carriage and insurance
paid. Do not enclose any accessories with the products (no
cables, CD's, memory cards, manuals, etc.), unless the AXDIA
Service Centre specifies otherwise.
2. Mark the RMA number on the outside of the package in such a
way that it is visible and clearly legible.
3. You must enclose a copy of the sales slip as proof of purchase.
4. Once AXDIA has received the product, it will meet its warranty
obligations in accordance with the warranty conditions and will
return the product to the sender with carriage and insurance paid.
Service outside of warranty
AXDIA can refuse any service claim made that is not covered by the
warranty. If AXDIA agrees to provide a service outside the warranty, the
customer will be invoiced for all repair and transport costs.
AXDIA will not accept any packages that have not first been approved
by AXDIA by means of an RMA (Return Material Authorization).
