UNPACKING
After unpacking unit, inspect carefully for any damage
that may have occurred during transit. Check for loose,
missing, or damaged parts. If any damage is observed, a
shipping damage claim must be filed with carrier. Do not
use the OEMTOOLS®Chop Saw if broken, bent, cracked or
damaged parts (including labels) are noted. Any Chop Saw
that appears damaged in any way, operates abnormally or is
missing parts should be removed from service immediately.
If you suspect that the Chop Saw was subjected to shock
load (a load that was dropped suddenly, unexpectedly, etc.)
immediately discontinue use until it has been checked by a
factory authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and
others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal
injury and/or damage to product or property. Please retain instructions for future reference.
The following safety information is provided as a guideline to help you operate your Chop Saw under the safest possible
conditions. Any tool or piece of equipment can be potentially dangerous to use when safety or safe handling instructions
are not known or not followed. The following safety instructions are to provide the user with the information necessary for
safe use and operation. Please read and retain these instructions for the continued safe use of your service system. Failure
to follow instructions listed below may result in serious injury. In addition, make certain that anyone who uses the equipment
understands and follows these safety instructions as well.
Operating Instructions and Parts Manual 24497
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
[email protected]
14"CHOP SAW
Thank you very much for choosing an OEMTOOLS®Product!
For future reference, please register your new tool at www.oem-tools.com and complete the owner’s record below:
Model: _______________ Purchase Date: ___________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this
product before you begin using it. This product is designed for certain applications only. OEMTOOLS®cannot be responsible
for issues arising from modification. We strongly recommend this product is not modified and/or used for any application other
than that for which it was designed. If you have any questions relative to a particular application, DO NOT use the product until
you have first contacted customer service to determine if it can or should be performed on the product.
WARNING: Pursuant to California Proposition 65, this product contains chemicals known to the state of California to cause
cancer and birth defects or other reproductive harm. Wash hands after handling.
Explanation of Safety Signal Words
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result
in property damage.
NOTES: Provide clarity and helpful information.
WARNING
1/17
2017 OEMTOOLS®

2
Operating Instructions and Parts Manual 24497
14"CHOP SAW
1/17
2017 OEMTOOLS®
POWER TOOL SAFETY
WARNING
Read and understand all safety warnings and instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
2. Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the
dust or fumes.
3. Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Double insulated tools are equipped with a polarized plug
(one blade is wider than the other). This plug will fit in a
polarized plug only one way.
2. If the plug does not fit fully into the outlet, reverse the plug.
If it still does not fit, contact a qualified electrician to install
a polarized outlet. Do not alter the plug in any way. Double
insulation eliminates the need for the three-prong grounded
power cord and grounded power supply system.
3. Avoid body contact with grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is
increased risk of electric shock if your body is grounded.
4. Do not expose power tools to rain or wet conditions.
Water entering the power tool will increase the risk of
electric shock.
5. Do not abuse the cord. Never use the cord to carry the
tool or pull the plug from an outlet. Keep cord away from
heat, oil, sharp edges or moving parts. Replace damaged
cords immediately. Damaged cords increase the risk of
electric shock.
6. When operating a power tool outdoors, use an outdoor
extension cord marked “W-A” or “W”. These cords are
rated for outdoor use and reduce the risk of electric
shock.
7. When not in use, disconnect from the power source and
store in a safe, dry childproof location.
8. Avoid body contact with grounded surfaces such as
pipes, radiators, ranges and refrigerators.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power tool
while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure the switch is in the
off-position before connecting to power source and/or battery
pack, picking up or carrying the tool. Carrying power
tools with your finger on the switch or energizing power
tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
6. Dress properly. Do not wear loose clothing or jewelry.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust related hazards.
POWER TOOL SAFETY
1. Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on
and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or the
battery pack from the power tool before making any
adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
4. Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or binding
of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
7. Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account
the working conditions and the work to be performed.
Use of the power tool for operations different from those
intended could result in a hazardous situation.
8. Hold the power tool by insulated gripping surfaces when
performing an operation where the cutting tool may
contact hidden wiring or its own cord. Contact with a
“live” wire will make exposed metal parts of the tool “live”
and shock the operator.
9. Use clamps or other practical ways to secure and support
the workpiece to a stable platform. Holding the workpiece
by hand or against your body leaves it unstable and may
lead to loss of control.
SERVICE
Have your power tool serviced by a qualified repair person
using only identical replacement parts. This will ensure that
the safety of the power tool is maintained.

3
Operating Instructions and Parts Manual 24497
14"CHOP SAW
1/17
2017 OEMTOOLS®
SPECIFIC SAFETY RULES
WARNING
1. Know your chop saw. Carefully read and understand
this Instruction Manual. Learn the tool’s applications
and limitations, as well as the specific potential hazards
related to this tool. Following this rule will reduce the risk
of electric shock, fire, or serious injury.
2. Always wear eye protection. Any power tool
can throw foreign objects into your eyes and cause
permanent eye damage. ALWAYS wear safety goggles
(not glasses) that comply with ANSI safety standard
Z87.1. Everyday glasses have only impact resistant
lenses. They ARE NOT safety glasses.
3. Glasses or goggles not in compliance with ANSI Z87.1
could cause serious injury when they break.
4. Always wear hearing protection and a dust mask. Use
only in a well-ventilated area. Using personal safety
devices and working in a safe environment reduces the
risk of injury.
WARNING
Always unplug the tool from the power source before
changing the cutting disc or when cleaning the tool.
WARNING
Never place your hands or fingers near the cutting disc while
the tool is running. Severe injury will result.
WARNING
Never install a saw blade on this tool. It is designed ONLY for
use with abrasive cut off discs.
5. Use this chop saw for cutting steel only. Cutting ceramic
materials will create excessive dust and cause damage to
the motor.
6. Always use a dust mask along with safety goggles when
operating the chop saw.
7. Always use hearing protection when operating of the
chop saw.
8. Do not wear gloves, neckties or loose clothing.
9. Do not cut material too small to be securely held in the vise.
10.Always keep your hands out of the path of the cut off
disc. Avoid awkward hand positions where a sudden slip
could cause your hand to move into the path of the cut
off disc.
11.Secure the workpiece. Use the clamping system provided
with the chop saw. It is safer than using your hand.
12.Make sure there are no foreign objects in the part of the
workpiece to be cut.
13.The cut off disc must be securely attached as described
in this Owner’s Manual before connecting the tool to the
power source. Failure to do so will increase the risk of
serious injury if the cut off disc shatters or comes loose.
14.Make sure the guard is installed and in proper working
order before operating the chop saw.
15.Cut off discs must be stored in a dry location to prevent
deterioration.
16.Before attaching the cut off disc, inspect it for visible
defects. If cracked, chipped or warped, do not install it.
17.Do not over tighten the clamp nut on the cut off disc.
Excessive tightening may cause the disc to crack and
possibly shatter during operation.
18.Never turn the chop saw ON with the cut off disc
touching the work surface.
19.Use only cut off discs in compliance with ANSI Standard
B7.1 and rated for a speed greater than 3500 RPM.
20.Do not use the chop saw if the disc flanges or cap screws
are missing or improperly installed.
21.Dust and abrasive materials should not be allowed to
build up in the workshop. Hot metal sparks could start a
fire.
22.Do not remove the soft paper in the centre of the cut off
disc.
23.Do not alter or enlarge the center hole of the cut off disc
as this could result in the disc shattering.
WARNING
Use only cut off discs that are recommended for this chop
saw. Follow the instructions that accompany the cut off
discs. The use of improper cut off discs may result in injury
to the operator or damage to the chop saw.
WARNING
To avoid fire or toxic reaction, never use gasoline, naphtha,
acetone, lacquer thinner or similar highly volatile solvents to
clean the tool.
ELECTRICAL WARNING
POWER SOURCE CONNECTION POWER
REQUIREMENTS
This product is designed to operate on a properly grounded
120 volt, 60Hz, single-phase alternating current (AC) power
source fused with a time delayed fuse or circuit breaker. It is
recommended that a qualified electrician verify the ACTUAL
VOLTAGE at the receptacle into which the product will be
plugged and confirm that the receptacle is properly fused
and grounded.
DO NOT OPERATE THIS PRODUCT if the ACTUAL power
source voltage is less than 105 Volts AC or greater than
132 Volts AC. Contact a qualified electrician if this problem
exists. Improper performance and/or damage to the product
will result if operated on inadequate or excessive power.
DO NOT abuse cord. Never use the cord to carry tools or
pull the plug from an outlet. Keep cord away from heat, sharp
edges or moving parts. Replace damaged cords immediately.
Damaged cords increase the risk of electric shock.
EXTENSION CORD SAFETY
WARNING
Keep the extension cord clear of the working area.
Position the cord so it will not get caught on the
workpiece, tools or any other obstructions while you are
working with the power tool.
1. Make sure any extension cord used with this tool is in
good condition. When using an extension cord, be sure
to use one of heavy enough gauge to carry the current
the tool will draw. An undersized cord will cause a drop in
line voltage resulting in loss of power and overheating.

4
Operating Instructions and Parts Manual 24497
14"CHOP SAW
1/17
2017 OEMTOOLS®
2. The table below shows the correct size to use according
to cord length and nameplate ampere rating. If in doubt,
use the next heavier gauge. The smaller the gauge
number the heavier the cord.
3. Be sure your extension cord is properly wired and in
good condition. Always replace a damaged extension
cord or have it repaired by a qualified electrician before
using it. Protect your extension cord from sharp objects,
excessive heat and damp or wet areas.
4. Use a separate electrical circuit for your power tools. This
circuit must not be less than 14 gauge wire and should be
protected with either a 15 A time delayed fuse or circuit
breaker. Before connecting the power tool to the power
source, make sure the switch is in the OFF position
and the power source is the same as indicated on the
nameplate. Running at lower voltage will damage the
motor.
MINIMUM GAUGE (AWG) EXTENSION
CORDS (120 V use only)
Amperage
rating
Total length
More
than
Not
more
than
25'
(7.5 m)
50'
(15 m)
100'
(30 m)
150'
(45 m)
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Applicable
IMPORTANT SAFETY INSTRUCTIONS
The warnings, precautions, and instructions discussed in this
manual cannot cover all possible conditions and situations
that may occur. The operator must understand that common
sense and caution are factors which cannot be built into this
product, but must be supplied by the operator.
WARNING
Use only attachments recommended or sold by
manufacturer. Verify the following every time the chop saw
is used. Failure to adhere to these safety rules can greatly
increase the chances of serious injury.
1. Do not disassemble the saw. Take it to a qualified
professional when service or repair is required. Incorrect
reassembly may result in electric shock or fire.
2. Wear approved safety eye/face shield, ear defenders and
hand protection.
3. The power cord is not damaged.
4. The cut off disc is correct for the type of material being cut.
5. The cut off disc is in good condition and securely
tightened onto the arbor.
6. The guard is in good working order.
7. No flammable liquids are in the vicinity.
DISPOSAL
At the end of the useful life of the OEMTOOLS®14" Chop
Saw, dispose of the components according to all state,
federal and local regulations.
PURPOSE
The OEMTOOLS®14" Chop Saw is designed to slice through
metal and other tough materials. It will cut pipe, fence posts,
tubing and other dense materials. The included vise holds
the workpiece safely and securely.
PRODUCT SPECIFICATIONS
Power: 15 Amp
No-Load Speed: 3,700 RPM
Disc Diameter: 14"
Clamping Vise: Yes
Arbor: 1"
Max. Cutting Depth: 4.72" Round Pipe
Max. Cutting Depth: 4.33" Square
Power Cord Length: 6 Ft.
Weight: 33 Lbs.
INSTRUCTIONS
Always wear safety goggles and gloves.
ASSEMBLY AND OPERATION
WARNING
Always disconnect your chop saw from the power source
when replacing the cut off disc, clamping material in the
vise, adjusting the guard, cleaning or when not in use.
Disconnecting the chop saw will prevent accidental starting
that could cause serious personal injury.
SELECT THE WORK SURFACE
It is important to place the chop saw on a solid flat work
surface that will not shift during operation of the chop saw.
Locating the chop saw near an electrical outlet will eliminate
the need for an extension cord.
WARNING
Never place the chop saw near any flammable liquids
or items that can be damaged by the sparks thrown by
the chop saw during cutting. The hot sparks can ignite
flammable liquids.
NOTE: Hot metal sparks and sharp metal pieces will damage
the work surface to some degree. Make sure you consider
this fact when selecting the work surface. A nonflammable
surface such as a metal bench will be less likely to be
damaged during the cutting operation.

5
Operating Instructions and Parts Manual 24497
14"CHOP SAW
1/17
2017 OEMTOOLS®
SETTING THE DEPTH STOP
NOTE: The maximum cut depth is controlled by adjusting
the depth stop.
1. Lift the swing arm upward as far as it will go. (Figure 1)
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig . 4
Fi
g
. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11 Fig. 12
Figure 1
2. Loosen the depth stop lock nut by turning it
counterclockwise.
3. Turn the depth stop screw to raise or lower it. Adjust until
the cut off blade enters the base slot no more than 3/16"
(5 mm) when the swing arm is fully lowered and contacts
the top of the depth stop screw.
4. When the depth stop screw is correctly set, lock it in
place by tightening the lock nut clockwise.
CHECKING THE AUTOMATIC GUARD
The automatic guard must be checked to ensure it is working
properly.
WARNING
Always disconnect your chop saw from the power source
before checking the automatic guard.
1. Lift the guard upward approximately 3" and then release
it. (Figure 2) If the guard is functioning correctly, it will
freely drop down to its original position.
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig . 4
Fi
g
. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11 Fig. 12
Figure 2
2. Lower the swing arm and cutting disc assembly until
the lower edge of the guard touches the chop saw
base. Continue to lower the swing arm and cutting disc
assembly. The automatic guard should freely rise as the
cutting disc is lowered.
NOTE: The guard should always rise and fall freely when the
swing arm is lowered and raised as outlined in #1 and #2
above. If not, clean any cuttings out from around the guard
mechanism. (Figure 3)
Figure 3
CHECKING THE ARBOR CAP SCREW
It is important to check the arbor cap screw to make sure the
cut off disc is fully tightened.
WARNING
Disconnect your chop saw from the power source before
checking the arbor cap screw.
1. Lift swing arm fully upward as far as it will go.
2. Lift the disc guard fully upward until it will stay in the
upright position. (Figure 4)
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig . 4
Fi
g
. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11 Fig. 12
Figure 4
3. Press and hold the arbor lock to the right while rotating
the cut off disc by hand.
4. When the arbor lock engages the arbor, tighten the arbor
cap screw by turning it clockwise using the 8 mm hex key
supplied.
NOTE: Only use the hex key supplied to tighten the arbor
cap screw. Do not over tighten the arbor cap screw as you
could crack the hub of the cutting disc.
5. When the arbor cap screw is fully tightened, remove the
hex key, release the arbor lock and lower the disc guard.

6
Operating Instructions and Parts Manual 24497
14"CHOP SAW
1/17
2017 OEMTOOLS®
SETTING THE MITRE VISE ANGLE
The mitre vise can be set for cutting at angles from 90° to
45° either left or right.
1. Open the vise by turning the vise adjustment crank 5 or 6
turns counterclockwise. (Figure 5)
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig . 4
Fi
g
. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11 Fig. 12
Figure 5
2. Loosen the mitre gauge cap screws by turning them
counterclockwise using the 8 mm hex key supplied.
(Figure 6)
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig . 4
Fi
g
. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11 Fig. 12
Figure 6
3. Rotate the mitre gauge to the left or right until the desired
cutting angle lines up with the alignment mark.
4. Tighten both the mitre gauge cap screws to lock the mitre
gauge in place.
NOTE: Always make a test cut on a scrap workpiece to
verify the mitre angle setting.
CUTTING UP TO 5" WIDE WORKPIECES
The vise is set up at the factory for cutting workpieces up to
5" in width. This is the preferred set-up. If it is necessary to
cut workpieces between 5" and 7" in width, the mitre gauge
will have to be relocated on the chop saw base.
1. Remove the front and rear mitre gauge cap screws using
the 8 mm hex key supplied. (Figure 7)
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig . 4
Fi
g
. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11 Fig. 12
Figure 7
2. Move the mitre gauge back approximately 1-1/2" until the
hole and slot in the mitre gauge line up with the next two
holes in the chop saw base.
3. Reinstall and tighten the mitre gauge cap screws in the
two new holes.
NOTE: To cut workpieces between 7" and 9" in width, locate
the mitre gauge in the back two holes in the chop saw base.
OPERATING THE VISE QUICK RELEASE
The vise has a quick release feature that allows for making
major adjustments much quicker.
1. To operate the quick release system, turn the vise crank
counterclockwise 2 or 3 turns to loosen the vise jaws.
(Figure 8)
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig . 4
Fi
g
. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11 Fig. 12
Figure 8
2. Lift upward on the front of the quick release nut to release
the vise screw.
3. While holding the quick release nut upward in the
released position, pull the vise crank toward you to
quickly open the vise.
4. To quickly close the vise, release the quick release nut
and push the crank away from you.
5. Use the crank to completely tighten the vise on the
workpiece.
WARNING
Always make sure the workpiece is flat against the chop saw
base and securely held in the vise before turning the saw ON.
ON/OFF SWITCH
1. To turn the switch ON, squeeze the trigger switch until the
chop saw starts. During operation, you should continuing
to squeeze the trigger switch. (Figure 9)
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig . 4
Fi
g
. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11 Fig. 12
Figure 9

7
Operating Instructions and Parts Manual 24497
14"CHOP SAW
1/17
2017 OEMTOOLS®
2. To turn the tool OFF, release the trigger switch.
WARNING
Always make sure the cut off disc is NOT touching the
workpiece when the switch is being turned ON. Let the
motor come to full speed before beginning to cut.

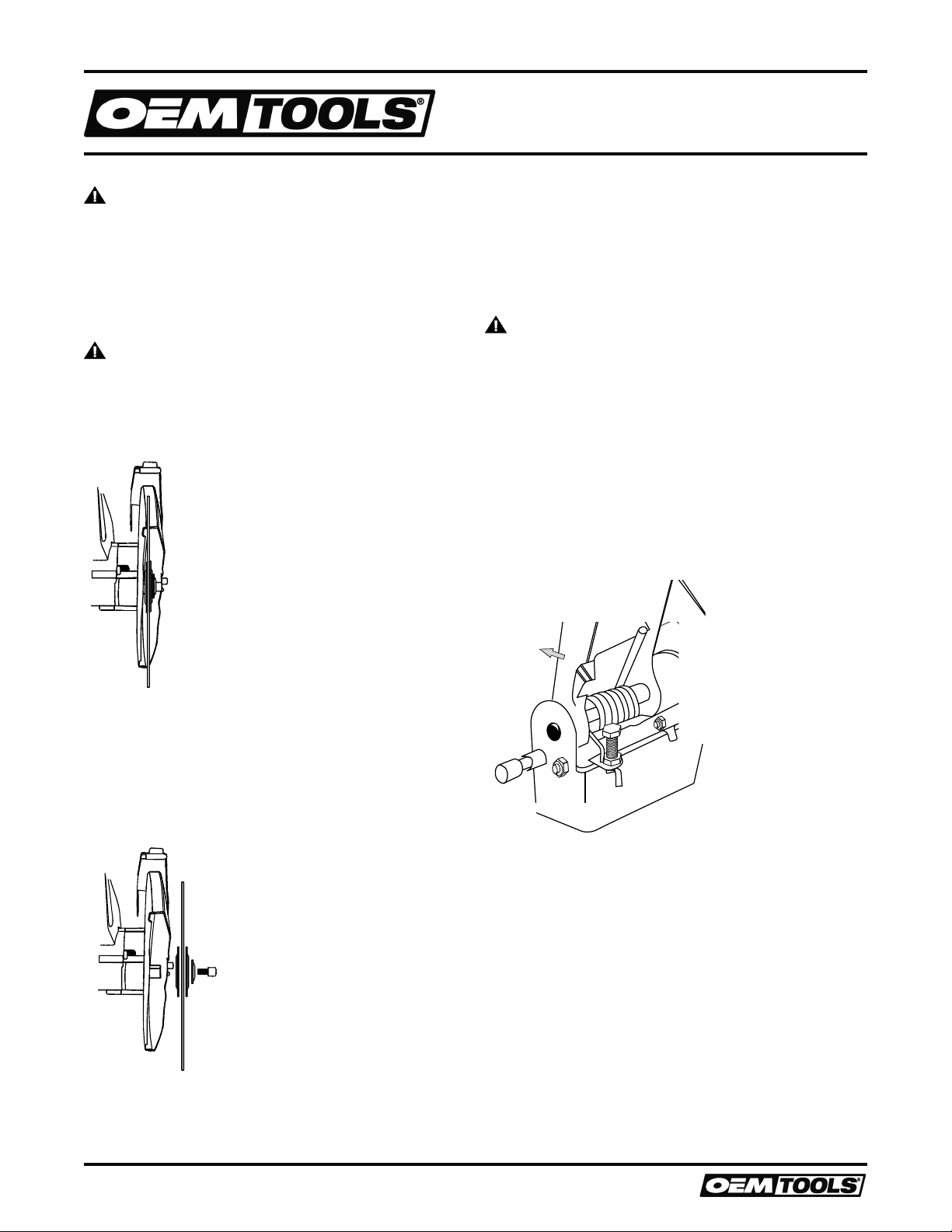

REPLACING THE CUT OFF DISC
The cut off disc must be replaced when it has become
damaged in any way or it has worn down to a diameter of
less the 10".
WARNING
Disconnect your chop saw from the power source before
attempting to change the cut off disc.
1. Lift the swing arm fully upward.
2. Lift the guard fully upward until it exposes the arbor cap
screw. (Figure 10)
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig . 4
Fi
g
. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11 Fig. 12
Figure 10
3. Press and hold the arbor lock to the right while rotating
the cut off disc by hand.
4. When the arbor lock engages the arbor, loosen the arbor
cap screw by turning it counter clockwise using the 8 mm
hex key supplied.
5. Remove the arbor cap screw, the small outer washer, the
large outer washer, the cut off disc and large inner washer
from the arbor. (Figure 11)
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig . 4
Fi
g
. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11 Fig. 12
Figure 11
6. Use a clean dry brush or cloth to carefully remove all
cuttings from the arbor and the motor housing.
7. Reinstall the washers, new cut off disc and arbor cap
screw in the same order in which they were removed.
NOTE: Make sure the large outer surfaces of the large and
small washers are facing the cut off disk. Make sure the
flats of the washer holes slide over the matching flats of
the arbor.
8. Engage the arbor lock and tighten the arbor cap screw
using the 8 mm hex key supplied.
9. Carefully rotate the cut off disk by hand to make sure it is
firmly tightened, that it is not damaged and that it does
not wobble.
WARNING
Reset the depth stop as shown in Fig. 1. The new blade will
be larger and will damage the work surface if the depth stop
is not re-adjusted.
10.With depth stop properly set and the guard in the down
position, turn the switch ON.
NOTE: If the cut off disc wobbles or vibrates, turn the switch
OFF immediately. Re-check to make sure the cut off disc is
installed correctly and that the disc is not damaged.
LOCKING THE SWING ARM FOR CARRYING
To safely carry the chop saw, it is important to lock the swing
arm and carry the tool with the appropriate carrying handle.
1. Lower the swing arm as far as it will go. (Figure 12)
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig . 4
Fi
g
. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11 Fig. 12
Figure 12
2. Push inward on the swing arm locking pin until it engages
the hole in the swing arm.
3. Release the swing arm. It will be locked in the DOWN
position if the swing arm locking pin is properly engaged.
4. Lift the chop saw using the rear handle.
CUTTING METAL
1. Lift the swing arm fully upward as far as it will go.
2. Adjust the mitre gauge as required.
3. Firmly lock the metal workpiece to be cut in the vise.
4. Make sure you are wearing your safety goggles, dust
mask and hearing protection.
5. Lower the cut off disc until it is about 1" above the
workpiece.
NOTE: The cut off disc MUST NOT be touching the
workpiece when the motor switch is turned ON.
6. While holding the chop saw handle firmly in your right

8
Operating Instructions and Parts Manual 24497
14"CHOP SAW
1/17
2017 OEMTOOLS®
hand, turn the motor switch ON.
7. Wait for motor to come up to its full speed. Carefully
lower the cut off disc until it contacts the workpiece.
NOTE: Many sparks will be generated as soon as the cut off
disc touches the workpiece.
8. Apply only slight pressure to the chop saw handle as it
begins to cut through the workpiece. Do not apply too
much pressure to the handle as this will cause the motor
to slow down. Doing so will slow the cutting action and
damage the motor.
9. When the cut off disc has completely cut through the
workpiece, release the trigger switch immediately. Wait
for the motor to come to a complete stop before lifting
the cut off disc away from the workpiece.
WARNING
Never touch the workpiece immediately after a cut is
completed. The metal in the cutting area will be red hot and
will cause severe burns to your skin.
MAINTENANCE
WARNING
When servicing, use only identical replacement parts. The
use of any other part may create a hazard or cause product
damage.
DO NOT use solvents when cleaning plastic parts. Plastics
are susceptible to damage from various types of commercial
solvents and may be damaged by their use. Use a clean
cloth to remove dirt, dust, oil, grease etc.
WARNING
Do not allow brake fluids, gasoline, petroleum-based
products, penetrating oils, etc. to come into contact with
plastic parts. They contain chemicals that can damage,
weaken or destroy plastic.
Keep the air vents cleared of any built up dust to prevent
the motor from overheating. Remove accumulated dust and
debris regularly using a soft DRY brush.
WARNING
Use safety goggles when using an air jet to blow dust out of
the chop saw.
DO NOT abuse power tools. Abusive practices can damage
the tool and the workpiece.
WARNING
Do not attempt to modify tools or create accessories. Any
such alteration or modification is misuse and could result in a
hazardous condition leading to possible serious injury. It will
also void the warranty.
NOTE: It has been found that electric tools are subjected to
accelerated wear and possible premature failure when they
are used on fiberglass boats and sports cars, wallboard,
spackling compounds or plaster. The chips and grindings
from these materials are highly abrasive to electric tool parts
such as bearings, brushes, commutators, etc. Consequently,
it is not recommended that this tool be used for extended
work on any fiberglass material, wallboard, spackling
compounds or plaster. During any use on these materials it
is extremely important that the tool is cleaned frequently by
blowing it out with an air jet.
LUBRICATION
All of the bearings in this tool are lubricated with a sufficient
amount of high-grade lubricant for the life of the unit under
normal conditions. Therefore, no further lubrication is
required.

9
Operating Instructions and Parts Manual 24497
14"CHOP SAW
1/17
2017 OEMTOOLS®
Figure Description Qty.
A Hex Bolt 1
B Small Clamp 1
C Clamp 2
D Cutting Wheel 1
E Wrench 1
F Rubber Foot 4
G Base 1
H Hex Nut 4
I Vise Stand 1
J Washer 5
K Standard Spring Washer 3
L Hex Bolt 2
M Screw Assembly 1
N Hatch Pin 2
O Small Clamping Plate 1
P Vise Column Pin 1
Q Brush Cap Holder 2
R Carbon Brush 2
S Brush Holder 2
T Rear Cover 1
U Cross Screw 2
V Cross Screw 2
W Cross Screw 1
X Standard Spring Washer 1
Y Housing 1
Z Stator 1
AA Bearing 1
BB Rotor 1
CC Standard Spring Washer 6
DD Cross Screw 2
EE Switch 1
FF Trigger 1
GG Cross Screw 2
HH Handle 1
II Cross Screw 2
JJ Cross Screw 1
KK Cross Screw 2
LL Left Handle 1
MM Cross Screw 2
NN Cord 1
OO Cord Armor 1
PP Cable Wire 1
QQ Right Handle 1
RR Hex Nut 3
SS Handle 1
Figure Description Qty.
TT Cross Screw 6
UU Anti-Wind Ring 1
VV Bearing 1
WW Gear Box 1
XX Protective Cover 1
YY Cross Screw 4
ZZ Active Cover 1
AAA Screw 2
BBB Spindle 1
CCC Semi-Circle Key 1
DDD Bearing 1
EEE Spring Lock Pin 1
FFF Lock Pin 1
GGG Bearing Holder 1
HHH Gear 1
III Spring Washer 1
JJJ Bearing 1
KKK Circumgyrate Pin 1
LLL Cross Screw 1
MMM Washer 1
NNN Standard Spring Washer 1
OOO Dust Board 1
PPP Big Spring 1
QQQ Hex Nut 1
RRR Hex Bolt 1
SSS Pipe 1
TTT Height Limited Pin 1
UUU O-Ring 1
VVV Limited Pin Cap 1
WWW Hex Nut 1
XXX Hex Screw 1
YYY Hex Bolt 2
ZZZ Standard Spring Washer 2
AAAA Washer 2
BBBB Scale Plate 1
CCCC Column Spring Pin 1
DDDD Speed Nut 1
EEEE Fastener 3
FFFF Hex Nut 2
GGGG Cross Screw 3
HHHH Cover Protector 1
IIII Cross Screw 2
JJJJ Column Cover Pin 1
KKKK Washer 2
LLLL Cross Screw 2
Parts List
This symbol designates that this tool is
listed with U.S. requirements by ETL Testing
Laboratories, Inc. Conforms to UL STD No.987
Certified to CAN/CSA STD C22.2 No. 71.2.
Intertek
3151837
HZ932C
C US

10
Operating Instructions and Parts Manual 24497
14"CHOP SAW
1/17
2017 OEMTOOLS®
A
B
C
D
E
F
G
H
I
J
K
L
CCCC
DDDD
J
K
L
M
N
O
P
T
Q
R
S
A
U
V
YYY
ZZZ
AAAA
UUU TTT
SSS RRR
H
QQQ DD
LLLL
PPP
OOO
NNN
MMM
LLL KKK JJJ III HHH
GGG
FFF
EEE
DDD
CCC BBB
XX
CC
YY
FFFFF
EEEE
ZZ
AAA
GGGG
HHHH
IIII
II
II
SS
WW
VV
UU
TT
JJJJ
KKKK
CC
DD
CC
BB
AA
Z
Y
S
R
Q
VWX
EE
FF
GG
GG
RR
HH II
II
JJ KK LL
KK
MM
MM NN OO PP
QQ
QQ
XXX
K
WWW
VVV J
BBBB
N
C
Parts Diagram
NOTE:
Not all components of the Chop Saw are replacement items, but are
illustrated as a convenient reference for location and position in the
assembly sequence.

11
Operating Instructions and Parts Manual 24497
14"CHOP SAW
1/17
2017 OEMTOOLS®

12
Operating Instructions and Parts Manual 24497
14"CHOP SAW
1/17
2017 OEMTOOLS®
OEMTOOLS®ONE YEAR WARRANTY
If for up to one year from the date of purchase of this OEMTOOLS®product you find any defect in material
or workmanship, through normal usage, return it to the place of purchase, or to OEMTOOLS®for repair
or replacement at our discretion. In order to obtain this service, send your tool and proof of purchase,
transportation pre-paid, to OEMTOOLS®Q.A. Dept., 3580 E. Raines Road #3, Memphis, TN 38118. We will not
be responsible for lost or damaged goods during transportation; please insure your package. If our inspection
verifies the defect, we will either repair or replace the product at our election, or we may elect to refund the
purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products
at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the
scope of our warranty, then you must bear the cost of returning the product.
OEMTOOLS®does not provide warranty for products labeled other than OEM®or OEMTOOLS®. OEMTOOLS®
will not provide any warranty for products subjected to abnormal use. Abnormal use includes, but is not limited
to, abuse, accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not
cover bits, blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or
replace blades, bits, files, and batteries as necessary. OEMTOOLS®reserves the right to makes any changes in
construction or design at any time without any obligation in incorporating such changes to tools or equipment
previously sold.
OEMTOOLS®makes every effort to ensure that its products meet high quality and durability standards, and
warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of one year from the date of purchase. This warranty does not apply to damage due directly or indirectly
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS
WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may
also have other rights, which vary from state to state.
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118
Tel: [phone]
www.oem-tools.com
Don’t forget to register your new OEMTOOLS
®
product at www.oem-tools.com.
