OEM BT45-INFI User manual

Table of Contents
BT45-INFI Package Content...................................................2
Introduction ............................................................................2
Notice.......................................................................................2
Installation/operation precautions:.......................................2
Compatibility Information
Vehicle Compatibility & SAT Tuner/Prewire Location ....3
Bluetooth Device Compatibility .......................................4
Radio & Device Compatibility for Music Info Display ....4
Installation
DIP Switch Setting..................................................................5
Installation Steps & Diagrams...............................................6
Bluetooth Setup
Bluetooth Device Pairing Instructions ............................9
Media Audio Streaming...................................................10
Music Playback Control..................................................10
Hands Free Phone Calls ......................................................11
AUX Input ..............................................................................13
USB Charging Port ..............................................................13
Troubleshooting ...................................................................14
Q&A........................................................................................15

2
BT45-INFI Package Content
• 1 Owner’s Manual • BT-INFI Cable
• 1 BT45 Interface Module • 1 Microphone
Introduction
The BT45 seamlessly integrates your vehicle’s OEM sound system with
Bluetooth (HFP) devices so you can make hands free phone calls and
stream your music. You can wirelessly connect your A2DP Bluetooth
prole equipped smartphone or tablet to playback stored music or stream
from your favorite music apps such as Pandora or iHeart Radio. The
BT45 also includes a 3.5mm auxiliary audio input so you can play back
music stored in your non-Bluetooth devices.
The BT45’s plug & play technology takes advantage of the OEM radio’s
ability to accept an external CD changer or Satellite Radio by converting
it into Bluetooth phone/audio streaming/AUX input source. This design
innovation allows you to maintain functionality of any of the following
existing factory installed options: Bluetooth HandsFreeLink, LiveTrafc,
Navigation, CD changer, Satellite radio, RSE (rear seat entertainment
system), and AUX/USB input.
Notice
USA SPEC solely distributes its products through authorized dealers in
order to ensure its customers receive proper services and information
from the dealers. USA SPEC reserves the right to only offer technical
support or warranty services for products purchased through authorized
USA SPEC dealers. Please refer to our website www.usaspec.com for a
list of authorized dealers.
Installation/operation precautions:
· DO read the entire manual before starting the installation. We recom-
mend that the BT45 be installed by a qualied professional since all
i n s t a l l a t i o n s w i l l r e q u i r e t h e r e m o v a l o f s o m e p a r t s o f t h e v e h i c l e s u c h
as dashboard, backseat, etc.
· DO install the interface securely using Velcro or wire ties (not included)
and keep away from any moving parts such as the gas pedal.
· DO NOT open, disassemble, or modify the BT45 in any way. Such
attempts will void the warranty on the product.
· DO NOT expose the interface to extreme temperature, humidity, or
direct sunlight.
· DO NOT operate the Bluetooth device while driving. Always give full
attention to the road while driving.

3
Compatibility Information
Vehicle Compatibility
Chart 1: Vehicle Compatibility & SAT Tuner/
Prewire Location
Nissan
Model Year SAT Tuner / Prewire Location
Altima 07-12 Nav radio with 6-disc MP3 changer
mounted below.
* Not compatible with radios with “iPod/MENU” buttons
Inniti
Model Year SAT Tuner/ Prewire
Location
G35 Sedan (All Radios) 03½-06 Under the rear deck in the
trunk
G35 Couop (All Radios) 03-07 Under left rear oor
G35/37 Sedan (Non Nav) 07-09 Under the rear deck in the
trunk
G37 Coup (Non Nav) 08-09 Under left rear oor
EX35 (Non-Nav) 08-09 Under right rear oor
FX35/45 (All Radios) 03-08 Use BT45-NIS
FX35/50 (Non Nav) 09 Under right rear oor
M35 (All Radios) 03-04 Under the rear deck in the
trunk
M35/45 (All Radios) 06-07 Under the rear deck in the
trunk
M35/45 (Non Nav) 08-09 Under the rear deck in the
trunk
QX56 (All Radios) 04-07 Above the gas paddle
QX56 (Non Nav) 08-09 Above the gas paddle
* Not compatible with radios with “iPod/MENU” buttons

4
Bluetooth Device Compatibility
BT45 is compatible with most Bluetooth-enabled devices including
iPhone, iPad, iPod Touch, Android smartphones & tablets,
Blackberry, and Nokia Windows smartphones. Device must have
Bluetooth prole A2DP (Advanced Audio Distribution Prole) and
AVRCP (Audio/Video Remote Control Prole) 1.4 or higher for
audio streaming and text display.
Note: Due to the difference in Bluetooth technology, some
Bluetooth enabled devices may be incompatible or may not
support all the features when used with a BT45.
Radio & Device Compatibility for Music Info
Display
The Display of artist, album, and song title information on the radio
is determined by the following 3 factors
1. Your radio has a “SAT” or “RADIO & “CAT” buttons
• Satellite radio does not need to be activated nor does the
tuner need to be present.
2. Your device’s operating system.
Music info display on your radio is available for:
· iPod, iPhone, and iPad with iOS 6.0 or higher
· Android devices with 4.0 (Ice Cream Sandwich) or higher
3. Your device’s Bluetooth AVRCP prole must be 1.4 or higher.
Refer to your device’s product manual to conrm its prole
version.

5
Installation
DIP Switch Setting
ID Your Radio
Set DIP Switches
1=ON
2=OFF
3=ON
4=OFF
It has a “SAT” or “XM” button
or
“RADIO” & “CAT” button
See p.6 for
installation
instructions

6
Installation Steps & Diagrams
Install the microphone
See Diagram B on p.8 for
recommended locations
Pair your Bluetooth
device (phone)
See p. 9 for instructions
Learn about audio
streaming, hands-free
phone calls, and AUX input
on p. 10-13.
Make sure you have
completed all of the above
steps and made a couple of
test calls before putting
your car back together.
Installation Instruction
Install the BT45 interface
module in an easily
accessible location.
Locate the SAT tuner
or
the SAT prewire cable.
See p.3 for tuner or cable
location.
Connect cables.
See Diagram A on p.7

7
Diagram A: Cable Connections
TO RADIO
Unplug the factory 16-pin cable from the SAT Tuner or locate the fatctory 16-pin SAT prewire cable
Securely connect the black ground wire to a metal surface
BT-INFI
BT45 Interface Module
SAT Tuner

8

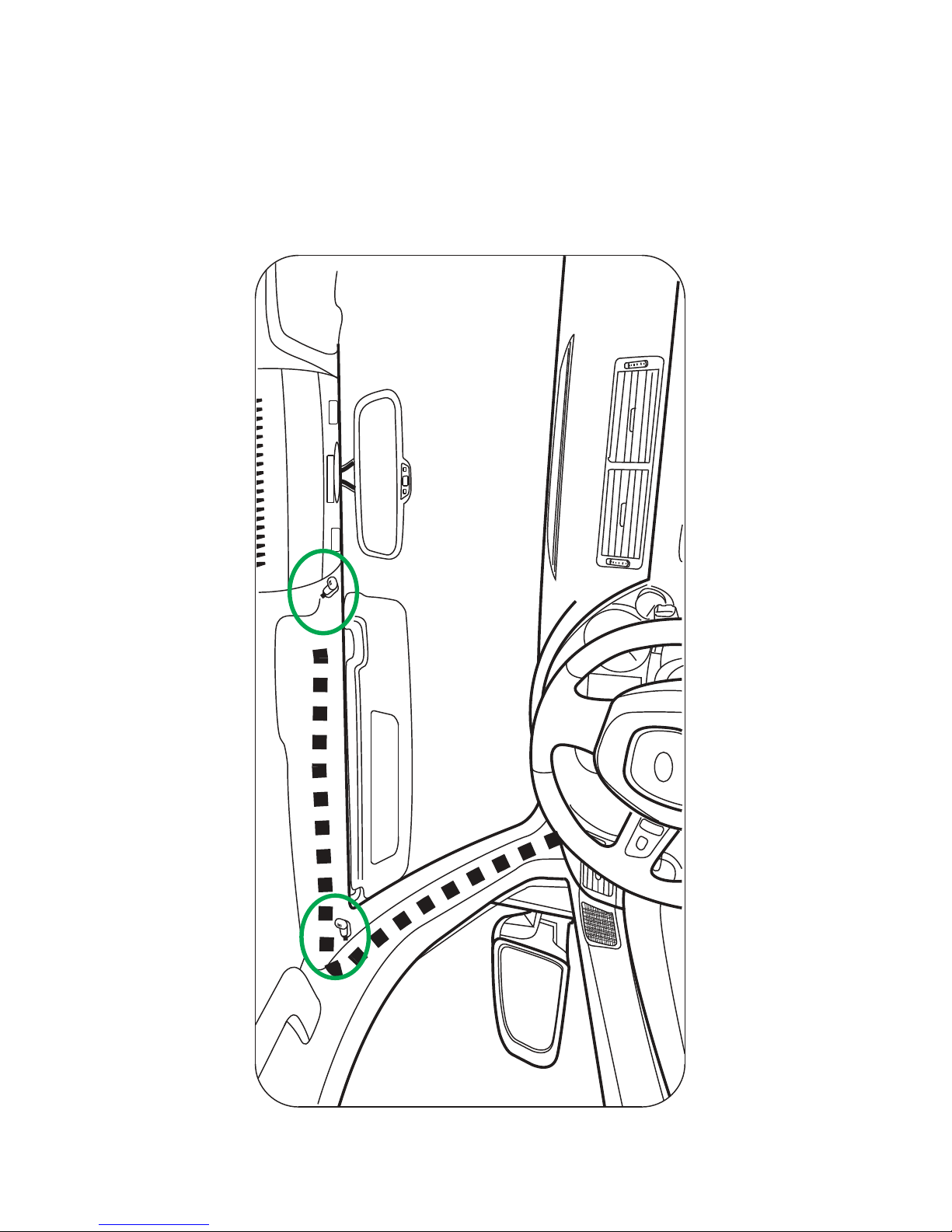

Diagram B: Recommended Microphone
Locations

9
Bluetooth Setup
Bluetooth Device Pairing Instructions
Note: Some devices may ask for a Pin # during the pairing process.
Pairing Pin # = 1234
Turn the vehicle’s ignition on
Press the “PRESET A/B/C” button
to select PRESET A
Press the SAT or RADIO button
until SAT mode is displayed
on your radio
Store PRESET 4 & 6:
press & hold one button at a time
until a beep is heard
The above steps is to set
PRESET 4 as Bluetooth and
PRESET 6 as AUX input
You may use the rest of the
PRSETS on A,B, or C to store
your favorite AM/FM stations.
Enable the Bluetooth function
on your phone
Scan/search for for
available devices
Once the pairing process is
complete you will hear the
“CONNECTED” voice prompt and
the radio will display your phone’s
name i.e. USA SPEC Test Phone.
Select BT45-NIS from the list of
available devices your phone has
detected
Allow the pairing process
to take place

10
Device requires Bluetooth A2DP profile
•If you have music stored in your device, it will begin to play
right after the “CONNECTED” voice prompt. If playback doesn’t
start automatically, press TUNE UP or TRACK/SEEK UP to initiate
playbck.
• You can also proceed to manually select play from your favorite
music apps such as Pandora, Podcast apps, & etc.
Device with AVRCP 1.4 & higher
Radio will display music information such as artist,
album, and song title.
Device with older AVRCP profile
Radio will display [NO TEXT] and the BT45 will assign
track numbers to the currently playing music.
When you pause the music, radio will display [PAUSED].
If music info consists of foreign language characters not
supported by radio,
Playback control from your radio (Track Up/Down)
Device requires Bluetooth AVRCP profile
• From radio:
Press TUNE UP/DOWN button(s)/knob.
• After you pause the music, and the radio
display says [PAUSED], you can use the
TUNE UP button/knob to re-start
playback.
• The steering wheel controls in SAT mode
is designed to perform PRESET changes
thus it can not be used to change tracks
during media streaming. (In some vehicles
you may be able to change tracks by
press & hold the steering wheel control.)
Media Audio Streaming
Music Playback Control

11
Hands Free Phone Calls
*How to Enable/Disable Voice Prompt
• Turn engine ON
• Start audio streaming
• While streaming turn Bluetooth off from your phone/device’s
setting.
• Wait 5-10 seconds, turn TUNE button/knob to the right to ENABLE
and turn to the left to DISABLE.
Incoming call
BT45 will NOT automatically
mute the audio if you are in
AM/FM or CD source.
Radio will display caller’s # and
you’ll hear “You have a call
from (caller’s #)” or “Private” if
Caller ID is not available.
If the voice prompt * function is
disabled, you will only hear the
phone ringtone.
Manually switch over to
Bluetooth/SAT mode from your
radio.
To Answer the call
From radio:
Press/turn the TUNE UP
button/knob
From steering wheel:
In some vehicles you may have
to press & hold the
SEEK/TUNE UP or CH+ button.
Once the incoming call is
answered, radio will display
[ACTIVE]
To reject or end the call
From radio:
Press/turn the TUNE DOWN
button/knob
From steering wheel:
In some vehicles you my have to
press & hold the SEEK/TUNE
DOWN or CH- button

12
* Please keep in mind that the environment inside a moving
vehicle tends to be noisier than your average environment. This
will affect how accurately your phone's voice recognition function
such as Siri picks up your voice command.
Outgoing Call
Manually switch over to
Bluetooth/SAT mode from
your radio
Dail the outgoing call from your
phone.
You can also engage your
phone’s voice dialing* function
trough BT45’s microphone.
To end the call
From radio:
Press/turn the SEEK/TUNE
DOWN button/knob
From steering wheel:
In some vehicles you my have to
press & hold the SEEK/TUNE
DOWN or CH- button

13
AUX Input
USB Charging Port
Transferring an active call from Hands-free to
Handset
From radio:
Press/turn the SEEK/TUNE UP
button/knob
From Steering wheel:
Press the SEEK/TUNE UP or CH+
button
Press the same button again to
transfer the call back to Bluetooth
Hands-Free mode
Aux 3.5 mm Audio Input
• You'll need a 3.5mm to headphone jack cable (not included in
this package)
• Go to Bluetooth/SAT mode.
• Press Preset 6 to access the audio
device connected to the AUX port.
Note: Remember to manually adjust the volume of your audio
device to MAX after it's been connected.
Maximum charging output: 2.1 amps at 5 volt
(charging cable not provided)

14
• I can not get the BT45-INFI to power up, the radio doesn’t seem to
recognize the BT45 is connected.
Make sure the BT-INFI cable’s ground wire is properly and
securely grounded.
• I’m unable to pair my smartphone/device.
If you have an Android device, make sure the “Only visible to
 paireddevices”oponisUNCHECKED.Somemesitcantake
up to 60 seconds for the BT45 to be detected by your
smartphone/device.
• My radio is not displaying any music info such as song tles.
 ConrmthatyourdeviceisequippedwithBluetoothprole
 AVRCP1.4orhigher,ithasiOS6.0orhigher,orAndroid4.0or
higher.
 Musicstreamingapps’infodisplaycapabiliesvarythussome
might not display properly on your radio.
• The BT45’s USB port will not charge my device.
 PleaseusedataSYNCandCHARGE(USB2.0capability)cables.
 NotallUSBcablesonthemarketsupportchargingfor 
 Smartphones.
• I have a device connected through BT45’s AUX input and the
volume is very low.
Turn the volume on the actual device to MAX then use the
radio’s volume control to adjust the level.
• When I answer an incoming call directly from my phone by
pressing the ANSWER key on the phone, the phone audio doesn’t
go through the car’s speakers.
1.AlliPhoneswithiOS6.0&up:ifyouansweredthecallby
using the phone’s answer key then the phone audio will not get
 transferredtothecar’saudiosystem.YouiPhonewillbein
“private / handset” mode.
 2.MostAndroidphones,youcananswerthecalldirectlyfrom
 youphoneandsllhavetheaudiogothroughthecarspeaker.
Troubleshooting

15
Q&A
• I already have a USA SPEC PA15-INFI installed in my Inni. can I
have both a BT45-INFI and a PA15-INFI connected in my vehicle?
No, unfortunately you can only have one or the other.
• Do I lose my SAT funcons since SAT is now for Bluetooth?
 No,youwillnotloseyourOEMSATfuncons.
• How do I access the SAT/Bluetooth mode?
PresstheRADIObuontochangetheaudiosourcetoSAT/ 
 Bluetoothmodeasfollowed:
 AM->FM->OEMSAT->AM->FM->SATBluetooth
• My vehicle is equipped with factory HandsFree Bluetooth, is the
BT45-INFI sll compable?
 Yes,forasmootheroperaonalexperiencewerecommendthat
you un-pair the factory Bluetooth from your smartphone/device
and use the BT45-INFI only.
 ◦Androidphones:youhavetheopontosetyourAndroid
device to use BT45 for media audio only and use the factory
 BluetoothforHandsfreephonecalls.Youmayhavetomanually
 connectyourphoneaeryoustartyourcar.
 ◦iPhoneswithiOS6&up:itwillautomaticallyconnecttoboth 
 OEMBluetoothandBT45atthesametime.Whenthereisan 
 incomingcallyoucanselectfromyouriPhonedirectlywhether 
 tousetheOEMorBT45Bluetoothtoanswerthecall.

LIMITED WARRANTY
Thank you for choosing a USA SPEC product. USA SPEC, Inc., is committed to provid-
ing high quality defect-free products. All USA SPEC products are tested before leaving
the factory and warranted against defects in materials and workmanship for a period
of one year to the original owner. The one-year warranty period begins at the date of
purchase from an authorized dealer.
PRODUCTS COVERED:
Products and related accessories supplied by USA SPEC, Inc. with the brand name
of USA SPEC are covered by this warranty. Only products purchased in the USA are
covered.
WARRANTY DOES NOT COVER:
1. Damage due to improper installation or operation, negligence, abuse, or not following
instructions, warnings or acceptable industry procedures.
2. Damage caused during the shipment or transportation of the product. All claims of
this nature must be presented to the carrier.
3. Damage caused by acts of God, war, or civil disturbance, including without limitation,
ood, re, storms, earthquake or other acts of nature.
4. Any expenses or cost to remove or reinstall products.
5. Any product without the original serial number and factory seal, or has been serviced
or modied without the authorization of USA SPEC.
6. Any product not distributed by an authorized USA SPEC dealer.
TO OBTAIN WARRANTY SERVICE:
Contact the Customer Service center for assistance at (626) 336 - 3836. A detailed
description of the problem(s) is required for service. Proof of purchase is also required
when sending a product for warranty service. If the problem cannot be resolved and
the product must be returned for service, you will receive an authorization form from
the service center. The product must be delivered pre-paid to the service center. USA
SPEC will, at our option, repair the product or replace it with a new or reconditioned
product, and if it was shipped to the service center, the return shipping will be pre-paid
free of charge provided the repairs are covered by the warranty. The product must be
packed securely for shipment to the service center in order to preserve the warranty and
prevent damage.
NO IMPLIED WARRANTY, INCLUDING MERCHANTABILITY AND FITNESS FOR
USE APPLIES TO THIS PRODUCT AFTER THE ONE YEAR PERIOD AS DEFINED
ABOVE, AND NO OTHER EXPRESSED WARRANTY OR GUARANTEE, EXCEPT AS
MENTIONED ABOVE, GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BIND THE WARRANTOR. NEITHER THE
WARRANTOR NOR ANY OTHER PERSON, FIRM, OR CORPORATION IS RESPON-
SIBLE FOR LOSSES OR INCONVENIENCES, OR FOR ANY CONSEQUENTIAL DAM-
AGES CAUSED BY THE PRODUCT. SOME STATES/PROVINCES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, AND SOME DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES.
This warranty gives you specic legal rights, and you may also have other rights, which
vary, from state to state, and province to province. Some of the limitations or exclusions
may not apply to you. THE ABOVE WARRANTY TERMS AND CONDITIONS ARE
VALID ONLY IN THE U.S.A.
