Oggi Kosa Combo Changer/Dresser User manual

COMBO CHANGER/DRESSER
Made in Vietnam
KOSA

Please read these instructions before use of this product. Failure to
follow these warnings and the assembly instructions could result in
serious injury or death. Please save manual for future use as it contains
important information.
* Read all instructions before assembling and/or using this product.
* Keep instructions for future use.
* FALL HAZARD -- To prevent death or serious injury, always keep child
within arm’s reach.
* Do not use the drawers if they are damaged or broken.
* This product contains bolts and other small parts that may present a
choking hazard for children 3 years or under. This unit must be assembled
by an adult.
* Wash with mild soap and a damp cloth. Do not use abrasives. Avoid
furniture polish that may be hazardous to a child. If refinishing, use a
non-toxic finish specified for children’s products.
* Two people will be needed to assemble this unit.
Page 2 of 19

(aa) Combiner Bolt
(18 pcs)
(gg) Barrel Nut
(2 pcs)
(hh) 30mm Flathead Wood Screw
(40 pcs)
(jj) 22mm Machined Screw
(2 pcs)
(kk) 73mm Bolt
(2 pcs)
(ll) 28mm Bolt
(12 pcs)
(bb) Combiner Nut
(18 pcs)
(cc) Magnetic Catch
(1 pcs)
(dd) Shelf Bracket
(4 pcs)
(ee) Door Hinge
(2 pcs) (1 pcs)
Page 3 of 19
(ii) Door Handle
(1 pcs)
(mm) 15mm Flathead Wood Screw
(8 pcs)
(nn) #8x15mm Panhead Screw
(8 pcs)
(oo) #6x15mm Panhead Screw
(2 pcs)
(pp) Anti-Tip Plastic Cover
(2 pcs)
(qq) Anti-Tip Plastic Strip
(1 pcs)
(rr) 38mm Flathead Wood Screw
(2 pcs)
(ss) 20mm Flathead Wood Screw
(2 pcs)
(tt) #6x12mm Panhead Screw
(4 pcs)
Phillips Head Screwdriver
(Not Included)

(A) Left Side
(1 pcs)
(G) Small Back Panel
(2 pcs)
(H) Large Back Panel
(2 pcs)
(J) Drawer Side
(8 pcs)
(K) Large Drawer Front
(3 pcs)
(L) Drawer Support
(3 pcs)
(B) Center Support
(1 pcs)
(C) Right Side
(1 pcs)
(D) Base
(1 pcs)
(E) Large Changer Top
(1 pcs) (F) Door
(1 pcs)
Page 4 of 19
(I) Shelf
(1 pcs)

Page 5 of 19
(X) Short Top Rail (Back)
(1 pcs)
(Z) Small Changer Top
(Y) Short Middle Rail (Back)
(1 pcs)
(1 pcs)
(Q) Small Drawer Bottom
(1 pcs)
(T) Long Top Rail (Back)
(1 pcs)
(U) Long Middle Rail (Back)
(1 pcs)
(R) Long Top Rail (Front)
(1 pcs)
(V) Short Top Rail (Front)
(1 pcs)
(W) Short Middle Rail (Front)
(1 pcs)
(S) Long Middle Rail (Front)
(2 pcs)
(P) Small Drawer Back
(1 pcs)
(O) Small Drawer Front
(1 pcs)
(N) Large Drawer Bottom
(3 pcs)
(M) Large Drawer Back
(3 pcs)

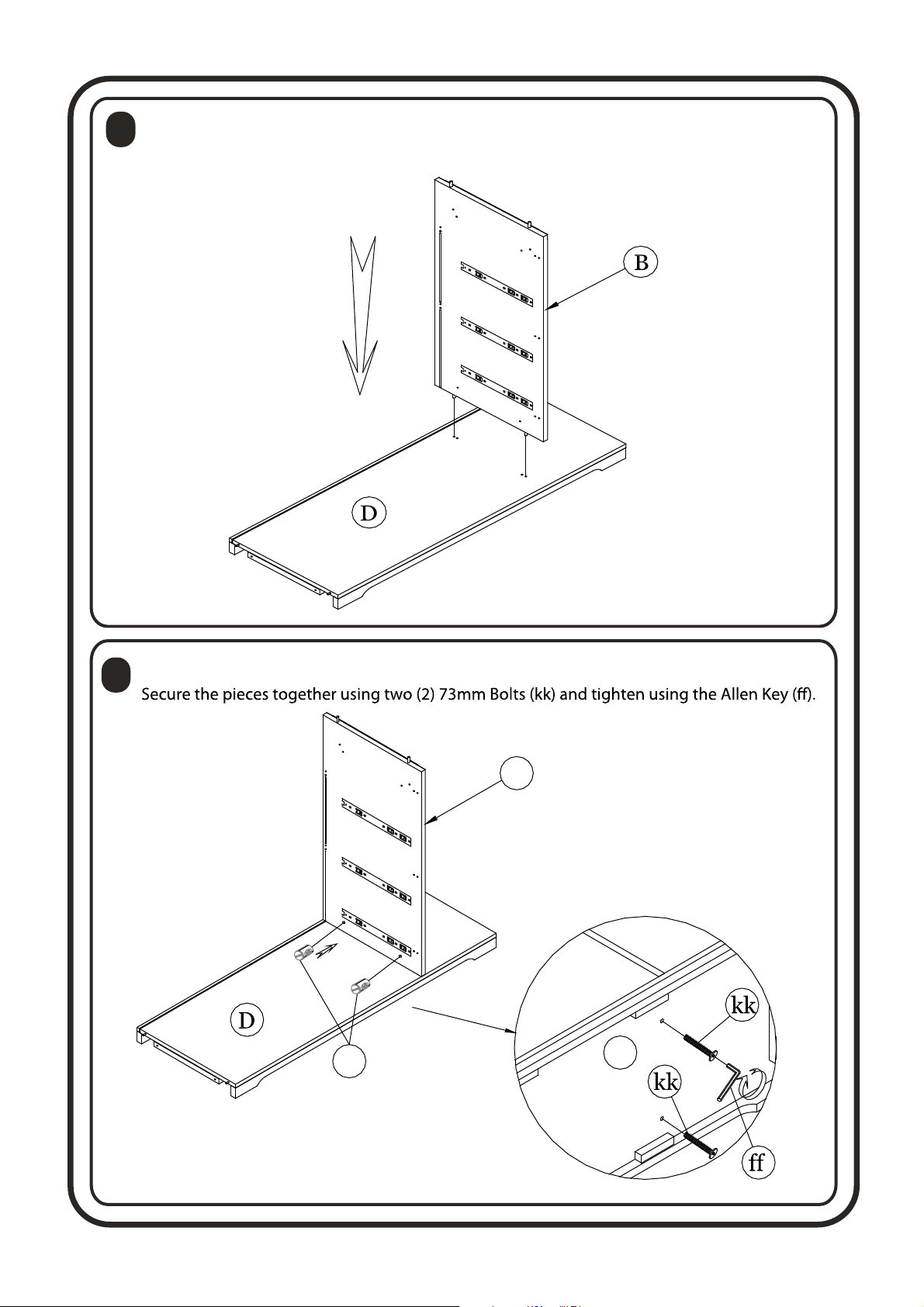

Align the dowel pins of the Center Support (B) into the holes of the Base (D) so that the
grooves align along the back of the unit.
Place two (2) Barrel Nuts (gg) into the Center Support (B) holes. Tip the unit onto its back.
Page 6 of 19
1
2
D
gg
Bottom panel
B

Screw Combiner Nuts (bb) onto the bottom of the Long Rails (R),(S),(T), and (U) and
tighten them onto the Combiner Bolts.
(Note: The Back Rails have grooves to accept panels. The Top Rails have holes to screw into
the Changer Top)
Page 7 of 19
3
4
B
bb
R
U

Page 8 of 19
Slide the Large Back Panels (H) into the grooves along the back rails of the unit.5
6
H
H
A
aa

the Combiner Bolts using a Phillips Head Screwdriver.
unit using two (2) 28mm Bolts (ll).
Page 9 of 19
7
Bottom panel
A

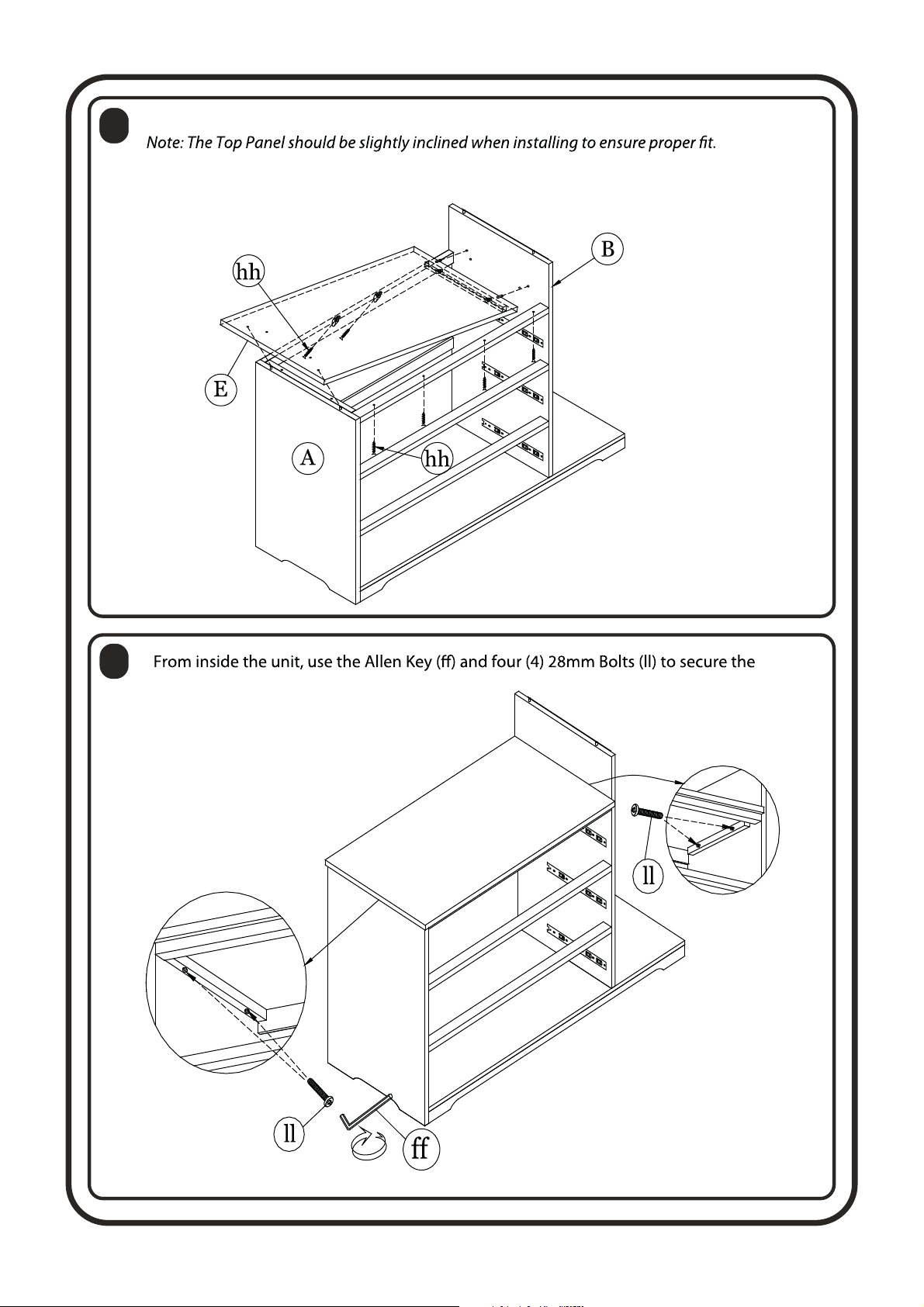

Slide the dowel pins on the Large Changer Top (E) into the Center Support (B).
Use 30mm Flathead Screws (hh) to secure the Rails to the Changer Top.
Large Changer Top (E) to the Center Support (B) and the Left Side (A).
Page 10 of 19
9
8

Screw four (4) Combiner Bolts (aa) into the Center Support (B).

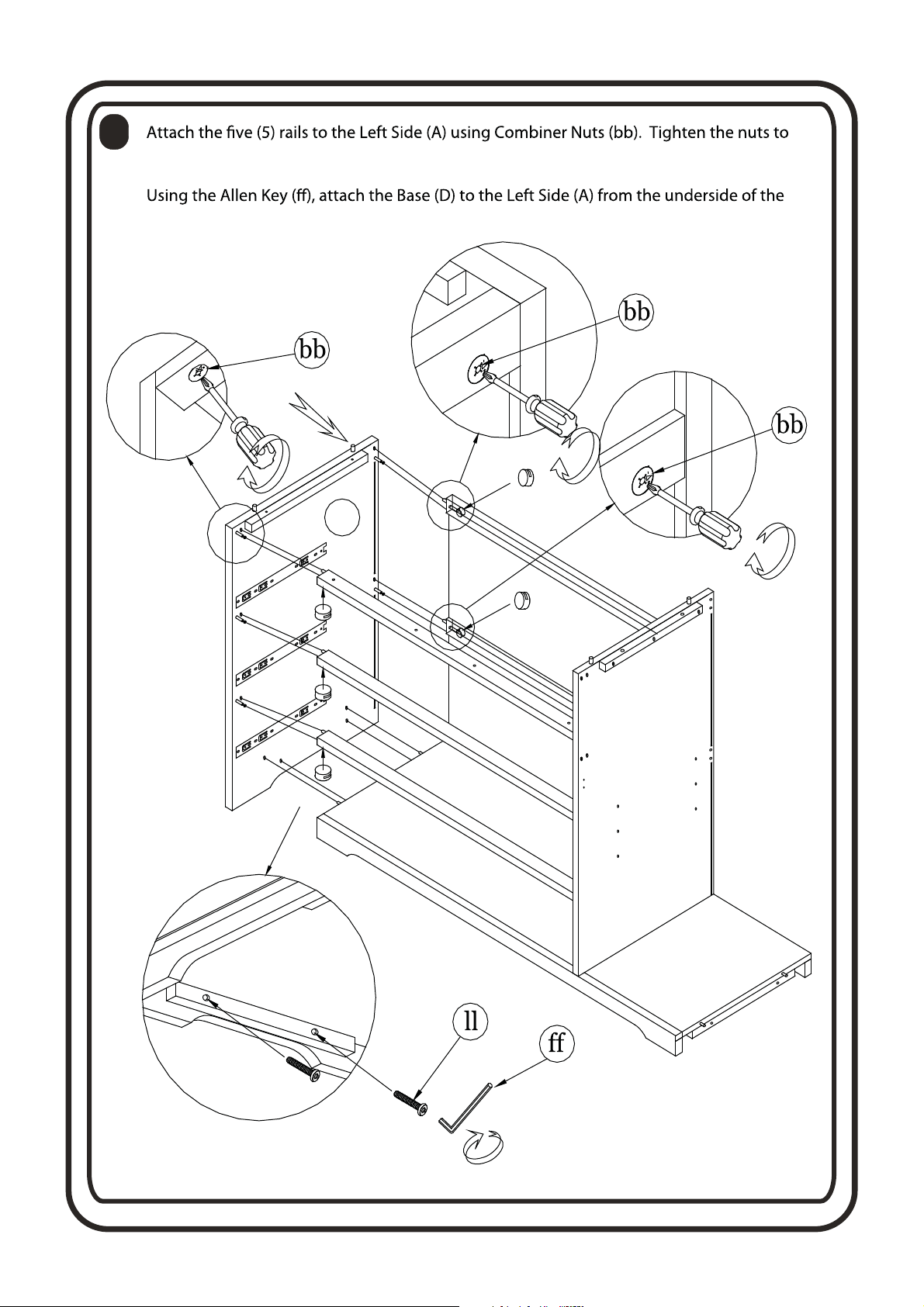

Attach the Short Rails (V), (W), (X), & (Y) using Combiner Nuts (bb). Tighten the Combiner
Nuts (bb) to the Combiner Bolts (aa) using a Phillips Head Screwdriver.
Slide the Small Back Panels (G) into the grooves along the back of the unit.
Page 11 of 19
10
11
G
G

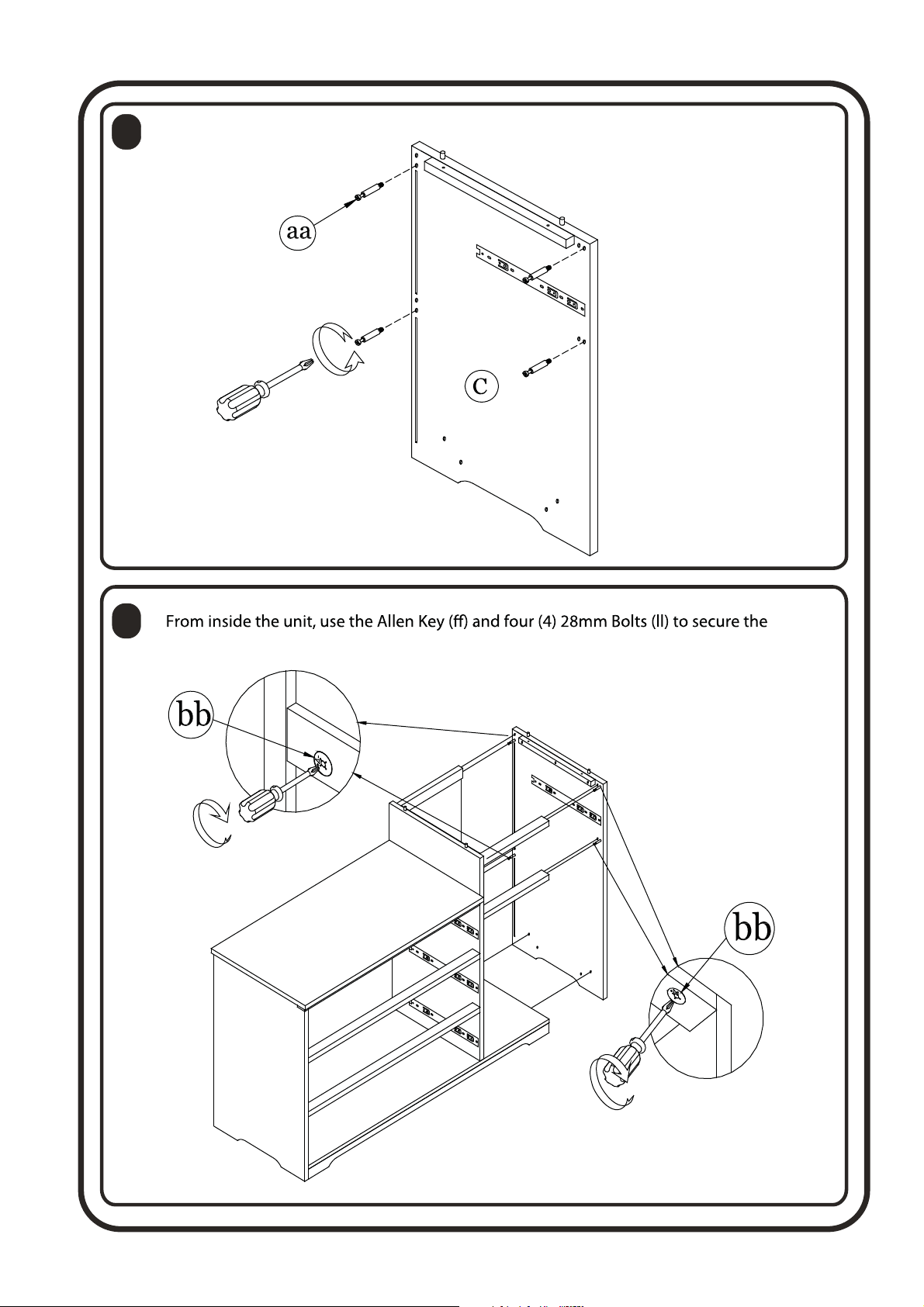

Screw four (4) Combiner Bolts (aa) into the Right Side (C).
Large Changer Top (E) to The Center Support (B) and the Left Side (A).
Page 12 of 19
12
13

Place the Small Changer Top (Z) onto the unit ensuring that the dowel pins align with the
holes.
Secure the Small Changer Top (Z) to the unit using two (2) 30mm Flathead Wood Screws (hh)
and four (4) 28mm Bolts (ll).
From the underside of the unit, secure the Right Side (C) to the Base (D) using two (2) 28mm
Bolts (ll).
Page 13 of 19
15
14

Attach the Drawer Sides (J) to the Large Drawer Front (K) using four (4) 30mm Flathead
Wood Screws (hh).
Repeat for the other two (2) large drawers.
Slide the Large Drawer Bottom (N) into the grooves. Place the Drawer Support (L) into the
cut-out notch to support the Drawer Bottom.
Complete the drawer assembly by attaching the Large Drawer Back (M) using four (4) 30mm
Flathead Wood Screws (hh).
Repeat for the other two (2) large drawers.
Page 14 of 19
16
17
hh
K
J
J

Attach the Drawer Sides (J) to the Small Drawer Front (O) using four (4) 30mm Flathead
Wood Screws (hh).
Page 15 of 19
19
18
Slide the Small Drawer Bottom (Q) into the grooves.
Complete the drawer assembly by attaching the Small Drawer Back (P) using four (4) 30mm
Flathead Wood Screws (hh).
hh
O
J
J

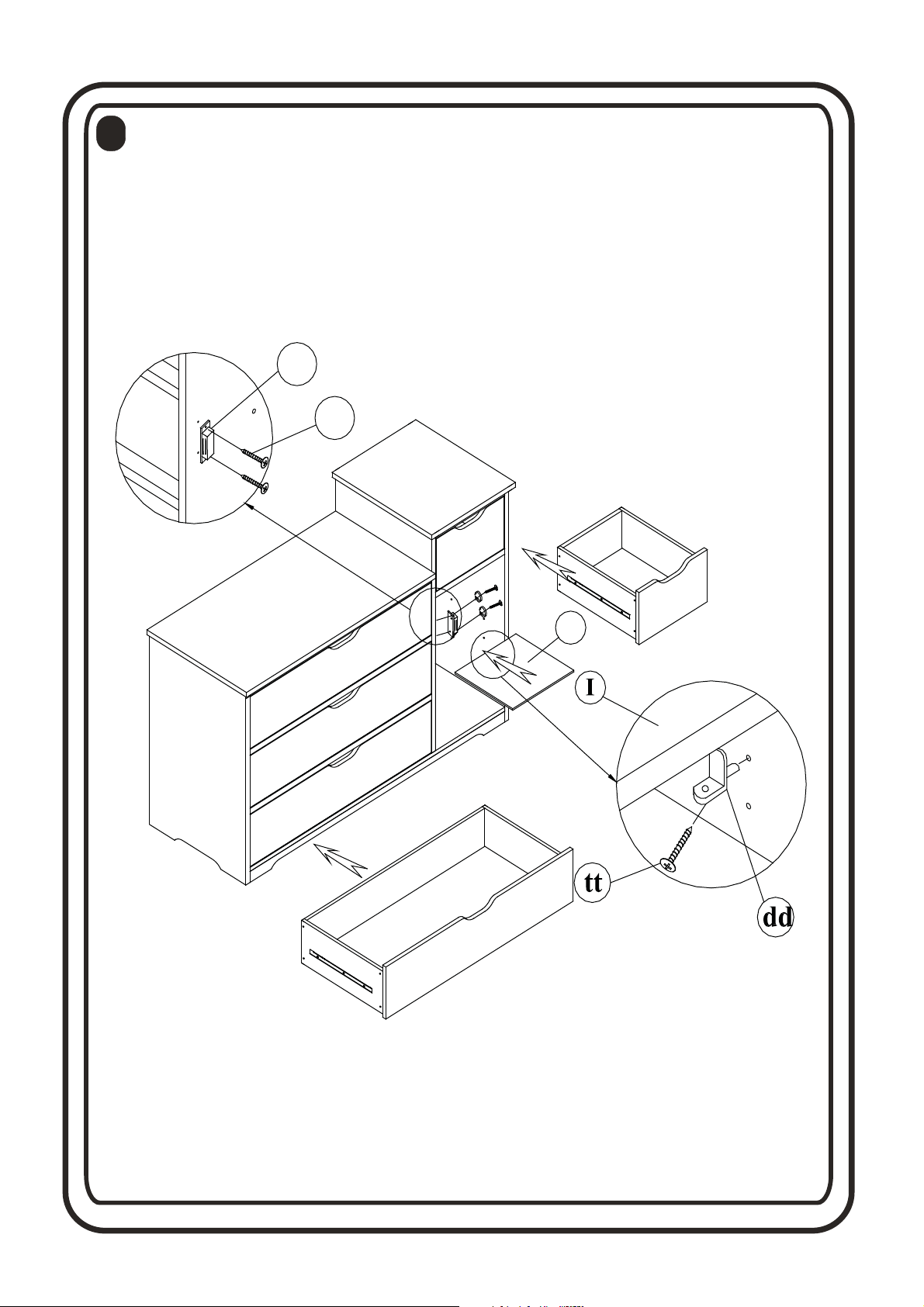

Attach the Magnetic Catch (cc) to the inside of the cabinet using two (2) Panhead Screws (oo).
The metal plate gets attached to the back side of the Door (F).
Slide the four (4) drawers into the metal runners of the unit.
Install the Shelf Brackets (dd) and the Shelf (I).
Page 16 of 19
20
I
oo
cc

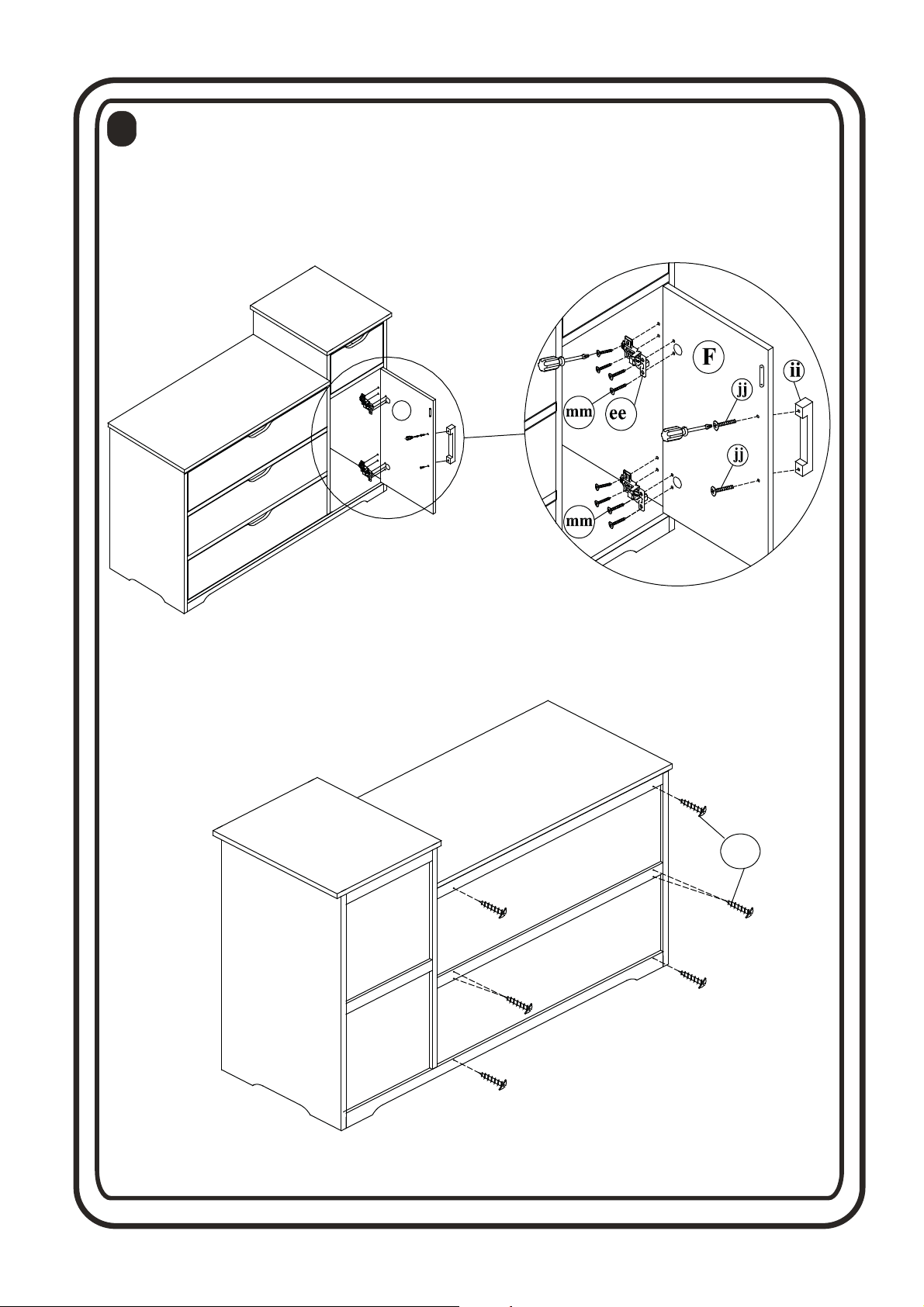

Install the Door (F) by attaching the Door Hinge (ee) to the Door and the inside of the
cabinet using eight (8) 15mm Flathead Wood Screws (mm).
Attachthe Door Handle(ii) to the door using two (2) 22mm Machined Screws (jj).
Page 17 of 19
21
nn
F
Attachthe Large backpanel (H) using Panhead Screw (nn) .

To help stabilize the unit and minimize the fall risk, install the two (2) Anti-Tip Plastic
Covers (pp) and the Anti-Tip Plastic Strip (qq) using the 38mm Flathead Screws (rr)
and 20mm Flathead Screws (ss) as shown below.
Page 18 of 19
22

Page 19 of 19
