Ohkura VM7000A User manual

DATA VIEWER
INSTRUCTION MANUAL
FOR VM7000A/VM7000B
PAPERLESS RECORDER
WXPVM70mnA0101E
December, 2015 (Rev.7)
Copyright © 2009-2015 Ohkura Electric Co.,Ltd. All Rights Reserved..
Graficzne rejestratory temperatury VM7000A
http:/acse.pl

Software License Agreement
The use of [Data Viewer for VM7000A_B] and [Parameter Loader for VM7000A_B] (hereinafter referred
to as [these software] ) are subject to the terms outlined in this software license agreement and to the
customers consent to this software license agreement.
Ohkura Electric Co., Ltd (hereinafter referred to as [Ohkura] ) grants you permission to use these
software on the condition that you agree to this software license agreement.
Article 1(Licensed these software under these terms and conditions)
1. Contingent of the customer's compliance with the terms of this agreement, Ohkura extends to the
customer non-exclusive usage rights.
2. The customer may install this software on an unlimited number of computers, provided that the
software is only installed in the corporation that purchased the product.
Article 2 (Limitations on Duplication)
The customer may make to copy of this software for backup purposes only.
Article 3 (Prohibitions)
The customer is prohibited from doing the following with these software.
a. Addition or changes to any or all of the functions of these software, except for version upgrade
provided by Ohkura.
b. Reverse compiling or reverse assembling of these software for the purposes of reverse
engineering.
c. Sale, transfer, redistribution or license to a third party.
This does not include instances where permission has been obtained from Ohkura in advance.
Article 4 (Copyright)
The copyrights of these software and all associated documentation are the property of Ohkura.
Article 5 (Exemption of Liability)
Ohkura shall not be held liable by the user or third party for any damages arising from the
use of these software.

＜
CONTENTS
＞
1. OUTLINE ----------------------------------------------------------------- 1-1
1.1 Foreword ------------------------------------------------------------------------------------ 1-1
1.2 Data viewer --------------------------------------------------------------------------------- 1-1
1.3 Contents of package ---------------------------------------------------------------------- 1-1
1.4 Recommended operating environment ----------------------------------------------- 1-1
1.5 Install ---------------------------------------------------------------------------------------- 1-2
1.6 Uninstall ------------------------------------------------------------------------------------- 1-2
2. BASIC OPERATION --------------------------------------------------- 2-1
2.1 Start ------------------------------------------------------------------------------------------ 2-1
2.2 Open the file -------------------------------------------------------------------------------- 2-2
2.3 Save the file --------------------------------------------------------------------------------- 2-4
3. BASIC COMPOSITION OF TREND DISPLAY ----------------- 3-1
3.1 Trend display ------------------------------------------------------------------------------ 3-1
3.2 Instantaneous value ---------------------------------------------------------------------- 3-3
3.3 Event Summary --------------------------------------------------------------------------- 3-4
4. OPERATION METHOD ---------------------------------------------- 4-1
4.1 File ------------------------------------------------------------------------------------------- 4-1
4.2 View ----------------------------------------------------------------------------------------- 4-1
4.3 Zoom ---------------------------------------------------------------------------------------- 4-2
4.4 Event/Comment --------------------------------------------------------------------------- 4-2
4.5 Language ----------------------------------------------------------------------------------- 4-2
4.6 Window ------------------------------------------------------------------------------------- 4-3
4.7 Help ------------------------------------------------------------------------------------------ 4-3
5. OTHERS ------------------------------------------------------------------ 5-1
5.1 Save CSV ----------------------------------------------------------------------------------- 5-1
5.2 Unites file ----------------------------------------------------------------------------------- 5-2
5.3 Download from Network --------------------------------------------------------------- 5-3
5.4 Realtime Trend --------------------------------------------------------------------------- 5-8
5.5 Manual setting of a scale display ------------------------------------------------------ 5-10
5.6 Print preview setting --------------------------------------------------------------------- 5-11

1-1
1
．
OUTLINE
1.1 Foreword
This instruction manual describes installation and operation for the Data Viewer of the Paperless
Recorder. Read it carefully before use.
1.2 Data viewer
This Data Viewer refers to the SD card set in a Paperless Recorder and recorded data can be
referred to with the personal computer by the adaptor or the FTP.
1.3 Contents of package
The following items are packaged with the product.
●CD-ROM for installation: 1
●Instruction Manual which is installed above CD-ROM
1.4 Recommended operating environment
●Microsoft Windows XP / Vista / 7 / 8/8.1 (32bit, 64bit)
The Viewer is not run on Windows 95, 98, 2000, NT and Me.
●Hard disk with a free capacity of 500MB or more
●Capacity of RAM necessary so that OS may operate normally
●Memory card. (SD card)
(Panasonic company 1～32GB or Sandisk company 1～32GB is recommended)
●PC made of maker
●The printer driver and printer corresponding to OS
●The mouse and keyboard corresponding to OS
●The Ethernet communication port (10BASE-T, TCP/IP protocol)
●CD-ROM drive
●Display resolution of 1024×768 pixels (XGA) or more

1-2
1.5 Install
1) If other application software programs are open, terminate all of them.
2) It the data viewer has been already installed, delete it from “Add/Remove Programs” on Control
Panel.
3) Set CD-ROM in the personal computer drive.
4) The menu is automatically displayed. Follow the instructions on the screen. If the menu is not
displayed, please start “index.htm” that CD-ROM drive has. The menu for the installation is
displayed, and please installs it according to the instruction of the screen. The Data Viewer and the
Parameter Loader are installed at the same time.
※When you install the differing version, ".NET Framework" may need to be installed.
In that case, install software after installing ".NET Framework." .
(In the case of Windows8, environment connectable with the Internet is required for installation
of ".NET Framework".)
5) A message is displayed, prompting you to verify that “Data display setup is complete”.
Now, the Data Viewer installation is completed.
1.6 Uninstall
Please uninstall the Data Viewer by the following operations, and delete it according to the
instruction of Windows (Notes are included).
The Data Viewer and the Parameter Loader are uninstalled at the same time.
“START of Windows” ⇒“Control Panel” ⇒“Add/Remove Programs” ⇒“VM7000A_B”
When you install the differing version, before installing the upcoming version, please uninstall the
software that is now by the above-mentioned method. There is a possibility of not operating
normally.

2-1
2
．
BASIC OPERATION
2.1 Start
Select “Programs” ⇒“VM7000A_B” ⇒“Data Viewer” from the Start menu.

2-2
2.2 Open the file
To open the file of recorded data, the following operation is done.
1) The file is copied from the SD card to the personal computer.
When you insert the SD card in the main body of a Paperless Recorder, the folder of “Recorder”
is automatically made in the SD card.
The SD card where the file is preserved is connected with the personal computer, an arbitrary
file is selected from “Recorder”⇒“Data”, and it copies it to the personal computer.
The SD card reader might become necessary.
2) Select “File” ⇒“Open file”.
The same operation can be done even by the “Open” of tool bar.
Refer item 3.1 for the tool bar.
3) Please select “Open” that chooses the file of recorded data in the folder copied to the personal
computer and opens.

2-3
If data file is normal, following display is appeared.
Data Viewer is composed of three (Trend screen, Instantaneous value, and Event Summary).
Instantaneous value and Event Summary can only be changed “Display / Non-display” from
“View” of menu. And, Layout can be changed from same Item.
Refer item 3 for the composition of display, and refer item 4.2 for the “View” of menu.

2-4
2.3 Save the file
The report set up with the Data Viewer is saved. The report saved becomes below.
●Comment (Refer item 4.4 for comment)
●Network option setting (Refer item 5.3 for network option setting)
●Scale range (Refer item 5.5 for scale range)
●Print setting (Refer item 5.6 for print option)
1) Select “File” ⇒“Save display state” or “Save As”.
The same operation can be done even by the “Save” of tool bar.
Refer item 3.1 for the tool bar.
2) The currently screen displayed to select “Save display state” is preserved in former open file in
the superscription by viewer link file format (*.dlk).
It preserves it specifying the file name and preserving ahead of new when “Save as” is selected.
If the saved viewer link file is opened again, record data can be referred to in the condition of
having set up last time.

3-1
3
．
BASIC COMPOSITION OF TREND DISPLAY
3.1 Trend display
①Group tab
The group display can be changed by selecting “①Group tab”.
②Channel tab
Selected “②Channel tab” moves at the right of the channel, and displays the corresponding width
of the scale in “③Trend display area”.
③Trend display area
The trend data recorded can be displayed.
④Scale display
The scale width set each channel can be displayed.
When "④Scale display" is double-clicked, the scale can be set with the manual.
(Refer item 5.5 for manual setting of a scale.)
⑤Unit
The unit set each channel can be displayed.
⑥Cursor
This date of line for measured value is displayed on the “⑧Measured value display”.
⑦Cursor date
The date that the “⑥Cursor” indicates is displayed.
⑨Tool bar
①Group tab
②Channel tab
④
Scale display
⑤
Unit
⑦
Cursor date
⑪
Message mark
⑫Comment mark
⑩Alarm occurred /
cleared mark
⑬Scroll bar
⑧Measured
value display
⑭Time (H : M : S)
（
24-hour display
）
③Trend
display area
⑥
Cursor

3-2
⑧Measured value display
Measured values at the position selected by “ ⑥Cursor” are displayed. And,
“Display/non-display” of the trend and the width of the scale in “④Scale display” is switched by
selecting the check box.
〆display：Display the trend and scale width.
■display：Display the trend.
□display：No display the trend and scale width.
⑨Tool bar
The function often used is displayed as a shortcut key.
The set of tool bar cannot be changing.
⑩Alarm occurred / cleared mark
The alarm occurred or cleared while recording is marked and displayed.
⑪Message mark
The message occurred while recording is marked and displayed.
⑫Comment mark
The comment set while recording and the comment set in the Data Viewer are marked and
displayed.
Refer item 5.4 for the comment setting.
⑬Scroll bar
When the display of the trend overflows with the setting change etc. of the time axis and Y axis
of “⑨Tool bar” in the margin, the display can be changed by sliding “⑬Scroll bar”.
Refer item 5.3 for the time axis and Y axis.
⑭Time
The recorded time is displayed.

3-3
3.2 Instantaneous value
①Measured value area
The recorded data of each channel is listed and the batch display is done.
②Page switch
The number of recorded data that can be viewed on a single Instant value Viewer screen is up to
1000.
To view data in excess of 1000, select the “②Page switch”.
③Scroll bar
Measured values that overflow in the margin can be displayed by doing “③Scroll bar” in the
slide.
④Time
Measured values are recorded at the cycle set with the main body. The above figure sets up a
record cycle in "1 minute."
(Refer item 7.19 of Paperless Recorder Manual for record cycle.)
④
Time
①Measured value area
②
Page switch
③
Scroll bar

3-4
3.3 Event Summary
①Event tab
The event occurred while recording is changed.
②Event display area
The event occurred while recording is displayed.
③Time
The occurred event is displayed.
②
Event display area
①
Event tab
③
Time

4-1
4
．
OPERATION METHOD
4.1 File
［File］
Item
Setting contents
Open file
Open the recording data.
Save display state
Save the current display status.
(※1)
Save As
A present display is saved specifying the name and the preservation place. (
※1)
Save CSV
Converts it into the CSV file. (
※2)
Unites file
Plurals files that are brought together in one. (
※2)
Download from
Network
Download the recoding data by Ethernet. (※2)
Properties
It displays the serial number and version information etc. of recorder that
created the file.
Print
Print the current displayed screen.
Print Preview
Display the print preview. (
※2
Exit
End the Data Viewer.
※1 Refer item 2.3 for details.
※2 Refer item 5 for details.
4.2 View
［View］
Item
Setting contents
Realtime Trend
Display the Realtime Trend. (Up to eight can be displayed simultaneously.)(
※
1)
Instant View
Select the “Display/non-display” of instantaneous view.
Event summary
Select the “Display/non-display” of event summary.
Layout
Select the layout of trend display.
Touch scroll
The display of a trend screen can be scrolled by mouse's drag.
ToolBar
Select the “Display/non-display” of tool bar.
Scale setting
The scale display of a trend screen can be set as arbitrary range. (
※2
)
Option
Display the option.
※1 Refer item 5.4 for details.
※2 It supports since software version 1.30.

4-2
4.3 Zoom
［Zoom］
Item
Setting contents
Time Axis
Select the display method of time axis.
Dot by Dot：Display the trend dot by dot.
Whole view：Whole display the trend.
Point to point：Display the trend point to point.
Manual Zoom
：
The expansion rate is specified by the numerical value.
Y Axis
Select the display magnification of Y axis.
Default view
Initialize the setting contents of “Zoom”.
4.4 Event/Comment
［Event/Comment］
Item
Setting contents
Set Comment
Input the comment on the cursor.
Delete Comment
Delete the comment is selected.
Alarm disp
Select the “Display/non-display” of alarm mark on the trend display area.
Message disp
Select the “Display/non-display” of message mark on the trend display area.
Comment disp
Select the “Display/non-display” of comment mark on the trend display area.
Find Previous
Move the previous point.
Find Next
Move the next point.
4.5 Language
［Language］(※1)
Item
Setting contents
Japanese
Change the Japanese.
English
Change the English.
Czech
Change the Czech. (
※2)
Chinese
Change the Chinese. (
※
2)
Korean
Change the Korean. (
※
3)
※1It is necessary to reactivate the Data Viewer to apply the change.
※2 It supports since software version 1.10.
※3 It supports since software version 1.11.

4-3
4.6 Window
［Window］
Item
Setting contents
Cascade windows
It displays it repeatedly when there is plurals window.
Tile windows
Vertically
It displays it to tile vertical when there is plurals window.
Tile windows
Horizontally
It displays it to tile horizontal when there is plurals window.
4.7 Help
［Help］
Item
Setting contents
About
Display the version of Data Viewer.

5-1
5
．
OTHERS
5.1 Save CSV
When you select “File”⇒“Save CSV” of the menu bar of the data viewer, the recorded data can
be converted into the CSV file.
The CSV file can be referred to by Excel.
①Range of data output
The range which outputs data is chosen from "All data" or "Select time".
All data ：The data from a recording start to a recording stop are outputted to CSV.
Select time ：Arbitrary range is outputted to CSV. (Initial value is the range of "All data".)
②Addition of header information
Header information, such as channel information and group information, is added to a CSV file.
When you convert the folder into the CSV file, the following three files are made.
●***dmt.csv file：Trend file
●***dmc.csv file：Comment file
●***dme.csv file：Event file
※The record date is written in the part of “***”.
Ex）Record start at 09/01/2015 12:34:56
Record date is "150901123456".
①
Range of data output
②
Addition of header
information

5-2
5.2 Unites file
“dmt file” can be brought together by selecting “File” ⇒“Unites file” of menu bar.
The same operation can be done even by the “Pre.” and “Next” of tool bar.
(Refer item 3.1 for the tool bar.)
(Refer item 10.17/10.16 of Paperless Recorder Manual
(WXPVM70mnA0001E or WXPVM70MNB0001E/WXPVM70MNB1001E) for "dm, dmt file".)
①Unites Previous data
Previous “dmt file” is united from one file that is opening now, and displays it as a file of one.
②Unites Next data
Next “dmt file” is united from one file that is opening now, and displays it as a file of one.
※Only when “dmt file” is one, files cannot be united. To make two or more “dmt file”. In order
to create plural "dmt files", a "File record cycle" is set up. Then, it is necessary to record more
than a "File record cycle."
(Refer item 7.19 of Paperless Recorder Manual for "File record cycle")
※"dm file" can not unite. (If [Unites file] of a "dm file" is performed, a display will be switched
to the next "dm file" (or previous "dm file").)
Moreover, each "dmt file" managed by plural "dm files" can not unite.
(By one "dm file", a "dmt file" manages to 50 file. If 50 or more "dmt files" are created, "dm
file" is created newly. A "dmt file" can unite only between "50 dmt files" managed by "dm file".)
In order to increase time recordable between one "dm file", it is necessary to set up a "File
record cycle."
●Relationship between a "File record cycle" and "dm file"
Case: File recording cycle "1 hour"
Whenever an hour passes, one dmt file is created. And when 50 dmt files are created (When
50 hours pass), one dm file is created.
Case: File recording cycle "1 week"
Whenever 1 week passes, one dmt file is created. And when 50 dmt files are created (When
50 weeks pass), one dm file is created.

5-3
5.3 Download from Network
The record file can be downloaded directly by connecting a Paperless Recorder to the personal
computer.
When you select “File” ⇒“Download from Network” ⇒“Connection” of the menu bar of the
Data Viewer, the connection with a Paperless Recorder begins.
※Please match “IP Address” of Data Viewer and “IP Address” of Paperless Recorder from
“Option” ⇒“Communication” of the menu bar before it connects.
（IP Address of a Paperless Recorder can be set from “System” ⇒“Comm.” ⇒“Ethernet1”.
Refer the following “●Example of setting IP Address” and “●Example of setting
telecommunication facility” for the details.)
●Example of setting IP Address（Windows XP）
First of all, “Start menu”⇒”Control Panel”⇒”Network connection” is selected. And, ”Local
area connection” is Right-Clicked ⇒Select the “Property”. Then, “Property of Local area
connection” is display.
Select the “Internet Protocol (TCP/IP)” ⇒Because “Property of Internet Protocol (TCP/IP)” is
displayed when the “property” is clicked, “IP Address” and “Subnet mask“ is set. (In this case, “IP
Address” is set as “192.168.0.2”, and “Subnet mask” is set as “255.255.255.0”.)
※Please inquire of the network administrator before setting “IP Address”, “Subnet mask” and
“Default gateway”, “DNS server address”. The trouble might occur in the network when the
setting is not correct.

5-4

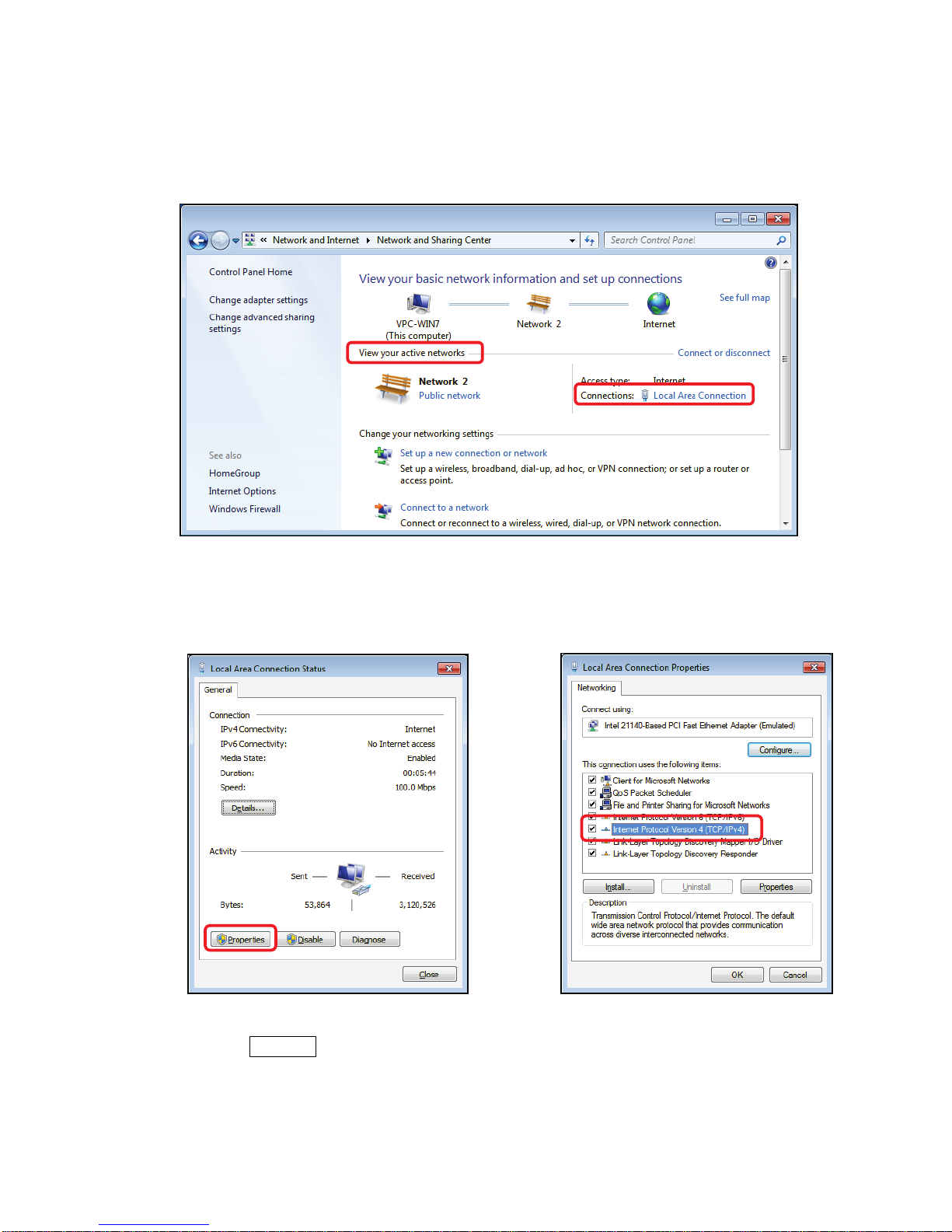

Example of setting the IP address on a PC (for Windows 7 and 8)
- Please perform the following movement every OS.
Windows 7: From the [Start] menu, open [Control Panel] and select
[Network and Sharing Center].
Windows 8: From the [Setting], open [Control Panel] and select [Network and Sharing Center].
- When you select [Connections] under [View your active networks] , [Local Area Connection
Status] window appears.
- Click the Properties button to open the Connection Properties window as shown.
- From the list, select [Internet Protocol Version 4 (TCP/IPv4)] to open the Internet Protocol
Version 4 (TCP/IPv4) Properties window appears.
