Operation Manual
・ Read these instructions for the proper use of this machine.
・ After having read these instructions, keep them in a convenient
place so you or the operator can refer to them whenever necessary.
自動ネジ供給機
OM-26M Type
Automatic Screw Feeder
OMM1MA02M
(Maintenance)

－1－
Contents
1. OVERVIEW OF THIS MACHINE -------------------- 1
2. BEFORE USE -------------------------------------------- 1
3. OPERATING PRECAUTIONS ----------------------- 2
4. NAMES OF MACHINE PARTS ---------------------- 5
5. ADJUSTMENTS AND CHECKS BEFORE USE-------- 7
6. MAINTENANCE ----------------------------------------- 16
7. PARTS ADJUSTMENTS AND REPLACEMENTS ----- 16
8. EXTERNAL OUTPUT SIGNALS------------------- 28
9. MISCELLANEOUS ----------------------------------- 30
10. TROUBLESHOOTING ------------------------------- 32
11. SPECIFICATIONS ------------------------------------- 38
12. EXTERNAL DIMENSIONS -------------------------- 40
13. WARRANTY -------------------------------------------- 41
２．BEFORE USE
Please check for the following accessories before operating the machine.
＊ Instruction Manual 1 copy ＊ AC Adapter 1 unit
＊ Hexagonal Wrench 1 piece ＊ Screwdriver 1 piece
＊ Ground Wire 1 piece
１．OVERVIEW OF THIS MACHINE
Thank you very much for selecting our Automatic Screw Feeder "OM-26M series ".
This machine can line up screws (Type M2 - M6) and supplies them one by one to help
the efciency of screw fastening work.
Different sizes of screws can be used by changing the rail and parts of the escaper assembly.
It can be used wherever there is a power source for an AC adapter.
Only steel screws may be used with this machine. Stainless steel or plastic screws cannot be used.

－2－
３．OPERATING PRECAUTIONS
This manual contains safety alert symbols and signal words to help prevent injuries
to the user or damage to property.
◎Indications
This indicates there is a chance of death, serious injury or re if the instructions
are not followed.
This indicates there is a chance of personal injury or damage to property
if the instructions are not followed.
◎Symbols indicating type of danger and preventative measures
This indicates to stop operations.
Unplug power supply from wall outlet.
General caution.
Prohibited operation. Never do this!
Do not disassemble, modify or repair.
Do not touch with wet hands.
WARNING
CAUTION
When the earth wire is connected, loosen the screw near the mark once.
After attaching the earth wire,tighten the screw again.
the bottom of the main body

－3－
Do not disassemble the AC adapter as there is a risk of electric shock, re or malfunction.
Do not damage, alter or change the power cord. Do not place heavy objects on the cord.
Do not pull hard on the cord or twist the cord as it could be damaged, thereby causing a risk
of re or electric shock.
Do not handle the AC adapter with wet hands as it could cause an electric shock.
When using an outlet with AC100 ～240V, don't overload the electrical circuit.
Do not modify or remodel this machine as this may cause a re or electric shock.
Do not operate this machine near ammable liquids, gasses or materials as there could
be a risk of re or explosion.
Stop operating the machine and unplug the AC adapter from the wall outlet when you detect overheating,
smoke, a pungent odor or any other unusual condition, as there may be a risk of re or electric shock. Contact
the dealer, from which you purchased the machine, and have
it examined and repaired.
In the case of a thunderstorm, stop operating the machine, turn off the power and unplug
the AC adapter from the wall outlet. If there is lightning and thunder nearby, move away from the machine and
do not touch it or the AC adapter.
After the thunder stops, and when it is safe to do do so, check the machine. If there is any abnormality, contact
your dealer.
When performing maintenance, changing parts or when you sense an abnormality in the machine, turn the
power off and pull the AC adapter from the wall outlet.
WARNING

－4－
Do not bend, alter or damage the rail. Do not apply any oil. It is recommended that the user
clean the rail periodically.
Do not use any screw that is out of the specied range nor any screw that is oily or dirty.
When pick uping screws, do not exert excessive force or shock to the screws.
Do not allow any foreign material to enter the machine while in operation.
Do not put your ngers into the machine while in operation, otherwise an injury will result.
Use only the AC adpater supplied with this machine otherwise it may result in a re
or electric shock.
Do not install this machine in an unstable location otherwise it may fall causing damage or injury.
When moving the machine, always disconnect the AC adapter from the wall outlet or it may result in damage to
the cord, or cause a re or electric shock.
Turn off the machine and unplug the AC adapter from the wall outlet during closing hours
or if the machine will be unused for any extended period of time.
Do not operate this machine in overly humid or dusty conditions.
Keep the socket plug clean at all times otherwise it may cause a re or electric shock.
Do not operate the machine with tension on the AC adapter cord.
Keep the cord loose and untangled.
Always operate the machine with the upper cover in place, otherwise it may result in injury.
CAUTION

－5－

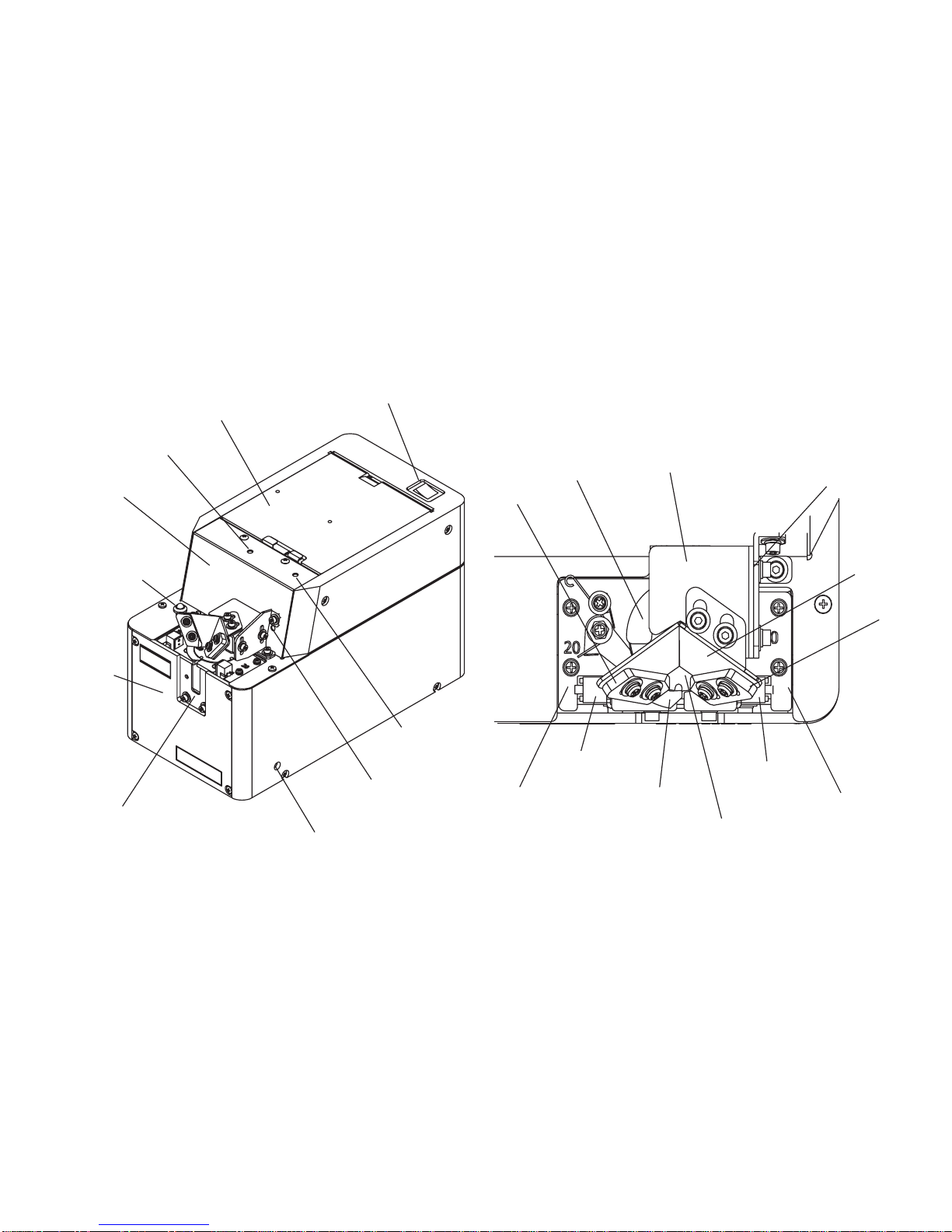

４．NAMES OF MACHINE PARTS
Top lid
Rail xing bolt
Power switch
Front cover
Front lower
cover
LED screw indicator
Sensor bracket
Escaper assembly xing bolts
(1 left / 1 right)
Holding plate
adjusting bolt
Holding plate
xing bolt Escaper guide-right
Holding plate
Light-emitting
sensor Light-receiving
sensor
Bit guide
Escaper
Stopper assembly Stopper
Bit guide bracket Bit guide bracket
attaching plate
Right guide
Left guide

－6－
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
名前 日付
TPO11061_OM2-26R(
2014/10/06
OIKAWA
A3
1 / 1
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
名前 日付
TPO11061_OM2-26R(
2014/10/06
OIKAWA
A3
1 / 1

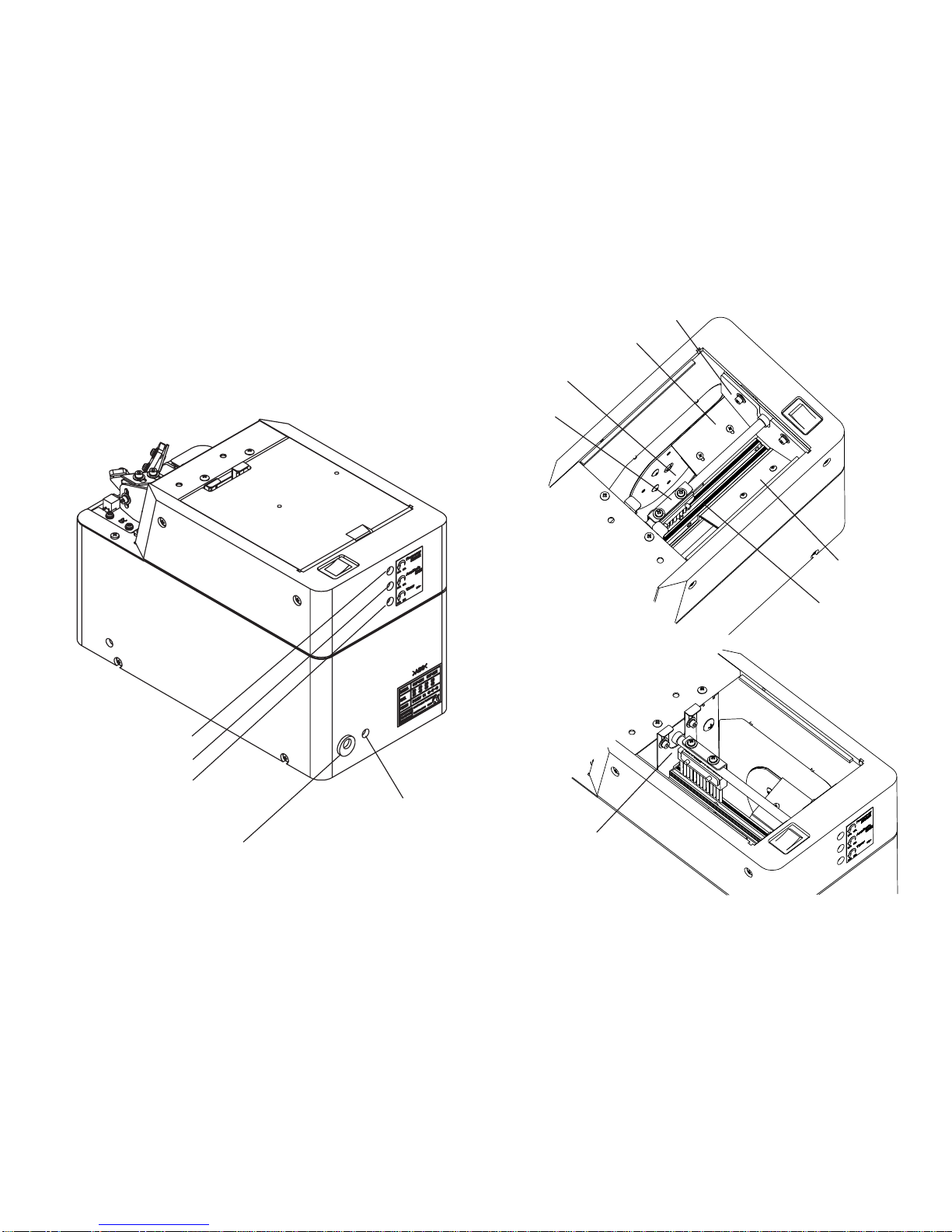

Passing plate
Brush
Scraper-left
Scraper-right
Rail assembly
Rear cover
Scooping hopper
DC jack
Signal line out

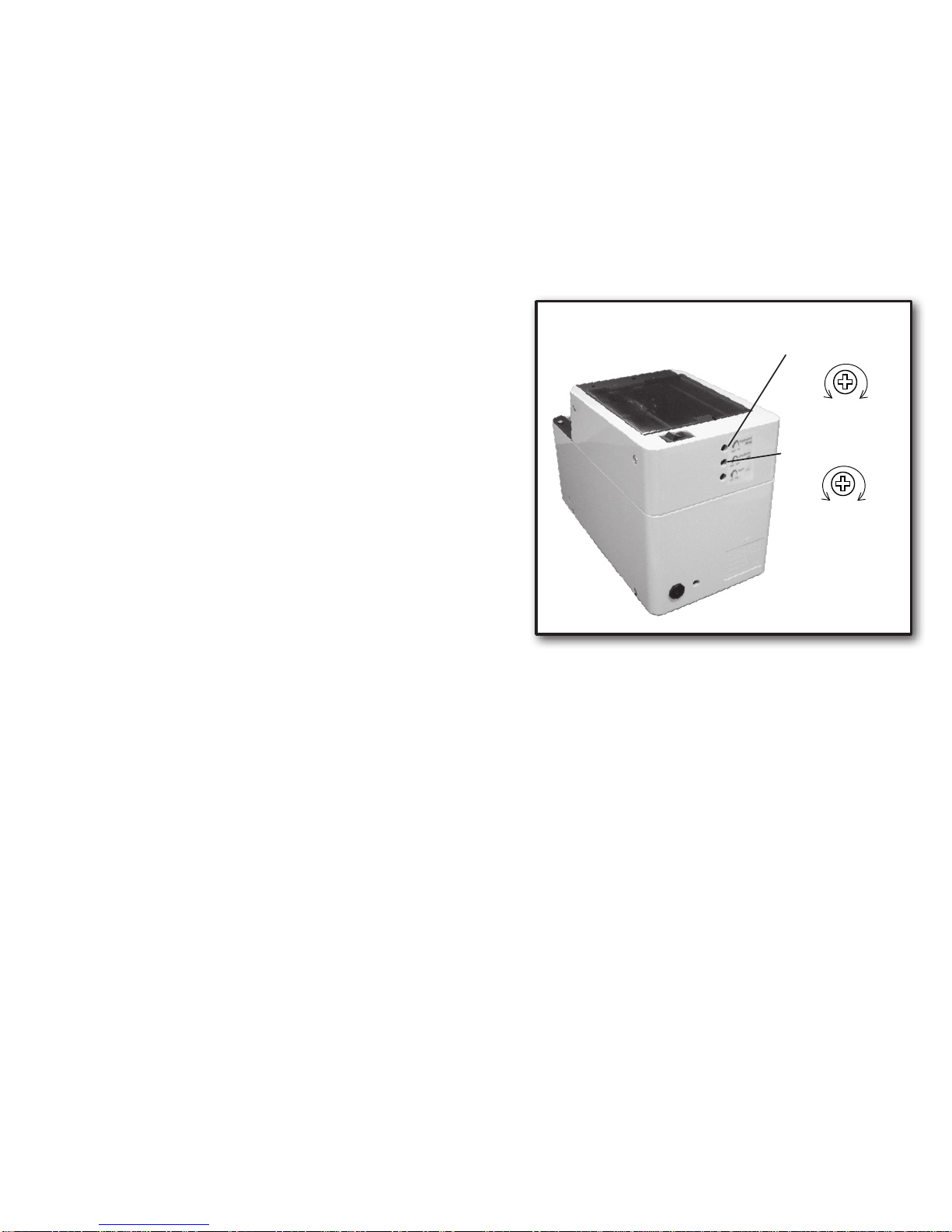

Timer adjusting knob
Amplitude adjusting knob
Frequency adjusting knob
Right guide

－7－
５．
ADJUSTMENTS AND CHECKS BEFORE USE
５－１．
Checking the model number of the main body
Check if the machine has the parts which match the nominal diameter of
the screws to be loaded. Check the model number of the rail, escaper,
stopper assembly, escaper guide-right,
and passing plate by referring to the following table.
Before delivery, each section of the machine is checked and adjusted
with panhead screws matching the nominal diameters of the model
ordered. Operate the machine with the screws loaded to check that the
pick up is smooth. If the height or or shape of the screw head is different
or if the operation is regarded as abnormal, each section must be
readjusted.
If this is the case, make the following checks and adjustments:
Identication stamp
※This photo shows removal of the bit guide.
Stopper assembly Escaper Escaper guide-right
If the rail, escaper, stopper assembly, escaper guide-right and passing plate are replaced, screws with a different nominal
diameter can be accepted. After these parts are replaced, ne adjusting is required.
The respective adjusting procedures will be described elsewhere. Please read these procedures.
The rail identification
seal can be located
after removing the front
cover.
○ Check the screw load amount
○ Check and adjust the passing plate
○ Check and adjust the holding plate
○ Check and adjust the timer
○ Check and adjust the brush
○ Check and adjust the rail vibration
○ Check and adjust the front and rear sides of the rail
Passing plate
identication seal
㻾㼑㼒㼑㼞㼑㼚㼏㼑㻌㼠㼍㼎㼘㼑㻌㼛㼒㻌㼠㼔㼑㻌㼟㼜㼑㼏㼕㼒㼕㼑㼐㻌㼟㼏㼞㼑㼣㼟
㻿㼏㼞㼑㼣
㼒㼑㼑㼐㼑㼞
㼟㼑㼞㼕㼑㼟
㻿㼏㼞㼑㼣
㼒㼑㼑㼐㼑㼞
㼙㼛㼐㼑㼘
㻿㼏㼞㼑㼣
㼟㼕㼦㼑
㻱㼤㼏㼔㼍㼚㼓㼑㻌㼗㼕㼠
㻺㼛㻚
㻾㼍㼕㼘㻌㼙㼛㼐㼑㼘
㻺㼛㻚
㻱㼟㼏㼍㼜㼑㼞
㼙㼛㼐㼑㼘㻌㻺㼛㻚
㻿㼠㼛㼜㼜㼑㼞
㼍㼟㼟㼑㼙㼎㼘㼥
㼙㼛㼐㼑㼘㻌㻺㼛㻚
㻱㼟㼏㼍㼜㼑㼞
㻌㼓㼡㼕㼐㼑㻙㼞㼕㼓㼔㼠
㼙㼛㼐㼑㼘㻌㻺㼛㻚
㻼㼍㼟㼟㼕㼚㼓
㼜㼘㼍㼠㼑
㼙㼛㼐㼑㼘㻌㻺㼛㻚
㻿㼏㼞㼑㼣
㼟㼕㼦㼑
㻿㼏㼞㼑㼣㻌㼟㼔㼍㼒㼠
diameter（φ）
㻿㼏㼞㼑㼣
㼔㼑㼍㼐
㼐㼕㼍㼙㼑㼠㼑㼞
（φ）
㼃㼍㼟㼔㼑㼞
㼐㼕㼍㼙㼑㼠㼑㼞
（φ）
㻿㼏㼞㼑㼣
㼔㼑㼍㼐
㼠㼔㼕㼏㼗㼚㼑㼟㼟
（mm）
㻿㼏㼞㼑㼣
㼟㼔㼍㼒㼠
㼘㼑㼚㼓㼠㼔
（mm）
㻿㼑㼙㼟
㻰㼛㼡㼎㼘㼑
㼟㼑㼙㼟
㼃㼍㼟㼔㼑㼞
㼔㼑㼍㼐
㻻㻹㻙㻞㻢㻹㻞㻜 φ㻞㻚㻜 㻻㻹㻹㻞㻜㻿㻱㼀 㻻㻹㻹㻞㻜 㻿㻵㻱㻞㻜 㻿㻵㻱㻿㻞㻜 㻿㻵㻱㻹㻞㻜 φ㻞㻚㻜 1.9～2.1 2.4～6 2.4～10 0.35～6 2.6～25 ○ ○ ○ ○ ○ ○
㻻㻹㻙㻞㻢㻹㻞㻟 φ㻞㻚㻟 㻻㻹㻹㻞㻟㻿㻱㼀 㻻㻹㻹㻞㻟 㻿㻵㻱㻞㻟 㻿㻵㻱㻿㻞㻟 㻿㻵㻱㻹㻞㻟 φ㻞㻚㻟 2.2～2.4 2.7～6 2.7～10 0.35～6 2.9～25 ○ ○ ○ ○ ○ ○
㻻㻹㻙㻞㻢㻹㻞㻢 φ㻞㻚㻢 㻻㻹㻹㻞㻢㻿㻱㼀 㻻㻹㻹㻞㻢 㻿㻵㻱㻞㻢 㻿㻵㻱㻿㻞㻢 㻿㻵㻱㻹㻞㻢 φ㻞㻚㻢 2.5～2.7 3.0～6 3.0～10 0.35～6 3.2～25 ○ ○ ○ ○ ○ ○
㻻㻹㻙㻞㻢㻹㻟㻜 φ㻟㻚㻜 㻻㻹㻹㻟㻜㻿㻱㼀 㻻㻹㻹㻟㻜 㻿㻵㻱㻟㻜 㻿㻵㻱㻿㻟㻜 㻿㻵㻱㻹㻟㻜 φ㻟㻚㻜 2.9～3.2 3.5～6 3.5～11 0.35～6 3.6～25 ○ ○ ○ ○ ○ ○
㻻㻹㻙㻞㻢㻹㻟㻡 φ㻟㻚㻡 㻻㻹㻹㻟㻡㻿㻱㼀 㻻㻹㻹㻟㻡 㻿㻵㻱㻟㻡 㻿㻵㻱㻿㻟㻡 㻿㻵㻱㻹㻟㻡 φ㻟㻚㻡 3.4～3.7 4.0～8 4.0～11 0.35～6.5 4.1～25 ○ ○ ○ ○ ○ ○
㻻㻹㻙㻞㻢㻹㻠㻜 φ㻠㻚㻜 㻻㻹㻹㻠㻜㻿㻱㼀 㻻㻹㻹㻠㻜 㻿㻵㻱㻠㻜 㻿㻵㻱㻿㻠㻜 㻿㻵㻱㻹㻠㻜 φ㻠㻚㻜 3.8～4.2 4.5～8 4.5～12 0.35～6.5 4.6～25 ○ ○ ○ ○ ○ ○
㻻㻹㻙㻞㻢㻹㻡㻜 φ㻡㻚㻜 㻻㻹㻹㻡㻜㻿㻱㼀 㻻㻹㻹㻡㻜 㻿㻵㻱㻡㻜 㻿㻵㻱㻿㻡㻜 㻿㻵㻱㻹㻡㻜 㻻㻹㻡㻜 φ㻡㻚㻜 4.8～5.2 5.5～10 5.5～12 0.35～7 5.6～25 ○ ○ ○ ○ ○ ○
㻻㻹㻙㻞㻢㻹㻢㻜 φ㻢㻚㻜 㻻㻹㻹㻢㻜㻿㻱㼀 㻻㻹㻹㻢㻜 㻿㻵㻱㻢㻜 㻿㻵㻱㻿㻢㻜 㻿㻵㻱㻹㻢㻜 㻻㻹㻢㻜 φ㻢㻚㻜 5.8～6.2 6.5～11 6.5～12 0.35～7.5 6.6～25 ○ ○ ○ ○ ○ ○
㻌㻌㻌㻌㻌
㻌
㻻㻹㻙㻞㻢㻹
㻻㻹㻞㻜㻙㻟㻜
㻻㻹㻟㻡㻙㻠㻜
㻿㼔㼍㼜㼑㻌㼛㼒㻌㼟㼏㼞㼑㼣㻌㼔㼑㼍㼐
㻼㼍㼚㻌㼔㼑㼍㼐
㼎㼕㼚㼐
㻲㼘㼍㼠㻌㼔㼑㼍㼐
㼔㼑㼤㼍㼓㼛㼚
㼒㼘㼍㼚㼓㼑
㼎㼛㼘㼠

－8－
５－２．Basic operations
○Loading the screws
・Turn the power switch ON and OFF so that the brush stops vertically above
the rail.
・Open the top cover and load screws on the left and right side of the rail
evenly.
・Do not load screws above the surface of the rail.
・Be sure to determine the screw load by observing the machine while it is in
operation.
Screws with a diameter larger than 5 or longer than 20mm,
under the head, should not be loaded higher than the rail bottom.
○Turning ON the power
・Use only the adapter supplied with this machine to connect it to a wall outlet.
When you turn the power on, the switch lamp lights up, the motor rotates and
screws are scooped onto the rail.
・The rail vibrates to deliver screws towards the end of the rail, then the
escaper rotates to deliver screws to the pick up spot. When the screws come
to the stopper, the LED indicator lights up and the escaper stops rotating.
Rail cover
(INDICATION:The maximum screw load must not be
over 30mm below the rail-groove surface.)
Disassembled state
Do not load screws
above this point.
(Rail Bottom)
Rail cover
[CAUTION]
・The type and length of screw changes the load capacity so check and adjust
the load accordingly.
・Do not overload the hopper with screws otherwise it may cause a
malfunction or damage the machine.
・This machine accepts only steel screws. Plastic or stainless screws are not
accepted.
[CAUTION] Use only the AC adapter supplied with this machine
otherwise it may cause damage to the machine.

－9－

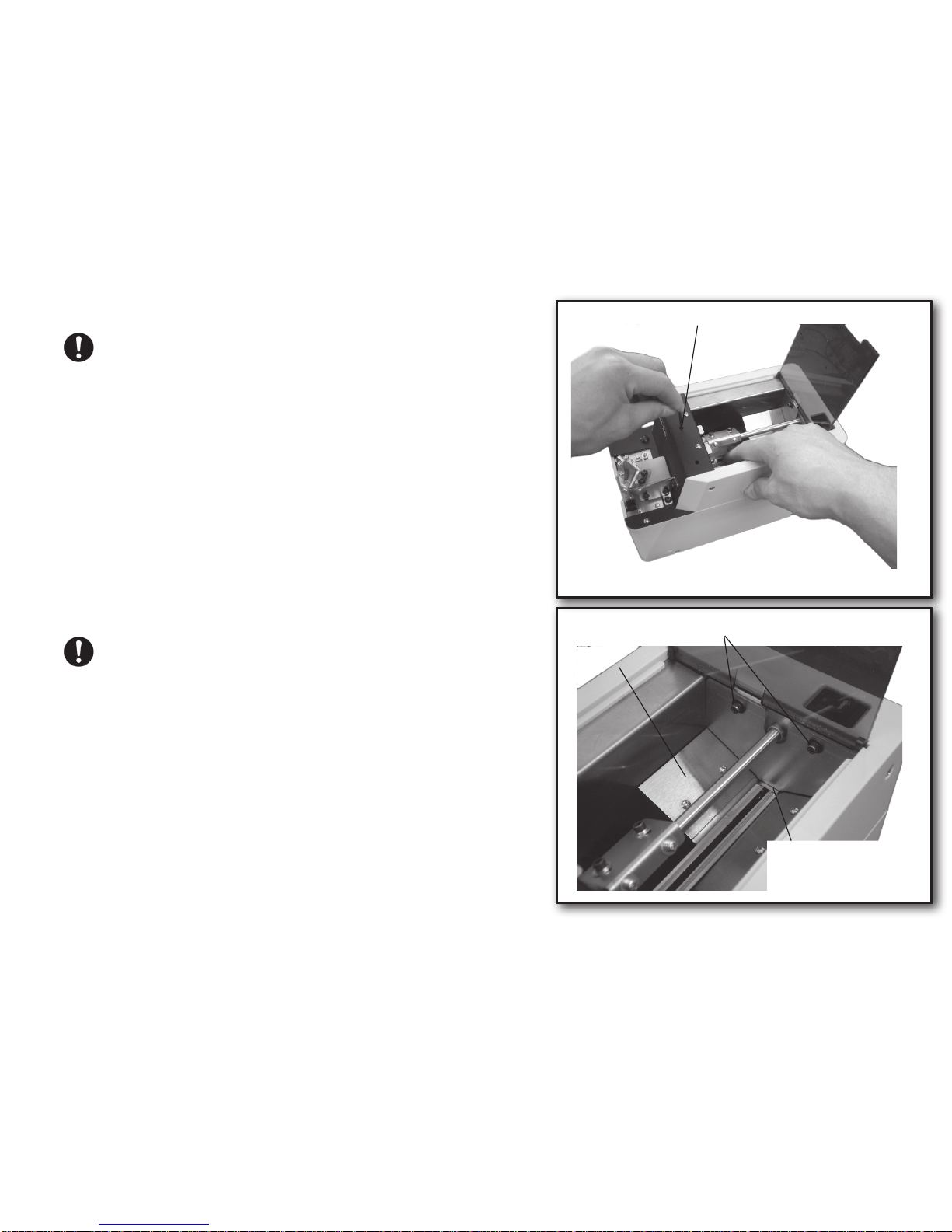

○Pick uping Screws
・Pick up the screws at the stopper with the electric screw driver.
Use the bit guide to put the screwdriver down vertically into the screwhead's slots,
then pull the screwdriver, horizontally, towards you as pick uping the screw.
・When inserting the screwdriver into the screwhead slots, do not use excessive force
as it may alter the position of the escaper or cause damage to the machine.
・To insert the screwdriver bit into the screwhead slots properly, it may be necessary to
twist the driver slightly.
・Use a driver bit which corresponds with the screw's diameter.

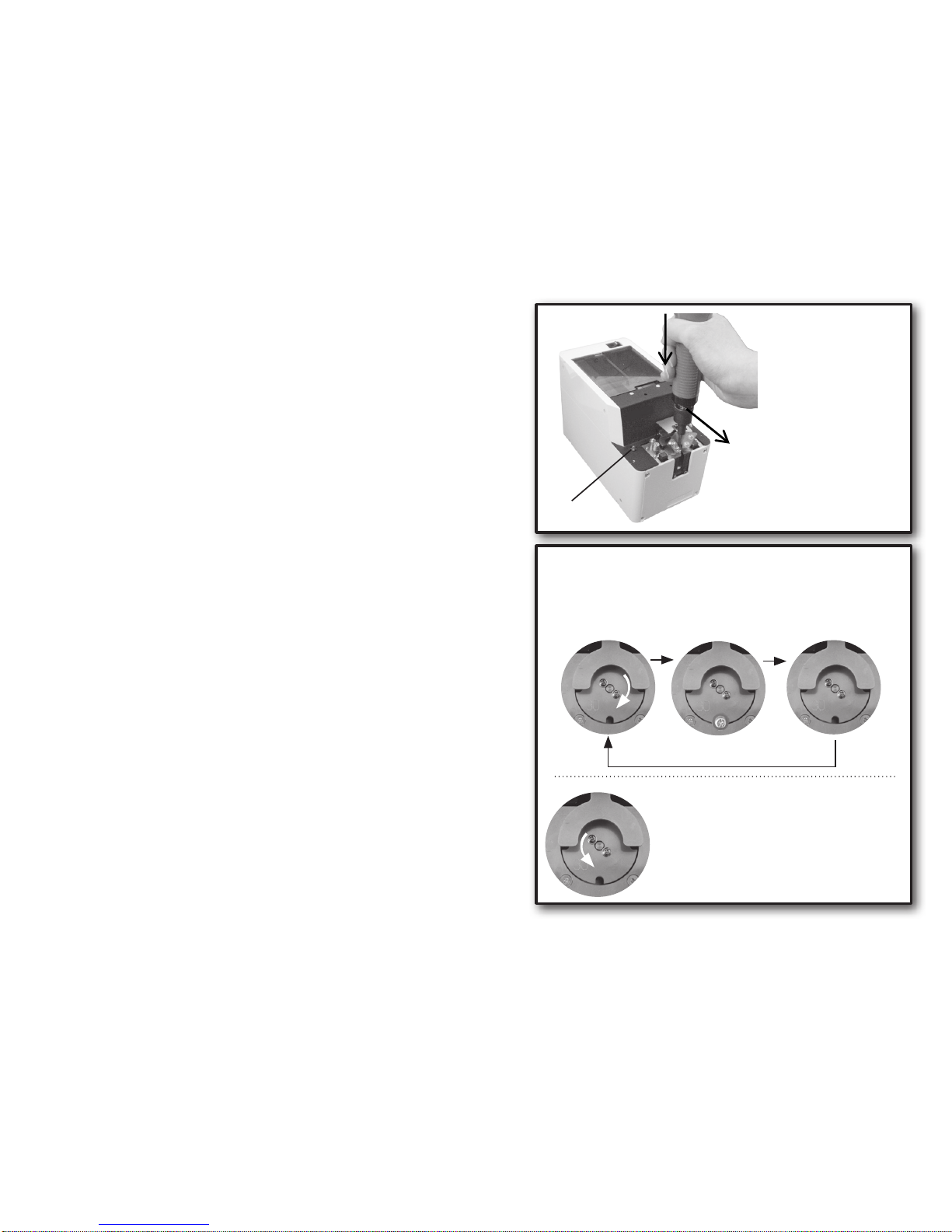

○Action of the escaper
・The escaper rotates 90° clockwise--> stops for about 0.6 seconds
--> and rotates again 90° clockwise.
When a screw is caught in the escaper and the notch position is altered, the escaper
automatically rotates to the left, as a reference point run, in order to adjust the notch
position and then returns to the right rotation.
・This machine continues its operation when no screw is found at the screw pick up
spot. The machine continues operating with a screw at the pick up spot but will stop,
after a certain lapse of time, if the screw is not picked up. After the screw is picked
up, the machine starts operating again. This time lapse can be varied by adjusting
the timer.
・When no screw is found at the pick up site after a certain lapse of time, the rail
vibration increases.
(The vibration sound, also, increases however, this is not a problem.)
If no screw is still not found at the pick up site, then the machine stops operating. At
this time the escaper keeps rotating. When you want to start operation again, turn
the power switch OFF and ON again.
LED screw indicator
①
②
①Put the screwdriver
down vertically as
twisting it slightly and
insert the bit into the
screwhead slots properly.
②Pull the screwdriver
towards you, horizontallly
and pick up the screw.
Accepting a screw.
LED screw indicator
is OFF
The screw is carried to
the pick up site.
LED screw indicator is
ON
Pick uping the screw
at the pick up site.
LED screw indicator is
OFF
The rotation of the escaper, in the opposite
direction, is a reference point run of the escaper
motor.
The rotation of the escaper, in the opposite
direction, occurs when the power is turned on and
the starting point of the escaper is not alligned
with the reference point of the escaper motor.
During regular operation, as in the gure above,
the escaper rotates clockwise.
（Reference）
○Action of the escaper

－10 －
５－３．Adjusting the brush height
Load the screws into the scooping hopper, turn ON and OFF the
power switch so that screws are alligned into the rail groove.
・Turn ON and OFF the power switch in order to set the brush to the
left as shown in the gure on the right.
・Move the brush by hand to check that the screws, in the rail
groove, are in slight contact with the brush bristles and if needed
make the necessary adjustments.
・When the brush height is too high or low, this will have an adverse
effect on the screw allignment and transport.
・If any adjustment is necessary, loosen the brush height adjusting
bolt to adjust the brush height.
・If the plastic portion, at the front of the brush, comes into contact
with the passing plate, loosen the brush assembly mounting screw
and move the brush assembly back so there is 0 mm clearance.
・Turn ON the power switch to check that the brush operation is
normal.
Turn OFF the power switch before starting replacement and
adjustment.
Brush
Loaded screws
Brush height adjusting bolt
Move the brush by hand to check that the screws, in the
rail groove, are in slight contact with the brush bristles
and make adjustments if necessary.
Turn On and Off the power switch to put the brush
bristles in a horizontal position towards the left side.
Brush assembly
attaching screw

－11 －
５－４．
Checking and adjusting the rail vibration
The amplitude and frequency of the rail vibration can be adjusted.
The vibration has been adjusted at the factory for screws that correspond with
the rail.
Put some screws into the rail and turn the power on. If they are delivered
smoothly, there is no need for adjustment.
The screw transport feed differs depending on screw type.
For screws with a low transport speed, or screws that easily jump, an
adjustment is necessary.
Amplitude adjusting
knob
Frequency adjusting knob
SmallLarge
LowHigh
①Turn the frequency adjusting knob (rst hole at the top in the
back of the machine) using the accompanying screwdriver.
Find the frequency at which the rail vibrates the most.
②Turn the amplitude adjusting knob (second hole from the top)
and nd the amplitude for which screws are delivered smoothly.
・If the vibration is adjusted to a too large a value to increase the transport
speed, screws may jump from the rail and fall into the machine from the
clearance, failing to unload screws normally.
Adjust the vibration to a proper value that matches the loaded screws.
・With the accompanying screwdriver, turn the knob without using excessive
force.
・When no screws are scooped onto the rail for a certain period of time, the rail
vibration increases. If, still, no screws are scooped on to the rail, the machine
stops operating.

－12 －
５－５．
Check and adjust the front and rear sides of the rail
５－６．
Check and adjust the rear hopper cover
Turn OFF the power switch before starting replacement and
adjustment.
Turn OFF the power switch before starting replacement and
adjustment.
Rail xing bolt
Hold the rail groove and
adjust the rail assembly either
backward or forward.
The rear hopper cover attaching bolts
The clearance between the
rear hopper cover and the rail
assembly is about 0.2mm
Scraper
・If the rail comes into contact with the escaper, or the clearance between the
rail and escaper is too large, loosen the rail xing bolt, hold the rail groove
and adjust the rail assembly either backward or forward.
After making an adjustment, be sure to tighten the rail xing bolt.
・When the rail comes in contact with the escaper, the escaper disk doesn't
rotate properly. When the clearance between the rail and the escaper is too
large, screws may fall down into the machine.
・After making an adjustment, try making a vibration readjustment by referring
to " 5-4 Checking and Adjusting the Rail Vibration".
・Check that the clearance between the rear hopper cover and the rail
assembly is about 0.2 mm.
・If the rail hits against the rear hopper cover, the vibration will become weak
and the screws will be delivered slowly.
If the rear hopper cover is too high, the slit between the rail and the scraper
catches screws easily.
・If adjustment is required, loosen the rear hopper cover attaching bolts and
make an adjustment either up or down.

－13 －
５－７．Check and adjust the passing plate
５－８．Check and adjust the holding plate
・Check that the clearance between screws in the rail groove and the
holding plate is about 0 ～1mm.
・If any adjustment is required, loosen the holding plate attaching screw
and turn the holding plate adjusting screw, to move the plate up or
down.
・If there is no clearance, a screw will be blocked. If the clearance is too
large, screw piling or screw jump out will occur.
When the holding plate adjusting screw is turned clockwise,
the plate moves down.
When the adjusting screw is turned counterclockwise,
the plate moves up.
Turn OFF the power switch before starting replacement and
adjustment.
Up Down
Passing plate
Passing plate
attaching bolt
Loaded screws
The clearance should be just enough to permit the loaded screws
to pass through the passing plate.
Holding plate
adjusting screw
Holding plate attaching
screw
(inside of the hole)
・Check that the passing plate is adjusted to a height that permits
loaded screws to pass just within the limit.
・If the passing plate is too low, screws cannot pass.
If the passing plate is too high, it will hamper a smooth transport of the
screws.
・If adjustment is required, loosen the passing plate attaching bolts and
adjust either up or down.

－14 －
Scraper-left
Scraper-right
Hopper wall-left
Scraper
attaching screws
Clearance around
0.4mm
Timer adjusting knob
(the 3rd hole from the top)
Shorter
Longer
Check the lapse of time until the motor
stops by intercepting the front sensor.
(Use a small peice of paper to intercept
the sensor.)
Edge of the plate with angled-cut corner shall be on
the upper side, facing the rail.
５－９．Check and adjust the timer
The screw transport feed differs depending on screw type.
This machine can make screw unloading smooth through timer adjustment. For screws
with a low transport speed, set the timer long. For screws with a high transport speed,
set the timer short.
５－１０．Check and adjust the scraper
・Check that the clearances, between the scraper right/left and the hopper wall right/
left, are around 0.4mm.
・When the scraper makes contact with the hopper wall, the rail vibration becomes
weak and the screws are delivered slowly. When the clearance between the scraper
and the hopper wall is too large, the screws may be caught easily.
・If any adjustment is required, loosen the scraper attaching screw and move the
scraper plate up or down.
・After such adjustments, if deformation on the plate has occurred so that proper
clearance and adjustment cannot be achieved, or scratches on the plates had
caused trouble in screw movement, please purchase replacement parts for best
results.
Left Scraper : TPO91201 Right Scraper: TPO91202
・This machine continues its operation when no screw is found at the screw pick up
spot. The machine continues operating with a screw at the pick up spot but will
stop, after a certain lapse of time, if the screw is not picked up. This time lapse can
be varied by adjusting the timer. After the screw is picked up, the machine starts
operating again.
・Check the operation by intercepting the optical axis of the sensor, covering one of the
sensors.
・Make an adjustment with the timer adjusting knob (the 3rd hole from the top) at the
rear of the machine body (as shown in the gure on the right).
・When the timer knob is turned clockwise, as viewed from the rear side,
the time becomes shorter. When the knob is turned counterclockwise,
the time becomes longer.(about 1 ～6 sec.)

－15 －

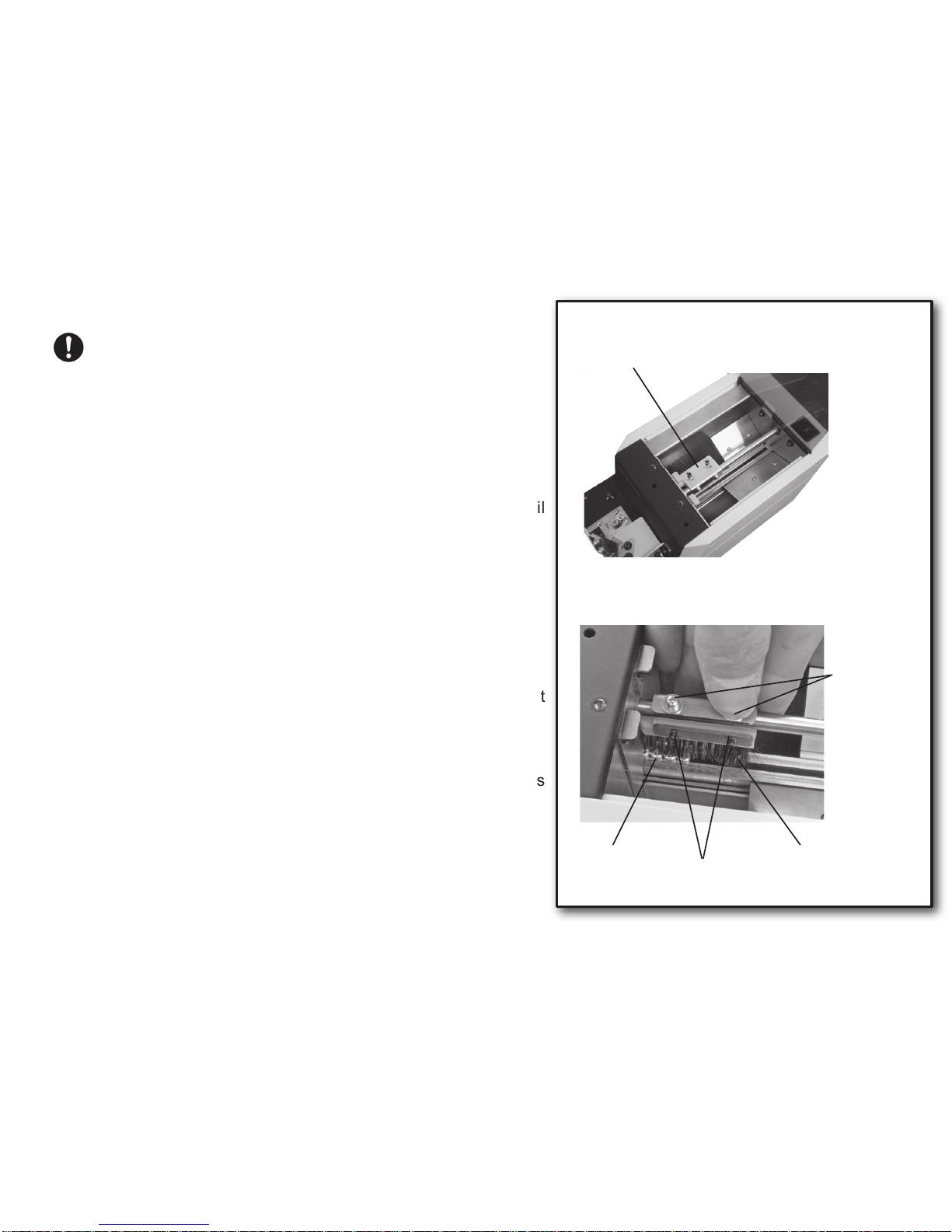

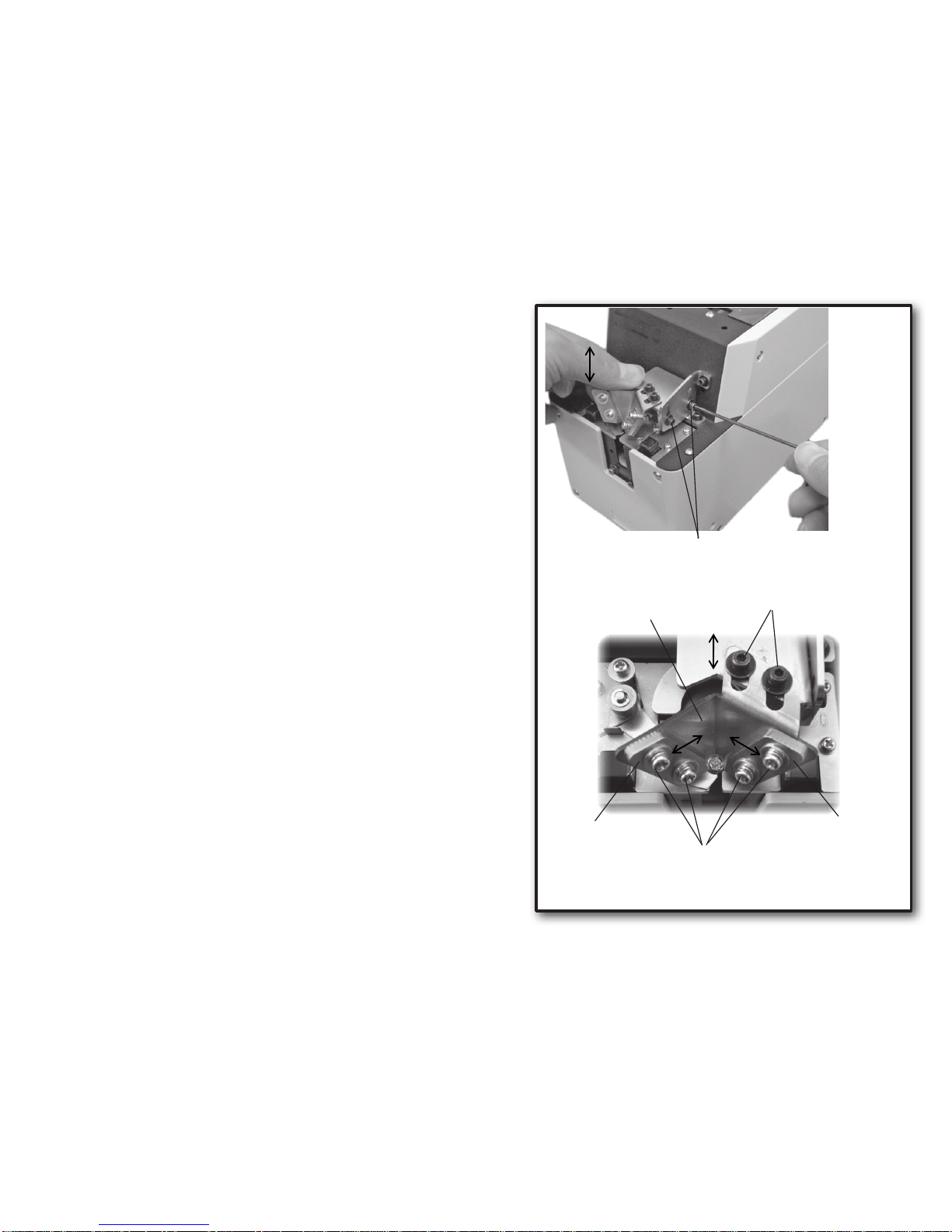

５－１１．Checking and adjusting the bit guide
・Adjust the bit guide's height by loosening the attaching bolts.
・Take care that the bit guide does not contact the screw heads.
・
Use the screwdriver and Allen wrench that come with this machine.
Remember to tighten the bolts and screws after adjustment.
・After adjustment, check that the pick up of screws is smooth.
Bit guide attaching bolts
Bit guide
Guide-right
Guide-left
Guide attaching screws
Bit guide assembly attaching bolts

－16 －
7．PARTS ADJUSTMENTS AND REPLACEMENTS
The brush and main motor are consumable parts.
When using a different diameter of screw, the following items must be replaced: rail, escaper and passing plate. These
parts may be ordered separately.
The replacing and adjusting procedures are described on the next page.
When replacing any parts, a fine adjustment is required. Make these fine adjustments by reading the corresponding
contents carefully.
Before replacing any parts, be sure to remove all the screws from the hopper.
６．MAINTENANCE
A dirty rail groove may interfere with the screw transport speed.
Clean the dirty rail with a soft, clean cloth dipped in alcohol.
If cleaning is difcult, remove the rail from the machine and clean the rail groove.
Refer to the next section under『7-1 Replacing the rail assembly』 for replacing.
Before removing the rail from the machine, be sure to turn off the power supply and take the screws out of the hopper.
If there is any dirt or a aw in the rail groove that may cause an impediment in use,
we recommend the user to replace the rail.

－17 －

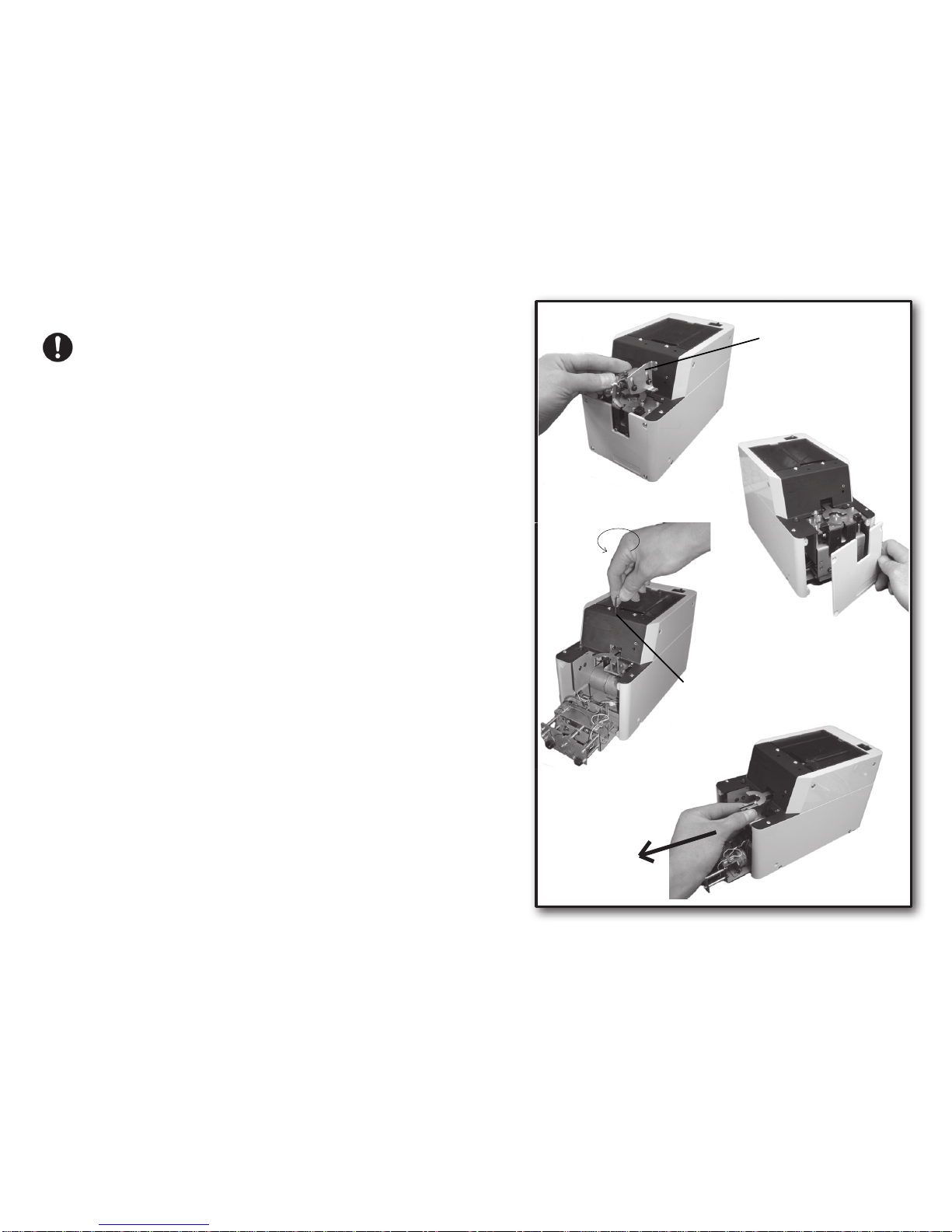

７－１．Replacing the rail assembly
Turn OFF the power switch before starting replacement and
adjustment.
Before replacing, remove all the screws from the hopper, the
rail, and the escaper.
①
②
③
④
Remove the bottom
front cover.
Loosen the rail xing bolt.
Pull the rail out.
Remove the
bit guide assembly.
The rail assembly of this machine can be easily replaced.
If there is any dirt or flaw on the rail groove that prevents a smooth
operation, we recommend the user clean or replace the rail. Use
the passing plate, escaper and rail assembly that correspond to the
diameter of the screws to be used.
①Remove the bit guide assembly.
②Remove the bottom front cover.
③Loosen the escaper assembly screws and pull out the
escaper assembly. Insert the accompanying Allen wrench
into the left hole on the front top cover and loosen the
rail xing bolt.
④Pull out the rail assembly and replace it with a rail that
corresponds with the screws you will be using.
For reassembly, reverse the disassembly procedure.
After replacing the rail, adjustments are required.
Fix the rail so that it does not contact the escaper and make sure that
screws won’t fall into the clearance between the escaper and rail.

－18 －

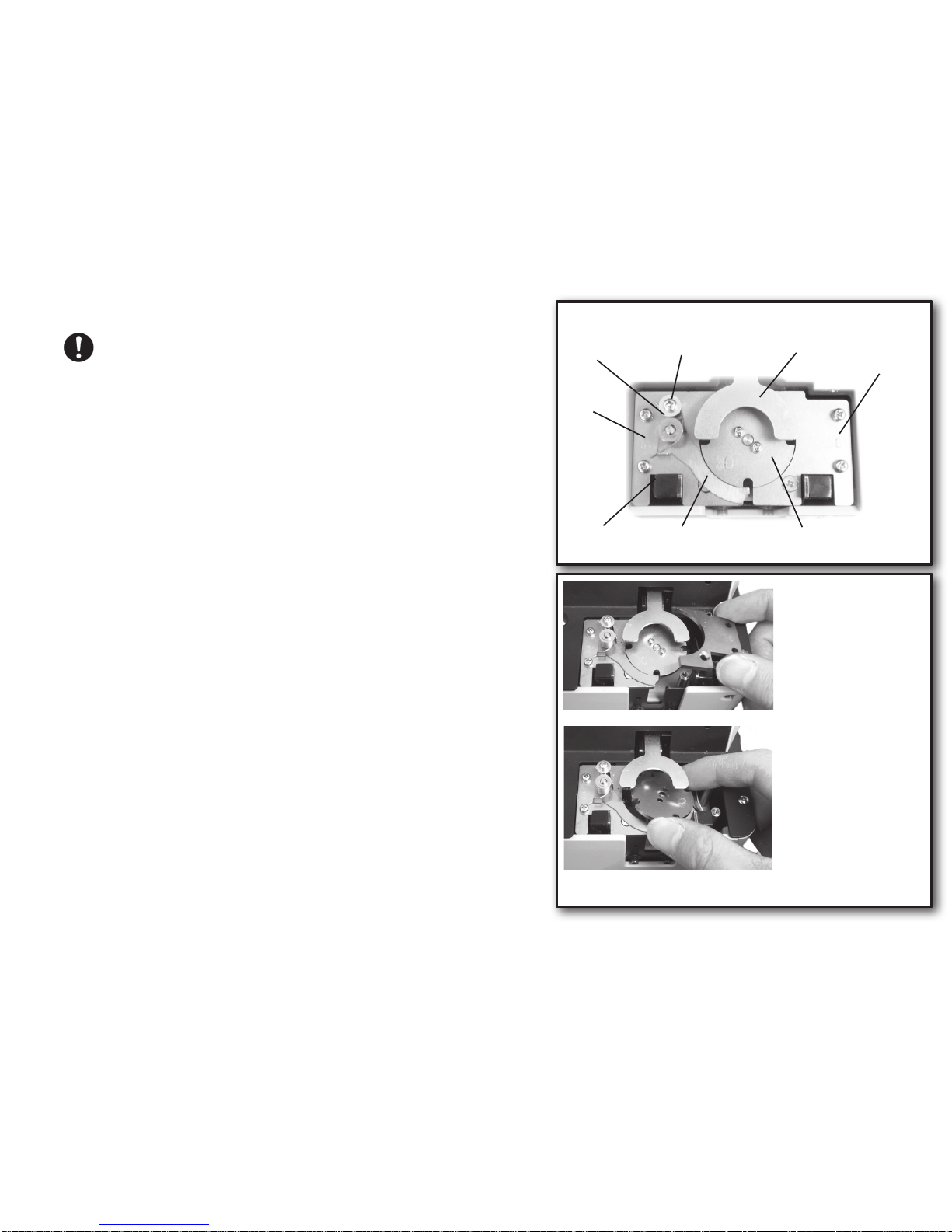

７－２．
Replacing and adjustment of the escaper
Holding plate
Escaper
Stopper
assembly
Escaper guide-right
Stopper
①Start by removing, in this order, the escaper guide-right
--> escaper --> stopper assembly.
Loosen the attaching screws of the escaper guide-right and the
escaper and remove them.
Front sensor
Spacer Spacer xing screw
Names of the parts
Turn OFF the power switch before replacing.
Turn ON the power switch when adjustments are necessary.
Before replacing, remove all the screws from the hopper, the
rail, and the escaper.
Remove the escaper
guide-right.
Remove the escaper.
When using screws with a different diameter, replace the escaper,
the stopper assembly, the escaper guide-right, the rail and the
passing plate.
First, remove the bit guide bracket attaching plate and then replace
and adjust the parts.
After replacement, be sure to adjust and check the parts in the area
of the escaper.
When you remove the escaper attaching screw, please use the driver
specied for M2 (bit No.0).

－19 －
Remove the spacer.
Remove the stopper
assembly.
Loosen the spacer xing screw and remove the spacer.
Remove the screw under the stopper and remove the stopper
assembly.
②Attach the escaper guide-right, escaper and stopper
assembly that corresponds with the screw's nominal diameter.
First, attach the stopper assembly.
It should be the position as pictured on the right.
(3 screws)
Attach the spacer.
At this time, the stopper should be in the position
as pictured on the right.
Stopper
Position the spring arm of
the stopper spring on the
stopper tab.
