OK DIGITAL LF10 Series User manual

LF10 Series Installation Guide

2
Page
1. Models 3
2. Accessories 4
3. Install LF11-PL for right-hand door 5-6
4. Install LF12-FL for right-hand door 7-8
5. Install LF13-HL for right-hand door 9-10
6. Install LF11-PL for left-hand door 11-12
7. Install LF12-FL for left-hand door 13-14
8. Install LF13-HL for left-hand door 15-16
9. Install LF11-PL for two doors 17-18
10. Install LF12-FL for two doors 19-20
11. Install LF13-HL for two doors 21-22
Table of Contents

3

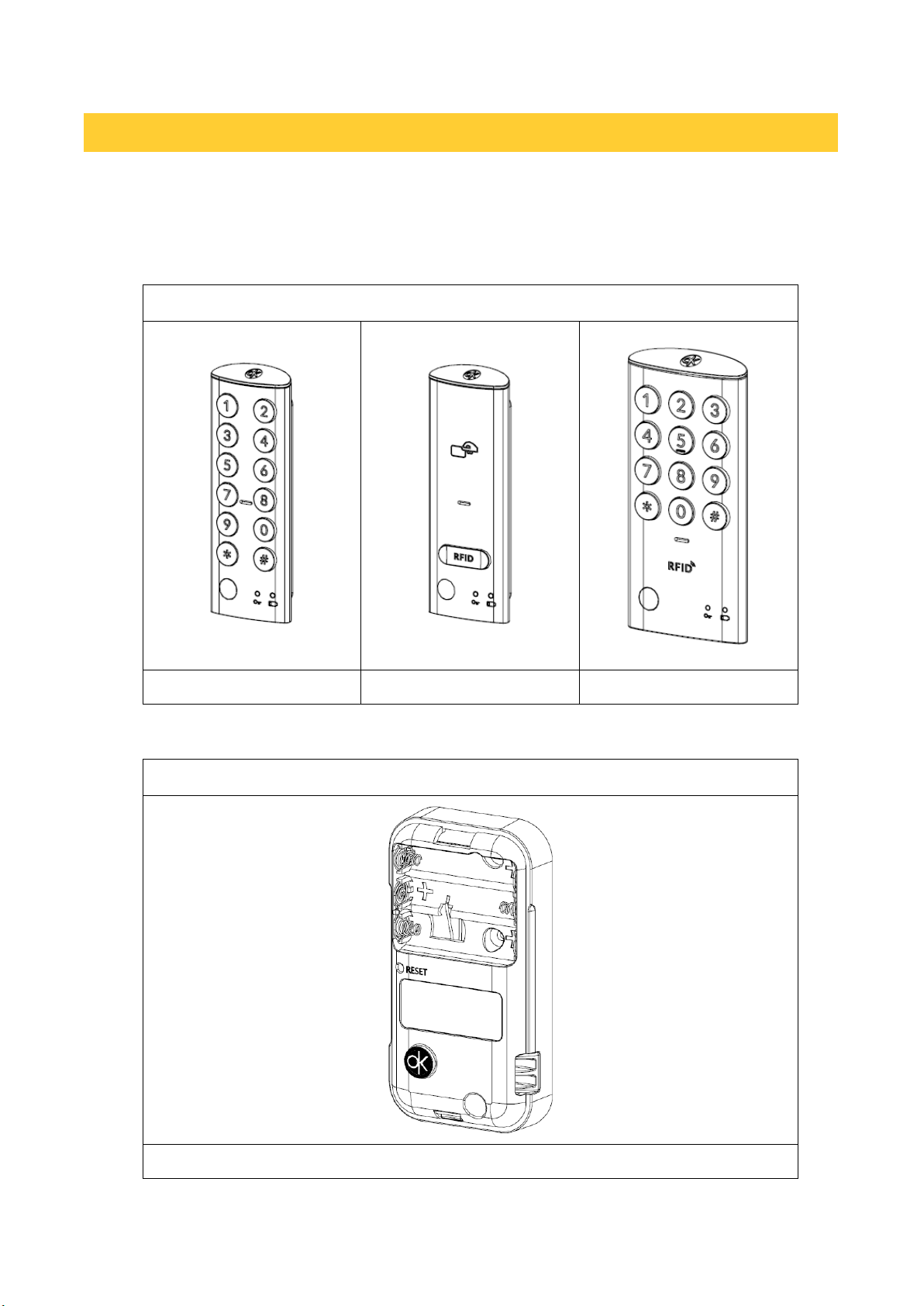

Supported door thickness: 15mm / 18mm / 20mm
⚫Please refer to User Guide for punching installation holes
FRONT
LF11-PL
LF12-RL
LF-13HL
REAR
LR11
Models

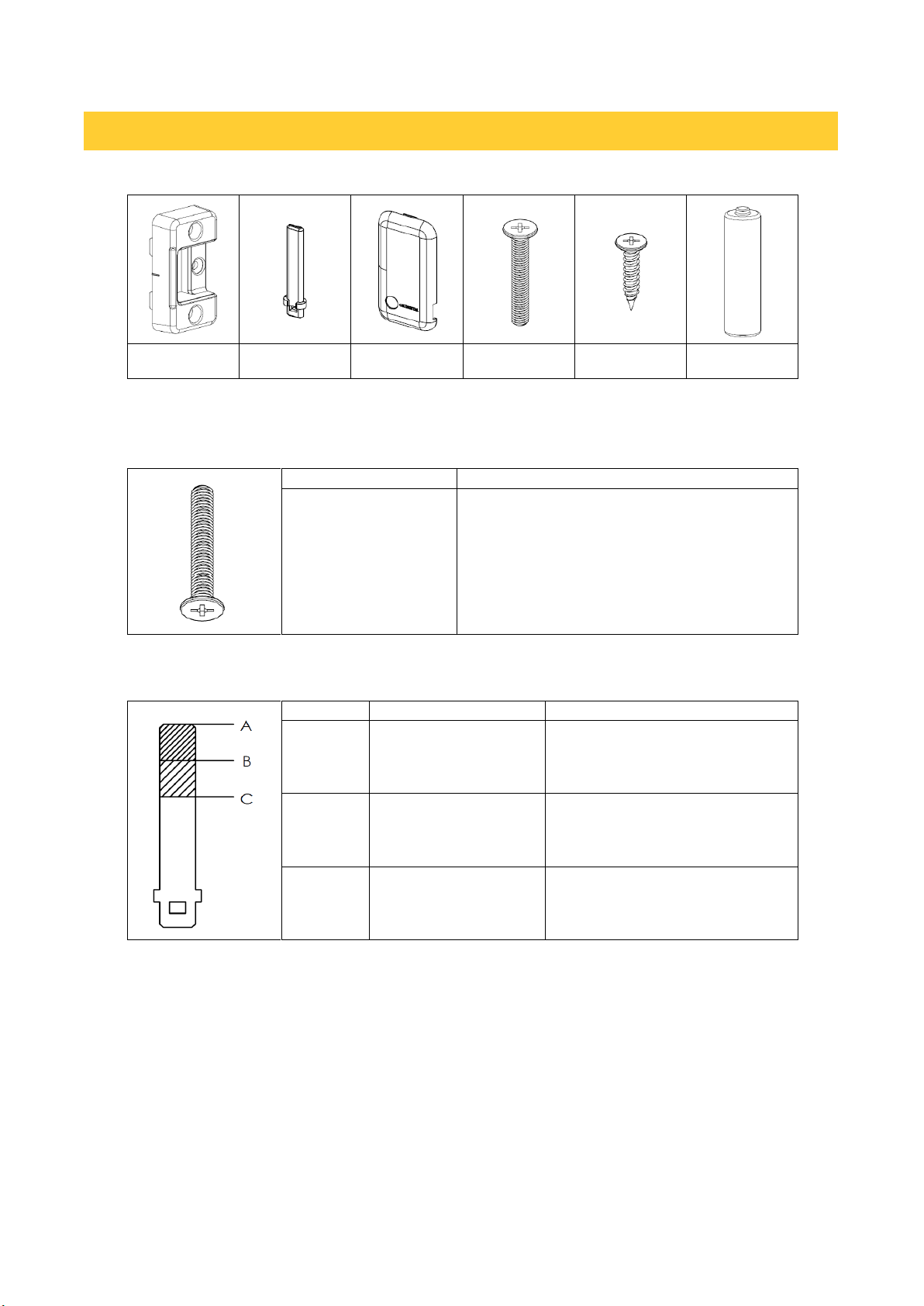

4
Bracket
Link
Battery
Cover
Bolt
Screw
Battery
⚫Details of the bolt
Door Thickness
Size of the bolt
15mm ~ 20mm
Flat Head Bolt M4 X 20mm
⚫Details of the link
Type
Door Thickness
Link
A
20mm
30mm (marked “L”)
B
18mm
28mm (marked “M”)
C
15mm
25mm (marked “S”)
※Need to discuss for other door thickness.
Accessories

5

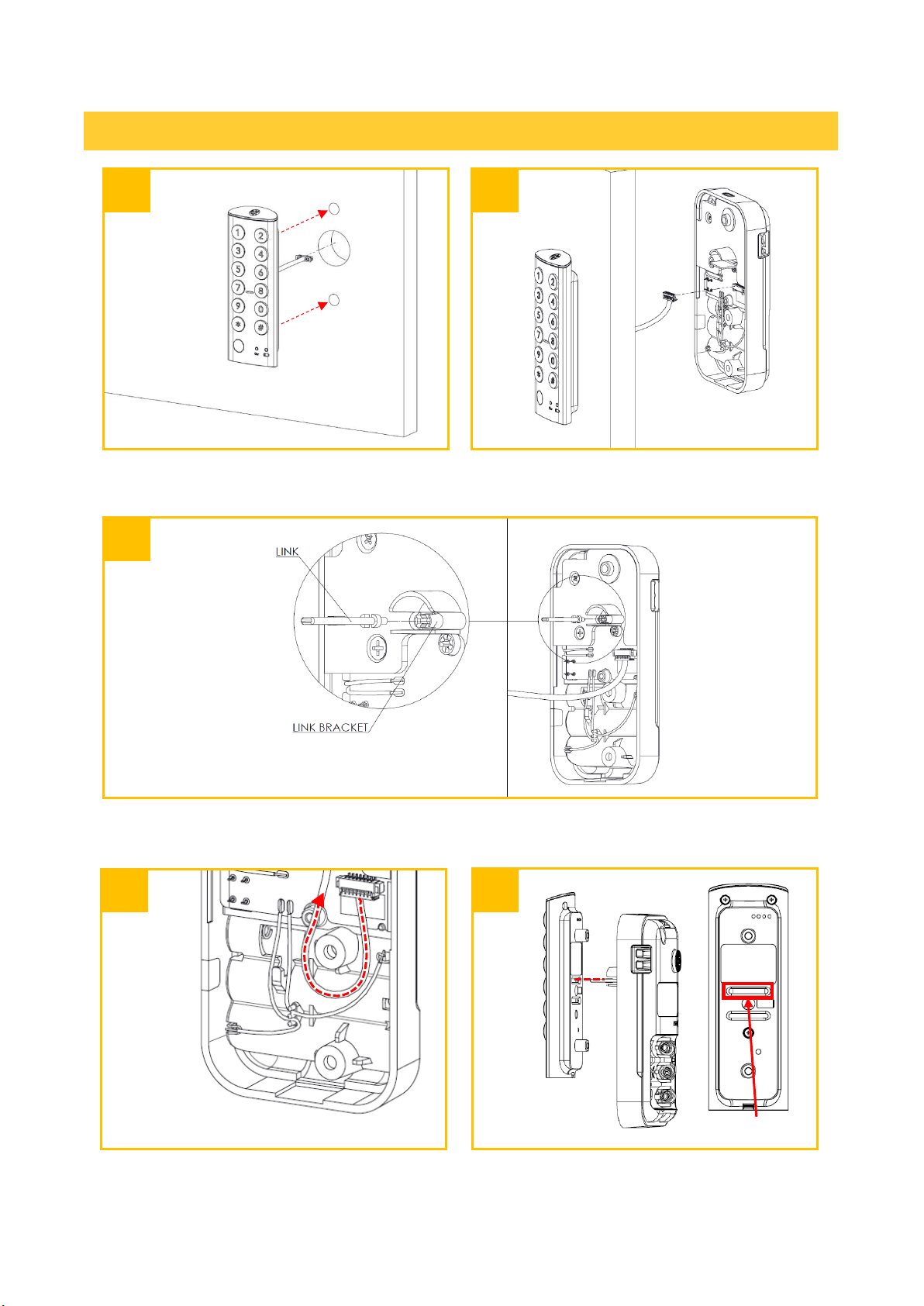

Install LF11-PL for right-hand door
2
Connect front cable to the rear.
Insert the link into the link bracket of the rear.
※Caution: In-use indicator will not work if the link is assembled incorrectly.
3
Arrange the cable as above picture.
(Prevent the cable getting stuck)
4
5
Align front and rear to insert the link
into the link hole.
Link Hole
1
Place the front unit through the lock
mounting holes on the front of the door.

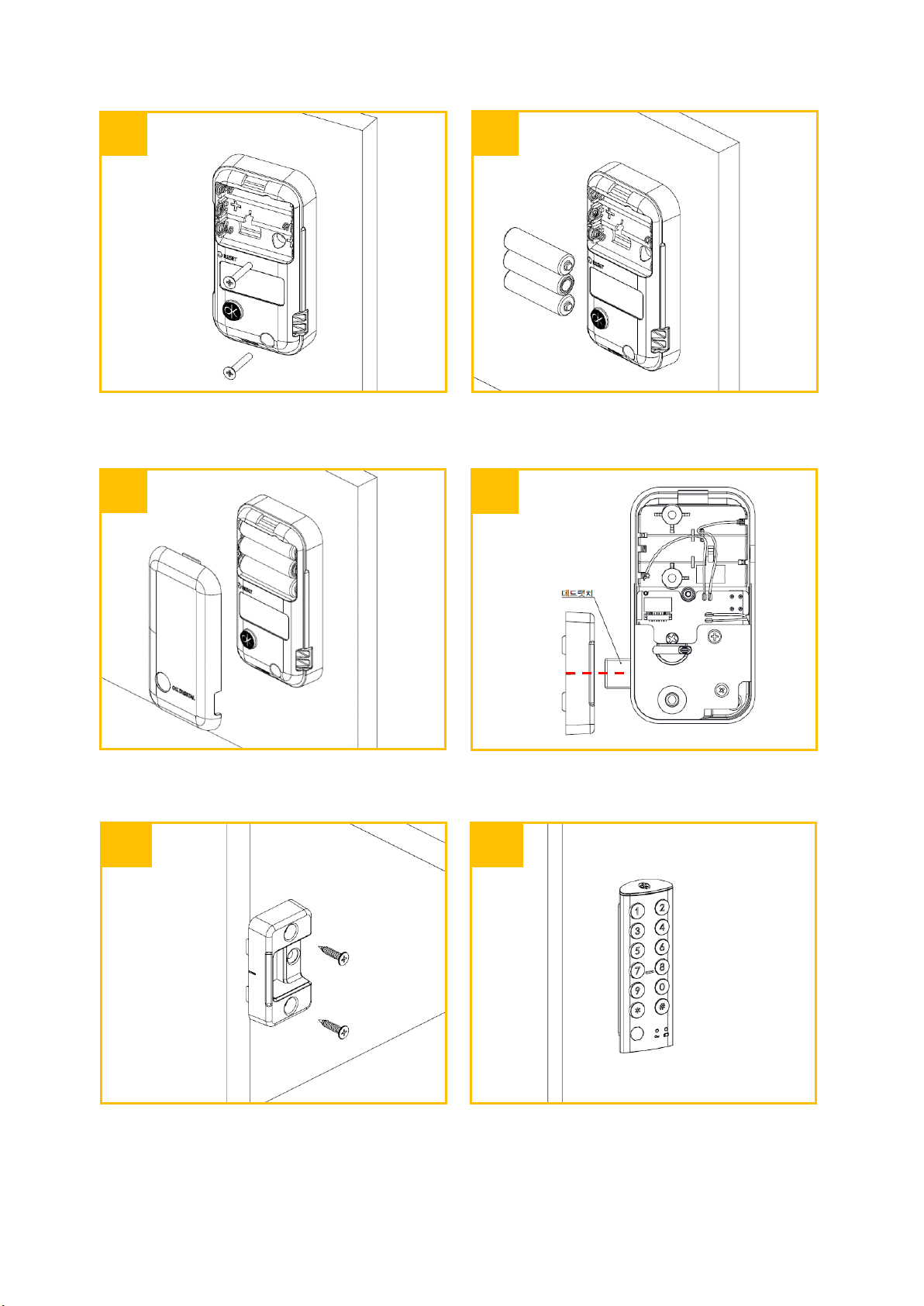

6
6
Hold the front and rear and tighten the
bolt. (Torque: 3 of electric drill)
7
Install batteries (AA Alkaline).
8
Assemble the battery-Cover.
10
Tighten screws into the strike.
11
Test locking and unlocking after
installation. (Refer to the User Guide)
Align the strike to match with center of
the deadbolt.
9

7
2
Connect front cable to the rear.
Insert the link into the link bracket of the rear.
※Caution: In-use indicator will not work if the link is assembled incorrectly.
3
Arrange the cable as above picture.
(Preventing the cable getting stuck)
4

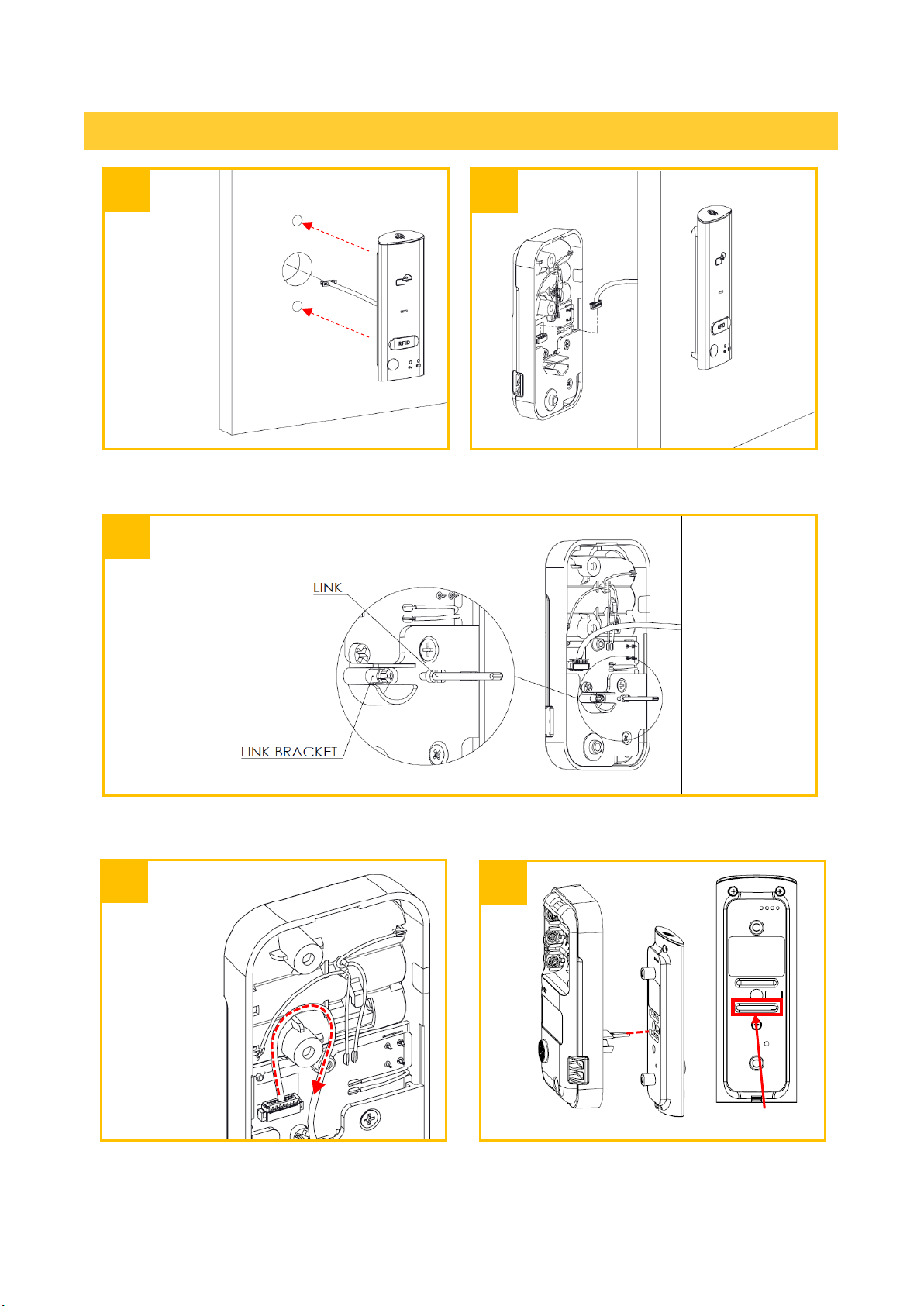

Install LF12-RL for right-hand door
5
Align front and rear to insert the link
into the link hole.
Link Hole
1
Place the front unit through the lock
mounting holes on the front of the door.

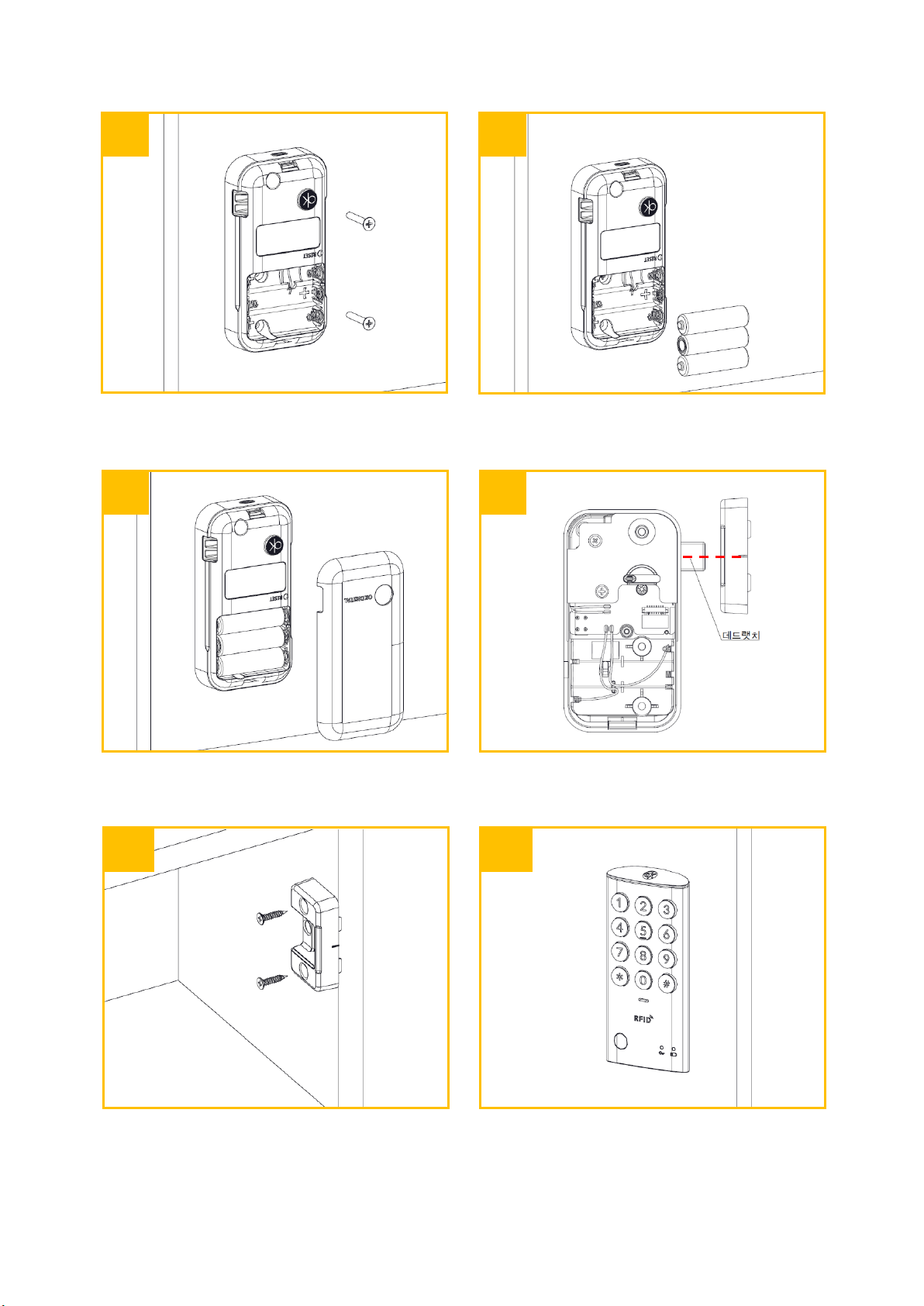

8
6
Hold front and rear and tighten the bolt.
(Torque: 3 of electric drill)
7
Install batteries (AA Alkaline).
8
Assemble the battery-Cover.
10
Tighten screws into the strike.
Align the strike to match with center of
the deadbolt.
9
11
Test locking and unlocking after
installation. (Refer to the User Guide)

9
2
Connect front cable to the rear.
Insert the link into the link bracket of the rear.
※Caution: In-use indicator will not work if the link is assembled incorrectly.
3
Arrange the cable as above picture.
(Preventing the cable getting stuck)
4
Install LF13-HL for right-hand door
5
Align front and rear to insert the link
into the link hole.
Link Hole
1
Place the front unit through the lock
mounting holes on the front of the door.

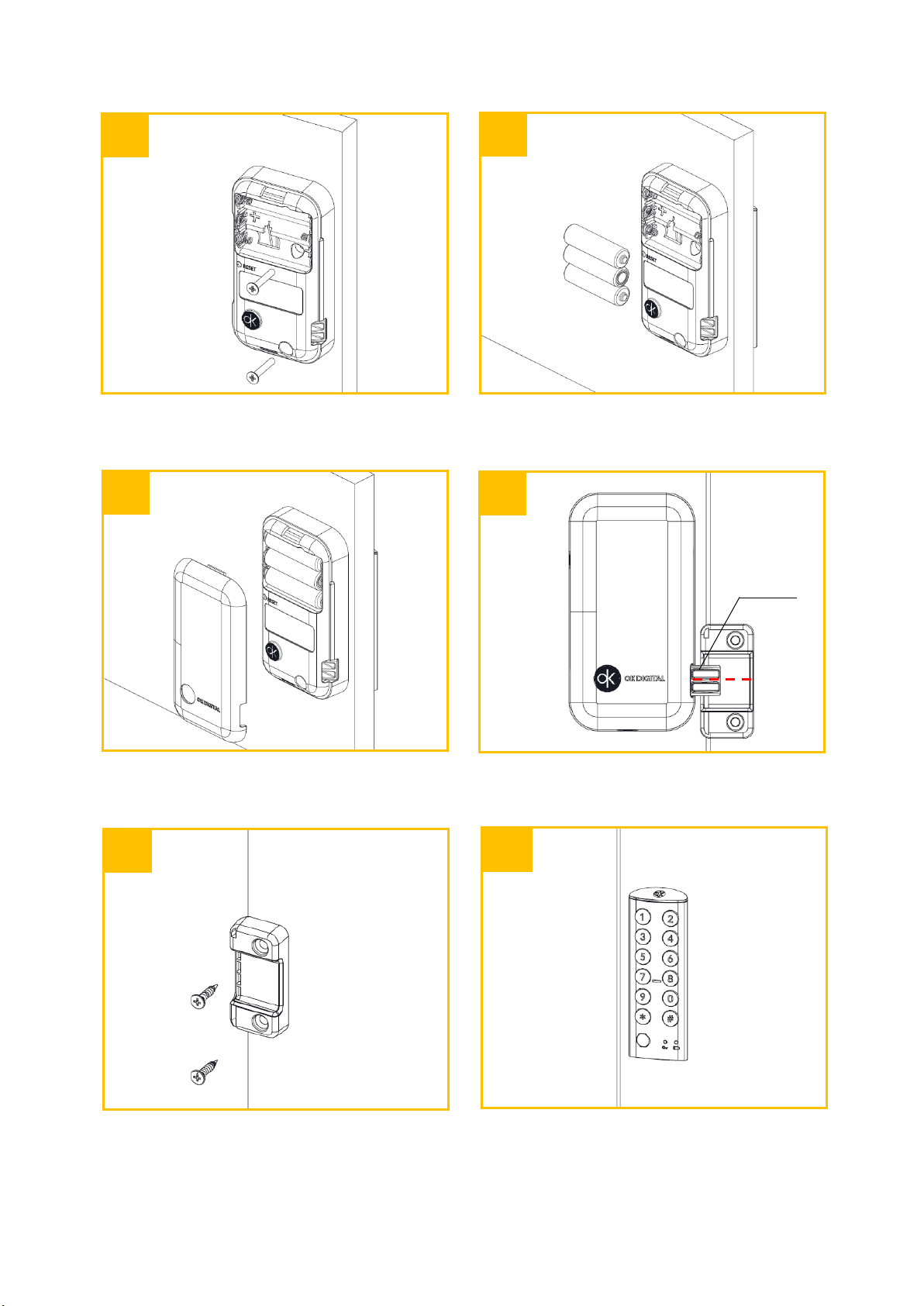

10
6
Hold front and rear and tighten the bolt.
(Torque: 3 of electric drill)
7
Install batteries (AA Alkaline).
8
Assemble the battery-Cover.
10
Tighten screws into the strike.
Align the strike to match with center of
the deadbolt.
9
11
Test locking and unlocking after
installation. (Refer to the User Guide)

11
2
Connect front cable to the rear.
Install LF11-PL for left-hand door
3
Insert the link into the link bracket of the rear.
※Caution: In-use indicator will not work if the link is assembled incorrectly.
4
Arrange the cable as above picture.
(Prevent the cable getting stuck)
``
5
Align front and rear to insert the link
into the link hole.
Link Hole
1
Place the front unit through the lock
mounting holes on the front of the door.

12
6
Hold the front and rear and tighten the
bolt. (Torque: 3 of electric drill)
7
Install batteries (AA Alkaline).
8
Assemble the battery-Cover.
10
Tighten screws into the strike.
11
Test locking and unlocking after
installation. (Refer to the User Guide)
Align the strike to match with center of
the deadbolt.
9

13
2
Connect front cable to the rear.
3
Insert the link into the link bracket of the rear.
※Caution: In-use indicator will not work if the link is assembled incorrectly.
4
Arrange the cable as above picture.
(Preventing the cable getting stuck)
``
Install LF12-RL for left-hand door
5
Align front and rear to insert the link
into the link hole.
Link Hole
1
Place the front unit through the lock
mounting holes on the front of the door.

14
6
Hold front and rear and tighten the bolt.
(Torque: 3 of electric drill)
7
Install batteries (AA Alkaline).
8
Assemble the battery-Cover.
10
Tighten screws into the strike.
11
Test locking and unlocking after
installation. (Refer to the User Guide)
Align the strike to match with center of
the deadbolt.
9

15
2
Connect front cable to the rear.
3
Insert the link into the link bracket of the rear.
※Caution: In-use indicator will not work if the link is assembled incorrectly.
4
Arrange the cable as above picture.
(Preventing the cable getting stuck)
``
Install LF13-HL for left-hand door
5
Align front and rear to insert the link
into the link hole.
Link Hole
1
Place the front unit through the lock
mounting holes on the front of the door.

16
v
6
Hold front and rear and tighten the bolt.
(Torque: 3 of electric drill)
7
Install batteries (AA Alkaline).
8
Assemble the battery-Cover.
10
Tighten screws into the strike.
11
Test locking and unlocking after
installation. (Refer to the User Guide)
Align the strike to match with center of
the deadbolt.
9

17
2
Connect front cable to the rear.
Insert the link into the link bracket of the rear.
※Caution: In-use indicator will not work if the link is assembled incorrectly.
3
Arrange the cable as above picture.
(Prevent the cable getting stuck)
4

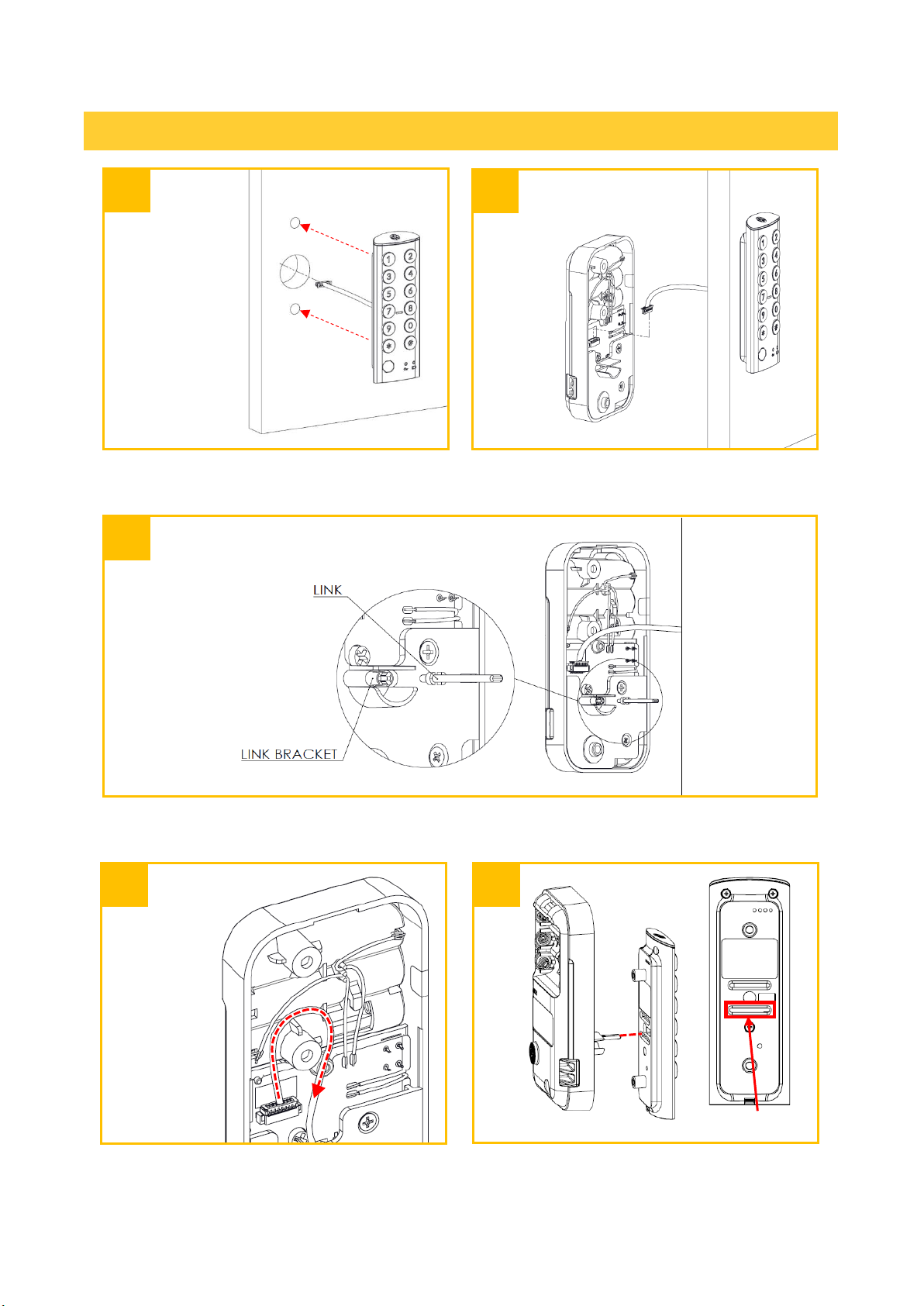

Install LF11-PL for two doors
5
Align front and rear to insert the link
into the link hole.
Link Hole
1
Place the front unit through the lock
mounting holes on the front of the door.

18
6
Hold the front and rear and tighten the
bolt. (Torque: 3 of electric drill)
7
Install batteries (AA Alkaline).
8
Assemble the battery-Cover.
10
Tighten screws into the strike.
11
Test locking and unlocking after
installation. (Refer to the User Guide)
Align the strike to match with center of
the deadbolt.
9
데드랫치

19
2
Connect front cable to the rear.
Insert the link into the link bracket of the rear.
※Caution: In-use indicator will not work if the link is assembled incorrectly.
3
Arrange the cable as above picture.
(Preventing the cable getting stuck)
4
Install LF12-RL for two doors
5
Align front and rear to insert the link
into the link hole.
Link Hole
1
Place the front unit through the lock
mounting holes on the front of the door.

20
6
Hold front and rear and tighten the bolt.
(Torque: 3 of electric drill)
7
Install batteries (AA Alkaline).
8
Assemble the battery-Cover.
10
Tighten screws into the strike.
11
Test locking and unlocking after
installation. (Refer to the User Guide)
Align the strike to match with center of
the deadbolt.
9
데드랫치
