1. Power Switch
2. DR-501A Wireless Receiver Module
3. Antennas
4. Balanced AF XLR Output
5. Unbalanced AF Output (6.3 mm jack)
6. AF Impedance Selection (for 5)
7. DC Power Socket
2
1
4 5 6 7
3
DC INPUT
12 15V/0.6A
Single-channel Diversity Receiver
Illustration
EJ-701DR-PLUS
1

2
1
4 5 6 7
3
DC INPUT
12 15V/0.6A
DC INPUT
12 15V/0.6A
EJ-702DR-PLUS Dual-channel Receiver
1. Power Switch
2. DR-500 Wireless Receiver Module
3. Antennas
4. Balanced AF XLR Output
5. Unbalanced AF Output (6.3 mm jack)
6. AF Impedance Selection (for 5)
7. DC Power Socket
Power Supply
Please use our product‘s
AC Switching Adaptor as
attached.
Illustration
2

AF OUT
LOW/HI
DC INPUT
12 15V/0.6A
AF OUT
LOW/HI
DC INPUT
12 15V/0.6A
Setup Procedure
Signal Connections
1. Connect 6.3 mm mic jack from “Unbalanced AF Output” to amplifier’s “MIC IN”
and set “impedance” at “LOW”. Or connect 6.3 mm mic jack from “unbalanced
AF Output” to amplifier’s “LINE IN” and set “impedance” at “HI”. (The same
way can be applied in EJ-701DR-PLUS / EJ-702DR-PLUS.)
Amplifier
2. If using XLR mic jack, connect it from
”Balanced AF Output” to amplifier’s “AUX IN”.
In order to prevent from the impedance from being too high thus producing
unexpected noise, please set “impedance” at "LOW” if you are connecting
a mic jack to a “low input” in the subordinate device.
3
If your subordinate device is with general input socket (e.g., LINE IN, AUX IN
, etc), please set ”impedance” at “HI” to avoid too low-volume output.
AF Impedance Selection (HI / LOW Control)
Remark: AF Impedance Selection only controls
Unbalanced AF Output (6.3 mm jack).

Turn “Receiver power on/off control” knob (7) clockwise until a click occurs.
A text of “ ” will appear on LCD window for about 2 seconds and it
follows a channel number. The turning-on is successful. To turn it off, just turn
the control counterclockwise until a click occurs. A text of “ ” will appear
on LCD window and will disappear after 2 to 3 seconds.
Press and hold “Up or Down” button (6) for 1 second until channel number is
blinking. Select a desired number through “Up or Down” button (6). A selected
channel number will be confirmed in 1 second if no more adjustment made to it.
Change channel manually
How SYNC works
“ ” function can find a clean channel and assign it to transmitter in the
range, about 3 M. Just turn on your microphone or transmitter first and press
SYNC button, in few seconds the progress will be done. During synchronization,
the RF indicator will blink.
Please complete channel setup in one receiver first and then a second one
when you have more than 1 receiver.
Be sure to give different channel number to each receiver.
Wireless Receiver Module DR-501A

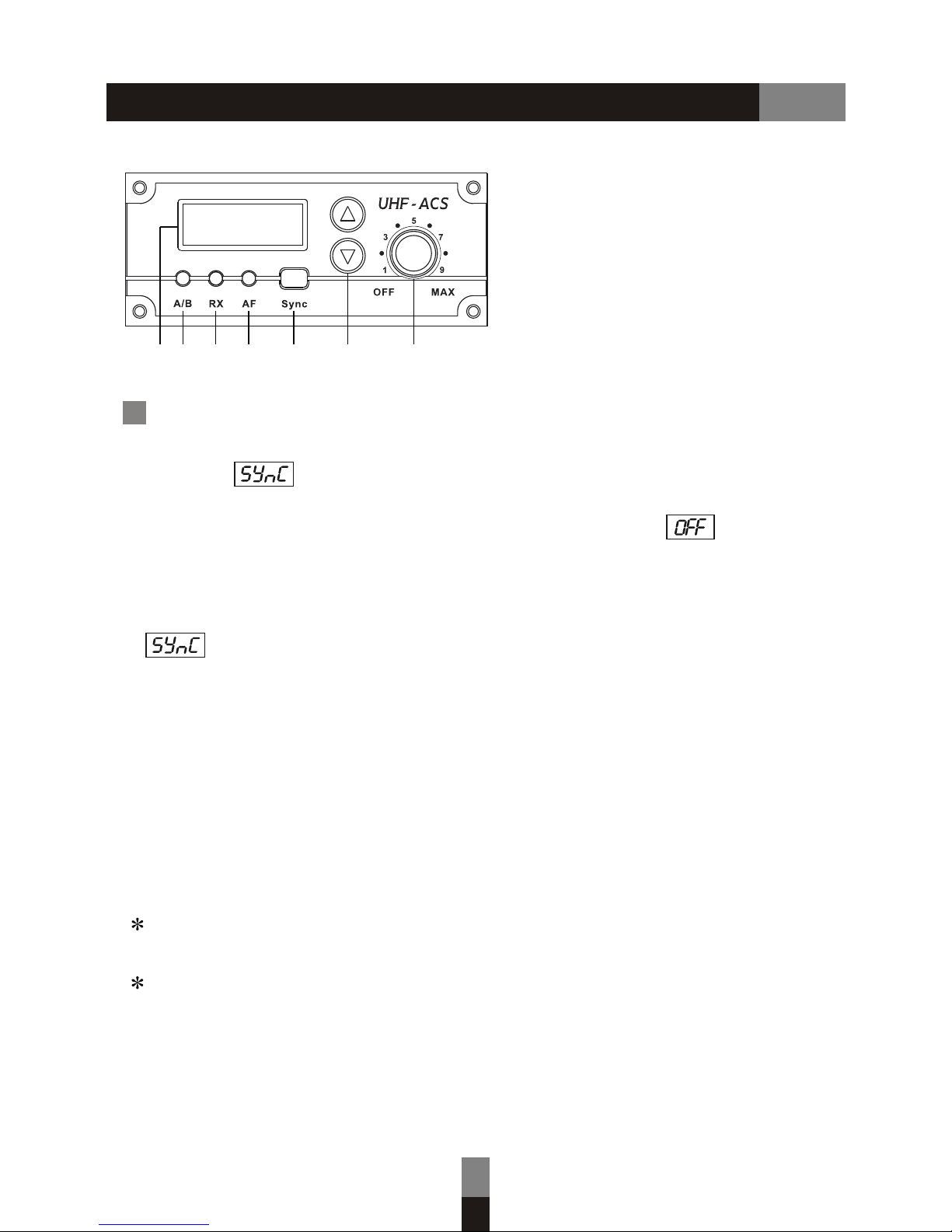

1. LCD Window
2. Antenna A and B indicator
3. RF signal indicator
4. AF signal indicator
5. Synchronization button
6. Channel up / down adjustment
7. Receiver power on / off control
and volume adjustment
Operation and Setting
4
15 6 74
3
2

15
4
3
2
Wireless Receiver Module DR-500
1. LCD Window
(Display Channel Number /
Reception Strength)
2. Channel A
Power Switch and Volume Control
3. Up / Down Frequency Selector
4. Frequency Set Key
5. Channel B
Power Switch and Volume Control
Operation and Setting
Switch on/Switch off
1. Turn “Channel A / B” knob (2) / (5) clockwise until a click occurs, then LCD window
will be on and a text of “On” will appear on LCD window. After 1 ~ 2 seconds,
the LCD window will show a channel number and signal strength, it means the
receiver module switched-on successfully.
2. Vice versa, turn “Channel A / B” knob (2) / (5) counterclockwise until a click occurs,
then LCD window will show a text of “OFF” for about 2 ~ 3 seconds. LCD window will
be off after this procedure, switched-off successfully.
Setting and Selection of Channels
Press and hold “SET” key (4) to enter the mode of selecting the channels
1. While both Channel A and Channel B are available, the channel number of Channel
A shown on LCD window starts to blink. Press “Up” or “Down” Frequency Selector
keys (3) to look for your preferred channel number. Press “SET” key (4) again to
confirm the channel setting.
2. While only Channel A or Channel B is available, switch the channel number of
Channel A or Channel B directly.
3. If you don’t press any key for more than 10 seconds, it will leave the channel-
switching mode with channel number kept.
4. Channel A and Channel B cannot be set with the same channel number.
5
Searching for Available Channels
1. Press “Up” and “Down” Frequency Selector keys (3) simultaneously for more than
1 second, and then LCD window will show a text of without blinking.
Channel A and Channel B will be switched to available channels automatically.
If there is no any channel available, the channel numbers will still remain the same.

7
Press “Up” and “Down” Frequency Selector keys (3) simultaneously on DR-500
module 1 for more than 1 second, you could find two available channels.
4. Using two DR-500 wireless receiver modules simultaneously:
Switch on two Transmitters used for Wireless Receiver Module 1 and adjust
the channel number accordingly.
Press “Up” Frequency Selector key (3) on Wireless Receiver Module 2 for more
than 1 second, you could find available channel for Channel A.
Switch on the third Transmitter used for Wireless Receiver Module 2 and adjust
the channel number accordingly.
Press “Down” Frequency Selector key (3) on Wireless Receiver Module 2 for more
than 1 second, you could find available channel for Channel B.
Switch on the forth Transmitter. Finalize the process of four channels used
simultaneously.
Setting of Group Number and SQ Value
1. Press “Set” key (4) and then switch on Channel A or Channel B to enter Group setting,
and then LCD window would show (number will keep blinking).
2. Press “Up” or “Down” Frequency Selector keys (3) to look for your preferred
group number.
3. Press ”SET” key (4) to confirm the group setting or wait for 5 seconds to confirm
it automatically and then enter setting mode of SQ value.
4. Under setting mode of SQ value, LCD window will show (number will keep
blinking).
5. Press “Up” or “Down” Frequency Selector keys (3) to choose SQ value, the value
will not be set in circulation.
6. Press “SET” key (4) again to confirm the group setting or wait for 5 seconds to
confirm it automatically and then back to normal switching-on mode.
Please keep the distance between the Transmitter and the Receiver more than 2 M.
Please keep the distance between the Transmitter and the Transmitter more than
0.5 M.
2. Press “Up” Frequency Selector key (3) for more than 1 second, and then LCD window
will show , Channel A would be switched to available channel automatically.
If there is no channel available, the channel value would be kept the same.
3. Press “Down” Frequency Selector key (3) for more than 1 second, and then LCD
window will show , Channel B would be switched to available channel
automatically. If there is no channel available, the channel value would be kept
the same.
A
B
CAUTION!
Wireless Receiver Module DR-500
6

1
2
3
4
5
6
7
8
9
10
11
1. Antenna
2. Mute Control
3. Power Switch
4. 3.5 mm push-in (EJ-7T+) or
Mini-XLR (EJ-7XT+) Microphone Input
5. LED Power Indicator
6. Sensitivity Selection
7. AUX In (3.5 mm)
8. Frequency Set
9. LCD Window
10. Turn Up / Down Frequencies Keys
11. Recharge Jack
Operation and Setting
Turn-on
Turn-off
Setting of Channel
Display of Channel
Turn on the “Power Switch” (3), the LCD window will show “On” and the Backlight
& “LED Power Indicator” (5) will be light on. After 1 second, the LCD window will
show channel number and battery life indicator.
Turn off the “Power Switch” (3), the LCD window will show “OFF” with backlight
on, and then turn off.
After turning on the unit, the current channel is shown on the LCD window.
Press “Frequency Set” key (8) for 2 seconds to until the channel number stats to
blink, and then press “Up” or “Down” key (10) to select the channel from 1-96.
Press “Frequency Set” key (8) again to confirm the setting of channel or it will return
back to the original channel number after 10 seconds without pressing “Frequency
Set” key (8).
※The transmitter and the receiver should be set on the same channel.
Press “Up” or “Down” key (10) or press “Up” and “Down” keys (10) simultaneously to
show current frequency value on the LCD window. The LCD window will go back to
normal after releasing fingers from keys.
Wireless Bodypack Transmitter EJ-7T+/EJ-7XT+
7

HDC-707
HDC-702
CAUTION!!
Take out batteries when the devices won’t be operated in a long time.
DO NOT attempt to charge Alkaline battery. It will lead to battery
leakage or even explosion!
The performance of signal transmission is highly
involved with battery energy. Batteries with 1600
mAh (or above) in capacity are recommended.
The optional charger HDC-702 / 707 is an economy
solution for your daily use.
Frequency Pairing
1. After turning on the unit, the frequency pairing will be run once within 10 minutes.
The LED Power Indicator will be light on in blue for three times and the backlight
of LCD window will be on as well while frequency pairing successfully. While
changing to a new channel, the LED Power Indicator will be light on in blue
constantly.
2. Press “Frequency Set” key (8) for less than 2 seconds to enable frequency pairing
function again. During the process of frequency pairing, the LED Power Indicator
will be light on in blue blinkingly together with channel number blinkingly
shown on LCD window. If frequency pairing successfully, new channel number will
be shown on LCD window unblinkingly and the LED Power Indicator will be light on
in blue constantly. If frequency pairing unsuccessfully after turning-on for 20
seconds, it will back to the original channel number with LED Power Indicator light
on in blue constantly and the original channel number remained without blinking.
8
Notice: This function is available while only working with DR-501A.
Wireless Bodypack Transmitter EJ-7T+/EJ-7XT+
