OLG Studio50 Panels User manual

Studio50 Panels
Assembly Instructions

Studio50 Assembly Instructions
2
STEP 3: Align panel slightly to the left of the wall start, move panel to your right to lock
in position and level the panel. Lock at bottom with T-slot nut (STU50TSN) using
3mm allen key.

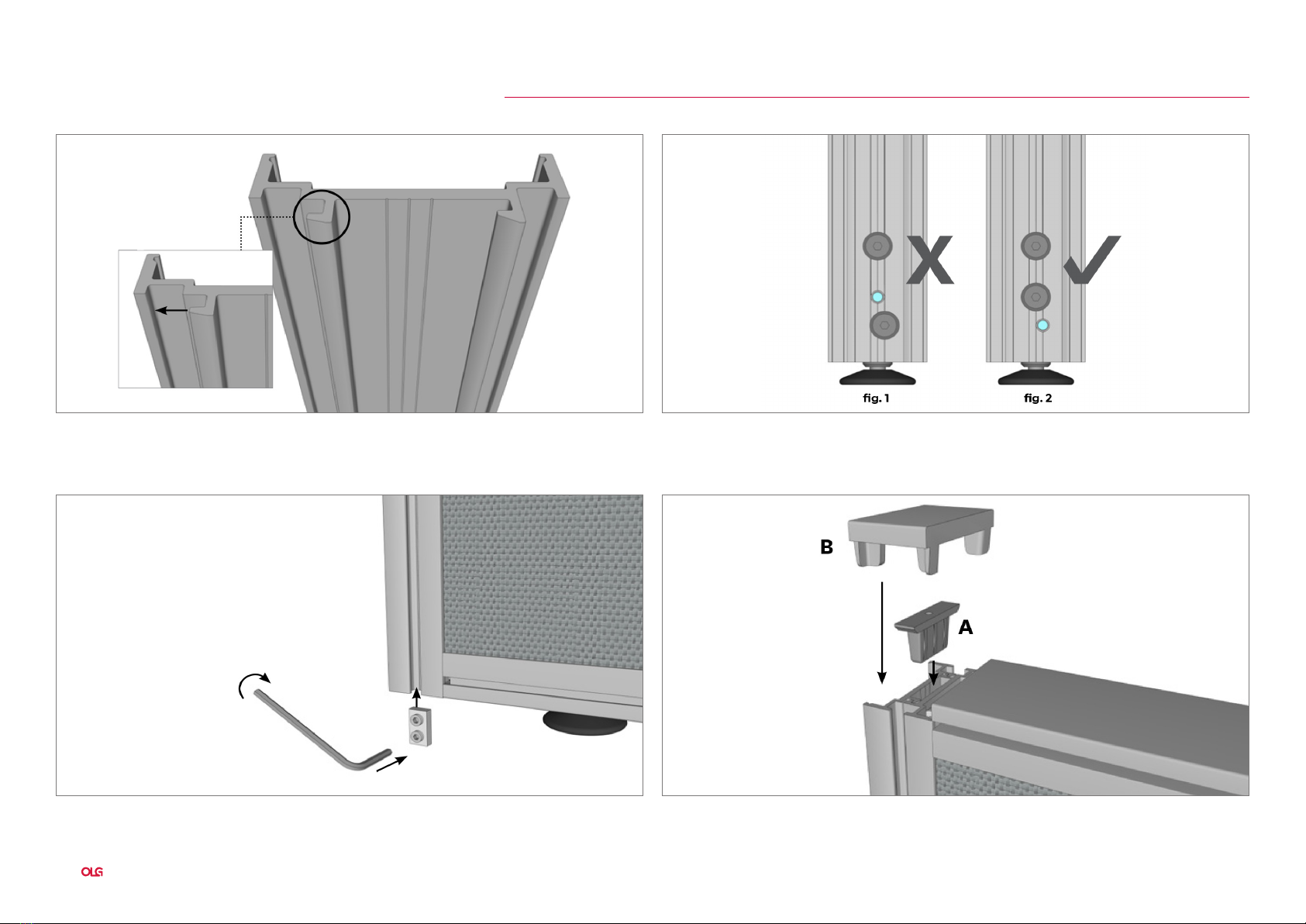

STEP 1: Fix wall start extrusion (STU50SID…./…) vertically to wall. Pack Wall Start Extrusion
to desired distance from wall. Locking tabs should point left when facing you.
STEP 2: Each end of a Studio50 panel has 3 fixing holes at the bottom, but only 2 fixing
screws. The fixing screws at each end are in different positions. Use the end
shown in fig. 2 to attach to Wall Start.
STEP 4: Fit join lock (A) (STU50SLCK) then end cap (B) (STU50RCP/…) to top of panel.
Fixing Studio50 Panel to Wall
Assembly Instructions

Studio50 Assembly Instructions 3

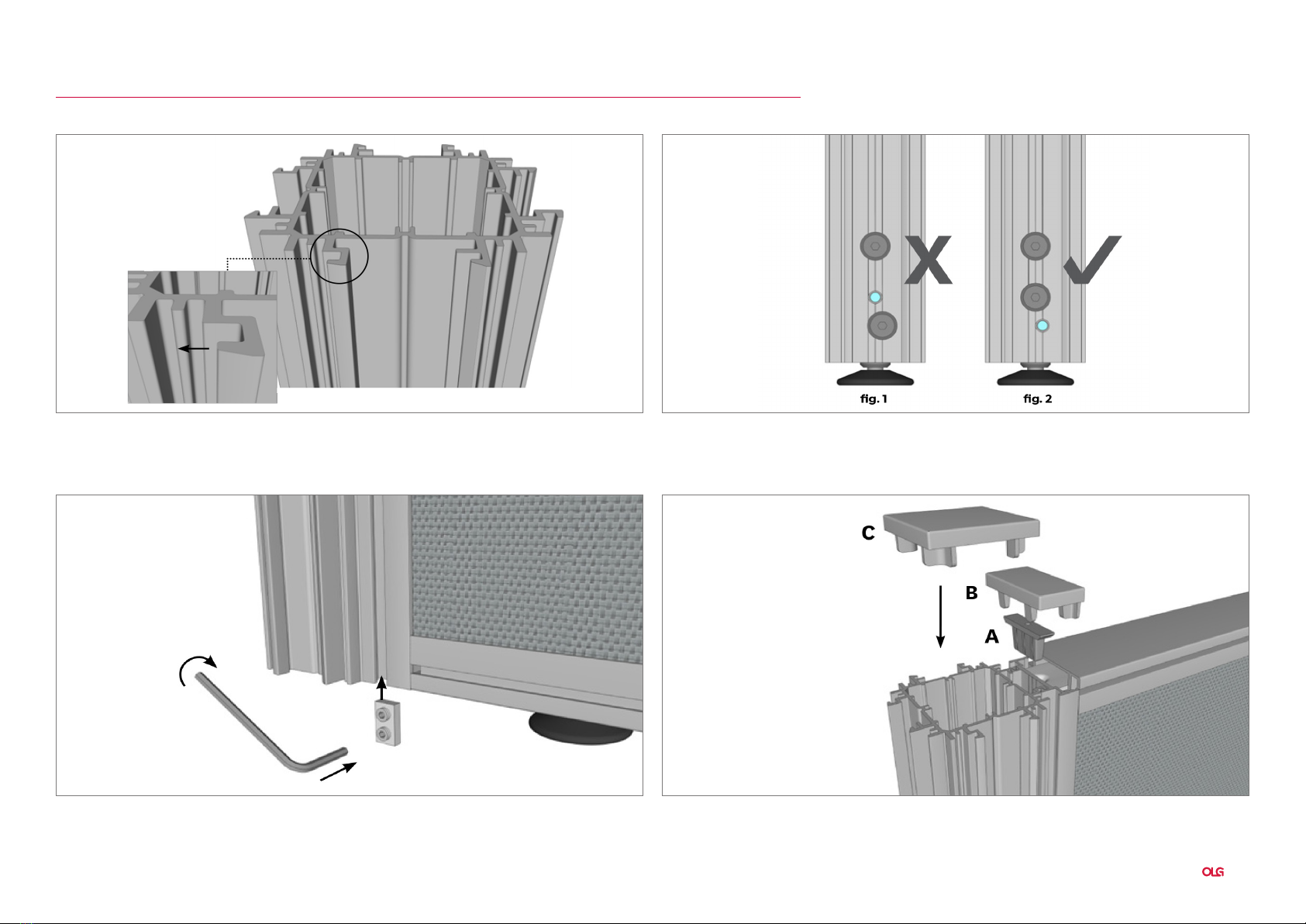

STEP 3: Align panel slightly to the left of the post, move panel to your right to lock in
position and level the panel. Lock at bottom with T-slot nut (STU50TSN) using
3mm allen key.
STEP 1: Locking tabs should point left when facing you. STEP 2: Each end of a Studio50 panel has 3 fixing holes at the bottom, but only 2 fixing
screws. The fixing screws at each end are in different positions. Use the end
shown in fig. 2 to attach to Post.
STEP 4: Fit join lock (A) (STU50SLCK) then end cap (B) (STU50ECP/…) to top of panel and
post cap (C) (STU50PSTCP90/… or STU50PSTCP120/…)
Fixing Studio50 Panel to Post
Assembly Instructions

Studio50 Assembly Instructions
4
STEP 3: Lock at bottom with T-slot nut, using 3mm allen key.
STEP 1: Each end of a Studio50 Panel has 3 fixing holes at the bottom but only 2 fixing
screws. Ensure that these 2 screws are located in the upper and lower fixing
holes. See fig 1.
STEP 2: Raise the top of panel finish extrusion 50mm above top of panel, move Panel
Finish from left to right to engage in position. Slide down to level in position and
auto lock.
STEP 4: Fit join lock (A) (STU50SLCK) then end cap (B) (STU50ECP/…) to top of panel.
Fixing Studio50 Panel End
Assembly Instructions

Studio50 Assembly Instructions 5

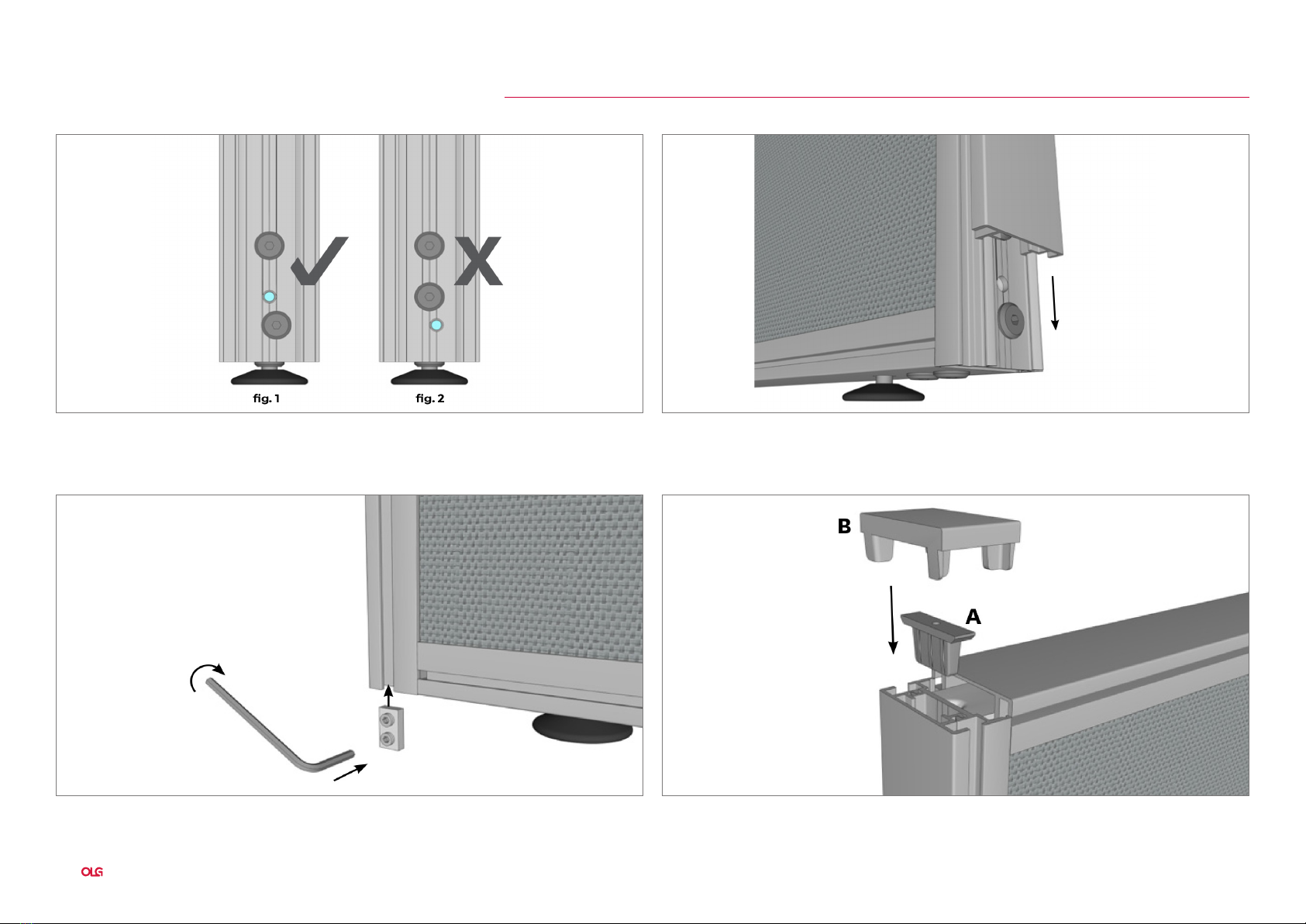

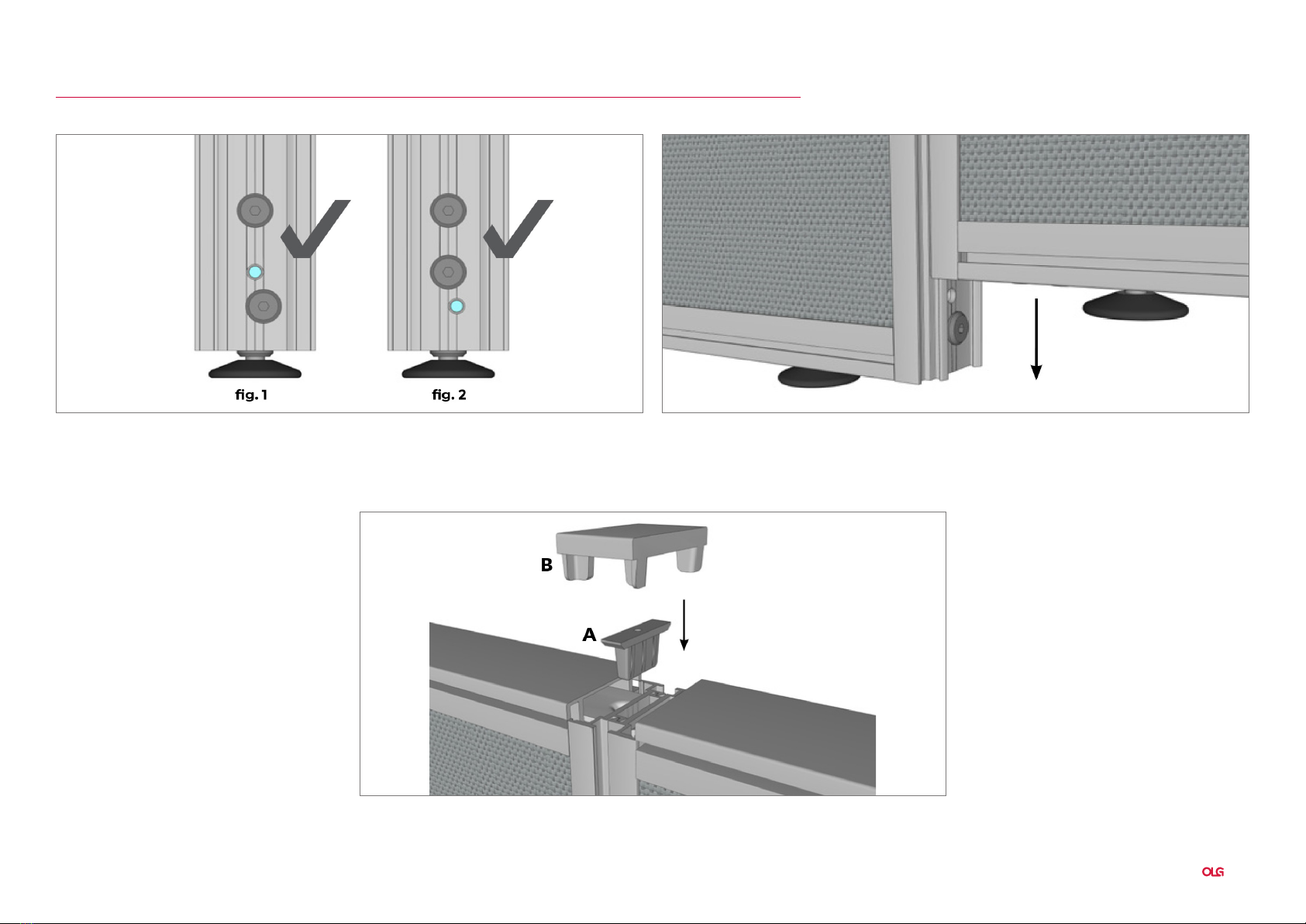

STEP 3: Level panel then fit join lock (A) (STU50SLCK) then run cap (B) (STU50RCP/…) to
top of panel.
STEP 1: Each end of a Studio50 Panel has 3 fixing holes at the bottom but only 2 fixing
screws. Ensure that of the two panel ends to be joined, one has the 2 screws located
in the top and bottom fixing holes See fig 1, and the other the 2 screws located in
the top and middle fixing holes See fig 2. If not, move one screw on one panel end
to the lower off-centre position.
STEP 2: Raise the panel with fixing screws located in top and middle fixing holes about
50mm above the other panel. Move panel from left to right to engage in
position. Slide down to level in position and auto lock.
Joining Two Studio50 Panels
Assembly Instructions

Studio50 Assembly Instructions
6

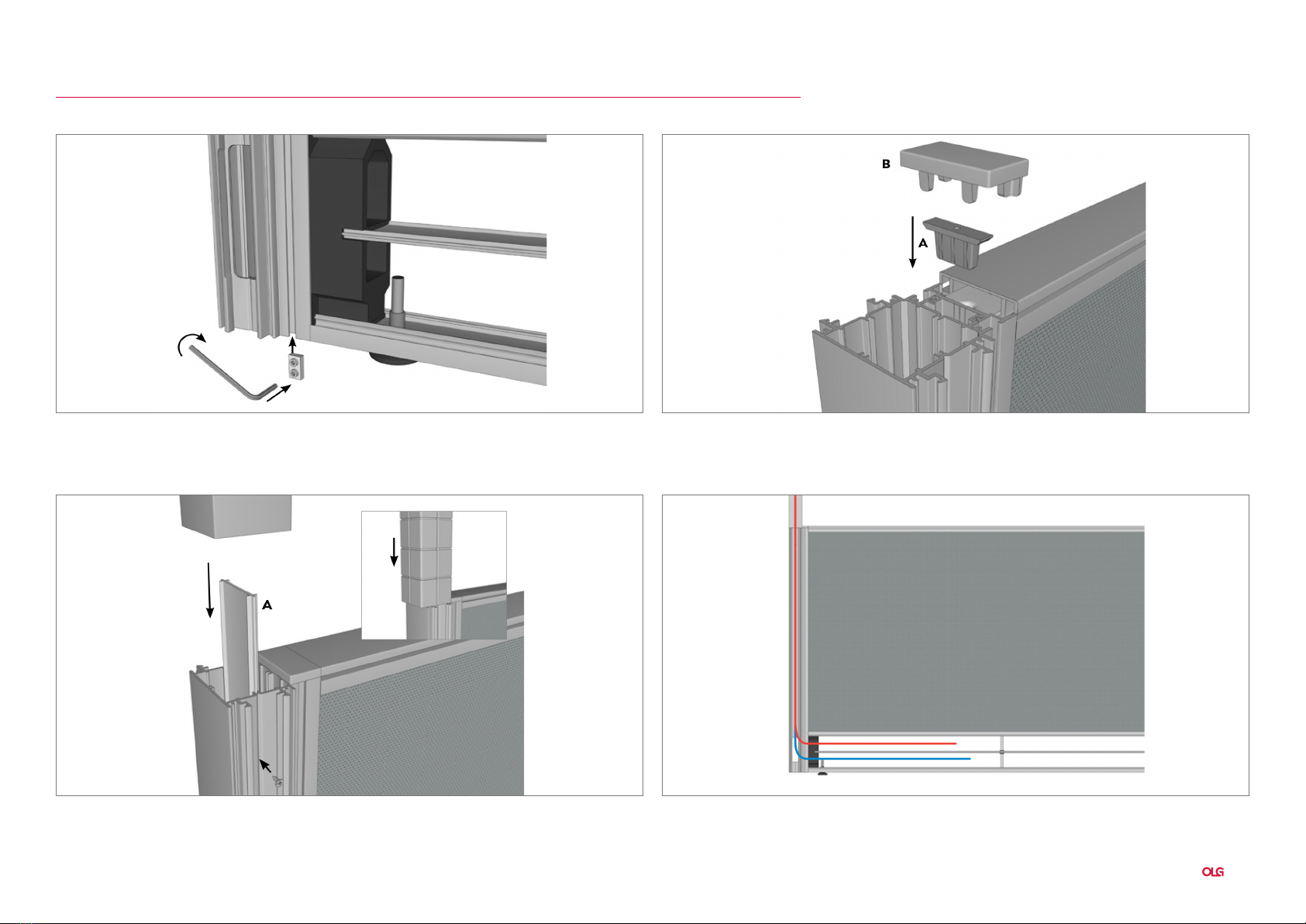

STEP 3: Add powerpole joiner (A), and screw into place with small screw. Slide top half of
powerpole over joiner. Optional, use Qbilical.
STEP 1: Align panel slightly to the left of the post, move panel to your right to lock in
position and level the panel. Lock at bottom with T-slot nut (STU50TSN) using
3mm allen key.
STEP 2: Fit join lock (A) (STU50SLCK) then end cap (B) (STU50ECP/…) to top of panel.
STEP 4: Run cables down through powerpole and into ducting.
Joining Wing Screen Panels
Assembly Instructions

Studio50 Assembly Instructions 7
STEP 3: Add powerpole joiner (A), and screw into place with small screw. Slide top half of
powerpole over joiner. Optional, use Qbilical.
STEP 1: Align panel slightly to the left of the post, move panel to your right to lock in
position and level the panel. Lock at bottom with T-slot nut (STU50TSN) using
3mm allen key.
STEP 2: Fit join lock (A) (STU50SLCK) then end cap (B) (STU50ECP/…) to top of panel.
STEP 4: Run cables down through powerpole and into ducting.
Cable Management Ducting
Assembly Instructions

Studio50 Assembly Instructions
8

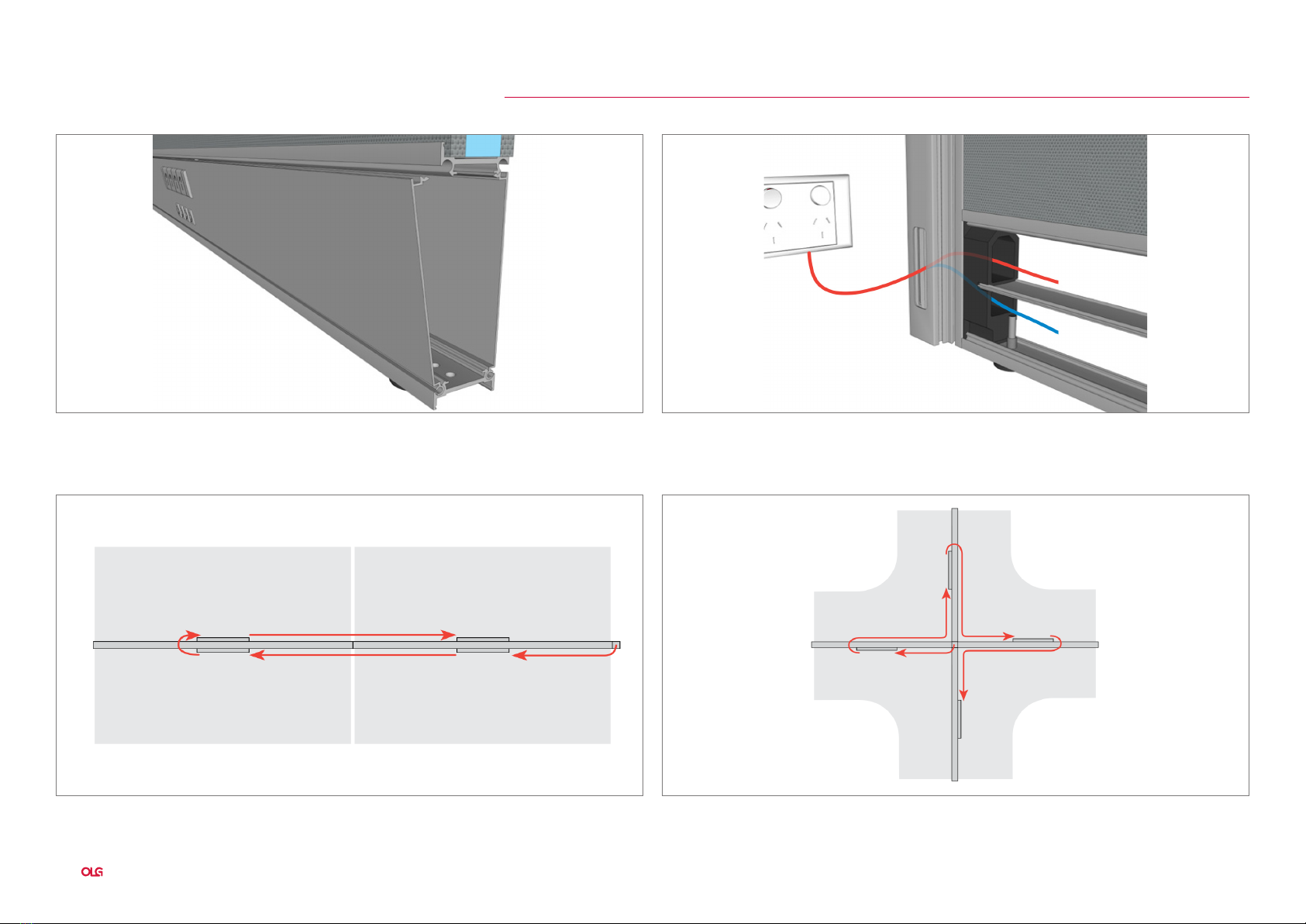

STEP 7: Typical wiring setup for double sided desking.
STEP 5: Clip the ducting cover and plastics in to the bottom of Studio50 panel. STEP 6: Option for wall power outlet.
STEP 8: Typical wiring setup for workstation pods.
Cable Management Ducting
Assembly Instructions

Studio50 Assembly Instructions 9

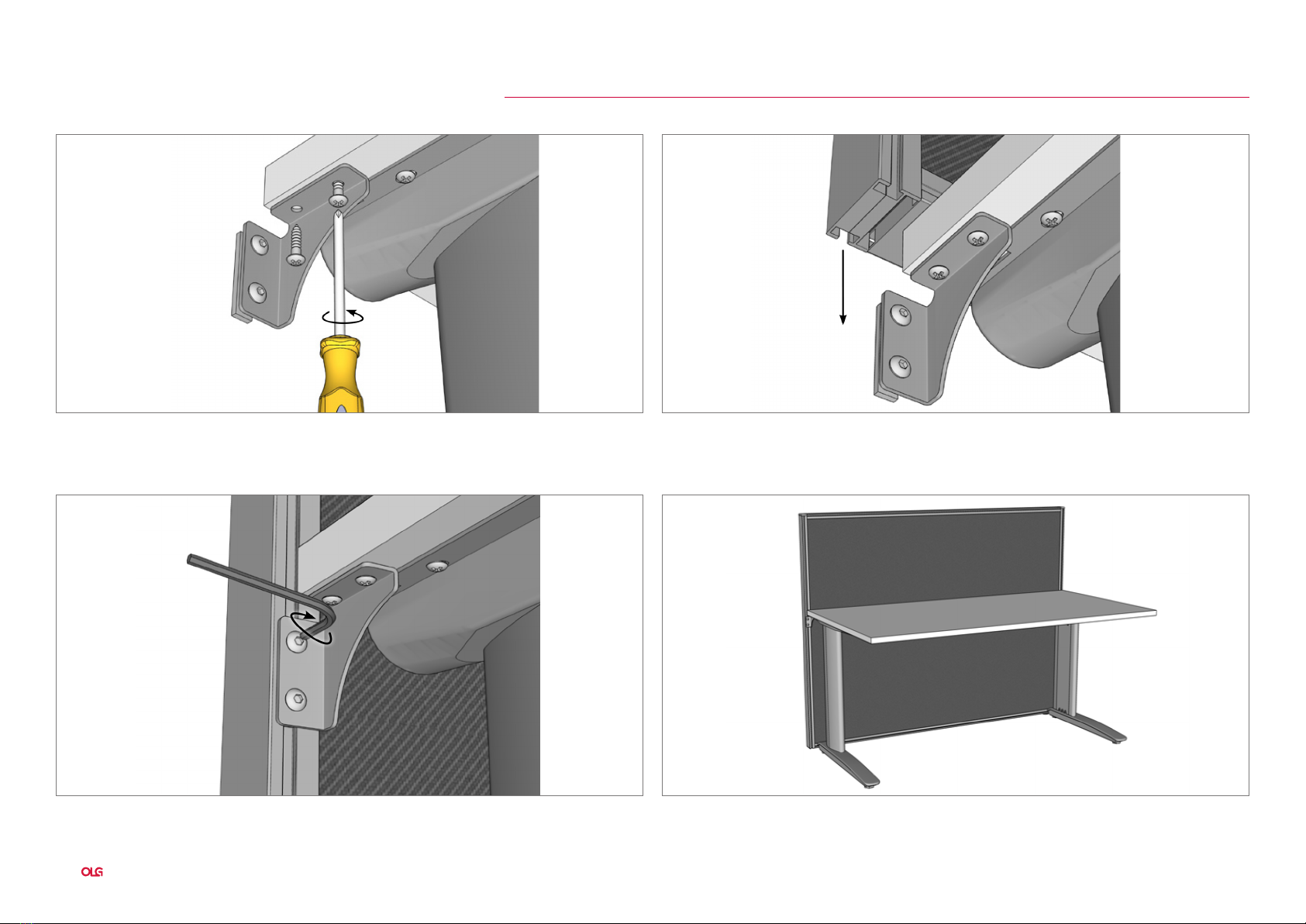

STEP 3: Fully tighten desk screws.

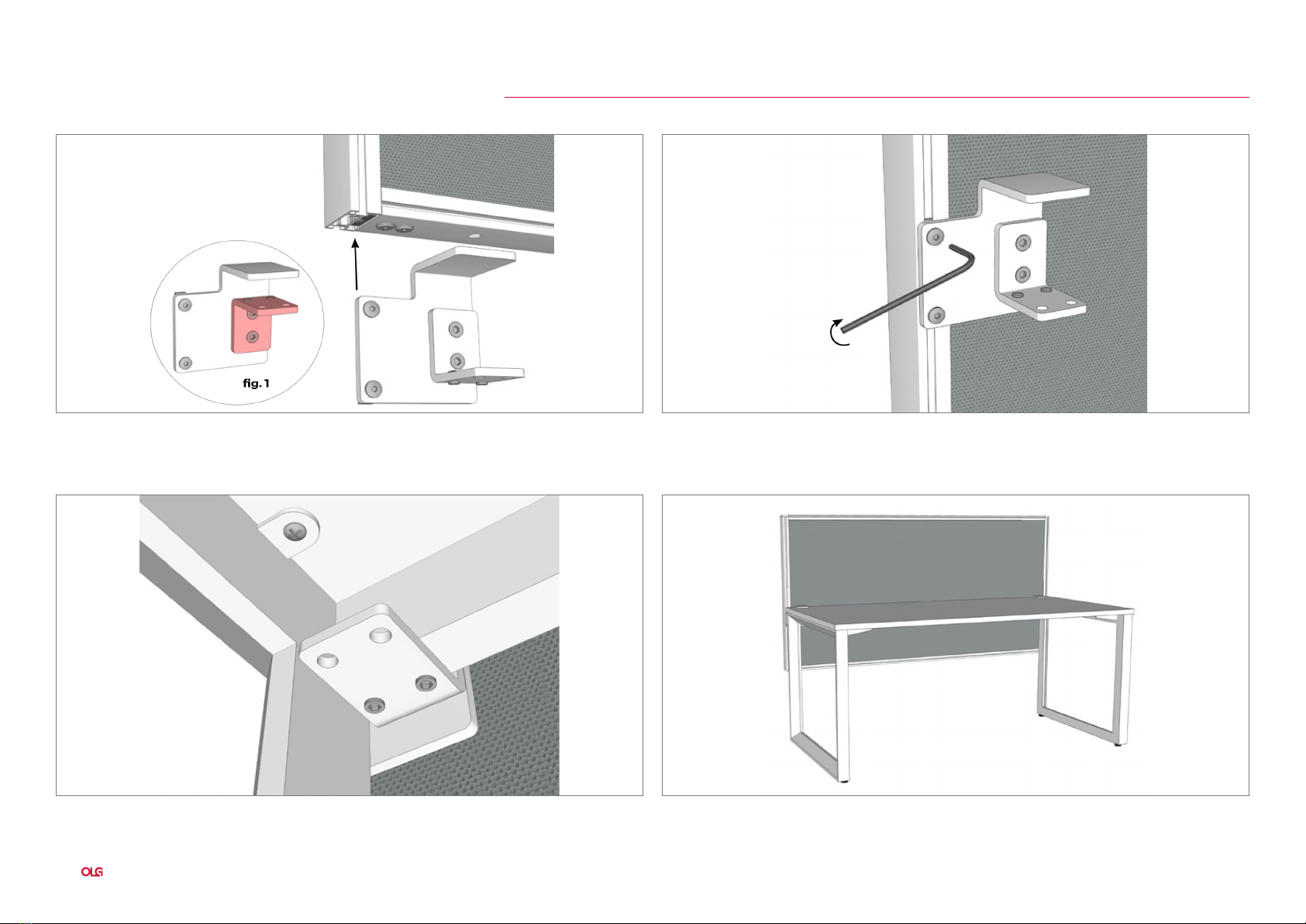

STEP 1: Attach one bracket to each end of screen using screws provided with bracket.
Tip: Fix bracket point ‘A’ 75mm lower than desired screen projection above worktop.
STEP 2: Attach Studio50 panel to desk frame.
Fixing Cubit Desk Brackets STU50CBSB
Assembly Instructions

Studio50 Assembly Instructions
10
STEP 3: Slide the screen onto the back of worksurface, and fully tighten small grub
screws on each bracket.
STEP 1: Slide each bracket up the panel ends.
Note: Clamp can accommodate 25mm and 75mm thicknesses by rotating
highlighted section of clamp in Fig 1.
STEP 2: Locate the top of each bracket 500mm from the top of the Studio50 screen.
Fully tighten screws to lock bracket in place.
Fixing Desk Clamp Brackets STU50CBSB
Assembly Instructions

Studio50 Assembly Instructions 11
STEP 3: Slide the Screen Stabiliser Bracket up. Fully tighten in place with provided self
tapping wood screws.

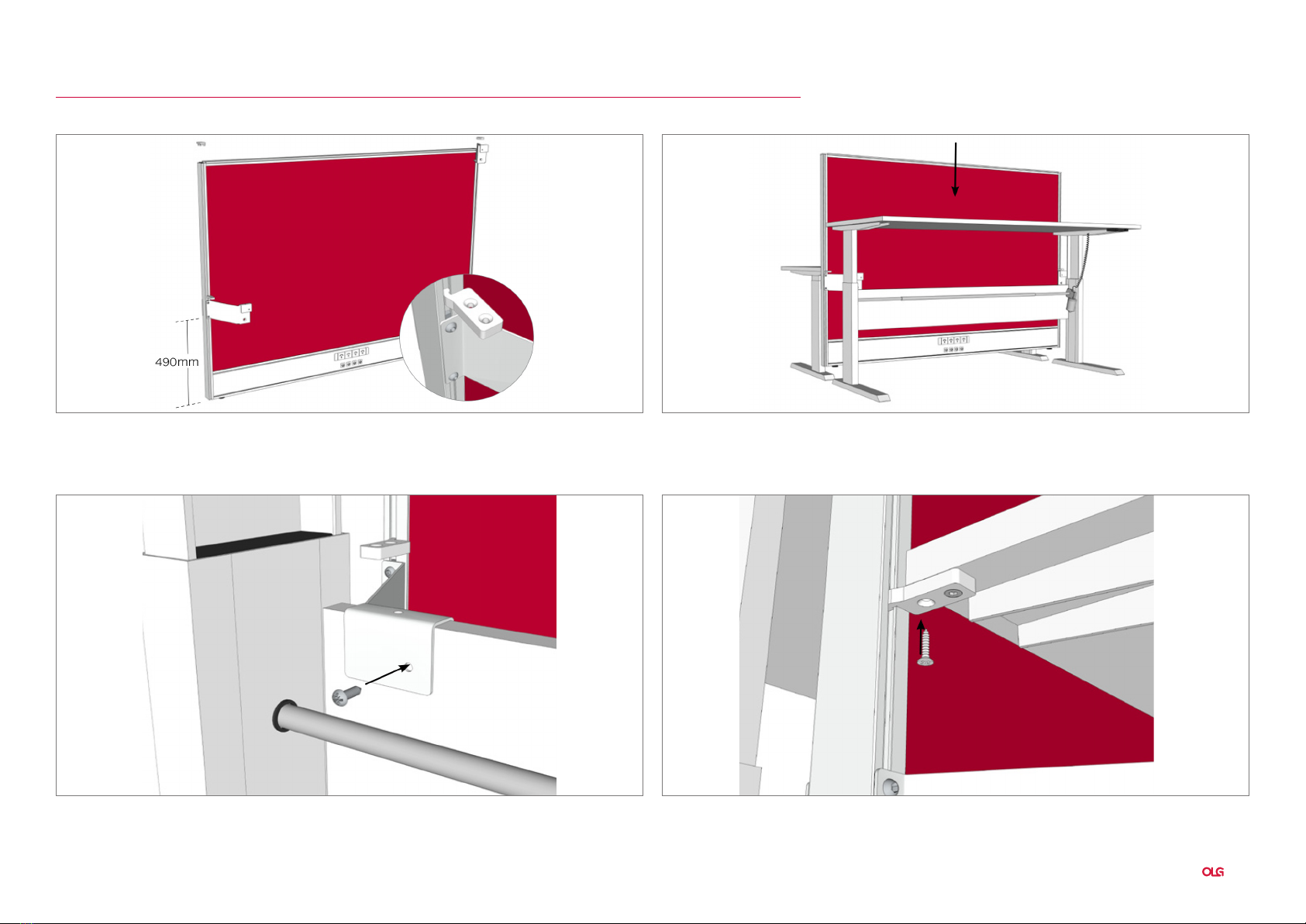

STEP 1: Remove Studio50 End Caps, firstly slide brackets down screen, then slide Screen
Stabiliser brackets down screen. Lightly tighten brackets 490mm from floor.
STEP 2: Lift and slide screen so the brackets clamp over the desk modesty.
Fixing Electric Highrise Brackets CBEASB
Assembly Instructions
STEP 4: Screw self-tapping screws through brackets into modesty panel on both sides of
the Studio50 screen. Fully tighten screws on brackets into Studio50 screens.

Studio50 Assembly Instructions
12
STEP 3: With screen in place, fully bracket screws to the screen, then fully tighten screws
into desktop.
STEP 1: Place brackets in the position shown below. Tighten the screws so that the
bracket can still move a little.
STEP 2: With brackets in place, lift screen above the desk, and slide Studio50 panel onto
brackets.
Fixing Desk Mounted Brackets STUSWB60
Assembly Instructions

Studio50 Assembly Instructions 13

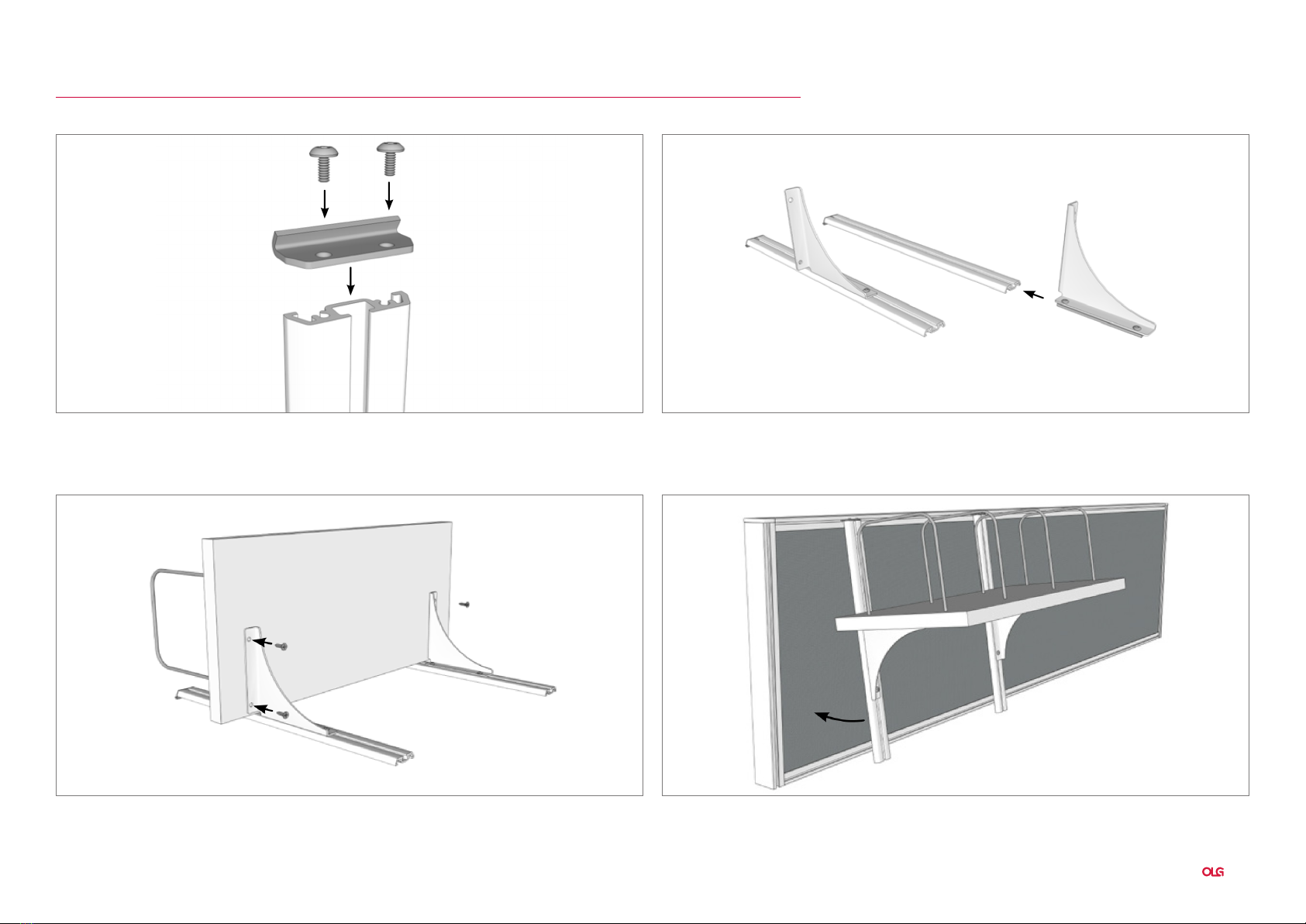

STEP 3: Fully tighten screws through 150mm brackets into shelf.
STEP 1: Fix top hook (STU50ACS/Z) to shelf extrusion. STEP 2: Slide 150mm brackets into shelf extrusion, and tighten screws with both brackets
in the same location.
Fixing Shelf & Brackets STUSWB150
Assembly Instructions
STEP 4: Clip top hooks into screen.

Studio50 Assembly Instructions
14

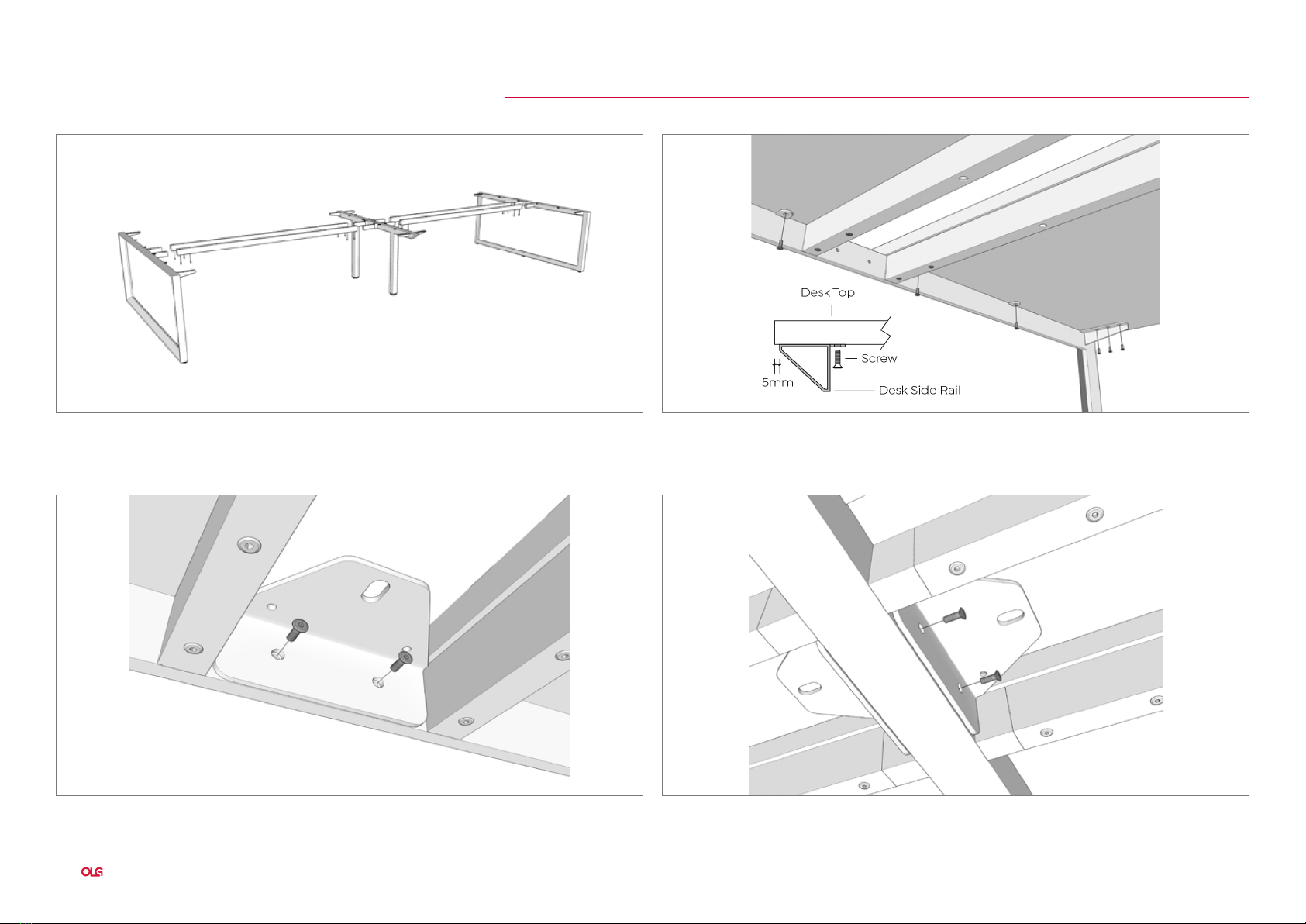

STEP 3: Assemble screen brackets firmly to frames (inside of end leg frame).
STEP 1: Assemble frames & rails together, loosely (1 turn from tight). STEP 2: Fix desk top to frame with 5mm overhang over metal frame. Where desktops
butt together, make sure these are fitted tight together.
STEP 4: Firmly assemble screen brackets to frames, ensuring the top of the screen
bracket is flush/level with the top of the frame (middle leg).
Studio50 for Straightline Desking
Assembly Instructions

Studio50 Assembly Instructions 15

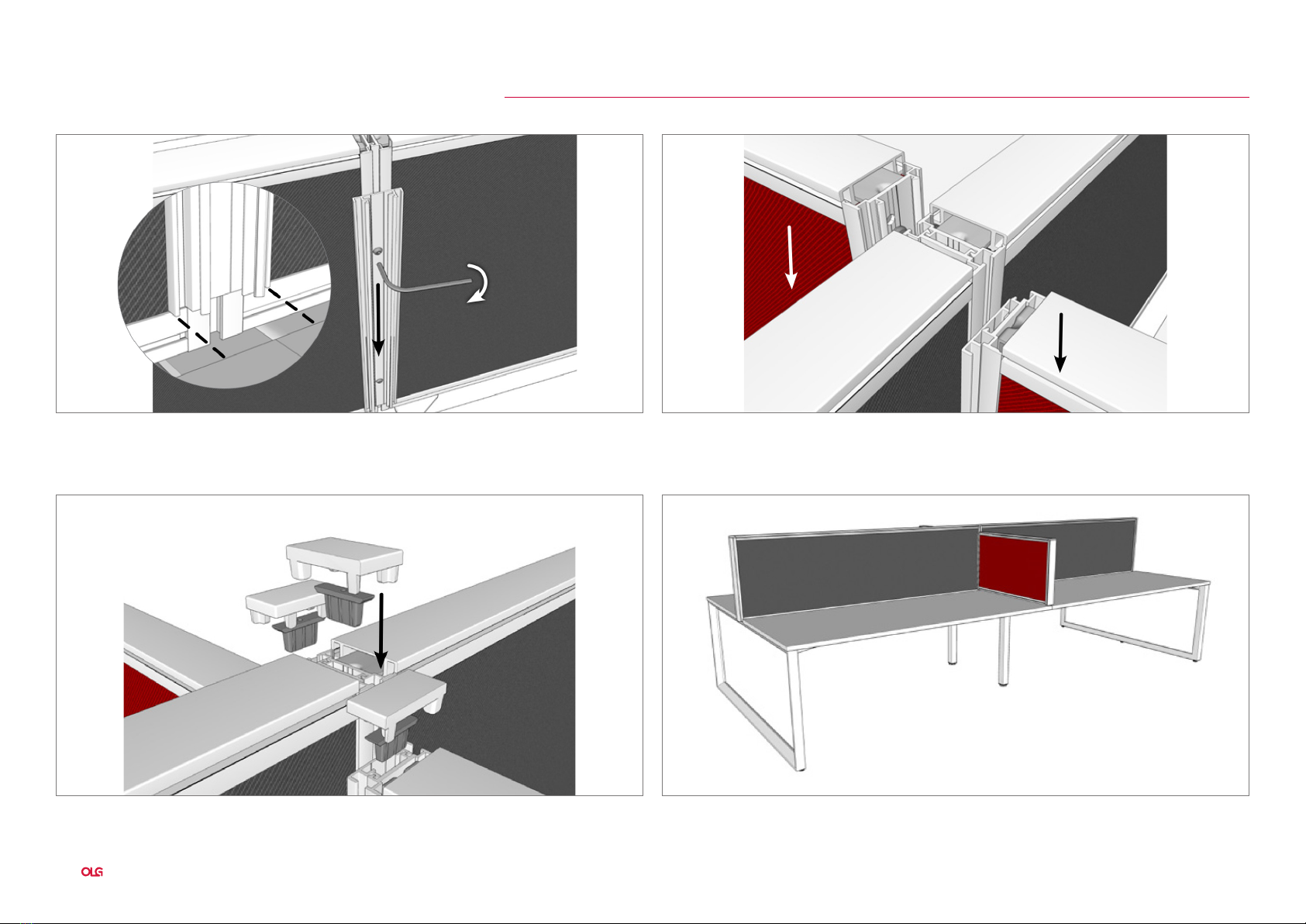

STEP 7: Slide the second screen down onto first using the auto lock system to fix the
second screen, and screw the large bolts underneath to lock screens in place.
STEP 5: Place the first screen on desk frame/screen brackets, with the end of the screen
overhanging the work top by 5mm.
STEP 6: Firmly screw large bolts through brackets into the base of screen.
Studio50 for Straightline Desking
Assembly Instructions

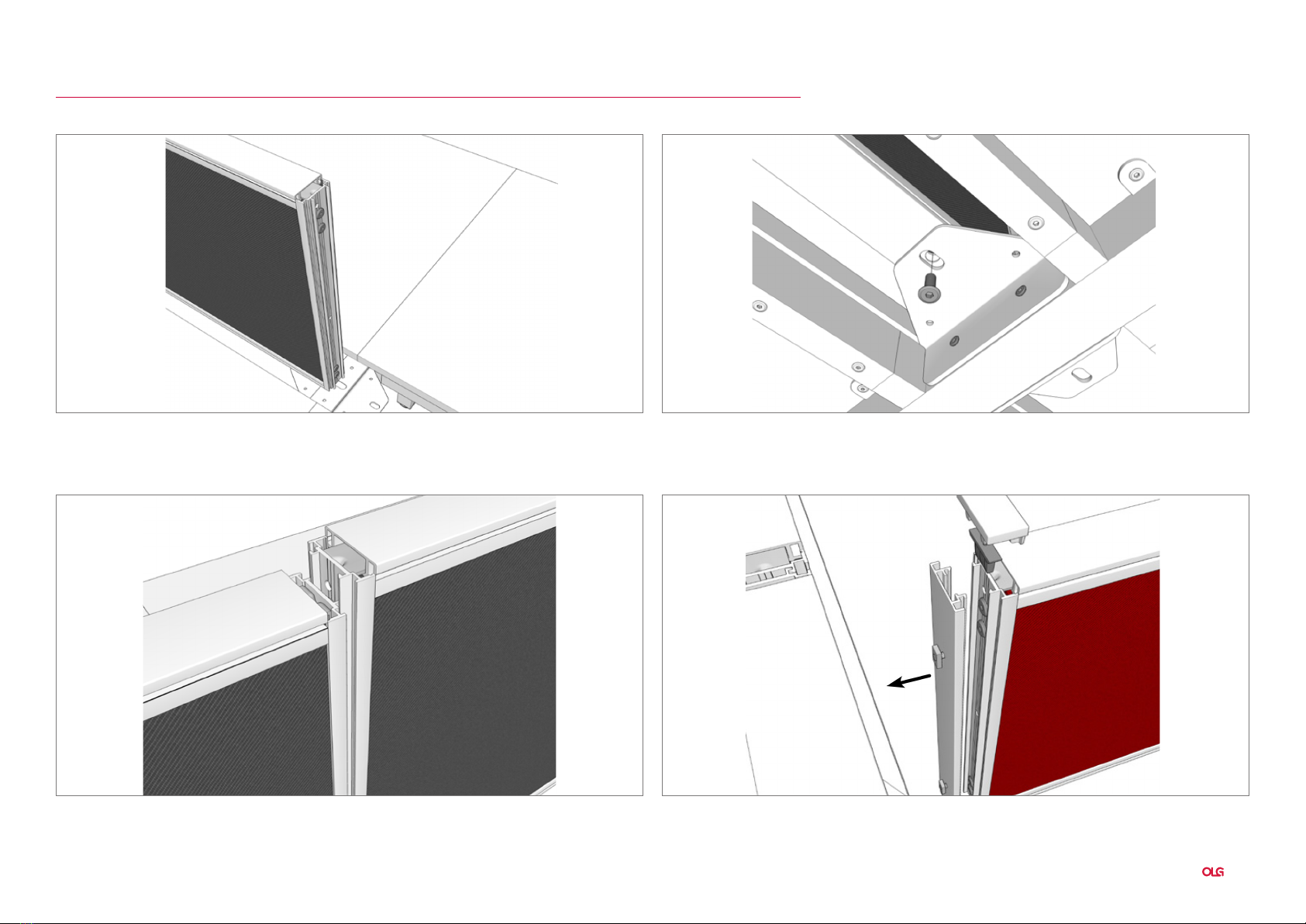

STEP 8: Remove the top cap and locking slug from the end of the wing screens that
contain the small grub screws. Take the end panel off the screen

Studio50 Assembly Instructions
16
STEP 11: Install all locking slugs, and end caps, gently tapping with a soft non-marking
mallet if required.
STEP 9: Slide this wing screen end panels down the join between the centre screens.
Line the bottom of this panel with the top of the work surface, and firmly tighten
in place.
STEP 10: Slide the wing screens onto the end panels.
Studio50 for Straightline Desking
Assembly Instructions

Studio50 Assembly Instructions 17

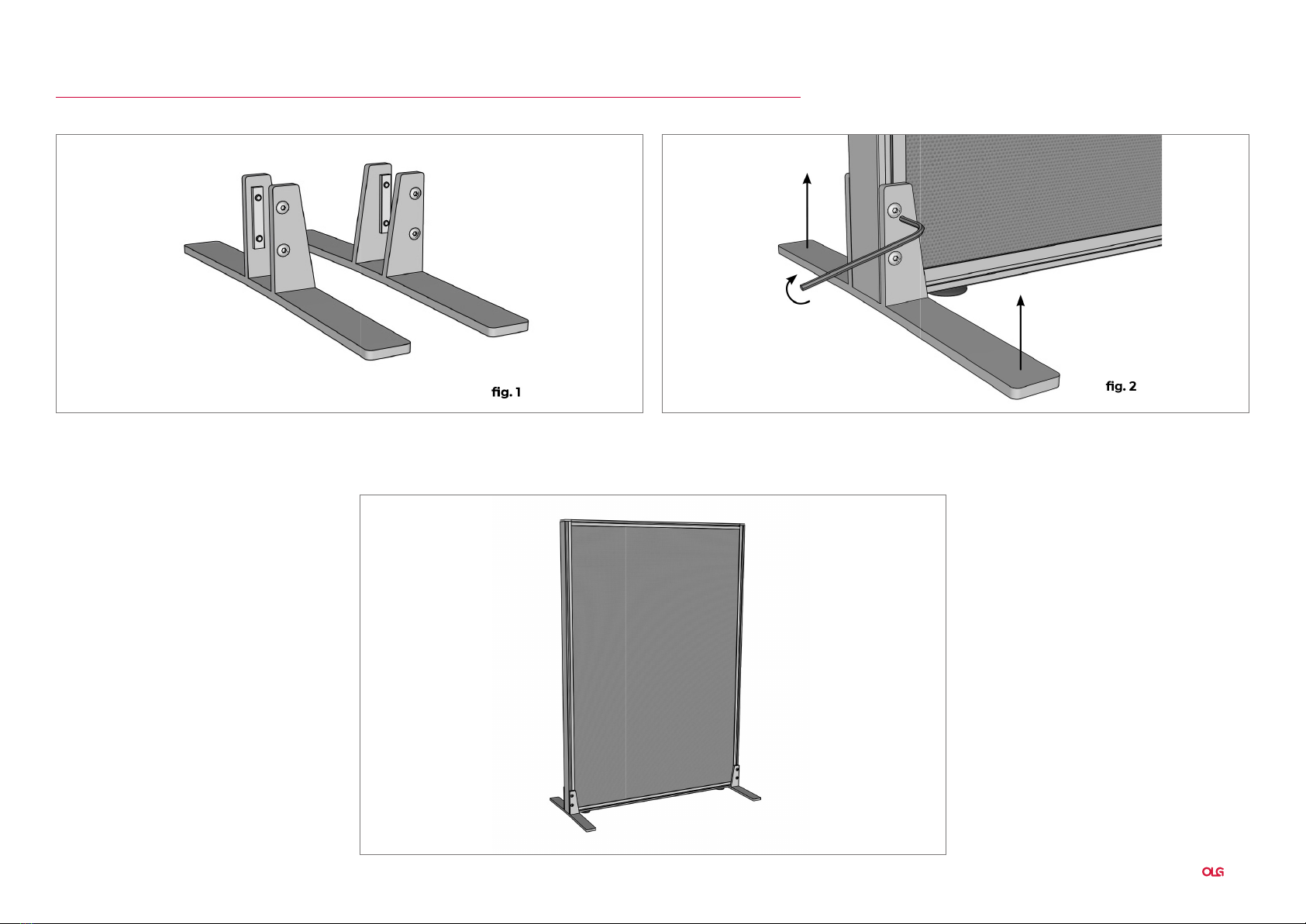

STEP 1: Lift screen and slide freestanding foot fig 1 up on to screen from the bottom, as
shown in fig 2.
STEP 2: Fully tighten bracket screws.
Fixing Freestanding Feet STU50FSF40
Assembly Instructions
